2AGSJ-G100Solar iBeacon

GCell iBeacon – Quick Start Guide Thank you for your purchase of the GCell iBeacon developer kit samples. This guide provides a quick reference for setup and configuration. Please visit www.gcell.com for detailed user guides 1.Lightly press the configuration beacon twice to enter configuration mode. The LED will flash RED. 2.Enter the 4-digit passcode (default code ‘1234’). Note – set a new passcode in the app when configuring the iBeacon 3.Configure the required parameters of the device like UUID, Major, Minor, Local Name, Owner and Location. 4.Configure the device transmission characteristics: a.Transmit Rate (100ms, 200ms, 350ms, 700ms, 1000ms, 2000ms) b.Transmit Power (0dBm = 20m or -20dBm = <5m) 5.Energy Saving Mode – Select Lux sensor enable / disable, this allows the device to switch off during nighttime to conserve energy for application which don’t require nighttime operation. 6.Select ‘Enable Beacon’ to update the configured parameters Construction G24 POWER LTD Imperial Park, South Lake Drive Newport NP10 8AS PHONE +44 (0) 1633 654224 WEB www.gcell.com Configuration button Mounting Bracket Cable tie locations Indoor solar cell LED – Mode indication Configuration FCC Interference Statement for Class B devices This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Industry Canada This apparatus complies with Canadian ICES-003. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement Regulatory Configuration mode Passcode Settings Settings Broadcasting Beacons EMAIL [email protected]

G24 Power Limited, South Lake Drive, Imperial Park, Newport, NP10 8AS, United Kingdom www.GCell.com / [email protected] / tel: +44 (0) 1633 654 200 / fax: +44 (0) 1633 654 233 GCell is a trademark of G24 Power Limited / Registered in England and Wales: 8291461 / VAT number: 156947859 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 12.12.15 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AGSJ-G100 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Roland Becker Director RB-WWS Limited

G24 Power Limited, South Lake Drive, Imperial Park, Newport, NP10 8AS, United Kingdom www.GCell.com / [email protected] / tel: +44 (0) 1633 654 200 / fax: +44 (0) 1633 654 233 GCell is a trademark of G24 Power Limited / Registered in England and Wales: 8291461 / VAT number: 156947859 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 12.12.15 Request for Confidentiality Company name: G24 Power Limited FCC ID: 2AGSJ-G100 FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.459, G24 Power Limited hereby requests confidentiality of following attachments: (1) schematic diagrams, (2) detailed block diagrams, (3) detailed operational descriptions, (4) parts lists. These documents contain detailed system and equipment description and related information about the product which G24 Power Limited considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, G24 Power Limited considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature Roland Becker Director RB-WWS Limited Room 2108, 21/F., C C Wu Building 302-308 Hennessy Road, Wanchai, Hong Kong

G24 Power Limited, South Lake Drive, Imperial Park, Newport, NP10 8AS, United Kingdom www.GCell.com / [email protected] / tel: +44 (0) 1633 654 200 / fax: +44 (0) 1633 654 233 GCell is a trademark of G24 Power Limited / Registered in England and Wales: 8291461 / VAT number: 156947859 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 12.12.15 Request for Short Term Confidentiality, intended to allow importation / distribution of authorized equipment while maintaining confidentiality before product launch Company name: G24 Power Limited FCC ID: 2AGSJ-G100 FCC Part 15 Certification Gentlemen, In accordance with 0.457 and 0.459 of CFR 47, G24 Power Limited hereby requests for ‘Short Term Confidentiality’ of all • External Photos, • Test Setup Photos, • User’s Manual, • Internal Photos, attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which G24 Power Limited considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, G24 Power Limited considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature Roland Becker Director RB-WWS Limited

Report No.: C151215Z02 1 / 1 External Photos of EUT

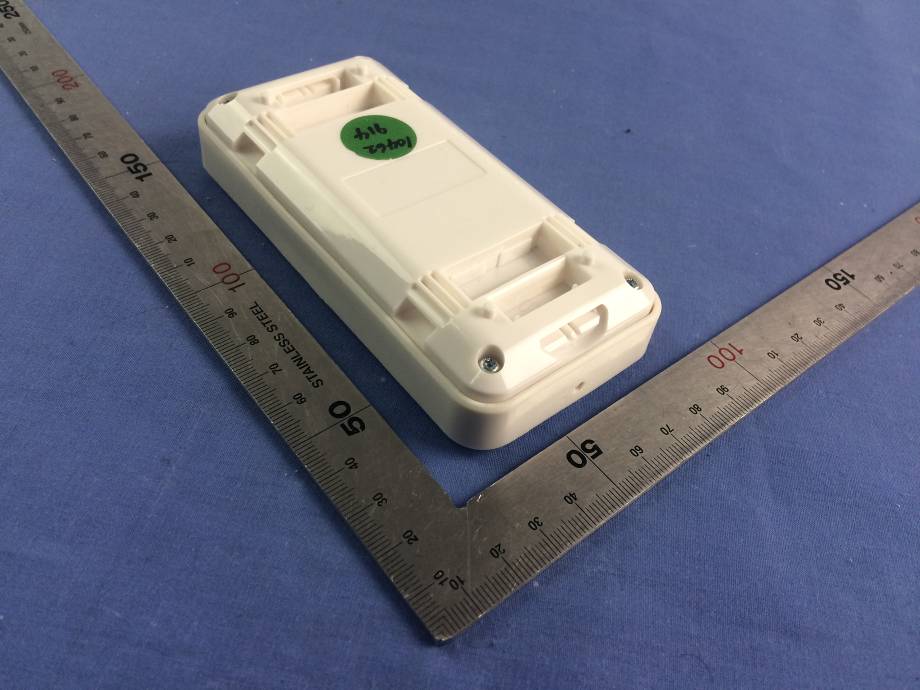

Report No: C151215Z02 Page 1 / 5 Internal Photos of EUT Report No: C151215Z02 Page 2 / 5 Antenna RF module Report No: C151215Z02 Page 3 / 5 Report No: C151215Z02 Page 4 / 5 Report No: C151215Z02 Page 5 / 5

G24 Power Limited, South Lake Drive, Imperial Park, Newport, NP10 8AS, United Kingdom www.GCell.com / [email protected] / tel: +44 (0) 1633 654 200 / fax: +44 (0) 1633 654 233 GCell is a trademark of G24 Power Limited / Registered in England and Wales: 8291461 / VAT number: 156947859 Declaration concerning Antenna Specification It is hereby declared that the product Model No.: G100 FCC ID: 2AGSJ-G100 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type described below: Model No. of antenna: n/a Type of antenna: PCB antenna Gain of the antenna: 5,5 dBi Frequency range: 2400-2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: G24 Power Limited Address: South Lake Drive, Imperial Park City: Newport ZIP / Postal code: n/a Country: United Kingdom Place: Hong Kong Date: 2015-12-12 Signature:

FCC RF Exposure FCC ID: 2AGSJ-G100 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Portable Device Refer Standard: KDB 447498 D01 General RF Exposure Guidance v05r02 FCC Part 2 §2.1093 Evaluation method According to KDB447498 D01 General RF Exposure Guidance v05r01Section 4.3.1 Standalone SAR test exclusion considerations:“ Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Conducted Power Results Bluetooth Mode Channel Frequency(MHz) Conducted Output Power (dBm) GFSK 01 2402 -1.11 20 2440 -1.40 40 2480 -1.60 Manufacturing tolerance Bluetooth GFSK Channel Channel 01 Channel 20 Channel 40 Target (dBm) -1.0 -1.0 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT* 2.450 5 0 1.0 0.3<3.0 Yes Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v05r02. .......................End of Report.........................
