2AGZM-B11017RRLT System

WISER Systems Installation Manual & Quick Start Guide Version 2.12.2 P a g e | 2 WISER Systems, Inc. 819 W Hargett St www.wisersystems.com Raleigh, NC 27603 Copyright © 2020 919-551-5566 Wireless Tracking and Locating in Real Time WISER Redundant Radio Localization & Tracking (RRLT) Locator System Installation Manual & Quick Start Guide Version 2.12.2 November, 2019 Wiser Locator System CONFIDENTIAL DOCUMENT This is a confidential document for client purposes only. Distribution and reproduction of this document is limited to employees of WISER Systems, Inc., its customers, and resellers. Any other disclosure of this document is unauthorized and not considered public knowledge. P a g e | 3 WISER Systems, Inc. 819 W Hargett St www.wisersystems.com Raleigh, NC 27603 Copyright © 2020 919-551-5566 Quick Start Guide Table of Contents Introduction .................................................................................................................................................... 4 Chapter 1. Setting up the System ........................................................................................................... 5 1.1 Physical Setup ....................................................................................................................................... 5 1.2 Floorplan Scaling ................................................................................................................................. 7 1.3 Software Guide ..................................................................................................................................... 7 Chapter 2. Additional Software Features .......................................................................................... 15 2.1 Additional Tracking Features ......................................................................................................... 15 2.2 Naming, Finding, and Filtering Assets ........................................................................................ 17 2.3 History Playback Controls .............................................................................................................. 18 2.4 Geofences ........................................................................................................................................... 19 2.5 Antenna Groups ............................................................................................................................... 20 2.6 Gateways ............................................................................................................................................. 21 2.7 System Health Info .......................................................................................................................... 22 2.8 Updating Firmware.......................................................................................................................... 22 2.9 Geo Staking ....................................................................................................................................... 23 Chapter 3. Menu Map & Keyboard Shortcuts ................................................................................ 24 Keyboard Shortcuts ................................................................................................................................ 27 Report an Issue ........................................................................................................................................... 28 REST API ......................................................................................................................................................... 28 Disclaimer ...................................................................................................................................................... 28 FCC Regulations .......................................................................................................................................... 28 Industry Canada Regulations ................................................................................................................ 29 Contact Information ................................................................................................................................. 30 P a g e | 4 WISER Systems, Inc. 819 W Hargett St www.wisersystems.com Raleigh, NC 27603 Copyright © 2020 919-551-5566 Introduction The WISER Locator leverages new advances in ultra-wideband (UWB) technology to deliver low cost, high accuracy, real-time localization and tracking. This solution consists of a mesh network of two-way WISER Antenna Nodes and WISER Tracker Tags. Each Antenna may act interchangeably as either an antenna or a roaming device that may be tracked within the mesh. The following manual provides instructions on how to get started quickly with a demonstration of the system and how to use standard system features. Parts Your evaluation kit will include: 1. Five or more WISER Antennas 2. WISER Tracker Tags 3. USB Power Banks 4. USB Power Adapters 5. USB Extension Cables Users may alternatively purchase their own USB power banks and power adapters; however, it is required that these accessories comply with RF emission limits established by the Federal Communications Commission (FCC) (Section 15.27(a)). The image below shows an example of the hardware that may be included. P a g e | 5 WISER Systems, Inc. 819 W Hargett St www.wisersystems.com Raleigh, NC 27603 Copyright © 2020 919-551-5566 Chapter 1. Setting up the System 1.1 Physical Setup This setup assumes you have five Antennas. Four or more of these Antennas will establish the mesh. One will be plugged into the base station laptop; this Antenna also contributes to the mesh. One Antenna may serve as a roaming device. First, identify an area within which you wish to track, such as a small shop floor or office space. It is helpful to have a to-scale image of the floorplan (BMP, PNG, JPG) of the area pr…

Text truncated - open the document above for the full version.

WISER Systems, Inc. 819 W Hargett St www.wisersystems.com Raleigh, NC 27603 Copyright © 2020 919-551-5566 Date: 5/28/2020 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AGZM-B11017 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Operational Description 2AGZM-B11017 BlkDia.pdf 2AGZM-B11017 Schem.pdf 2AGZM-B11017 OpDes.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Elaine Rideout, Ph.D. Elaine C. Rideout (May 28, 2020 16:04 EDT)

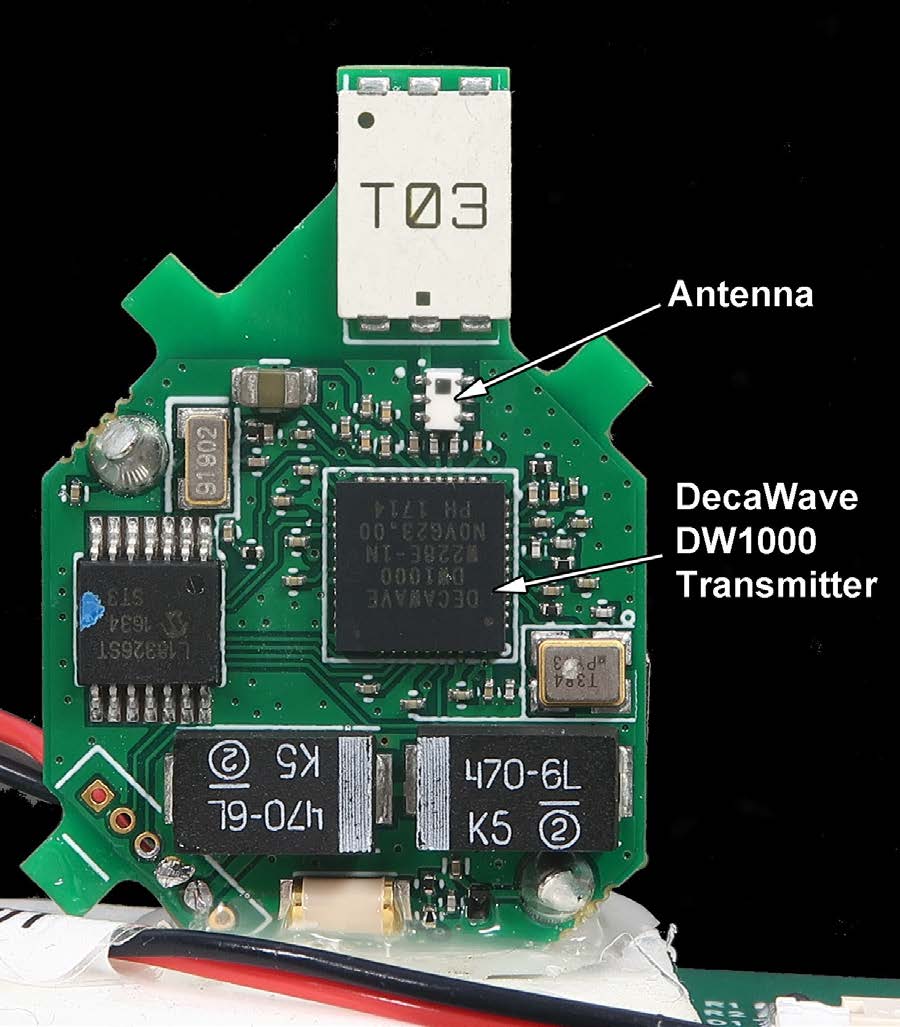

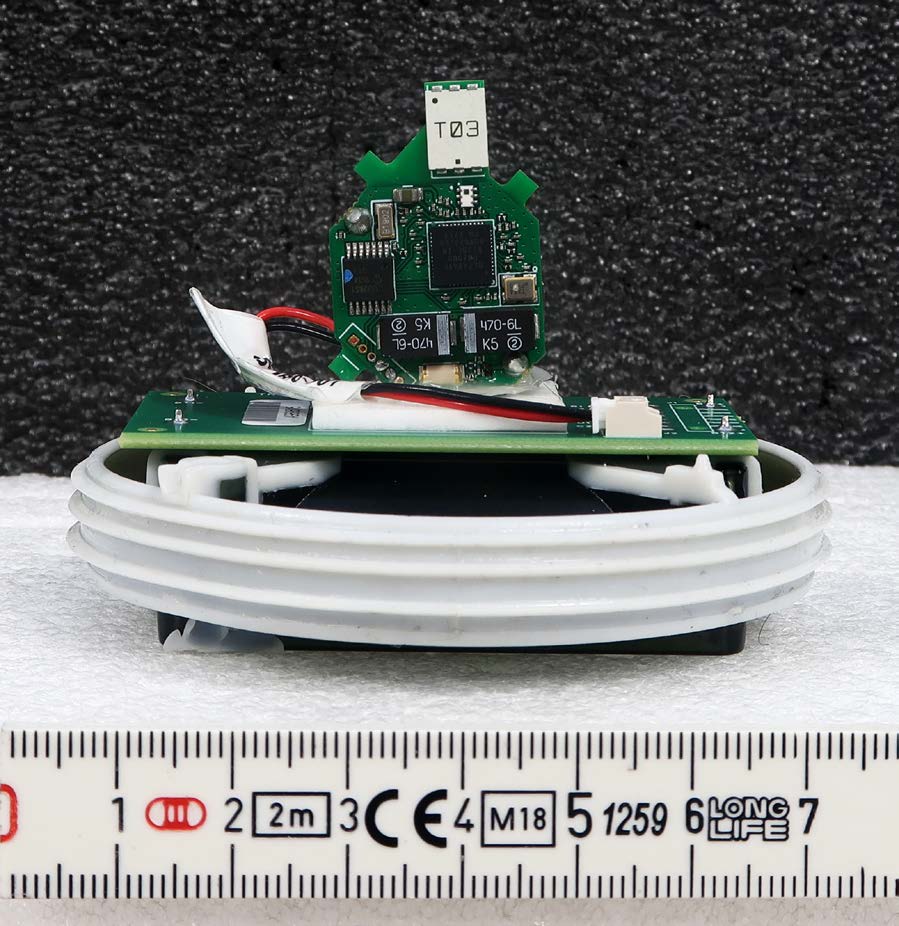

Internal Photos – 2AGZM-B01017 TAGV1.2T Front cover removed TAGV1.2T Transmitter Module Front TAGV1.2T Transmitter Module Front close up TAGV1.2T Transmitter Module Front close up TAGV1.2T Transmitter Module Back

Test Number: 139-20 Issue Date: 2/28/2020 Page 77 of 87 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com 6. Measurement Data (continued) 6.11. Public Exposure to Radio Frequency Energy Levels (1.1307 (b)(2)) 6.11.1. SAR Test Exclusion Calculation Requirement: Portable devices as defined in § 2.1093 of this chapter operating under Part 15 are subject to radio frequency radiation exposure requirements as specified in 1.1307(b)(2) and 2.1093 of this chapter. For a 1-g SAR, the test exclusion result must be ≤ 3.0. Test Notes: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by the following formula: SAR Test Exclusion = (1) P MAX mW Maximum power of channel, including tune-up tolerance d MIN mm Minimum test separation distance, mm (≤ 50 mm) f (GHz) GHz f (GHz) is the RF channel transmit frequency in GHz (>100 MHz and <6 GHz) (1) FCC OET 447498 - Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. Result: The device under test meets the exclusion requirement detailed in FCC OET 447498. CH 2 CH 2 CH 2 CH 2 CH 4 CH 4 CH 4 CH 4 Input: P MAX 0.624 0.164 0.908 0.795 0.517 0.161 0.916 0.787 mW d MIN 5.000 5.000 5.000 5.000 5.000 5.000 5.000 5.000 mm f (GHz) 3.995 3.993 3.999 4.004 3.743 3.737 3.793 3.741 GHz Test Exclusion: 0.249 0.065 0.363 0.318 0.200 0.062 0.357 0.305 Limit Exemption: 3.000 3.000 3.000 3.000 3.000 3.000 3.000 3.000 1 Taken from the peak data in Section 6.8 of this test report (converted to mW). The device does not exceed the test limit exemption and therefore a routine SAR Evaluation is not required. P MAX d MIN x √f (GHz) Test Number: 139-20 Issue Date: 2/28/2020 Page 78 of 87 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com 6. Measurement Data (continued) 6.11. Public Exposure to Radio Frequency Energy Levels (1.1310) 6.11.2 RF Exposure for devices that operate above 6 GHz (continued) Requirement: TCB Workshop November 2019 RF Exposure Policy Updates dated November 13, 2019, specifically slide 11. Test exclusion based on 1 mW may be used now with the portable device f > 6GHz FCC MPE power density limits. Maximum time-averaged conducted power irrespective of distance from the body. Worst Case conducted peak power = -6.59 dBm or 0.219 mW Result: Device is compliant with the Test Exclusion requirement of 1 mW.

Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com COMPLIANCE WORLDWIDE INC. TEST REPORT 139-20 In Accordance with the Requirements of FCC TITLE 47 CFR Part 15.519, Subpart F Technical Requirements for Handheld UWB Systems Class II Permissive Change ISED RSS-220, Issue 1 (March 2009) + Amendment 1 (July 2018) Devices Using Ultra-Wideband (UWB) Technology Issued to Wiser Systems, Inc. 1017 Main Campus Drive, Suite 2300 Raleigh, NC 27606 USA 919-833-8253 For the Client Tag Model: TAGV1.2T FCC ID: 2AGZM-B11017 IC: 25948-B01017 Report Issued on February 28, 2020 Tested By This test report shall not be reproduced, except in full, without written permission from Compliance Worldwide, Inc. Test Number: 139-20 Issue Date: 2/28/2020 Page 2 of 87 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com Table of Contents 1. Scope .................................................................................................................................................. 3 2. Product Details ................................................................................................................................... 3 2.1. Manufacturer ............................................................................................................................. 3 2.2. Model Number ........................................................................................................................... 3 2.3. Serial Number ........................................................................................................................... 3 2.4. Description ................................................................................................................................ 3 2.5. Power Source ............................................................................................................................ 3 2.6. Hardware Revision .................................................................................................................... 3 2.7. Software Revision ..................................................................................................................... 3 2.8. Modulation Type ........................................................................................................................ 3 2.9. Operating Frequency ................................................................................................................ 3 2.10. EMC Modifications .................................................................................................................. 3 3. Product Configuration ......................................................................................................................... 3 3.1. Operational Characteristics & Software .................................................................................... 3 3.2. EUT Hardware .......................................................................................................................... 3 3.3. EUT Cables/Transducers .......................................................................................................... 3 3.4. Support Equipment ................................................................................................................... 3 3.5. Test Setup ................................................................................................................................. 4 3.6. EUT Orientation Diagram .......................................................................................................... 4 4. Measurements Parameters ................................................................................................................ 5 4.1. Measurement Equipment Used to Perform Test ...................................................................... 5 4.2. Measurement & Equipment Setup ............................................................................................ 6 4.3. Measurement Procedure .......................................................................................................... 6 4.4. Measurement Uncertainty ......................................................................................................... 6 5. Measurement Summary ..................................................................................................................... 7 6. Measurement Data ............................................................................................................................. 8 6.1. Antenna Requirement ............................................................................................................... 8 6.2. Operational Requirements ........................................................................................................ 9 6.3. UWB Bandwidth ...................................................................................................................... 11 6.4. Radiated Emissions below 960 MHz ...................................................................................... 23 6.5. Radiated Emissions above 960 MHz ...................................................................................... 32 6.6. Radiated Emissions in the GPS Bands................................................................................... 44 6.7. RMS Emissions of UWB Transmission ................................................................................... 47 6.8. Peak Emissions in a 50 MHz Bandwidth ................................................................................ 60 6.9. Conducted Emissions Test Setup ........................................................................................... 73 6.10. 99% Emission Bandwidth ..................................................................................................... 74 6.11. Public Exposure …

Text truncated - open the document above for the full version.

Test Number: 139-20 Issue Date: 2/28/2020 Page 82 of 87 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com 8. Test Images 8.1. Spurious and Harmonic Emissions – 30 kHz to 1 GHz Front Test Number: 139-20 Issue Date: 2/28/2020 Page 83 of 87 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com 8. Test Images 8.2. Spurious and Harmonic Emissions – 30 kHz to 30 MHz Rear Test Number: 139-20 Issue Date: 2/28/2020 Page 84 of 87 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com 8. Test Images 8.3. Spurious and Harmonic Emissions – 30 MHz to 1 GHz Rear Test Number: 139-20 Issue Date: 2/28/2020 Page 85 of 87 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com 8. Test Images 8.4. Spurious and Harmonic Emissions – 1 to 18 GHz Front Test Number: 139-20 Issue Date: 2/28/2020 Page 86 of 87 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com 8. Test Images 8.5. Spurious and Harmonic Emissions – 1 to 18 GHz Rear Test Number: 139-20 Issue Date: 2/28/2020 Page 87 of 87 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com 8. Test Images 8.6. Spurious and Harmonic Emissions – 18 to 40 GHz Side View
