2AH2PCONSOLE21DOMYOS Fitness CONSOLE

REVISION HISTORY 2020-04-13 1. Add CMIIT_FCC_IC sticker 2. Add FCC Statement 3. Add IC Statement 7 Leo LV 2020-01-08 1. Firmware version/Equipment ID update for EWAY and Chang Yow 2. Stickers Colour Identification 3. Update after DPP Spec Review 6 Leo LV 2019-08-22 Add CMIIT ID sticker 5 Leo LV 2019-06-24 Update specification for EWAY Duplication 4 Leo LV 2017-05-16 Hand-pulse receiver plug and wire change 3 Guillaume DIVRECHY 2017-04-04 Adding Domyos logo on membrane Remove chest-belt (not supplied with console 2.1) Firmware version is 1.1 2 Guillaume DIVRECHY 2017-02-01 Adding CN artwork (page 7) + Traceability sticker for CN (page 9) 1 Guillaume DIVRECHY 2016-12-07 ORIGINAL DOCUMENT 0 Guillaume DOMYOS CONSOLE 2.1 - TECHNICAL SPECS - CONSOLE NAME CONSOLE CODE MODEL NAME MODEL CODE CONSOLE 2.1 (EUR) 8520725 BIKE 500 8503088 CONSOLE 2.1 ESSENTIAL PL 8500741 E ESSENTIAL + Elliptical 8396879 CONSOLE 2.1 BLUETOOTH CN 8520729 EB 500 SP NORM CN 8520716 CONSOLE 2.1 (EUR) 8528633 EL 120 8484396 DIVRECHY DATE DESCRIPTION REVIS ION AUTHOR TABLE OF CONTENTS 1. PRODUCT PROFILE ........................................................................................................... 3 1.1. Introducing.................................................................................................................... 3 2. Standards of CONSOLE 2.1 ............................................................................................... 4 3. USER-keyflow and Machine-Keyflow ............................................................................... 4 4. Electronic hardware.......................................................................................................... 5 4.1. Electronic schematic ....................................................................................................... 5 4.2. PCBA ............................................................................................................................. 5 4.3. Bill of Material ................................................................................................................ 5 4.4. Main EE components ...................................................................................................... 5 4.5. Hand-pulse cables .......................................................................................................... 5 5. Mechanical hardware ....................................................................................................... 6 5.1. 2D drawings of consoles parts and assembly ................................................................... 6 5.2. Datasheet of the plastic parts ......................................................................................... 6 5.3. Elastic strap (for the tablet holder hook system) 2D drawing ............................................ 6 5.4. Membrane artwork and cosmetic .................................................................................... 6 6. Traceability ....................................................................................................................... 9 7. Bluetooth specification ................................................................................................... 10 7.1. Technical specification under this [LINK] ....................................................................... 10 7.2. CMIIT_FCC_IC Label .................................................................................................... 11 7.3. FCC Statement............................................................................................................. 11 7.4. IC Statement ............................................................................................................... 12 1. PRODUCT PROFILE 1.1. Introducing Technical requirements of Domyos middle of range Console: DOMYOS CONSOLE 2.1 This console is connected thanks to Bluetooth Low energy protocol. This console can connect an APP with Android and Ios devices as to provide a new user experience. Console 2.1 main features :  1 LCD (reversed / Backlight) :  RPM information (pedalling cadence)  KCAL information (calories burnt)  SPEED information (Km/h or Mi/h)  DISTANCE information (Km or Mi)  HR information (Bpm)  RESISTANCE LEVEL (1 to 15)  TIME Bluetooth icon controlled ON or OFF by bluetooth through APP  Workout profile (16x8 dots matrix)  5 touch-keys (capacitive membrane). Keys are in white colors.  One heart-rate receiver  One hand-pulse receiver + jack cable 2. Standards of CONSOLE 2.1 CONSOLE PVC 20190516.xlsx Reports are inside PACE 3. USER-keyflow and Machine-Keyflow User-keyflow is the main keyflow used by end-customer. console21_6.pdf DECATHLON CONTROL Test can be done using a bike or jig simulator proposed by suppliers. Functional test of the user-interface of the console : 1) Displays are working and information values are changing during a training cession. (Kcal, distance, time, rpm, BPM (when active), resistance level) 2) Each touch-key is activate during a finger touch contact < 1second Servo-motor is turning when increase or decrease a resistance level (1 to 15) 3) ACCEPTANCE CRITERIA Main functions are ok Machine-keyflow is a ghost menu for maintenance. This menu can check: 1. The firmware version of the console 2. The hardware version of the console 3. Console total time of use 4. Console total km of use 5. Console serial number (see traceabilty paragraph) Machine-keyflow has also a unit-choice menu where end-user can change from Km to Miles. CONSOLE 21 machine menu.pdf DECATHLON CONTROL Firmware version is X.X (enter inside maintenance ghost menu) X.X=1.3 for Chang Yow Production X.X=1.0 for Eway production Hardware version is 1.0 (enter inside maintenance ghost menu) By default, console unit is Km (use console with bike of bike-simulator jig) Toggle-switch selector on the rear-casing is according to actual FG model ACCEPTANCE CRITERIA Firmware and Hardware version are ok Unit is Km 4…

Text truncated - open the document above for the full version.

DECATHLON USA LLC Date: 22.01.2020 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: T he DECATHLON USA LLC the undersigned, hereby authorizes Mr. Tony Chen of TOV Rheinland Shanghai Co., Ltd, to act on the behalf of the DECATHLON U SA LLC. solely in matters relating to the application for an FCC eq uipment authorization for FCC ID: 2AH2PCONSOLE21 including the signing of documents in connection with this Application. Necessary acts carried out by Mr. Tony Chen on our behalf of the DECATHLON USA LLC. in connection with the A pplication shall have the same effect as acts of the DECATHLON USA LLC. The DECATHLON USA LLC also hereby certify that no party to this application is s ubject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Yours Sincerely, Signature: Name : JULIEN DLUBALA Title: CONFORMITY LEADER Company: DECATHLON USA LLC

DE01THLON Date: 22.01.2020 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: DECATHLON USA LLC FCCID:2AH2PCONSOLE21 F CC Part 15C Certification Confidentiality Request Gentlemen: T his letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. DECATHLON USA LLC requests that the following documents regarding this submission for FCC ID: 2AH2PCONSOLE21 be kept confidential: Exhibit Type Block Diagram Schematics Operational Des cription Part list Those documents contain detailed system and equipment description and related information a bout the product which DECATHLON USA LLC considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological pr oducts will evolve, DECATHLON USA LLC considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours Sincerely, Signature: Name: JULIEN DLUBALA Title: CONFORMITY LEADER Company: DECATHLON USA LLC

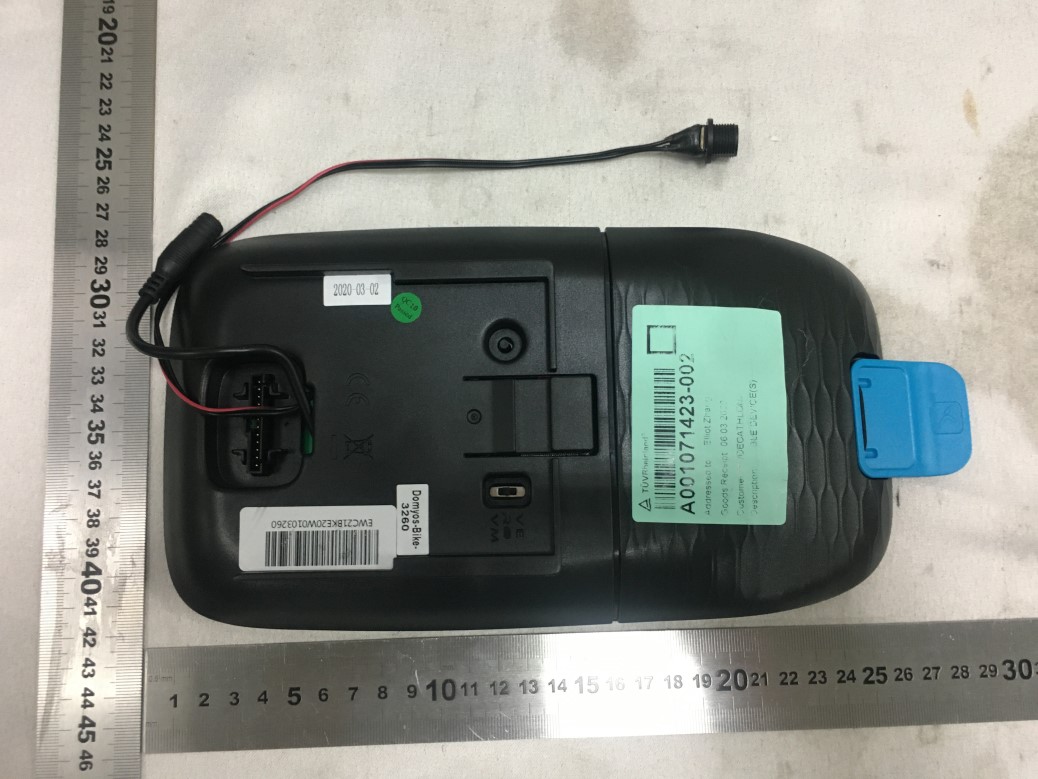

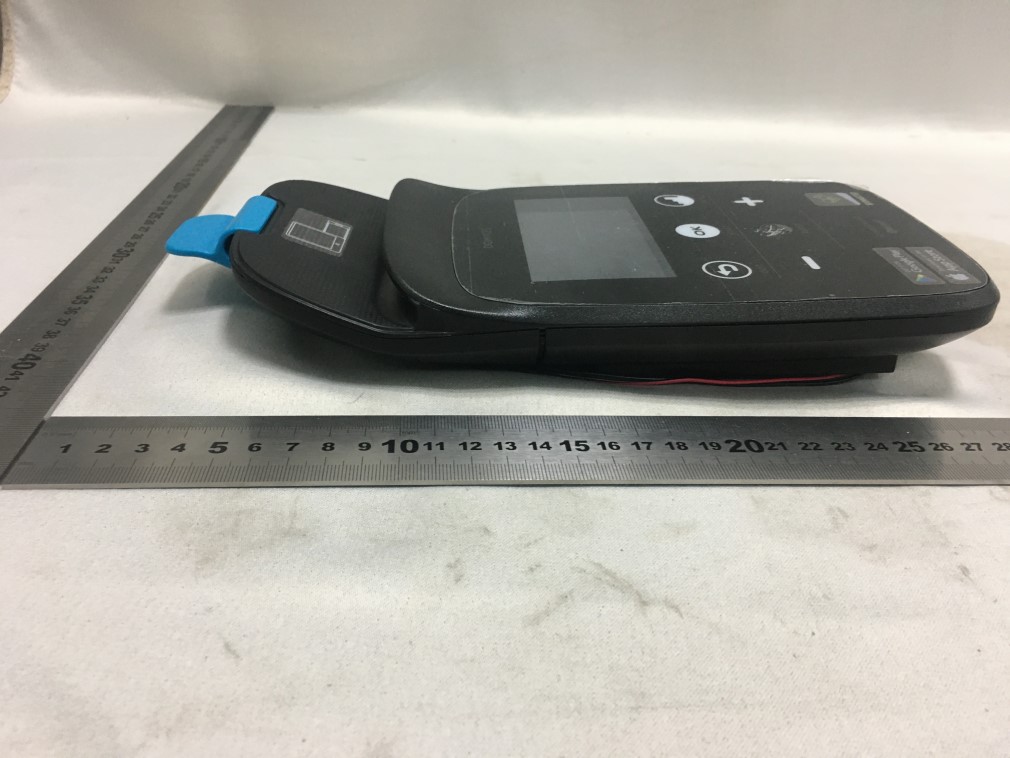

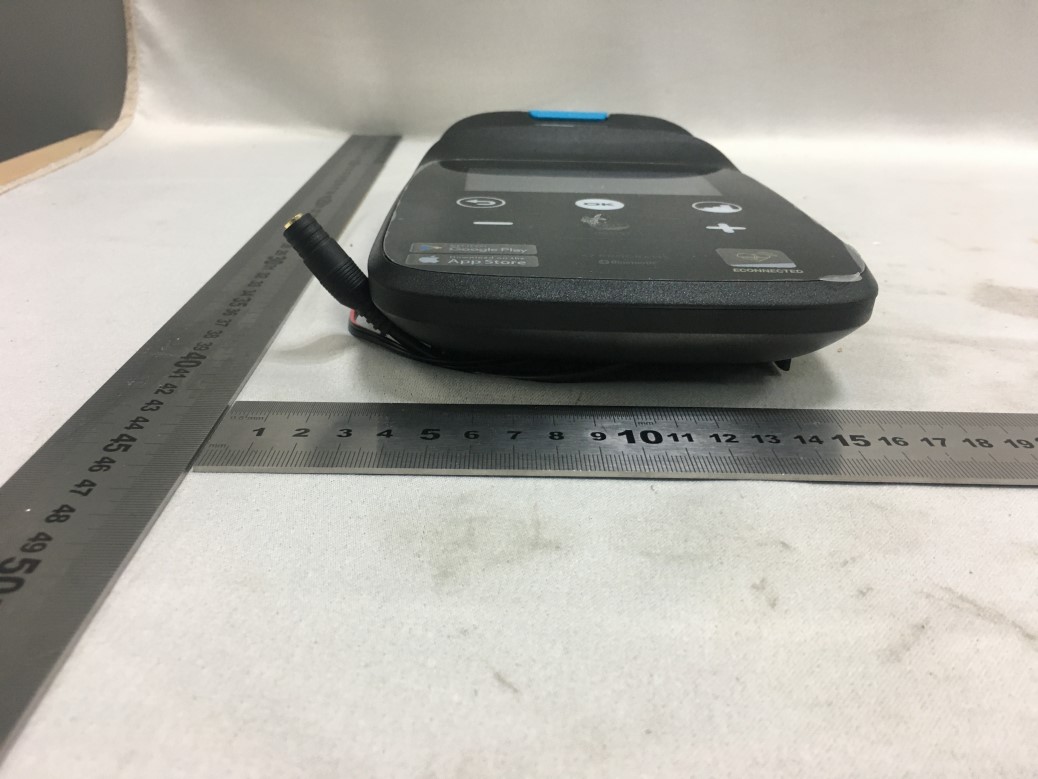

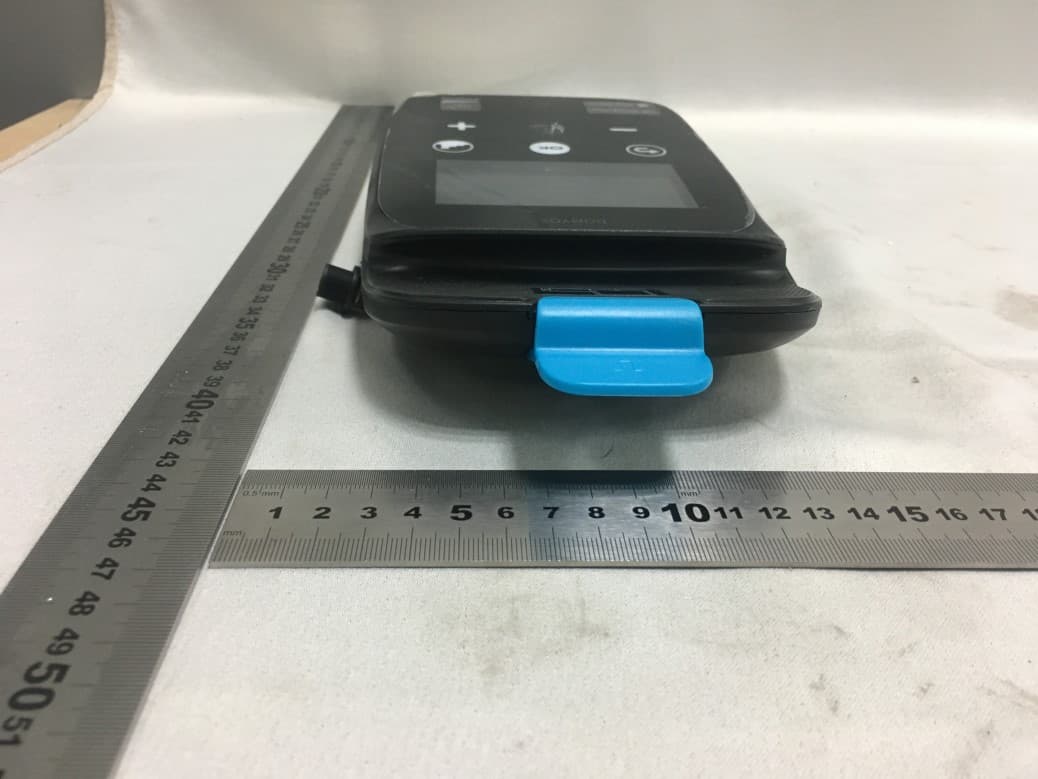

Produkte Products Prüfbericht - Nr.: Test Report No. 60370915 001 Seite 1 von 3 Page 1 of 3 Appendix III- External Photos Produkte Products Prüfbericht - Nr.: Test Report No. 60370915 001 Seite 2 von 3 Page 2 of 3 Produkte Products Prüfbericht - Nr.: Test Report No. 60370915 001 Seite 3 von 3 Page 3 of 3

Label Location

Produkte Products Prüfbericht - Nr.: Test Report No. 60370915 001 Seite 1 von 5 Page 1 of 5 Appendix IV- Internal Photos Produkte Products Prüfbericht - Nr.: Test Report No. 60370915 001 Seite 2 von 5 Page 2 of 5 Produkte Products Prüfbericht - Nr.: Test Report No. 60370915 001 Seite 3 von 5 Page 3 of 5 Produkte Products Prüfbericht - Nr.: Test Report No. 60370915 001 Seite 4 von 5 Page 4 of 5 Produkte Products Prüfbericht - Nr.: Test Report No. 60370915 001 Seite 5 von 5 Page 5 of 5

Produkte Products Prüfbericht - Nr.: Test Report No. 60370915 001 Seite 1 von 3 Page 1 of 3 Appendix I- RF Exposure statement Exposure Requirements – FCC KDB # 447498 D01 FCC KDB # 447498 D01 V06 – RF EXPOSURE PROCEDURES AND EQUIPMENT AUTHORIZATION POLICIES FOR MOBILE AND PORTABLE DEVICES, Appendix A shows that the SAR Text Exclusion Threshold for a device with a separation distance of 5 mm at 2450MHz is 10mW. Produkte Products Prüfbericht - Nr.: Test Report No. 60370915 001 Seite 2 von 3 Page 2 of 3 RSS-102 section 2.5.1 Exemption Limits for Routine Evaluation, Table 1 shows the SAR evaluation for a device with a separation distance of 5mm at 2450MHz is 4mW. Produkte Products Prüfbericht - Nr.: Test Report No. 60370915 001 Seite 3 von 3 Page 3 of 3 The maximum measured transmitter power is the following: Freq. [GHz] Maximum Conducted Peak Output Power [dBm] Maximum Conducted Peak Output Power [mW] Antenna Gain [dBi] Maximum E.I.R.P [dBm] Maximum E.I.R.P [mW] 2.48 6.326 4.291 3 9.326 8.562 Evaluation for FCC The maximum conducted peak output power of the EUT is: 4.291mW It is below the exemption limit 29mW at distance 15mm. And the distance from the antenna to human will be much higher than 15mm in normal using. Evaluation for IC The maximum conducted peak output power of the EUT is: 4.291 mW The maximum E.I.R.P of the EUT is: 8.562 mW It is below the exemption limit 15mW at distance 15mm. And the distance from the antenna to human will be much higher than 15mm in normal using. Conclusion SAR data is not required for either FCC or IC.

Produkte Products -Nr.: Test Report No.: 60370915 001 Auftrags-Nr.: Order No.: 244225206 Seite 1 von 46 Page 1 of 46 Kunden-Referenz-Nr.: Client Reference No.: 442603 Auftragsdatum: Order date: 25.03.2020 Auftraggeber: Client: DECATHLON USA LLC 2415 3rd Street, Suite 231, San Francisco California United States : Test item: DOMYOS Fitness CONSOLE Bezeichnung / Typ-Nr.: Identification / Type No.: CONSOLE 2.1 FCC ID: 2AH2PCONSOLE21 Auftrags-Inhalt: Order content: Complete test Test specification: FCC CFR47 Part 15, Subpart C Section 15.247 KDB 558074 D01 15.247 Meas Guidance v05r02 RSS-Gen Issue 5, Amendment 1, March 2019 RSS-247 Issue 2, February 2017 ANSI C63.10: 2013 Wareneingangsdatum: Date of receipt: 08.03.2020 -Nr.: Test sample No.: A000998263-002 : Testing period: 02.04.2020 to 13.05.2020 Place of testing: Co., Ltd. : Testing laboratory: Co., Ltd. Test result*: Pass / tested by: 14.05.2020 TonyC.L.Chen / PE kontrolliert von / reviewed by: 14.05.2020 Elliot Zhang / Reviewer Datum Date Name / Stellung Name / Position Unterschrift Signature Datum Date Name / Stellung Name / Position Unterschrift Signature Sonstiges / Other : Condition of the test item at delivery: Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. (n) F(ail) = entspricht nicht o.g. (n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland (Shanghai) Co., Ltd., TUV Rheinland Building, No. 177, Lane 777 West Guangzhong Road, Zhabei District, Shanghai 200072, P.R. China Produkte Products Prüfbericht - Nr.: Test Report No. 60370915 001 Seite 2 von 46 Page 2 of 46 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 6DB & 99% BANDWIDTH RESULT: Pass 5.1.3 PEAK OUTPUT POWER RESULT: Pass 5.1.4 POWER SPECTRAL DENSITY RESULT: Pass 5.1.5 CONDUCTED BAND EDGE AND OUT-OF BAND EMISSIONS RESULT: Pass 5.2.1 CONDUCTED EMISSION RESULT: Pass 5.3.1 RADIATED BAND-EDGE RESULT: Pass 5.3.2 RADIATED SPURIOUS EMISSION RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No. 60370915 001 Seite 3 von 46 Page 3 of 46 Contents 1. GENERAL REMARKS ......................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS .......................................................................................... 4 2. TEST SITES ...................................................................................................................... 4 2.1 TEST FACILITIES ............................................................................................................... 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................... 5 2.3 TRACEABILITY .................................................................................................................. 5 2.4 CALIBRATION ................................................................................................................... 5 2.5 MEASUREMENT UNCERTAINTY........................................................................................... 6 3. GENERAL PRODUCT INFORMATION .................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE ........................................................................... 7 3.2 RATINGS AND SYSTEM DETAILS ........................................................................................ 7 3.3 INDEPENDENT OPERATION MODES .................................................................................... 8 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ....................................................... 8 3.5 SUBMITTED DOCUMENTS .................................................................................................. 8 4. TEST SET-UP AND OPERATION MODES .............................................................................. 9 4.1 PRINCIPLE OF CONFIGURATION SELECTION ........................................................................ 9 4.2 TEST OPERATION AND TEST SOFTWARE ............................................................................ 9 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT .......................................................... 9 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ......................................................... 9 5. TEST RESULTS ............................................................................................................... 10 5.1 CONDUCTED TESTING AT ANTENNA PORT ........................................................................ 10 5.1.1 Antenna Requirement ................................................................................................................ 10 5.1.2 6dB & 99% Bandwidth ............................................................................................................... 12 5.1.3 Peak Output Power .................................................................................................................... 16 5.1.4 Power Spectral Density .............................................................................................................. 19 5.1.5 Conducted Band Edge and out-of Band Emissions ................................................................... 21 5.2 EMISSION IN THE FREQUENCY RANGE UP TO 30MHZ ........................................................ 26 5.2.1 Conducted Emission .................................................................................................................. 26 5.3 EMIS…

Text truncated - open the document above for the full version.
