2AHAS-EOP11002Smart Regular Socket camera

JEM ACCESSORIES INC.
Smart Regular Socket camera - FCC ID 2AHAS-EOP11002 - JEM ACCESSORIES INC.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Oct 24, 2023
Application Purpose
Original Equipment
Date of Application
Oct 24, 2023
Equipment Note
Smart Regular Socket camera
Frequency Range
2412.00000000 - 2462.00000000
Company
JEM ACCESSORIES INC.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗
↗
↗

Block Diagram

↗

Cover Letter(s)

↗
↗

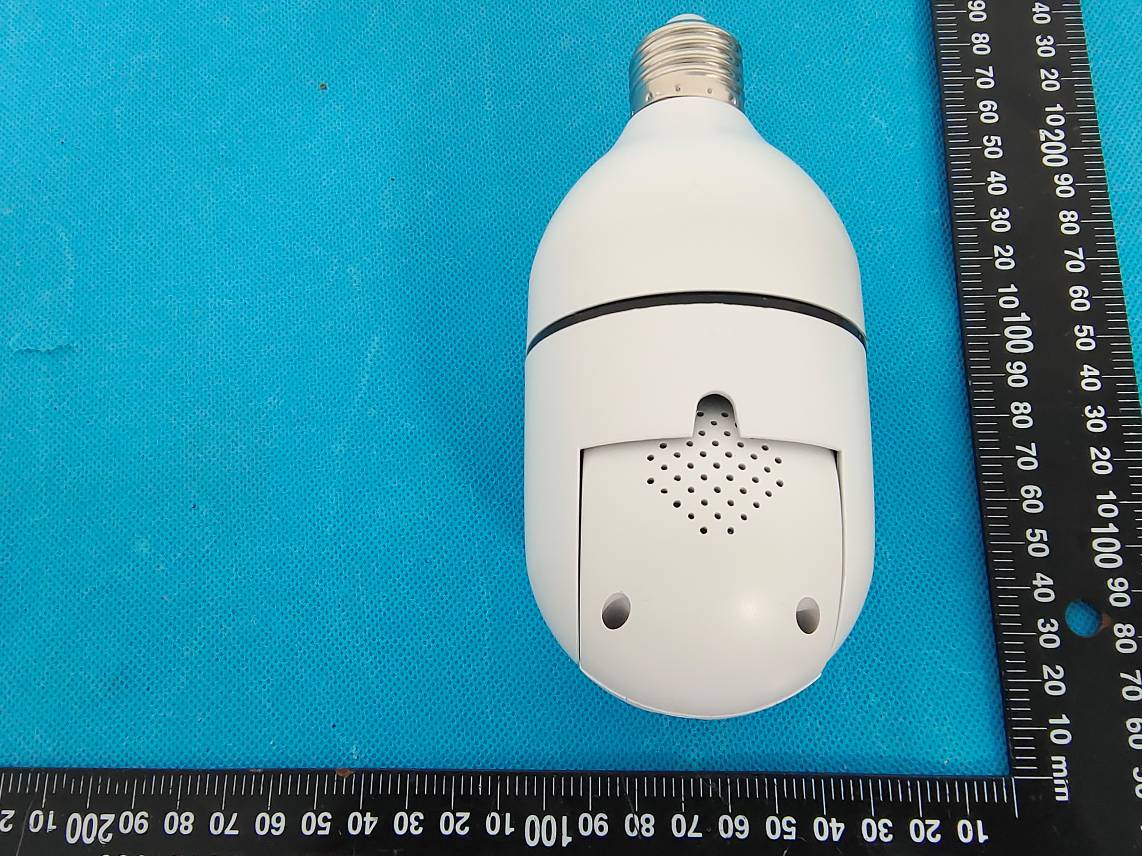

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Schematics

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Attestation Statements

JEM ACCESSORIES INC. Add: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 Tel:908-222-7501 Fax: 908.222.7504 E-mail:[email protected] Date: 2023-08-31 Attestation letter FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, The RF chip, model RTL8188FTV, which installed in our product Smart Regular Socket camera, FCC ID: 2AHAS-EOP11002, model: EOP1-1002, EOP1-1002-WHT, EOP1-1002- BLK, supports 2.4G Wi-Fi, for use in America, this chip only supports 2.4G Wi-Fi (2412- 2462MHz/2422-2452MHz). The other bands was disabled to use by manufacture in the software, the end user has no capability to activate it. Sincerely, Signature Printed Name: Eli Dabbah Title: Manager

Attestation Statements

CFR 47 §2.911(d)(5)(i) Attestation Letter SHENZHEN SHENGLAI TECHNOLOGY CO.,LIMITED Add: ROOM 3110,BLOCK C,XINTIAN CENTURY BUSINESS CENTRE, FUMING ROAD,FUTIAN DISTRICT, SHENZHEN, CHINA Tel: +86-755-82324457 Fax:+86-755-82324457 E-mail:[email protected] Attestation Letter Date: 2023/8/31 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2AHAS-EOP11002 JEM ACCESSORIES INC. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature: Contact Person: Eli Dabbah Title: Manager Company Name: JEM ACCESSORIES INC. Company Address: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 JEM ACCESSORIES INC. Add: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 Tel:908-222-7501 Fax: 908.222.7504 E-mail:[email protected]

Attestation Statements

CFR 47 §2.911 (d)(5)(ii) Attestation Letter JEM ACCESSORIES INC. Add: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 Tel:908-222-7501 Fax: 908.222.7504 E-mail:[email protected] Attestation Letter Date: 2023/8/31 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2AHAS-EOP11002 JEM ACCESSORIES INC. (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: Contact Person: Eli Dabbah Title: Manager Company Name: JEM ACCESSORIES INC. Company Address: 32 Brunswick Avenue, Edison, New Jersey, United States,08817

Attestation Statements

U.S. AGENT LETTER OF ATTESTATION Date: 2023-08-31 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2AHAS-EOP11002 JEM ACCESSORIES IN C. certifies that, as of the date of the filing of the application, JEM ACCESSORIES INC. is our designated U.S. agent for service of process for the above referenced FCC ID. JEM ACCESSORIES INC. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. JEM ACCESSORIES INC. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent and Applicant Information: Name: JEM ACCESSORIES INC. Address: 32 Brunswick Avenue, E dison, New Jersey, United States, 08817 FRN: 0025209164 Tel.: 908-222-7501 Email: [email protected] Signed by (pri nted name): Eli Dabbah Signature:

Block Diagram

55 44 33 22 11 D D C C B B A A AK3918EV330L 8MB FLASH 24MHz CRYSTAL PM_SPIXTAL DEBUG PM_UARTUSB ANT DRIVER GPIO*2 IR CUT SENSORSC2336 I2C MIPI GPIO*2 SDIO TF MOTO DRIVERTPM0596 GPIO*4 STEP MOTO*2 MIC AUDIO PA AUDIO SPEAKER FACTORY LED DRIVER GPIO*2GPIO*2 RED&GREEN LED 9PIN 1.25MMCONNECTOR CARD HOLDER BUTTON WIFI MODULE 40MHz CRYSTAL RTL8188FTV CHIP

Cover Letter(s)

FCC Authorization 2023/8/31 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, JEM ACCESSORIES INC. the undersigned, hereby authorize China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name: Eli Dabbah Title: Manager QA-FR-170-B JEM ACCESSORIES INC. Add: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 Tel:908-222-7501 Fax: 908.222.7504 E-mail:[email protected]

Cover Letter(s)

JEM ACCESSORIES INC. Add: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 Tel:908-222-7501 Fax: 908.222.7504 E-mail:[email protected] Product Similarity Declaration Date: 2023/8/31 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern, We, JEM ACCESSORIES INC. hereby declare that we have a product named as Smart Regular Socket camera, (Model No.: EOP1-1002, FCC ID: 2AHAS-EOP11002) was tested by China Certification ICT Co., Ltd (Dongguan), meanwhile, for our marketing purpose, we would like to list a series model No.: EOP1-1002-WHT, EOP1-1002-BLK on reports and certificate, all the models are identical in electrically, except different color. And no other changes are made to them. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely, Signature: Printed Name: Eli Dabbah Title: Manager

External Photos

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848228-EXP Page 1 of 4 EUT EXTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848228-EXP Page 2 of 4 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848228-EXP Page 3 of 4 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848228-EXP Page 4 of 4

Internal Photos

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848228-INP Page 1 of 8 EUT INTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848228-INP Page 2 of 8 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848228-INP Page 3 of 8 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848228-INP Page 4 of 8 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848228-INP Page 5 of 8 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848228-INP Page 6 of 8 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848228-INP Page 7 of 8 Chip Antenna China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848228-INP Page 8 of 8

Operational Description

Circuit Description The Smart Regular Socket camera’s MCU use AK3918EV330L. 24MHz crystal is used for AK3918EV330L chip. The AK3918EV330L is designed specifically for cost sensitive, low-power, and high-performance HDIP camera applications to meet the increasing demand for high-definition video surveillance. With embedded DDR2, H.264 hardware encoder, ISP, AES/DES/3DES encryption, AK3918EV330L can easily achieve high performance. The camera currently operates on the Wi-Fi frequency, which is based on realtek RTL8188FTV chipset that complied with IEEE 802.11g, 802.11b, 802.11n standard. 40MHz crystal is used for RTL8188FTV chip. Frequency Range: 2412-2462 MHz(802.11b/g/n ht20) 2422-2452 MHz(802.11n ht40) Modulation Type: DSSS, OFDM Rated Input Voltage: AC 120V

RF Exposure Info

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848228-00 Page 58 of 60 5. RF EXPOSURE EVALUATION 5.1 Applicable Standard According to §1.1307(b)(3)(i) (C) Or using Table 1 and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). Table 1 to § 1.1307(b)(3)(i)(C) - Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 . 1.34-30 3,450 R 2 /f 2 . 30-300 3.83 R 2 . 300-1,500 0.0128 R 2 f. 1,500-100,000 19.2R 2 . 5.1.2 Measurement Result Operation Modes Frequency (MHz) λ/2π (mm) Distance (mm) Exemption ERPMaximum Conducted Power including Tune-up Tolerance (dBm) Antenna Gain (dBi) ERP (dBm) MPE- Based Exemption (mW)(dBm) Wi-Fi 2412-2462 19.80 200 768 28.85 19.0 2.43 19.28 Compliant Note: The Maximum Conducted Power including Tune-up Tolerance was declared by manufacturer. Result: The device compliant the MPE-Based Exemption at 20cm distances.

Schematics

55 44 33 22 11 D D C C B B A A RST POWER LED TF 3.3V 3.3V 3.3V 3.3V 5.0V WHITE_LED+ 8 WHITE_LED- 8 IR_LED+ 8 IR_LED- 8 FACTORY_RST 4 LED_RED 4 LED_GREEN 4 LDR_IN 4 SD_D0 4SD_CMD 4SD_CLK 4SD_CD 4 TP23 testpin TP31 testpin TP27 testpin RA1010k TP24 testpin TP33 testpin C133 0.1uF/16V CN11 1.25T-9AB-L S2 S2 7 7 6 6 5 5 4 4 3 3 2 2 1 1 S1 S1 8 8 9 9 TP29 testpin R59 1k R81 1kR150 0R C66 0.1uF/16V R14910k CN4 1.25T-2PLT S2 S2 S1 S1 2 2 1 1 C321 0.1uF/16V TP21 testpin R82 1k CN13 WLSD-004A DAT2 1 CD/DAT3 2 CMD 3 VDD 4 CLX 5 VSS6 6 DAT0 7 DAT1 8 CD 9 CGND12 12 CGND13 13 CGND10 10 CGND11 11 TP22 testpinTP25 testpin C65 4.7uF/6.3V TP32 testpin SW1 TST3635-250BH-07 1 2 S1 S2 LDR_IN 55 44 33 22 11 D D C C B B A A 3.3V 5.0V5.0V USB_DM 4 USB_DP 4 WHITE_LED- 10WHITE_LED+ 10 WHITE_LED_EN 4 IR_LED_EN 4,8 IR_LED+ 8,10IR_LED- 8,10 R1190.25R/1% C297 4.7uF/6.3V C68 4.7uF/6.3V HOLE3 hole C299 4.7uF/6.3V C117 0.1uF/16V HOLE5 hole U7 LN2401 VIN 4 CE 1 LX 3 FB 5 GND 2 L8 2.2UH/1.2A HOLE2 holeHOLE4 hole HOLE6 hole L4 2.2UH/1.2A U8 LN2401 VIN 4 CE 1 LX 3 FB 5 GND 2 HOLE1 hole R1470.25R/1% C116 4.7uF/6.3V U14 GND 1 UDP 2 UDM 3 3.3V 4 GND1 5 RF 6 C330 4.7uF/6.3V TL8188FQA3 55 44 33 22 11 D D C C B B A A ICR 1.8V_DOVDD 1.8V_DOVDD 2.8V_AVDD1.2V_DVDD 5.0V 1.2V_DVDD 1.8V_DOVDD 2.8V_AVDD 1.8V_DOVDD 1.8V_DOVDD IR_CUT+ 4IR_CUT- 4 CIS_D1- 4CIS_D0- 4CIS_CLK- 4CIS_CLK+ 4CIS_D0+ 4CIS_D1+ 4 CIS_SDA 4 CIS_SCL 4 CIS_MCLK 4 CIS_RESET 4 C115 0.1uF/16V TP15 testpin C108 4.7uF/6.3V TP16 testpin R6610k C100 0.1uF/16V U13TPM16050 OUT2 1 GND 2 OUT1 3 IN1 5 VM 4 IN2 6 C109 0.1uF/16V C103 4.7uF/6.3V C112 4.7uF/6.3V U23 SC2336 EXTCLK A3 SDA A4 SCL A5 XSHUTDN A6 PWDNB C6 EFSYNC A7 SID B5 LREF A2 DOVDD1 C2 NC E7 VREFN D7 PCLK/MCN D4 D4/MD1P D3 D3/MD1N D2 D8/MD0P E5 D7/MD0N D5 FSYNC B3 D9 C5 D1 D1 D0 E1 D2 E2 D5 E3 NC1 E6 AGND A1 AGND1 C7 DOGND B2 DOGND1 D6 AVDD2 B7 AVDD1 B1 DVDD1 B4 DOVDD2 C3 DVDD2 B6 DVDD C1 D6/MCP C4 DVDD3 E4 C104 4.7uF/6.3V CN9 1.25T-2PLT S2 S2 S1 S1 2 2 1 1 C102 0.1uF/16V C114 4.7uF/6.3V C95 1uF/6.3V C106 4.7uF/6.3V C99 4.7uF/6.3V C96 1uF/6.3V C105 0.1uF/16V C101 4.7uF/6.3V C113 0.1uF/16V R73 0R R632.2K C110 4.7uF/6.3V C94 0.1uF/16V R6510k R642.2K C111 0.1uF/16V C107 0.1uF/16V CIS_RESETCIS_PWDN IR_CUT_OUT-IR_CUT_OUT+ IR_CUT_OUT+IR_CUT_OUT- CIS_PWDN 55 44 33 22 11 D D C C B B A A MOTO2 MOTO1 MOTO-HMOTO-V 5.0V 5.0V 5.0V 5.0V TPM0596_DIN 4 TPM0596_RCK 4 TPM0596_CLR 4 TPM0596_SRCK 4 TPM0596_EN 4 TP9 testpin CN7 1.25T-5AB-L S2 S2 5 5 4 4 3 3 2 2 1 1 S1 S1 C90 4.7uF/6.3V TP10 testpin C88 4.7uF/6.3V TP6 testpinTP12 testpinTP13 testpin CN10 1.25T-5AB-L S2 S2 5 5 4 4 3 3 2 2 1 1 S1 S1 C93 4.7uF/6.3V U11 TPM0596-TS3R GND 1 DRAIN7 9 SEROUT 7 CLR 3 RCK 4 DRAIN0 16 SERIN 5 G 6 SRCK 2 DRAIN1 15 DRAIN2 14 DRAIN3 13 DRAIN4 12 DRAIN5 11 DRAIN6 10 SUPPLY 8 TP7 testpinTP14 testpinTP8 testpin MOTO_OUT1MOTO_OUT2MOTO_OUT3MOTO_OUT4MOTO_OUT5MOTO_OUT6MOTO_OUT7MOTO_OUT8 MOTO_OUT8MOTO_OUT7MOTO_OUT6MOTO_OUT5 MOTO_OUT4MOTO_OUT3MOTO_OUT2MOTO_OUT1 55 44 33 22 11 D D C C B B A A DEBUG 3.3V VDDC 1.5V VDDC 3.3V 3.3V 3.3V 1.8V_DOVDD 3.3V VDDC 1.5V 3.3V 1.5V VREF_DDR VREF_DDRVCM2VCM3 VCM3 VCM2 VDDC USB_DM 8 USB_DP 8 TPM0596_SRCK 6 TPM0596_CLR 6 TPM0596_RCK 6 TPM0596_DIN 6 CIS_SCL 7 CIS_SDA 7 IR_CUT+ 7 IR_CUT- 7 CIS_RESET 7 CIS_D0- 7 CIS_D0+ 7 CIS_D1- 7 CIS_D1+ 7 CIS_CLK- 7 CIS_CLK+ 7 CIS_MCLK 7 SD_D0 10SD_CLK 10SD_CMD 10SD_CD 10AC_LINE_OUT 5 AC_AMIC_IN 5FACTORY_RST 10 SPK_EN 5 LED_RED 10LED_GREEN 10 LDR_IN 10 TPM0596_EN 6 IR_LED_EN 8 WHITE_LED_EN 8 CA2627pF/50V CA370.1uF/16V CA11 0.1uF/16V RA12 0R CA29 4.7uF/6.3V CA19 0.1uF/16V CA4 0.1uF/16V UA2 XM25QH64CHIQ CS 1 SO/SIO1 2 WP/SIO2 3 GND 4 SI/SIO0 5 SCLK 6 RESET/SIO3 7 VCC 8 RA1110k CA7 0.1uF/16V CA42 0.1uF/16V CA28 4.7uF/6.3V RA13 0R CA43 0.1uF/16V CA36 4.7uF/6.3V CA40 10pF/50V NC CA10 4.7uF/6.3V CA1 4.7uF/6.3V CA22 0.1uF/16V RA910k POWER System USBUARTI2C CameraGPIO MMC/SD/SPIMAC ADC/DAC GND AK3918EV330L UA1 VDD1 9 VDD2 26 VDD3 49 VDD4 69 AVDD11_PLL 50 VDD15_DDR2 66 VDD15_DDR2 67 VDD15_DDR2 68 VDD15_DDR2 70 VDD15_DDR2 71 VDD15_DDR2 73 VDD15_DDR2 74 VDD15_DDR2 75 VDDIO 10 VDDIO_OSC 62 AVCC33 51 HPVDD 54 VBAT 61 VDDIO_CIS0 30 AVCC33_MIPI 45 AVCC11_MIPI 48 VREF/VCM2 56 AVCC/VCM3 57 VREF_DDR2 72 AIN0 60 HPOUT 55 MICP/GPI83 58 LINEIN/GPI84 59 GPIO10_PD/RMII_MDC/I2S_MCLK/PWM2 79 GPIO11_PU/RMII_MDIO/I2S_LRCLK/SPI1_CS 80 GPIO13_PD/RMII_TXEN/I2S_BCLK/SPI1_SCLK 1 GPIO14_PD/RMII_TXD0/I2S_DI/SPI1_DI 2 GPIO15_PD/RMII_TXD1/I2S_DO/SPI1_DO 3 GPIO19_PD/RMII_RXD0/SD1_D3/SPI1_HOLD 4 GPIO20_PD/RMII_RXD1/SD1_D2/SPI1_WP 5 GPIO23_PD/RMII_RXER/SD1_D1/PWM3 6 GPIO24_PD/RMII_RXDV/SD1_D0/PWM4 7 GPIO47_PD/OPCLK_25M_50M/PWM4 8 GPIO42_PU/SD1_CLK 11 GPIO41_PU/SD1_CMD 12 GPIO36_PU/SD0_D3/SPI0_DO 15 GPIO26_PU/SPI0_SCLK 16 GPIO35_PU/SD0_D2/SPI0_DI 19 GPIO79_PU/SPI0_HOLD 17 GPIO25_PU/SPI0_CS 18 GPIO34_PU/SD0_D1/SPI0_WP 20 GPIO33_PU/SD0_D0 21 GPIO32_PU/SD0_CLK 22 GPIO31_PU/SD0_CMD 23 81 GNDPAD XCLK24M_XI 63 XCLK24M_XO 64 RESET_N 78 USB_DM 52 USB_DP 53 GPIO1_PU/UART0_RXD 13 GPIO2_PU/UART0_TXD 14 GPIO27_PU/TWI0_SCL 27 GPIO28_PU/TWI0_SDA 28 GPIO49_PD 29 CIS0_SCLK/GPIO64_PD/JTAG_TDOOUT 31 CIS0_PCLK/GPIO65_PD 32 CIS0_HSYNC/GPIO66_PD/PWM3 33 CIS0_VSYNC/GPIO67_PD/PWM4 34 CIS0_D0/GPIO6_PD/UART1_RXD 35 CIS0_D1/GPIO7_PD/UART1_TXD 36 CIS0_D2/GPIO8_PD/UART1_CTS 37 CIS0_D3/GPIO9_PD/UART1_RTS 38 CIS0_D4/GPIO68_PD/PWM0 39 CIS0_D5/GPIO69_PD/PWM1 40 CIS0_D6/GPI75_PU/MIPI_DN1 41 CIS0_D7/GPI74_PU/MIPI_DP1 42 CIS0_D8/GPI71_PU/JTAG_TMS/MIPI_CLKN 43 CIS0_D9/GPI70_PU/JTAG_TCK/MIPI_CLKP 44 CIS0_D10/GPI72_PU/JTAG_TDI/MIPI_DP0 46 CIS0_D11/GPI73_PU/MIPI_DN0 47 GPIO80_PU/PWM0/SD0_D2/TWI1_SCL 24 GPIO81_PU/PWM2/SD0_D3/TWI1_SDA 25 GPIO82_PU 65 GPIO5_PU/PWM2/UART1_TXD/JTAG_RTCK/AIN1/TWI2_SCK 76 GPIO0_PU/JTAG_RSTN/UART1_RXD/TWI2_SDA 77 CA6 0.1uF/16V CA14 4.7uF/6.3V CA38 10pF/50V NC Y124MHz/12pF 2 14 3 CA23 0.1uF/16V CA9 4.7uF/6.3V DIP CN1 1.25-3A 123 CA41 10pF/50V NC CA16 0.1uF/16V CA39 4.7uF/6.3V RA15 0R CA31 0.1uF/16V CA24 4.7uF/6.3V CA2527pF/50V CA30 0.1uF/16V RA19 2.2K CA5 0.1uF/16V CA20 0.1uF/16V SPI_CLK SPI_CLK XTLO DEBUG_RXDEBUG_TXXTLIXTLO RESET SPI_CSNSPI_MISOSPI_W…

Text truncated - open the document above for the full version.

Test Report

1 深圳市亿圣邦科技有限公司 样品承认书 SPECIFICATIONFORAPPROVAL :WIFI:SLK-ZKXC-2525B-L-80I-B :18025305599:18666299104 Shenzhen Yishengbang Technology Co., Ltd Model Shenzhen Yishengbang Technology Co., Ltd Room 101, Building C, Qianwan Ying technology Park, Gushu, Xixiang, Baoan district, 518000, Guangdong, China Tel.Tel. 2 WIFIAntenna(2525B) 1.ExplanationofProductnumber: SLK-ZKXC-2525B-L-80I-B 12345 ProductCode: (1)Customer: AKXC: (2)Project: 2525B:SLK-ZKXC-2525B(WIFIantenna) (3)WeldingPosition L:Left (4)CableLength: 80I:80*1.13MM (5)CableColor B:Black 2.Features *Stableandreliableinperformances *Compactsize *RoHScompliance 3.Applications *IEEE802.11(b/g/n) *Hand-helddeviceswhenWIFI(802.11b/g/n)functionsareneeded 3 4.Description Holybond’sFPCantennaseriesarespeciallydesignedforWIFI(802.11b/g/n) applications.BasedonHolybond’sproprietarydesignandprocesses,this FPCantennahasexcellentstabilityandsensitivitytoconsistentlyprovide highsignalreceptionefficiency. 5.ElectricalSpecifications 5-1 CharacteristicsSpecificationsUnit OutlineDimensions 25.18x25x0.12 mm CenterFrequency 2.4-2.5GHz Bandwidth(under-10dBreturnloss) 130minMHz VSWR 2max Impedance 50Ω Polarization LinearPolarization 5-2 . VSWRS11 4 5-3.WIFI+BTAntennaGain/Efficiency/RadiationPatternof3D 5 6.AntennaDimensions(unit:mm) 6 7.AntennaPicture

Test Report

TEST REPORT Applicant: JEM ACCESSORIES INC. Address: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 FCC ID: 2AHAS-EOP11002 Product Name: Smart Regular Socket camera Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230848228-00 Date Of Issue: 2023/9/6 Reviewed By: Calvin Chen Title: RF Engineer Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848228-00 Page 2 of 68 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848228-00 Page 3 of 68 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 8 1.2.1 EUT Operation Condition: ............................................................................................................................. 8 1.2.2 Support Equipment List and Details .............................................................................................................. 8 1.2.3 Support Cable List and Details ...................................................................................................................... 8 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 9 1.3 MEASUREMENT UNCERTAINTY ........................................................................................................ 10 2. SUMMARY OF TEST RESULTS .......................................................................................... 11 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 12 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 12 3.1.1 Applicable Standard ..................................................................................................................................... 12 3.1.2 EUT Setup.................................................................................................................................................... 13 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 13 3.1.4 Test Procedure ............................................................................................................................................. 14 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 14 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 15 3.2.1 Applicable Standard ..................................................................................................................................... 15 3.2.2 EUT Setup.................................................................................................................................................... 15 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 16 3.2.4 Test Procedure ............................................................................................................................................. 16 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 16 3.3 MINIMUM 6 DB EMISSION BANDWIDTH .....................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848228-00-TSP TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View China Certification ICT Co., Ltd (Dongguan) Report No.: CR230848228-00-TSP Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View

Contact Information

Applicant

Nathan Shamula
[email protected]7323399800Fax: 7324810300

Test Firm

CHINA CERTIFICATION ICT CO., LTD (DONGGUAN)Tanie Ou
[email protected]0086 0769 86858888

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz75.00 mW
Grant Notes
Power output listed is peak conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device supports 20 MHz and 40 MHz bandwidth modes.
