2AHAS-EOX11003Smart Outdoor camera

JEM ACCESSORIES INC. Add: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 Tel：908-222-7501 Fax: 908.222.7504 E-mail：[email protected] Date: 2023-0 8-24 Attestation letter FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, The RF chip, model RTL8818FTV, which installed in our product Smart Outdoor camera, model: EOX1-1003, EOX1-1003-WHT, EOX1-1003-BLK, FCC ID: 2AHAS-EOX11003, supports 2.4G Wi-Fi, for use in America, this chip only supports 2.4G Wi-Fi (2412- 2462MHz). The other bands was disabled to use by manufacture in the software, the end user has no capability to activate it. Sincerely, Signature Printed Name: Eli Dabbah Title: Manager

JEM ACCESSORIES INC. Add: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 Tel：908-222-7501 Fax: 908.222.7504 E-mail：[email protected] FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023/8/24 Product Similarity Declaration To Whom It May Concern, We, JEM ACCESSORIES INC. hereby declare that we have a product named as Smart Outdoor camera, (Model No.: EOX1-1003, FCC ID: 2AHAS-EOX11003) was tested by China Certification ICT Co., Ltd (Dongguan), meanwhile, for our marketing purpose, we would like to list a series model No.: EOX1- 1003-WHT, EOX1-1003-BLK on reports and certificate, all the models are identical in electrically, except different color, And no other changes are made to them. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely, Signature: Printed Name: Eli Dabbah Title: Manager

JEM ACCESSORIES INC. Add: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 ： Tel 908-222-7501 Fax: 908.222.7504 E- ： mail [email protected] CFR 47 §2.911(d)(5)(i) Attestation Letter Attestation Letter Date: 2023/08/24 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2AHAS-EOX11003 JEM ACCESSORIES INC. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature Contact Person: Eli Dabbah Title: Manager Company Name: JEM ACCESSORIES INC. Co mpany Address: 32 Brunswick Avenue, Edison, New Jersey, United States,08817

JEM ACCESSORIES INC. Add: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 ： Tel 908-222-7501 Fax: 908.222.7504 E- ： mail [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter QA-FR-1007-A RC 02-08-2023 Attestation Letter Date: 2023/8/24 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2AHAS-EOX11003 JEM ACCESSORIES INC. (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature Contact Person: Eli Dabbah Title: Manager Company Name: JEM ACCESSORIES INC. Co mpany Address: 32 Brunswick Avenue, Edison, New Jersey, United States,08817

U.S. AGENT LETTER OF ATTESTATION Date: 2023-08-24 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2AHAS-EOX11003 JEM ACCESSORIES INC. certifies that, as of the date of the filing of the application, JEM ACCESSORIES INC.is our designated U.S. agent for service of process for the above referenced FCC ID. JEM ACCESSORIES INC. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. JEM ACCESSORIES INC. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent and Applicant Information: Name: JEM ACCESSORIES INC. Address: 32 Brunswick Avenue, Edison, New Jersey, United States, 08817 FRN: 0025209164 Tel.: 908-222-7501 Email: elid@xtremeca bles.com Signed by (printed name): Eli Dabbah Signature:

5 5 4 4 3 3 2 2 1 1 DD CC BB AA AK3918EV330L 8MB FLASH 24MHz CRYSTAL PM_SPI XTAL DEBUG PM_UART USB ANT DRIVER GPIO*2 IR CUT SENSOR SC2336 I2C MIPI GPIO*2 SDIO MICAUDIO PAAUDIOSPEAKER FACTORY LED DRIVERGPIO*2 2PIN 1.25MM CONNECTOR GPIO*2RED&GREEN LED 9PIN 1.25MM CONNECTOR GPIO 3PIN 1.25MM CONNECTOR 4PIN 1.25MM CONNECTOR UART1 TF CARD HOLDER BUTTON WIFI MODULE 40MHz CRYSTAL RTL8188FTV CHIP

JEM ACCESSORIES INC. Add: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 Tel：908-222-7501 Fax: 908.222.7504 E-mail：[email protected] FCC Authorization 2023/8/24 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, JEM ACCESSORIES INC. the undersigned, hereby authorize China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name: Eli Dabbah Title: Manager QA-FR-170-B

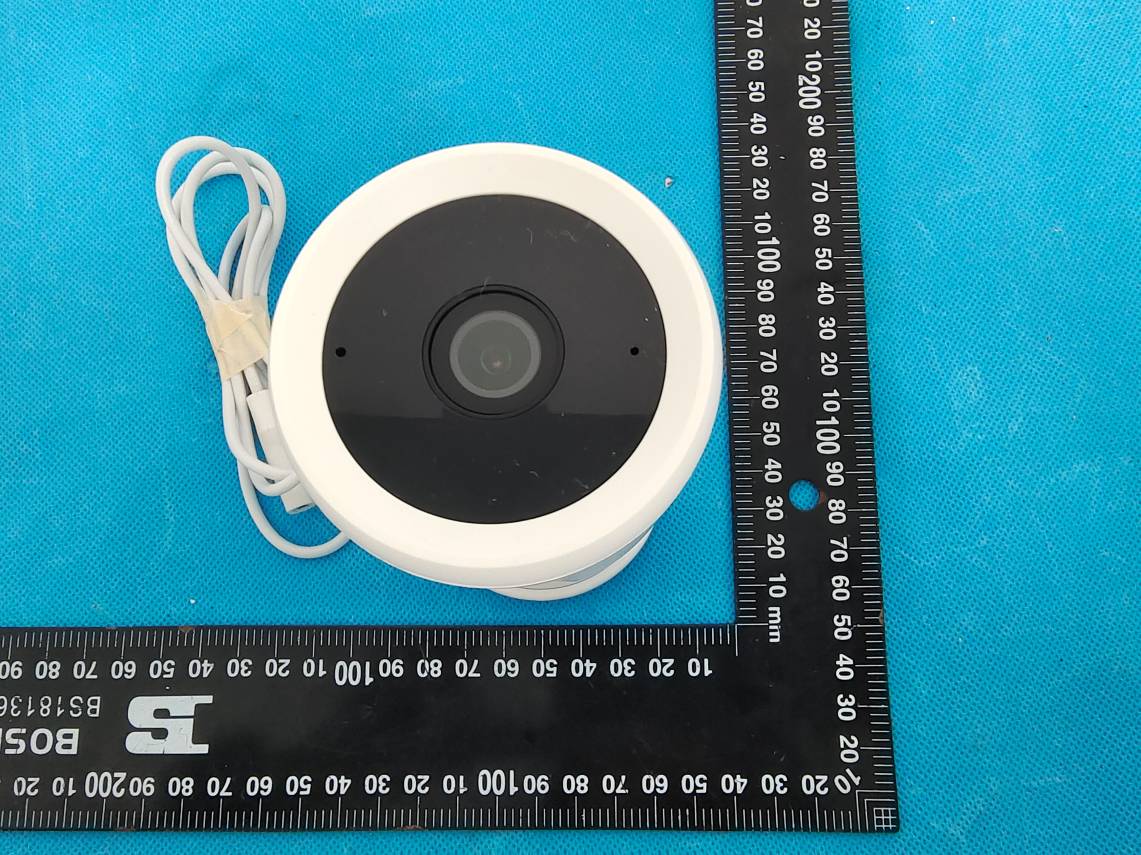

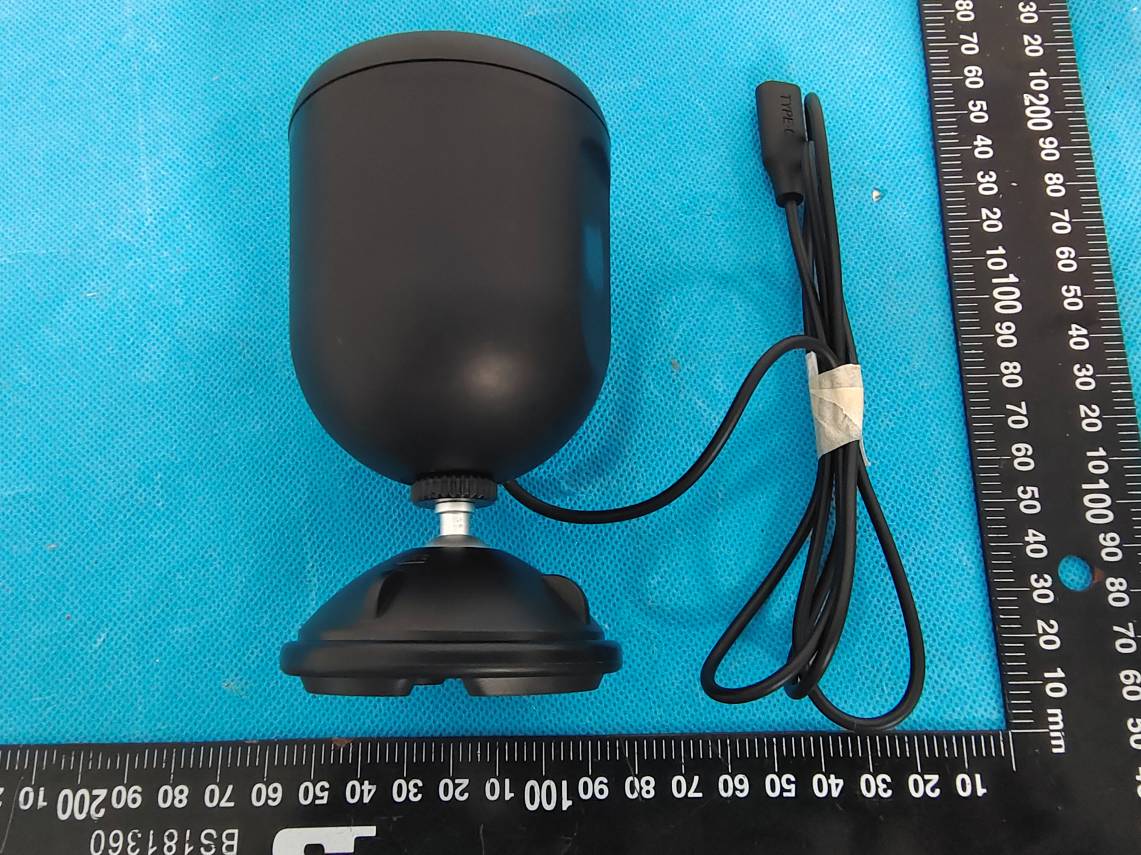

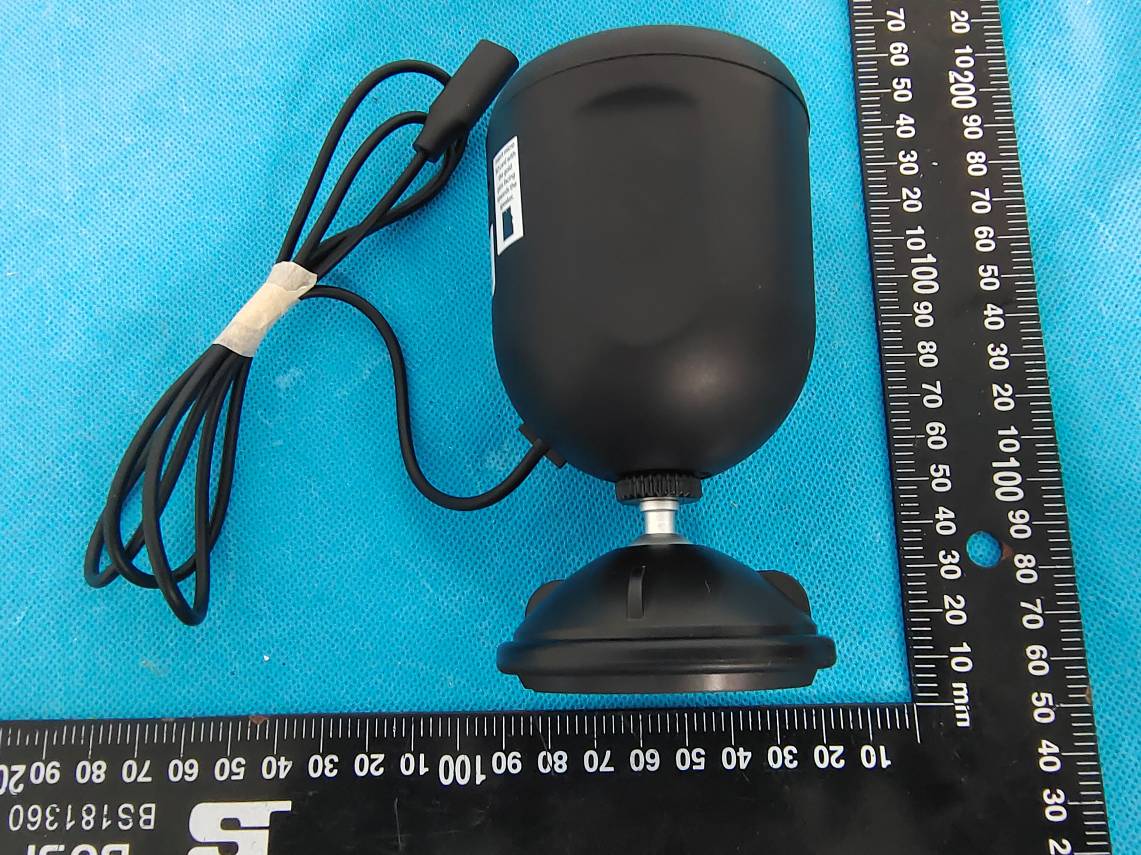

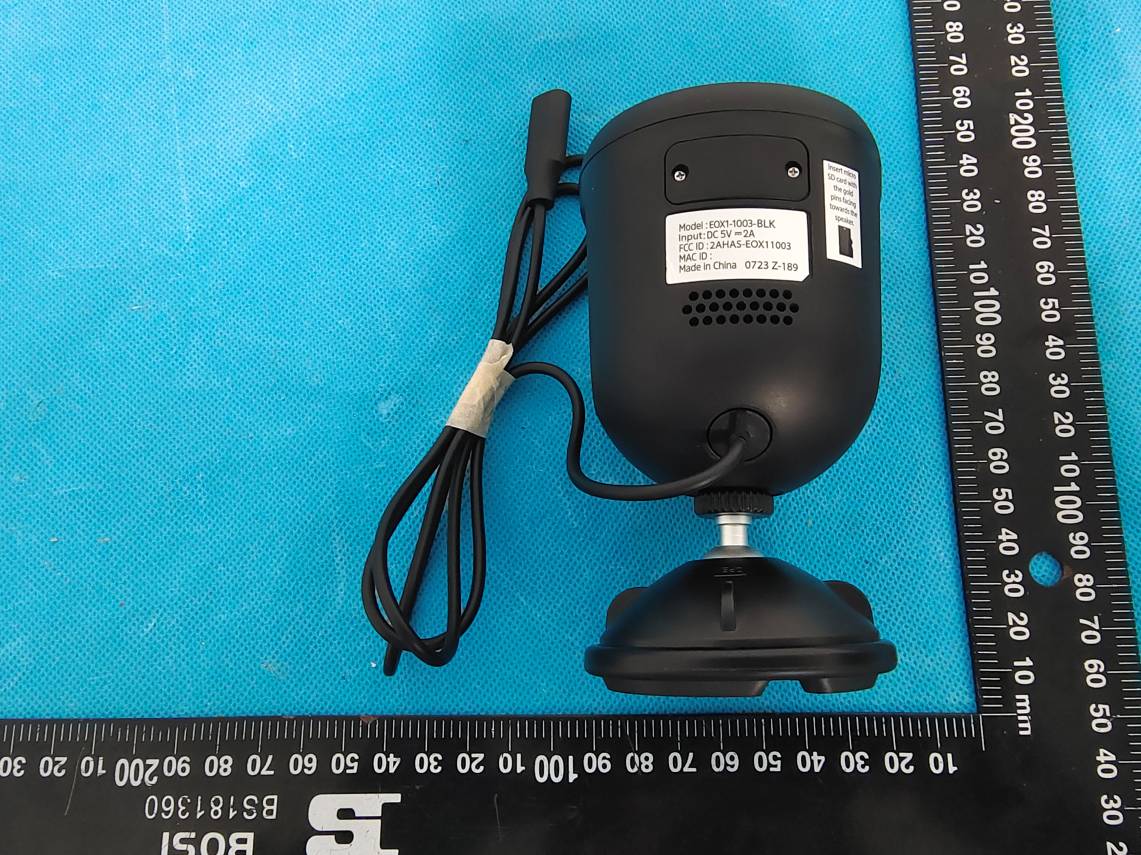

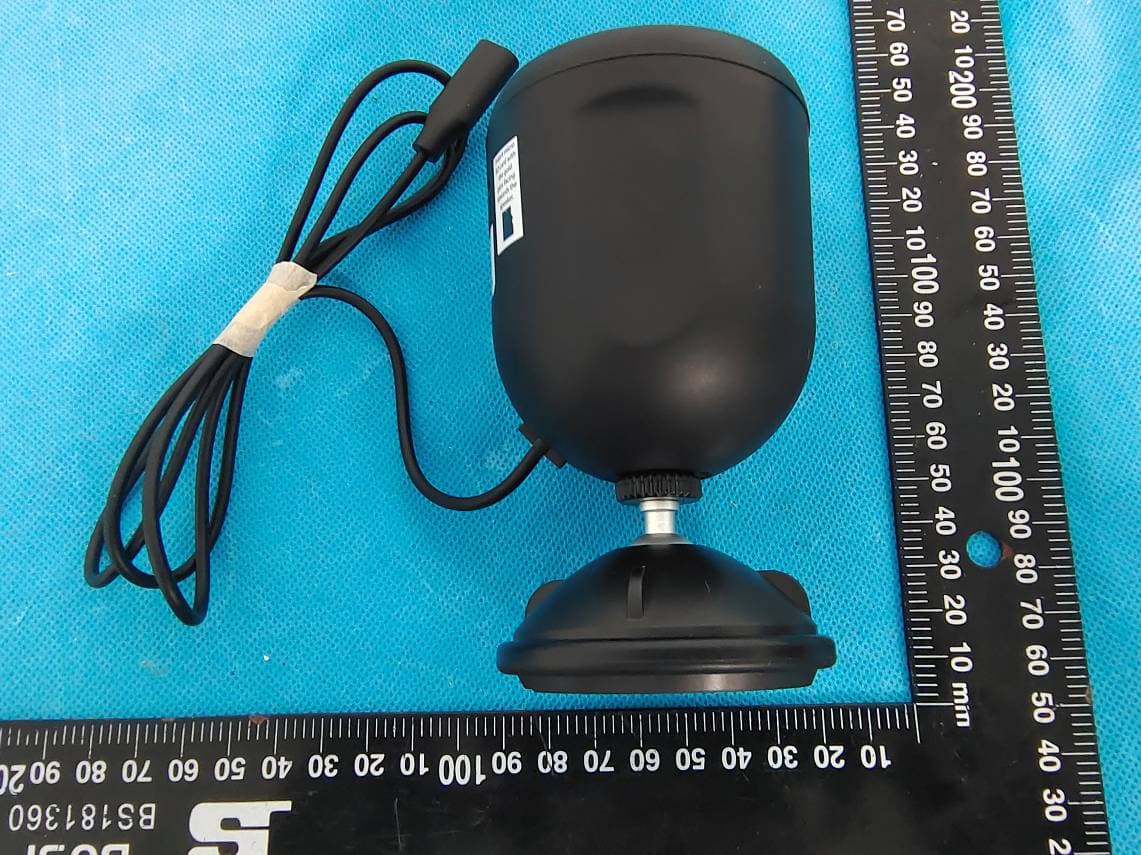

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230740885-EXP EUT EXTERNAL PHOTOGRAPHS Page 1 of 8 Model: EOX1-1003 & EOX1-1003-BLK Page 2 of 8 Page 3 of 8 Page 4 of 8 Page 5 of 8 Model: EOX1-1003-WHT Page 6 of 8 Page 7 of 8 Page 8 of 8 Adapter

Lab Lab bel bel location:

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230740885-INP Page 1 of 11 EUT INTERNAL PHOTOGRAPHS Page 2 of 11 Page 3 of 11 Page 4 of 11 Page 5 of 11 Page 6 of 11 Page 7 of 11 Page 8 of 11 Page 9 of 11 Page 10 of 11 Page 11 of 11 Antenna

Circuit Description The Smart Outdoor camera’s MCU use AK3918EV330L. 24MHz crystal is used for AK3918EV330L chip. The AK3918EV330L is designed specifically for cost sensitive, low-power, and high-performance HDIP camera applications to meet the increasing demand for high-definition video surveillance. With embedded DDR2, H.264 hardware encoder, ISP, AES/DES/3DES encryption, AK3918EV330L can easily achieve high performance. The camera currently operates on the Wi-Fi frequency, which is based on realtek RTL8188FTV chipset that complied with IEEE 802.11g, 802.11b, 802.11n standard. 40MHz crystal is used for RTL8188FTV chip. Frequency Range: 2412-2462 MHz(802.11b/g/n ht20) 2422-2452 MHz(802.11n ht40) Modulation Type: DSSS, OFDM Rated Input Voltage: DC 5V from adapter

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230740885-00 Page 54 of 56 5. RF EXPOSURE EVALUATION 5.1 MPE-Based Exemption 5.1.1 Applicable Standard According to §1.1307(b)(3)(i) (C) Or using Table 1 and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). Table 1 to § 1.1307(b)(3)(i)(C) - Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 . 1.34-30 3,450 R 2 /f 2 . 30-300 3.83 R 2 . 300-1,500 0.0128 R 2 f. 1,500-100,000 19.2R 2 . 5.1.2 Measurement Result Operation Modes Frequency (MHz) λ/2π (mm) Distance (mm) Exemption ERPMaximum Conducted Power including Tune-up Tolerance (dBm) Antenna Gain (dBi) ERP (dBm) MPE- Based Exemption (mW)(dBm) Wi-Fi 2412-2462 19.88 200 768 28.85 22.0 3 22.85 Compliant Note: The Maximum Conducted Power including Tune-up Tolerance was declared by manufacturer. Result: The device compliant the MPE-Based Exemption at 20cm distances.

5 5 4 4 3 3 2 2 1 DD CC BB AA VDDC=1.25V DEFAULT MAX:1A MAX:1A MAX:500mA Type:50.6mA Type:18.1mA 5.0V 1.5V 5.0VVDDC 5.0V3.3V 3.3V 1.8V_DOVDD 3.3V 2.8V_AVDD 3.3V 1.2V_DVDD 12V 5.0V R6 100K U1 ETA3485S2F EN 1 GND 2 LX 3 VIN 4 FB 5 U2 SMB130F18-C5TR Vin 1 GND 2 EN 3 BP/FB 4 VOUT 5 TP42 testpin U6 ETA3485S2F EN 1 GND 2 LX 3 VIN 4 FB 5 C19 1uF/6.3V C22 4.7uF/6.3V R76 NC/150K/1% TP44 testpin R4 100K TP41 testpin U5 TPL730F28-5TR VIN 1 GND 2 EN 3 NC/FB 4 OUT 5 C129 0.1uF/16V U4 NC/SMB130F12-C5TR NC VIN 1 GND 2 EN 3 NC/FB 4 OUT 5 U16 NC/ETA8120S2G BST 1 GND 2 FB 3 EN 4 VIN 5 SW 6 L6NC/2.2UH/1.2A R8 91K/1% TP39 testpin C127 10uF/16V C4 4.7uF/6.3V C9 4.7uF/6.3V C21 1uF/6.3V L12.2UH/1.2A C8 1uF/6.3V U3 ETA3485S2F EN 1 GND 2 LX 3 VIN 4 FB 5 C7 1uF/6.3V TP30 testpin C16 1uF/6.3V NC C318 4.7uF/6.3V NC C12 4.7uF/6.3V C324 4.7uF/6.3V L32.2UH/1.2A R12 22K/1% R11 100K TP40 testpin C1 4.7uF/6.3V C131 4.7uF/6.3V R75 NC/20K R2 150K/1% C325 4.7uF/6.3V NC L22.2UH/1.2A C18 1uF/6.3V NC C13 4.7uF/6.3V NC 5 5 4 4 3 3 2 2 1 DD CC BB A SPI_CLK SPI_CLK XTLO DEBUG_RX DEBUG_TX XTLI XTLO RESET SPI_CSN SPI_MISO SPI_WP SPI_HOLD SPI_MOSI SPI_CLK XTLI CIS_MCLK SD_CLK SPI_MISO SPI_HOLD SPI_CSN SPI_WP SPI_MOSI RMII_CLK DEBUG_TX DEBUG_RX UART1_TXD UART1_RXD UART1_TXD UART1_RXD 3.3VVDDC 1.5V VDDC 3.3V3.3V3.3V 1.8V_DOVDD 3.3V VDDC1.5V3.3V 1.5V VREF_DDR VREF_DDR VCM2 VCM3 VCM3VCM2 VDDC USB_DM8 USB_DP8 TPM0596_SRCK6 TPM0596_CLR6 TPM0596_RCK6 TPM0596_DIN6 CIS_SCL7 CIS_SDA7 IR_CUT+7 IR_CUT-7 CIS_RESET7 CIS_D0-7 CIS_D0+7 CIS_D1-7 CIS_D1+7 CIS_CLK-7 CIS_CLK+7 CIS_MCLK7 SD_D0 10 SD_CLK 10 SD_CMD 10 SD_CD 10 AC_LINE_OUT 5 AC_AMIC_IN 5 FACTORY_RST 10 SPK_EN5 LED_RED 10 LED_GREEN 10 RMII_MDCK 9 RMII_MDIO 9 RMII_TX_EN 9 RMII_TXD0 9 RMII_TXD1 9 RMII_RXD0 9 RMII_RXD1 9 RMII_RX_DV 9 LDR_IN 10 TPM0596_EN6 RMII_CLK 9 IR_LED_EN8 RTL8201_RST 9 WHITE_LED_EN8 CA26 27pF/50V CA37 0.1uF/16V CA10 0.1uF/16V RA120R CA29 4.7uF/6.3V CA19 0.1uF/16V CA4 0.1uF/16V UA2 XM25QH64CHIQ CS 1 SO/SIO1 2 WP/SIO2 3 GND 4 SI/SIO0 5 SCLK 6 RESET/SIO3 7 VCC 8 RA11 10k CA7 0.1uF/16V CA42 0.1uF/16V CA28 4.7uF/6.3V RA130R CA36 4.7uF/6.3V CA40 10pF/50V NC CA1 4.7uF/6.3V CA14 0.1uF/16V TP35 testpin CA22 0.1uF/16V RA9 10k POWER System USB UART I2C Camera GPIO MMC/SD/SPI MAC ADC/DAC GND AK3918EV330L UA1 VDD1 9 VDD2 26 VDD3 49 VDD4 69 AVDD11_PLL 50 VDD15_DDR2 66 VDD15_DDR2 67 VDD15_DDR2 68 VDD15_DDR2 70 VDD15_DDR2 71 VDD15_DDR2 73 VDD15_DDR2 74 VDD15_DDR2 75 VDDIO 10 VDDIO_OSC 62 AVCC33 51 HPVDD 54 VBAT 61 VDDIO_CIS0 30 AVCC33_MIPI 45 AVCC11_MIPI 48 VREF/VCM2 56 AVCC/VCM3 57 VREF_DDR2 72 AIN0 60 HPOUT 55 MICP/GPI83 58 LINEIN/GPI84 59 GPIO10_PD/RMII_MDC/I2S_MCLK/PWM2 79 GPIO11_PU/RMII_MDIO/I2S_LRCLK/SPI1_CS 80 GPIO13_PD/RMII_TXEN/I2S_BCLK/SPI1_SCLK 1 GPIO14_PD/RMII_TXD0/I2S_DI/SPI1_DI 2 GPIO15_PD/RMII_TXD1/I2S_DO/SPI1_DO 3 GPIO19_PD/RMII_RXD0/SD1_D3/SPI1_HOLD 4 GPIO20_PD/RMII_RXD1/SD1_D2/SPI1_WP 5 GPIO23_PD/RMII_RXER/SD1_D1/PWM3 6 GPIO24_PD/RMII_RXDV/SD1_D0/PWM4 7 GPIO47_PD/OPCLK_25M_50M/PWM4 8 GPIO42_PU/SD1_CLK 11 GPIO41_PU/SD1_CMD 12 GPIO36_PU/SD0_D3/SPI0_DO 15 GPIO26_PU/SPI0_SCLK 16 GPIO35_PU/SD0_D2/SPI0_DI 19 GPIO79_PU/SPI0_HOLD 17 GPIO25_PU/SPI0_CS 18 GPIO34_PU/SD0_D1/SPI0_WP 20 GPIO33_PU/SD0_D0 21 GPIO32_PU/SD0_CLK 22 GPIO31_PU/SD0_CMD 23 81 GNDPAD XCLK24M_XI 63 XCLK24M_XO 64 RESET_N 78 USB_DM 52 USB_DP 53 GPIO1_PU/UART0_RXD 13 GPIO2_PU/UART0_TXD 14 GPIO27_PU/TWI0_SCL 27 GPIO28_PU/TWI0_SDA 28 GPIO49_PD 29 CIS0_SCLK/GPIO64_PD/JTAG_TDOOUT 31 CIS0_PCLK/GPIO65_PD 32 CIS0_HSYNC/GPIO66_PD/PWM3 33 CIS0_VSYNC/GPIO67_PD/PWM4 34 CIS0_D0/GPIO6_PD/UART1_RXD 35 CIS0_D1/GPIO7_PD/UART1_TXD 36 CIS0_D2/GPIO8_PD/UART1_CTS 37 CIS0_D3/GPIO9_PD/UART1_RTS 38 CIS0_D4/GPIO68_PD/PWM0 39 CIS0_D5/GPIO69_PD/PWM1 40 CIS0_D6/GPI75_PU/MIPI_DN1 41 CIS0_D7/GPI74_PU/MIPI_DP1 42 CIS0_D8/GPI71_PU/JTAG_TMS/MIPI_CLKN 43 CIS0_D9/GPI70_PU/JTAG_TCK/MIPI_CLKP 44 CIS0_D10/GPI72_PU/JTAG_TDI/MIPI_DP0 46 CIS0_D11/GPI73_PU/MIPI_DN0 47 GPIO80_PU/PWM0/SD0_D2/TWI1_SCL 24 GPIO81_PU/PWM2/SD0_D3/TWI1_SDA 25 GPIO82_PU 65 GPIO5_PU/PWM2/UART1_TXD/JTAG_RTCK/AIN1/TWI2_SCK 76 GPIO0_PU/JTAG_RSTN/UART1_RXD/TWI2_SDA 77 CA6 0.1uF/16V RA230R TP36 testpin CA38 10pF/50V NC Y1 24MHz/12pF 21 43 CA23 0.1uF/16V CA9 4.7uF/6.3V DIP CN1 1.25-3A 1 2 3 CA41 10pF/50V NC CA16 0.1uF/16V RA150R CA31 0.1uF/16V CA24 4.7uF/6.3V CA25 27pF/50V CA30 0.1uF/16V RA192.2K CA11 0.1uF/16V CA5 0.1uF/16V CA20 0.1uF/16V CA39 10pF/50V NC 5 5 4 4 3 3 2 2 1 DD CC BB A SPK_EN IN+ IN- SPK+ SPK- SPK+ SPK- 5.0V VCM3 5.0V AGND AGND SPK_EN4 AC_LINE_OUT4 AC_AMIC_IN4 C75 0.1uF/16V CN3 1.25T-2PLT S2 S2 S1 S1 2 2 1 1 TP3 testpin R472.2K CN2 CN125P-2 2 2 1 1 TP4 testpin C74 4.7uF/6.3V C77 0.1uF/16V C72 0.1uF/16V TP2 testpin U21 CS8126T SHUTDOWN 1 NC 2 +IN 3 -IN 4 Vo+ 5 VDD 6 GND 7 Vo- 8 EPAD 9 C78 0.1uF/16V R4933.2K/1% C73 4.7uF/6.3V R5133.2K/1% TP1 testpin R2550R 5 5 4 4 3 3 2 2 1 DD CC BB AA CIS_RESET CIS_PWDN IR_CUT_OUT- IR_CUT_OUT+ IR_CUT_OUT+ IR_CUT_OUT- CIS_PWDN 1.8V_DOVDD 1.8V_DOVDD 2.8V_AVDD 1.2V_DVDD 5.0V 1.2V_DVDD 1.8V_DOVDD 2.8V_AVDD 1.8V_DOVDD 1.8V_DOVDD IR_CUT+ 4 IR_CUT- 4 CIS_D1- 4 CIS_D0- 4 CIS_CLK- 4 CIS_CLK+ 4 CIS_D0+ 4 CIS_D1+ 4 CIS_SDA4 CIS_SCL4 CIS_MCLK4 CIS_RESET4 C115 0.1uF/16V TP15 testpin C108 4.7uF/6.3V NC TP16 testpin R66 10k C100 0.1uF/16V NC C109 0.1uF/16V NC U13 TPM16050 OUT2 1 GND 2 OUT1 3 IN1 5 VM 4 IN2 6 C103 4.7uF/6.3V C112 4.7uF/6.3V NC U23 SC2336 EXTCLK A3 SDA A4 SCL A5 XSHUTDN A6 PWDNB C6 EFSYNC A7 SID B5 LREF A2 DOVDD1 C2 NC E7 VREFN D7 PCLK/MCN D4 D4/MD1P D3 D3/MD1N D2 D8/MD0P E5 D7/MD0N D5 FSYNC B3 D9 C5 D1 D1 D0 E1 D2 E2 D5 E3 NC1 E6 AGND A1 AGND1 C7 DOGND B2 DOGND1 D6 AVDD2 B7 AVDD1 B1 DVDD1 B4 DOVDD2 C3 DVDD2 B6 DVDD C1 D6/MCP C4 DVDD3 E4 C104 4.7uF/6.3V CN9 1.25T-2PLT S2 S2 S1 S1 2 2 1 1 C102 0.1uF/16V C114 4.7uF/6.3V C95 1uF/6.3V C106 4.7uF/6.3V NC C99 4.7uF/6.3V NC C96 1uF/6.3V C105 0.1uF/16V C101 4.7uF/6.3V C113 0.1uF/16V NC R730R R63 2.2K C110 4.7uF/6.3V NC C94 0.1uF/16V R65 10k R64 2.2K C111 0.1uF/16V NC C107 0.1uF/16V NC 5 5 4 4 3 3 2 2 1 DD CC BB AA 3.3V 5.0V USB_DM4 USB_DP4 IR_LED_EN4,8 IR_LED+ 8,10 IR_LED- 8,10 C135 1uF/6.3V C68 …

Text truncated - open the document above for the full version.

Q R/RD-P01-09B SPECIFICATION S henzhen Guandetong Electronic Limited 深 圳市冠得通电子有限公司 S henzhen Guandetong Electronic Co., Ltd. 2 .4G FPC （1.13 Cable Grey*75MM） Antenna specifications ANT h ttp://www.szgdtrf.com Address: 3rd Floor, Building D, Huanguan South Maoyuan Industrial Park, Guanhu Street, Longhua District, Shenzhen City 产品名称(Name) FPC ANT 产品型号(Model Type) 电 性 能指 标(Electrical Specifications) 频率范围(Frenquency Range) 2400-2500MHz 极化方式（Polarization） 输入阻抗(Impedance) 50 Ω 辐射方向 驻波比（VSWR）≦2功率容量(Power) 50W 增益(Gain) 3dBi 带宽(Bandwidth 100/600MHz 机 械 指 标(Mechanical Specifications) 尺寸(Dimensions)32*8±2mm天线颜色(Chassis Color) 连接器型号(Connector)IPEX引线长度(Cable Length)75±5MM 天线材料(Chassis Material) FPC 工作温度 (Working Temperature) -40°C-+85°C 存放温度 (Limit Temperature) -40°C-+85°C 1. Antenna Photo 2. Product parameters Product test parameters UANT20B02279A Vertical Omnidirectional Black 3.S11（VSWR、Return loss、Smith） Data 4. Structural drawings Frequency Gain 2400 2.5 2410 2.6 2420 2.7 2430 2.7 2440 3.0 2450 2.9 2460 3.0 2470 2.9 2480 2.8 2490 2.7 2500 2.7 (MHz) 5. Antenna Gain (dBi) 6.Antenna Pattern 3D Gain Pattern @ 2440 MHz Z X Y Y X X Y Z

TEST REPORT Applicant: JEM ACCESSORIES INC. Address: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 FCC ID: 2AHAS-EOX11003 Product Name: Smart Outdoor camera Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230740885-00 Date Of Issue: 2023/9/8 Reviewed By: Calvin Chen Title: RF Engineer Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230740885-00 Page 2 of 56 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230740885-00 Page 3 of 56 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 8 1.2.1 EUT Operation Condition: ............................................................................................................................. 8 1.2.2 Support Equipment List and Details .............................................................................................................. 8 1.2.3 Support Cable List and Details ...................................................................................................................... 8 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 9 1.3 MEASUREMENT UNCERTAINTY ........................................................................................................ 10 2. SUMMARY OF TEST RESULTS .......................................................................................... 11 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 12 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 12 3.1.1 Applicable Standard ..................................................................................................................................... 12 3.1.2 EUT Setup.................................................................................................................................................... 13 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 13 3.1.4 Test Procedure ............................................................................................................................................. 14 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 14 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 15 3.2.1 Applicable Standard ..................................................................................................................................... 15 3.2.2 EUT Setup.................................................................................................................................................... 15 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 16 3.2.4 Test Procedure ............................................................................................................................................. 16 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 16 3.3 MINIMUM 6 DB EMISSION BANDWIDTH ........................................................................................... …

Text truncated - open the document above for the full version.

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230740885-00-TSP TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View China Certification ICT Co., Ltd (Dongguan) Report No.: CR230740885-00-TSP Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
