2AHAS-MLB71065LED FLOW - 2M RGBW+IC Flow WiFi Light Strip with Sound Reactive

JEM ACCESSORIES INC. Add: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 Tel：908-222-7501 Fax: 908.222.7504 E-mail：[email protected] Date: 2022-10-10 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, The RF chip, model: BK7231N installed in our product LED FLOW - 2M RGBW+IC Flow WiFi Light Strip with Sound Reactive, model: MLB7-1065, FCC ID: 2AHAS- MLB71065, supports 2.4G Wi-Fi and BT/BLE function, but for marketing purpose, this chip only supports 2.4G Wi-Fi. The BT/BLE was disabled to use by manufacture in the software, the end user has no capability to activate it. Signature: Eli Dabbah Manager

11 22 33 4 D C C B B A A BK7231N 2.4G 12 26MHzXTAL PDC5V DC5V R G B LDO DC3.3V GND GND VDD GND AD DC5V GND GND GND IO GND PCB 2812B S1 DO Mi-head Amplification circuitry 2412-2472MHz Wi-Fi:

JEM ACCESSORIES INC. Add: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 Tel：908-222-7501 Fax: 908.222.7504 E-mail：[email protected] FCC Authorization 2022/10/11 FE DERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, JEM ACCESSORIES INC. the undersigned, hereby authorize Shenzhen Accurate Technology Co.,Ltd to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Shenzhen Accurate Technology Co.,Ltd on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name: Eli Dabbah Title: Manager QA-FR-170-B

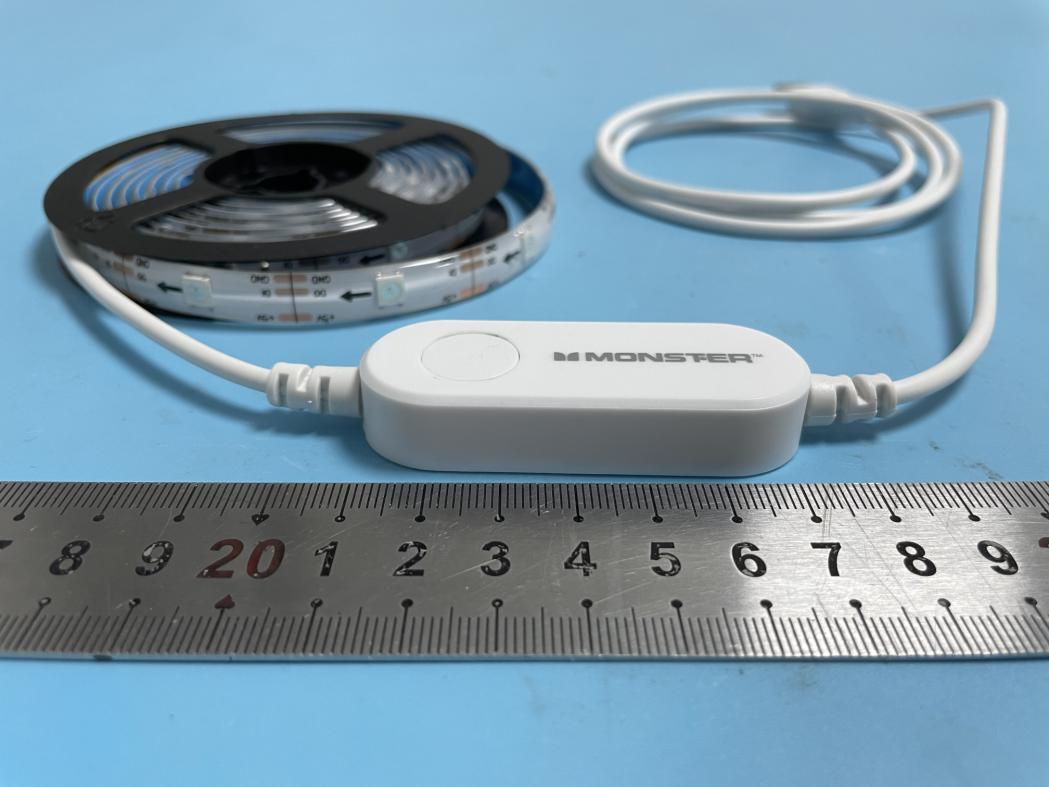

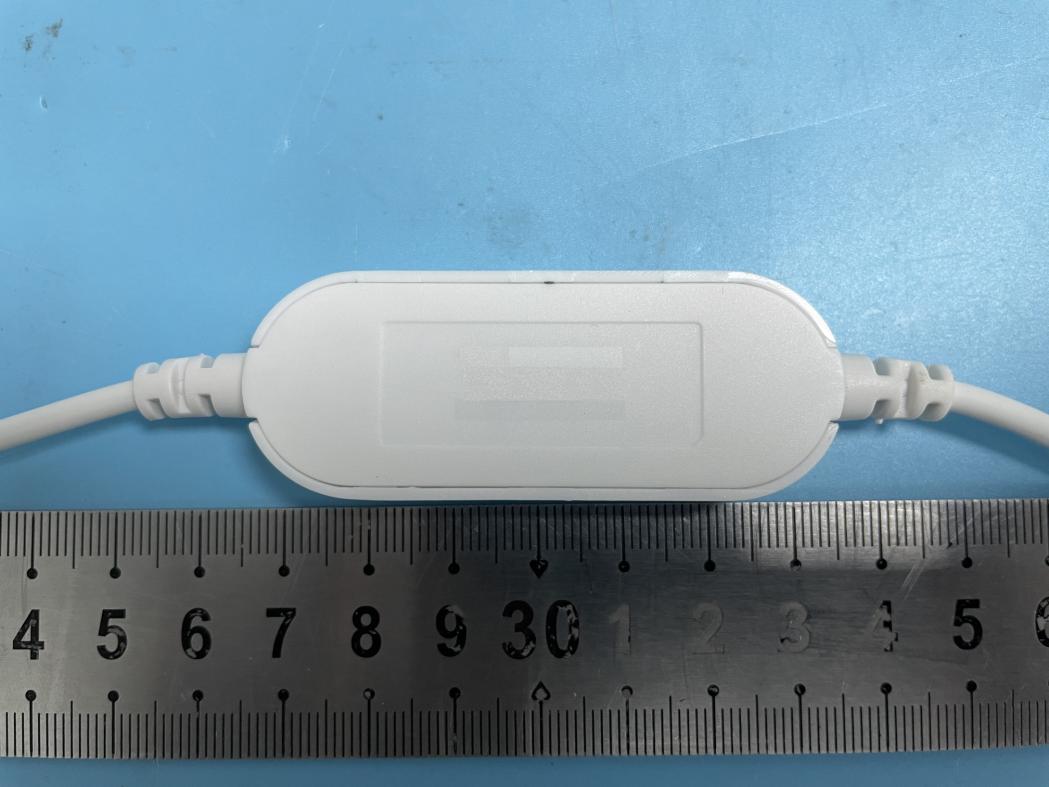

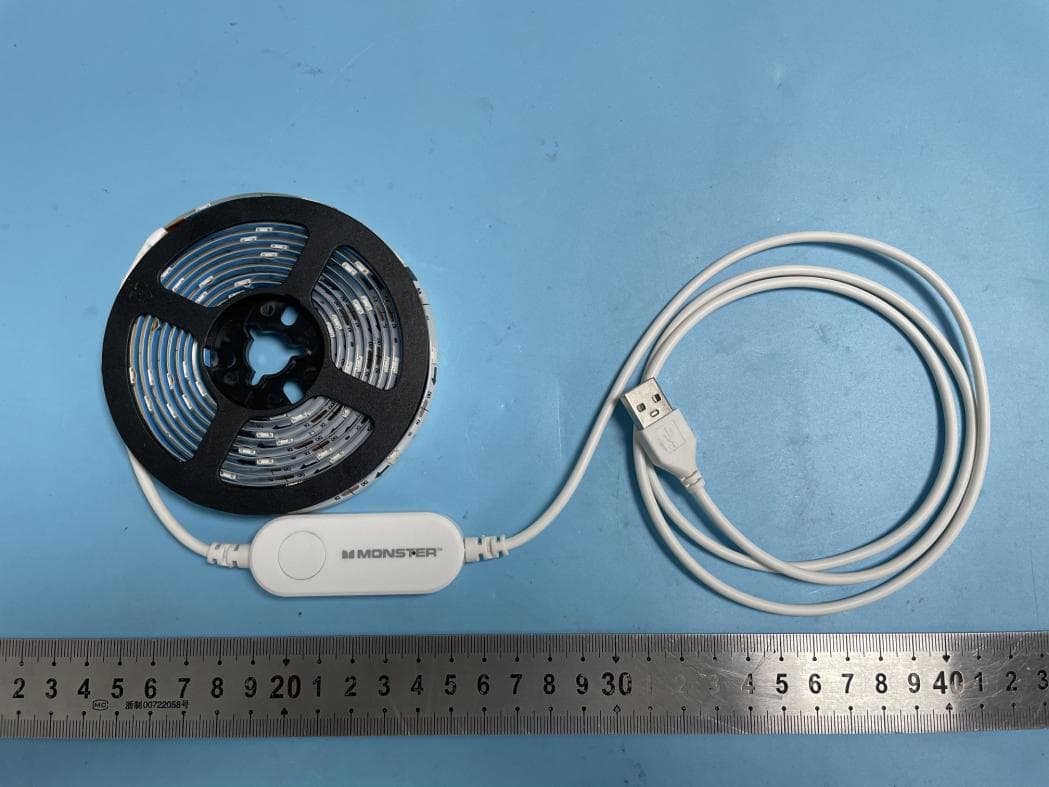

Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220506-18541E-RF External Photos Page 1 of 4 External Photos Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220506-18541E-RF External Photos Page 2 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220506-18541E-RF External Photos Page 3 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220506-18541E-RF External Photos Page 4 of 4

FCC ID: 2AHAS‐MLB71065 Input: 5V 2A Made in China 0522K ‐021 FCC ID:2AHAS-MLB71065 Model:MLB7-1065

Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220506-18541E-RF Internal Photos Page 1 of 3 Internal photos Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220506-18541E-RF Internal Photos Page 2 of 3 Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220506-18541E-RF Internal Photos Page 3 of 3 Antenna

CIRCUIT DESCRIPTION Overall description of the circuit: * This product uses U1 (BK7231N) to control the chromaticity and brightness of a string of colorful lights and the brightness of a warm light, Crystal: 26Mhz. All operations are finally completed by the wifi link to the network to achieve cloud control function. * Various colors and brightness of the light board can be controlled through the panel buttons and mobile phone APP, mainly used in ambient lights, lighting, creative lights, warning reminders, etc. Control part: This product is realized by the U1 (BK7231N) of the machine's LED white light drive and phantom color LED data flow, while responding to external buttons and mic signals. Link to the network in the form of wifi, and realizes the APP control function issued by the cloud from the mobile phone smart terminal. And through the internal communication interconnection to realize the response call of the U1 native function. Frequency Range: 2412-2472MHz

11 22 33 44 55 66 7 8 D C C B B A A 3.3V +5V 123456 CN1 R710K ANT1 2.4G WiFi-BLE LED MCU 21 MIC1MIC R204.7K C261uF VCC VCC C24100nF 123 45 U3 LM321 R121K R15 240K C250.1uF SOUND R103.3K R9240K VCC R16100K C11 1.0PF/50V L2 0.3NH/500mA C61.0PF/50V C17104/6.3V C23104/6.3V L3 3NH/500mA C121PF/50V P1 SMB XI 1 GND 2 XO 3 GND 4 *1Y-3225 SMD C42.7PF/50V C12.7PF/50V TP3 3.3V 12 J1 24V +24V L14.7UH R210K C9104 C10106/35V R349.9KF D1M7F C13 104 C14 47uF/10V C15 47uF/10V R2416.2KF BST 1 GND 2 FB 3 EN 4 IN 5 SW 6 U2 RY8310 C2010nF GND C2710uF R21100R 3.3V 123 1 IR_IN VCCRXRE 1 ANT 2 VCCPA 3 VCCPAD 4 VCCIF 5 VSYS 6 VDDDIG 7 NC 8 VBAT 9 P28/ADC4/RXEN 10 P14/SD_CLK/SCK/ANT0 11 P16/SD_CMD/MOSI/ANT2 12 P15/CSN/ANT1 13 P17/SD_D0/MISO/ANT3 14 P26/ADC1/IRDA/PWM5 15 P24/ADC2/LPO_CLK/PWM4 16 P23/ADC3/TDO/F_SO 17 P22/ADC5/CLK_26M/TDI/TXEN/F_SI 18 P21/ADC6/I2C1_SDA/TMS/F_CSN 19 P20/I2C1_SCL/TCK/F_SCK 20 CEN 21 P6/CLK13M/PWM0 22 P7/WIFI_ACTIVE/PWM1 23 P8/BT_ACTIVE/PWM2 24 P9/BT_PRIORITY/PWM3 25 P10/DL_RX/UART1_RXD 26 P11/DL_TX/UART1_TXD 27 P1/UART2_RXD/I2C2_SDA 28 P0/UART2_TXD/I2C2_SCL 29 XI 30 XO 31 VCCPLL 32 33 33 U1 BK7231N R518R C5 105/6.3V C8 1.2PF/50V R10R C70.5PF/50V R40R C19 4.7uF/50V C21 2.2uF/50V C18 4.7uF/50V GND 3.3V C22 4.7uF/50V NC NC P28 P14 P16 P15 P17 PWM5 PWM4 SOUNDTDI_F_SITMS_F_CSNTCK_F_SCKCENPWM0PWM1PWM2 XO XI C2 105/6.3V C3 105/6.3V TP4 TP5 GND 3.3V RX1 TX1 GND3.3VCEN TP8 TMS_F_CSN K1 GND P9 P9 RX1 TX1 RX2 TX2 XI XO NC NC NC NC R810K RX2 DO G R B W R610K 3.3V IR_IN GND 5 D C B A 1234 JP1 4 HEADER D9 NBAI D10 NBAI D8 NBAI D11 NBAI D12 NBAI D13 NBAI D14 NBAI R8 47R R9 47R D I O G N D V C C LED1 LEDIO LED2 LEDIO LED3 LEDIO LED4 LEDIO LED5 LEDIO LED6 LEDIO LED7 LEDIO LED8 LEDIO LED9 LEDIO LED10 LEDIO LED11 LEDIO LED12 LEDIO LED13 LEDIO LED14 LEDIO D IO VCC R10 47R R11 47R R12 47R R13 47R R14 47R D2 NBAI D3 NBAI D1 NBAI D4 NBAI D5 NBAI D6 NBAI D7 NBAI R1 47R R2 47R R3 47R R4 47R R5 47R R6 47R R7 47R WLED W L E D 2812B 1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA Title NumberRevisionSize B Date:2022/8/4Sheet of File:F:\LWM \..\A60 BAW569.schdocDrawn By: GND C2 DB1 F1 30Ω C4 N L D1 L1 GND GND HV+ OUT1 1 VIN 2 DATA 3 CLK 4 OUT5 5 OUT4 6 OUT3 7 OUT2 8 G N D 0 U1 BGRWC GND GND LED-BOARD C1 R4 3.3V R3 3.3V 1 GND 2 DAT 3 CLK 4 ANT 5 J2 WIFI ANT CSP VOUT SEL GNDHV NC NC VS U1 BP2571 HV L2 R1 C5 R2 3.3V 1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date: 2019/9/2Sheet of File:D:\2019\..\WB2L_V100.SchDocDrawn By: V1.0.0 WB2L_V1.0.0 Leonard(zhangxiaolei) Tuya.Inc RF 1 TP1 T U2_TXD test point T U1_RXD test point T U2_RXD test point T RST test point T GND test point T U1_TXD test point GPIO 1 GND 6 GPIO 5 3V3 7 GPIO 3 GPIO 4 GPIO 2 P1 WB2L 3.3V RF 1 GND 2 ANT1 R110K 3.3V PWM2PWM1PWM0 PWM4 UART1_RXD UART1_TXD UART2_RXD UART2_TXD 1 3 Y1 26MHz C1 10pF/25V_DNI C3 10pF/25V_DNI GND GND GND R2 47R Need Change to 18R C6 4.7uF/6.3V C4 1uF/6.3V GND C2 10uF/6.3V GND 3.3V C5 4.7uF/6.3V GNDGND C8 1uF/6.3V C7 2.2uF/6.3V GND PWM5 GND L1 3.0nH C9 1.0pF GND C10 1.2pF/50VR3 0R/1% C11 0.5pF/50V R5 0R/1% R4 0R/1% GND CEN L2 DNIL3 DNI GND GND R7 0R/1% R6 0R/1% GND CEN UART2_RXDUART2_TXDUART1_RXDUART1_TXD GND PWM2PWM1PWM0PWM5PWM4 1 234 P2 UB06000213A P9/BT_PRIORITY/PWM3 25 P10/UART1_RXD 26 P11/UART1_TXD 27 P1/UART2_RXD/I2C2_SDA 28 P0/UART2_TXD/I2C2_SCL 29 XO 30 XI 31 VCCPLL 32 GND 33 P24/LPO_CLK/PWM4 16 P26/IRDA/PWM5 15 P17/SD_DATA0/SPI_MISO 14 P15/SD_DATA3/SPI_CSN 13 P16/SD_CMD/SPI_MOSI 12 P14/SD_CLK/SPI_SCK 11 P28/RX_EN/USBDN 10 VBAT 9 VDDAON 8 VDDDIG 7 VSYS 6 VCCIF 5 VCCPAD 4 VCCPA 3 ANT 2 VCCRXFE 1 P8/BT_ACTIVE/PWM2 24 P7/WIFI_ACTIVE/PWM1 23 P6/CLK13M/PWM0 22 CEN 21 P20/I2C1_SCL/TCK 20 P21/I2C1_SDA/TMS 19 P22/XHOUT/TDI 18 P23/ADC3/TDO 17 U1 BK7231SQN32 C12 100pF/50V TCK_F_SCK TMS_F_CSN TDI_F_SI TDO_F_SO T F_CSN test point T F_SI test point T F_SCK test point T F_SO test point TCK_F_SCKTMS_F_CSNTDI_F_SITDO_F_SO C13 0.1uF/10V GND

Note: This report may contain data that are not c ★ overed by the A2LA accreditation and are marked with an asterisk “ ”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 16: 2021-11-09 Page 1 of 52 FCC- 2.4G Wi-Fi TEST REPORT Applicant Name : JEM ACCESSORIES INC. Address : 32 Brunswick Avenue Edison, NJ 08817,United States Report Number : SZNS220506-18541E-RF-00 FCC ID: 2AHAS-MLB71065 Test Standard (s) FCC PART 15.247 Sample Description Product Type: LED FLOW - 2M RGBW+IC Flow WiFi Light Strip with Sound Reactive Model No.: MLB7-1065 Multiple Model(s) No.: N/A Trade Mark: Date Received: 2022/05/06 Report Date: 2022/11/09 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Andy Yu Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220506-18541E-RF-00 Version 16: 2021-11-09 Page 2 of 52 FCC- 2.4G Wi-Fi TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 DUTY CYCLE ................................................................................................................................................................ 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 8 EXTERNAL I/O CABLE .................................................................................................................................................. 8 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 9 SUMMARY OF TEST RESULTS ............................................................................................................................. 10 TEST EQUIPMENT LIST ......................................................................................................................................... 11 FCC §15.247 (I) & §1.1307 (B) (3) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 RESULT ...................................................................................................................................................................... 13 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 14 FCC §15.207 (A) – AC LINE CONDUCTED EMISSIONS .................................................................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 EUT SETUP ................................................................................................................................................................ 15 EMI TEST RECEIVER SETUP ....................................................................................................................................... 15 TEST PROCEDURE ...................................................................................................................................................... 15 TRANSD FACTOR & MARGIN CALCULATION................................................................................…

Text truncated - open the document above for the full version.

-1- PCB on-board specification V1.1 1 、 Index Item Content Page Remark 1 Index 1 2 Specification 2 3 Return Loss 3 4 Radiation Pattern 4 Document Type: PCB Antenna Document Version: V1.1 Release Date: Oct.26, 2022 -2- 2 、 Specification Product Number: PCB Antenna Style No.: 1065 Manufacturer: SHENZHEN KINGSUN ENTERPRISES Co.,Ltd. Sample Photo: A. Electrical Characteristics Frequency 2412 ~ 2472 MHz S.W.R. <1.6 Gain 1.35 dBi Efficiency 35% Polarization Linear Impedance 50 Ohm B. Material & Mechanical Characteristics Material of Radiator Plated copper C. Environmental Operation Temperature Storage Temperature 3 、 Return Loss - 40°C ~ + 85°C - 40°C ~ + 105°C -3- 4 、 Radiation Pat tern Radiation Pattern and Gain w ere dependent on measurement board design. The specification of coil antenna was measured based on the PCB size and installation position as shown in the below figure Test Board. 2400MHz,H+V,Eff:56.7% 2450MHz,H+V,Eff:61.2% 2500MHz,h+v,Eff:54.7% 2400MHz Total(E1-XZ),Max-0.27dBi 2450MHz Total(E1-XZ),Max=0.07dBi 2500MHz Total(E1-XZ),Max=0.21dBi 2400MHz Total(E2-YZ),Max=1.35dBi 2450MHz Total(E2-YZ),Max=1.35dBi 2500MHz Total(E2-YZ),Max=1.35dBi Total(H-XY),Max=-1.94dBi,CrD=5.96 Total(H-XY),Max=-2.83dBi,CrD=4.35 Total(H-XY),Max=-2.21dBi,CrD=9.37

Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220506-18541E-RF Test Photos Page 1 of 2 Photo of Conducted Emission Measurement Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220506-18541E-RF Test Photos Page 2 of 2 Photo of Radiated Emission Measurement (Below 1G) Photo of Radiated Emission Measurement (Above 1G)
