2AHAS-MLB71076Orb+ Multizone Orb

JEM ACCESSORIES INC. Add: 32 Brunswick Avenue, Edison, New Jersey, Un ited States,08817 Tel： 908-222-7501 Fax: 908.222.7504 E-mail：[email protected] Date: 2022-10-11 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, The RF ch ip, model: BK7231N installed in our product Orb+ Multizone Orb, model: MLB7-1076, FCC ID: 2AHAS-MLB71076, supports 2.4G Wi-Fi and BT/BLE function, b ut for marketing purpose, this chip only supports 2.4G Wi-Fi. The BT/BLE was disabled to use by manufacturer in the software, the end user has no capability to activate it. Signature: Eli Dabbah Manager

(14 1+?1+? =/,/ MCU LED Light RGB Light Button On/Off Mode,Network Mode change Vibrate On/off POWER 3.3V Red Green Battery Mirco USB MIC Charging interface board Charging Light Internet 2412MHz-2462MHz Crystal 26MHz

JEM ACCESSORIES INC. Add: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 Tel：908-222-7501 Fax: 908.222.7504 E-mail：[email protected] FCC Authorization 2022/10/11 FE DERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, JEM ACCESSORIES INC. the undersigned, hereby authorize Shenzhen Accurate Technology Co.,Ltd to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Shenzhen Accurate Technology Co.,Ltd on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name: Eli Dabbah Title: Manager QA-FR-170-B

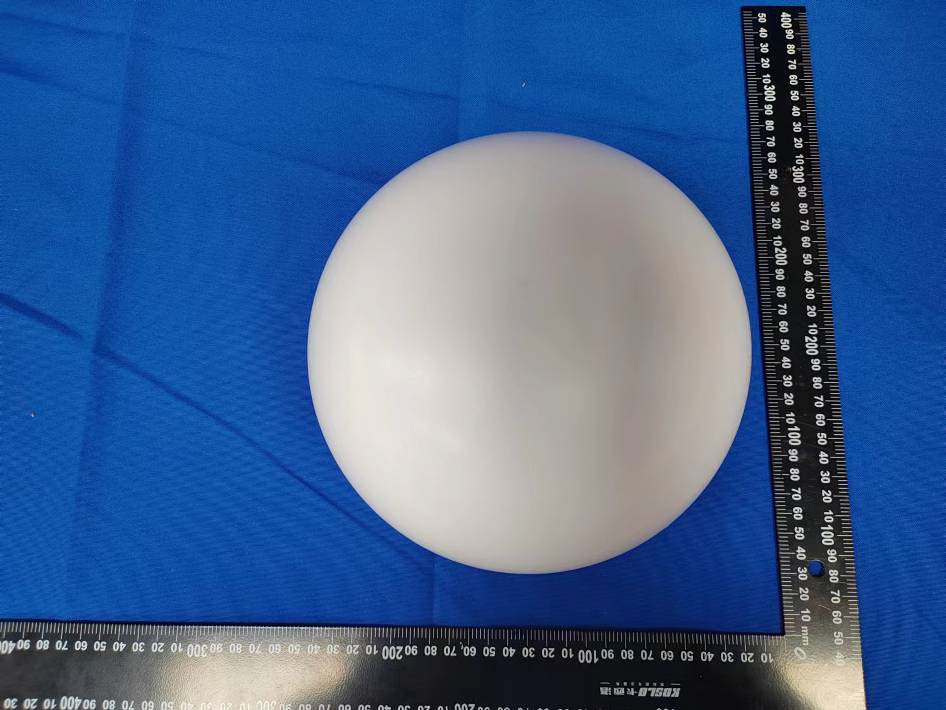

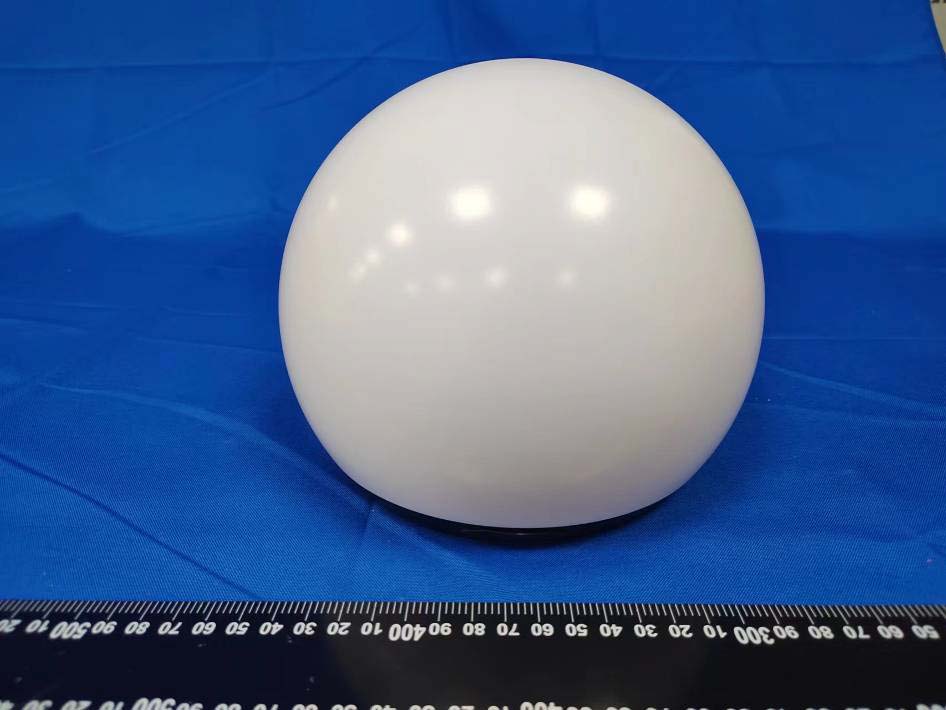

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220513-20217E-RF Page 1 of 4 External Photos Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220513-20217E-RF Page 2 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220513-20217E-RF Page 3 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220513-20217E-RF Page 4 of 4

FCC ID: 2AHAS-MLB71076 ORB+ Model: MLB7-1076 Input: 5V 1A Patented,U.S.Pat,No.D935.683 Made in China

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220513-20217E-RF Page 1 of 6 Internal photos Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220513-20217E-RF Page 2 of 6 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220513-20217E-RF Page 3 of 6 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220513-20217E-RF Page 4 of 6 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220513-20217E-RF Page 5 of 6 Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220513-20217E-RF Page 6 of 6

Shenzhen Accurate Technology Co., Ltd. Report No.: SZ3220513-20217E-RF Version 12: 2021-11-09 Page 11 of 61 FCC- 2.4G Wi-Fi FCC §1.1307 (b) – RF EXPOSURE EVALUATION Applicable Standard According to KDB 447498 D04 Interim General RF Exposure Guidance v01, clause 2.1.4 –MPE-Based Exemption: An alternative to the SAR-based exemption is provided in § 1.1307(b)(3)(i)(C), for a much wider frequency range, from 300 kHz to 100 GHz, applicable for separation distances greater or equal to λ/2π, where λ is the free-space operating wavelength in meters. The MPE-based test exemption condition is in terms of ERP, defined as the product of the maximum antenna gain and the delivered maximum time-averaged power. For this case, a RF source is an RF exempt device if its ERP (watts) is no more than a frequency-dependent value, as detailed tabular form in Appendix B. These limits have been derived based on the basic specifications on Maximum Permissible Exposure (MPE) considered for the FCC rules in § 1.1310(e)(1). Table to § 1.1307(b)(3)(i)(C) - Single RF Sources Subject to Routine Environmental Evaluation f = frequency in MHz; R = minimum separation distance from the body of a nearby person (appropriate units, e.g., m); Test Result For worst case: Frequency Range (MHz) Tune-up Output Power Antenna Gain ERP Evaluation Distance (cm) MPE-Based Exemption Threshold (mW) (dBm) (mW) (dBi) (dBd) (dBm) (mW) 2412-2462 20.5 112.2 1 -1.15 19.35 86.10 20 768 Note 1: The tune-up power was declared by the applicant. Note 2: 0dBd=2.15dBi. To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliant.

11 REV: SIZE: CODE: DRAWN: DATED: DATED: CHECKED:QUALITY CONTROL: DATED: DATED: RELEASED: COMPANY:TITLE: DRAWING NO: SHEET: OF SCALE: REVISION RECORD APPROVED: ECO NO: ABD DATE: 1 2 3 4 5 6 DCAB C LTR MCU 1 VCCRXFE 2 ANT 3 VCCPA 4 VCCTX 5 VCCIF 6 VSYS 7 VDDDIG 8 VDDAON 9 VBAT 10 P28/RX_EN 11 P14/SPI_SCK 13 P15/SPI_CSN 14 P17/SPI_MISO 15 P26/IRDA/PWM5 16 P24/PWM4 12 P16/SPI_MOSI 18 P22/XHOUT/TDI 19 P21/I2C1_SDA/TMS 20 P20/I2C1_SCL/TCK 21 CEN 22 P6/CLK13M/PWM0 23 P7/WF_ACTTVE/PWM1 24 P8/BT_ACTTVE/PWM2 25 P9/BT_PRORITY/PWM3 17 P23/ADC3/TDO 26 P10/UART1_RXD 27 P11/UART1_TXD 28 P1/UART2_RXD/I2C2_SDA 29 P0/UART2_TXD/I2C2_SCL 30 XO 31 XI 32 VCCPLL 0 GND U1 BK7231N 123 4 Y1 26MHZ 10PF 10PPM C1 15pF C2 15pF R1 18R C3 2.2uF C44.7uF C5 4.7uF C62.2uF C72.2uF L1 3.9nH C8 1pF C9 1.5pF R2 0R C10 NC C11 NC L2 3.6nH C12 NC E1 C13 4.7uF C15 104 C16 10uF C18 104 R3 10K KEY1 R6 10K 12 KEY3 SW-58010 B CE Q1 LMBT3904WT1G 12 MIC R7 10K C19 10uF 0805 C20 104 C21 NC R8 3M R9 30K C22 104 B CE Q2 LMBT3904WT1G R10 3M R11 39K 123 LED R12 100R R13 10K 1% 3V3GNDCENCSN MIC1TX1TX2RX2 RX1DATA 1 G 2 D 3 S Q3 2301 Q4 8050 R14 10K R15 10K R16 4.7K C23 104 R17 10K R21 300K 1% R22 300K 1% C24 104 R18 100R R19 100R 1 1 2 2 3 3 4 4 5 5 6 6 7 7 IN 1.25-5PWT R20 5.1K R23 10K 1 G 2 D 3 S Q5 2301 R24 10K 3 CE 4 NC 5 VOUT 2 GND 1 VIN U7 LN1151B331SRG R26 NC R28 10K R4 10K R29 2.7K BAT+5V KEY2 R5 10K R30 10K R31 2.7K R32 NC R33 NC R34 100K C14 NC C25 NC Q6 8050 R27 10K R35 4.7K R25 470R BAT X_OUT X_IN X_OUT X_IN 3.3V BAT+RG BAT+ 3.3V 3.3V KEY1 DATA KEY3 3.3V KEY2 MIC MIC DATA CENCSN 3.3V CEN CSN UART2_TXD UART2_RXD MIC UART1_RXD UART1_TXD UART2_RXD UART2_TXD UART1_TXD UART1_RXD DATA BAT+ LED_EN LED_VDD LED_VDD LED_EN R G BAT_AD BAT+ VBUS CH_DET VBUS CH_DET KEY3 MIC_EN BAT+ KEY1 VDD_EN EN BAT+ VBUS BAT+ KEY2 VDD_EN1 BAT_AD MIC_EN BAT+ BAT+ Power Input Battery LED Light MIC Button

-1- PCB on-board specification V1.1 1 、 Index Item Content Page Remark 1 Index 1 2 Specification 2 3 Return Loss 3 4 Radiation Pattern 4 Document Type: PCB Antenna Document Version: V1.1 Release Date: Oct.26, 2022 -2- 2 、 Specification Product Number: PCB Antenna Style No.: 1076 Manufacturer: SHENZHEN KINGSUN ENTERPRISES Co.,Ltd. Sample Photo: A. Electrical Characteristics Frequency 2412 ~ 2462 MHz S.W.R. <1.6 Gain 1 dBi Efficiency 35% Polarization Linear Impedance 50 Ohm B. Material & Mechanical Characteristics Material of Radiator Plated copper C. Environmental Operation Temperature Storage Temperature 3 、 Return Loss - 40°C ~ + 85°C - 40°C ~ + 105°C -3- 4 、 Radiation Pattern Radiation Pattern and Gain were dependent on measurement board design. The specification of coil antenna was measured based on the PCB size and installation position as shown in the below figure Test Board.

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 12: 2021-11-09 Page 1 of 61 FCC- 2.4G Wi-Fi TEST REPORT Applicant Name : JEM ACCESSORIES, INC. Address : 32 Brunswick Avenue, Edison, New Jersey, United States,08817 Report Number : SZ3220513-20217E-RF FCC ID: 2AHAS-MLB71076 Test Standard (s) FCC Part 15.247 Sample Description Product: Orb+ Multizone Orb Tested Model: MLB7-1076 Trade Name: Date Received: 2022-05-13 Date of Test: 2022-05-26 to 2022-06-08 Report Date: 2022-06-08 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Audy.Yu Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: SZ3220513-20217E-RF Version 12: 2021-11-09 Page 2 of 61 FCC- 2.4G Wi-Fi TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 DUTY CYCLE ................................................................................................................................................................ 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE.................................................................................................................................................. 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 TEST EQUIPMENT LIST ......................................................................................................................................... 10 FCC §1.1307 (b) – RF EXPOSURE EVALUATION ............................................................................................... 11 TEST RESULT ............................................................................................................................................................. 11 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 12 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 EUT SETUP ................................................................................................................................................................ 13 EMI TEST RECEIVER SETUP ....................................................................................................................................... 13 TEST PROCEDURE ...................................................................................................................................................... 14 FACTOR & MARGIN CALCULATION ........................................................................................................................... 14 TEST DATA ................................................................................................................................................................ 14 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS...............................................................…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220513-20217E-RF Page 1 of 2 Photo of Power Line Conducted Emission Measurement Shenzhen Accurate Technology Co., Ltd. Project No.: SZ3220513-20217E-RF Page 2 of 2 Photo of Radiated Emission Measurement Below 1GHz Photo of Radiated Emission Measurement Above 1GHz
