2AHAS-PFM31001MONN FM TRNS 38W CHRGR BLK

蓝牙产品说明书 操作说明 感谢购买此款产品，使且前请仔细阅读本操作手册，以确保正确使用 1.数码显示屏 2.音频输入 3.支持使用U盘、TF卡、手机及其它电子产品播放音乐 4.支持MP3/WMA音乐格式 5.通过蓝牙接听、拒接、重拔 6.带立体音质处理 7.通话回声消除和降噪音(CVC)技术 8.USB输出电压,可向其它设备提供电源,双USB充电. 9.频点和播放自动记忆功能 10.独立蓝牙启动/旋转开关按钮 (1).将产品插入点烟器插座,匹配好频点,来电时按下蓝牙电话按键,发射器将自动 接听/挂断电话. (2).来电时数码管屏会显示电话号码 (3).在连接状态下,点击手机电话号码拔号,你的电话声音将自动连接到车内音响 (4).重拔号码-双击电话键二次,可以重拔电话号码. (5).手机的蓝牙和车载发射器蓝牙连接模式时,车内可以播放手机内音乐 (6).手机打开GPS播放时,可以通过车内音响播放GPS导航,使你行驶更安全 设备带USB(5V3.1A)充电功能,双USB接口充电时电流最大可达到5V-3.1A,可供 手机和其它数码产品同时充电,插U盘播放音乐和给设备充电可同时进行,或者2 个USB同时给2个数码产品充电(注意:一个带闪电标志的接口输出电流为2.1A,带 USB头标志的接口输出电流为1A). 每次当产品断电后,系统自动记忆FM频率和手机TF卡/U盘或其它电子设备内的 歌曲.当地你从再一次启动设备时,这首歌将继续播放.但是当你删除或者更改存 储,或者系统检测到错误状态时,系统会播放第一首歌曲. 工作电压:12V--24V 工作电压限制:9--26V USB输出:5V--3.1A 播放格式:MP3 WMA SNR: >60 DB 失真度:<0.1% 蓝牙声音处理:A2DP(高及音频分配模式)功能支持 蓝牙传输距离:10M 蓝牙话筒有效距离:0.5--2M 1.插入U盘时,连接功能处于打开状态,蓝牙功能会自动开启,一旦启动,该设备会 自动通过蓝牙与手机相连,如果不想自动连接请断开你的手机蓝牙功能. 2.当正在使用调频时,切勿把发射器音量调到最大,以避免失真,请通过汽车音响 调节音量. 3.本产品配有内置天线,所以请避免使用信号强烈的广播站频率或者将FM调至 空频率,以便获得更好的声音效果. 4.使用手机不同,操作蓝牙的方式也可能不同,有些手机在断电后通电时,可能不 支持自动连接,如果情况如此,请手动连接. 5.通话过程中的音量应适中,以免影响对方 6.在启用蓝牙通话时,请注意如果车内太吵或车内隔音效果不是太好,也有可能 影响到通话音质,请放慢你开车的速度或者停至路边,直到音效达到最佳 7.不要在高温,粉尘或潮湿环境中使用本产品 8.本产品长期不用时,应从汽车点烟口拔下,正常使用时,等汽车起动后再插上使 用,避免点火电压过高损坏. 感谢你购买本产品，本产品会给各位体验者提供方便的使用，和愉快安全的驾车旅途。让 车内的音乐伴你同行。 1.蓝牙模式： 3.充电功能： 4.断电记忆： 技术参数： 注意事项： Thank you very much for buying this product. You are advised to read this user manual carefully before using this product. We sincerely hope this product will bring you a lot of convenience and fun while you take a ride. We will be very honored if this product may make you satisfied with what it's designed for. lt will give us tremendous encouragement to work out with better products in the future if you may leave us a review on Amazon based on your unbiased user experience. USER MANUAL This product is a multifunctional Car FM Transmitter which plays music in MP3/WMA format and charge a variety of electronic devices. With embedded high-performance Bluetooth module and MP3/WMA decoding chip, Audio playback can be implemented wirelessly with USB drive, TF and other electronic devices through a car audio. Moreover, if a cell phone is connected with this product via Bluetooth, hands-free phone call operations during audio playback can be activated, as well as audio playback with cell phone through car audio. Witbout any modification on your car, you can now enjoy the music, charge a variety of electronic devices and deal with you phone calls with your hands free. 1.High-clarity LCD display (or Digital tube) 2.Aux in 3.Audio playback with USB drive, TF, cell phone and other electronic devices 4.Supports music in MP3/WMA format 5.hands-free phone call operations: Answer and hang up a call, dial a phone number. 6.Chrystal-clear stereo sound 7.Phone call echo elimination and noise cancellation technologies 8.Dual USB charging 9.Memory on frequency last used and music last played 10.Independent Bluetooth start/rotation switch button Product characters (1) Put this product into the cigarette lighter and synchronize its frequency with that of the car FM radio. Connect this product with a cell phone through Bluetooth. (2) Hands-free phone call operations activated: During audio playback, press a button once to answer an incoming call, press that button once again to hang up the call, press that button twice to call a phone number that you dialed last time. When there is an incoming call, the LCD display will show the telephone number and there is a voice prompt naming the caller's telephone number. (3) Through car audio you can hear audio playback from cell phone, TF, USB drive and electronic devices via Aux in. You can also hear telephone conversations from car auido, as well as the audio messages in cell phone's GPS car navigation applications. 1. Bluetooth mode Operating Instructions (1) When a TF is inserted, audio playback from TF is activated. (2) When an USB drive inserted, audio playback from USB drive is activated. (3) When a cell phone or other electronic devices are linked to this product, audio playback from these devices starts. (4) The volume can be adjusted through both bthe buttons on car audio. 2. Audio playback mode This product supports dual charging function to cell phone and other electronic devices. You can either charge a electronic device with playing the music in an USB drive, or you can charge 2 electronic devices simultaneously (Note that the charging current of the USB port with a flash mark is 2.1V while that of the USB port with a USB logo is 1A.) When this product is powered off, it remembers the frequency that is used and the music in cell phone. TF, USB drive and other electronic devices that is played before the it is turned down. When this product is initiated again, the frequency will be used and the music will be played. However, the first music will be played when you delete or change the memory (cell phone, memory in cell phone, TF, USB drive and other electronic devices) or when this product detect an error status. 3.Dual USB charging 4. Power-off memory 1.This product will connect with cell phone through Bluetooth automatically unless you turn off Bluetooth on cell phone. 2.To adjust the volume of car audio use the button on it instead of adjusting the volume through this product. If you use this product to increase the volume of car audio, do not increase the volume to the higbest volume because that can cause distortion. 3.This product contains built-in antenna, so avoid switching to a FM frequency with very strong signal or an unoccupied FM frequency in order to get a better sound quality. 4. Some cell phones may not be automatically connected with this product through Bluetooth. If that happens, please manually connect cell phone with this product through Bluetooth. 5.When talking on cell phone. Do not raise your voice to an extent that may annoy the other party. 6.When talking on cell phone. the noise inside of the car may interfere with the sound quality. Slow down the car or pull over to resume the sound…

Text truncated - open the document above for the full version.

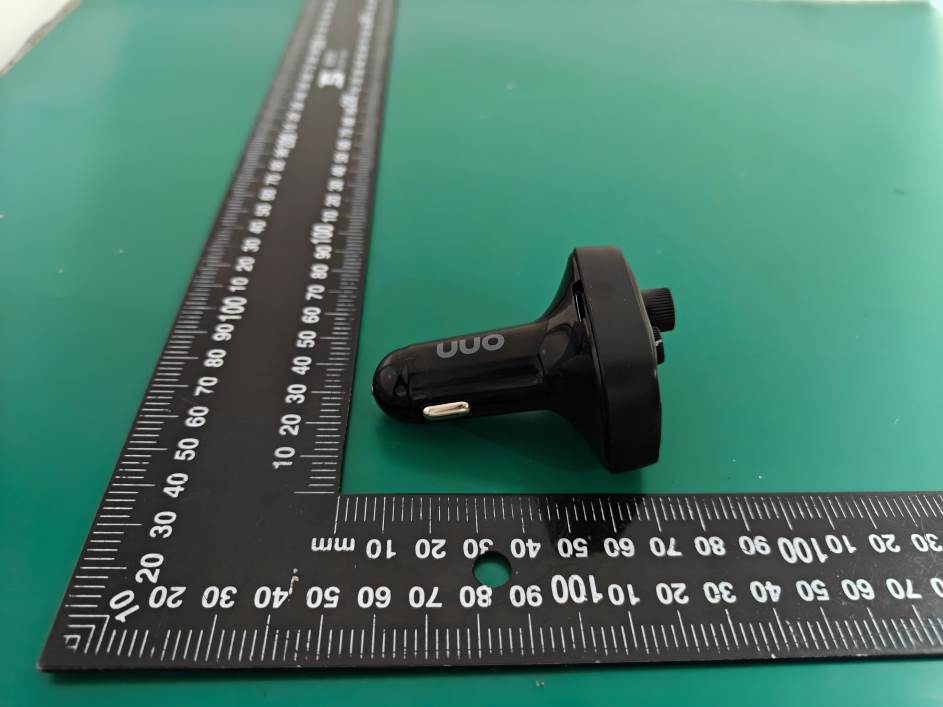

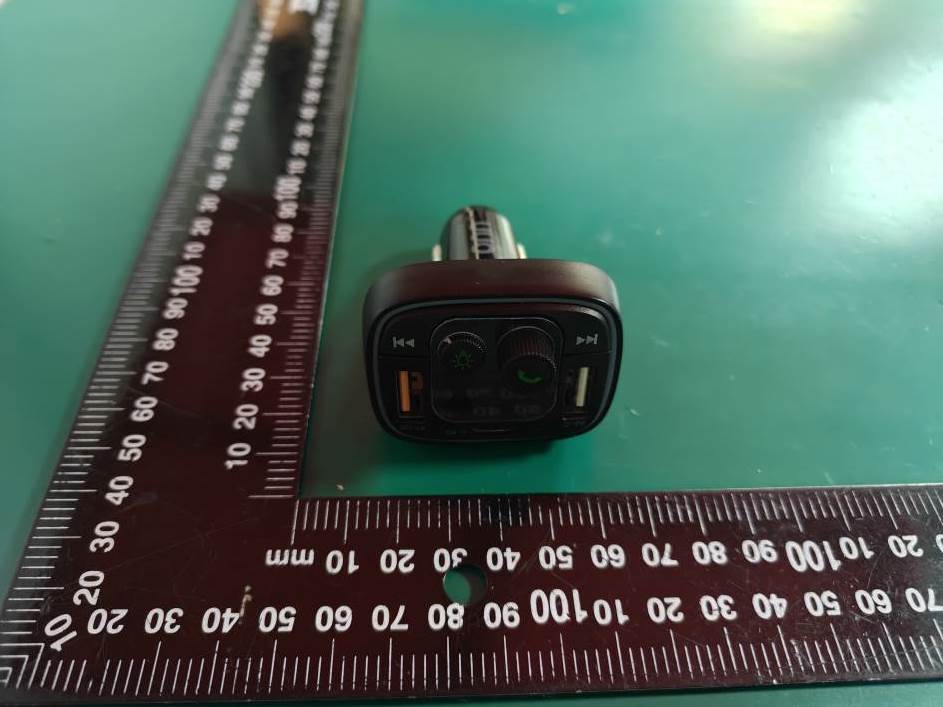

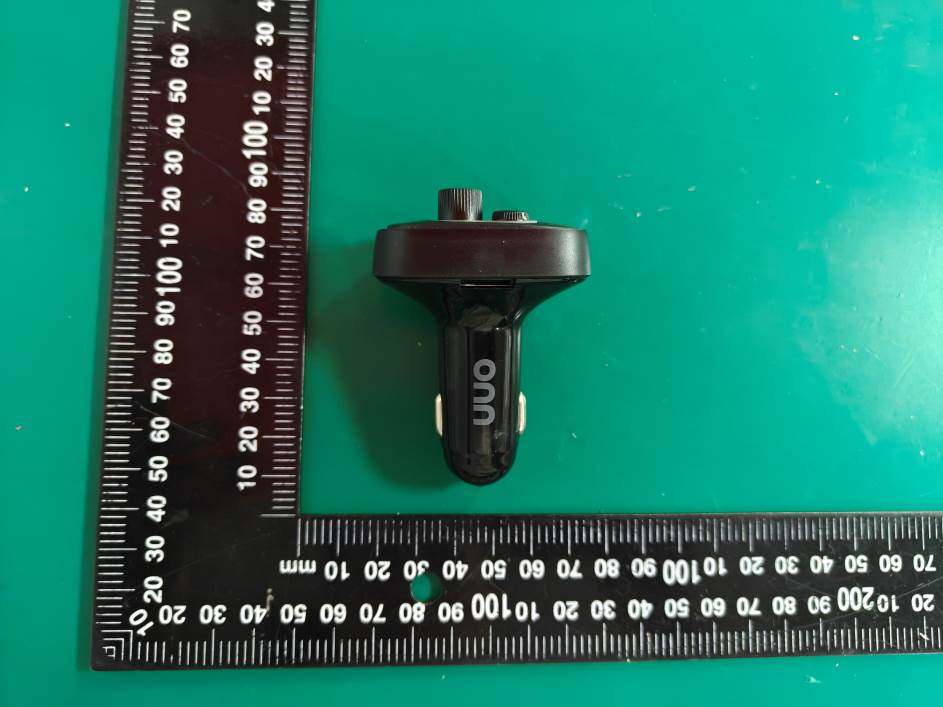

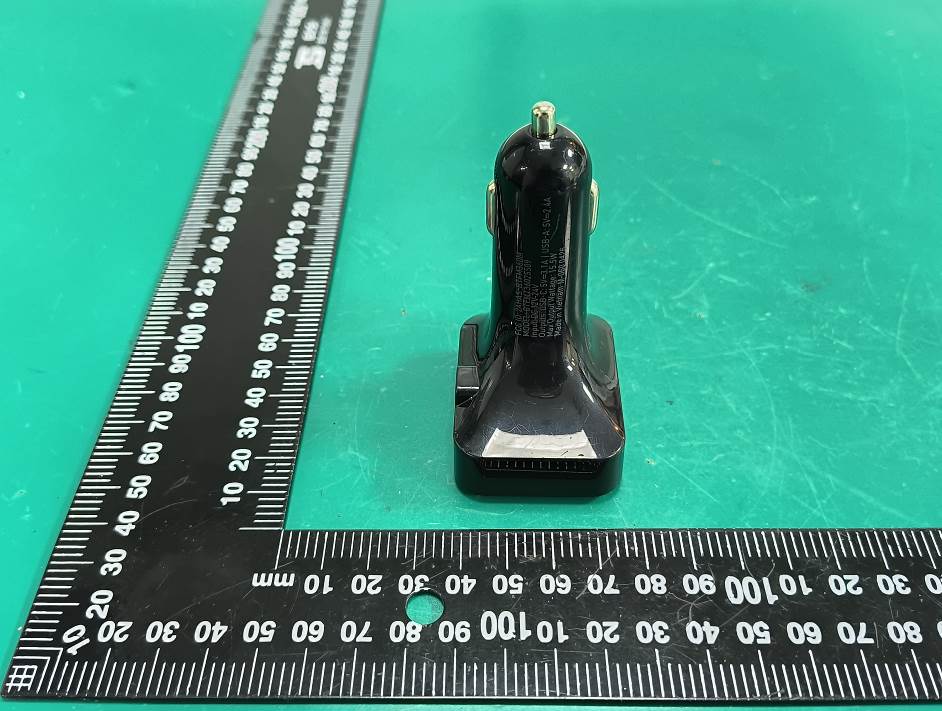

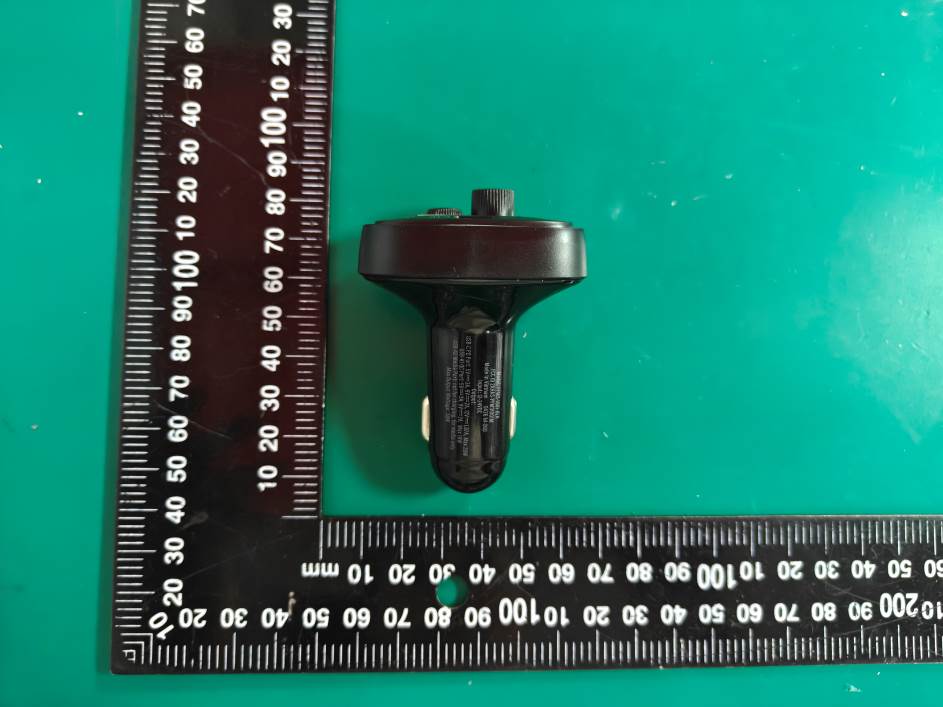

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R08837E-RF-EXP Page 1 of 4 EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R08837E-RF-EXP Page 2 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R08837E-RF-EXP Page 3 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R08837E-RF-EXP Page 4 of 4

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R08837E-RF-INP Page 1 of 5 EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R08837E-RF-INP Page 2 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R08837E-RF-INP Page 3 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R08837E-RF-INP Page 4 of 5 BT ANT Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R08837E-RF-INP Page 5 of 5 FM ANT (Compose a complete antenna together with the power Line)

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R08837E-RF-00A TR-EM-RF001 Page 24 of 78 Version 4.2 RF EXPOSURE EVALUATION Applicable Standard According to FCC §2.1091 and §1.1307(b) (3), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D04 Interim General RF Exposure Guidance 1-mW Test Exemption: Per § 1.1307(b)(3)(i)(A), a single RF source is exempt RF device (from the requirement to show data demonstrating compliance to RF exposure limits, as previously mentioned) if the available maximum time- averaged power is no more than 1 mW, regardless of separation distance. This exemption applies to all operating configurations and exposure conditions, for the frequency range 100 kHz to 100 GHz, regardless of fixed, mobile, or portable device exposure conditions. This is a standalone exemption, and it cannot be applied in conjunction with any other test exemption. When the aggregate maximum available power of all transmitting antennas is ≤ 1 mW in the same time- averaging period. Result For worst case: Maximum Tune up conducted power # Mode Frequency (MHz) Antenna Gain # dBmmW Exemption Limit (mW) Test Exemption BLE2402-2480-0.58-70.2 1Yes Maximum EIRP Mode Frequency (MHz) Maximum E-Field (dBuV/m@3m) (dBm)(mW) 1-mW Test Exemption FM88-10845.63-49.570.000011 Yes Note: EIRP = E-Field – 95.2 @3m Simultaneous transmitting consideration (Worst case): The FM and BT can transmit simultaneously, The ratio= Power_ BT /limit+ Power_ FM /limit= 0.2+0.000011=0.2<1.0 Result: Compliant

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF001 Page 1 of 78 Version 4.2 TEST REPORT Applicant Name:JEM ACCESSORIES INC. Address:32 Brunswick Avenue, Edison, New Jersey, United States, 08817 Report Number:2601R08837E-RF-00A FCC ID:2AHAS-PFM31001M Test Standard (s) FCC PART 15.247 Sample Description Product Type:ONN FM TRNS 38W CHRGR BLK Model No.:PFM3-1001-BLK Multiple Model(s) No.:N/A Trade Mark: N/A Date Received:2026-03-18 Issue Date:2026-06-12 Test Result:Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By:Approved By: Allen BaiNancy Wang RF EngineerRF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R08837E-RF-00A TR-EM-RF001 Page 2 of 78 Version 4.2 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ..........................................................................................................................3 GENERAL INFORMATION ........................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)......................................................................................4 OBJECTIVE ....................................................................................................................................................................4 TEST METHODOLOGY....................................................................................................................................................4 MEASUREMENT UNCERTAINTY .....................................................................................................................................5 TEST FACILITY ..............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ...........................................................................................................................6 SUMMARY OF TEST RESULTS ................................................................................................................................8 TEST EQUIPMENT LIST ............................................................................................................................................9 REQUIREMENTS AND TEST PROCEDURES ......................................................................................................11 AC LINE CONDUCTED EMISSIONS...............................................................................................................................11 RADIATED EMISSIONS .................................................................................................................................................13 20 DB EMISSION BANDWIDTH & 99% OCCUPIED BANDWIDTH..................................................................................16 CHANNEL SEPARATION TEST ......................................................................................................................................18 QUANTITY OF HOPPING CHANNEL TEST .....................................................................................................................19 TIME OF OCCUPANCY (DWELL TIME) .........................................................................................................................20 PEAK OUTPUT POWER MEASUREMENT .......................................................................................................................21 BAND EDGES ...............................................................................................................................................................22 CONDUCTED SPURIOUS EMISSION...............................................................................................................................23 RF EXPOSURE EVALUATION ................................................................................................................................24 ANTENNA REQUIREMENT .....................................................................................................................................25 TEST DATA AND RESULTS .....................................................................................................................................26 RADIATED EMISSIONS .................................................................................................................................................26 20 DB EMISSION BANDWIDTH .....................................................................................................................................54 99% OCCUPIED BANDWIDTH ......................................................................................................................................57 CHANNEL SEPARATION ...............................................................…

Text truncated - open the document above for the full version.

i i

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R08837E-RF-TSP Page 1 of 3 TEST SETUP PHOTOGRAPHS For BT: Radiated Emissions View (Below 30MHz) Radiated Emissions View (Below 1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R08837E-RF-TSP Page 2 of 3 For FM: Radiated Emissions View (Below 30MHz) Radiated Emissions View (Below 1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R08837E-RF-TSP Page 3 of 3 For BT&FM: Radiated Emissions View (1-18 GHz) For BT: Radiated Emissions View (18-25 GHz)
