2AHAS-XBE90128ELITE TOUCH CONTROL WIRELESS EARBUDS & CHARGING CASE

(1) Read all the instructions before using the product. b) To reduce the risk of injury, close supervision is necessary when the product is used near children. (2) Do not put fingers or hands into the product. d) Do not expose power bank to rain or snow. (3) Use of a power supply or charger not recommended or sold by power pack manufacturer may result in a risk of fire or injury to persons. (4) Do not use the power bank in excess of its output rating. Overload outputs above rating may result in a risk of fire or injury to persons. (5) Do not use the power bank that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury. (6) Do not expose a power pack to fire or excessive temperature. Exposure to fire or temperature above 100°C may cause explosion. The temperature of 100°C can be replaced by the temperature of 212°F. FCC ID:2AHAS-XBE90128 FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

JEM ACCESSORIES INC. Add: 32 Brunswick Avenue Edison, NJ 08817,United States Tel：908-222-7501 Fax: 908.222.7504 E-mail：[email protected] Date: 2021/04/20 To: FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, JEM ACCESSORIES INC. hereby declare that： Product Name: ELITE TOUCH CONTROL WIRELESS EARBUDS & CHARGING CASE Model No: XBE9‐0128‐WHT FCC ID: 2AHAS‐XB E9 0128 For BT Mode: EDR(8DPSK),BLE 1M/2M are disabel by software For Below are activated: Bluetooth EDR(π/4‐DQPSK),BDR(GFSK) Except for the manufacturer, the end user does not have any capability to modify/change the RF parameters. We acknowledge that it is the manufacturer’s responsibility to provide the radio configura tions to ensure compliance with Commission’s rules. Sincerely, Signature: Printed Name: Eli Dabbah Title: Manager

BLOCKDIAGRAM SPEAKER ANT 2402MHZ-2480MHZ XTAL 24M FLASH OSCILLATOR DAC AC6963A

JEM ACCESSORIES INC. Add: 32 Brunswick Avenue Edison, NJ 08817,United States Tel：908-222-7501 Fax: 908.222.7504 E-mail：[email protected] 2021/04/20 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID Cover Letter We, JEM ACCESSORIES INC. hereby declare that we have a product named as ELITE TOUCH CONTROL WIRELESS EARBUDS & CHARGING CASE （FCC ID:2AHAS- XBE90128 ; Model: XBE9-0128-WHT）was tested by BACL ,which has left earbud and right earbud. We would like to declare that the product has two units which are electrically identical. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely, Signature: Printed Name: Eli Dabbah Title: Manager

JEM ACCESSORIES INC. Add: 32 Brunswick Avenue Edison, NJ 08817,United States Tel：908-222-7501 Fax: 908.222.7504 E- mail：[email protected] 2021/04/20 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID Cover Letter The JEM ACCESSORIES INC. According to the FCC Regulation and Guidance (KDB Publication 784748 D01 v09r01) allows for the FCC ID to be moved to the User’s manual if the device is unquestionably too small for the FCC ID to be printed. here by submits justification for placing the FCC ID in the Associated User Manual. Referring to the above quote, as the device is too small (2AHAS-XBE90128) to be printed. The FCC ID will be moved to the last page of user’s manual and charging case. The details are as below: A. Side surface (A): The curvature shape of the silicone sleeve back cover is not flat, so it’s hard to affix the label on the surface of the earbuds. B. Top cover (B): The plastic logo of the top cover does not provide enough physical space to fit the printing of the FCC ID according to below reference picture. Conclusion： Based on the above description of area A to B, we conclude that the device is unquestionably too sma ll for enabling the FCC ID to be printed onto any surface, We therefore request to move the FCC ID to the User manual and charging case Sincerely, Signature: Printed Name: Eli Dabbah Title: Manager A B FCC ID: 2AHAS-XBE90128 Model #XBE9-0128-W HT

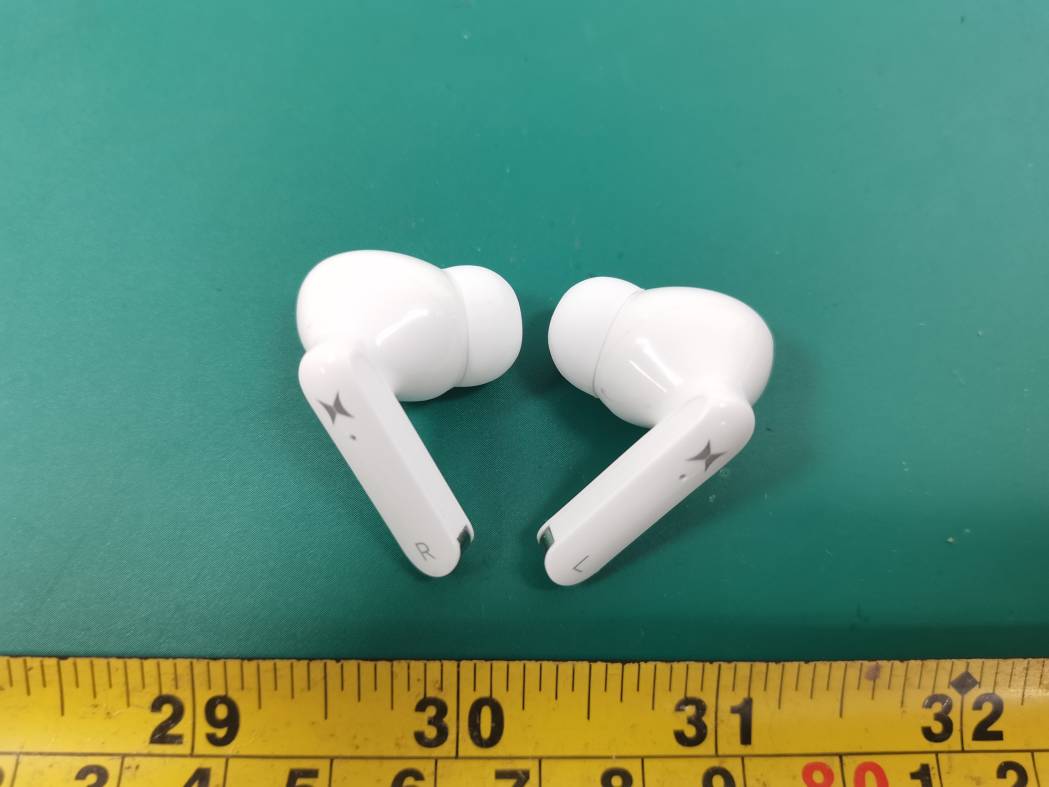

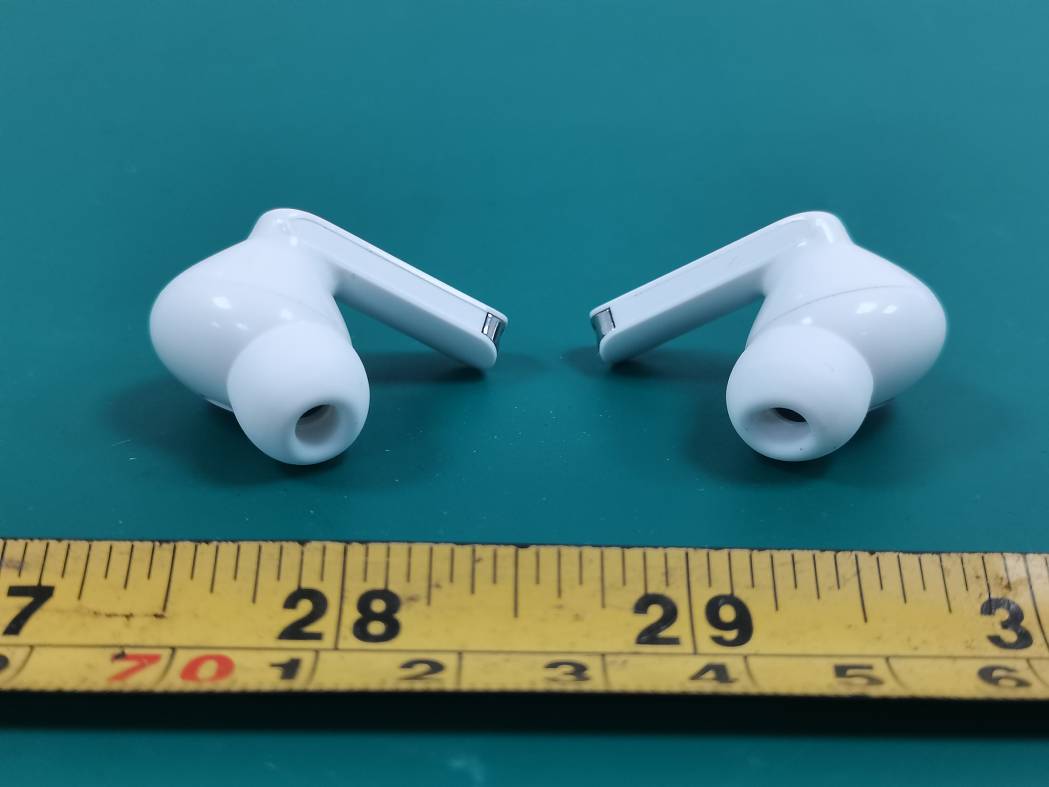

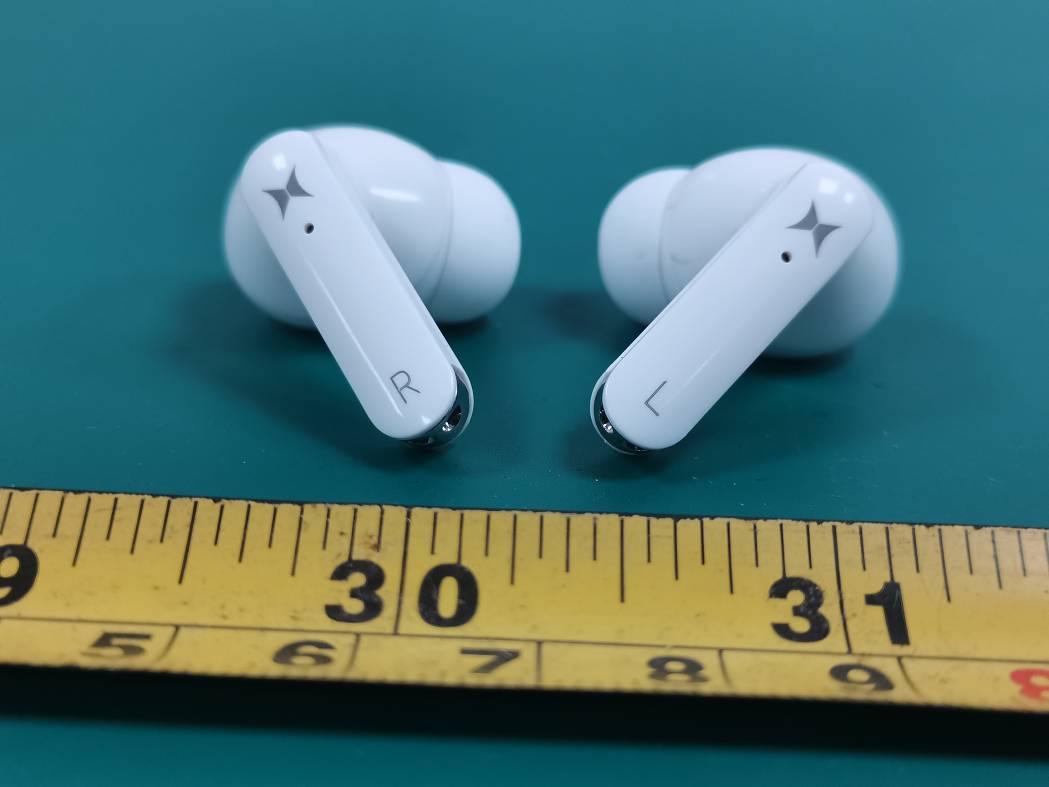

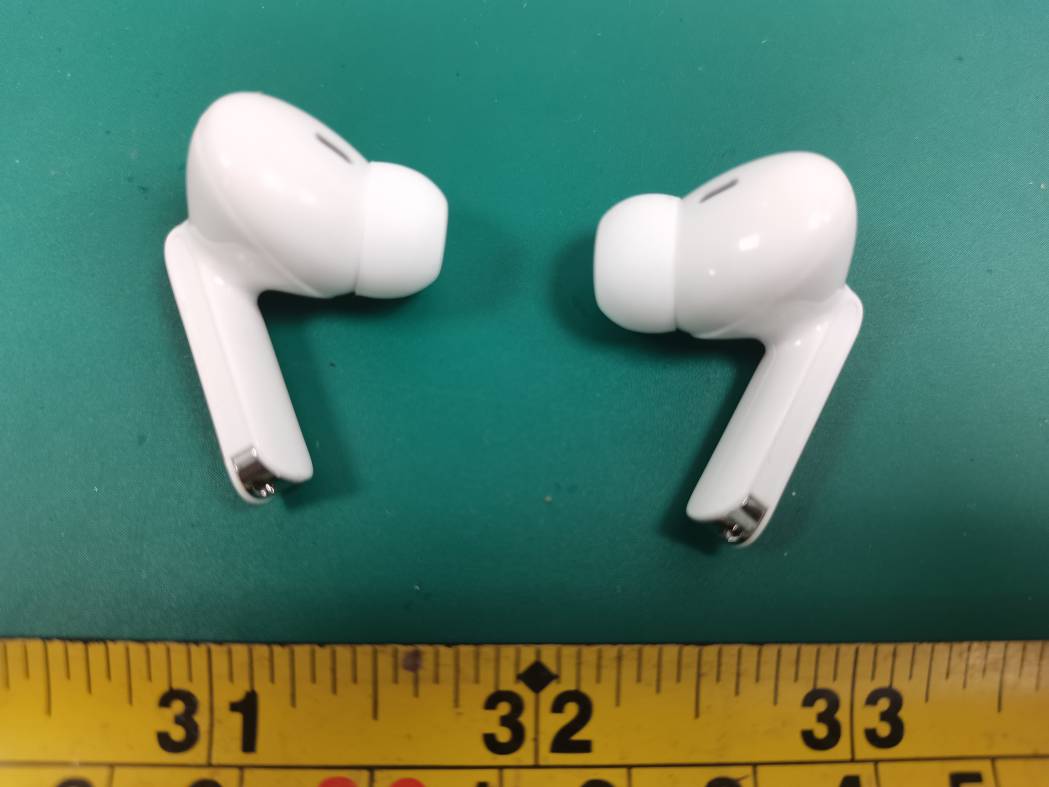

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201217838-RF Page 1 of 7 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201217838-RF Page 2 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201217838-RF Page 3 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201217838-RF Page 4 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201217838-RF Page 5 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201217838-RF Page 6 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201217838-RF Page 7 of 7

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201217838-RF Page 1 of 1 EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201217838-RF Page 1 of 5 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201217838-RF Page 2 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201217838-RF Page 3 of 5 Left Ear Right Ear Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201217838-RF Page 4 of 5 Antenna (Left ear ) Antenna (Right ear ) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201217838-RF Page 5 of 5

Circuit Description The 24MHZ crystal oscillator drives the base. The modulation provided by AC6963A(U1). The output of AC6963Amodule has the matching network consisting of that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 2.4GHz Ceramic antenna There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3.7 Volt primary battery Feature: Frequency Range: 2402MHz-2480MHz Modulation Type: GFSK, π /4-DQPSK Antenna Type: Ceramic Antenna Crystal: 24MHz

POWER MCU LED Mic、Earphone BT_OSCOBT_OSCI Y124M D1 BLUE D2 RED/CHARG_LED BT_OSCO BT_OSCI +3.3V DC5VVBAT L2 NC BT_ANT BT_RF AGND DACL MIC DACR C8 105 C7 474/10V P/P/POWER BT1 3.4V~4.2V VBAT C6 222/16V LED_B/R DC5V +5V 1 DM 2 DP 3 ID 4 6 GND 6 6 66 J2 USB(MICRO) LED_B/R L1 NC C9 2.7P C1 105 GND G_SCL G_SDA DACR DACL MIC_BIAS MIC MIC + M2 MIC4013 C13 NC MIC +3.3V BT_AVDD SD0 1 SDA/SDI/SDO 2 VDD_IO 3 NC 4 INT 5 INT2 6 VDD 7 GND_IO 8 GND 9 CSB 10 NC 11 SCL 12 U2 DA230/SC7A21 G_SCL G_SDA G_PWR C5 NC C4 104 G-SENSOR P/P/POWER S1 P/P/POWER/TALK P/P/POWER KEY G_PWR OC/OD 1 GND 2 TCH 3 AHLB 4 VDD 5 TOG 6 U3 VM6233D-MA6 Touch PAD P/P/POWER G_PWR TOUCH_KEY C3 474 C2 1pF~50pF G_PWR G_PWR C10 NC/105 MIC M1 MIC3722 MIC_BIAS C11 NC C12 104 ADC4/PA6/USBDP 16 DVDD 14 VSSIO 11 PB4/ADC7 5 BT_OSCO 13 GND 0 DACR 2 MIC_BIAS/PA2 17 VBAT 7 PB6/ADC8 4 DACL 1 ADC1/MIC/PA1 18 VDDIO 19 LDO_IN/PB5 6 BT_RF 10 PB1/ADC5 9 BT_AVDD 8 BT_OSCI 12 DACVSS 20 PC1/USBDM 15 PB7/ADC9 3 U1 AC6963A_QFN20 VIN 4 GND 2 EN 1 FB 5 LX 3 U4 TM108J/TM108JD R2 100K R3 100K VBAT C16 106 DC_EN DC_EN C15224 DVDD L1 2.2uH C17 106 J1 Earphone C24 NC C23 NC C25 NC DACL DACR L4 120nH L5 120nH J3 Earphone T1VBAT T2DM T3DP T4GND T5VDDIO VBAT +3.3V USBDP USBDM USBDP USBDM GND TM108J：SOT23-6 TM108JD：DFN2x2-6 BT_AVDD R1 0R/NC DVDD R1=0R R1=NC

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For JEM ACCESSORIES INC. 32 Brunswick Avenue Edison, NJ 08817,United States FCC ID: 2AHAS-XBE90128 Report Type: Original Report Product Type: ELITE TOUCH CONTROL WIRELESS EARBUDS & CHARGING CASE Re port Number: RSZ201217838-00 Re port Date: 2021-04-16 Reviewed B y: Jacob Kong RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) ,6F,7F,the 3rd Phase of Wan Li Industrial Building D,Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp. com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201217838-00 FCC Part 15.247 Page 2 of 52 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE .................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC§15.247 (i), §1.1307 (b) (1) & §2.1093 – RF EXPOSURE ..................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 13 TEST DATA ................................................................................................................................................................ 13 FCC §15.205, §15.209 & §15.247(d) – RADIATED EMISSIONS ........................................................................... 1…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201217838-RF Page 1 of 2 EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201217838-RF Page 2 of 2 Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
