2AHAS-XBE90138TWS BT BUD LED DISPLAY

SAFETY AND CARE INSTRUCTIONS This product contains a non-replaceable rechargeable lithium-ion battery. When discarding, follow your local/state guidelines. • Do not use abrasive cleaning solvents to clean the un仆 • Disconnect the USB cable once the product is fully charged • Do not expose to heat sources or leave in a location that is likely to get excessively hot • Do not let the product get wet • Do not disassemble • Performance can be affected by the environment or when the product becomes discharged • Interruption can be caused by obstacles between the product and the Bluetooth device, by Wi-Fi or other high frequency signals, or if the product is brought out of range of the Bluetooth device • Charge fully before storing for a long period. Note: Lithium-ion batteries will self-discharge over time To ensure battery life, do not store the product in an uncharged state for a length of time. If left in a discharged state for too long a lithium-ion battery will no longer have the ab山tyto be recharged FCC STATEMENT Any changes or mod巾cationsnot expressly approved by the party responsible for compliance could void this user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is sub」ectto the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does not cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help ONE YEAR LIMITED WARRANTY Xtreme warrants its products for one year against defects in manufacturing under regular consumer use with original receipt of retail purchase. We believe in our products and want to provide you with a replacement, if needed, but we have to know about the problem while the product is still under warranty. If you discover a defect covered by this warranty, please contact us about receiving a replacement. In order to use the products warranty the customer must provide proof of the retailers receipt. *Any customers outside of the U.S. will be responsible for sh1pp1ng and handling charges if a replacement is required that is not due to a manufacturing defect. If there is not a manufacturing defect, shipping and handling will be applied. Xtreme's warranty is limited to our products only. Our warranty does not cover the replacement or repair cost of any third-party accessory, electronic device or personal property. For instructions about how to obtain warranty service for your product, please contact Customer Service: [email protected] ＠ C 0.. XTREMECABLES ) Made in China for Jem Accessories. Edison, N.J. □8817范O FCC I□: 2AH氐-XBE9□138 )(X下EME ™ SOU N D 0Bluetooth ® Scan to Extend Your Warranty TRUE WIRELESS STEREO MINI BUDS with LED display charging case XBE9-0138 855.999.8041 I www.XTREMECABLES.COM User Manual Vl.O 0724 F CC Radiation Exposure Statement: T his equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

JEM ACCESSORIES INC. Add: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 Tel：+1 732-339-9800 Fax: +1 732-481-0300 E-mail：[email protected] Declaration FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, JEM ACCESSORIES INC. hereby declare that we have a product named as TWS BT BUD LED DISPLAY, FCC ID:2AHAS-XBE90138 ; Model: XBE9-0138-WHT, XBE9-0138-PNK, XBE9-0138-GRN, HP-047B was tested by Bay Area Compliance Laboratories Corp. (Shenzhen) ,which has left earbud and right earbud. We would like to declare that the product has two units which are electrically identical. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely, Signature Printed Name: Nathan Shamula Title: COO Digitally signed by Nathan Shamula DN: cn=Nathan Shamula, c=US, [email protected] Reason: I agree to the terms defined by the placement of my signature on this document Location: New Jersey Date: 2024.08.05 18:48:32 -04'00' Nathan Shamula

JEM ACCESSORIES INC. Add: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 Tel˖+1 732-339-9800 Fax: +1 732-481-0300 E-mail˖[email protected] FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, JEM ACCESSORIES INC. hereby declare that˖ Product Name: TWS BT BUD LED DISPLAY Model No.: XBE9-0138-WHT, XBE9-0138-PNK, XBE9-0138-GRN, HP-047B FCC ID: 2AHAS-XBE90138 For BT Mode: BLE 1M/2M are disable by software. For Below are activated: Bluetooth BDR(GFSK), EDR(/4 DQPSK)ϋ, EDR(8DPSK) Except for the manufacturer, the end user does not have any capability to modify/change the RF parameters. We acknowledge that it is the manufacturer’s responsibility to provide the radio configurations to ensure compliance with Commission’s rules. Sincerely, Signature Printed Name: Nathan Shamula Title: COO Digitally signed by Nathan Shamula DN: cn=Nathan Shamula, c=US, [email protected] Reason: I agree to the terms defined by the placement of my signature on this document Location: New Jersey Date: 2024.08.05 17:38:39 -04'00' Nathan Shamula

CFR 47 §2.911(d)(5)(i) Attestation Letter JEM ACCESSORIES INC. Add: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 Tel ˖ +1 732-339-9800 Fax: +1 732-481-0300 E-mail ˖[email protected] Attestation Letter FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2AHAS-XBE90138 JEM ACCESSORIES INC. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature: Contact Person: Nathan Shamula Title: COO Digitally signed by Nathan Shamula DN: cn=Nathan Shamula, c=US, [email protected] Reason: I agree to the terms defined by the placement of my signature on this document Location: New Jersey Date: 2024.08.05 17:39:23 -04'00' Nathan Shamula

CFR 47 §2.911 (d)(5)(ii) Attestation Letter  JEM ACCESSORIES INC. Add: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 Tel˖732-339-9800 Fax: +1 732-481-0300 E-mail˖[email protected] Attestation Letter FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2AHAS-XBE90138 JEM ACCESSORIES INC. (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: Contact Person: Nathan Shamula Title: COO Digitally signed by Nathan Shamula DN: cn=Nathan Shamula, c=US, [email protected] Reason: I agree to the terms defined by the placement of my signature on this document Location: New Jersey Date: 2024.08.05 17:39:10 -04'00' Nathan Shamula

U.S. AGENT LETTER OF ATTESTATION FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2AHAS-XBE90138 JEM ACCESSORIES INC. certifies that, as of the date of the filing of the application, JEM ACCESSORIES INC. is our designated U.S. agent for service of process for the above referenced FCC ID. JEM ACCESSORIES INC. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. JEM ACCESSORIES INC. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent and Applicant Information: Name: JEM ACCESSORIES INC. Address: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 FRN: 0025209164 Tel.: +1 732-339-9800 Email: [email protected] Signed by (printed name): Nathan Shamula Signature: Digitally signed by Nathan Shamula DN: cn=Nathan Shamula, c=US, [email protected] Reason: I agree to the terms defined by the placement of my signature on this document Location: New Jersey Date: 2024.08.05 17:38:54 -04'00' Nathan Shamula

AB5659C2

JEM ACCESSORIES INC. Add: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 Tel˖+1 732-339-9800 Fax: +1 732-481-0300 E-mail˖[email protected] FCC Authorization FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, JEM ACCESSORIES INC. the undersigned, hereby authorize Bay Area Compliance Laboratories Corp. (Shenzhen) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. (Shenzhen) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name: Nathan Shamula Title: COO QA-FR-170-B Digitally signed by Nathan Shamula DN: cn=Nathan Shamula, c=US, [email protected] Reason: I agree to the terms defined by the placement of my signature on this document Location: New Jersey Date: 2024.08.05 17:37:49 -04'00' Nathan Shamula

JEM ACCESSORIES INC. Add: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 Tel˖+1 732-339-9800 Fax: +1 732-481-0300 E-mail˖[email protected] FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Product Similarity Declaration To Whom It May Concern, We, JEM ACCESSORIES INC., hereby declare that we have a product named as TWS BT BUD LED DISPLAY (Model No.: XBE9-0138-WHT, FCC ID: 2AHAS-XBE90138) was tested by Bay Area Compliance Laboratories Corp. (Shenzhen), meanwhile, for our marketing purpose, we would like to list a series model (XBE9-0138-PNK, XBE9-0138-GRN, HP-047B) on reports and certificate, all the models are identical in electrically, the difference as below. 1. Different Model No. 2. Different color. Model Color XBE9-0138-WHT White XBE9-0138-PNK Pink XBE9-0138-GRN Green HP-047B Available in white, pink and green We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely, Signature: Printed Name: Nathan Shamula Title: COO Digitally signed by Nathan Shamula DN: cn=Nathan Shamula, c=US, [email protected] Reason: I agree to the terms defined by the placement of my signature on this document Location: New Jersey Date: 2024.08.05 17:38:23 -04'00' Nathan Shamula

JEM ACCESSORIES INC. Add: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 Tel˖+1 732-339-9800 Fax: +1 732-481-0300 E-mail˖[email protected] FCCcertificationNo.CoverLetter We, JEM ACCESSORIES INC., hereby submit justification for placing the FCC certification No. in the associated user’s manual and charging case. According to the FCC regulation, the FCC certification No. should be printed on the earbuds, but as the earbuds are too small to print the label (FCC ID: 2AHAS-XBE90138) , it will be moved to the user manual and charging case. The details are as below: A. Side surface (A): The side surface does not provide enough physical space to fit the printing of the FCC certification No. according to below reference picture. B. Top cover (B): The top cover does not provide enough physical space to fit the printing of the FCC certification No. according to below reference picture. Conclusion: Based on the above description of area A to B, we conclude that the device is unquestionably too small for enabling the FCC certification No. to be printed onto any surface. We therefore request to move the FCC certification No. to the user’s manual and charging case. Label and label location: Bottom of Charging Case: Best regards, Signature: Printed Name: Nathan Shamula Title: COO Digitally signed by Nathan Shamula DN: cn=Nathan Shamula, c=US, [email protected] Reason: I agree to the terms defined by the placement of my signature on this document Location: New Jersey Date: 2024.08.05 17:38:05 -04'00' Nathan Shamula

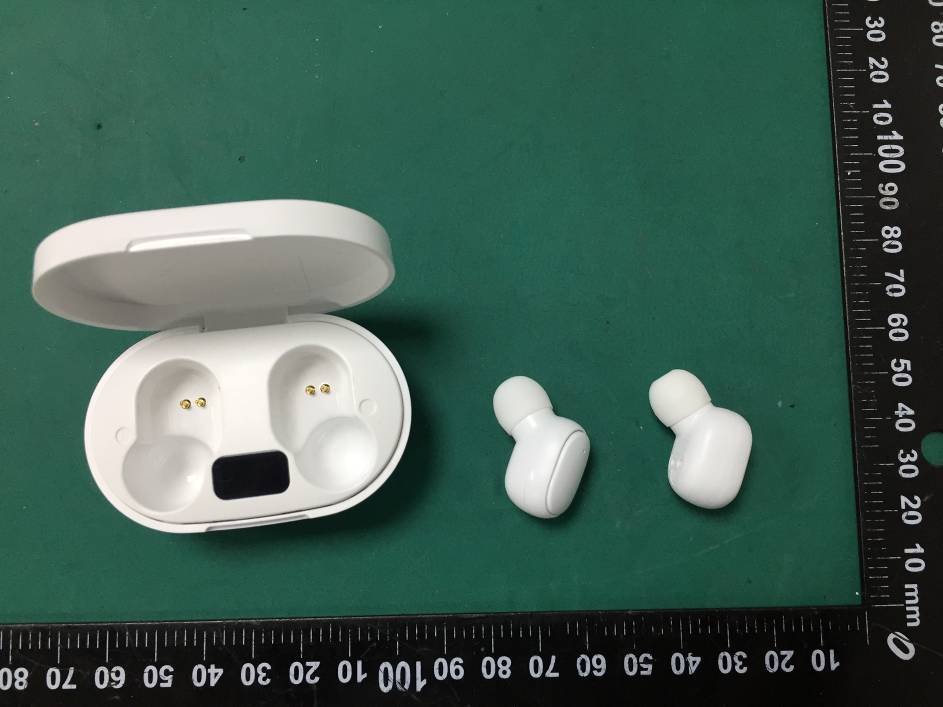

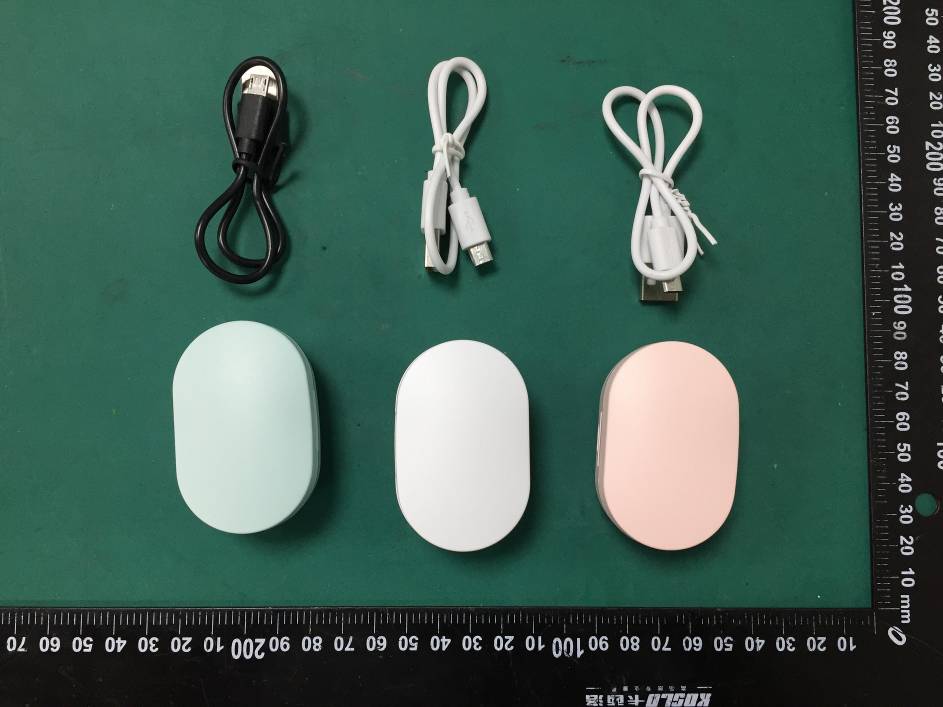

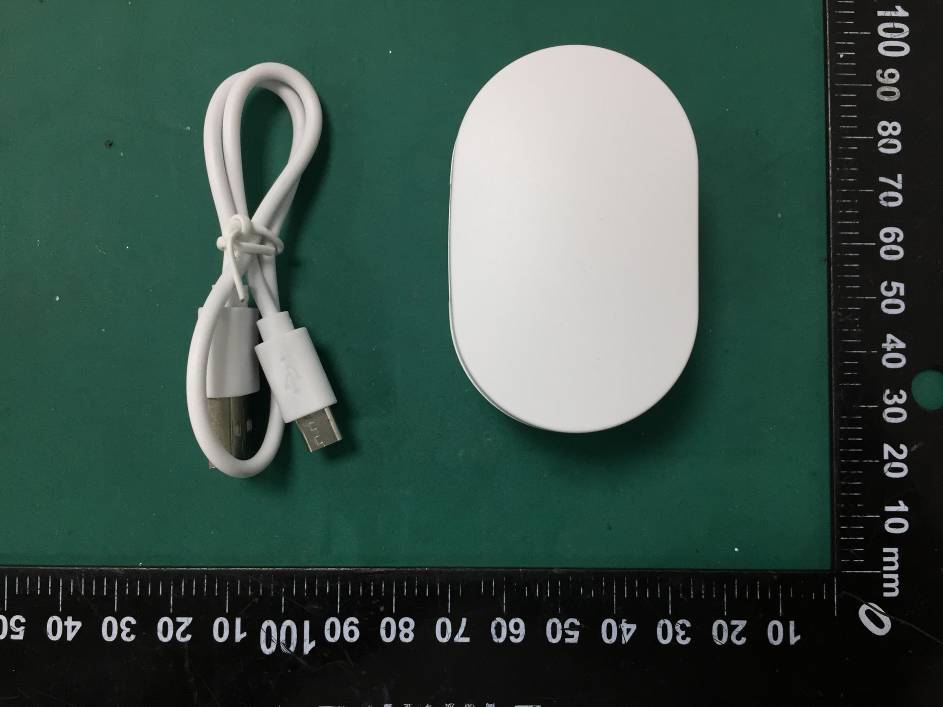

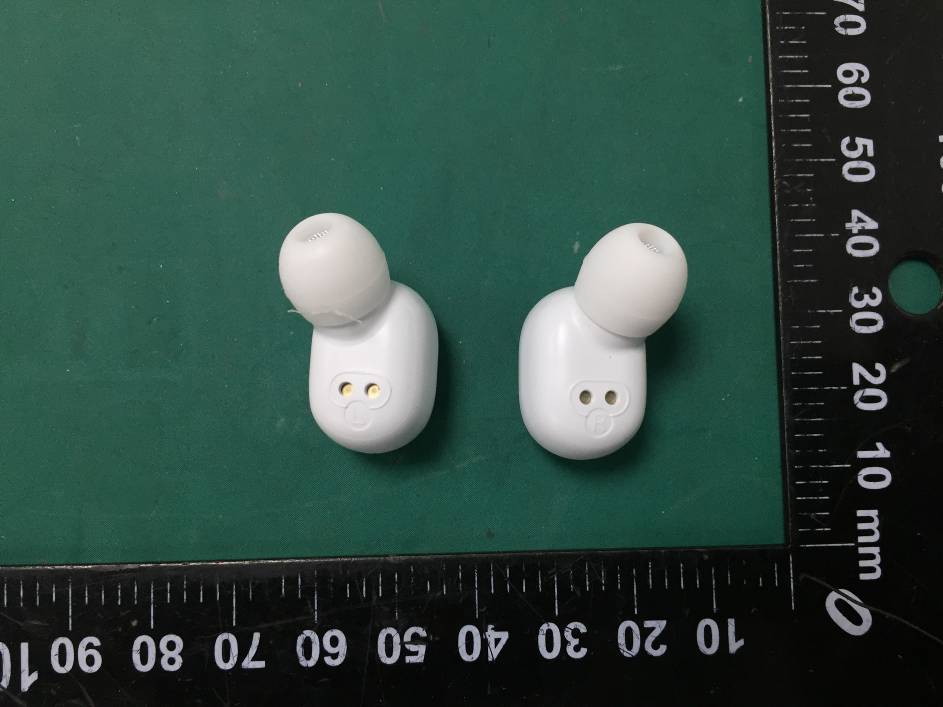

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401V37891E-RF Page 1 of 4 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401V37891E-RF Page 2 of 4 Left earbuds Right earbuds Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401V37891E-RF Page 3 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401V37891E-RF Page 4 of 4

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401V37891E-RF Page 1 of 4 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Left earbuds Right earbuds Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401V37891E-RF Page 2 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401V37891E-RF Page 3 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401V37891E-RF Page 4 of 4 Antenna

Circuit Description Battery (DC 3.7V) provides energy for the Bluetooth chip (AB5659C2); Crystal oscillator (26MHz) provides the clock signal for the Bluetooth chip. Bluetooth signals get through a matching circuit, and then transmitted to the space through the antenna (2402-2480MHz). When the product is connected, the product can in two-way communication with other Bluetooth Devices, and then the device’s Bluetooth module sends Bluetooth signals into space, the product receives the Bluetooth signal through an antenna, transmission to the Bluetooth chip via matching circuit. Modulation Technique: GFSK, π/4-DQPSK, 8DPSK

1 1 2 2 3 3 4 4 DD CC BB AA DAC 1 2 BT-ANT1 ANTENNA_PCB Y1 26MHz GND MICIN GND AB5659C2 ESOP8 TWS-I7 V1.0 DAC# KEY DACPOWER VUSB LED2 RED LOUT+1 LOUT-1 DAC DAC# C4 NC GND C5 NC GND L2 NC L1 NC GND VBAT C1105 GND PWRKEY BT_ANT OSC C2NC GND GND PF2/MIC 5 DACL# 6 VUSB 8 PWRKEY 2 DACL 7 VBAT 1 OSC 4 E G N D 0 ANT 3 U1 AB5659C2 C310pF SIP 1Mb Flash 7.5pF-9pF +-10ppm upDate1 MICIN MIC+1 MIC-1 GND LED1 BLUE R2510R MIC VUSB VBAT GND GND VUSB1 GND1 VBAT1 GND2 R11R S1 POWER/PP/PHONE PWRKEY GND Touch1 PWRKEY

ITEMModel NameMaximum GainPolarizationImpedanceManufactureAddress Antenna S p ecification ANT SPEC 2.4G ANT Antenna hoto 1.46dBi Azimuth BeamPattern Omni-directional Horizontal and Vertical Shenzhen Zhongke Lanxun Technology Co.,Ltd. 50 Ohm Floor 13,Unit 1, Building A , Wisdom Plaza, No. 4068, Qiaoxiang Road, Gaofa Community, Shahe Street, Nanshan District,Shenzhen,China Frequency /MHz Gain/ dBi 2400 1.23 2410 1.28 2420 1.32 2430 1.39 2440 1.46 2450 1.41 2460 1.42 2470 1.34 2480 1.27 2490 1.18 2500 1.09 3D Radiation Pattern for 2440MHz

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF001 Page 1 of 76 Version 3.0 TEST REPORT Applicant Name: JEM ACCESSORIES INC. Address: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 Report Number: 2401V37891E-RF-00 FCC ID: 2AHAS-XBE90138 Test Standard (s) FCC PART 15.247 Sample Description Product Type: TWS BT BUD LED DISPLAY Model No.: XBE9-0138-WHT Multiple Model(s) No.: XBE9-0138-PNK, XBE9-0138-GRN, HP-047B Trade Mark: N/A Date Received: 2024/07/16 Issue Date: 2024/08/15 Test Result: Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Wills Yu Michelle Zeng RF Engineer RF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401V37891E-RF-00 TR-EM-RF001 Page 2 of 76 Version 3.0 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 GENERAL INFORMATION ....................................................................................................................................... 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 5 OBJECTIVE ................................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 TEST FACILITY ............................................................................................................................................................. 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 SPECIAL ACCESSORIES ................................................................................................................................................. 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE .................................................................................................................................................. 8 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 TEST EQUIPMENT LIST ......................................................................................................................................... 10 FCC§15.247 (I), §1.1307 (B) (1) & §2.1093 - RF EXPOSURE ..................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 12 FCC §15.205, §15.209 & §15.247(D) - RADIATED EMISSIONS ........................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 EUT SETUP ................................................................................................................................................................ 13 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 14 TEST PROCEDURE ................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401V37891E-RF Page 1 of 3 EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions View (9 kHz- 30MHz) Radiated Emissions View (30 MHz- 1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401V37891E-RF Page 2 of 3 Radiated Emissions View (1G~18GHz) Radiated Emissions View (18~25 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401V37891E-RF Page 3 of 3 Radiated Emissions Close-up View
