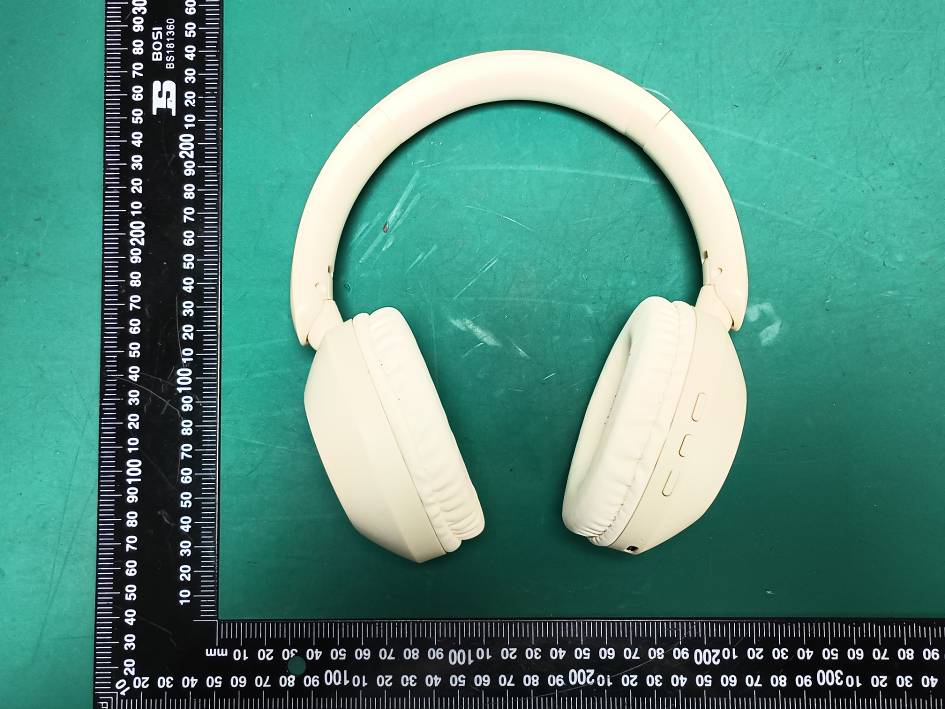

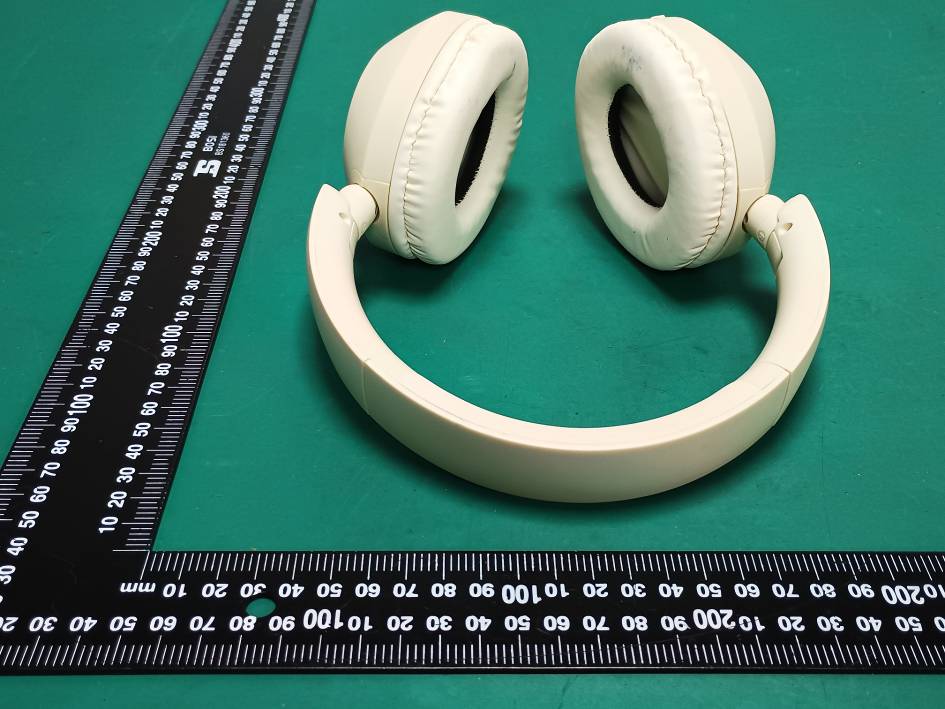

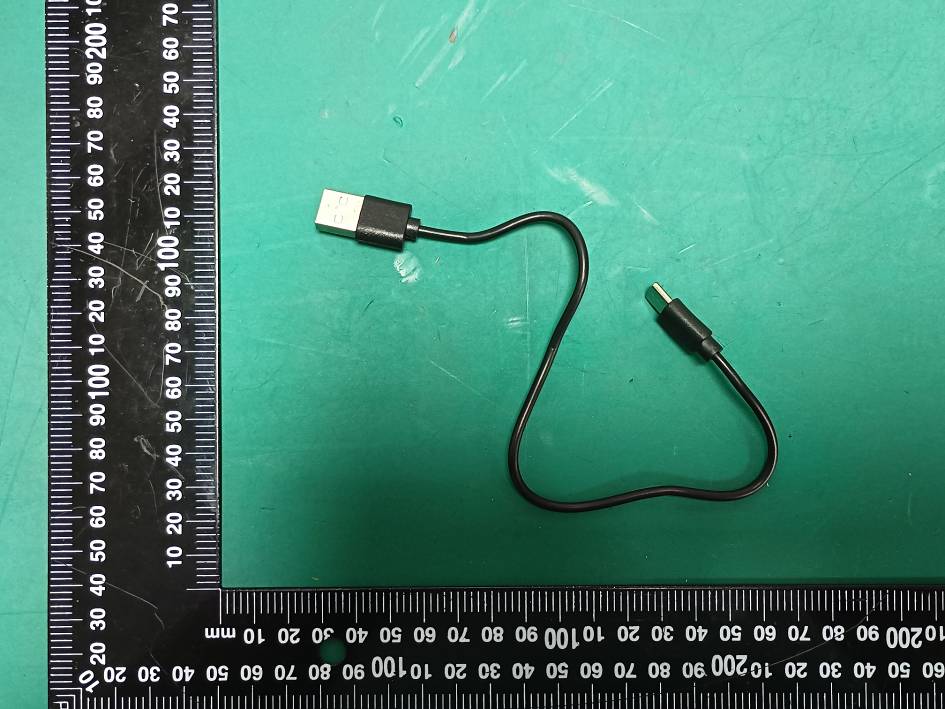

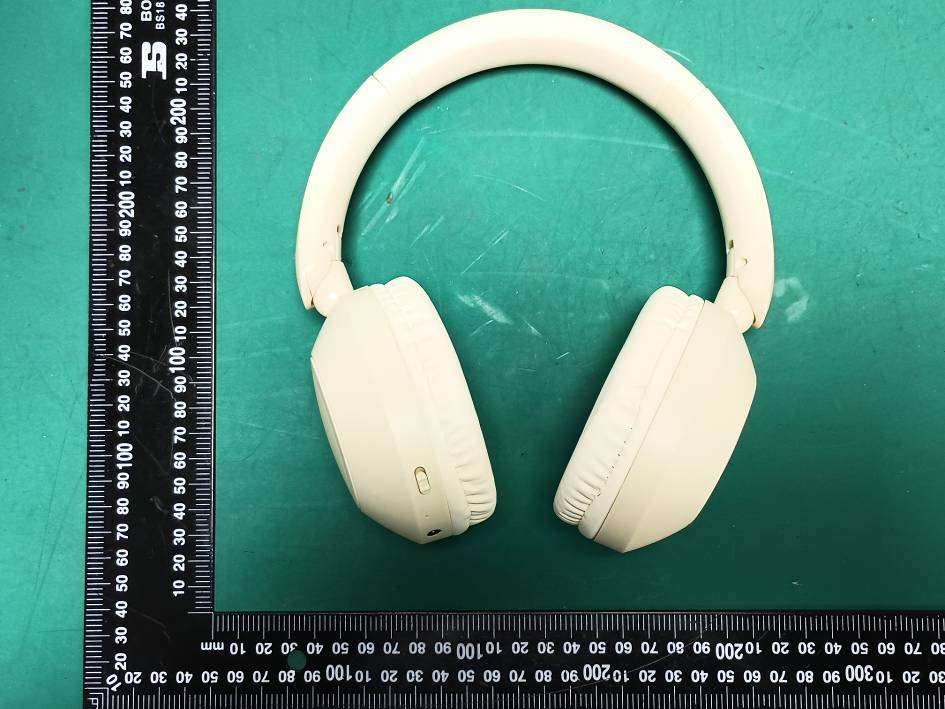

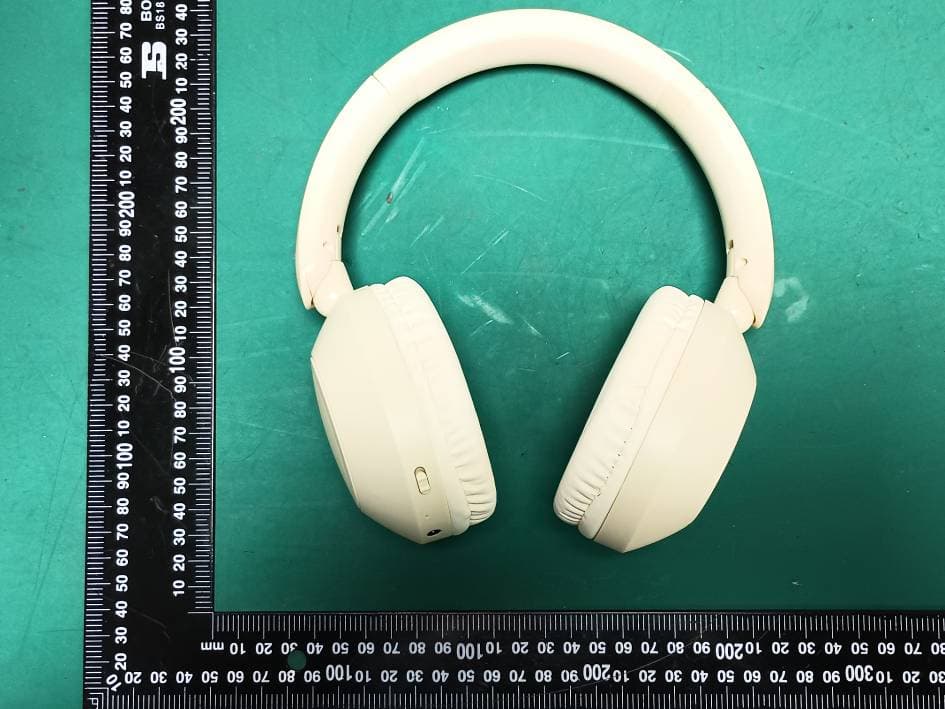

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401S35310E-RF Page 1 of 4 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401S35310E-RF Page 2 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401S35310E-RF Page 3 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401S35310E-RF Page 4 of 4

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401S35310E-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401S35310E-RF Page 1 of 3 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401S35310E-RF Page 2 of 3 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401S35310E-RF Page 3 of 3 Antenna

Operation Description Battery (DC 3.7V) provides energy for the Bluetooth chip (AC7026A); Crystal oscillator (24MHz) provides the clock signal for the Bluetooth chip. Bluetooth signals get through a matching circuit, and then transmitted to the space through the antenna (2402-2480MHz). When the product is connected, the product can in two-way communication with other Bluetooth Devices, and then the device’s Bluetooth module s ends Bluetooth signals into space, the product receives the Bluetooth signal through an antenna, transmission to the Bluetooth chip via matching circuit. When need charging, input USB cable, and connected to the power supply, red light on, the light will change to green light when is power up. Modulation Technique: Bluetooth: GFSK, π/4-DQPSK

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401S35310E-RF-00 TR-EM-RF001 Page 11 of 54 Version 1.0 (2023/10/07) FCC§15.247 (i), §1.1307 (b) (1) & §2.1093 - RF EXPOSURE Applicable Standard According to FCC §2.1093 and §1.1307(b) (1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 General RF Exposure Guidance The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where 1. f(GHz) is the RF channel transmit frequency in GHz. 2. Power and distance are rounded to the nearest mW and mm before calculation. 3. The result is rounded to one decimal place for comparison. 4. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test Exclusion. Measurement Result For worst case: Mode Frequency (MHz) Max tune-up conducted power # (dBm) Max tune-up conducted power # (mW) Distance (mm) Calculated value Threshold (1-g SAR) SAR Test Exclusion BT 2402-2480 0.50 1.12 5 0.4 3 Yes Result: Compliant

A B C D 54321 D C B A 12345 B 2007/9/12 Rev 11 PCB File Name Document Number Size Date: Title Sheet of 2.0 KEY MIC LED POWER C1 105 L3 4.7UH C 33 106 C2 105 C6 105 C9 105 Y2 24M R4 1R 1 CON6 1 CON9 D2 BL UE D1 R ED R9 1K 1 VCM 2 DACL 3 DACR 4 VCMO/PB8 5 PB7/ADC8 6 PB6/ADC9 7 PB4/ADC12 8 PGND 9 SW 10 V B AT 11 V PWR 12 I O V DD 13 D CV DD 14 P B 3 / A D C7 15 P B 2 /L P _ T H1 16 P B 1 /L P _ T H0 17 BTRF 18 VSS 19 XOSCI 20 XOSCO 21 ADC5/PC5 22 ADC4/PC4 23 ADC3/PC3 24 PC2 25 A D C 11 / U S B DM 26 A D C 10 / U S B DP 27 A D C 2 / P A6 28 A D C 1 / A D C 0 / P A 5 / P A3 29 A IN_ A 1 / P A2 30 A IN_ A 0 / P A1 31 M I C _ LD O / P A0 32 D ACV SS U1 AC7026A 1 DP 1 DM TVS ST0651D4 A5 CC1 A9 VBUS A12 GND B12 GND B9 VBUS B5 CC2 J1 TPYE-CF-6P R3 5 . 1K R 10 5 . 1K C3 0R K1 PREV/V- L R CN1 1 CON1 1 CON4 321 7 6 5 4 89 SW1 R2 1M 1 CON7 1 CON8 ANT1 C4 NC C5 NC C7 NC K2 NEXT/V+ K3 P/P M1 -42dB 1 1 1 R1 100K CB1 BT_RF M IC VCM SW BT_VDD V B AT + 3 . 3V BT _ VDD P O W ER DC 5V XOSCOXOSCI DC5V MIC DACR VCMO + 3 . 3V LED_B/R DP DM DACR VCMO DACL DACRLED_B/R XOSCI XOSCO P/P DC5V_IN RF NEXT/V+ PREV/V- DACR VCMO DACL AUX_DET VCMO AUX_DET PREV/V- DACL VCMO DACL VCMO P O W ER +3.3V NEXT/V+ P/P NT C _ VDD NT C _ D ET DC 5V VBAT NTC_VDD NTC_DET A GND

ITEM Model Name Maximum Gain Polarization Impedance Manufacture Address Frequency / MHz Gain/ dBi 2400-0.89 2410-0.95 2420-0.78 2430-0.66 2440-0.58 2450-0.59 2460-0.63 2470-0.77 2480-0.79 2490-0.92 2500-1.04 Antenna Specification ANT SPEC 2.4G ANT Antenna Photo & Size (mm) -0.58dBi Azimuth Beam Pattern Omni-directional Horizontal and Vertical ZHUHAI JIELI TECHNOLOGY CO.,LTD 50 Ohm 7th floor, Fuhua Science and Technology Building, North Ring Avenue, Xili Street, Nanshan District, Shenzhen 3D Radiation Pattern @ 2440 MHz

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF001 Page 1 of 54 Version 1.0 (2023/10/07) TEST REPORT Applicant Name: JEM ACCESSORIES INC. Address: 32 Brunswick Avenue, Edison, New Jersey, United States, 08817 Report Number: 2401S35310E-RF-00 FCC ID: 2AHAS-XBH91033 Test Standard (s) FCC PART 15.247 Sample Description Product Type: FOLDING BT HEADPHONE Model No.: XBH9-1033 Multiple Model(s) No.: N/A Trade Mark: N/A Date Received: 2024/05/07 Issue Date: 2024/06/26 Test Result: Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Jojo Guo Michelle Zeng RF Engineer RF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401S35310E-RF-00 TR-EM-RF001 Page 2 of 54 Version 1.0 (2023/10/07) TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 GENERAL INFORMATION ....................................................................................................................................... 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 5 OBJECTIVE ................................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 TEST FACILITY ............................................................................................................................................................. 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 SPECIAL ACCESSORIES ................................................................................................................................................. 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE .................................................................................................................................................. 8 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 TEST EQUIPMENT LIST ......................................................................................................................................... 10 FCC§15.247 (I), §1.1307 (B) (1) & §2.1093 - RF EXPOSURE ..................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 12 FCC §15.205, §15.209 & §15.247(D) - RADIATED EMISSIONS ........................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 EUT SETUP ................................................................................................................................................................ 13 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 14 TEST PROCEDURE .............................…
