2AHAS-XCA21013-2Wireless Keyboard

XTREME Wireless Keyboard Model: XCA2-1013-BLK What is included: 1×Wireless Keyboard 1×NANO USB RECEIVER (Model: XCA2-1013-BLK-dongle) Function: - -COMPATIBLE WITH PC/MAC -USB CONNECTIVITY Tech Specifications: -Easy plug and play, no installation required -Plug included nano receiver into your computer -Wireless range up to 30ft -PC and Mac compatible -Keyboard requires 2AAAbatteries (Not included) Important Notes: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is FCC warning(Wireless Keyboard and Dongle) 2.4GHz FHSS connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party. Responsible for compliance could void the user’s authority to operate this equipment. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: The equipment complies with FCC Radiation exposure limits set forth for uncontrolled environment.

JEM ACCESSORIES INC. Add: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 ： Tel 908-222-7501 Fax: 908.222.7504 E- ： mail [email protected] CFR 47 §2.911(d)(5)(i) Attestation Letter Attestation Letter Date: 2023/06/21 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing JEM ACCESSORIES INC. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature Contact Person: Eli Dabbah Title: Manager Company Name: JEM ACCESSORIES INC. Company Address: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 FCC ID: 2AHAS-XCA21013-2

JEM ACCESSORIES INC. Add: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 ： Tel 908-222-7501 Fax: 908.222.7504 E- ： mail [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter QA-FR-1007-A RC 02-08-2023 Attestation Letter Date: 2023/6/21 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing JEM ACCESSORIES INC. (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature Contact Person: Eli Dabbah Title: Manager Company Name: JEM ACCESSORIES INC. Company Address: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 FCC ID: 2AHAS-XCA21013-2

U.S. AGENT LETTER OF ATTESTATION Date: 2023-06-21 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing JEM ACCESSORIES INC. certifies that, as of the date of the filing of the application, JEM ACCESSORIES INC.is our designated U.S. agent for service of process for the above referenced FCC ID. JEM ACCESSORIES INC. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. JEM ACCESSORIES INC. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent and Applicant Information: Name: JEM ACCESSORIES INC . Address: 32 Brunswick Avenue, Edison, New Jersey, United States, 08817 FRN: 0025209164 Tel.: 908-222-7501 Email: [email protected] Signed by (printed name): Eli Dabbah Signat ure: FCC ID: 2AHAS-XCA21013-2

Wireless Keyboard Functional block diagram HS6228 2402MHz—2480MHz ANT Key Scan LED indication 16MHz Crystal Power Manager

JEM ACCESSORIES INC. Add: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 Tel：908-222-7501 Fax: 908.222.7504 E-mail：[email protected] FCC Authorization 2023/6/21 FE DERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, JEM ACCESSORIES INC. the undersigned, hereby authorize Shenzhen Accurate Technology Co.,Ltd to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Shenzhen Accurate Technology Co.,Ltd on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name: Eli Dabbah Title: Manager QA-FR-170-B

JEM ACCESSORIES INC. Add: 32 Brunswick Avenue, Edison, New Jersey, United States,08817 Tel：908-222-7501 Fax: 908.222.7504 E-mail：[email protected] FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023/6/21 Product Similarity Declaration To Whom It May Concern, We, JEM ACCESSORIES INC. hereby declare that we have a product named as Wireless Keyboard (Model No.: XCA2-1013-BLK, FCC ID: 2AHAS-XCA21013-2) was tested by Shenzhen Accurate Technology Co.,Ltd., meanwhile, for our marketing purpose, we would like to list a series model No.: SC-1013-BLK on reports and certificate, all the models are identical in electrically, the difference are model number. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely, Signature: Printed Name: Eli Dabbah Title: Manager

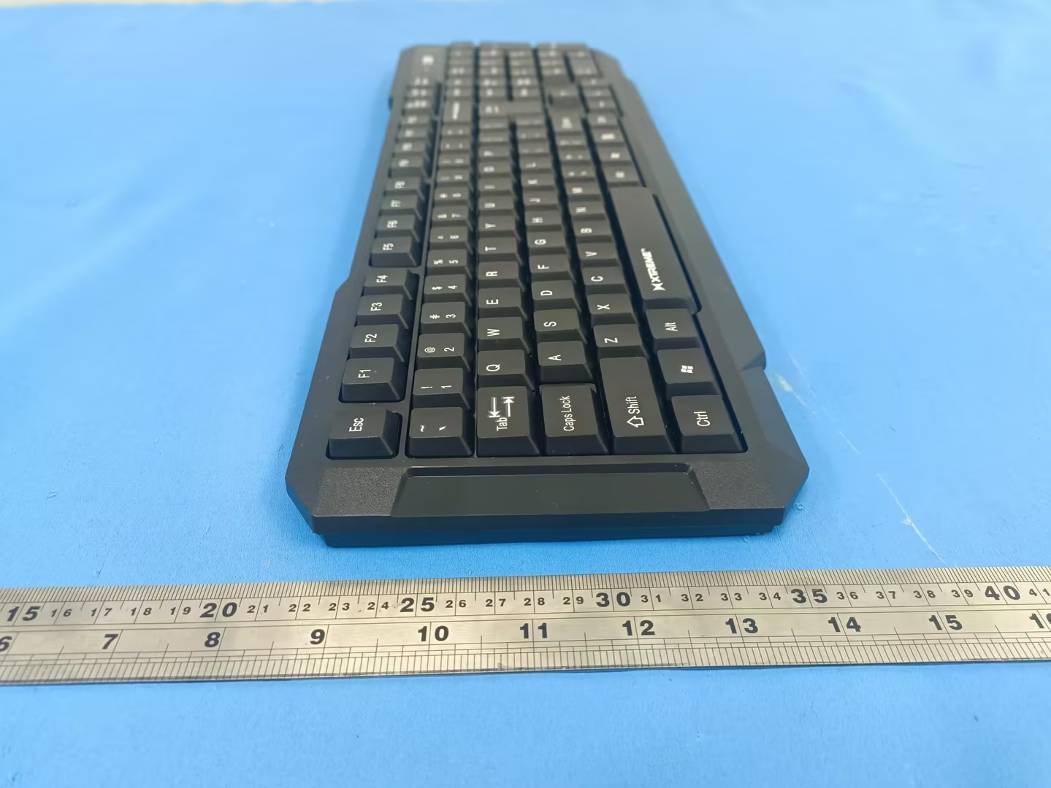

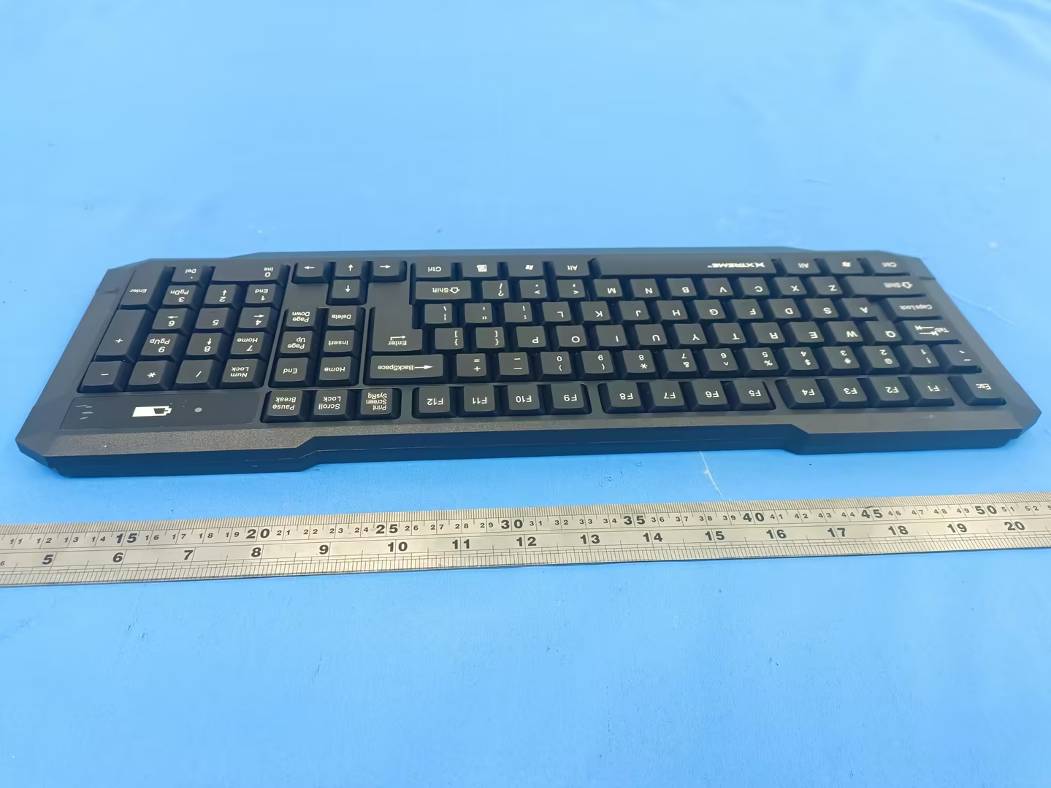

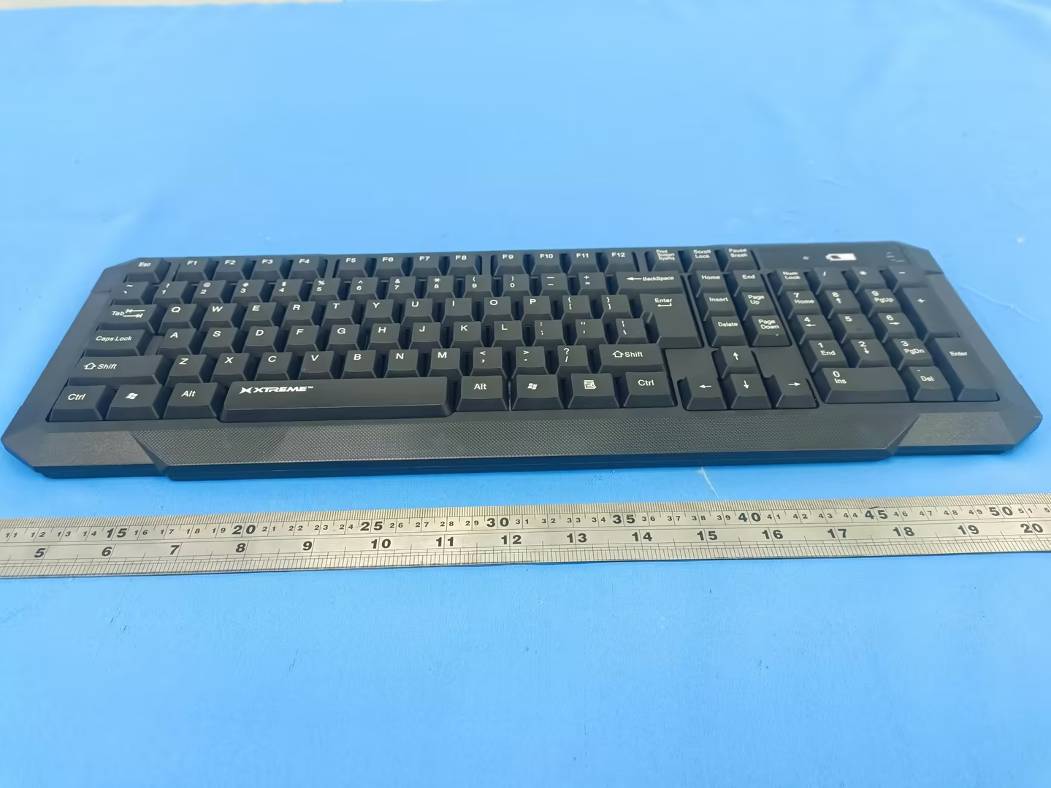

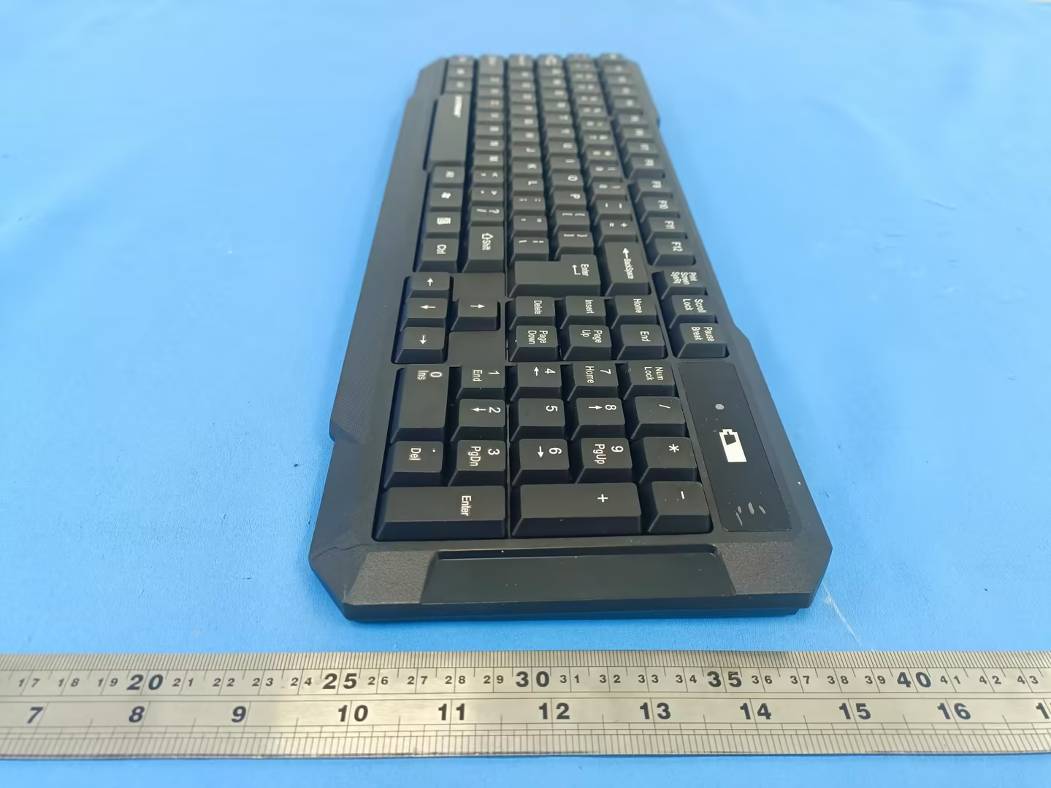

Shenzhen Accurate Technology Co., Ltd. Project No.: RA230529-29950E-RF External Photos Page 1 of 3 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230529-29950E-RF External Photos Page 2 of 3 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230529-29950E-RF External Photos Page 3 of 3

Shenzhen Accurate Technology Co., Ltd. Project No.: RA230529-29950E-RF LABEL AND LOCATION Page 1 of 1 FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Shenzhen Accurate Technology Co., Ltd. Project No.: RA230529-29950E-RF Internal Photos Page 1 of 3 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230529-29950E-RF Internal Photos Page 2 of 3 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230529-29950E-RF Internal Photos Page 3 of 3 ANT

Operational Principle 1. CPU,HS6228 have an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology. Opration frequency is 3.5 MHz with internal RC oscillator., This chip is responsible to control RF-Baseband Transceiver(HS6228). 2. Matrix,8*18 matrix with eight input line and eighteen output line. 3. 2.4 GHz ISM Band Transceiver/Framer,HS6228 which is a low-cost,fully inegrated CMOS radio frequency(RF) transceiver block,combined with a 64-byte buffered framer block.It contains transmit,receive,VCO and PLL functions,including an on-chip channel filter and resonator. It needs an external 16MHz crystal for reference frequency; 4. ANTENNA, The antenna is typically fed from the end of the monopole section by a plated through-hole via which is in turn connected to the RF output on the 2.4GHz band. 5. Voltage Range: DC 3V from battery Channel list Channel No. Frequency (MHz） Channel No. Frequency (MHz） Channel No. Frequency (MHz） Channel No. Frequency (MHz） 1 2402 112422212442 31 2462 2 2404 122424222444 32 2464 3 2406 132426232446 33 2466 4 2408 142428242448 34 2468 5 2410 152430252450 35 2470 6 2412 162432262452 36 2472 7 2414 172434272454 37 2474 8 2416 182436282456 38 2476 9 2418 192438292458 39 2478 10 2420 202440302460 40 2480 Note: the device has totally 40 channels, only 16 channels selected randomly from the channel list were active to transmit at same time.

Shenzhen Accurate Technology Co., Ltd. Report No.: RA230529-29950E-RF-00 Version24: 2023-01-30 Page 11 of 37 FCC-FHSS FCC§15.247 (i)&§1.1307 (b) &§2.1093 – RF EXPOSURE Applicable Standard According to FCC §2.1093 and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 General RF Exposure Guidance The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where 1. f(GHz) is the RF channel transmit frequency in GHz. 2. Power and distance are rounded to the nearest mW and mm before calculation. 3. The result is rounded to one decimal place for comparison. 4. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test Exclusion. Measurement Result Frequency (MHz) Maximum Tune-up power Calculated Distance (mm) Calculated Value Threshold (1-g SAR) SAR Test Exclusion (dBm) (mW) 2402-2480 1.0 1.26 5 0.4 3.0 Yes Note: the maximum tune up power was declared by the applicant. Result: Compliant.

AntennaSpecification Specifications Summary ITEMSPEC. ModelNameIBM2.4GHz CenterFrequency2402MHz-2.10dBi 2441MHz-1.78dBi 2480MHz-1.52dBi MAX.GAIN Polarization Horizontal AzimuthBeamPatternOmni-directional Impedance50Ω AntennaLength31.5cm -1.52dBi Shenzhen Jiaxinchen Technology Co.,Ltd. C503-C505, No.30 Airway Road, Bao’an District, Shenzhen City 1.Mainantenna:2402MHz 2.Mainantenna:2441MHz . 3.Mainantenna:2480MHz

★ Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “ ”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503290 Web: www.atc-lab.com Version24: 2023-01-30 Page 1 of 37 FCC-FHSS TEST REPORT Applicant Name: JEM ACCESSORIES INC. Address: 32 Brunswick Avenue, Edison, New Jersey, United States, 08817 Report Number: RA230529-29950E-RF-00 FCC ID: 2AHAS-XCA21013-2 Test Standard (s) FCC PART 15.247 Sample Description Product Type: Wireless Keyboard Model No.: XCA2-1013-BLK Multiple Model(s) No.: SC-1013-BLK Trade Mark: XTREME Date Received: 2023/05/29 Report Date: 2023/06/21 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Dave Liang Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: RA230529-29950E-RF-00 Version24: 2023-01-30 Page 2 of 37 FCC-FHSS TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 GENERAL INFORMATION ....................................................................................................................................... 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 5 OBJECTIVE ................................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 TEST FACILITY ............................................................................................................................................................. 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 SPECIAL ACCESSORIES ................................................................................................................................................. 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 8 EXTERNAL I/O CABLE .................................................................................................................................................. 8 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 TEST EQUIPMENT LIST ......................................................................................................................................... 10 FCC§15.247 (I)&§1.1307 (B) &§2.1093 – RF EXPOSURE ...................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 12 FCC §15.205, §15.209&§15.247(D) – RADIATED EMISSIONS ............................................................................ 13 APPLICABLE STANDARD ............................................................................................................................................ 13 EUT SETUP ................................................................................................................................................................ 13 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 14 TEST PROCEDURE ...................................................................................................................................................... 14 F…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Project No.: RA230529-29950E-RF Test Photos Page 1 of 1 Photo of Radiated Emission Measurement (Below 1G) Photo of Radiated Emission Measurement (Above 1G)
