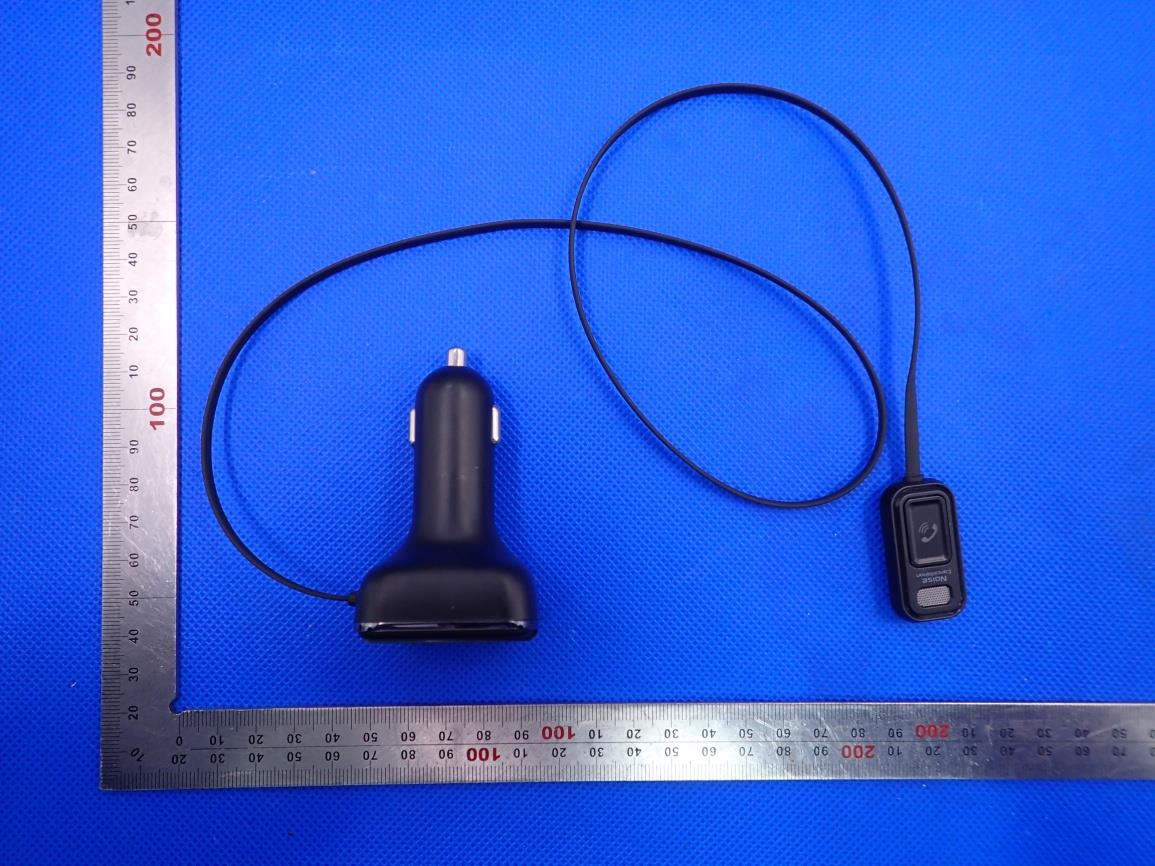

BLUETOOTH HANDSFREE CAR KIT with noise cancellation technology Model: BT10M User Manual Brief Introduction Thanks for choosing our Bluetooth FM Transmitter. This device streams music and call directly from your Bluetooth devices to your car FM stereo system. The separated microphone provides you with an amazing hands free function and it is also with a Micro SD card/USB Disk slot that lets you enjoy favorite MP3 and WMA tunes by your car’s stereo system. Please read the user manual carefully before using. Hope this device makes your driving more interesting and safer. Packing contents: ⚫ Bluetooth device ⚫ User manual ⚫ Hook and loop fastener Specification: ⚫ Bluetooth version: Action V5.0 ⚫ Bluetooth protocol: AVRCP,HFP,A2DP ⚫ Frequency range: 88.1-107.9MHZ ⚫ Frequency stability: ±10ppm ⚫ Product input:12-24V ⚫ Charger output: 5V/1A +5V/2.4A ⚫ Music format: MP3, WMA, WAV, FLAC ⚫ Micro SD card (Max capacity): 64GB ⚫ USB disk (Max capacity): 64GB ⚫ Transmit Distance: about 3m ⚫ Bluetooth Distance: about 5m ⚫ Product size of FM transmitter: 43*38*76mm ⚫ Product size of Microphone: 38*20*9mm ⚫ Length of cable:60cm ⚫ Product weight: 37.8g ⚫ Material: ABS Features: 1. Wirelessly transmits phone call & audio streaming to the car FM stereo system via Bluetooth. 2. Switches to handsfree mode automatically from music streaming status when receiving phone call. 3. Better voice pickup cable incorporated. 4. Dual USB ports output: DC 5V/3.4A (in total). 5. Detect and display the voltage of car battery when powered on. 6. Full 206 channels optional from 88.1-107.9MHz. 7. Support micro SD card & read USB disk. 8. Quick Siri/Google Assistant activation. 9. User-friendly switch to private call. 10. Hook and loop fasteners. Compatibility: This device can be paired as a hands free kit with any compatible Bluetooth enabled devices. Precautions: Please read all safety instruction and warnings carefully before using this product. Improper use of this product may result in damage. To ensure it works well, please never use this in the following conditions : 1. Moist or underwater conditions. 2. Conditions near heater or high-temperature service. 3. Conditions with direct and strong sunshine. 4. Conditions with apt falling. 5 Never dismantle the product without due permission, otherwise it may nullify the warranty clause. Product Overview: Using FM Transmitter function: 1. Plug the FM transmitter into your vehicle’s cigarette lighter or power port. The LED displays the voltage of car battery for 2 seconds. Then the device enters into Bluetooth pairing mode, LED also displays “bt”. 2. Tune your radio to an unused FM frequency, then match the same frequency of this unit. 3. Insert a micro SD card/USB disk containing MP3 files into micro SD card/USB disk slot of this unit and it will play and transmit the MP3 files automatically. Using Bluetooth function: 1. Paste 3M Adhesive Tape on the place you need. 2. Using Bluetooth for the first time, you need to pair your mobile phone with this unit. Activate your mobile phone's Bluetooth function, then search new device. When the mobile phone detects this unit (named as "BT10M"), please pair or connect by using the original password "0000". 3. In the music playing mode, when there is an incoming call, this unit will automatically switch to telephone mode. 4. On music playing mode, press the “Play/Pause ” and hold for 2 seconds to switch modes between Bluetooth and Micro SD card/USB disk reading. Bluetooth calling: 1. Please press to answer the incoming call or hang off a call. 2. Please press and hold for 2 seconds during call to reject the incoming call in Bluetooth calling mode. 3. Please press twice to dial the last number automatically. 4. When the call connected , long press to switch a private call. Using USB charger function: Connect the USB Charger port (two ports both ok) to your mobile phone, with a USB cable (not included) when this product powered from car lighter socket, The product will serve as mobile phone charger. Please note: The maximum output of right USB port is 1mAh; The maximum output of left USB port is 2.4mAh; Read MP3/WMA/ WAV/ FLAC files in USB disk by right USB port. Siri/Google assistant activation: When Bluetooth is connected successfully, press and hold 2 seconds to quick activate Siri/Google assistant of your mobile phone. Quick Guide: Operation Guide On FM transmitter 1. Answer / hang up the call: Press "" button: answer the call Press "" button: hang up the call 2. Ignore call Press “” and hold for 3 seconds to reject incoming calls 3. Call last Number Press “” twice to dial the last number automatically. 4. Private calling When answering a call ,press “” and hold for 3 seconds to switch to private call mode. 5. Play and Pause the music: Press “” Button: Play the music Press “” Button again: Pause playing 6. Adjust the Volume: Press “” and hold for 2 seconds to increase the volume Press “” and hold for 2 seconds to decrease volume 7. Set frequency: Press “CH” first Then press “” : increase the frequency Or press “”: decrease the frequency 8. Choose music: Press “” button: play the next song Press “”button: play the previous song 9. Music sources switch: Press “”button and hold for 2 seconds to switch modes between Bluetooth and Micro SD card/USB disk reading 10. Activate Siri/Google assistant Long press to quick activate Siri/Google assistant under Bluetooth connected NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmf…

Text truncated - open the document above for the full version.

[2020-01-17] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement JEM ACCESSORIES,INC FCC ID: 2AHASBT10M To Whom It May Concern: We, JEM ACCESSORIES,INC hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number (2AHASBT10M) under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is (2020-01-17). The Limited Agency Agreement expires until further notice, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, [Signature] JEM ACCESSORIES,INC Contact person: Eli Dabbah

Jan. 08, 2020 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2AHASBT10M Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Schematics 3: Operational Description 4: Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, JEM ACCESSORIES,INC Contact person: Eli Dabbah

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location 10mm*20mm FCC ID:2AHASBT10M

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 FM Antenna INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 INTERNAL VIEW OF EUT-7 BT Antenna INTERNAL VIEW OF EUT-8 INTERNAL VIEW OF EUT-9 INTERNAL VIEW OF EUT-10

Page 1 of 67 FCC Test Report Report No.: AGC08409191201FE03 FCC ID : 2AHASBT10M APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth FM Transmitter BRAND NAME : ArmorAll, Monster MODEL NAME : BT10M, MCC9-1033-BLK APPLICANT : JEM ACCESSORIES,INC DATE OF ISSUE : Jan. 08, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC08409191201FE03 Page 2 of 67 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jan. 08, 2020 Valid Initial Release Report No.: AGC08409191201FE03 Page 3 of 67 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ............................................................................................................ 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ....................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ........................................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................. 8 2.7. TEST METHODOLOGY .......................................................................................................................... 8 2.8. SPECIAL ACCESSORIES ....................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS .............................................................................................................. 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 9 4. DESCRIPTION OF TEST MODES ............................................................................................................... 10 5. SYSTEM TEST CONFIGURATION .............................................................................................................. 11 5.1. CONFIGURATION OF EUT SYSTEM .................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM ............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS ............................................................................................................. 11 6. TEST FACILITY ........................................................................................................................................... 12 7. PEAK OUTPUT POWER ............................................................................................................................. 13 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 14 8. 20DB BANDWIDTH ..................................................................................................................................... 20 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 20 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 20 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 20 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 27 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 27 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 27 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 27 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 27 10. RADIATED EMISSION ............................................................................................................................... 37 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 37 10.2. TEST SETUP ....................................................................................................................................... 39 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................. 40 10.4. TEST RESULT ..................................................................................................................................... 40 11. NUMBER OF HOPPING FREQUENCY ..................................................................................................... 50 11.1. MEASUREMENT PROCEDURE ................................…

Text truncated - open the document above for the full version.

Report No.: AGC08409191201FE03 Page 45 of 67 EUT Bluetooth FM Transmitter Model Name BT10M Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 9 Antenna Horizontal FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) 4960.000 50.4974-23.51 peak 4960.000 43.5554-10.45 AVG 7440.000 51.274-22.8 peak 7440.000 42.954-11.1 AVG Value Type 50.270.22 43.330.22 48.562.64 40.262.64 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. EUT Bluetooth FM Transmitter Model Name BT10M Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 9 Antenna Vertical FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) 4960.000 48.6474-25.36 peak 4960.000 43.7954-10.21 AVG 7440.000 52.3774-21.63 peak 7440.000 42.654-11.4 AVG Value Type 48.420.22 43.570.22 49.732.64 39.962.64 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. RESULT: PASS Note: Other emissions from 1G to 25 GHz are considered as ambient noise. No recording in the test report. Factor = Antenna Factor + Cable loss - Amplifier gain, Over=Measure-Limit. The “Factor” value can be calculated automatically by software of measurement system. All test modes had been tested. The GFSK modulation is the worst case and recorded in the report. Report No.: AGC08409191201FE03 Page 46 of 67 TEST RESULT FOR RESTRICTED BANDS REQUIREMENTS EUT Bluetooth FM Transmitter Model Name BT10M Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 7 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC08409191201FE03 Page 47 of 67 EUT Bluetooth FM Transmitter Model Name BT10M Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 7 Antenna Vertical PK AV RESULT: PASS Report No.: AGC08409191201FE03 Page 48 of 67 EUT Bluetooth FM Transmitter Model Name BT10M Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 9 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC08409191201FE03 Page 49 of 67 EUT Bluetooth FM Transmitter Model Name BT10M Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 9 Antenna Vertical PK AV RESULT: PASS Note: The factor had been edited in the “Input Correction” of the Spectrum Analyzer. So the Amplitude of test plots is equal to Reading level plus the Factor in dB. Use the A dB(μV) to represent the Amplitude. Use the F dB(μV/m) to represent the Field Strength. So A=F. All test modes had been pre-tested. Sim 8DPSK modulation +FM low channel is the worst case and recorded in the report. Report No.: AGC08409191201FE03 Page 50 of 67 11. NUMBER OF HOPPING FREQUENCY 11.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: The frequency band of operation. Depending on the number of channels the device supports, it may be necessary to divide the frequency range of operation across multiple spans, to allow the individual channels to be clearly seen. 2. RBW: To identify clearly the individual channels, set the RBW to less than 30% of the channel spacing or the 20 dB bandwidth, whichever is smaller. 3. VBW ≥ RBW. Sweep: Auto. Detector function: Peak. Trace: Max hold. 4. Allow the trace to stabilize. 11.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 8.2 11.3. MEASUREMENT EQUIPMENT USED The same as described in section 6 Report No.: AGC08409191201FE03 Page 51 of 67 11.4. LIMITS AND MEASUREMENT RESULT TOTAL NO. OF HOPPING CHANNEL LIMIT (NO. OF CH) MEASUREMENT (NO. OF CH) RESULT >=15 79 PASS TEST PLOT FOR NO. OF TOTAL CHANNELS Note: The GFSK modulation is the worst case and recorded in the report. Report No.: AGC08409191201FE03 Page 52 of 67 12. TIME OF OCCUPANCY (DWELL TIME) 12.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: Zero span, centered on a hopping channel. 2. RBW shall be≤channel spacing and where possible RBW should be set >> 1 / T, where T is the expected dwell time per channel. 3. Sweep: As necessary to capture the entire dwell time per hopping channel; where possible use a video trigger and trigger delay so that the transmitted signal starts a little to the right of the start of the plot. The trigger level might need slight adjustment to prevent triggering when the system hops on an adjacent channel; a second plot might be needed with a longer sweep time to show two successive hops on a channel. 4. Detector function: Peak. Trace: Max hold. 5. Use the marker-delta function to determine the transmit time per hop. 6. Repeat the measurement using a longer sweep time to determine the number of hops over the period specified in the requirements. The sweep time shall be equal to, or less than, the period specified in the requirements. Determine the number of hops over the sweep time and calculate the total number of hops in the period specified in the requirements, using the following equation: (Number of hops in the period specified in the requirements) = (number of hops on spectrum analyzer) × (period specified in the requirements / analyzer sweep time) 7. The average time of occupancy is calculated from the transmit time per hop multiplied by the number of hops in the period specified in the requirements. 12.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 8.2 12.3. MEASUREMENT EQUIPMENT USED The same as described in section 6 12.4. LIMITS AND MEASUREMENT RESULT Channel Time of Pulse for DH5 (ms) Number of hops in the period specified in the requirements Sweep Time (ms) Limit (ms) Low 2.864 27*4 309.312 400 Middle 2.866 26*4 298.064 400 High 2.866 27*4 309.528 400 Note: The 8DPSK modulation is the worst case and recorded in the report. Report No.: AGC08409191201FE03 Page 53 of 67 T…
