Speed Storm User Manual Battery installation For Speed Storm : Remove the screw from the top cab. Remove the screw and open the battery cover. Insert 3x 1.5V AAA Size Alkaline batteries and close the batter y cover. y Put the screw back to lock the battery cover and the top cab. For Remote Controller : Remove the screw and open the battery cover. Insert 2x 1.5V AA Size Alkaline batteries and close the battery cover. Put the screw back. Operation procedure Pt th Sd St th t d k th P u t th e S pee d St orm on th e wa t er an d ma k e sure th e frequency docking successfully when the speedboat and the controller are turned on. Use the remote controller to control the Speed Storm Th db t ill fd h h th Th e spee db oa t w ill move f orwar d w h en you pus h th e up button in left side. The speedboat will move backward when you push the down button in left side. Th db t ill t lft d fd h h th Th e spee db oa t w ill t urn l e ft an d f orwar d w h en you pus h th e up button in left side and left button in right side. The speedboat will turn right and forward when you push the up button in left side and right button in right side. Th db t ill t lft d bk d h h Th e spee db oa t w ill t urn l e ft an d b ac k war d w h en you pus h the down button in left side and left button in right side. The speedboat will turn right and backward when you push the down button in left side and right button in right side. Speed Storm User Manual Notes: l k h db d ll h P l ease ma k e sure t h e spee db oat an d remote contro ll er wit h in 8 ‐ 10meter range. Age Recommendation: 10+ years and adult supervision required. If you do not play the speedboat, you must remove the batteries from both of the remote controller and the speedboat. ki ild Pac k ag i ng i nc l u d es: Speedboat unit 1pc Remote controller unit 1pc Product dimension: Sdb i 10”W 2 75”D 2 25”H S pee db oat un i t: 10”W x 2 . 75”D x 2 . 25”H Remote controller unit: 4.5”W x 2.75”D x 1.75”H Description: Remote controller batteries: 2 x 1.5V AA Size Alkaline batteries are not included Speed Storm batteries: 3 x 1.5V AAA Size Alkaline batteries are not included Range: 8 ‐ 10 meters Duration: about 10mins Suitable for children of 10 years old or above Place the Speed Storm on the water before playing. The Speed Storm will malfunction if submerged underwater. For safety, do not touch the propeller when the Speed Storm is on the water. Speed Storm User Manual FCC ID on 27 MHZ frequency: : 2AHGJJMSHY9805 ‐ 27 ‐ 1 FCC ID on 49 MHZ frequency: : 2AHGJJMSHY9805 ‐ 49 ‐ 1 This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changers or modifications to this unit not expressly approved by the party responsible for the compliance could void the user’s authority to operate the equipment. N O TE: Thi s equ i p m e n t h as bee n tested a n d f ou n d to co m p l y wi t h t h e limi ts f o r a C l ass B d i g i ta l de vi ce, pu r sua n t to P a r t, 1 5 o f t h e F CC R u l es . O s equ p e t as bee tested ad ou d to co p y t te ts o a Cass dgta de ce, pu sua t to at, 5 o t e CC ues These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation If this equipment does cause ha rmf ul interference to However , there is no guarantee that interference will not occur in a particular installation . If this equipment does cause ha rmf ul interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. RF Warnin g statement: g The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Conforms to ASTM F963 ‐ 17

Block Diagram Filter RF IC 20107TX Oscillator 27.145 MHz Control key 27.145 MHz

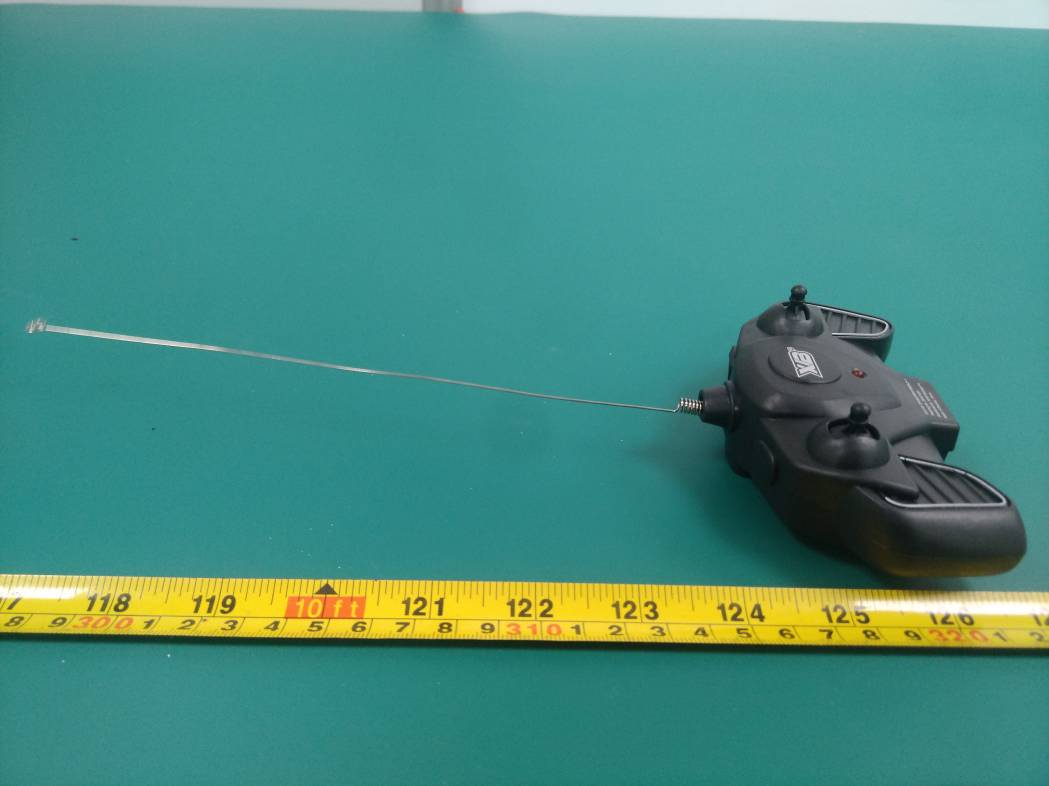

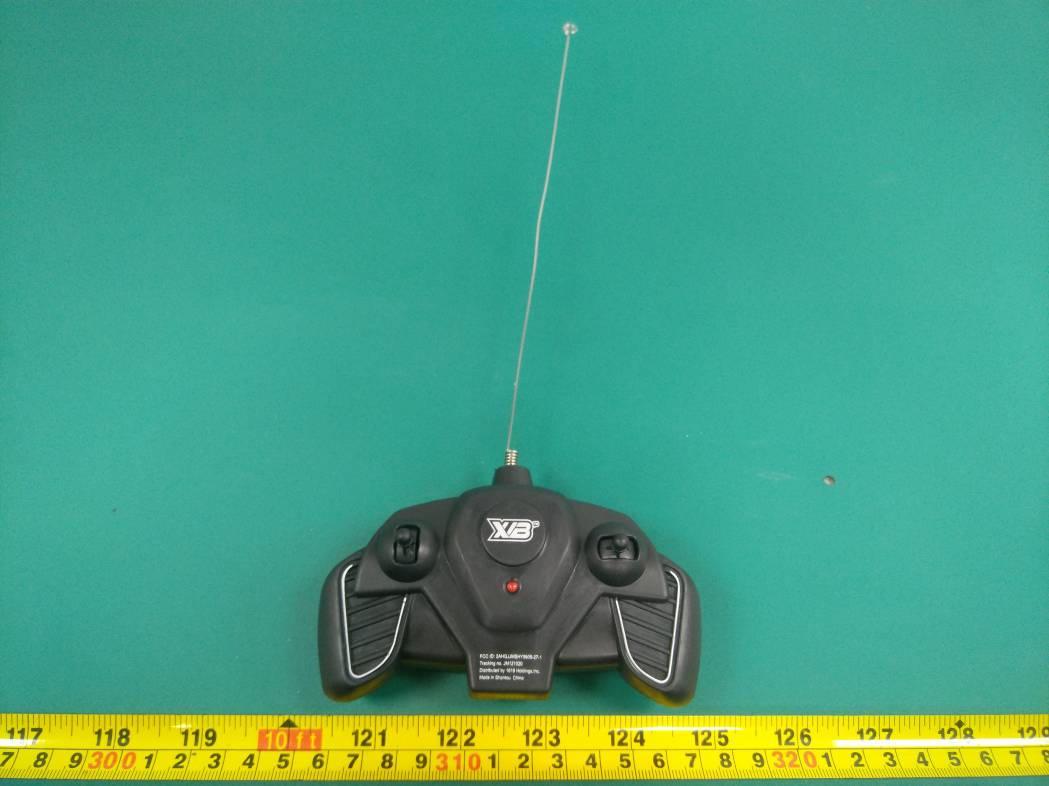

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210115831-RF Page 1 of 3 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210115831-RF Page 2 of 3 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210115831-RF Page 3 of 3

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210115831-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210115831-RF Page 1 of 3 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210115831-RF Page 2 of 3 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ210115831-RF Page 3 of 3 Antenna

Circuit Description When the remote control forward, backward, left, right, each function by pressing the corresponding encoding chip function pin high level, after IC internal A/D conversion circuit, reduction of each function signal. After reduction each function signal, the IC internal to encode their corresponding instructions, encoded output PC and IC at the same time in the encoding of the output pin part control high frequency oscillation output level work, high-frequency oscillation signal and coding signal in some form of modulated wave modulation circuit, output circuit, the antenna output The working frequency is 27.145MHz.

123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:26-Dec-2020Sheet of File:F:\dlblj\XN-HD2~120.DDBDrawn By: 18 27 36 45 U1 20107TX R R1 470R R3 200K L R2 10K L3 2.2UH F L1 4.7UH B L2 9.0UH C2 47P C4 47PC5 471P C3101P ANTANT C1 104P C6 221P Q2 J3Y LED1 Q1 C945 X1 27.145MHZ VCC VCC XN-20107TJZ 27M 27.145MHz

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.227 MEASUREMENT AND TEST REPORT For JM Manufacturing (HK) Ltd. Unit G, 4/F Kaiser Estate, Phase 2, No. 47-53 Man Yue Street, Hung Hom, Kowloon, Hong Kong FCC ID: 2AHGJJMSHY9805-27-1 Report Type: Original Report Product Type: RC SPEEDBOAT Report Number: RSZ210115831-00 Report Date: 2021-02-05 Reviewed By: Jacob Kong RF En gineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ210115831-00 FCC Part 15.227 Page 2 of 13 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 TEST METHODOLOGY .................................................................................................................................................. 3 TEST FACILITY ............................................................................................................................................................. 3 SYSTEM TEST CONFIGURATION .......................................................................................................................... 4 JUSTIFICATION ............................................................................................................................................................. 4 EUT EXERCISE SOFTWARE .......................................................................................................................................... 4 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 4 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 4 SUMMARY OF TEST RESULTS ............................................................................................................................... 5 TEST EQUIPMENT LIST ........................................................................................................................................... 6 FCC§15.203 - ANTENNA REQUIREMENT .............................................................................................................. 7 APPLICABLE STANDARD .............................................................................................................................................. 7 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 7 FCC§15.205, §15.209, §15.227(A), §15.227 (B) – FIELD STRENGTH AND RESTRICTED BAND EMISSIONS ................................................................................................................................................................... 8 APPLICABLE STANDARD .............................................................................................................................................. 8 EUT SETUP .................................................................................................................................................................. 8 EMI TEST RECEIVER SETUP ......................................................................................................................................... 8 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................... 9 TEST DATA .................................................................................................................................................................. 9 FCC§15.215(C) - 20DB EMISSION BANDWIDTH ................................................................................................ 12 APPLICABLE STANDARD ............................................................................................................................................ 12 TEST PROCEDURE ...................................................................................................................................................... 12 TEST DATA ................................................................................................................................................................ 12 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ210115831-00 FCC Part 15.227 Page 3 of 13 GENERAL INFORMATION Product Description for Equipment under Test (EUT) Product RC SPEEDBOAT Tested Model JMS-HY19805 UPC Number 1922342700129 Test Frequency 27.145MHz Antenna Specification* 0dBi(provided by the applicant) Voltage Range DC 1.5V*2 AA battery Date of Test 2021-01-26 to 2021-02-04 Sample serial number RSZ21…
