2AHGRLANSP3Smartpump 3.0 Rechargeable Breast Pump

SMARTPUMP 3.0 Rechargeable Double Electric Breast Pump Instructions for Use QUICK START GUIDE GUÍA RÁPIDA DE INICIO Toggle between Let down & expression Cambiar entre bajada y extracción Power, on/o Encendido/apagado Suction level displayPantalla del nivel de succión Toggle pumping styleCambiar estilo de extracción Battery powerCarga de la batería Decrease/increase suction level Disminuir/aumentar el nivel de succión 1 2 1.1 2.1 1.2 2.22.32.42.5 3.1 3.2 03:00 3 1.3 1.4 00:05 2.6 2.7 2.8 A B 18-22mm22-26mm26-28mm 30.5mm 28mm25mm 1x 2x Instructions for Use Intended Use of Breast Pump The Lansinoh® Smartpump 3.0 Double Electric Breast Pump is intended to express and collect breastmilk for the purpose of feeding collected breastmilk to a baby. The Smartpump 3.0 is intended for a single user. Indications of Breast Pump Lansinoh® Smartpump 3.0 Double Electric Breast Pumps are indicated to eliminate clinical situations such as milk stasis in the breast, engorgement and mastitis caused by insufficient milk discharge, relieve sore and cracked nipples, and to bring out flat or inverted nipples. Lansinoh® Smartpump 3.0 Double Electric Breast Pumps enable mothers to provide breastmilk for babies who cannot feed directly at the breast for a variety of reasons, such as latch-on problems, prematurity, or health purposes. Contraindication of Breast Pump There are no known contraindications. Important Safeguards Read All Instructions Before Using Before first use, sanitize all parts that will come into contact with breastmilk according to the instructions in Section 1. Prepping to Pump for the First Time, page 1. Before each use visually inspect the individual components for cracks, chips, tears, discoloration, or deterioration. If damage to the device or components are observed, please discontinue use until the parts have been replaced. Warning: To reduce the risk of electrocution: • Always unplug this product immediately after using. • Do not use while bathing. • Do not place or store this product where it can fall or be pulled into a tub or sink. • Do not place or drop pump or power adapter into water or other liquid. • Do not reach for an electrical product that has fallen into water. Unplug immediately. Warning: The Lansinoh® Smartpump 3.0 Double Electric Breast Pump is a personal care item. To prevent cross contamination/infection, the Smartpump 3.0 tubing and breastmilk expression set should never be shared between mothers or re-sold from one mother to another. Each user should use their own Smartpump 3.0. If you are a mother who is infected with: Hepatitis B, Hepatitis C, or Human Immunodeficiency Virus (HIV), pumping breastmilk using the Lansinoh® Smartpump 3.0 Double Electric Breast Pump will not reduce or remove the risk of transmitting the virus to your baby through your breastmilk. When using electrical products, especially when children are present, basic safety precautions should always be maintained. To reduce the risk of burns, electrocution, fire, or injury to persons: • This product should never be left unattended when plugged in. • Close supervision is necessary when this product is used near children. • Use this product only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer. • Repairs must be performed only by an authorized service agency. Do not repair yourself! No modifications to the device are permitted and will void the warranty. • Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. • Keep the cord away from heated surfaces. • Never use while sleeping or drowsy. • Never drop or insert any object into any opening or tubing. • Do not use this product if it is broken or any parts are missing. • Do not allow small children or pets to play with the pump unit, pump components, rechargeable battery, or AC adapter. • Do not use outdoors with the AC adapter, operate where aerosol spray products are being used, or where oxygen is being administered. • If the power adapter casing or wiring becomes loose, separated, or frayed, stop use of the power adapter immediately. Caution: If discomfort is felt in your breast or nipple during the operation, insert a finger between the flange and your breast to immediately break the suction. If irritation or discomfort occurs, discontinue use and see a doctor. Save these instructions along with your receipt for future reference. Contents 1. Prepping to Pump for the First Time .................................1 2. Finding the Right Flange Fit for You ................................3 3. Assembling the Breastmilk Collection Set for Double or Single Pumping ......................................4 4. Customizable Settings for Comfort .................................6 5. Breastmilk Storage Guidelines .....................................8 6. Cleaning the Breastmilk Collection Set .............................10 7. Replacing the Rechargeable Battery ................................11 8. Troubleshooting ..................................................12 9. Technical Data ...................................................13 10. Warranty .......................................................16 11. Declaration of Electro Magnetic Compatibility (EMC) .................17 1 1. Prepping to Pump for the First Time WARNING: To prevent cross contamination or infection, the Smartpump 3.0 tubing and breastmilk expression set should never be shared between mothers or resold from one mother to another. Each user should use their own Smartpump 3.0 tubing and breastmilk expression set. Cleaning of the Breastmilk Expression Set Before First Use 1. Diaphragm Cap Diaphragm ComfortFit® Flange Breast flange body Breastmilk collection bottle White valve Always wash and dry hands thoroughly with soap and water before handling the breastmilk expression set. 2. Disassemble the breastmilk expression set and place parts in a l…

Text truncated - open the document above for the full version.

LANSINOH LABORATORIES SAGLIK GERECLERI TASARIM SAN TIC LTD STI DATE: 2022/12/01 FCC ID: 2AHGRLANSP3 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Company name: SGS Compliance Certification Services Inc. Address: No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan Name: Kevin Tsai / Deputy Manager For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko North America, Inc, still resides with us. Signature FCC grantee contact person information. Name/Title: Serap VURAL / Quality Manager Company Name: LANSINOH LABORATORIES SAGLIK GERECLERI TASARIM SAN TIC LTD STI Address: Zafer Sb Mah. Gunduz Sok. No:13 Ege Serbest Bolgesi Gaziemir, Izmir Turkey 35410 TEL: +902323280556 Extension: 710 FAX: +902323280558 Email: [email protected]

LANSINOH LABORATORIES SAGLIK GERECLERI TASARIM SAN TIC LTD STI DATE : 2022/07/07 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AHGRLANSP3 Request for Short-Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 15, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device.: ⚫Test Setup Photos ⚫External Photos ⚫Internal Photos ⚫User Manual These documents contain detailed system and equipment description and related information about the product which （LANSINOH LABORATORIES SAGLIK GERECLERI TASARIM SAN TIC LTD STI.） considers to be proprietary, confidential, and a custom design and, otherwise would not release to the general public. Since this design is a basis from which future technological products will evolve, （LANSINOH LABORATORIES SAGLIK GERECLERI TASARIM SAN TIC LTD STI.）considers this information to be of benefit to its competitors, and that the disclosure of information in these documents would give competitors an unfair advantage in the market. This request is being made retroactively due to an over site on our part. We understand that the information has been publicly available 180 days after date of grant. Signature FCC grantee contact person information. Name/Title: Serap VURAL / Quality Manager Company Name: LANSINOH LABORATORIES SAGLIK GERECLERI TASARIM SAN TIC LTD STI Address: Zafer Sb Mah. Gunduz Sok. No:13 Ege Serbest Bolgesi Gaziemir, Izmir Turkey 35410 TEL: +902323280556 Extension: 710 FAX: +902323280558 Email: [email protected]

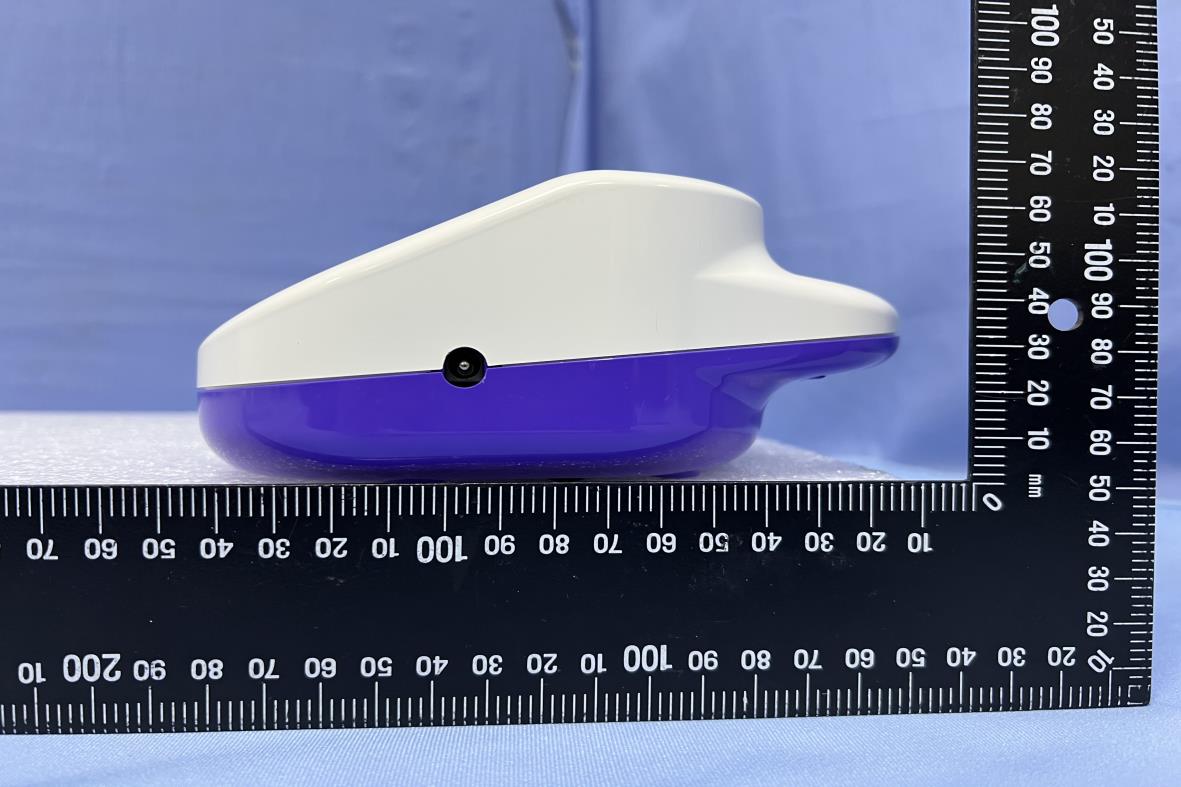

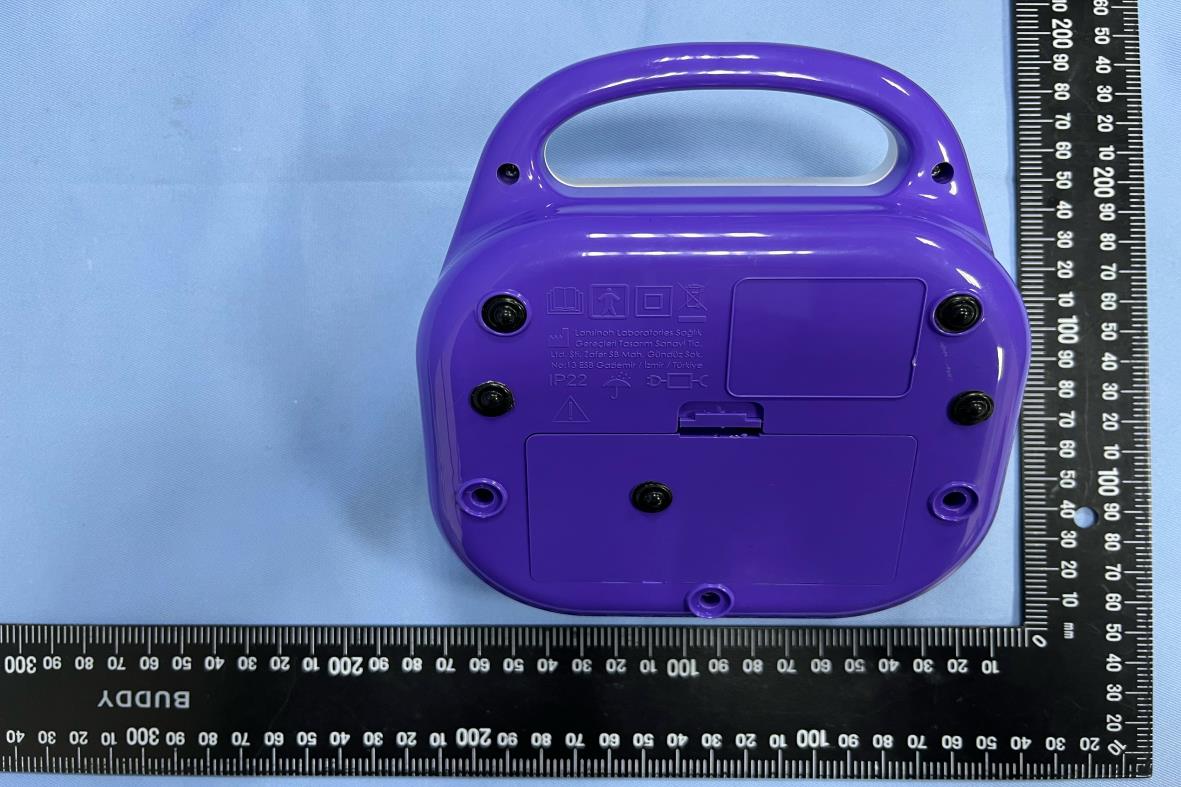

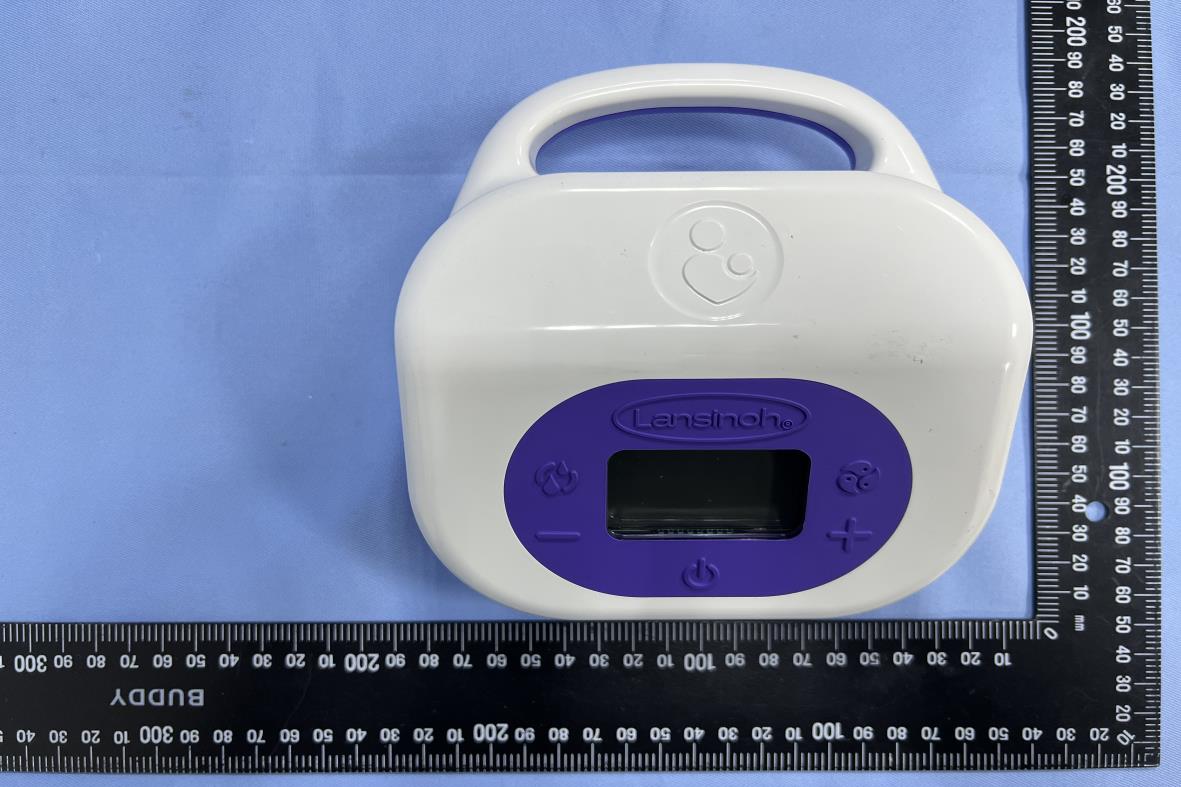

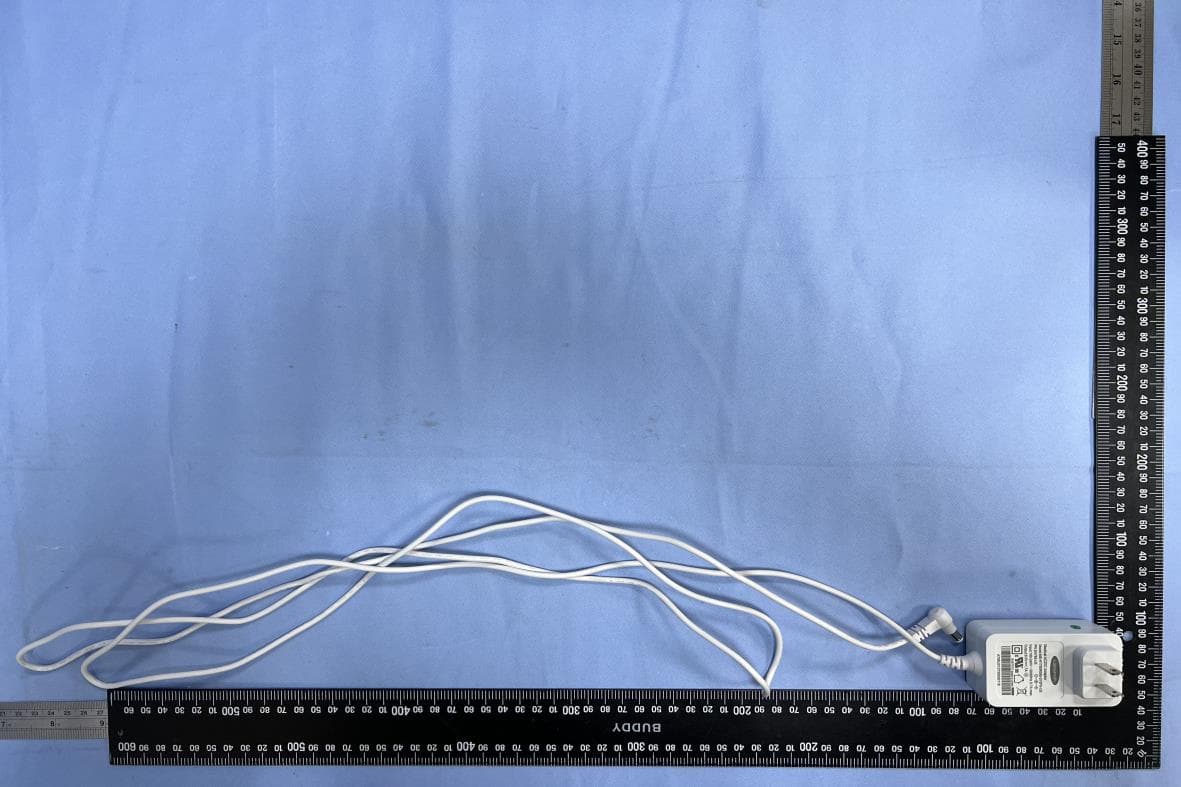

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 1 / 13 Project No.: TM-2202000237P Rev.: 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 2 / 13 Project No.: TM-2202000237P Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 3 / 13 Project No.: TM-2202000237P Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 4 / 13 Project No.: TM-2202000237P Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 5 / 13 Project No.: TM-2202000237P Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 6 / 13 Project No.: TM-2202000237P Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 7 / 13 Project No.: TM-2202000237P Rev.: 00 Adapter This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 8 / 13 Project No.: TM-2202000237P Rev.: 00

Lansinoh Smartpump 3.0 Label location Label location

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 9 / 13 Project No.: TM-2202000237P Rev.: 00 INTERNAL PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 10 / 13 Project No.: TM-2202000237P Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 11 / 13 Project No.: TM-2202000237P Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 12 / 13 Project No.: TM-2202000237P Rev.: 00 RFIC Module & Crystal Antenna This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 13 / 13 Project No.: TM-2202000237P Rev.: 00 Battery

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2202000237P FCC ID: 2AHGRLANSP3 Page: 1 / 1 Report No.: TMWK2202000645KR Rev.: 00 FCC ID: 2AHGRLANSP3 According to 447498 D01 General RF Exposure Guidance v06 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] *·[√f(GHz)] ≤ 3.0 The Max. tune-up power is 4 dBm and power is 4.0 dBm(2.51 mW)@ 2480 MHz When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. So, (2.51mW / 5mm)* (2.480GHz^0.5 )= 0.8 [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] = 0.8 < 3.0 Therefore, standalone SAR measurements are not required for both head and body. Note: 1. The tune up power referred the AVG power of the test report TMWK2202000644KR for SAR test exclusion purpose.

The Most Appropriate Antenna for Your Design! 連騰科技股份有限公司 Advanced Wireless & Antenna Inc. Lansinoh_Smart Pump 3.0 CUSTOMER: GOLDTek ( 沅聖科技股份有限公司 ) MODEL NAME: Chip Antenna AWAN P/N: AEP00-000003 P.2 www.awan-ant.com Advanced Wireless & Antenna Inc. Advanced Wireless & Antenna Inc. Advanced Wireless & Antenna Inc. 2 Test Environment and Equipments ACON 3D Chamber Structure • Network Analyzer Agilent 8720ES • Spectrum Analyzer R&S FSP13 • Universal Radio Communication Tester R&S CMU200 • Switch Agilent 3499B • PC and Software • Rotate Controller ETS-Lindgren 2090 • ETS-Lindgren AMS-8000 Series System Components• Chambers• EMQuest EMQ-100 Software • Positioning Systems• Chamber Room Size: L*W*H=7.3*3.7*3.7 M NA 8720ES VSWR were performed using an Agilent S-parameter Network Analyzer. P.3 www.awan-ant.com Advanced Wireless & Antenna Inc. Advanced Wireless & Antenna Inc. Advanced Wireless & Antenna Inc. 3 Chip Antenna Picture P.4 www.awan-ant.com Advanced Wireless & Antenna Inc. Advanced Wireless & Antenna Inc. Advanced Wireless & Antenna Inc. 4 Chip Antenna Dimensions P.5 www.awan-ant.com Advanced Wireless & Antenna Inc. Advanced Wireless & Antenna Inc. Advanced Wireless & Antenna Inc. 5 Frequency tunuing and Matching circuit C1: 1.2pFL2: 6.8nHC3: NAC4: 3.9pF P.6 www.awan-ant.com Advanced Wireless & Antenna Inc. Advanced Wireless & Antenna Inc. Advanced Wireless & Antenna Inc. 6 Test Result: Gain & Efficiency Return Loss Smith P.7 www.awan-ant.com Advanced Wireless & Antenna Inc. Advanced Wireless & Antenna Inc. Advanced Wireless & Antenna Inc. 7 Test Result: 3D Radiation Z Y X

Project No: TM-2202000237P FCC ID: 2AHGRLANSP3 Page: 1 / 46 Report No.: TMWK2202000644KR Rev.: 00 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group RADIO TEST REPORT FCC 47 CFR PART 15 SUBPART C Test Standard FCC Part 15.247 Product name Smartpump 3.0 Rechargeable Breast Pump Brand Name Smartpump 3.0 Rechargeable Breast Pump Model No. 53351 Test Result Pass Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. The test Result was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were given in ANSI C63.10: 2013 and compliance standards. The test results of this report relate only to the tested sample (EUT) identified in this report. The test Report of full or partial shall not copy. Without written approval of Compliance Certification Services Inc. (Wugu Laboratory) Approved by: Sehni Hu Supervisor This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 2 / 46 Report No.: TMWK2202000644KR Rev.: 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 November 9, 2022 Initial Issue ALL Allison Chen This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 3 / 46 Report No.: TMWK2202000644KR Rev.: 00 Table of contents 1. GENERAL INFORMATION ........................................................................................ 4 1.1 EUT INFORMATION .................................................................................................. 4 1.2 EUT CHANNEL INFORMATION ................................................................................ 5 1.3 ANTENNA INFORMATION ........................................................................................ 5 1.4 MEASUREMENT UNCERTAINTY .............................................................................. 6 1.5 FACILITIES AND TEST LOCATION .......................................................................... 7 1.6 INSTRUMENT CALIBRATION ................................................................................... 7 1.7 SUPPORT AND EUT ACCESSORIES EQUIPMENT ................................................. 9 1.8 TEST METHODOLOGY AND APPLIED STANDARDS ............................................. 9 2. TEST SUMMARY ..................................................................................................... 10 3. DESCRIPTION OF TEST MODES............................................................................ 11 3.1 THE WORST MODE OF OPERATING CONDITION ................................................ 11 3.2 THE WORST MODE OF MEASUREMENT .............................................................. 12 3.3 EUT DUTY CYCLE ................................................................................................... 13 4. TEST RESULT ......................................................................................................... 14 4.1 AC POWER LINE CONDUCTED EMISSION ........................................................... 14 4.2 6DB BANDWIDTH AND OCCUPIED BANDWIDTH (99%) ...................................... 17 4.3 OUTPUT POWER MEASUREMENT ........................................................................ 21 4.4 POWER SPECTRAL DENSITY ................................................................................ 24 4.5 CONDUCTED BAND EDGE AND SPURIOUS EMISSION ...................................... 27 4.6 RADIATION BANDEDGE AND SPURIOUS EMISSION .......................................... 31 APPENDIX 1 - PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 4 / 46 Report No.: TMWK2202000644KR Rev.: 00 1. GENERAL INFORMATION 1.1 EUT INFORMATION Applicant LANSINOH LABORATORIES SAGLIK GERECLERI TASARIM SAN TIC LTD STI Zafer Sb Mah. Gunduz Sok. No:13 Ege Serbest Bolgesi Gaziemir, Izmir, Turkey Manufacturer LANSINOH LABORATORIES SAGLIK GERECLERI TASARIM SAN TIC LTD STI Zafer Sb Mah. Gunduz Sok. No:13 Ege Serbest Bolgesi Gaziemir, Izmir, Turkey Equipment Smartpump 3.0 Rechargeable Breast Pump Model No. 53351 Model Discrepancy N/A Trade Name Smartpump 3.0 Rechargeable Breast Pump Received Date February 18, 2022 Date of Test February 22 ~ April 1, 2022 Power Supply 1. EUT power by Battery 2. EUT power by A…

Text truncated - open the document above for the full version.

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: A-1 / A-4 Report No.: TMWK2202000644KR Rev.: 00 APPENDIX-A Test Photo Radiation (Below 1GHz) Radiation (Above 1GHz) This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: A-2 / A-4 Report No.: TMWK2202000644KR Rev.: 00 Conducted Emission Set up Photo This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: A-3 / A-4 Report No.: TMWK2202000644KR Rev.: 00 Conduction ’ This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: A-4 / A-4 Report No.: TMWK2202000644KR Rev.: 00
