2AHGW-BG310Scouting Camera/Trail Camera

BolyTrailCameraBG310Series InfraredDigitalScoutingCamera UserManual BG310Series BolyTrailCameraBG310Series TableofContents 1.GettingStarted .................................................................................... 3 2.CameraOperations .......................................................................... 4 2.1Batteries/PowerSupply .................................................... 4 2.2TFCardInformation ............................................................ 5 2.3SIMCardInformation ......................................................... 5 2.4CameraModes ........................................................................ 5 2.5ManageImagesand/orVideos ........................................ 7 2.6SendingviaMMS/GPRS/Molnus ................................... 7 2.7PasswordSetup ...................................................................... 8 3.CameraSetupSettings&Display ............................................. 9 3.1SettingsInterface&Display .............................................. 9 3.2WirelessModelSetup ....................................................... 10 3.2.1MobileCommunication ...................................... 10 3.2.2SetupSoftwareofPC ........................................... 10 3.2.3SetupforMobileapplications .......................... 12 3.3CloudService-Molnus ..................................................... 15 3.4CameraSetupOptions ...................................................... 16 4.Troubleshooting .............................................................................. 20 5.PIRDetectionZone ......................................................................... 21 6.TechnicalSpecifications .............................................................. 22 7.PartsList ............................................................................................. 23 WARRANTYCARD .................................................................... 24 BolyTrailCameraBG310Series 3 1.GettingStarted BG310seriescamera,thisisadigitalinfraredsurveillancecamera. Use1.44"colorLCDdisplayand2*18650battery(pointedhead, length:67~69mm),theUSBportconnectstothesolarpanelcan chargethe18650battery. Youcanchoosedifferentmodelsaccordingtodifferentneeds. BG310Non-wirelessCamera BG310-FP BG310FullPackagemode,BG310with2*18650battery,1* TFcardand1*TFcardadapter BG310-M4GWirelessCamera BG310-MFP BG310-MFullPackagemode,BG310-Mwith2*18650 battery,1*TFcardand1*TFcardadapter BolyTrailCameraBG310Series 4 2.CameraOperations 2.1Batteries/PowerSupply  Battery Thecameraispoweredby2*18650batteries. (pointedhead,18650battery,length:67~69mm) Externalpowersupply Itisalsopossibletopowerthedeviceorchargethe18650batteryin thedeviceviaanexternalUSBpowersupplyadapter(5V/2A)or solarpanel.(Externalpowersupplynotincluded) ChargingbyUSBpowersupplyChargingbysolarpanel USBportfunction:（AutodetectedbyCamera） ► Powercharging Inthismode,USBwillchargethecamera's18650battery. ►MassStorage Inthismode,thecamerawillactasastoragedevice.Youcanreador copythephotosorvideosintheTFcard. BolyTrailCameraBG310Series 5 2.2TFCardInformation ThiscamerausesaTFcard,totakefulladvantageofthelatest technologies,werecommendClass10TFcardsorbetter,whichhave fasttransferspeedsandlongdurabilityforextensiveshootinginthe mostextremeoutdoorconditions. InserttheTFcardintothecamerabeforeturningonthe camera Thiscamerasupportsuptoa32GBcapacityTFcardandhasno built-ininternalmemory.Thecamerawillnotfunctionwithoutthe TFcardproperlyinsertedintothecamera. DonotremovetheTFcardwhilethecameraison RemovingtheTFcardwhilethecameraisonrisksdamagingthe internalcomponentsofthecamera. IfyouexperienceanyproblemswithaninsertedTFcard TryreformattingtheTFcardbyusingthecamera’smainsettings option. 2.3SIMCardInformation Thisfunctionisonlyavailablewithcommunication functionmodels. InserttheSIMcardintothecamerabeforeturningonthe camera ThecameraSIMcardslotissizedforastandardSIMcard.Ifyou haveananoormicrosizeSIMcard,utilizingaSIMcardadapter (includedwithmostofourcameras)willberequiredtoconnectyour cameratothecellularnetworkviaSIMcard. NOTE:ThecamerawillstillfunctionwithoutaSIMcard.TheSIM cardisneededonlyforthewireless/cellularmessagingcapabilities. 2.4CameraModes ThedifferentmodesareaccessedbypressingtheOKbutton,marked BolyTrailCameraBG310Series 6 onthecamera.  OFFMode Toturnoffthecamerawhenthedisplayscreenisactive,pressand holdtheOKbuttonuntilthescreenpowersoff.Thecamerawillstill consumeasmallamountofbatterypowerwhileinOFFmode.We recommendremovingthebatteriesifthecamerawillnotbeusedfor alongperiodoftime. SETUPMode[TestMode] Toturnonthecamera,pressandholdtheOKbuttonuntilthe displayscreenactivates, Inthismode,youcancustomizethecamerasettingsorplayback picturesandvideosthecamerahastakenontheLCDdisplay. AfterswitchingthecameratotheONpositionandifthecamerais leftaloneformorethan20seconds,thecamerawillautomatically switchtoHuntingMode,asdescribedbelow. On[HuntingMode] Inordertoentertheonmode,firstenterthesetupmode,inthe setupmode,automaticallyentertheonmodeafter20 seconds(BG310-M60seconds)withoutanyoperation. BeforeenteringHuntingMode,thefront(red)LEDlightwill continuouslyblinkforapproximately10secondsandthenturnoff. Thispresettimeallowsyoutoadjustthecamera’spositionifneeded beforethecamerabecomesactive.Thecamerawilltakepicturesor videoswhenmotionisdetectedand/oratspecifictimeintervals, accordingtotheprogrammedsettings. BolyTrailCameraBG310Series 7 2.5ManageImagesand/orVideos PlacethecamerainTEST/SETUPmodeandpressthePOWER buttontoviewimagesorvideos,thelatestimageorvideowillbe shownontheLCDscreen.Pressthe▲/Upor▼/Downbuttonsto cyclethroughthepicturesandvideosweretaken. NOTE:Videocannotbevieweddirectlyonthecamera. 2.6SendingviaMMS/GPRS/Molnus Thisfunctionisonlyavailablewithcommunication functionmodels. Imagescanbesentdirectlytoyourwirelessdevice/email/Molnus, basedontheSendModesettings. 1)InserttheTF&SIMcardintothecamerabeforeturningonthe camera. 2)TurnonthecamerainTEST/SETUPmode.MakesuretheSIM cardisrecognized,an…

Text truncated - open the document above for the full version.

Boly Media Communications (Shenzhen) Co., Ltd. Agent Authorization C ompany: Boly Media Communications (Shenzhen) Co., Ltd. A ddress: 5/F West, 2nd Building, Pengtengda Industrial Park, Huarong Rd., Dalang Subdistrict, Longhua District, Shenzhen, Guangdong, China P roduct Name: Scouting Camera/Trail Camera Model Number(s): BG310-M SERIES P roduct Description: Scouting Camera/Trail Camera W e authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. W e declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020/03/26 Name: Jia feng Zhang Title: Manager Company: Boly Media Communications (Shenzhen) Co., Ltd.

Boly Media Communications (Shenzhen) Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020/03/26 Subject; Request for Confidentiality FCC ID: 2AHGW-BG310 T o Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Parts List BOM Tune-up Procedure I n additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. I t is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. S incerely, Signature: N ame: Jia feng Zhang T itle: Manager

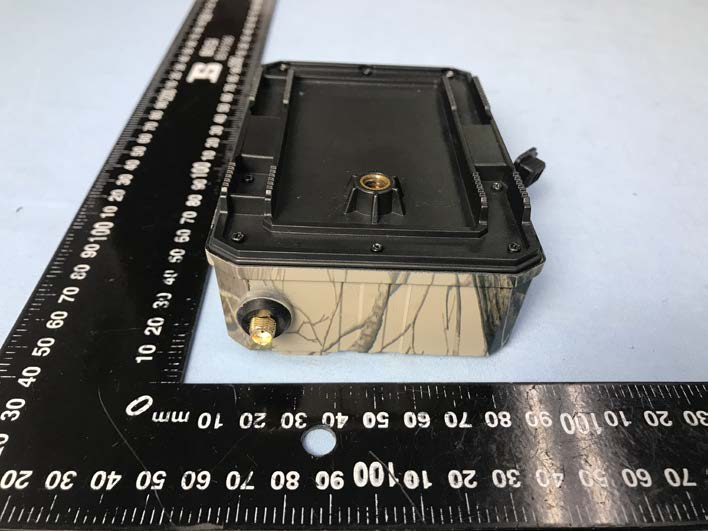

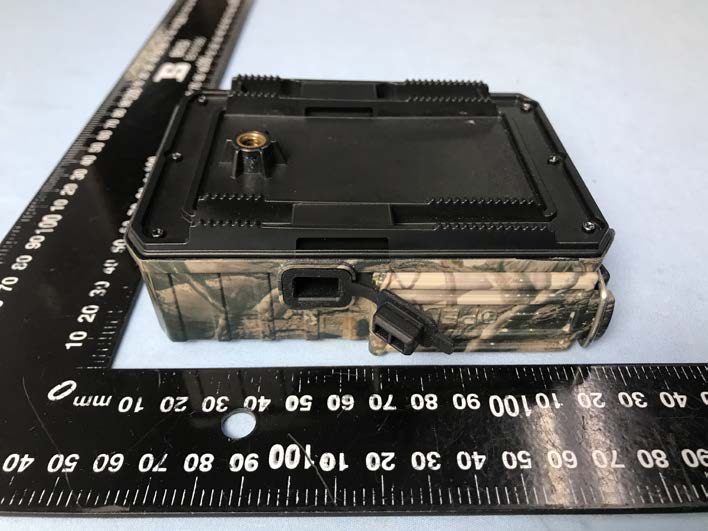

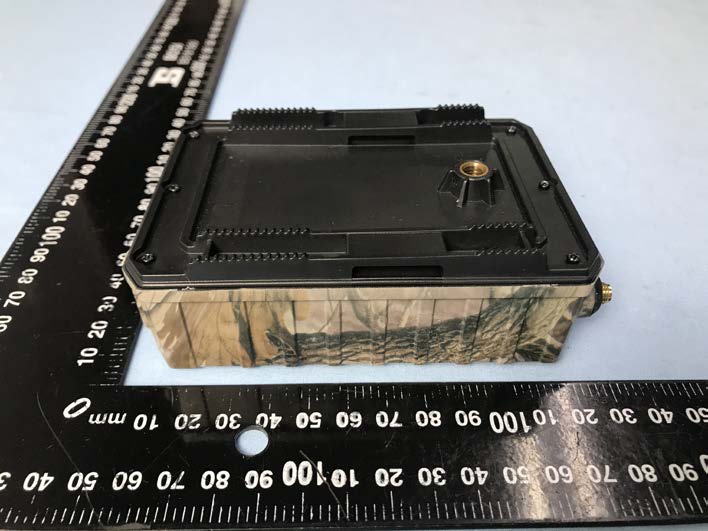

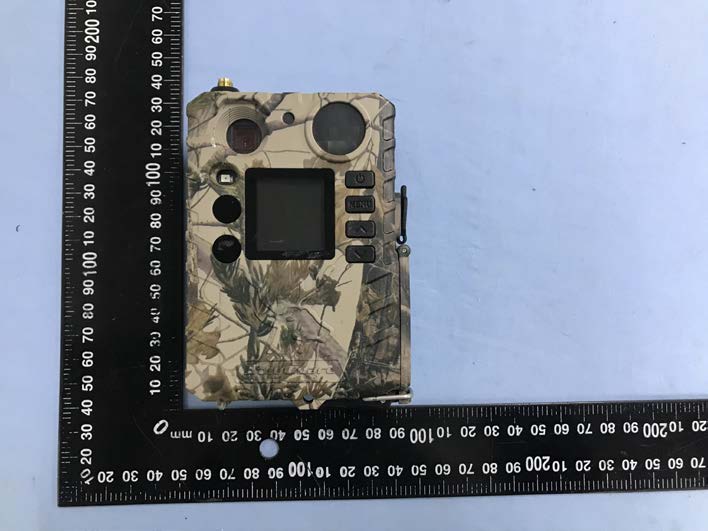

External Photos Antenna

Size:40*20mm Model: BG310-M SERIES FCC ID: 2AHGW-BG310 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location

Model: BG310-M SERIES Report No.: WTX20X01001344W Page 7 of 17 FCC Part 24E&27 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 8 of 17 FCC Part 24E&27 Solder Board-Component View 1 Solder Board-Component View 2 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 9 of 17 FCC Part 24E&27 Solder Board-Component View 3 Solder Board-Component View 4 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 10 of 17 FCC Part 24E&27 Solder Board-Component View 5 Solder Board-Component View 6 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 11 of 17 FCC Part 24E&27 Solder Board-Component View 7 Solder Board-Component View 8 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 12 of 17 FCC Part 24E&27 Solder Board-Component View 9 Solder Board-Component View 10 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 13 of 17 FCC Part 24E&27 Solder Board-Component View 11 Antenna View WCDMA/LTE Antenna

FCC 22H 24H 27, §2.1091 – RF Exposure FCC ID: 2AHGW-BG310 Applied procedures / limit According to FCC §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna,R=20cm Test Result of RF Exposure Evaluation Target power W/ tolerance (dBm) Max tune up power toleranc e (dBm) To ta l Output power to antenna (mW) Antenna Gain(dBi) To ta l Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result WCDMA Band 2 24±1.0 25 316.23 3.00 0.125589 1.000 Pass WCDMA Band 4 24±1.0 25 316.23 3.00 0.125589 1.000 Pass WCDMA Band 5 24±1.0 25 316.23 3.00 0.125589 0.551 Pass LTE Band 2 22±1.0 23 199.53 3.00 0.079241 1.000 Pass LTE Band 4 23±1.0 24 251.19 3.00 0.099759 1.000 Pass LTE Band 12 23±1.0 24 251.19 3.00 0.099759 0.466 Pass

Model: BG310-M SERIES Report No.: WTX20X01001344W Page 1 of 283 LTE Band 2 Appendix for Band 2 Appendix A: Average Power Output Data Test Result Channel Bandwidth: 1.4 MHz Modulati on Channel RB Configuration Average Power [dBm] Verdict Size Offset QPSK LCH 1 0 22.23 PASS 1 3 22.41 PASS 1 5 22.32 PASS 3 0 22.48 PASS 3 2 22.51 PASS 3 3 22.72 PASS 6 0 21.67 PASS MCH 1 0 21.77 PASS 1 3 22.03 PASS 1 5 21.97 PASS 3 0 22.10 PASS 3 2 22.03 PASS 3 3 21.93 PASS 6 0 21.06 PASS HCH 1 0 21.89 PASS 1 3 22.00 PASS 1 5 22.13 PASS 3 0 21.76 PASS 3 2 21.76 PASS 3 3 21.79 PASS 6 0 20.96 PASS 16QAM LCH 1 0 21.59 PASS 1 3 21.61 PASS 1 5 21.59 PASS 3 0 21.96 PASS 3 2 21.94 PASS 3 3 21.89 PASS 6 0 20.82 PASS MCH 1 0 20.92 PASS 1 3 20.87 PASS 1 5 20.71 PASS 3 0 21.00 PASS Model: BG310-M SERIES Report No.: WTX20X01001344W Page 2 of 283 LTE Band 2 3 2 20.97 PASS 3 3 20.87 PASS 6 0 20.79 PASS HCH 1 0 20.81 PASS 1 3 20.90 PASS 1 5 20.68 PASS 3 0 21.07 PASS 3 2 21.03 PASS 3 3 21.07 PASS 6 0 20.96 PASS Channel Bandwidth: 3 MHz Modulation Channel RB Configuration Average Power [dBm] Verdict Size Offset QPSK LCH 1 0 22.36 PASS 1 7 22.33 PASS 1 14 22.25 PASS 8 0 21.31 PASS 8 4 21.40 PASS 8 7 21.33 PASS 15 0 21.28 PASS MCH 1 0 21.88 PASS 1 7 21.73 PASS 1 14 21.87 PASS 8 0 20.79 PASS 8 4 20.77 PASS 8 7 20.75 PASS 15 0 20.81 PASS HCH 1 0 21.78 PASS 1 7 21.88 PASS 1 14 22.09 PASS 8 0 20.69 PASS 8 4 20.75 PASS 8 7 20.65 PASS 15 0 20.69 PASS 16QAM LCH 1 0 21.39 PASS 1 7 21.56 PASS 1 14 21.61 PASS 8 0 20.47 PASS 8 4 20.44 PASS 8 7 20.59 PASS 15 0 20.73 PASS Model: BG310-M SERIES Report No.: WTX20X01001344W Page 3 of 283 LTE Band 2 MCH 1 0 21.13 PASS 1 7 20.88 PASS 1 14 21.03 PASS 8 0 20.61 PASS 8 4 20.94 PASS 8 7 20.99 PASS 15 0 20.94 PASS HCH 1 0 20.64 PASS 1 7 20.71 PASS 1 14 20.73 PASS 8 0 20.65 PASS 8 4 20.80 PASS 8 7 20.80 PASS 15 0 20.80 PASS Channel Bandwidth: 5 MHz Modulation Channel RB Configuration Average Power [dBm] Verdict Size Offset QPSK LCH 1 0 22.19 PASS 1 12 22.18 PASS 1 24 22.17 PASS 12 0 21.06 PASS 12 6 20.94 PASS 12 13 20.93 PASS 25 0 21.15 PASS MCH 1 0 21.93 PASS 1 12 21.96 PASS 1 24 21.99 PASS 12 0 20.97 PASS 12 6 20.84 PASS 12 13 21.02 PASS 25 0 21.00 PASS HCH 1 0 22.20 PASS 1 12 22.12 PASS 1 24 22.23 PASS 12 0 21.00 PASS 12 6 20.98 PASS 12 13 20.94 PASS 25 0 20.87 PASS 16QAM LCH 1 0 20.75 PASS 1 12 20.69 PASS 1 24 20.66 PASS Model: BG310-M SERIES Report No.: WTX20X01001344W Page 4 of 283 LTE Band 2 12 0 20.62 PASS 12 6 20.93 PASS 12 13 20.57 PASS 25 0 20.67 PASS MCH 1 0 20.69 PASS 1 12 20.51 PASS 1 24 20.61 PASS 12 0 20.63 PASS 12 6 20.75 PASS 12 13 20.94 PASS 25 0 20.60 PASS HCH 1 0 21.11 PASS 1 12 20.77 PASS 1 24 20.98 PASS 12 0 20.50 PASS 12 6 20.64 PASS 12 13 20.72 PASS 25 0 20.59 PASS Channel Bandwidth: 10 MHz Modulation Channel RB Configuration Average Power [dBm] Verdict Size Offset QPSK LCH 1 0 22.55 PASS 1 24 22.49 PASS 1 49 21.99 PASS 25 0 21.17 PASS 25 12 21.22 PASS 25 25 20.97 PASS 50 0 21.04 PASS MCH 1 0 21.79 PASS 1 24 21.60 PASS 1 49 21.60 PASS 25 0 20.95 PASS 25 12 20.90 PASS 25 25 20.88 PASS 50 0 20.87 PASS HCH 1 0 22.17 PASS 1 24 21.90 PASS 1 49 22.23 PASS 25 0 20.94 PASS 25 12 20.90 PASS 25 25 21.02 PASS Model: BG310-M SERIES Report No.: WTX20X01001344W Page 5 of 283 LTE Band 2 50 0 20.91 PASS 16QAM LCH 1 0 21.69 PASS 1 24 21.65 PASS 1 49 21.28 PASS 25 0 20.76 PASS 25 12 20.55 PASS 25 25 20.61 PASS 50 0 20.64 PASS MCH 1 0 21.16 PASS 1 24 21.30 PASS 1 49 20.87 PASS 25 0 20.95 PASS 25 12 20.86 PASS 25 25 20.94 PASS 50 0 20.62 PASS HCH 1 0 20.90 PASS 1 24 20.59 PASS 1 49 20.61 PASS 25 0 20.01 PASS 25 12 20.94 PASS 25 25 20.72 PASS 50 0 20.63 PASS Channel Bandwidth: 15 MHz Modulation Channel RB Configuration Average Power [dBm] Verdict Size Offset QPSK LCH 1 0 22.44 PASS 1 37 22.35 PASS 1 74 21.75 PASS 37 0 21.05 PASS 37 18 21.02 PASS 37 38 20.74 PASS 75 0 20.90 PASS MCH 1 0 21.66 PASS 1 37 21.73 PASS 1 74 21.60 PASS 37 0 20.91 PASS 37 18 20.83 PASS 37 38 20.67 PASS 75 0 20.70 PASS HCH 1 0 22.01 PASS 1 37 22.12 PASS Model: BG310-M SERIES Report No.: WTX20X01001344W Page 6 of 283 LTE Band 2 1 74 21.95 PASS 37 0 20.89 PASS 37 18 20.86 PASS 37 38 20.81 PASS 75 0 20.91 PASS 16QAM LCH 1 0 21.40 PASS 1 37 21.46 PASS 1 74 21.17 PASS 37 0 20.54 PASS 37 18 20.62 PASS 37 38 20.83 PASS 75 0 20.41 PASS MCH 1 0 20.90 PASS 1 37 21.15 PASS 1 74 20.73 PASS 37 0 20.95 PASS 37 18 20.84 PASS 37 38 20.68 PASS 75 0 20.81 PASS HCH 1 0 20.82 PASS 1 37 20.98 PASS 1 74 20.74 PASS 37 0 20.56 PASS 37 18 20.54 PASS 37 38 20.62 PASS 75 0 20.42 PASS Channel Bandwidth: 20 MHz Modulation Channel RB Configuration Average Power [dBm] Verdict Size Offset QPSK LCH 1 0 22.16 PASS 1 49 21.97 PASS 1 99 21.87 PASS 50 0 21.00 PASS 50 25 20.74 PASS 50 50 20.58 PASS 100 0 20.92 PASS MCH 1 0 21.56 PASS 1 49 21.74 PASS 1 99 21.71 PASS 50 0 20.72 PASS 50 25 20.69 PASS Model: BG310-M SERIES Report No.: WTX20X01001344W Page 7 of 283 LTE Band 2 50 50 20.69 PASS 100 0 20.81 PASS HCH 1 0 22.04 PASS 1 49 22.75 PASS 1 99 22.09 PASS 50 0 20.82 PASS 50 25 20.91 PASS 50 50 20.96 PASS 100 0 20.73 PASS 16QAM LCH 1 0 20.94 PASS 1 49 20.72 PASS 1 99 20.40 PASS 50 0 20.49 PASS 50 25 20.87 PASS 50 50 20.68 PASS 100 0 20.98 PASS MCH 1 0 20.50 PASS 1 49 20.73 PASS 1 99 20.64 PASS 50 0 20.77 PASS 50 25 20.69 PASS 50 50 20.66 PASS 100 0 20.82 PASS HCH 1 0 20.43 PASS 1 49 20.81 PASS 1 99 20.53 PASS 50 0 20.81 PASS 50 25 20.46 PASS 50 50 20.63 PASS 100 0 20.84 PASS Model: BG310-M SERIES Report No.: WTX20X01001344W Page 8 of 283 LTE Band 2 Appendix B: Peak-to-Average Ratio Test Result Channel Bandwidth: 1.4 MHz Channel Bandwidth: 1.4 MHz Modulation Channel RB Configuration Peak-to-Average Ratio (dB) Limit (dB) Verdict Size Offset QPSK LCH 1 0 3.63 <13 PASS 1 3 3.57 <13 PASS 1 5 3.63 <13 PASS 3 0 3.87 <13 PASS 3 2 3.85 <13 PASS 3 3 3.92 <13 PASS 6 0 4.44 <13 PASS MCH 1 0 3.91 <13 PASS 1 3 3.82 <13 PASS 1 5 3.89 <13 PASS 3 0 4.07 <13 PASS 3 2 4.08 <13 PASS 3 3 4.17 <13 PASS 6 0 4.63 <13 PASS HCH 1 0 4.28 <13 PASS 1 3 4.02 <13 PASS 1 5 4.14 <13 PASS 3 0 4.2…

Text truncated - open the document above for the full version.

Model: BG310-M SERIES Report No.: WTX20X01001344W Page 56 of 283 LTE Band 2 (Channel Bandwidth: 5 MHz)_HCH_16QAM_1RB#24 (Channel Bandwidth: 5 MHz)_HCH_16QAM_12RB#0 (Channel Bandwidth: 5 MHz)_HCH_16QAM_12RB#6 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 57 of 283 LTE Band 2 (Channel Bandwidth: 5 MHz)_HCH_16QAM_12RB#13 (Channel Bandwidth: 5 MHz)_HCH_16QAM_25RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 58 of 283 LTE Band 2 Channel Bandwidth: 10 MHz Channel Bandwidth: 10 MHz_LCH_QPSK_1RB#0 Channel Bandwidth: 10 MHz_LCH_QPSK_1RB#24 Channel Bandwidth: 10 MHz_LCH_QPSK_1RB#49 Channel Bandwidth: 10 MHz_LCH_QPSK_25RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 59 of 283 LTE Band 2 Channel Bandwidth: 10 MHz_LCH_QPSK_25RB#12 Channel Bandwidth: 10 MHz_LCH_QPSK_25RB#25 Channel Bandwidth: 10 MHz_LCH_QPSK_50RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 60 of 283 LTE Band 2 Channel Bandwidth: 10 MHz_MCH_QPSK_1RB#0 Channel Bandwidth: 10 MHz_MCH_QPSK_1RB#24 Channel Bandwidth: 10 MHz_MCH_QPSK_1RB#49 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 61 of 283 LTE Band 2 Channel Bandwidth: 10 MHz_MCH_QPSK_25RB#0 Channel Bandwidth: 10 MHz_MCH_QPSK_25RB#12 Channel Bandwidth: 10 MHz_MCH_QPSK_25RB#25 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 62 of 283 LTE Band 2 Channel Bandwidth: 10 MHz_MCH_QPSK_50RB#0 Channel Bandwidth: 10 MHz_HCH_QPSK_1RB#0 Channel Bandwidth: 10 MHz_HCH_QPSK_1RB#24 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 63 of 283 LTE Band 2 Channel Bandwidth: 10 MHz_HCH_QPSK_1RB#49 Channel Bandwidth: 10 MHz_HCH_QPSK_25RB#0 Channel Bandwidth: 10 MHz_HCH_QPSK_25RB#12 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 64 of 283 LTE Band 2 Channel Bandwidth: 10 MHz_HCH_QPSK_25RB#25 Channel Bandwidth: 10 MHz_HCH_QPSK_50RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 65 of 283 LTE Band 2 Channel Bandwidth: 10 MHz_LCH_16QAM_1RB#0 Channel Bandwidth: 10 MHz_LCH_16QAM_1RB#24 Channel Bandwidth: 10 MHz_LCH_16QAM_1RB#49 Channel Bandwidth: 10 MHz_LCH_16QAM_25RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 66 of 283 LTE Band 2 Channel Bandwidth: 10 MHz_LCH_16QAM_25RB#12 Channel Bandwidth: 10 MHz_LCH_16QAM_25RB#25 Channel Bandwidth: 10 MHz_LCH_16QAM_50RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 67 of 283 LTE Band 2 Channel Bandwidth: 10 MHz_MCH_16QAM_1RB#0 Channel Bandwidth: 10 MHz_MCH_16QAM_1RB#24 Channel Bandwidth: 10 MHz_MCH_16QAM_1RB#49 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 68 of 283 LTE Band 2 Channel Bandwidth: 10 MHz_MCH_16QAM_25RB#0 Channel Bandwidth: 10 MHz_MCH_16QAM_25RB#12 Channel Bandwidth: 10 MHz_MCH_16QAM_25RB#25 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 69 of 283 LTE Band 2 Channel Bandwidth: 10 MHz_MCH_16QAM_50RB#0 Channel Bandwidth: 10 MHz_HCH_16QAM_1RB#0 Channel Bandwidth: 10 MHz_HCH_16QAM_1RB#24 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 70 of 283 LTE Band 2 Channel Bandwidth: 10 MHz_HCH_16QAM_1RB#49 Channel Bandwidth: 10 MHz_HCH_16QAM_25RB#0 Channel Bandwidth: 10 MHz_HCH_16QAM_25RB#12 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 71 of 283 LTE Band 2 Channel Bandwidth: 10 MHz_HCH_16QAM_25RB#25 Channel Bandwidth: 10 MHz_HCH_16QAM_50RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 72 of 283 LTE Band 2 Channel Bandwidth: 15 MHz (Channel Bandwidth:15 MHz)_LCH_QPSK_1RB#0 (Channel Bandwidth:15 MHz)_LCH_QPSK_1RB#37 (Channel Bandwidth:15 MHz)_LCH_QPSK_1RB#74 (Channel Bandwidth:15 MHz)_LCH_QPSK_37RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 73 of 283 LTE Band 2 (Channel Bandwidth:15 MHz)_LCH_QPSK_37RB#18 (Channel Bandwidth:15 MHz)_LCH_QPSK_37RB#38 (Channel Bandwidth:15 MHz)_LCH_QPSK_75RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 74 of 283 LTE Band 2 (Channel Bandwidth:15 MHz)_MCH_QPSK_1RB#0 (Channel Bandwidth:15 MHz)_MCH_QPSK_1RB#37 (Channel Bandwidth:15 MHz)_MCH_QPSK_1RB#74 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 75 of 283 LTE Band 2 (Channel Bandwidth:15 MHz)_MCH_QPSK_37RB#0 (Channel Bandwidth:15 MHz)_MCH_QPSK_37RB#18 (Channel Bandwidth:15 MHz)_MCH_QPSK_37RB#38 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 76 of 283 LTE Band 2 (Channel Bandwidth:15 MHz)_MCH_QPSK_75RB#0 (Channel Bandwidth:15 MHz)_HCH_QPSK_1RB#0 (Channel Bandwidth:15 MHz)_HCH_QPSK_1RB#37 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 77 of 283 LTE Band 2 (Channel Bandwidth:15 MHz)_HCH_QPSK_1RB#74 (Channel Bandwidth:15 MHz)_HCH_QPSK_37RB#0 (Channel Bandwidth:15 MHz)_HCH_QPSK_37RB#18 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 78 of 283 LTE Band 2 (Channel Bandwidth:15 MHz)_HCH_QPSK_37RB#38 (Channel Bandwidth:15 MHz)_HCH_QPSK_75RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 79 of 283 LTE Band 2 (Channel Bandwidth:15 MHz)_LCH_16QAM_1RB#0 (Channel Bandwidth:15 MHz)_LCH_16QAM_1RB#37 (Channel Bandwidth:15 MHz)_LCH_16QAM_1RB#74 (Channel Bandwidth:15 MHz)_LCH_16QAM_37RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 80 of 283 LTE Band 2 (Channel Bandwidth:15 MHz)_LCH_16QAM_37RB#18 (Channel Bandwidth:15 MHz)_LCH_16QAM_37RB#38 (Channel Bandwidth:15 MHz)_LCH_16QAM_75RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 81 of 283 LTE Band 2 (Channel Bandwidth:15 MHz)_MCH_16QAM_1RB#0 (Channel Bandwidth:15 MHz)_MCH_16QAM_1RB#37 (Channel Bandwidth:15 MHz)_MCH_16QAM_1RB#74 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 82 of 283 LTE Band 2 (Channel Bandwidth:15 MHz)_MCH_16QAM_37RB#0 (Channel Bandwidth:15 MHz)_MCH_16QAM_37RB#18 (Channel Bandwidth:15 MHz)_MCH_16QAM_37RB#38 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 83 of 283 LTE Band 2 (Channel Bandwidth:15 MHz)_MCH_16QAM_75RB#0 (Channel Bandwidth:15 MHz)_HCH_16QAM_1RB#0 (Channel Bandwidth:15 MHz)_HCH_16QAM_1RB#37 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 84 of 283 LTE Band 2 (Channel Bandwidth:15 MHz)_HCH_16QAM_1RB#74 (Channel Bandwidth:15 MHz)_HCH_16QAM_37RB#0 (Channel Bandwidth:15 MHz)_HCH_16…

Text truncated - open the document above for the full version.

Model: BG310-M SERIES Report No.: WTX20X01001344W Page 101 of 283 LTE Band 2 Channel Bandwidth: 10 MHz Channel Bandwidth: 10 MHz Modulation Channel RB Configuration Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Verdict Size Offset QPSK LCH 50 0 8.9343 9.536 PASS MCH 50 0 8.9147 9.483 PASS HCH 50 0 8.9295 9.413 PASS 16QAM LCH 50 0 8.9270 9.393 PASS MCH 50 0 8.9389 9.387 PASS HCH 50 0 8.9086 9.446 PASS Channel Bandwidth: 15 MHz Channel Bandwidth: 15 MHz Modulation Channel RB Configuration Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Verdict Size Offset QPSK LCH 75 0 13.392 13.99 PASS MCH 75 0 13.381 14.07 PASS HCH 75 0 13.357 13.97 PASS 16QAM LCH 75 0 13.372 14.06 PASS MCH 75 0 13.365 14.03 PASS HCH 75 0 13.382 13.99 PASS Channel Bandwidth: 20 MHz Channel Bandwidth: 20 MHz Modulation Channel RB Configuration Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Verdict Size Offset QPSK LCH 100 0 17.843 18.60 PASS MCH 100 0 17.833 18.61 PASS HCH 100 0 17.799 18.60 PASS 16QAM LCH 100 0 17.830 18.57 PASS MCH 100 0 17.820 18.61 PASS HCH 100 0 17.823 18.55 PASS Model: BG310-M SERIES Report No.: WTX20X01001344W Page 102 of 283 LTE Band 2 Test Graphs Channel Bandwidth: 1.4 MHz (Channel Bandwidth: 1.4 MHz)_LCH_QPSK_6RB#0 (Channel Bandwidth: 1.4 MHz)_MCH_QPSK_6RB#0 (Channel Bandwidth: 1.4 MHz)_HCH_QPSK_6RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 103 of 283 LTE Band 2 (Channel Bandwidth: 1.4 MHz)_LCH_16QAM_6RB#0 (Channel Bandwidth: 1.4 MHz)_MCH_16QAM_6RB#0 (Channel Bandwidth: 1.4 MHz)_HCH_16QAM_6RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 104 of 283 LTE Band 2 Channel Bandwidth: 3 MHz (Channel Bandwidth: 3 MHz)_LCH_QPSK_15RB#0 (Channel Bandwidth: 3 MHz)_MCH_QPSK_15RB#0 (Channel Bandwidth: 3 MHz)_HCH_QPSK_15RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 105 of 283 LTE Band 2 (Channel Bandwidth: 3 MHz)_LCH_16QAM_15RB#0 (Channel Bandwidth: 3 MHz)_MCH_16QAM_15RB#0 (Channel Bandwidth: 3 MHz)_HCH_16QAM_15RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 106 of 283 LTE Band 2 Channel Bandwidth: 5 MHz (Channel Bandwidth: 5 MHz)_LCH_QPSK_25RB#0 (Channel Bandwidth: 5 MHz)_MCH_QPSK_25RB#0 (Channel Bandwidth: 5 MHz)_HCH_QPSK_25RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 107 of 283 LTE Band 2 (Channel Bandwidth: 5 MHz)_LCH_16QAM_25RB#0 (Channel Bandwidth: 5 MHz)_MCH_16QAM_25RB#0 (Channel Bandwidth: 5 MHz)_HCH_16QAM_25RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 108 of 283 LTE Band 2 Channel Bandwidth: 10 MHz Channel Bandwidth: 10 MHz_LCH_QPSK_50RB#0 Channel Bandwidth: 10 MHz_MCH_QPSK_50RB#0 Channel Bandwidth: 10 MHz_HCH_QPSK_50RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 109 of 283 LTE Band 2 Channel Bandwidth: 10 MHz_LCH_16QAM_50RB#0 Channel Bandwidth: 10 MHz_MCH_16QAM_50RB#0 Channel Bandwidth: 10 MHz_HCH_16QAM_50RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 110 of 283 LTE Band 2 Channel Bandwidth: 15 MHz (Channel Bandwidth:15 MHz)_LCH_QPSK_75RB#0 (Channel Bandwidth:15 MHz)_MCH_QPSK_75RB#0 (Channel Bandwidth:15 MHz)_HCH_QPSK_75RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 111 of 283 LTE Band 2 (Channel Bandwidth:15 MHz)_LCH_16QAM_75RB#0 (Channel Bandwidth:15 MHz)_MCH_16QAM_75RB#0 (Channel Bandwidth:15 MHz)_HCH_16QAM_75RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 112 of 283 LTE Band 2 Channel Bandwidth: 20 MHz (Channel Bandwidth:20 MHz)_LCH_QPSK_100RB#0 (Channel Bandwidth:20 MHz)_MCH_QPSK_100RB#0 (Channel Bandwidth:20 MHz)_HCH_QPSK_100RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 113 of 283 LTE Band 2 (Channel Bandwidth:20 MHz)_LCH_16QAM_100RB#0 (Channel Bandwidth:20 MHz)_MCH_16QAM_100RB#0 (Channel Bandwidth:20 MHz)_HCH_16QAM_100RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 114 of 283 LTE Band 2 Appendix D: Band Edge Test Graphs Channel Bandwidth: 1.4 MHz (Channel Bandwidth: 1.4 MHz)_LCH_QPSK_1RB#0 (Channel Bandwidth: 1.4 MHz)_LCH_QPSK_1RB#3 (Channel Bandwidth: 1.4 MHz)_LCH_QPSK_1RB#5 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 115 of 283 LTE Band 2 (Channel Bandwidth: 1.4 MHz)_LCH_QPSK_3RB#0 (Channel Bandwidth: 1.4 MHz)_LCH_QPSK_3RB#2 (Channel Bandwidth: 1.4 MHz)_LCH_QPSK_3RB#3 (Channel Bandwidth: 1.4 MHz)_LCH_QPSK_6RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 116 of 283 LTE Band 2 (Channel Bandwidth: 1.4 MHz)_HCH_QPSK_1RB#0 (Channel Bandwidth: 1.4 MHz)_HCH_QPSK_1RB#3 (Channel Bandwidth: 1.4 MHz)_HCH_QPSK_1RB#5 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 117 of 283 LTE Band 2 (Channel Bandwidth: 1.4 MHz)_HCH_QPSK_3RB#0 (Channel Bandwidth: 1.4 MHz)_HCH_QPSK_3RB#2 (Channel Bandwidth: 1.4 MHz)_HCH_QPSK_3RB#3 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 118 of 283 LTE Band 2 (Channel Bandwidth: 1.4 MHz)_HCH_QPSK_6RB#0 (Channel Bandwidth: 1.4 MHz)_LCH_16QAM_1RB#0 (Channel Bandwidth: 1.4 MHz)_LCH_16QAM_1RB#3 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 119 of 283 LTE Band 2 (Channel Bandwidth: 1.4 MHz)_LCH_16QAM_1RB#5 (Channel Bandwidth: 1.4 MHz)_LCH_16QAM_3RB#0 (Channel Bandwidth: 1.4 MHz)_LCH_16QAM_3RB#2 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 120 of 283 LTE Band 2 (Channel Bandwidth: 1.4 MHz)_LCH_16QAM_3RB#3 (Channel Bandwidth: 1.4 MHz)_LCH_16QAM_6RB#0 (Channel Bandwidth: 1.4 MHz)_HCH_16QAM_1RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 121 of 283 LTE Band 2 (Channel Bandwidth: 1.4 MHz)_HCH_16QAM_1RB#3 (Channel Bandwidth: 1.4 MHz)_HCH_16QAM_1RB#5 (Channel Bandwidth: 1.4 MHz)_HCH_16QAM_3RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 122 of 283 LTE Band 2 (Channel Bandwidth: 1.4 MHz)_HCH_16QAM_3RB#2 (Channel Bandwidth: 1.4 MHz)_HCH_16QAM_3RB#3 (Channel Bandwidth: 1.4 MHz)_HCH_16QAM_6RB#0 Model: BG310-M SERIES Report No.: WTX20X01001344W Page 123 of 283 LTE Band 2 Channel Bandwidth: 3 MHz (Channel Bandwidth: 3 MHz)_LCH_QPSK_1RB#0 (Channel Bandwidth: 3 MHz…

Text truncated - open the document above for the full version.
