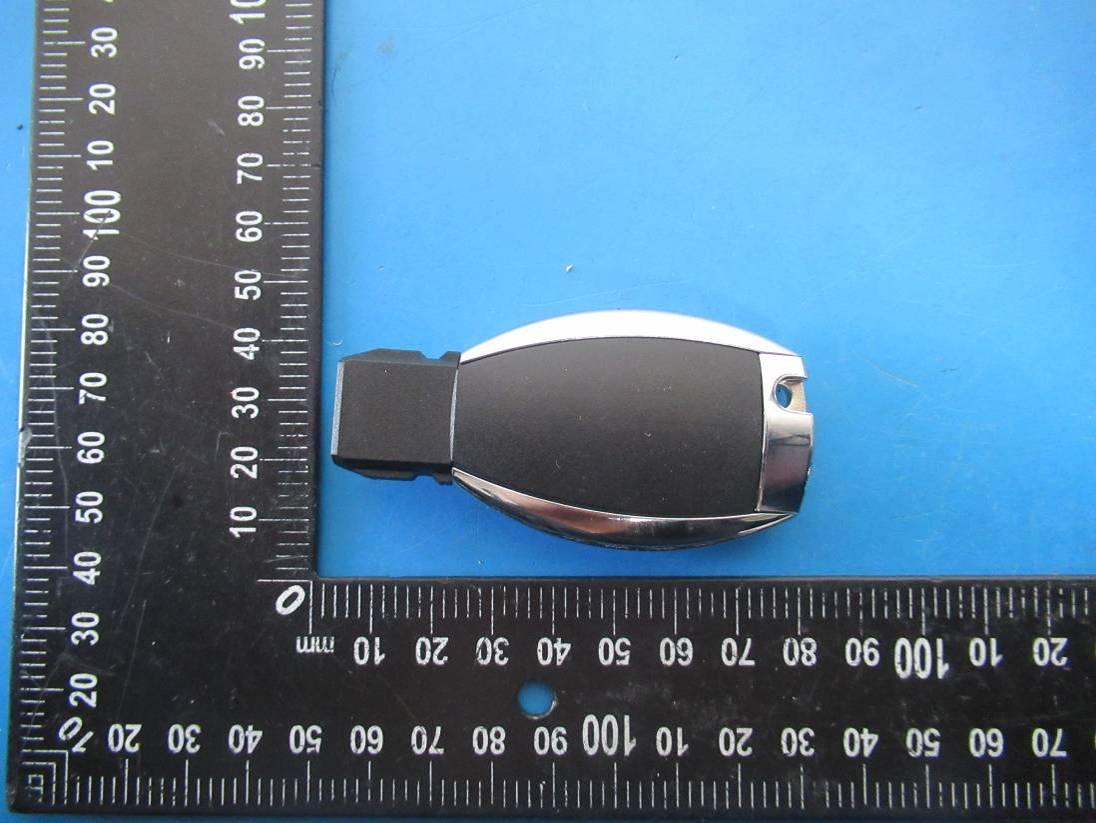

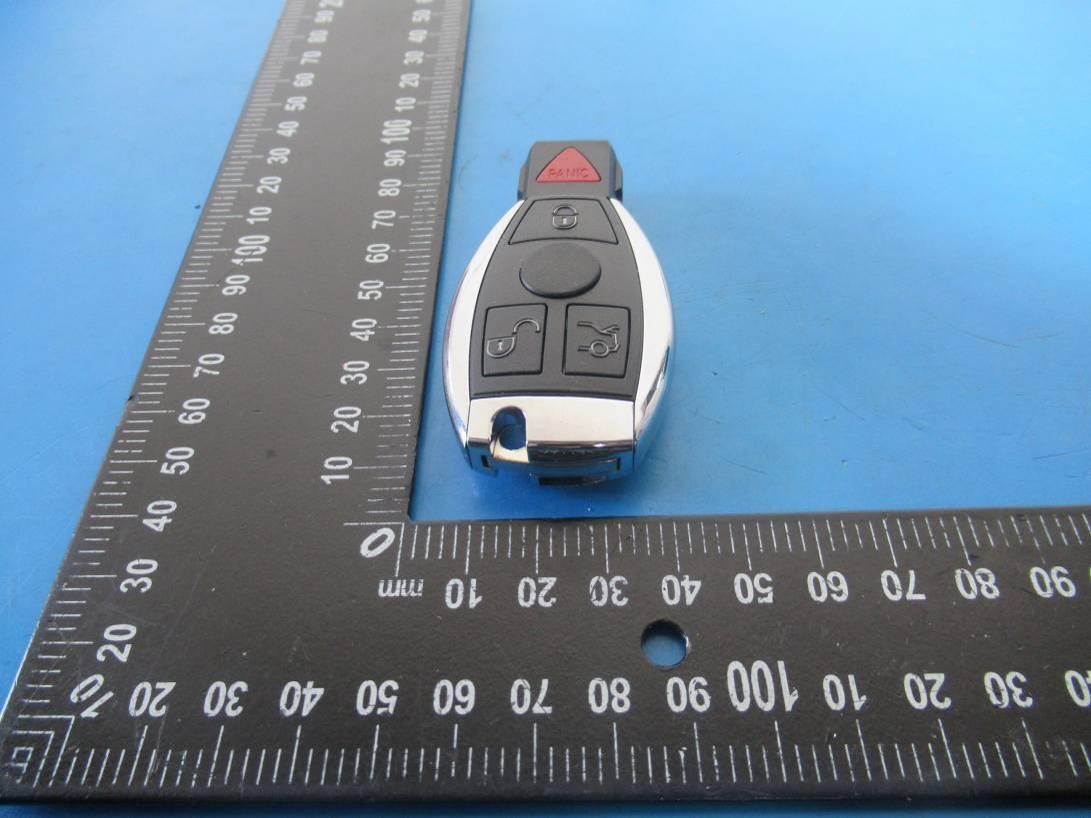

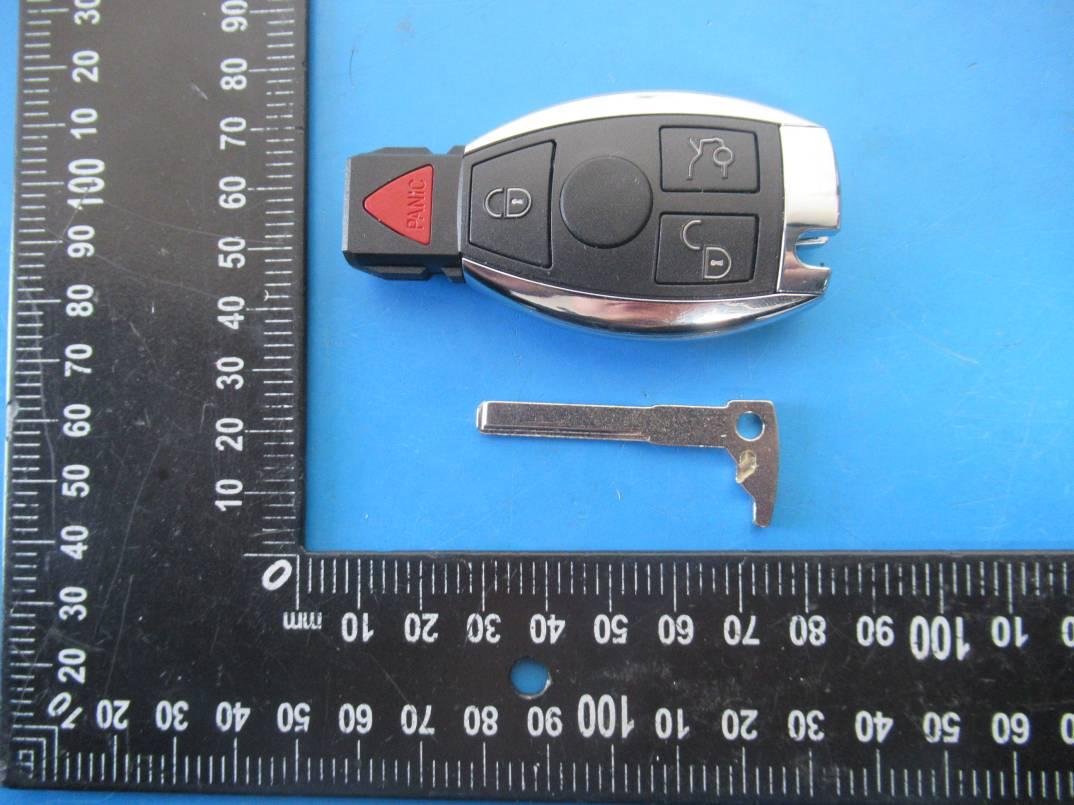

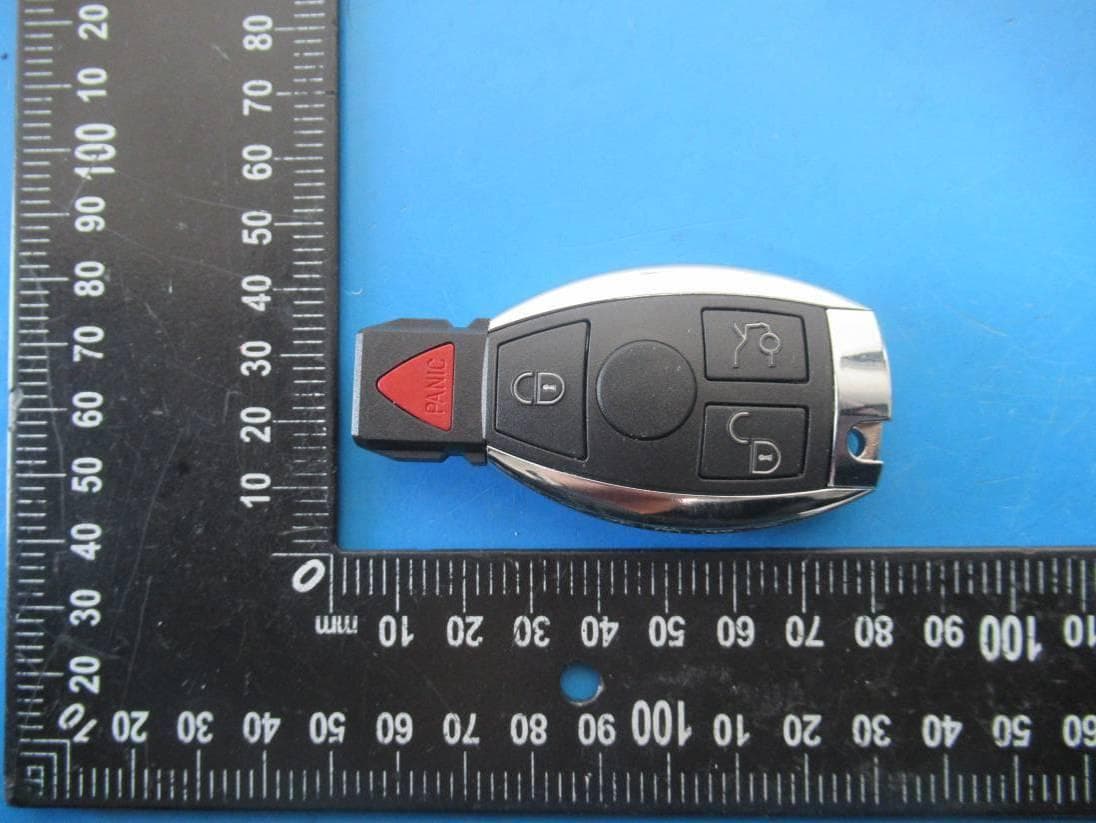

2AHH9-MBP3ARemote Key

User manual Company: Kaba Ilco Corp Address: 400 Jeffrey Road, Rocky Mount, North Carolina 27804, U.S.A. Name: Remote Key Model: POD -BENZ-4B1 Operation instructions 1. After matching the key to the car, press 1 the unlock key for 2 seconds to open the door and press 2 the lock key for 2 seconds to close the door. 2. The trunk key is used to open or close the trunk. Product parameters Rated voltage DC 3V Working current <6mA Operating voltage 1.8V~3.6V Transmit power >-20dbm Key operation force 400±50g Operating temperature -5°C +45°C Stand-by current <1uA transmitting frequency 315M±75KHZ Modulation ASK Battery CR2032 Key durability More than 100,000 times 1 key: Unlock key 2 key: Trunk key 3 key: Lock key User manual FCC COMPLIANCE STATEMENT: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. IC WARNING This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economi c Development Canada’s licence-exempt RSS(s). Operation is subject to t he following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device ADVERTENCIA IC Cet appareil contient des émetteurs / récepteurs exemptés de licence conformes aux RSS (RSS)d'Innovation, Sciences et Développement économique Canada. Le fonctionnement est soumis auxdeux conditions suivantes : (1) Cet appareil ne doit pas causer d'interférences. (2) Cet appareil doit accepter toutes les interférences, y compris celles susceptibles deprovoquer un fonctionnement indésirable de l'appareil. This device complies with ISED RF radiation exposure limits set forth for an uncontrolled environment.

March 16, 2021 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AHH9-MBP3A Product Name: Remote Key Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics Long-term confidential  Block diagram Long-term confidential  Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name David Blankenship Position Engineer Company Name Kaba Ilco Corp Address 400 Jeffreys Road Rocky Mount, NC 27804, United States Tel (252) 446-3321 5373 Fax (252) 446-4702 Email [email protected]

FCC ID: 2AHH9-MBP3A IC: 21262-MBP3A

Label Size: 1.5x1.0cm Location FCC ID: 2AHH9-MBP3A IC: 21262-MBP3A Kaba Ilco Corp Model Name: Remote Key Model No.: POD-BENZ-4B1

FCC ID: 2AHH9-MBP3A IC: 21262-MBP3A Antenna

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt For Worst case Mode: 315MHz Field strength =70.81 dBuV/m @3m Ant gain 0 dBi; so Ant numeric gain=1 So pt= {[10 (70.81/20) /10 6 x3] 2 /30x1} x 1000 mW =0.0036 mW So (0.0036mW/5mm) x √0.315 GHz = 0.0004<3 Then SAR evaluation is not required

FCC TEST REPORT FCC ID: 2AHH9-MBP3A On Behalf of Kaba Ilco Corp Remote Key Model No.: POD-BENZ-4B1 Prepared for : Kaba Ilco Corp Address : 400 Jeffrey Road, Rocky Mount, North Carolina 27804, U.S.A. Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao’an District, 518103, Shenzhen, Guangdong, China Report Number : A2101177-C01-R01 Date of Receipt : January 26, 2021 Date of Test : January 26, 2021-February 3, 2021 Date of Report : February 3, 2021 Version Number : V0 Page 2 of 29 Report No.: A2101177-C01-R01 Contents 1. General Information ............................................................................................................... 5 1.1. Description of Device (EUT) ...............................................................................5 1.2. Accessories of Device (EUT)...............................................................................6 1.3. Tested Supporting System Details .......................................................................6 1.4. Test Facility ..........................................................................................................6 2. Summary of test ...................................................................................................................... 7 2.1. Summary of test result .........................................................................................7 2.2. Block Diagram .....................................................................................................7 2.3. Test mode .............................................................................................................8 2.4. Test Conditions .....................................................................................................8 2.5. Measurement Uncertainty (95% confidence levels, k=2) ....................................8 2.6. Test Equipment .....................................................................................................9 3. Radiation Emission ............................................................................................................... 10 3.1. Radiation Emission Limits(15.209&231) ..........................................................10 3.2. Test Setup ...........................................................................................................10 3.3. Test Procedure .................................................................................................... 11 3.4. Test Equipment Setting For emission test. .........................................................12 3.5. Test Condition ....................................................................................................12 3.6. Test Result ..........................................................................................................12 4. Power line conducted emission ............................................................................................ 16 4.1. Conducted Emission Limits (15.209) ................................................................16 4.2. Test Setup ...........................................................................................................16 4.3. Test Procedure ....................................................................................................16 4.4. Test Results ........................................................................................................17 5. Occupied bandwidth ............................................................................................................. 18 5.1. Test limit .............................................................................................................18 5.2. Method of measurement .....................................................................................18 5.3. Test Setup ...........................................................................................................18 5.4. Test Results ........................................................................................................18 6. Transmission time ................................................................................................................. 20 6.1. Test limit .............................................................................................................20 6.2. Method of measurement .....................................................................................20 6.3. Test Setup ...........................................................................................................20 6.4. Test Results ........................................................................................................20 7. Antenna Requirement .......................................................................................................... 22 7.1. Standard Requirement ........................................................................................22 7.2. Antenna Connected Construction ......................................................................22 7.3. Result..................................................................................................................22 8. Test setup photo .................................................................................................................... 23 9. Photos of EUT ....................................................................................................................... 24 Page 3 of 29 Report No.: A2101177-C01-R01 TEST REPORT DECLARATION Applicant : Kaba Ilco Corp Address : 400 Jeffrey Road, Rocky Mount, North Carolina 27804, U.S.A. Manufacturer : Qinuo Electronics Co., Ltd Address : 3/F, Bldg.A, Yucheng Base, Keji Rd., High-tech Industrial Park, Fengze, Quanzhou, Fujian 362000, P.R.China EUT Description : Remote Key (A) Model No. : POD-BENZ-4B1 (B) Trademark : N/A Measurement Standard Used: FCC Rules and Regulations Part 15 Subpart C Section 1…

Text truncated - open the document above for the full version.

FCC ID: 2AHH9-MBP3A IC: 21262-MBP3A Photos of Radiated emission
