2AHHYP-COLLAR360No-bark Collar

p-collar 651 Quick Start 2 The dog training collar is designed to let dogs live safely, happily and get along with people more harmoniously. Thanks for purchasing! Do not use with aggressive dogs. Aggressivedogs can cause severeinjury andeven death to their owner and others. If you are unsure whether this product is appropriate for your dog, please consult your veterinarian or certified trainer. Safety during on-leash training. It is vitally important that you and your dog remain safe while learning on-leash training. Your dog should be on a strong leash, long enough for him to attempt to chase an object, but short enough for him not to reach a road or other unsafe area. You must also be physically strong enough to restrain your dog when he tries to chase. Risk of skin damage. Please read and follow the instructions in this manual. Proper fit of the collar is important. A collar worn for too long or made too tight on the pet’s neck may cause skin damage ranging from redness to pressure ulcers. This condition is commonly known as bad sores. Avoid leaving the collar on the dog for more than 12 hours per day. When possible reposition the collar on the pet’s neck every 1 to 2 hours. Never connect a lead to the electronic collar; it will cause excessive pressure on the contacts. If a rash or sore is found, discontinue use of the collar until the skin has healed. If the condition persists over 48 hours, see your veterinarian. This product is not a toy, please keep away from children. This product is only applicable to healthy dog. 3 Remote .Charging Port (with cover) .On/Off Button .LED Indicator Overview 5 Receiver Collar 46 1. Plug in and fully charge the Remote and the Receiver collar. For the initial charge,be sure to charge it for 4 hours. Subsequent charges only take 2-3 hours. 2. When fully charged, the red LED on the Receiver Collar will become green. The Battery Display of the Remote will stop cycling and appear full.. Tips: 1. Excessive charging will shorten battery life. Only charge them when batteries are low. 2. When you’re not using the collar, please turn it off to increase the battery life. Note: Please use the Output : DC 5V 500-800mA charger to charge the product. Don’t use a charger that does not meet the specifications to charge the product. Please read the quick start before starting. Setting Up the Product Before you can use the Dog Training Collar, you must set up the product as below steps: 1. Charging the Remote and the Receiver Collar. 2. Prepare the Remote and turn it on. 3. Prepare the Receiver Collar and turn it on. 4. Function test, test function of buttons before wearing it on dog. 5. Test Vibration function. 6. Pair the Remote and the Receiver Collar, pair them when the product loses its code or pairs with a second collar. Charging the Remote and the Receiver Collar Turn ON/OFF the Remote 1. Long press the ON/OFF button to turn the remote ON. 2. LCD will be lighted, and shows the information of current channel, battery power and levels. If not, please charge the remote. 3. Long press the ON/OFF button to turn the remote OFF. Prepare the Remote Function Test We recommend you to experience firsthand and feel how the different levels feel on yourself.Please always starts at the lowest level and makes you personally comfortable levels. 2. Hold your remote approximately 2 ft. from the training collar. Press the Vibration Button continuously for 1 to 2 seconds. You should feel continuous vibration. Press to increase the Vibration Level. Press to decrease the Vibration Level. 7 4. Increase the level until the sensation begins to feel uncomfortable. NOTE: Continuous stimulation will transmit for no more than 10 continuous seconds. To reactivate, release and repress the button. 3. Press to decrease levels. Starting at level 1,press the Vibration Button. The Vibration Level can be adjusted from level 1 to 8 , please adjust it properly as per your dog’s reaction. It is not recommended to press and hold the Vibration+Tone Button too long to avoid physical or psychological hurt to the dog. Note: Q R S A. Mode indication B. Battery Display C. Vibration Level + D. Vibration Level - E. On/Off Button F. Channel Display G. Channel Conversion Switch H. Vibration Level Display I. Tone Button J. Vibration+Tone Button K. Vibration Button L. Charging Port A B C D E F G H I J K L Long press to turn on, long press to turn off. Q R S 0.3.0.02.651000-28-00 1. Place the collear receiver on your hand or your leg. Vibration: sends 1-8 adjustable levels of vibrate stimulation to the Receiver Collar. Tone: sends an adjustable level vibration and non-adjustable level tone simultaneously to the Receiver Collar. Vibration+Tone: sends a vibration and tone with non-adjustable level to the Receiver Collar. Pair the Remote and the Receiver Collar 1. Use the switch on the Remote to select Dog 1 . 2. With the Remote turned on and the Receiver Collar turned off, press and hold the ON/OFF Button on the Receiver Collar for 4-5 seconds. 3. The Red & Green LED will blink for about 10 seconds indicating that it is ready for pairing. 4. Press and hold the Tone Button and the tone+Vibration Button at the same time for 2-3 seconds, the Green Led on the Receiver Collar will blink for 5 times indicating successful pairing. 1. Use the Button on the Remote to select Dog 2. Then follow the above pairing steps from 2-4. Pairing a Second Collar with the Remote Slide up, control dog 1, slide down,control dog 2. NOTE: To extend the life of the batteries, please turn the Receiver Collar off when it is not in use. Turn on the Receiver Collar Press the On/Off Button the Green LED light comes on. In normal mode, the Green LED will flash every 4 seconds, indicating the Receiver Collar is on and ready to receive a signal from the Remote. Turn off the Receiver Collar Press and hold the On/Off Button until the Red LED light shuts off (This takes approximately 3 seconds). Release the On/Off Button. Collar Fitting Please fit the …

Text truncated - open the document above for the full version.

Rev11/20/07 (ShenzhenPatpetTechnologyCo.,Ltd) FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationofFCCID: 2AHHYP-COLLAR360 PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName BlockDiagram, Schematics, OperationalDescription BlockDiagram Schematics OperationalDescription Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrant forthisapplication. Sincerely, (DuLigang)

(Shenzhen Patpet Technology Co., Ltd) Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2020.7.16 SUBJECT: FCC Application for FCC ID: 2AHHYP-COLLAR360 To Whom It May Concern: We, the undersigned, hereby authorize Alan Mei at Shenzhen BCTC Testing Co., Ltd. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Alan Mei of Shenzhen BCTC Testing Co., Ltd. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, (Du Ligang)

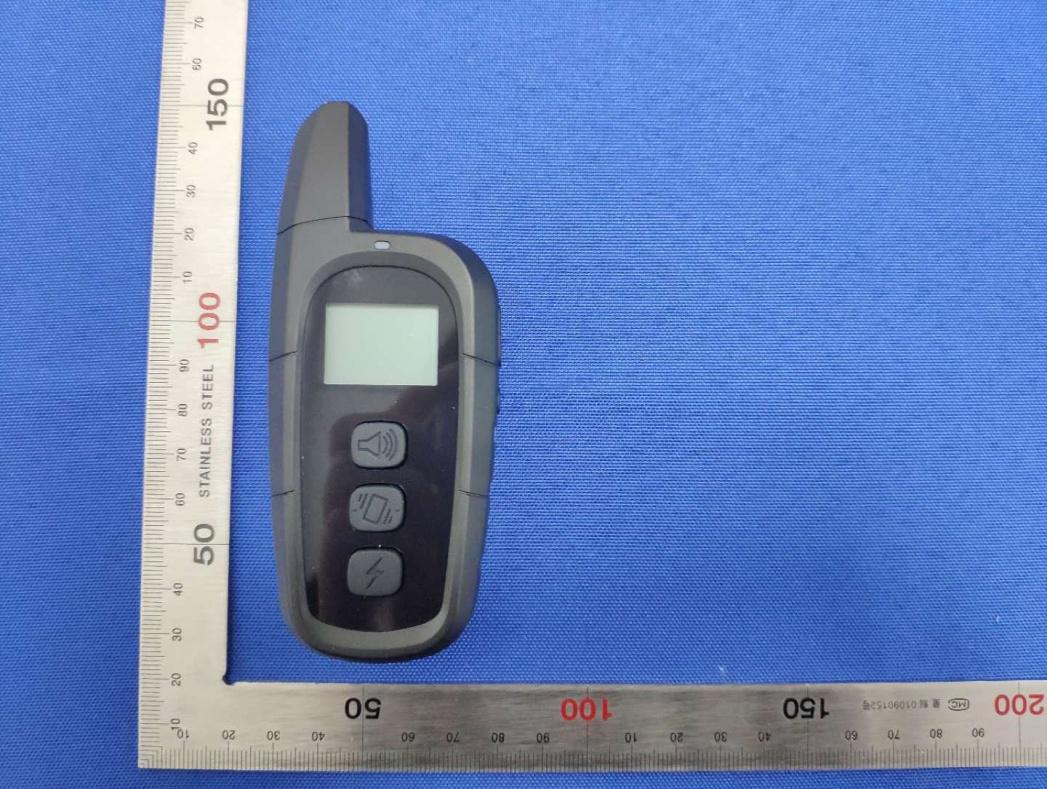

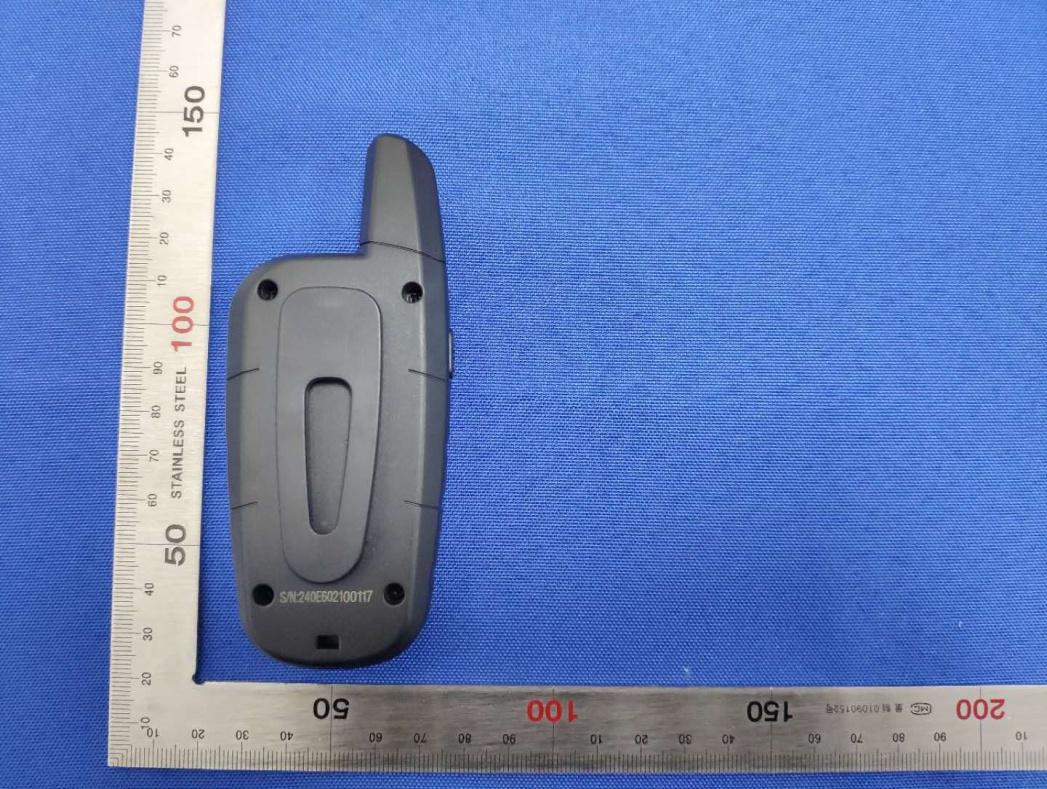

ExternalPhotos

Label&labellocation Model:No-barkCollar FCCID:2AHHYP-COLLAR360

InternalPhotos Antenna

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2006001700E FCC Part 15C Test Report FCC ID:2AHHYP-COLLAR360 Product Name: No-bark Collar Trademark: N/A Model Name : p-collar 360 Prepared For : Shenzhen Patpet Technology Co., Ltd Address : 3rd Floor, Factory Building, No. 1 Qinhui Road, Gushu Community, Xixiang Street, Baoan District, Shenzhen, China Prepared By : Shenzhen BCTC Testing Co., Ltd. Address : BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Test Date: Jun. 22, 2020 to Jun. 30, 2020 Date of Report : Jun. 30, 2020 Report No.: BCTC2006001700E Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2006001700E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 2 of 34 VERIFICATION OF COMPLIANCE Applicant’s name ........ Shenzhen Patpet Technology Co., Ltd Address ........................ 3rd Floor, Factory Building, No. 1 Qinhui Road, Gushu Community, Xixiang Street, Baoan District, Shenzhen, China Manufacture's Name ... Shenzhen Patpet Technology Co., Ltd Address ........................ 3rd Floor, Factory Building, No. 1 Qinhui Road, Gushu Community, Xixiang Street, Baoan District, Shenzhen, China Product description Product name ................ No-bark Collar Trademark: N/A Model Name: p-collar 360 Test Standards: FCC Part15.231 ANSI C63.10-2013 This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Test Result ....................................... Pass Prepared by(Engineer): Kelsey Tan Reviewer(Supervisor): Eric Yang Approved(Manager): Zero Zhou Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2006001700E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 3 of 34 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 8 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 9 3 . EMC EMISSION TEST 11 3.1 CONDUCTED EMISSION MEASUREMENT 11 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 11 3.1.2 TEST PROCEDURE 12 3.1.3 DEVIATION FROM TEST STANDARD 12 3.1.4 TEST SETUP 12 3.1.5 EUT OPERATING CONDITIONS 12 3.1.6 TEST RESULTS 12 3.2 RADIATED EMISSION MEASUREMENT 15 3.2.1 RADIATED EMISSION LIMITS 15 3.2.2 TEST PROCEDURE 16 3.2.3 TEST SETUP 17 3.2.4 EUT OPERATING CONDITIONS 18 3.2.5 TEST RESULTS 19 4 . BANDWIDTH TEST 25 4.1 APPLIED PROCEDURES / LIMIT 25 4.1.1 TEST PROCEDURE 25 4.1.2 DEVIATION FROM STANDARD 25 4.1.3 TEST SETUP 25 4.1.4 EUT OPERATION CONDITIONS 25 4.1.5 TEST RESULTS 26 5 . CALCULATION OF AVERAGE FACTOR 27 6 . DWELL TIME 29 6.1 DEVIATION FROM STANDARD 29 6.2 TEST SETUP 29 6.3 EUT OPERATION CONDITIONS 29 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2006001700E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 4 of 34 Table of Contents Page 6.4 TEST RESULTS 30 7 . ANTENNA REQUIREMENT 31 7.1 STANDARD REQUIREMENT 31 7.2 EUT ANTENNA 31 8 . EUT TEST PHOTO 32 9 . EUT PHOTO 34 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2006001700E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 5 of 34 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.231) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.209,15.231b Fundamental &Radiated Spurious Emission Measurement PASS 15.231c Occupy Bandwidth PASS 15.231a Dwell time PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2006001700E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 6 of 34 1.1 TEST FACILITY Shenzhen BCTC Testing Co., Ltd. Add.: BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China FCC Test Firm Registration Number: 712850 IC Registered No.: 23583 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 3m camber Radiated spurious emission(30MHz-1GHz) U=4.3dB 2 3m chamber Radiated spurious emission(1GHz-18GHz) U=4.5dB 3 3m chamber Radiated spurious emission(18GHz-40GHz) U=3.34dB 4 Conducted Adjacent channel power U=1.38dB 5 Conducted output power uncertainty Above 1G U=1.576dB 6 Conducted output power uncertainty below 1G U=1.28dB 7 humidity uncertainty U=5.3% 8 Temperature uncertainty U=0.59 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2006001700E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 7 of 34 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment No-bark Collar Trade Name N/A Model Name p-collar 360 Serial Model N/A Model Difference N/A Product Description Operation Frequency: 433.92MHz Modulation Type: ASK Antenna Type: Spring antenna Antenna Gain: 0dBi Ratings Battery:DC 3.7V USB:DC 5V Connecting I/O Port(s) Please refer to the User's Manual hardware version N/A Software version N/A Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Shenzhen BCTC Testing Co., Ltd. Report No.: BCT…

Text truncated - open the document above for the full version.

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2006001700E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 32 of 34 8. EUT TEST PHOTO Conducted Measurement Photos Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2006001700E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 33 of 34 Radiated Measurement Photos
