2AHI8-RDS-32RDS-32 Survey Meter

USER MANUAL RDS-32™ SURVEY METER USER MANUAL RDS-32™ SURVEY METER NOTE This document and the information herewith are copyrighted material as mentioned in the Copyrights Act. No part of this document may be copied without a written authorization from the manufacturer. The manufacturer withholds the right to make changes in the contents of this document without prior notice. If you have any comments or suggestions for additions concerning either the products or this document, please submit your feedback as instructed at the end of the manual. ATTENTION The RDS-32 Radiation Survey Meter does not contain any hazardous or dangerous substances and can be recycled accordingly. The batteries of the device must be recycled separately as instructed by the manufacturer of the batteries. Copyright © Mirion Technologies (RADOS) Oy 2020 Document No. 2093 10097 Version 1.1 Issue date 14.4.2021 USER MANUAL – RDS-32 SURVEY METER 1 INTRODUCTION ............................................................................. 1 1.1 RDS-32 SURVEY METER FAMILY ................................................................... 1 1.2 RDS-32 VARIANTS ........................................................................................... 2 2 GETTING STARTED ....................................................................... 3 2.1 OVERVIEW OF THE METER ............................................................................ 3 2.2 INSERTING BATTERIES .................................................................................. 4 2.3 POWER ON/OFF ............................................................................................... 5 2.4 OPERATING DISPLAY AND SYMBOLS ........................................................... 6 2.5 NAVIGATION AND SHORTCUTS ..................................................................... 9 2.6 CONNECTING EXTERNAL PROBE ................................................................ 10 3 RDS-32 MENU ITEMS ................................................................... 10 3.1 POWER OFF ................................................................................................... 11 3.2 DOSE .............................................................................................................. 12 3.3 DOSE RATE .................................................................................................... 12 3.4 CHIRP ............................................................................................................. 13 3.5 ALARMS .......................................................................................................... 14 3.5.1 DOSE RATE ALARM (DRATE) .................................................................... 14 3.5.2 DOSE ALARM .............................................................................................. 15 3.5.3 EXTERNAL DOSE RATE / COUNT RATE ALARM ...................................... 16 3.6 HISTOGRAM ................................................................................................... 16 3.6.1 CLEAR ......................................................................................................... 17 3.6.2 STATE .......................................................................................................... 17 3.6.3 INTERVAL (I) ................................................................................................ 18 3.6.4 LOCATION (L) .............................................................................................. 18 3.6.5 MANUAL....................................................................................................... 18 3.7 CONNECTIONS .............................................................................................. 18 3.7.1 WRM ............................................................................................................ 19 3.7.2 BLE ............................................................................................................... 19 3.7.3 NFC .............................................................................................................. 19 3.8 DIAGNOSTICS ................................................................................................ 20 3.9 PROBES.......................................................................................................... 20 4 ERROR CODES AND OTHER DISPLAY MESSAGES ................. 21 4.1 LOW BATTERY WARNING ............................................................................. 21 4.2 LOW BATTERY ALARM .................................................................................. 21 4.3 DOSE RATE / DOSE ALARM (BLINKING DISPLAY) ...................................... 21 4.4 DOSE RATE OVERFLOW ALARM (OFL) ....................................................... 22 4.5 DEFECT ERRORS .......................................................................................... 22 5 MAINTENANCE AND DECONTAMINATION ................................ 23 5.1 FIRMWARE UPDATE ...................................................................................... 23 5.2 BATTERY COVER AND SEAL CHANGE ........................................................ 23 5.3 CALIBRATION ................................................................................................. 23 5.4 MECHANICAL DECONTAMINATION .............................................................. 23 5.5 CHEMICAL DECONTAMINATION ................................................................... 24 6 SPECIFICATIONS ......................................................................... 24 7 ACCESSORIES AND PROBES .................................................... 31 7.1 ACCESSORIES ............................................................................................... 31 7.2 COMPATIBLE PROBES .................................................................................. 32 FEEDBACK ...................................................…

Text truncated - open the document above for the full version.

To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Mirion Technologies (RADOS) Oy Mustionkatu 2 20750 Turku FINLAND Regarding: Confidentiality Request regarding application for FCC ID: 2AHI8-RDS-32 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions Parts List / BOM The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. SHORT TERM CONFIDENTIALITY Additionally, the applicant requests the following documents be held confidential until the device is marketed or 180 days from the grant date, whichever is less. If the device is marketed within 180 days of the Grant Date, the applicant will notify the TCB per FCC KDB 726920 D01 Confidentiality Request Procedures. External Photos Internal Photos Test Setup Photos User manual(s) Sincerely, Markus Wallasvaara Quality Manager Mirion Technologies (RADOS) Oy Health Physics Division Mirion Technologies (RADOS) Oy Tel. +358-2-46 84 600 P.O.Box 506 Fax +358-2-46 84 601 FI-20101 Turku www.mirion.com

R&D Test Report Project: RDS-32 Laati / Issued TK Testipaikka / Test location Turku Testi päivä / Test date 10.08.2020 Päiväys / Date 05.03.2021 Aihe / Subject Maximum permissible exposure Table of contents TABLE OF CONTENTS ............................................................................................................................................. 1 1. PURPOSE FOR THE TEST ................................................................................................................................ 2 2. APPROVAL CRITERIA ...................................................................................................................................... 2 3. TEST PLAN ......................................................................................................................................................... 2 4. TEST RESULTS .................................................................................................................................................. 2 4.1 WRM RADIO ................................................................................................................................................................... 2 4.2 BLE RADIO ..................................................................................................................................................................... 4 5. CONCLUSIONS .................................................................................................................................................. 4 2/4 ___________________________________________________________________________ 1. Purpose for the test This test is done to evaluate device compliance with FCC guidelines for human exposure to radiofrequency electromagnetic fields of the WRM radio module and the Bluetooth low energy (BLE) radio. 2. Approval criteria According to KDB publication for mobile and portable devices (KDB 447498) 4.3.1 a) SAR test exclusion can be calculated: - [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity. The calculation is used to see if further SAR testing is needed. According to CFR § 2.1093 d) 2) exposure may be averaged over a time period not to exceed 30 minutes to determine compliance with general population/uncontrolled SAR limits. 3. Test plan WRM radio (FCC ID: MCQ-XB900HP) sends data with frequency hopping band of 902 MHz – 928 MHz. Data is sent in minimum interval of 2 seconds. The frequency band shall be measured to determine the duration of data being sent and calculate the minimum distance in a worst case scenario. BLE radio sends data with frequency hopping band of 2402 MHz – 2480 MHz. Since the BLE radio has much less power output, the calculation can be done using maximum power output. 4. Test results 4.1 WRM radio The device was set to send data in 2 second interval and the duration of the data stream measured (see Figure 1 and 2). Figure 1 The duration of data stream 3/4 ___________________________________________________________________________ Figure 2 Time between two data streams The minimum separation distance was calculated over 30 minutes data sent every 2 seconds for 56 ms with the power of 298 mW stated in the original FCC grant: - Number of messages sent over 30 minutes:
   900 messages - Total time sending messages over 30 minutes: 900∗0,056s  50,4  - Average power over 30 minutes: ,
 ∗298  8,344 - Minimum separation distance with lowest frequency: , / √ , !  2,64 - Minimum separation distance with highest frequency: , / √ , !  2,68 The frame thickness was measured from 3d model (see Figure 3) to be at minimum 3,2 mm. 4/4 ___________________________________________________________________________ Figure 3 Frame thickness and area for antenna 4.2 BLE radio The minimum separation distance was calculated using the maximum power output of +5dBm (3,16mW) stated in Texas Instruments CC2640 datasheet and the antenna gain of 1,2dBi (numeric 1,32): - Minimum separation distance with lowest frequency: ,
"∗
, / √ , !  2,16 - Minimum separation distance with highest frequency: ,
"∗
, / √ , !  2,19 5. Conclusions According to the calculations the average exposure for the WRM radio over 30 minutes does not require SAR testing as long as the antenna is 2,68 mm away from the user. For the BLE radio, the minimum separation distance is 2,19 mm at maximum power output. The frame thickness is more than the minimum separation distance at the area where the antennas are positioned. The radios do not transmit simultaneously.

Reference number: 299264-1-2 Page 1 of 17 These test results are valid for the tested unit only. This report shall not be reproduced, except in full, without a written permission of SGS Fimko. Test Report INTENTIONAL RADIATOR TESTS ACCORDING TO FCC PART 15 C and INDUSTRY CANADA REQUIREMENTS Equipment Under Test: Radiation Meter with BT LE and 915MHz radio Brand name: Mirion Type/ Model: RDS-32 Manufacturer: Mirion Technologies (RADOS) Oy Mustionkatu 2 FI-20101 Turku FINLAND Customer: Mirion Technologies (RADOS) Oy Mustionkatu 2 FI-20101 Turku FINLAND FCC Rule Part: 15.249: 2019 IC Rule Part: RSS-210: Issue 10, 2019 Date: 24 May 2021 24 May 2021 Issued by: Pekka Kälviäinen Rauno Repo Test Engineer Senior EMC/RF Specialist Reference number: 299264-1-2 Page 2 of 17 Table of Contents GENERAL REMARKS .......................................................................................................................................... 3 Disclaimer ........................................................................................................................................................ 3 RELEASE HISTORY ............................................................................................................................................ 4 PRODUCT DESCRIPTION .................................................................................................................................. 5 Equipment Under Test (EUT) .......................................................................................................................... 5 Ratings and declarations ................................................................................................................................. 5 Power Supply .................................................................................................................................................. 5 Mechanical Size of the EUT ............................................................................................................................ 5 SUMMARY OF TESTING ..................................................................................................................................... 6 EUT Test Conditions during Testing ............................................................................................................... 6 TEST RESULTS ................................................................................................................................................... 7 Antenna requirement ....................................................................................................................................... 7 Maximum Peak Radiated Output Power ......................................................................................................... 8 Transmitter Radiated Emissions 0.009 MHz to 26.5 GHz .............................................................................. 9 99% Occupied Bandwidth, 20 dB Bandwidth .................................................................................................. 14 Duty cycle correction factor, Transmit time in 100 ms .................................................................................... 16 LIST OF TEST EQUIPMENT ............................................................................................................................... 17 Reference number: 299264-1-2 Page 3 of 17 Disclaimer GENERAL REMARKS Disclaimer This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. Reference number: 299264-1-2 Page 4 of 17 Release History RELEASE HISTORY Version Changes Issued 1.0 Initial release 11 June 2020 1.1 Standard version corrected (RSS-210) 24 May 2021 Reference number: 299264-1-2 Page 5 of 17 Product Description PRODUCT DESCRIPTION Equipment Under Test (EUT) Radiation Meter Brand name: Mirion Type/ Model: RDS-32 Serial Number: 002 FCC ID: 2AHI8-RDS-32 IC: 26167-RDS32 The EUT is a radiation meter. The EUT uses 2.4 GHz Low Energy Bluetooth and 915 MHz transmission. Only 2.4 GHz Low Energy Bluetooth was operating during the tests. Classification of the device Fixed device Mobile Device (Human body distance > 20cm) Portable Device (Human body distance < 20cm) Modifications Incorporated in the EUT No modifications were applied to the EUT during testing. Ratings and declarations 2.4GHz: Operating Frequency Range (OFR): 2402 - 2480 MHz Channels: 40 channels Channel separation: 2 MHz Transmission technique: FHSS Modulation: GFSK Integrated antenna gain: 1.2 dBi 915 MHz: Operating Frequency Range (OFR): 902 - 928 MHz Channels: 7 hop sequences share 25 frequencies Transmission technique: FHSS Modulation: FSK/GFSK Integral Antenna gain: 1.9 dBi Power Supply The EUT is an internal battery (3.0 V, 2x1.5 V AA batter…

Text truncated - open the document above for the full version.

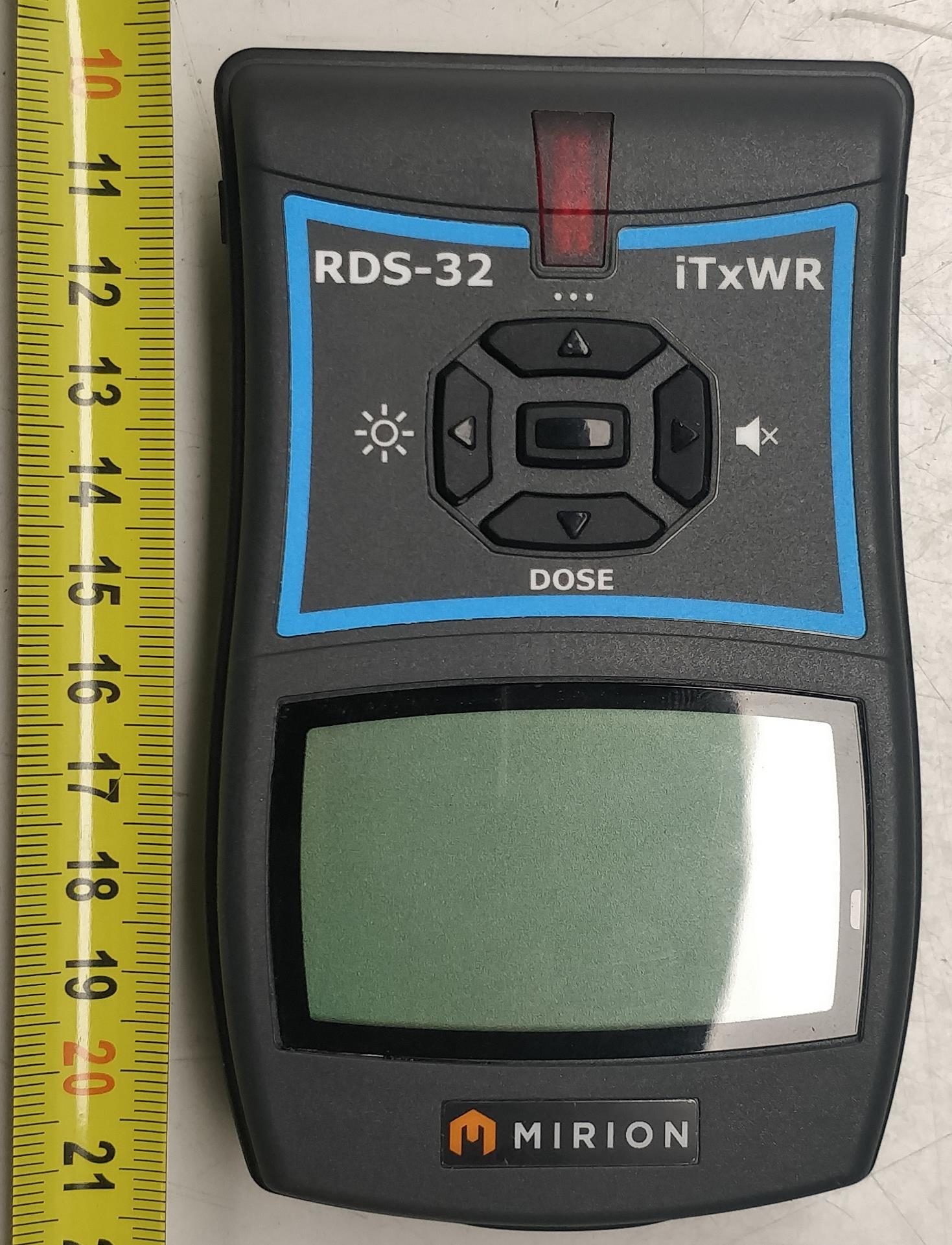

TEST SETUP PHOTOGRAPHS Page 1 of 2 Project number: 299264-1-2 SGS Fimko Ltd. Takomotie 8, FI-00380 Helsinki Finland t +358 9 6963 361 f +358 9 692 5474 www.sgs.fi Member of SGS Group (Société Générale de Surveillance) Photograph 1. The EUT Photograph 2. The EUT Photograph 3. Radiated Emissions 0.009 – 30 MHz TEST SETUP PHOTOGRAPHS Page 2 of 2 Project number: 299264-1-2 SGS Fimko Ltd. Takomotie 8, FI-00380 Helsinki Finland t +358 9 6963 361 f +358 9 692 5474 www.sgs.fi Member of SGS Group (Société Générale de Surveillance) Photograph 4. Radiated Emissions 30 – 1000 MHz Photograph 5. Radiated Emissions 1 – 18 GHz Photograph 6. Radiated Emissions 18 – 26.5 GHz
