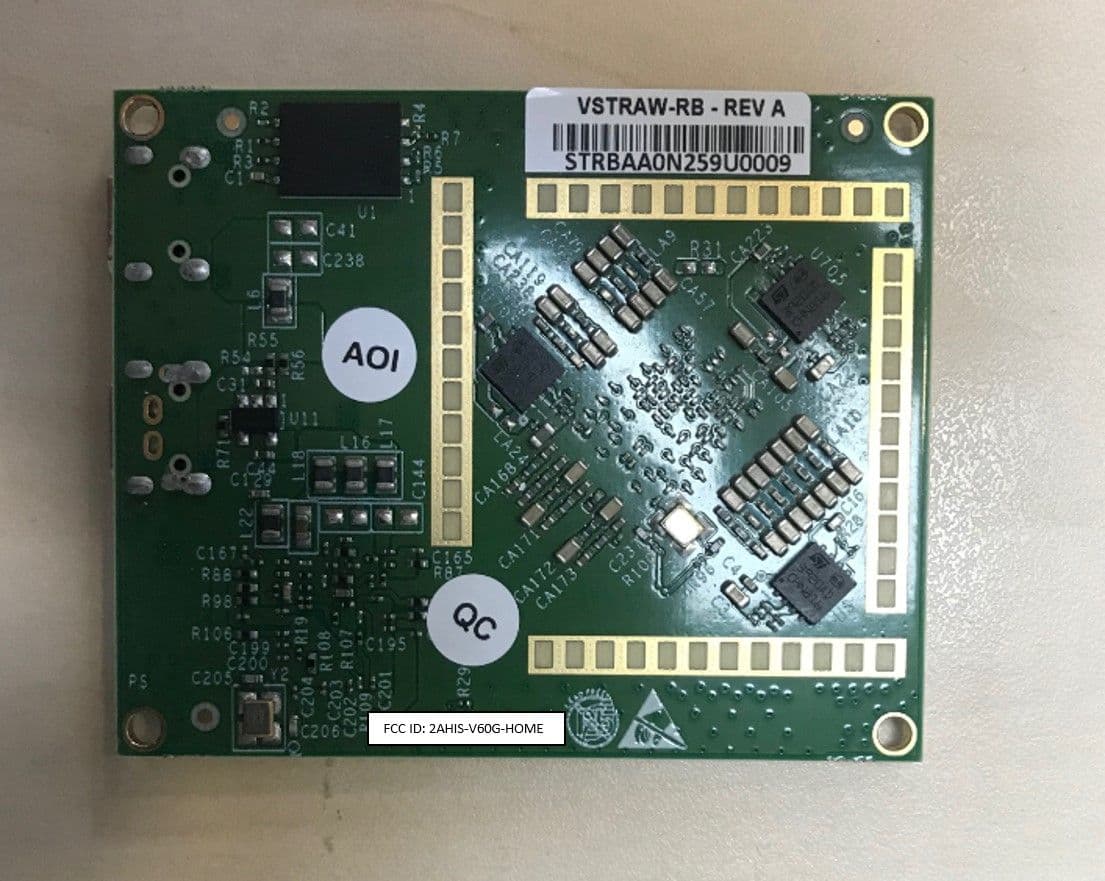

2AHIS-V60G-HOME-IShort-range mm-wave sensor

V60G-HOME-I Module User Manual Revision 1.0.5 V60G-HOME-I User Guide Vayyar Confidential Page 2 of 19 Vayyar Imaging Ltd. Web: https://vayyar.com Notice Copyright 2020 Vayyar Imaging Ltd. All rights reserved. This document is the property of Vayyar and all materials and information contained herein are the confidential and proprietary information of Vayyar and are protected by international copyright laws. The copyrights are owned by Vayyar or the original creator of the material. The materials and information contained herein are provided to you for internal information purposes only, and no portion of the materials and information herein may be copied, reproduced, distributed, transmitted, displayed, published, broadcasted or used in any way whatsoever directly or indirectly without the prior written consent of Vayyar or in any case of third party materials, without that third party's consent. This document shall be returned to Vayyar promptly upon request. The materials and information contained herein are provided "AS IS" and Vayyar does not provide any warranties of any kind, whether express or implied, including but not limited to implied warranties of merchantability, fitness for a particular purpose, and non- infringement Revision History Revision Date Author Description 1.0.1 February 2020 1.0.2 March 2020 1.0.3 August 2020 Canada 1.0.4 September 2020 Canada 1.0.5 October 2020 V60G-HOME-I User Guide Vayyar Confidential Page 3 of 19 Table of Contents CHAPTER 1 INTRODUCTION ..................................................................................................... 6 1.1 Release Information Note ....................................................................................................... 6 1.2 Glossary ................................................................................................................................... 7 CHAPTER 2 SYSTEM OVERVIEW ................................................................................................ 8 2.1 System Architecture ................................................................................................................ 8 2.2 Hardware .............................................................................................................................. 10 2.2.1 Sensor Unit Specification .............................................................................................. 11 2.2.2 Digital Interface ............................................................................................................. 12 2.2.3 RF Interface - Antennas ................................................................................................. 13 2.2.4 Electrical Specifications ................................................................................................. 13 2.2.5 Antenna and RF Characteristics .................................................................................... 14 2.3 Software ................................................................................................................................ 15 CHAPTER 3 REGULATORY SECTION ......................................................................................... 16 3.1 Compliance ........................................................................................................................... 16 3.1.1 FCC ................................................................................................................................ 16 3.1.2 IC ................................................................................................................................... 17 3.2 Instructions for the Integrator .............................................................................................. 18 3.2.1 OEM Integrators Notices ............................................................................................... 18 3.2.2 End Product Labeling .................................................................................................... 18 3.2.3 OEM Manual Information that Must be Included ........................................................ 18 3.2.4 RF Exposure Guidance................................................................................................... 19 V60G-HOME-I User Guide Vayyar Confidential Page 4 of 19 List of Figures Figure 1: V60G-HOME-I “EVK” System Architecture............................................................................... 8 Figure 2: V60G-HOME-I “Embedded” System Architecture ................................................................... 9 Figure 3: High-Level Block Diagram – USB-based system ..................................................................... 10 Figure 4: vStraw_CTPB4 Connectivity ................................................................................................... 12 Figure 5: vBLU_OK _CTPB4 connector .................................................................................................. 13 Figure 6: Antenna Positions and Numbering ........................................................................................ 13 Figure 7: V60G-HOME-I Antenna Pattern ............................................................................................. 14 Figure 8: Processing Flow ...................................................................................................................... 15 V60G-HOME-I User Guide Vayyar Confidential Page 5 of 19 List of Tables Table 1: Glossary ..................................................................................................................................... 7 Table 2: Sensor Unit Specification ........................................................................................................ 11 Table 3: Sensor Unit Electrical Specification ......................................................................................... 14 Table 4: Antenna and RF Characteristics .........................…

Text truncated - open the document above for the full version.

Page 1 Models Difference Letter The V60G-HOME-I family will include, but not restricted to, the following members, having the same RF components, antennas type and array, RF layout and stack-up and same transmission profiles within the 57-71GHz and 61-61.5GHz bands - differ only by their DC and digital interfaces: 1. vBLU_OK_CTPB4, vBLU_MW_CTPB4 - SPI interface, 30-pin DC\digital connector (2 types) 2. vStraw_CTPB4_I - USB + SPI interface and connector Summary of the differences between the models: vStraw_CTPB4_I vBLU_OK_CTPB4 vBLU_MW_CTPB4 Interface USB through CYUSB2014 SPI SPI Voltage supply 5V for RF and I/O 5V for RF & Digital 3.3V for external I/O 5V for RF & Digital 3.3V for external I/O Connector uUSB OK-06F030-04 2BBDVM-F-30pin Other models mentioned in the test reports: 1. vStraw_CTPB4 – the same hardware version as vStraw_CTPB4_I. 2. vStarw_CTPB2 – an older hardware version, pertaining to a previously certified FCC-ID, not certified under the current FCC-ID (see FCC-ID : 2AHIS-V60G-HOME). The model differs from vStarw_CTPB4 by a minor modification. The models are equivalent in terms of their RF characteristics, as tuned by calibration procedure and validated by the testing.

Date 2020-10-14 TUV SUD America Inc. 10 Centennial Drive Peabody, MA 01960, USA Dear Sir or Madam, We, Vayyar Imaging Ltd, hereby authorize Mark Popov of Vayyar Imaging Ltd, 26 Shabazi, Yehud, Israel and Marlene Sealey of TUV SUD America, 10040 Mesa Rim Road, San Diego, CA 92121 to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Yours sincerely, Name: Naftali Chayat Title: CTO

TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 September 01, 2020 TUV SUD America CB 10 Centennial Drive FL2 Peabody, MA 01960 Attention: Director of Certification RE: Exemption from the RF Exposure Evaluation Requirement per ET Docket Nos. 03–137 and 13–84, FCC 19–126; FRS 16453 Human Exposure to Radiofrequency Electromagnetic Fields and Reassessment of FCC Radiofrequency Exposure Limits and Policies (Effective June 01, 2020). FCC ID: 2AHIS-V60G-HOME-I The EUT having an ERP of 285.76 mW complies with the MPE based exemption for transmitters operating from 300 kHz up to 100 GHz. The ERP threshold is from Table 2 of the controlling document. The EUT complies with all the requirements of this exemption criteria: Requirements Criteria EUT RF Source Single RF source Single RF source with multiple transmitting ports (antenna array) Intended Separation Distance ≥ λ/2π λ/2π = 0.078 cm @ 61GHz. EUT intended operation is separated > 0.078 cm. Threshold ERP 19.2R 2 24.56 dBm ERP or 285.76 mW. EUT complieswith the 768 mW ERP Threshold (@ 20 cm separation distance) under MPE based exemptions Minimum Separation Distance 19.2R 2 Solving for R using EUT ERP of 285.76 mW we get 0.122 meter. Separation distance between the EUT and the user should be maintained >12.2cm at all times. Sincerely, Ferdie S. Custodio Name Authorized Signatory Title: Senior EMC/Wireless Test Engineer

TÜV SÜD America, Inc. 10040 Mesa Rim Road San Diego, CA 92121-2912 TÜV SÜD America, Inc. Rancho Bernardo Facility 16936 Via Del Campo San Diego, CA 92127 Phone: 858 678 1400 www.tuv-sud-america.com TÜV SÜD RESPONSIBLE FOR NAME DATE SIGNATURE Authorized Signatory Ferdinand S. Custodio January 03, 2021 Signatures in this approval box have checked this document in line with the requirements of TÜV SÜD document control rules. EXECUTIVE SUMMARY A sample of this product was tested and found to be in compliance with FCC Part 15 Subpart C §15.255. Radio Testing of the Vayyar Imaging LTD 60GHz fixed field-disturbance sensor or a short- range device for interactive-motion sensing Models: vStraw_CTPB2, vStraw_CTPB4 and vStraw_CTPB4_I In accordance with FCC Part 15 Subpart C §15.255 Prepared for: Vayyar Imaging LTD 3 Avramham Giron Yehud TA 5621717 COMMERCIAL-IN-CONFIDENCE Date: December 2020 Document Number: 72164880 | Version Number: 01 A2LA Cert. No. 2955.13 DISCLAIMER AND COPYRIGHT This report has been prepared by TÜV SÜD America with all reasonable skill and care. The document is confidential to the potential Client and TÜV SÜD America. No part of this document may be reproduced without the prior written approval of TÜV SÜD America. ACCREDITATION Our A2LA Accreditation does not cover opinions and interpretations and any expressed are outside the scope of our A2LA Accreditation. FCC ID: 2AHIS-V60G-HOME-I Report No. 72164880 COMMERCIAL-IN-CONFIDENCE Page 2 of 97 REPORT ON TEST REPORT NUMBER TEST REPORT DATE Radio Testing of the Vayyar Imaging LTD Models: vStraw_CTPB2, vStraw_CTPB4 and vStraw_CTPB4_I 60GHz fixed field-disturbance sensor or a short-range device for interactive-motion sensing 72164880 December 2020 PREPARED FOR Vayyar Imaging LTD 3 Avramham Giron Yehud TA 5621717 CONTACT PERSON Naftali Chayat Chief Technology Officer [email protected] +972-544-225549 PREPARED BY Alex Chang Name Authorized Signatory Title: Senior EMC/RF Wireless Test Engineer APPROVED BY Ferdinand S. Custodio Name Authorized Signatory Title: Senior EMC Test Engineer / Wireless Team Lead DATED January 03, 2021 FCC ID: 2AHIS-V60G-HOME-I Report No. 72164880 COMMERCIAL-IN-CONFIDENCE Page 3 of 97 Revision History 72164880 Vayyar Imaging LTD Models: vStraw_CTPB2, vStraw_CTPB4 and vStraw_CTPB4_I 60GHz fixed field-disturbance sensor or a short-range device for interactive-motion sensing DATE OLD REVISION NEW REVISION/ISSUE NUMBER REASON PAGES AFFECTED APPROVED BY 01/03/2021 ― Initial Release Ferdinand Custodio FCC ID: 2AHIS-V60G-HOME-I Report No. 72164880 COMMERCIAL-IN-CONFIDENCE Page 4 of 97 CONTENTS 1 REPORT SUMMARY ................................................................................................................... 5 1.1 Introduction ................................................................................................................................... 6 1.2 Brief Summary Of Results ............................................................................................................ 7 1.3 Product Information ...................................................................................................................... 8 1.4 EUT Test Configuration .............................................................................................................. 10 1.5 Deviations From The Standard ................................................................................................... 12 1.6 Modification Record .................................................................................................................... 12 1.7 Test Methodology ....................................................................................................................... 12 1.8 Test Facility Location .................................................................................................................. 12 1.9 Test Facility Registration ............................................................................................................ 13 2 TEST DETAILS .......................................................................................................................... 14 2.1 Transmitter Power ...................................................................................................................... 15 2.2 Conducted Emissions ................................................................................................................. 26 2.3 Frequency Stability ..................................................................................................................... 32 2.4 Occupied Bandwidth ................................................................................................................... 36 2.5 Field Strength Of Spurious Radiation ......................................................................................... 39 3 TEST EQUIPMENT USED ......................................................................................................... 81 3.1 Test Equipment Used (vStraw_CTPB2) ..................................................................................... 82 3.2 Test Equipment Used (vStraw_CTPB4) ..................................................................................... 84 3.3 Test Equipment Used (vStraw_CTPB4_I) .................................................................................. 86 3.4 Measurement Uncertainty .......................................................................................................... 88 4 DIAGRAM OF TEST SETUP ..................................................................................................... 91 4.1 Test Setup Diagram .................................................................................................................... 92 5 ACCREDITATION, DISCLAIMERS AND COPYRIGHT ............................................................ 96 5.1 Accreditation, Disclaimers And Copyright ..................................…

Text truncated - open the document above for the full version.

FCC ID 2AHIS-V60G-HOME-I AC Conducted Emissions Test Setup Radiated Emissions Test Setup (below 30MHz) Radiated Emissions Test Setup (30MHz to 1GHz) Radiated Emissions Test Setup (1GHz to 18GHz) Radiated Emissions Test Setup (Above 18GHz @ 3 meters) Radiated Emissions Test Setup (Above 1GHz @ <3 meters) Substitution Method for V Band Frequency Stability Test Setup
