2AHJO-NX669J

Nubia Technology Co., Ltd.

5G Mobile Phone (5G NR/LTE/WCDMA/CDMA/GSM/BT/WiFi/NFC)

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Mar 14, 2021
Application Purpose: Original Equipment
Date of Application: Mar 12, 2021
Equipment Note: 5G Mobile Phone (5G NR/LTE/WCDMA/CDMA/GSM/BT/WiFi/NFC)
Frequency Range: 2506.02000000 - 2679.99000000
Company: Nubia Technology Co., Ltd.
Country: China

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

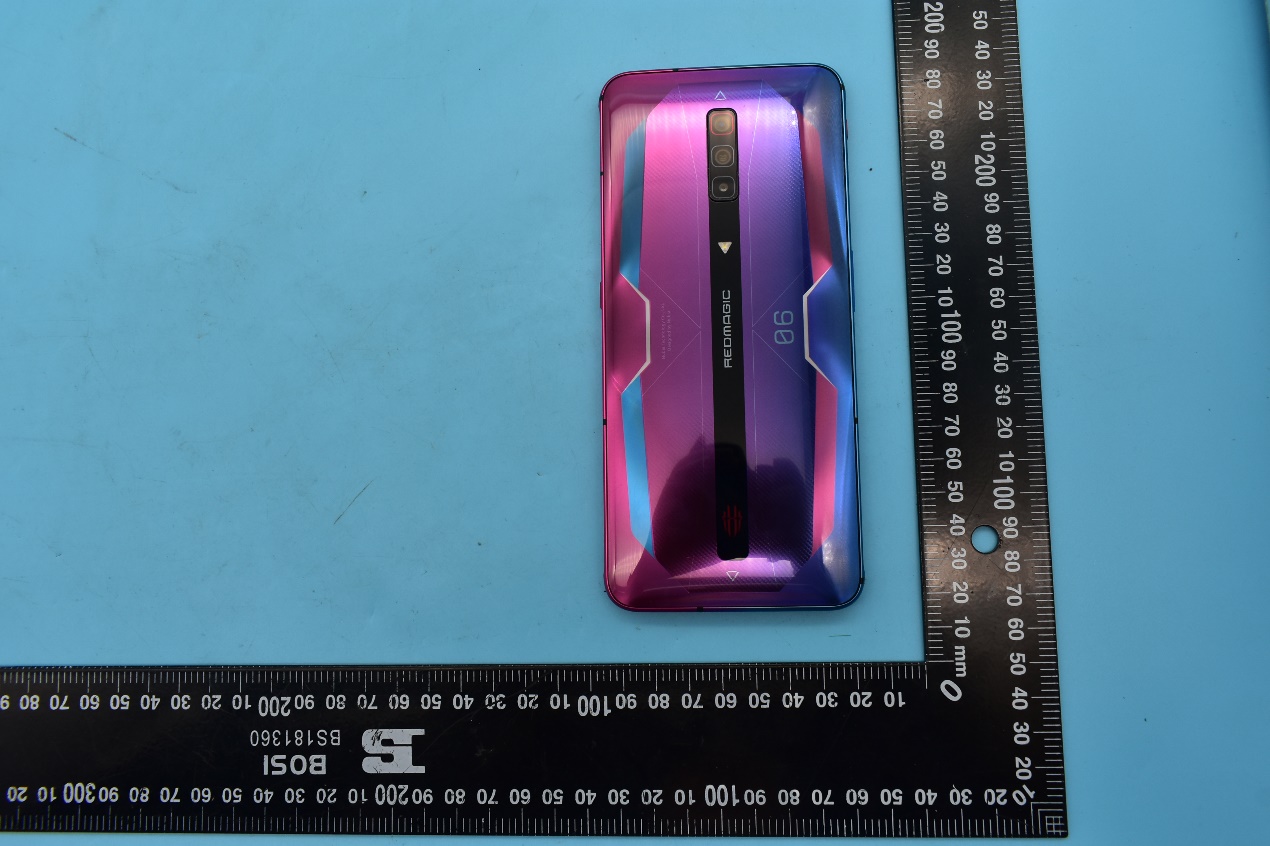

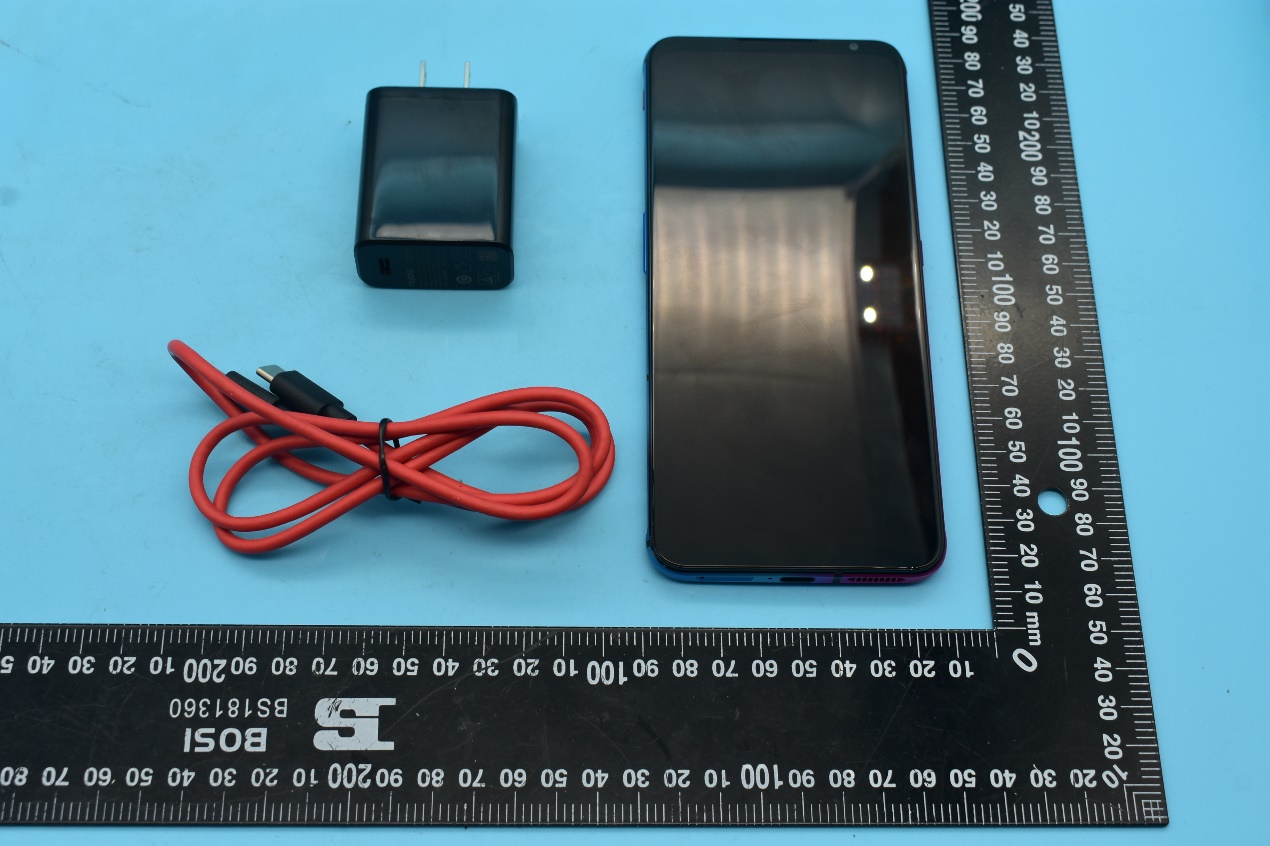

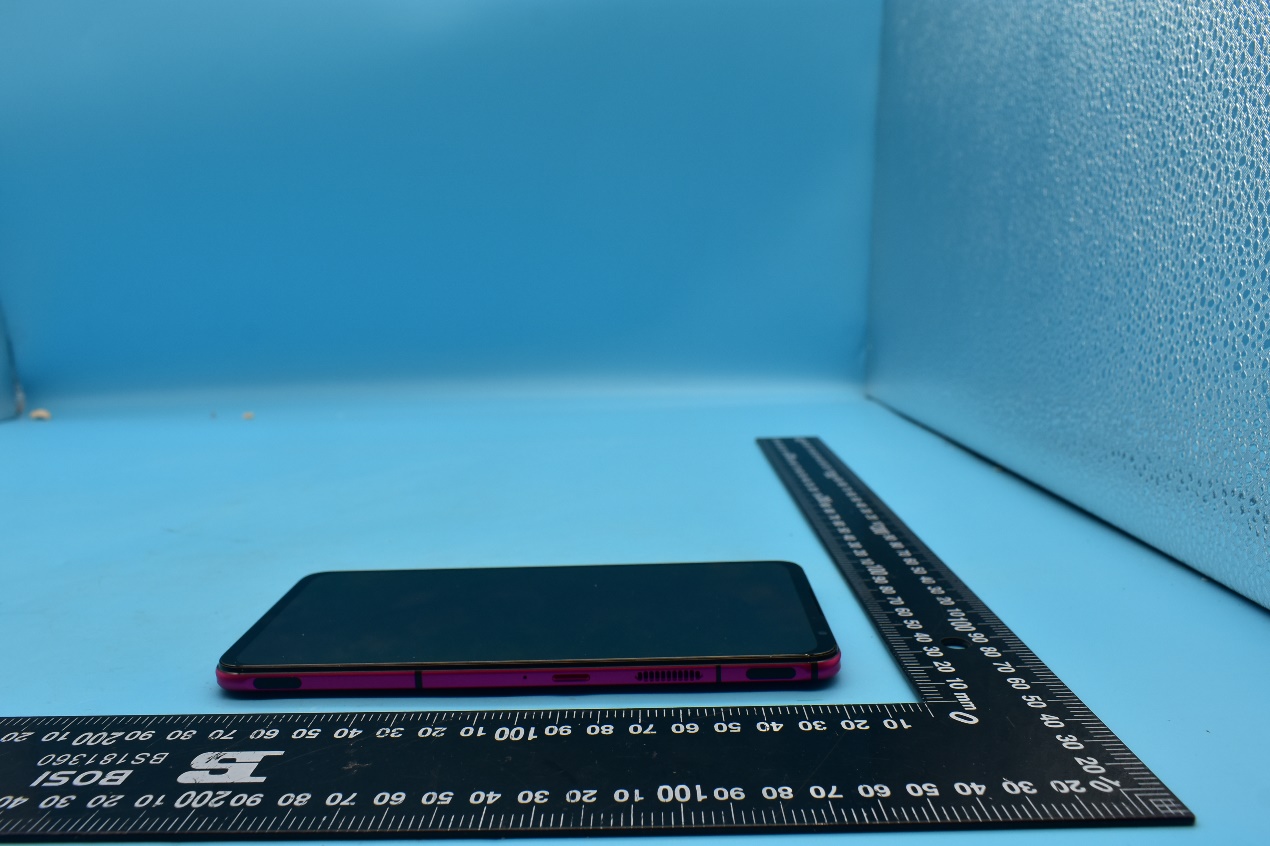

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
41	27	2.51 GHz - 2.68 GHz	245.00 mW	98M3W7D	0.025 ppm

Confidentiality

Long Term

Grant Notes

Output power listed are maximum ERP for GSM 850, WCDMA Band 5, LTE (QPSK, 16QAM, 64QAM) Band 5/12/17/18/19/26 Output power listed are maximum EIRP for GSM 1900, WCDMA Band 2/4, LTE (QPSK, 16QAM, 64QAM) Band 2/4/7/38/40/66, and 5G NR Band n41. 5G NR operation mode includes Standalone and Non-standalone. Modulation: CP-OFDM QPSK, 16QAM, 64QAM, 256QAM and DFT-s-OFDM PI/2 BPSK, QPSK, 16QAM, 64QAM, 256QAM) This device contains functions that are not operational in U.S. Territories; this filing is only applicable for U.S. operations. This device has integrated DXX, DSS, DTS, NII and PCE transmitters certified under the same FCC ID. SAR compliance for body-worn operating configurations is limited to the belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.0 cm separation between the device and the user's body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR values for head, body-worn accessory, hotspot and simultaneous transmission use conditions are 0.81 W/kg, 0.68 W/kg, 1.01 W/kg and 1.55 W/kg, respectively.
