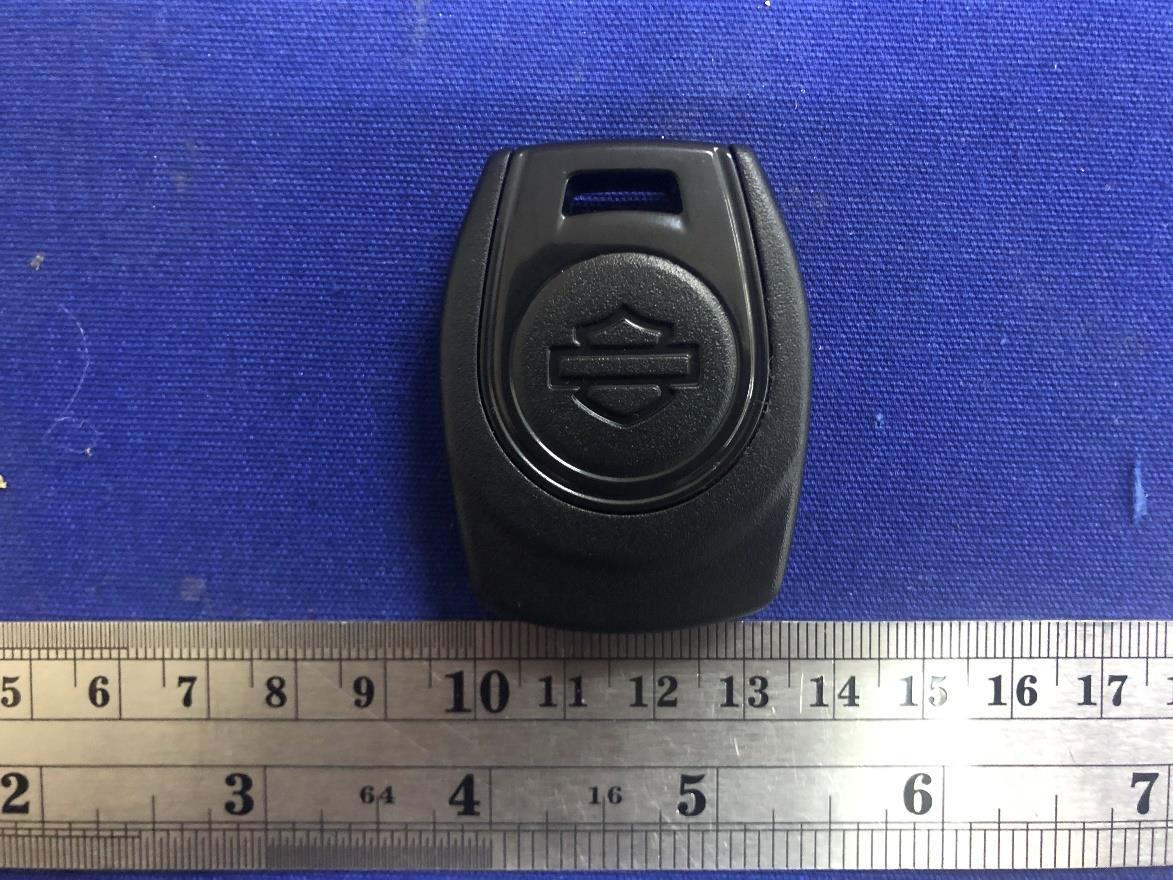

2AHJZ-LM43FSecurity System Fob

RF Certification Owner’s Manual 903xxxxx May 18, 2020 SECURITY SYSTEM Components The security system consists of a control module, a hands-free antenna mounted on the motorcycle and a hands-free fob carried by the rider. The vehicle shall provide Audible and Visual notification for Armed and Audible notification when the security is Disarmed. See SECURITY SYSTEM, Arming and Disarming. Options See a Harley-Davidson dealer or www.harley-davidson.com for security system options. SECURITY STATUS INDICATOR • Armed: The turn signals will flash simultaneously to indicate the system has been armed • Disarmed: When the system disarms, the siren chirps once (if the vehicle is chirp enabled) • Warning: There will be two sequences of flashes occurring four seconds apart in a warning or alarm state. The system is still armed. • Alarm: There will be a continuous sequence of flashes occurring two seconds apart when the system is in alarm state. • Service: See a Harley-Davidson dealer if the lamp remains lit continuously. Figure 1 Odometer Window ARMING AND DISARMING Armed When the motorcycle is parked, motionless and the ignition switch set to OFF, the security system arms automatically after about 5 seconds. Whether the fob is present or not, the system will arm. On arming, the turn signals flash twice and the siren (if equipped and in chirp mode) chirps twice. While armed. Disarmed Fob: An armed security system is automatically disarmed when RF Certification Owner’s Manual 903xxxxx May 18, 2020 the fob is present, and the ignition switch is set to IGNITION. NOTE Movement like lifting the motorcycle off of its jiffy stand or a NO FOB condition, will cause the system to electronically seek the presence of the fob. If the fob is present, the system disarms. See OPERATION, Instruments. When the system disarms, the siren (if equipped and in chirp mode) chirps once. . Once disarmed, the rider can ride or move the motorcycle for parking, storage or service without setting off the alarm. Personal Identification Number (PIN): If the fob is misplaced or if the fob fails to communicate, the system can be disarmed with the Personal Identification Number (PIN). Refer to SECURITY SYSTEM, Personal Identification Number (PIN). ALARM Warnings Once armed if the motorcycle is moved or lifted off of its jiffy stand and the fob is not present, the alarm will warn the operator with two sequence of three alternate flashes of the turn signals and a chirp of the siren (if equipped). Within four seconds, if the motorcycle is back on its jiffy stand and no further motion is detected, the system will remain armed without activating the alarm. If the motorcycle motion continues, the system will issue a second warning a few seconds after the first. NOTE During warnings and alarms, the starter motor and the ignition circuits remain disabled. Alarm Activation If the security system is still detecting motion after a second warning, the system will activate the alarm. When activated, the security system will: • Alternately flash the four turn signals. • Sound the siren (if equipped). Duration: If motorcycle motion is detected the system will repeat the 30 second alarm and will continue to check for motion. The alarm will repeat this 30 second alarm cycle for 5 minutes (10 cycles) or until no more motion is detected. The alarm will then deactivate. NOTE The alarm will also activate the LED, vibration or audible modes of an optionally purchased Harley-Davidson Security Pager. See a Harley-Davidson dealer for details. Alarm Deactivation Key fob: Bring the fob to the motorcycle. After the module identifies that the fob is present, the system will terminate the alarm. PERSONAL IDENTIFICATION NUMBER (PIN) If the fob is misplaced or fails, a personal identification number (PIN) can disarm the security system. The dealership assigns the initial PIN. Disarming with a PIN NOTE If a mistake is made while entering the PIN, turn ignition OFF RF Certification Owner’s Manual 903xxxxx May 18, 2020 then back to IGNITION before another attempt. 1. See Figure 8. To enter the PIN, turn the ignition switch to IGNITION. The odometer window displays ENTER PIN. 2. Press and release the left turn signal. The first digit space flashes. 3. Input five digits of the PIN. a. Increment the digit by tapping the left turn signal until the odometer window displays the first digit of the PIN. b. Press right turn switch 1 time to move to the second digit. c. Repeat until all five digits of the PIN have been entered. NOTES • If the digit cycles past 9, the digit starts over at 1. • If any of the digits do not match assigned PIN, the security system is activated. 4. The vehicle is disarmed and ready to start. Security Changing the PIN The dealership sets a temporary PIN when they are setting up the motorcycle for delivery. The owner can change the PIN at any time. 1. Select a five-digit number (1-9, no zeros). 2. With an assigned fob present, cycle to the ENTER PIN prompt in the odometer window. a. See Figure 8. Cycle the ignition switch twice: IGNITION-OFF-IGNITION-OFF-IGNITION. b. Press and release the left turn signal switch two times. (ENTER PIN will scroll through the odometer window) c. Press right turn signal switch one time and release (Turn signals will flash three times. Current PIN will appear in odometer. The first digit will be flashing.) d. Enter first digit of new PIN by pressing and releasing the left turn signal switch until the selected digit appears. e. Press right turn signal switch one time and release (the new digit will replace the current in the odometer window f. Repeat until all five digits have been entered 3. Turn the OFF/RUN switch OFF, then turn the ignition switch to OFF. FCC REGULATIONS: KEY FOB This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may…

Text truncated - open the document above for the full version.

16055 N Dial Blvd Suite 10B Scottsdale, AZ 85260 Phone: (480) 951-1109 Fax : (480) 951-1157 April 29, 2020 Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement Aritronix LTD Inc. FCC ID: 2AHJZ-LM43F To Whom It May Concern: We, Aritronix Ltd Inc., hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number 2AHJZ-LM43F under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is April 29, 2020. The Limited Agency Agreement expires on April 29, 2021, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, Avi Sandler President Aritronix, LTD, Inc 16055 N. Dial Blvd #10 Scottsdale, AZ 85260

16055 N Dial Blvd Suite 10B Scottsdale, AZ 85260 Phone: (480) 951-1109 Fax : (480) 951-1157 Attention: Certification reviewer RE: Request for Confidentiality FCC ID: 2AHJZ-LM43F To Whom It May Concern: Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: [Select one or more of items below, as appropriate] Schematics Block Diagrams Operational Description Tune-up Procedure Parts List Internal Photos (see note) Users Manual (see note) Note 1: Internal Photos may be held confidential 1) if the circuit board or internal components are not accessible to users. For example, it is acceptable if the circuit board is enclosed in epoxy. 2) Also, it is acceptable if the device is not accessible to the public, for example, a device mounted on the top of a large tower (or in a fenced enclosure) such that it is only serviceable by professional designated technicians under a Non-Disclosure Agreement (NDA). All sales for these devices must be under a NDA restricting the disclosure of the propriety information, including internal photos. Users Manual may be held confidential only when the manual contains proprietary technical information intended for professional technicians obligated under a NDA. All sales and distribution of the user’s manual must be under a NDA that restricts the disclosure of the information. In the application cover letter requesting permanent confidentiality the following additional description and the NDA exhibit is required: 1. Describe in detail how internal photos and/or users manual information are controlled to prevent them from becoming public or disclosed to unauthorized persons. 2. Describe how public access is restricted for products serviceable by professional designated technicians. 3. A statement that all sales of the non-consumer device will be under a NDA to include third party sales and that the final user of the device is subject to the NDA. 4. Provide an example of the NDA between the grantee and a purchaser. The request for confidentiality must Note 2: For scanning receiver, the schematics, block diagrams, operational description, tune-up procedure, parts list and internal photos are always held permanently confidential. Short-term Confidentiality [Complete this section if short-term confidentiality is requested] Request to withhold from public review for a period of [please enter 1 to 180] days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept short-term confidential for a period above from the date of the grant [Select one or more of items below that are not selected in the list above, as appropriate] Schematics Block diagrams Operational Description Tune-up Procedure Parts List Test Setup Photos External Photos Internal Photos Users Manual Rationale for request for confidentiality: We have invested considerable time and materials in research and development to produce the referenced product. Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Short-term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development. If you have questions or need further information, please contact the undersigned. Sincerely, _________________ Avi Sandler President 4/30/2020

IDNU MBER W ithoutPCBA WithPCBA XX-XXXX/XXXX 1 5.00 7 .5 5. 80 6. 04 1.38 8.87 5. 01 0. 69 5 5. 51 3.72 3.59 AritronixLTD,Inc M odelNumber:LM43F H-DP/N:90300146 FCCID:2AHJZ-LM43F IC:21274-LM43F IFTXXXXXXXXXX-XXXX: CNCID:X-XXXXX System:A2SEC43 XX-XXXX/XXXX 3 0.00 2 0.00 XXXXX-XX-XXXXXXXXXX-XX-XXXXX AritronixLTD,Inc M odelNumber:LM43F H-DP/N:90300146 FCCID:2AHJZ-LM43F IC:21274-LM43F IFTXXXXXXXXXX-XXXX: CNCID:X-XXXXX System:A2SEC43 XX-XXXX/XXXX XXXXX-XX-XXXXXXXXXX-XX-XXXXX XXXXX-XX-XXXXXXXXXX-XX-XXXXX 6. 06 5. 07 1 1.08 1.01 3. 80 6.00 2. 86 6. 78 Unit:mm

INTERTEK TESTING SERVICES RF Exposure The Equipment Under Test (EUT) is a Security System Fob operating at 433.9MHz. The EUT is powered by DC 3V by battery. For more detailed features description, please refer to the user’s manual. Modulation Type: FSK Antenna Type: Integral antenna. Antenna Gain: 0 dBi Max The nominal conducted output power specified: -25dBm (+/-3dB). The nominal radiated output power (e.i.r.p) specified: -25dBm (+/- 3dB) According to the KDB 447498: The maximum peak radiated emission for the EUT is 72.4dBμV/m at 3m in the frequency 433.9MHz. The EIRP = [(FS*D) ^2 / 30] mW = -22.83dBm which is within the production variation. The maximun conducted output power specified is -22dBm = 0.0063mW The source- based time-averaging conducted output power = 0.0063 * Duty factor mW (where Duty Factor≤1) = 0.0063 mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (0.4339) mW = 22.77 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: 2AHJZ-LM43F

Aritronix Ltd Inc. TEST REPORT SCOPE OF WORK FCC TESTING–LM43F REPORT NUMBER 200330015SZN-001 ISSUE DATE [REVISED DATE] 23 June 2020 [--------------------] PAGES 16 DOCUMENT CONTROL NUMBER FCC ID 231_a © 2017 INTERTEK Intertek Report No.: 200330015SZN-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Service Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 16 FCC ID 231_a TEST REPORT 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 www.intertek.com Aritronix Ltd Inc. Application For Certification FCC ID: 2AHJZ-LM43F Security System Fob Model: LM43F Transmitter Report No.: 200330015SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-19] Prepared and Checked by: Approved by: Jeff Liang Kidd Yang Engineer Technical Supervisor Date: 23 June 2020 Intertek Report No.: 200330015SZN-001 Version: 01-November-2017 Page: 2 of 16 FCC ID 231_a TEST REPORT MEASUREMENT/TECHNICAL REPORT This report concerns (check one) Original Grant X Class II Change Equipment Type: DSC - Part 15 Security Remote Control Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-01-19] Edition] provision. Report prepared by: Jeff Liang Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen, P.R. China Tel: (86 755) 8614 0651 Fax: (86 755) 8601 6751 Intertek Report No.: 200330015SZN-001 Version: 01-November-2017 Page: 3 of 16 FCC ID 231_a TEST REPORT Table of Contents 1.0 Summary of Test results .................................................................................................................. 4 2.0 General Description .......................................................................................................................... 5 2.1 Product Description ......................................................................................................................... 5 2.2 Related Submittal(s) Grants ............................................................................................................ 5 2.3 Test Methodology ........................................................................................................................... 5 2.4 Test Facility ..................................................................................................................................... 5 3.0 System Test Configuration .............................................................................................................. 6 3.1 Justification ..................................................................................................................................... 6 3.2 EUT Exercising Software ................................................................................................................ 6 3.3 Special Accessories ........................................................................................................................ 6 3.4 Measurement Uncertainty ............................................................................................................... 6 3.5 Equipment Modification ................................................................................................................... 6 3.6 Support Equipment List and Description ....................................................................................... 7 4.0 Measurement Results ....................................................................................................................... 8 4.1 Field Strength Calculation ............................................................................................................... 8 4.2 Radiated Emission Configuration Photograph ................................................................................. 9 4.3 Radiated Spurious Emission ........................................................................................................... 9 5.0 Equipment Photographs ................................................................................................................ 11 6.0 Product Labelling ........................................................................................................................... 11 7.0 Technical Specifications ................................................................................................................ 11 8.0 Instructi…
