2AHN6-AUBE209TWS STICK iPX4 TCH XT-49

cover i~ 0 Bluetooth® XT-49 TRUE WIRELESS EAR BUDS Package Contents: • XT-49 True Wireless Earbuds • Charging Travel Case • 8 Ear Cushions in 3 sizes (2 Small, 2 Large, 4 Medium) • USB Charging Cable • Instruction Manual Specifications: Bluetooth® Version: 5.0 Working distance: 33 ft Charge Connector: USB-C Speaker Size: ©6 mm Frequency Response: 20Hz -20kHz Sensitivity: 95dB Charging voltage: DC5V, 1A Case Battery: 400 mAh Case Charge time: 1 hrs Earbuds Battery: 2 x 50 mAh Earbuds Charge time: 1 hrs pages 1 & 2 pages 5 & 6 Troubleshootings Earbuds do not sync with each other: 1. Place the earbuds in the case, then take out the earbuds, ensuring both earbuds are turned on. 2. On each earbud, press and hold the control surface for 5 seconds. The earbud will turn off after the LED flashes red 3 times. 3. Replace the earbuds in the charging case. 4. Repeat the Getting Started process. Earbuds do not pair to device: 1. Turn the Earbuds OFF by pressing the control surface on each earbud until the LED blinks red, and then turns off. 2. Replace the earbuds in the case. Turn your device's Bluetooth® OFF and then back ON. Then repeat the pairing process. Charging 1. Replace the earbuds in the case. 2. Connect the USB-C charging cable to the charging port on the back of the case. 3. Plug the cable into a standard USB SV/lA or higher power output. When you plug the case into a charging mechanism, the LED case display will show the battery blocks filling. This means the case battery is being charged. While this is happening the lights on the buds inside the case will be off. The charge display will stop blinking when fully charged and shut off if the case is unplugged from the power source. 4. When fully charged, unplug the charging cable from the power source. If want to charge the earbuds from the charge case internal battery, simply replace them in the case. The charge display on the top of the case turns on, showing the internal charge available. XT-49 User Manual vl 092420 Charge Operation Guide Control Surface Indicator LED Charge Contacts Ear Sensor Cushion • • Case Charge Display USB-C Case Charge Port ~~~~~~~~~----<~ pages 3 & 4 Getting Started Before using this device, fully charge it. Charging instructions can be found on page 6. Open the charging case and take out the earbuds. Both LED lights will flash red and blue until one of the earbuds flashes red and blue, while the other earbud flashes blue indicating that the right and left earbuds have synced to each other. Pairing 1. Go to Bluetooth® Settings on your mobile device. 2. Turn Bluetooth® ON, on your device. 3. On your Bluetooth® device, select "iHome XT-49" from the list of available devices. 4. The earbud indicator LEDs will flash blue to indicate they are connected. Ear Sensor The ear sensor will pause the audio playing when the earbuds are removed from your ears. pages 7 & 8 Warnings • Do not use this unit for anything other than its intended use. • Do not puncture, throw, drop, bend, or modify this product. • Do not throw this product into fire or water. • Do not short-curcuit the battery with any metal or metallic objects. • Do not expose this product to corrosive liquids such as salt water. • Do not operate the unit if it has been wet or moist to prevent against electric shock and/or injury to yourself and damage to the unit. • Do not allow children to play with this product as it is not a toy, and may present a choking hazard. • Avoid leaving your device in direct sunlight, such as on the dashboard, console, or seat of a vehicle. • Do not leave your device, or use your device, in any area where the temperature is likely to drop below 32°F, or may exceed 140°F, such as inside a closed vehicle on a hot day. • Repairs to electrical equipment should only be performed by a qualified electrician. Improper repairs may place the user at serious risk. • Protect your hearing by always listening at a safe level. Prolonged use at elevated volumes may affect your hearing capacity and could result in hearing loss. • Use the earbuds with this charging case only. • To avoid damage to the charging case, please only use a USB SV/lA or higher charger. • In order to ensure the battery life, charge normally at least once a month. FCC FCC ID: 2AHN6-AUBE209 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved could void the user's authority to operate the equipment. Black ink only, thin glossy paper, staple saddle bound, 5 sheets front & back Basic Functions Right Earbud: • Double tap the control surface to play or pause the audio. • Tap and hold to skip to the next audio track. • Single tap to raise the volume…

Text truncated - open the document above for the full version.

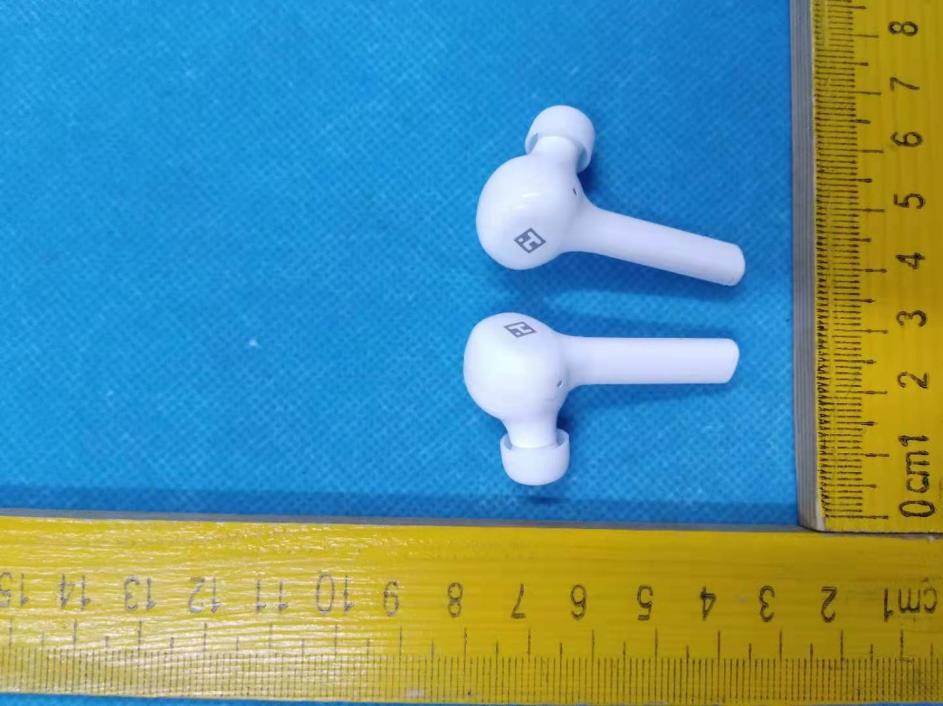

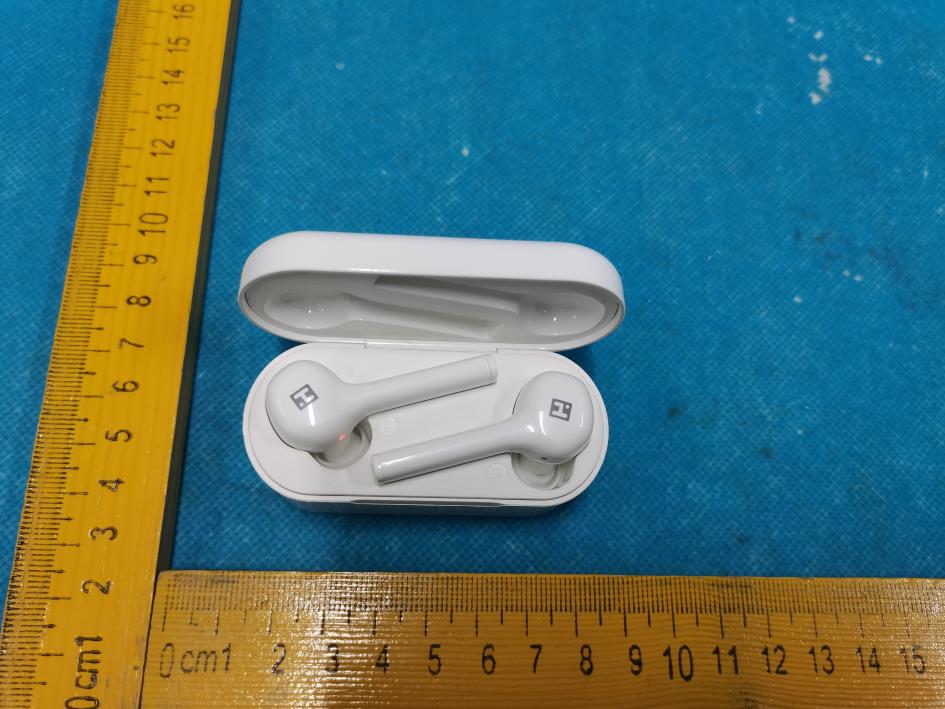

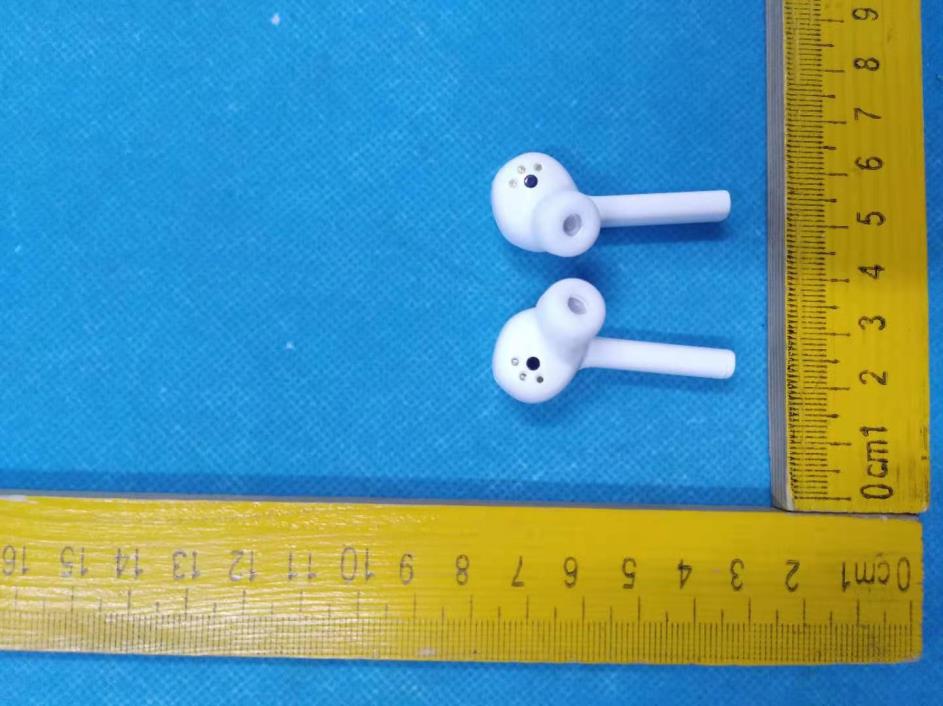

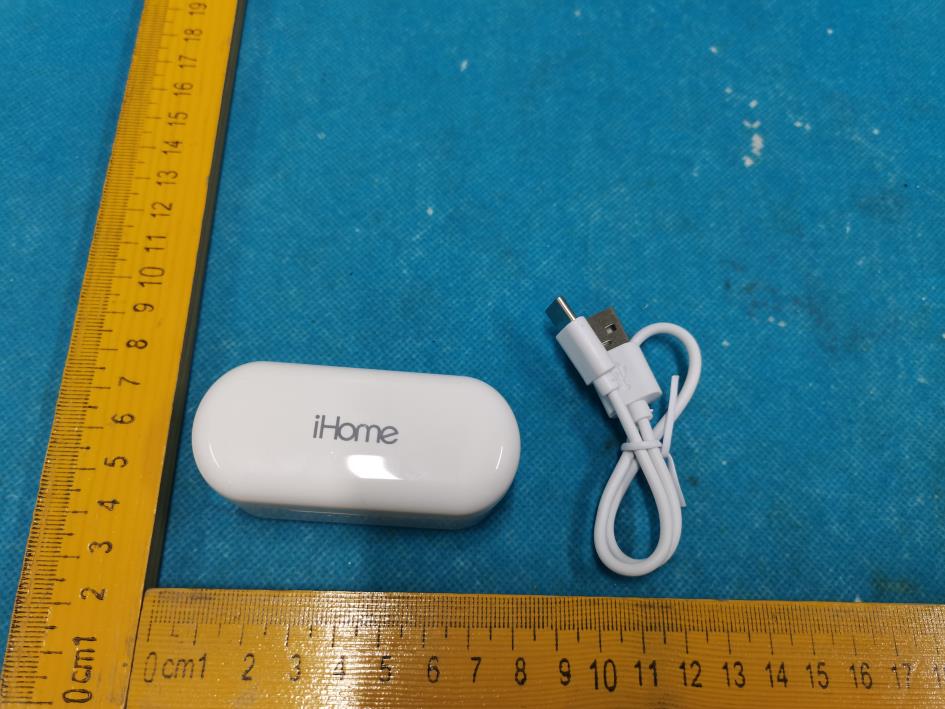

Report No.: EC2010033RF03 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 www.hn-ecloud.com Page 25 of 39 Appendix B. Photographs of EUT External Photographs Report No.: EC2010033RF03 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 www.hn-ecloud.com Page 26 of 39 Report No.: EC2010033RF03 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 www.hn-ecloud.com Page 27 of 39 Report No.: EC2010033RF03 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 www.hn-ecloud.com Page 28 of 39 Report No.: EC2010033RF03 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 www.hn-ecloud.com Page 29 of 39 Report No.: EC2010033RF03 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 www.hn-ecloud.com Page 30 of 39 Report No.: EC2010033RF03 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 www.hn-ecloud.com Page 31 of 39

The sample is too small to be placed on the label, so it is placed in the User manual

Report No.: EC2010033RF03 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 www.hn-ecloud.com Page 29 of 36 Internal Photographs Report No.: EC2010033RF03 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 www.hn-ecloud.com Page 30 of 36 Report No.: EC2010033RF03 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 www.hn-ecloud.com Page 31 of 36 Report No.: EC2010033RF03 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 www.hn-ecloud.com Page 32 of 36 Report No.: EC2010033RF03 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 www.hn-ecloud.com Page 33 of 36 Report No.: EC2010033RF03 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 www.hn-ecloud.com Page 34 of 36 Report No.: EC2010033RF03 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 www.hn-ecloud.com Page 35 of 36 Bluetooth Antenna Report No.: EC2010033RF03 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 www.hn-ecloud.com Page 36 of 36 --------------------------------------------------------End of the report--------------------------------------------------------

FCC ID: 2AHN6-AUBE209 FCC RF Exposure Evaluation Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Portable device Refer Standard: KDB 447498 D01 General RF Exposure Guidance v06 FCC Part 2 §2.1093 Evaluation method According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Conducted Power Results & Manufacturing tolerance Specification Operating Mode Conducted Peak Output Power (dBm) Target (dBm) Tolerance ±(dB) BLE GFKS -4.29 -4 1 BT+EDR GFKS -2.16 -2 1 π/4DQPSK -1.56 -1 1 FCC ID: 2AHN6-AUBE209 Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power Evaluation Result SAR Test Exclusion Threshold SAR Test dBm mW Exclusion BLE 2.402 5 -3 0.50 0.16 3 Yes BT+EDR GFKS 2.402 5 -1 0.79 0.25 3 Yes BT+EDR π/4DQPSK 2.402 5 0 1.00 0.31 3 Yes Remark: 1. Output power including tune up tolerance; 2. The maximum 2.4G antenna gain is 1.24dBi 3. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06. --------------------------------------------------------End of the report--------------------------------------------------------

FCC RF Test Report For Bytech NY Inc. Test Standards: Part 15C Subpart C §15.247 Product Name: TWS STICK iPX4 TCH XT-49 Tested Model: HM-AU-BE-209 XT-49 FCC ID: 2AHN6-AUBE209 Classification (DTS) Digital Transmission System Report No.: EC2010033RF01 Tested Date: 2020-10-29 to 2020-11-13 Issued Date: 2020-11-13 Prepared By: Jerry Wang / Engineer Approved By: Tiny Yang / RF Manager Hunan Ecloud Testing Technology Co., Ltd. Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Liuyang Economic and Technological Development Zone, Hunan, P.R.C Tel.: +86-731-89634887 Fax.: +86-731-89634887 www.hn-ecloud.com Note: The test results in this report apply exclusively to the tested model / sample. Without written approval of Hunan Ecloud Testing Technology Co., Ltd., the test report shall not be reproduced except in full. Report No.: EC2010033RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AHN6-AUBE209 www.hn-ecloud.com Page 2 of 75 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2020.11.13 Valid Original Report Report No.: EC2010033RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AHN6-AUBE209 www.hn-ecloud.com Page 3 of 75 TABLE OF CONTENTS 1. TEST LABORATORY ................................................................................................................................. 5 1.1 Test facility ......................................................................................................................................... 5 2. GENERAL DESCRIPTION .......................................................................................................................... 6 2.1 Applicant ............................................................................................................................................ 6 2.2 Manufacturer ...................................................................................................................................... 6 2.3 General Description Of EUT .............................................................................................................. 6 2.4 Modification of EUT ........................................................................................................................... 7 2.5 Applicable Standards ......................................................................................................................... 7 3. TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 3.1 Descriptions of Test Mode ................................................................................................................. 8 3.2 Test Mode .......................................................................................................................................... 8 3.3 Support Equipment ............................................................................................................................ 9 3.4 Test Setup ......................................................................................................................................... 9 3.5 Measurement Results Explanation Example ................................................................................... 12 4. TEST RESULT .......................................................................................................................................... 13 4.1 6dB and 99% Bandwidth Measurement .......................................................................................... 13 4.2 Peak Output Power Measurement .................................................................................................. 14 4.3 Power Spectral Density Measurement ............................................................................................ 15 4.4 Conducted Band Edges and Spurious Emission Measurement ..................................................... 16 4.5 Radiated Band Edges and Spurious Emission Measurement ........................................................ 17 4.6 AC Conducted Emission Measurement........................................................................................... 47 4.7 Antenna Requirements .................................................................................................................... 50 5. LIST OF MEASURING EQUIPMENT ........................................................................................................ 51 6. UNCERTAINTY OF EVALUATION ........................................................................................................... 53 APPENDIX A: DTS BANDWIDTH ................................................................................................................... 54 APPENDIX B: OCCUPIED CHANNEL BANDWIDTH .................................................................................... 57 APPENDIX C: MAXIMUM CONDUCTED OUTPUT POWER ......................................................................... 60 APPENDIX D: MAXIMUM POWER SPECTRAL DENSITY ............................................................................ 63 APPENDIX E: BAND EDGE MEASUREMENTS ............................................................................................ 66 APPENDIX F: CONDUCTED SPURIOUS EMISSION .................................................................................... 68 APPENDIX G: SETUP PHOTOGRAPHS ........................................................................................................ 74 Report No.: EC2010033RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2AHN6-AUBE20…

Text truncated - open the document above for the full version.

Report No.: EC2010033RF02 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID: 2AHN6-AUBE209 www.hn-ecloud.com Page 94 of 95 Appendix I. Setup Photographs Fig. 1 Radiated emission setup photo(Below 30MHz) Fig. 2 Radiated emission setup photo(30MHz-1GHz) Report No.: EC2010033RF02 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID: 2AHN6-AUBE209 www.hn-ecloud.com Page 95 of 95 Fig. 3 Radiated emission setup photo(Above 1GHz) Fig. 4 Power line conducted emission setup photo --------------------------------------------------------End of the report--------------------------------------------------------
