2AHN6-AUBE302TWS Touch Earbuds

Bytech NY Inc.
TWS Touch Earbuds - FCC ID 2AHN6-AUBE302 - Bytech NY Inc.
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Jul 07, 2020
Application Purpose
Original Equipment
Date of Application
Jul 07, 2020
Equipment Note
TWS Touch Earbuds
Frequency Range
2402.00000000 - 2480.00000000
Company
Bytech NY Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

cover pages 1 & 2 pages 3 & 4 口au d i o I Bluetooth "' TRUE WIRELESS EARBUDS Package Contents: • True Wireless Earbuds • Charging Travel Case • Micro USB Charging Cable • Instruction Manual Specifications: Bluetoot甲Version:5.0 Working distance: 33 ft Charge Connect or: Micro USB Sensitivity: 105 dB士3 dB Play time: 2-3 hrs Standby time: approx 80 hrs Charging voltage: 5V/1A Case Battery: 300 mAh Case Charge time: 1.5 hrs Charges from case: approx 2.5 Earbuds Battery: 2 x 40 mAh Earbuds Charge time: 士1 hr Operation Guide Indicator LEDs Micro USB Charging Port Reset button Control Surface Indicator LED Getting Started Before using this device, fully charge it. Charging instructions can be found on pa ge 6. Open the charging case and take out the earbuds. Both LED lights will flash red and blue until one of the earbuds flashes red and blue, while the other earbud flashes blue, indicating that the right and left earbuds have synced to each other. Pairing 1. Go to Bluetooth ® Settings on your mobile device. 2. Turn Bluetoot阳ON, on your device. 3. On your Bluetooth ® device, select "iH AUBE302" from the list of available devices. 4. The earbud indicator LEDs will shut off to indicate they are connected. Basic Functions Right Earbud: , Double press the control surface to play or pause the audio. • Press and hold to skip to the next audio track. • Single press to raise the volume. Left Earbud: • Press and hold to skip to the previous audio track. Single press to lower the volume. Phone calls When there is an incoming call, the unit will pause the playback and ring to alert you of the call. Phone call functions work the same on either of the earbuds.* To answer an incoming call, single press the control surface of either earbud. To end a call, double press the control surface. To reject an incoming call, press and hold the control surface. *Volume controls may not work during phone calls with some smartphone models. pages 5 & 6 pages 7 & 8 back 曰 QfJ 中 Troubleshootings Earbuds do not sync with each other: 1. Place the earbuds in the case, then take out the earbuds, ensuring both earbuds are turned on. 2. On each earbud, press and hold the control surface for 5 seconds. The earbud will turn off after the LED flashes purple 3 times. 3. Replace the earbuds in the charging case. 4. Repeat the Getting Started process. Earbuds do not pair to device: 1. Turn the Earbuds OFF by pressing the control surface on each earbud until the LED blinks red, and then turns off. 2. Replace the earbuds in the case. Turn your device's Bluetooth ® OFF and then back ON. Then repeat the pairing process. Charging 1. Replace the earbuds in the case. 2. Connect the Micro USB charging cable to the charging port on the bottom of the case. 3. Plug the cable into a standard USB 5V/1A or higher power output. When you plug the case into a charging mechanism the indicator LEDs on the inside of the case flash. This indicates available case battery charge and means the case battery is being charged. While this is happening the lights on the buds inside the case glow solid red, which indicates they are being charged. When fully charged the case LEDs will glow solid and the earbud LEDs will shut off. 4. When fully charged, unplug the charging cable from the power source. If want to charge the earbuds from the charge case internal battery, simply replace them in the case. The case LEDs will show battery status while charging, the LEDs on the buds will glow solid red. Warnings • Do not use this unit for anything other than its intended use. • Do not puncture, throw, drop, bend, or modify this product. • Do not throw this product into fire or water. • Do not short-curcuit the battery with any metal or metallic objects. • Do not expose this product to corrosive liquids such as salt water. • Do not operate the unit if it has been wet or moist to prevent against electric shock and/or injury to yourself and damage to the unit. • Do not allow children to play with this product as it is not a toy, and may present a choking hazard • Avoid leaving your device in direct sunlight, such as on the dashboard, console, or seat of a vehicle. • Do not leave your device, or use your device, in any area where the temperature is likely to drop below 32 ° F, or may exceed 140 ° F, such as inside a closed vehicle on a hot day. • Repairs to electrical equipment should only be performed by a qualified electrician. Improper repairs may place the user at serious risk. • Protect your hearing by always listening at a safe level. Prolonged use at elevated volumes may affect your hearing capacity and could result in hearing loss. • Use the earbuds with this charging case only. • To avoid damage to the charging case, please only use a USB 5V/1A or higher charger. • In order to ensure the battery life, charge normally at least once a month. FCC FCC ID: 2AHN6-AUBE302 Warranty Bytech NY INC. warrants this product to be materially free from defects and workmanship to the original purchaser for a period of 12 months from the original purchase date. Bytech responsibility with regard to this limited warranty shall be limited solely to repair or replacement at its option, of any product which fails during normal consumer use. This warranty does not extend to damage or failure which results from misuse, neglect, accident, alteration, abuse, improper installation or maintenance. At any time during the 12 months period following the purchase, the product fails due to defects in material or workmanship, return the defective product (with freight prepaid) with proof of purchase. WWW.BYTECHINTL.COM Bytech NY Inc 2585 West 13street Brooklyn NY 11223 (718) 449-3700 CE @J (j e). MADE IN CHINA ©2020 BYTECH NY INC. *All trademarks and copyrights are the property of the respective companies. 旧-AU-BE-302-WTUser Manual v1 052120 Black ink only, thin glossy paper, staple saddle bound, 5 sheets front & back Model:IH-AU-BE-302 FCC STATEMENT : This device complies with Part 15 of the FCC Rules.…

Text truncated - open the document above for the full version.

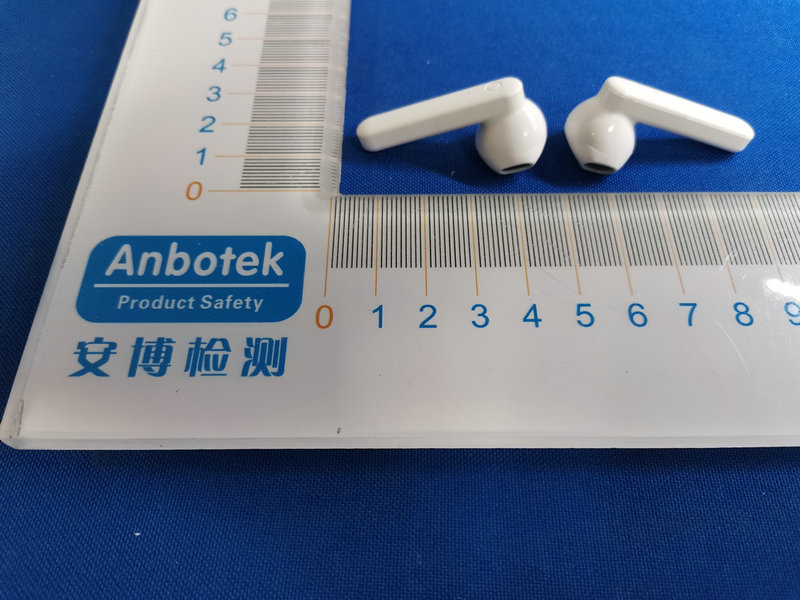

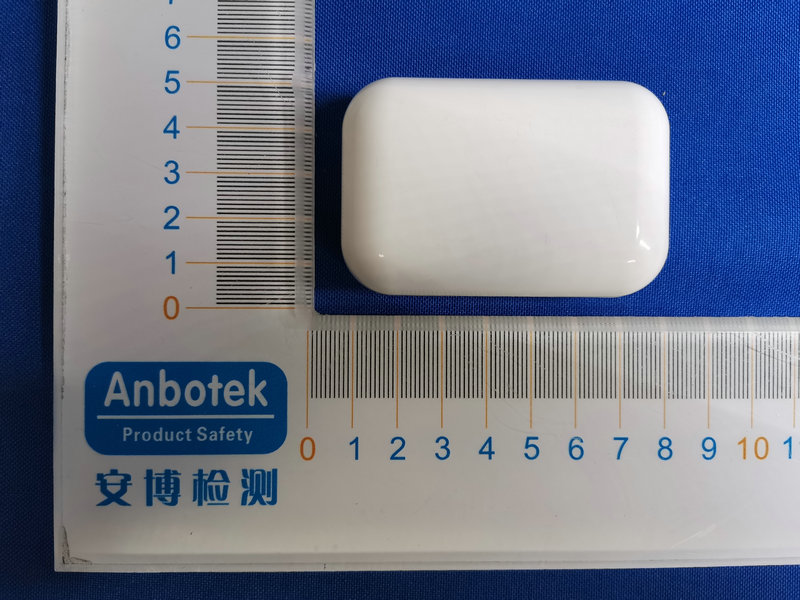

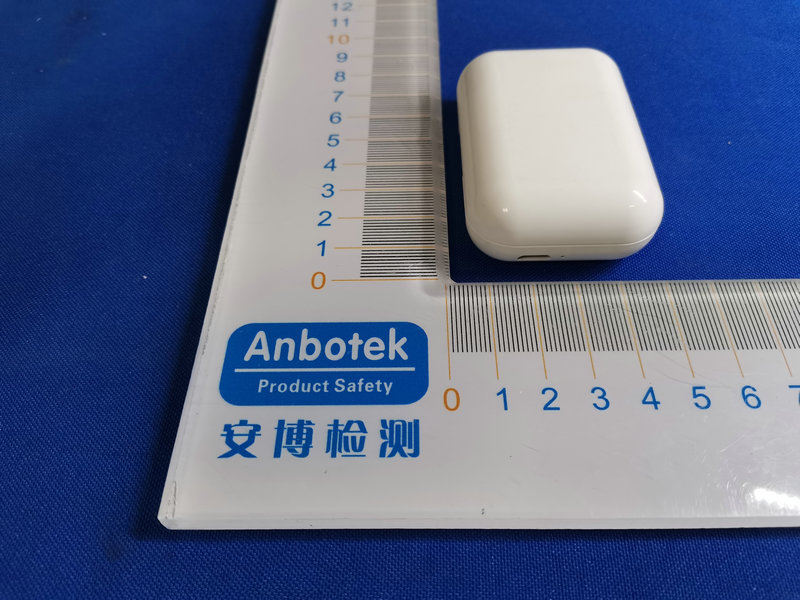

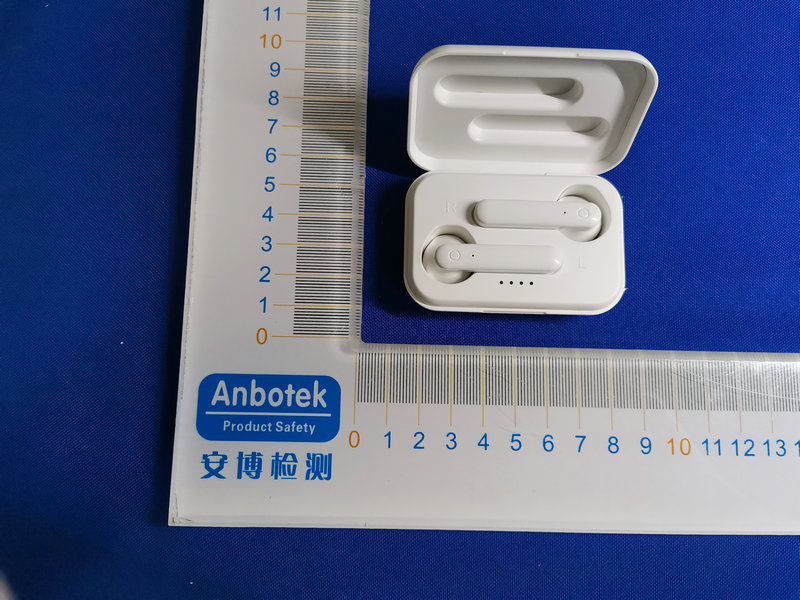

External Photos

FCC ID: 2AHN6-AUBE302

ID Label/Location Info

Label Location On EUT LeftRight Label FCC ID: 2AHN6-AUBE302

Internal Photos

FCC ID: 2AHN6-AUBE302 ANT

Operational Description

version01 Bytech NY Inc. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: IH-AU-BE-302 FCC ID : 2AHN6-AUBE302 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Model No. of antenna: N/A Type of antenna: Ceramic Antenna Gain of the antenna: -0.58 dBi Frequency range: 2402-2480MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Bytech NY Inc. Address: 2585 West 13th Street,Brooklyn NY 11223, United States City:New York ZIP / Postal code: N/A Country:United States Place:United StatesDate: 2020-07-07 Signature:

RF Exposure Info

RF EXPOSURE EVALUATION FCC ID: 2AHN6-AUBE302 According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b): Routine SAR evaluation refers to that specifically required by §2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters withoutput power greater than the applicable low threshold require SAR evaluation to qualify for TCB approval. Channel (MHz) Maximum output power (dBm) Tune up tolerance (dBm) Max Tune Up Power (dBm) Distance (mm) Calculation results Limit Operating Mode 2402-7.348 -7.348±1 -6.34850.0723 BDR+EDR 2441-8.851 -8.851±1-7.85150.0513 2480-9.898 -9.898±1 -8.89850.0413 2402-6.883 -6.883±1 -5.88350.0803 2441-8.364 -8.364±1-7.36450.0573 2480-9.445 -9.445±1 -8.44550.0453 Test Results:PASS.

Test Report

Report No.: 18220WC00076401FCC ID: 2AHN6-AUBE302Page 1 of 67 Code:AB-RF-05-a FCC TEST REPORT Client Name: Bytech NY Inc. Address: 2585 West 13th Street,Brooklyn NY 11223, United States Product Name: TWS Touch Earbuds Date: Jul. 06, 2020 Shenzhen Anbotek Compliance Laboratory Limited Report No.: 18220WC00076401FCC ID: 2AHN6-AUBE302Page 2 of 67 Code:AB-RF-05-a Contents 1. General Information ............................................................................................................................................... 5 1.1. Client Information ....................................................................................................................................... 5 1.2. Description of Device (EUT) ..................................................................................................................... 5 1.3. Auxiliary Equipment Used During Test ................................................................................................... 6 1.4. Description of Test Modes ........................................................................................................................ 6 1.5. List of channels ........................................................................................................................................... 7 1.6. Description Of Test Setup ......................................................................................................................... 8 1.7. Test Equipment List .................................................................................................................................... 9 1.8. Measurement Uncertainty ....................................................................................................................... 10 1.9. Description of Test Facility ...................................................................................................................... 10 2. Summary of Test Results ................................................................................................................................... 11 3. Conducted Emission Test ................................................................................................................................... 12 3.1. Test Standard and Limit .......................................................................................................................... 12 3.2. Test Setup .................................................................................................................................................. 12 3.3. Test Procedure .......................................................................................................................................... 12 3.4. Test Data .................................................................................................................................................... 12 4. Radiation Spurious Emission and Band Edge ................................................................................................ 17 4.1. Test Standard and Limit .......................................................................................................................... 17 4.2. Test Setup .................................................................................................................................................. 17 4.3. Test Procedure .......................................................................................................................................... 18 4.4. Test Data .................................................................................................................................................... 19 5. Maximum Peak Output Power Test .................................................................................................................. 27 5.1. Test Standard and Limit .......................................................................................................................... 27 5.2. Test Setup .................................................................................................................................................. 27 5.3. Test Procedure .......................................................................................................................................... 27 5.4. Test Data .................................................................................................................................................... 27 6. 20DB Occupy Bandwidth Test ........................................................................................................................... 31 6.1. Test Standard ............................................................................................................................................ 31 6.2. Test Setup .................................................................................................................................................. 31 6.3. Test Procedure .......................................................................................................................................... 31 6.4. Test Data .................................................................................................................................................... 31 7. Carrier Frequency Separation Test ................................................................................................................... 35 7.1. Test Standard and Limit .......................................................................................................................... 35 7.2. Test Setup .................................................................................................................................................. 35 7.3. Test Procedure .......................................................................................................................................... 35 7.4. Test Data .....................…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: 2AHN6-AUBE302 Photo of Conducted Emission Measurement Photo of Radiation Emission Test

Contact Information

Applicant

Soli Mizrahi
[email protected]718-449-3700Fax: 718-449-2488

Test Firm

Shenzhen Anbotek Compliance Laboratory LimitedJeff Zhu
[email protected]86-755-26064492Fax: 86-755-26014772

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz210.00 µW
Confidentiality
Long Term
Grant Notes
Power listed is conducted
