2AHN6-DEWireless Ergo Mouse-Black USB Dongle

Wireless Ergo Mouse-Black Any Changes or modifications not expressly approved by the party responsible for compliance could could void the user's authority to operate the equipment.

block diagram USB Interface 16MHz 2402MHz-2480MHz SE69D RF

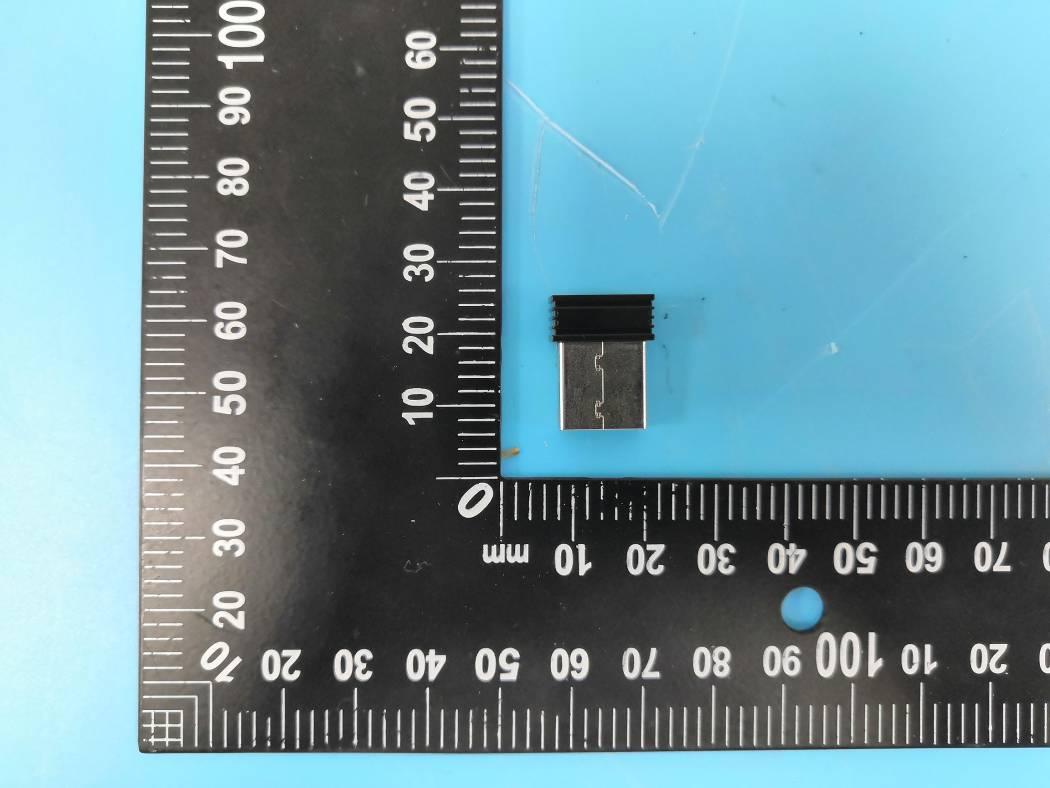

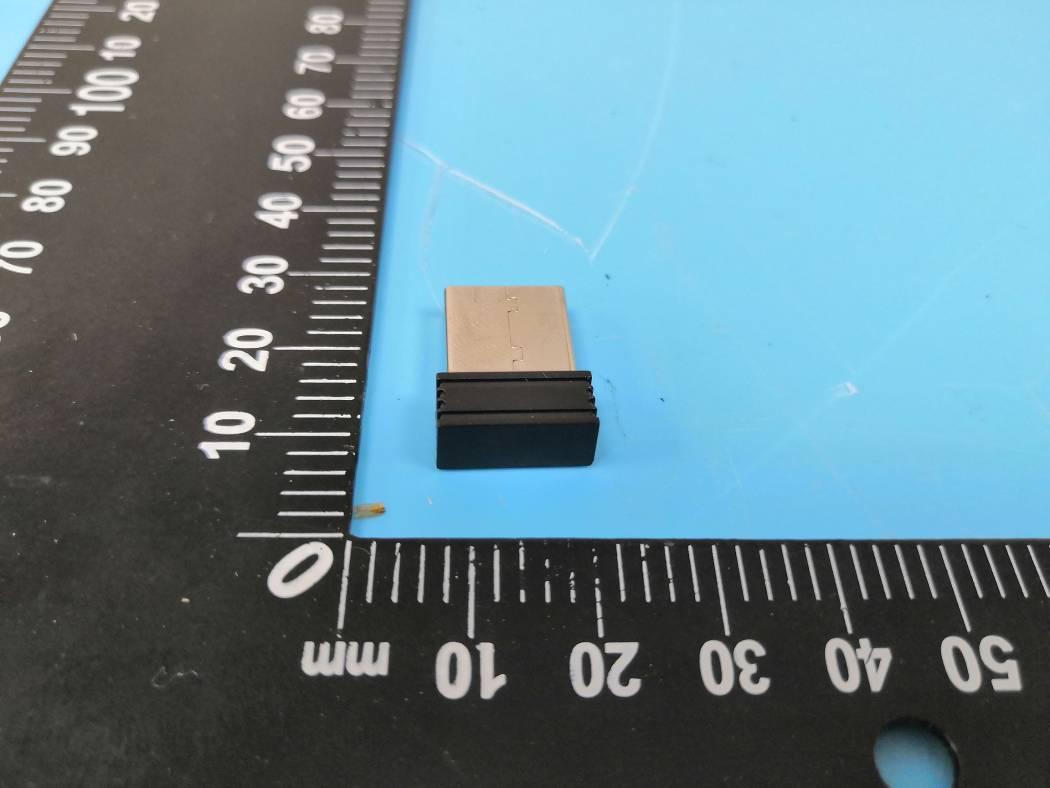

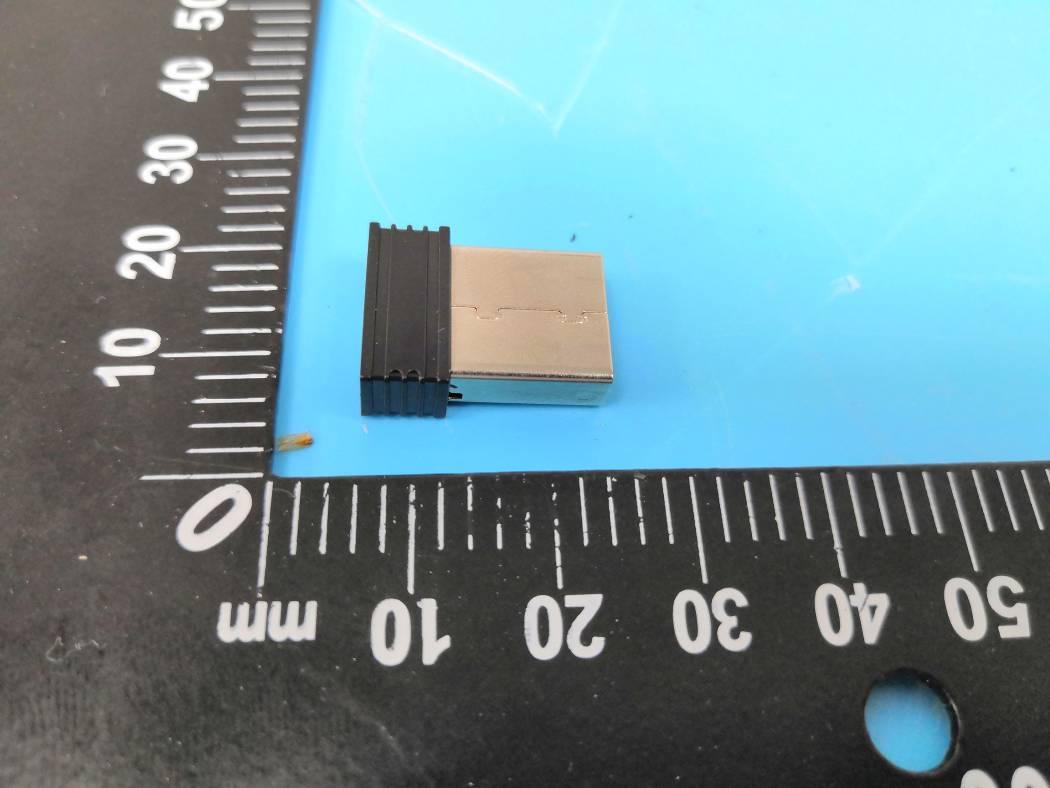

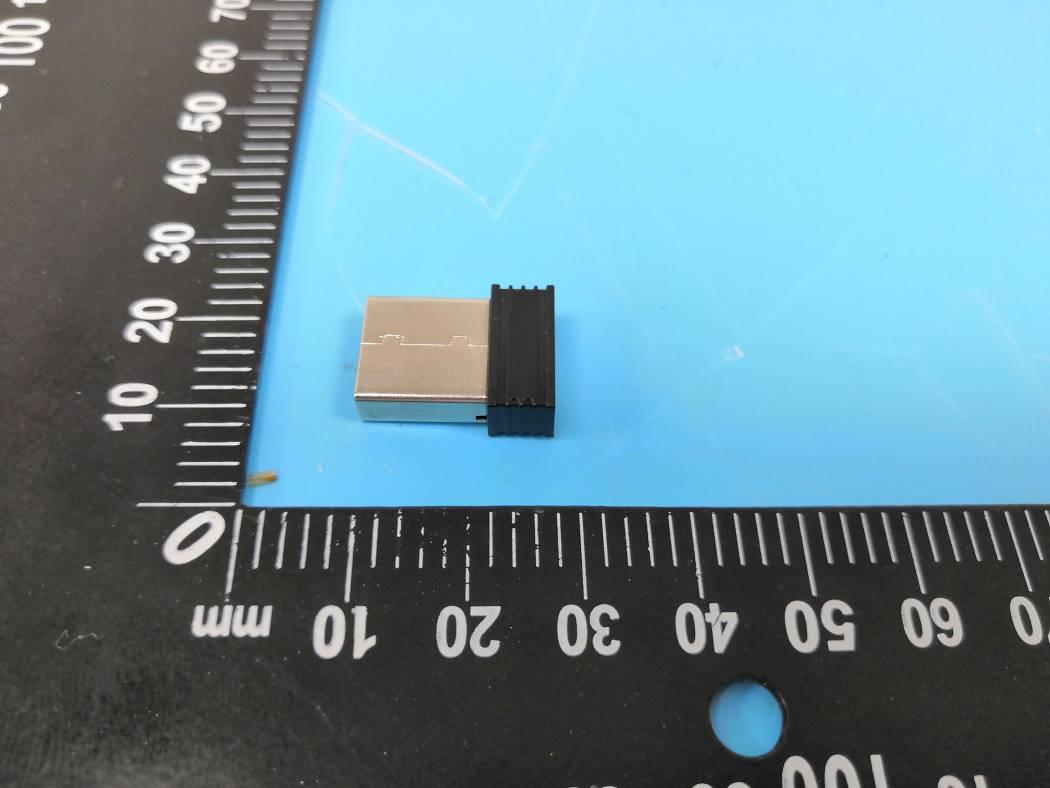

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label Here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Antenna

Operational Principle 1. The SE69D is a member of the low-cost, high-performance family of intelligent 2.4 GHz RF transceivers with embedded microcontrollers. 2. The SE69D is optimized to provide a single chip solution for Ultra Low Power (ULP) wireless applications. The combination of processing power, memory, low power oscillators, real-time counter and a range of power saving modes provides an ideal platform for implementation of RF protocols. 3. Benefits of using SE69D include tighter protocol timing, security, lower power consumption and improved co-existence performance. For the application layer the SE69D offers a rich set of peripherals including: USB, and so on.ANTENNA, The antenna is typically fed from the end of the monopole section by a plated through-hole via which is in turn connected to the RF output on the 2.4GHz band. Frequency Range: 2402-2480MHz

1234 A B C D 4 321 D C B A 08 Main Circuit DM DP C3 4.7uF +5V D+ 3 D- 2 VCC 1 GND 4 USBA USB4P ANT1 2.4G CF1 NC Matching Circuit CF2 NC ANT CF3 1.2PF P1.2 1 P2.1 2 P2.0 3 P1.3 4 OUT33V 5 VBUS 6 D- 7 D+ 8 DVSS 9 P0.4 10 P0.3 11 P0.2 12 VSSIO 13 VDD IO 14 P 1 .0 15 P 1 .4 16 P 1 .5 17 P 1 .6 18 P 1 .7 19 DVSS 20 VD ET 21 VDDV CO 22 VSSP LL 23 VSSV CO 24 AVSS 25 X T A LP 26 X T A LN 27 VDDPA 28 RFN 29 RFP 30 VSSRF 31 AVSS 32 AVCC 33 ADCREF 34 VSSADC 35 DVSS 36 OUT1.9V 37 CP_EN 38 DVDD 39 R E S ET 40 C DVDD 41 C P3 42 C P1 43 C P2 44 VSS CP 45 VDD IO 46 VSS IO 47 TE ST 48 P 1 .1 49 P 0 .1 50 P 0 .0 51 P 0 .7 52 P 0 .6 53 P 0 .5 54 U1 SE69D VCC VCC VCC VCC C7 NC Y1 16MHZ+/-20PPM 12pF VCC VCC C1 105 ANT VCC +5V DM DP P 1 .0 VCCR1 3.3R

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.249 TEST REPORT For Bytech NY Inc. 2585 West 13th Street,Brooklyn NY 11223 FCC ID:2AHN6-DE R e p o r t T y p e : O r i gi n a l R e p o r t P r o d u c t T y p e : W i r e l e s s E r go M o u s e-B l a c k U S B D o n gl e Report Number: RSZ200306832-00 Report Date: 2020-04-17 Reviewed By: Jimmy Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200306832-00 FCC Part 15.249 Page 2 of 25 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 JUSTIFICATION ............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 SUPPORT CABLE DESCRIPTIONS ................................................................................................................................... 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 TEST EQUIPMENT LIST ........................................................................................................................................... 8 FCC§15.203 - ANTENNA REQUIREMENT.............................................................................................................. 9 APPLICABLE STANDARD .............................................................................................................................................. 9 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 9 FCC §15.207 (A) – AC LINE CONDUCTED EMISSIONS .................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 EUT SETUP ................................................................................................................................................................ 10 EMI TEST RECEIVER SETUP ....................................................................................................................................... 10 TEST PROCEDURE ...................................................................................................................................................... 10 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 11 TEST RESULTS SUMMARY .......................................................................................................................................... 11 TEST DATA ................................................................................................................................................................ 11 FCC§15.205, §15.209 & §15.249(D) - RADIATED EMISSIONS ...................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
