2AHN6-DE32.4G Wireless Vin Keypad-dongle

Keypad: FCC ID: 2AHN6-KBWS106 Dongle: FCC ID: 2AHN6-DE3 Keypad: FCC ID: 2AHN6-KBWS106 Dongle: FCC ID: 2AHN6-DE3

CFR 47 §2.911(d)(5)(i) Attestation Letter Bytech NY Inc. 2585 West 13th Street, Brooklyn NY 11223, New York, United States Tel: 001-718-449-3700 | Fax: 001-718-449-2488 E-mail: [email protected] Attestation Letter Date: 2024-07-30 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2AHN6-DE3 Bytech NY Inc. certifies that the equipment for which authorization is sought, is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature: Printed Name: Soli Mizrahi Title: President

CFR 47 §2.911 (d)(5)(ii) Attestation Letter Bytech NY Inc. 2585 West 13th Street, Brooklyn NY 11223, New York, United States Tel: 001-718-449-3700 | Fax: 001-718-449-2488 E-mail: [email protected] Attestation Letter Date: 2024-07-30 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2AHN6-DE3 Bytech NY Inc. certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: Printed Name: Soli Mizrahi Title: President

U.S. AGENT LETTER OF ATTESTATION Date: 2024-07-30 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2AHN6-DE3 Bytech NY Inc. certifies that, as of the date of the filing of the application, Bytech NY Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. Bytech NY Inc. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Bytech NY Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent and Applicant Information: Name: Bytech NY Inc. Address: 2585 West 13th Street, Brooklyn NY 11223, New York, United States FRN: 0025388125 Tel.: 001-718-449-3700 Email: [email protected] Signed by (printed name): Soli Mizrahi Signature:

RF-Tranceiver M C U VDD 5V\ USB-Tranceiver PC USB Antenna 2402-2480MHz 24MHz Crystal YC1363-N

Bytech NY Inc. 2585 West 13th Street, Brooklyn NY 11223, New York, United States Tel: 001-718-449-3700 | Fax: 001-718-449-2488 E-mail: [email protected] FCC Authorization 2024-07-30 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Bytech NY Inc., the undersigned, hereby authorize Bay Area Compliance Laboratories Corp. (Shenzhen) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. (Shenzhen) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name: Soli Mizrahi Title: President

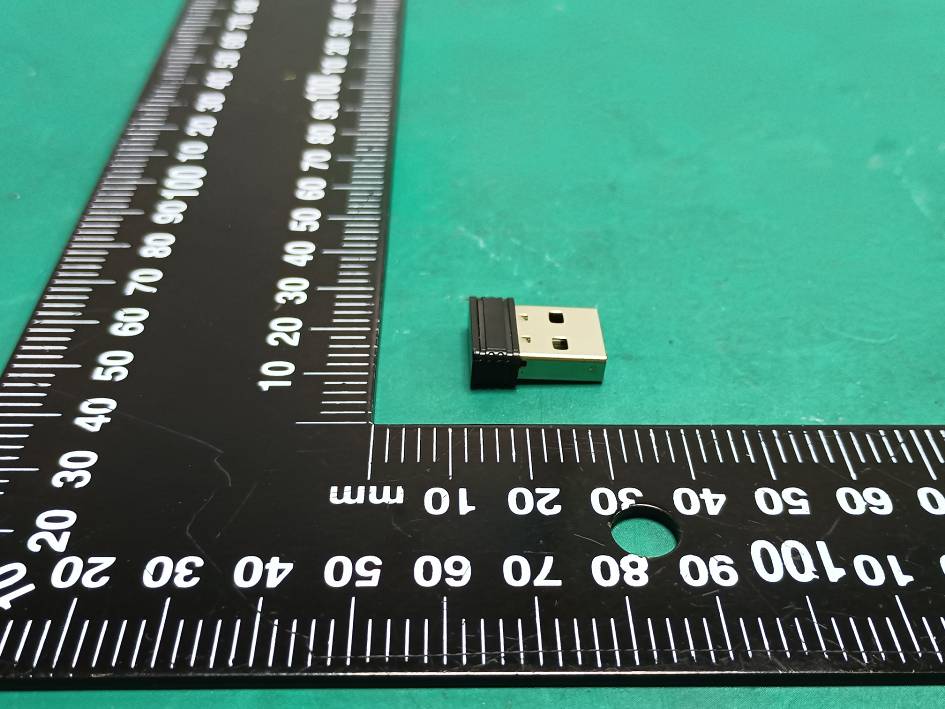

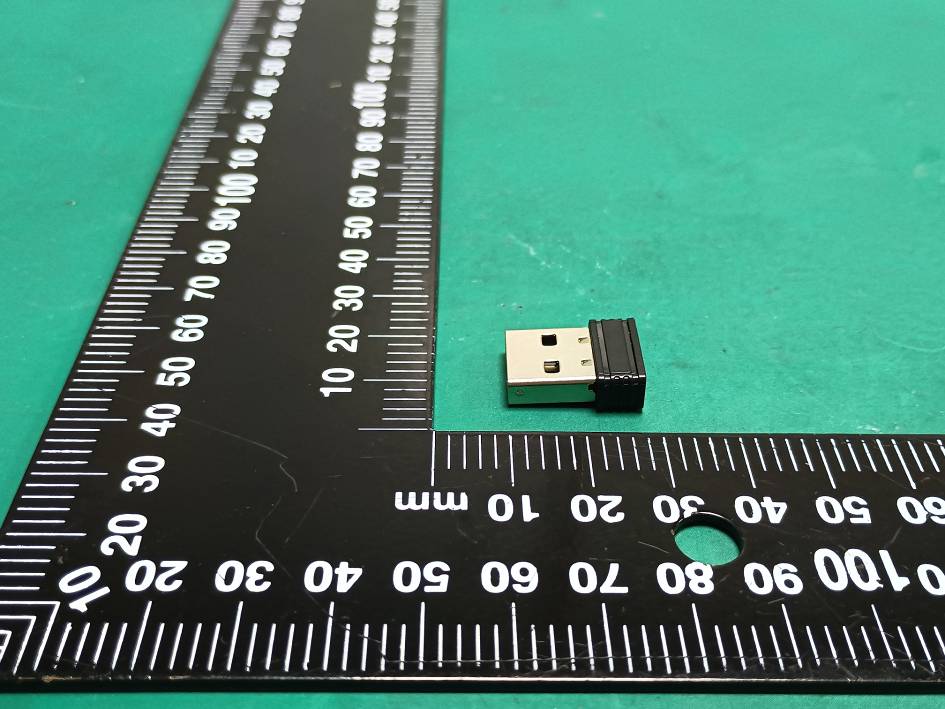

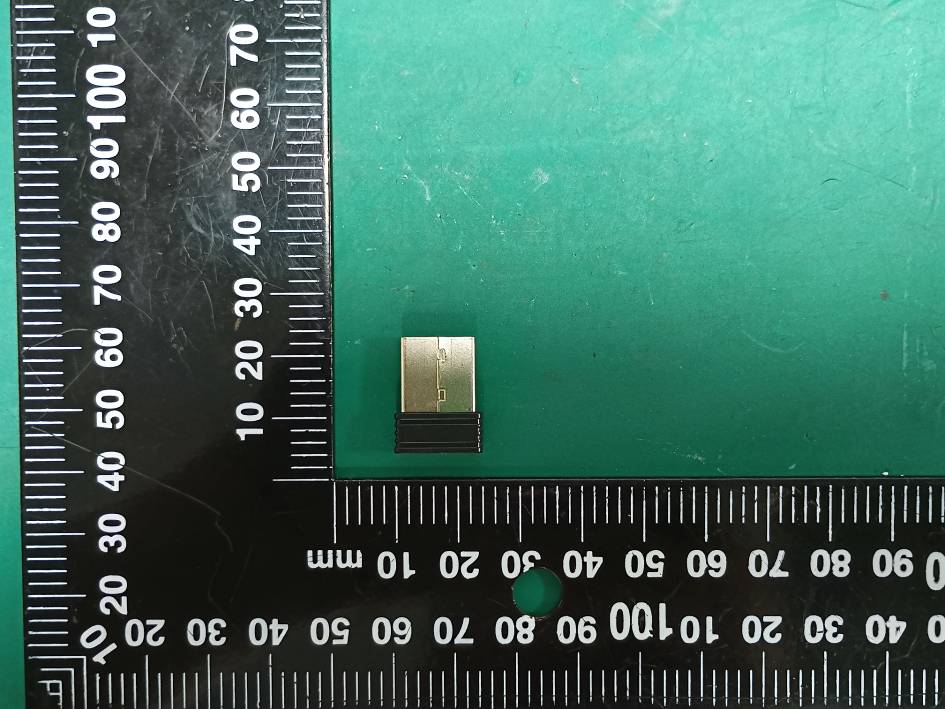

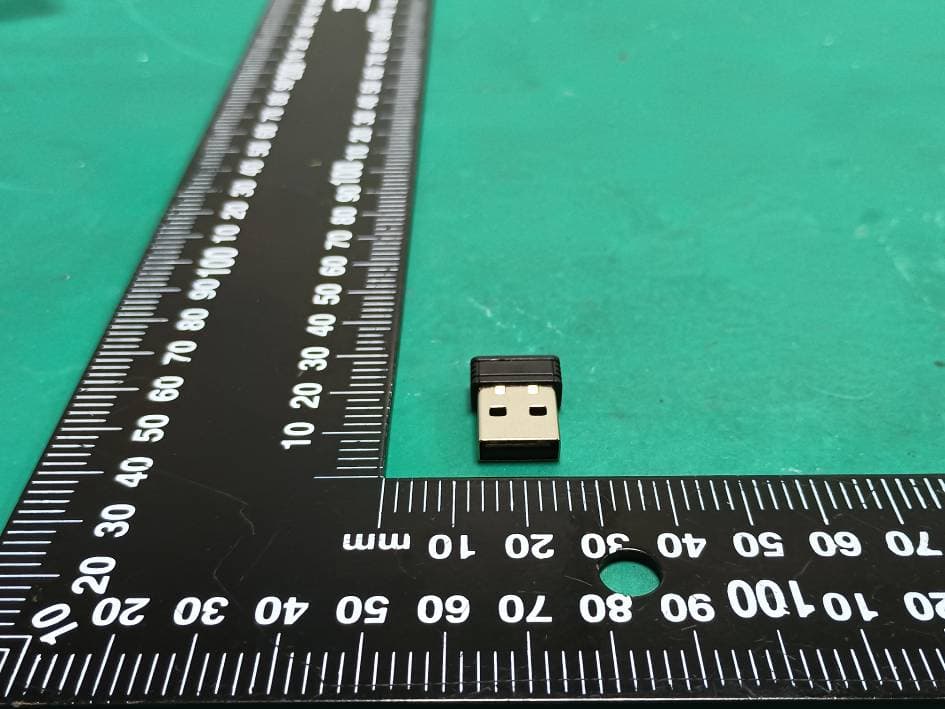

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401V84724E-RF Page 1 of 3 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401V84724E-RF Page 2 of 3 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401V84724E-RF Page 3 of 3

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401V84724E-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401V84724E-RF Page 1 of 3 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401V84724E-RF Page 2 of 3 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401V84724E-RF Page 3 of 3 Antenna

Circuit Description First part: CPU, MCU YC1363-N is a high performance, low power System-on-Chip (SoC) compliant 2.4-GHz transceiver, 24 MHz proprietary 32 bit MCU with a RAM of 12 KB and eFuse of 512 bits. The YC1363 features built-in USB, proprietary 32-bit MCU clocked at 24 MHz. Part two: USB PORT, connect with stand USB interface of pc. Part three: ANTENNA, Use PCB Antenna Voltage Range: DC 5V from USB port Modulation Technique: GFSK Frequency Range: 2402-2480MHz Frequency Channel List: Channel No. Frequency (MHz) Channel No. Frequency (MHz) Channel No. Frequency (MHz) Channel No. Frequency (MHz) 1 2402 11 2422 21 2442 31 2462 2 2404 12 2424 22 2444 32 2464 3 2406 13 2426 23 2446 33 2466 4 2408 14 2428 24 2448 34 2468 5 2410 15 2430 25 2450 35 2470 6 2412 16 2432 26 2452 36 2472 7 2414 17 2434 27 2454 37 2474 8 2416 18 2436 28 2456 38 2476 9 2418 19 2438 29 2458 39 2478 10 2420 20 2440 30 2460 40 2480

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401V84724E-RF-00 TR-EM-RF041 Page 11 of 40 Version 3.0 FCC§1.1307 (b) (1) & §2.1093- RF EXPOSURE Applicable Standard According to FCC §2.1093 and §1.1307(b) (1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 General RF Exposure Guidance The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where 1. f(GHz) is the RF channel transmit frequency in GHz. 2. Power and distance are rounded to the nearest mW and mm before calculation. 3. The result is rounded to one decimal place for comparison. 4. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test Exclusion. Result Mode Frequency (MHz) Maximum E- Field (dBuV/m@3 m) Maximum EIRP(dBm) Maximum EIRP (mW) Distance (mm) Calculated value Threshold (1-g SAR) SAR Test Exclusion GFSK 2402-2480 99.65 4.45 2.79 5 0.9 3 Yes Note: EIRP = E-Field – 95.2 @3m Result: Compliant.

z

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF041 Page 1 of 40 Version 3.0 TEST REPORT Applicant Name: Bytech NY lnc. Address: 2585 West 13th Street, Brooklyn NY 11223, New York, United States Report Number: 2401V84724E-RF-00 FCC ID: 2AHN6-DE3 Test Standard (s) FCC PART 15.249 Sample Description Product Type: 2.4G Wireless Vin Keypad-dongle Model No.: DE3 Multiple Model(s) No.: N/A Trade Mark: N/A Date Received: 2024/07/16 Issue Date: 2024/08/14 Test Result: Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Jojo Guo Michelle Zeng RF Engineer RF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401V84724E-RF-00 TR-EM-RF041 Page 2 of 40 Version 3.0 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 3 GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 SUPPORT CABLE DESCRIPTIONS ................................................................................................................................... 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC§1.1307 (B) (1) & §2.1093- RF EXPOSURE ...................................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 RESULT ...................................................................................................................................................................... 10 FCC§15.203 - ANTENNA REQUIREMENT ............................................................................................................ 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC §15.207 (A) - AC LINE CONDUCTED EMISSIONS ..................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE .............................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401V84724E-RF Page 1 of 4 EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401V84724E-RF Page 2 of 4 Radiated Emissions View (9 kHz-30MHz) Radiated Emissions View (30 MHz-1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401V84724E-RF Page 3 of 4 Radiated Emissions View (1-18 GHz) Radiated Emissions View (18-25 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401V84724E-RF Page 4 of 4 Close-up Radiated Emissions View
