Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Wireless Keyboard Functional block diagram SE65K RF SE8R01 2402MHzโ2480MHz Key Scan LED indication 16 MHz Power Manager
Bytech NY Inc. 2585 West 13th Street,Brooklyn NY 11223,New York, United States Tel: 718-449-3700 | Fax: 718-449-2488 E-mail: [email protected] FCC Authorization 11/16/2020 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Bytech NY Inc. the undersigned, hereby authorize Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory1 Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name: Soli Mizrahi Title: President QA-FR-170-B

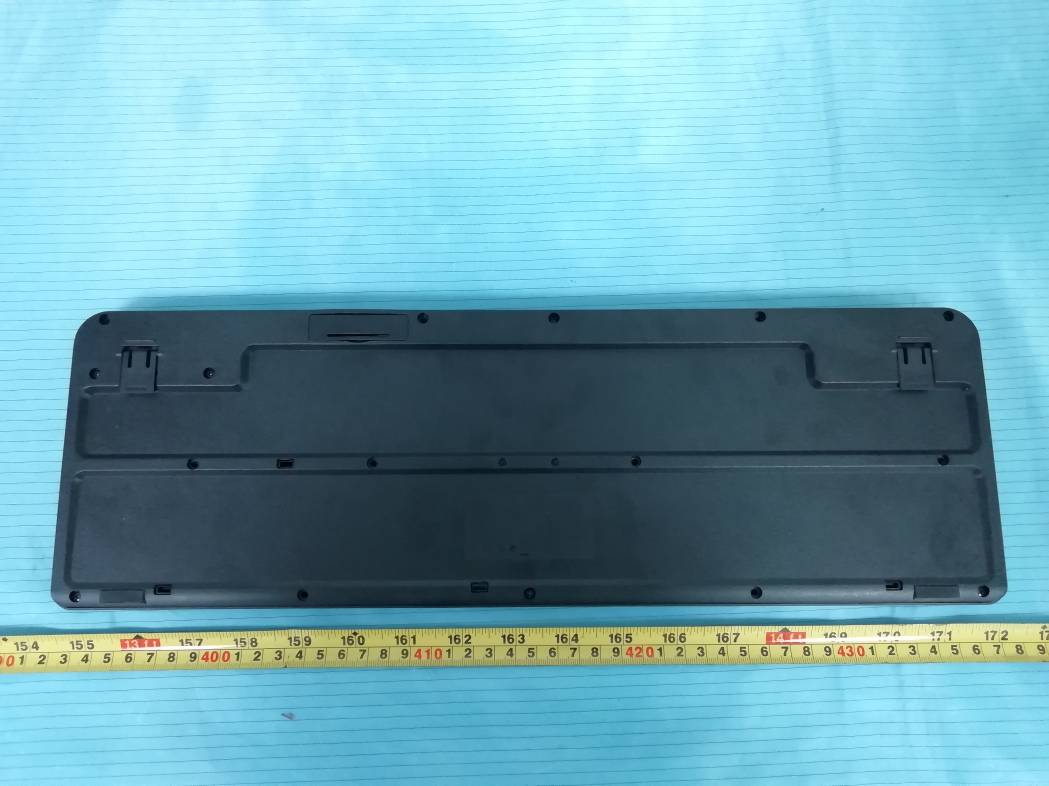

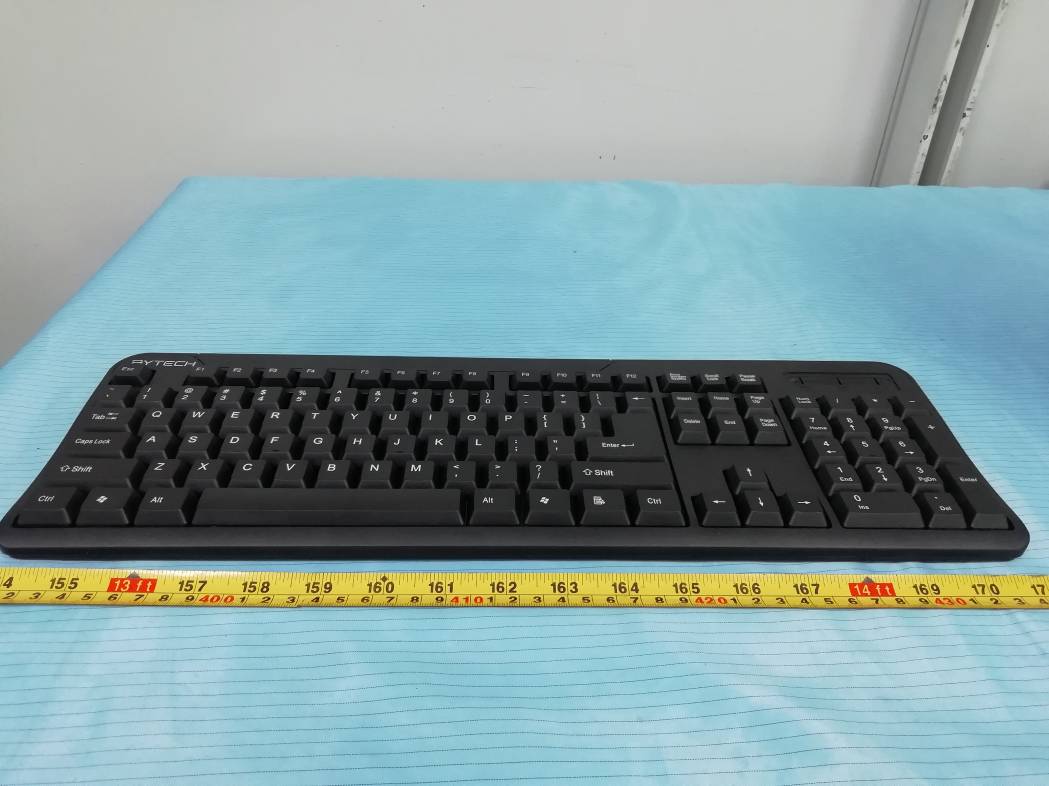

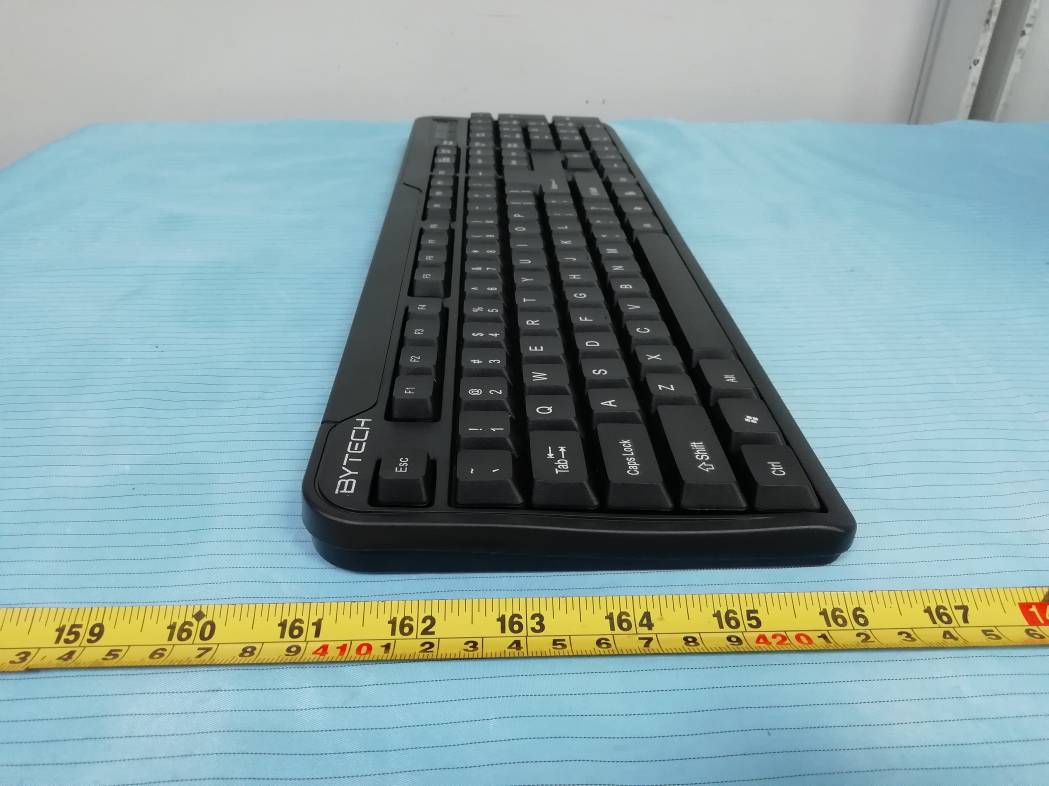

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201116831-RF Page 1 of 3 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201116831-RF Page 2 of 3 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201116831-RF Page 3 of 3
Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201116831-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label Here
Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201116831-RF Page 1 of 2 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201116831-RF Page 2 of 2 Antenna
Operational Principle 1. CPU,SE65K have an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology. Opration frequency is 3.5 MHz with internal RC oscillator., This chip is responsible to control RF-Baseband Transceiver(SE8R01). 2. Matrix,8*18 matrix with eight input line and eighteen output line. 3. 2.4 GHz ISM Band Transceiver/Framer,SE8R01 which is a low-cost,fully inegrated CMOS radio frequency(RF) transceiver block,combined with a 64-byte buffered framer block.It contains transmit,receive,VCO and PLL functions,including an on-chip channel filter and resonator. It needs an external 16MHz crystal for reference frequency; 4. ANTENNA, The antenna is typically fed from the end of the monopole section by a plated through-hole via which is in turn connected to the RF output on the 2.4GHz band.
1234 A B C D 4 321 D C B A 08 RF Circuit Main Circuit 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 19 20 21 22 23 24 25 26 18 J1 PIN26 C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 C10 C11 C12 C13 C14 C15 R0 R1 R2 R3 R4 R5 R6 R7 OSCI 25 VSS 26 VPP 27 VCC 28 P4.1 29 P4.2 30 P 0 .0 31 P 0 .1 32 P 0 .2 33 P 0 .6 37 P 0 .7 38 P 1 .0 39 P 1 .1 40 P 1 .2 41 P1.3 1 P1.4 2 P1.5 3 P1.6 4 P1.7 5 VSS 6 P2.0 7 P2.1 8 P2.2 9 P2.3 10 P2.4 11 P2.5 12 P 3 .0 13 P 3 .1 14 P 3 .2 15 P 3 .3 16 P 3 .4 17 P 3 .5 18 P 3 .6 19 P 3 .7 20 P2.6 21 P2.7 22 P4.0 23 OSCO 24 P 0 .3 34 P 0 .4 35 P 0 .5 36 U1 SE65K C14 C13 C12 C11 C15 C10 C8 C9 C0 C16 C17 R0R1R2R3R4R5R6R7 Num Lock C1C2 VCC C10 0.1uF C3C4C5C6C7 S2 ID KEY R1 R5 1K D1 LED VCC C16 C17 LED Display Power Circuit Key Circuit ANT1 2.4G CF1 CF2 0R TVCC ANT Matching Circuit CF3 * VCC Y1 16MHZ+/-20PPM 12pF CE 1 CSN 2 SCK 3 MOSI 4 MISO 5 DVSS 20 C DVDD 19 DVDD 18 VSS 17 V R EF 16 AVCC 15 AVSS 14 RFP 13 RFN 12 VCC 11 IRQ 6 AV CC 7 AVSS 8 X T A LN 9 X T A LP 10 U2 SE8R01 RF MISO RFCS RF MOSI RF SCK IRQT V CC TVCC ANT TVCC C14 100nF T V CC RF MISO R F S CK RF MOSI R F CS IRQ C9 Cap Lock C29 22UF VCC BAT1 R4 1K D2 LED Num Lock Cap Lock L VD CF3 R3 1K D2 LED Scroll Lock S c ro ll L o ck 1 2 3 4 5 RF MISO RF MOSI VCC VPP VPP TVCC VSS 1 V IN 3 VOUT 2 U3 DC/DC LVD L3 47uH
Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk โโ โ. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk โ*โ. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.249 TEST REPORT For Bytech NY Inc. 2585 West 13th Street, Brooklyn NY 11223 FCC ID: 2AHN6-KBWS102 Report Type: Original Report Product Type: Wireless Keyboard-Black Report Number: RSZ201116831-00 Report Date: 2020-12-02 Reviewed By: Nancy Wang RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201116831-00 FCC Part 15.249 Page 2 of 21 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 JUSTIFICATION ............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 SUPPORT CABLE DESCRIPTIONS ................................................................................................................................... 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 TEST EQUIPMENT LIST ........................................................................................................................................... 8 FCCยง15.203 - ANTENNA REQUIREMENT .............................................................................................................. 9 APPLICABLE STANDARD .............................................................................................................................................. 9 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 9 FCCยง15.205, ยง15.209 & ยง15.249(A)(C)(D) - RADIATED EMISSIONS ................................................................. 10 APPLICABLE STANDARD ............................................................................................................................................ 10 TEST EQUIPMENT SETUP ............................................................................................................................................ 10 EUT SETUP ................................................................................................................................................................ 11 TEST PROCEDURE ...................................................................................................................................................... 12 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 12 TEST RESULTS SUMMARY .......................................................................................................................................... 12 TEST DATA ................................................................................................................................................................ 12 FCCยง15.215(C) - 20DB EMISSION BANDWIDTH ................................................................................................ 19 APPLICABLE STANDARD ............................................................................................................................................ 19 TEST PROCEDURE ........โฆ
Text truncated - open the document above for the full version.
Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201116831-RF EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | - |

Wireless Mouse
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Wireless mouse-dongle
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Glitter TWS Earbuds-Asst
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Blth Remote Selfie Shutter-BK
Equipment Class
DTS - Digital Transmission System
WIRELESS EARBUDS
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
