2AHN6-LZ102Wireless Presenter

Bytech NY lnc. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: September 16, 2024 FCC ID: 2AHN6-LZ102 Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing Bytech NY lnc. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing Bytech NY lnc. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Applicant: Bytech NY lnc. Address: 201, 111-3, 2585 West 13th Street Brooklyn NY 11223 USA Contact Person: Soli Mizrahi Tel.: 718-449-3700 Email: [email protected] Sincerely, Signature:

Bytech NY lnc. U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: September 16, 2024 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2AHN6-LZ102 Bytech NY lnc. (“the applicant”) certifies that, as of the date of the filing of the application, Bytech NY lnc. (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. Bytech NY lnc. ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: Bytech NY lnc. FRN: 0025388125 Address: 2585 West 13th Street Brooklyn NY 11223 USA Signature: Contact Person: David Chen Tel: 718-449-3700 Email: [email protected] Applicant Company Name: Bytech NY lnc. FRN: 0025388125 Address: 2585 West 13th Street Brooklyn NY 11223 USA Signature: Contact Person: Zhiying Lan Tel: 718-449-3700 Email: [email protected]

Page 1 of 3 1. General Information 1.1 Antenna Information Manufacturer: Shenzhen Ubiotek Technology Co., Ltd Address of Manufacturer: No.20, Xiuling 1st Street, Xiuxin Community, Kengzi Subdistrict, Pingshan District, Shenzhen, Guangdong,China Product Name: 2.4GHz Antenna Model Name: TC-WP-LZ-102-BK Frequency Range: 2400MHz - 2483.5MHz Type of Antenna: Integral Antenna Antenna Gain: 0dBi (Max.) Impedance: 50 ohm Antenna View: Length * Width (20cm * 4cm) Page 2 of 3 2. Antenna Specification information 2.1 Gain Frequency Peak Gain (dBi) Polarity 2402MHz 0 Horizontal 2402MHz -0.88 Vertical 2442MHz -1.47 Horizontal 2442MHz -2.02 Vertical 2480MHz -2.46 Horizontal 2480MHz -2.98 Vertical Page 3 of 3 2.2 Radiation Pattern View

Bytech NY lnc. Date: September 16, 2024 Product Model Number: TC-WP-LZ-102-BK, ID 5358181, Bytech BY-WP- LZ-102-BK FCC ID: 2AHN6-LZ102 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that ORGANIZATION. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by ORGANIZATION. on our behalf shall have the same effect as acts of our own. By: Soli Mizrahi Contact Listed on FCC Wesbite Title: Manager Email: [email protected] Telephone: 718-449-3700 On behalf of: Bytech NY lnc.

Bytech NY lnc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: September 18, 2024 Subject; Request for Confidentiality FCC ID: 2AHN6-LZ102 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Soli Mizrahi Title: Manager

Bytech NY lnc. Model Difference Statement Dear Sir/Madam, Added models ID 5358181, Bytech BY-WP-LZ-102-BK basis of the original product TC-WP-LZ-102-BK. The color of appearance and model name of series models listed are different from the main model, but the circuit and the electronic construction are the same, declared by the manufacturer. Sincerely, Name: Soli Mizrahi Title: Manager Company name: Bytech NY lnc. Address: 2585 West 13th Street Brooklyn NY 11223 USA

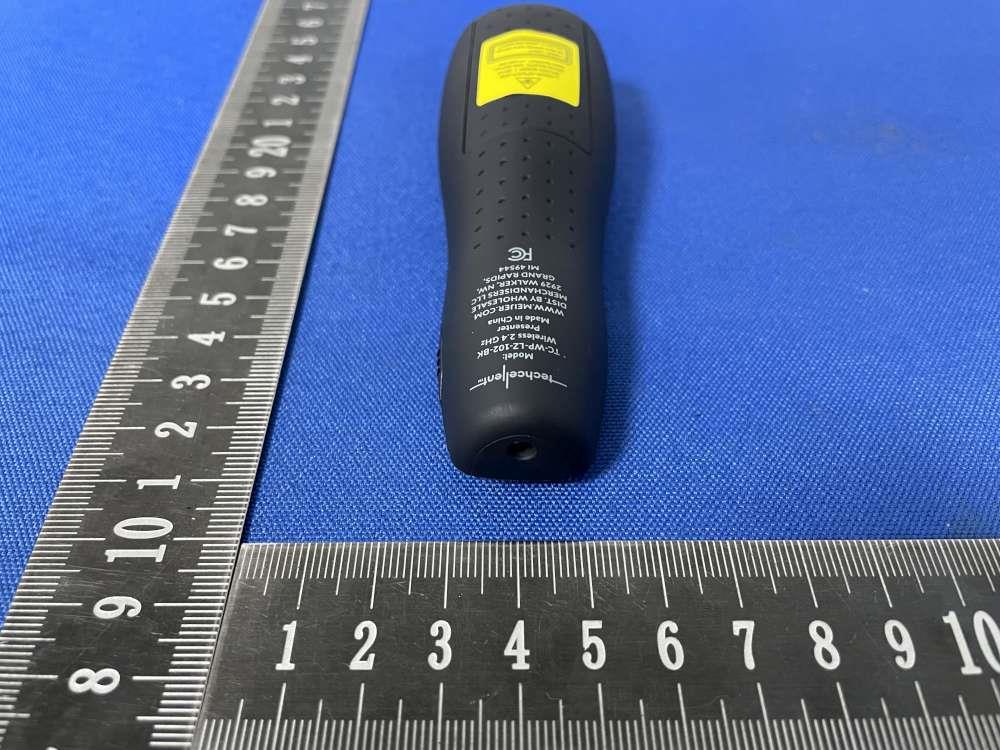

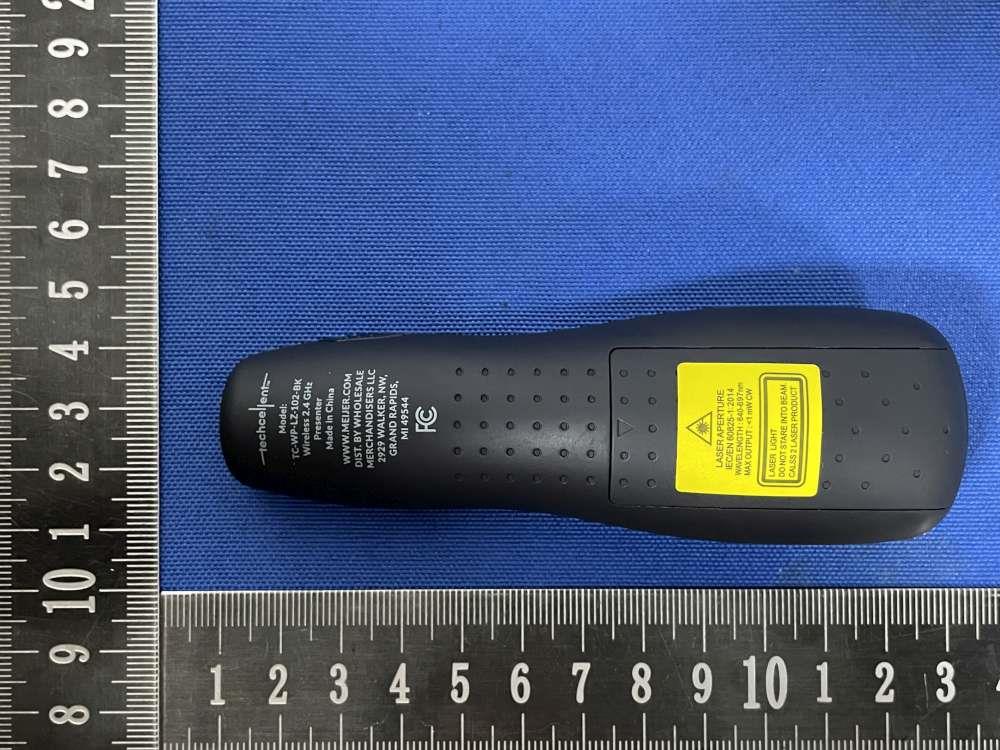

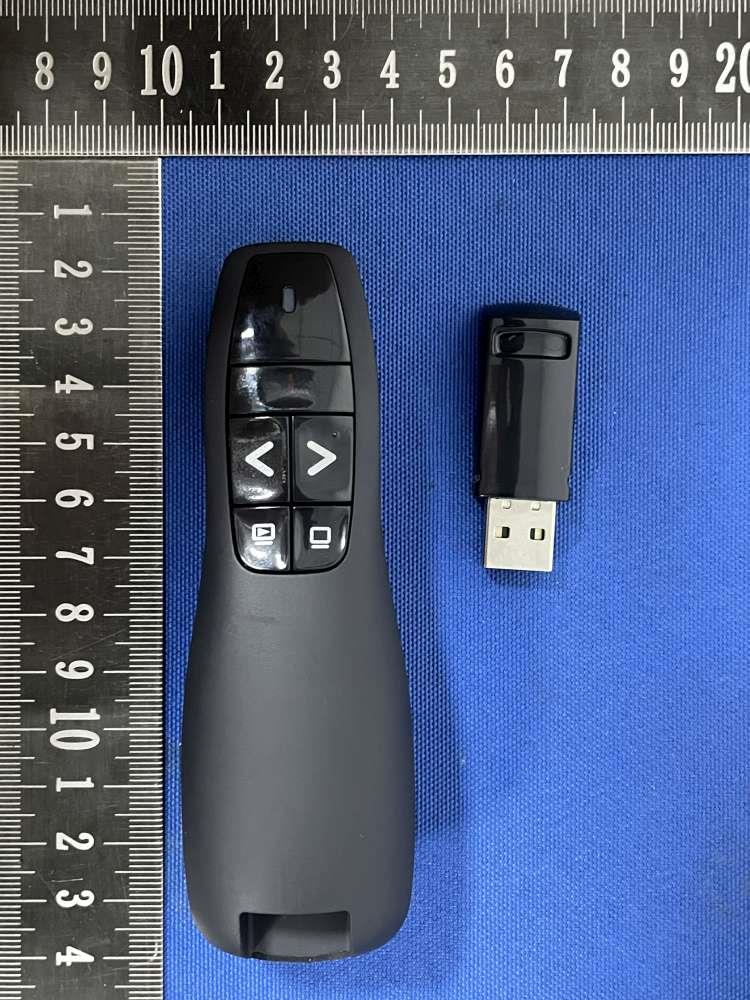

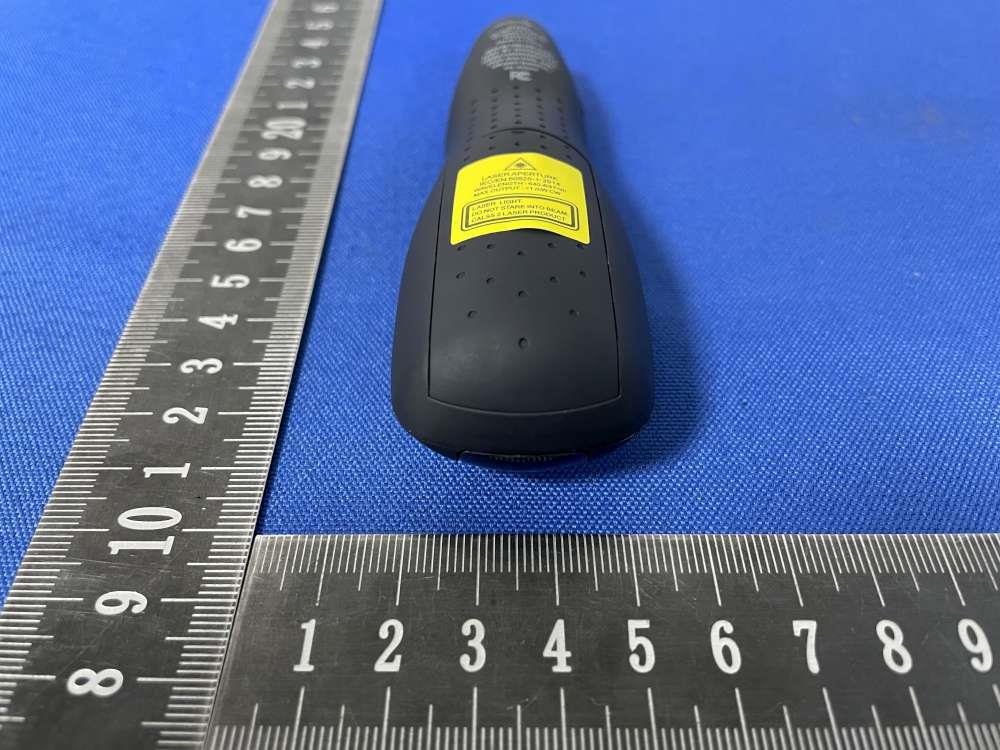

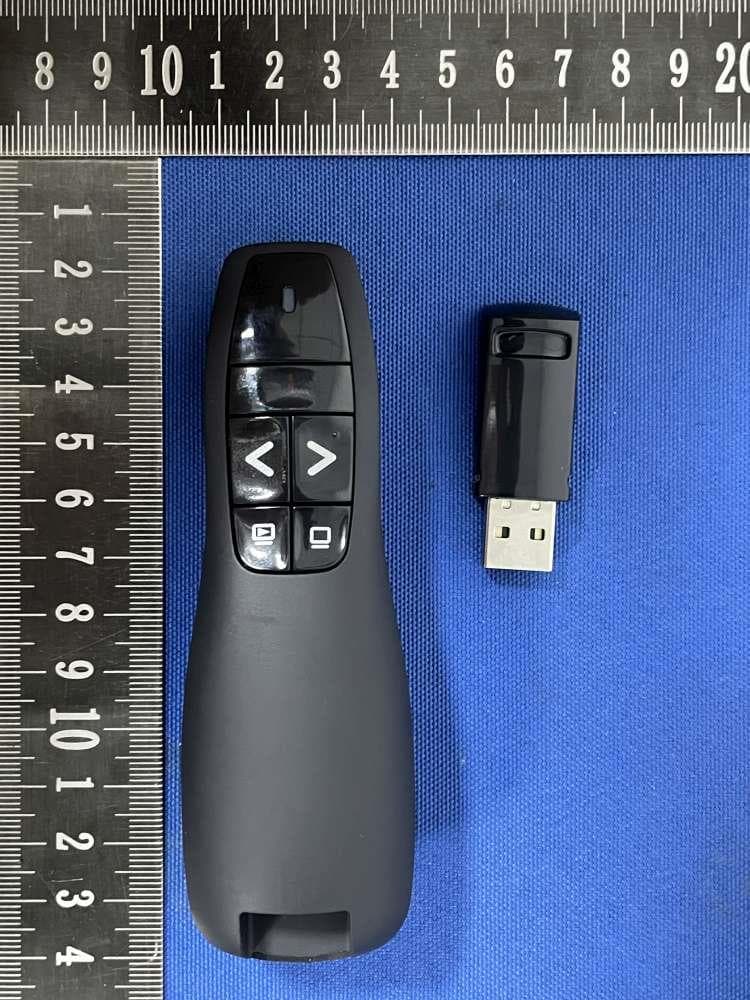

Report No: SSP24090051-1E FCC ID: 2AHN6-LZ102 Annex of Test Report Annex A. EUT External Photos EUT View 1 EUT View 2 Report No: SSP24090051-1E FCC ID: 2AHN6-LZ102 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP24090051-1E FCC ID: 2AHN6-LZ102 Annex of Test Report EUT View 5 EUT View 6 Report No: SSP24090051-1E FCC ID: 2AHN6-LZ102 Annex of Test Report EUT View 7

Report No: SSP24090051-1E FCC ID: 2AHN6-LZ102 Annex of Test Report Annex D. Label and Information FCC Label Sample FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

FCC ID: 2AHN6-LZ102 RF Exposure Evaluation According to KDB 447498 D04 RF Exposure Procedures and Equipment Authorization Policies for Mobile and Portable Devices part 2.1.2, a single RF source is exempt RF device (from the requirement to show data demonstrating compliance to RF exposure limits, as previously mentioned) if the available maximum time-averaged power is no more than 1mW, regardless of separation distance. This exemption applies to all operating configurations and exposure conditions, for the frequency range 100 kHz to 100 GHz, regardless of fixed, mobile, or portable device exposure conditions. This is a standalone exemption, and it cannot be applied in conjunction with any other test exemption. The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Frequency (MHz) Power (dBuV/m) Power (dBm) Power (mW) Limit (mW) 2411 94.2 -1 0.79 1 Notes: 94.2dBuV/m-95.2=-1dBm 0.79mW＜1mW, so a SAR test is not required.

CCUT Testing & Certification Report No: SSP24090051-1E FCC Test Report Page 1 of 24 FCC TEST REPORT FCC ID: 2AHN6-LZ102 Report No. : SSP24090051-1E Applicant : Bytech NY lnc. Product Name : Wireless Presenter Model Name : TC-WP-LZ-102-BK Test Standard : FCC Part 15.249 Date of Issue : 2024-09-13 Prepared By Shenzhen CCUT Quality Technology Co., Ltd. Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. CCUT Testing & Certification Report No: SSP24090051-1E FCC Test Report Page 2 of 24 Test Report Basic Information Applicant..................................: Bytech NY lnc. Address of Applicant...............: 2585 West 13th Street Brooklyn NY 11223 USA Manufacturer..........................: Shenzhen Ubiotek Technology Co., Ltd Address of Manufacturer........: No.20, Xiuling 1st Street, Xiuxin Community, Kengzi Subdistrict, Pingshan District, Shenzhen, Guangdong,China Product Name.........................: Wireless Presenter Brand Name.............................: Techcellent Main Model..............................: TC-WP-LZ-102-BK Series Models..........................: ID 5358181, Bytech BY-WP-LZ-102-BK Test Standard..........................: FCC Part 15 Subpart C ANSI C63.4-2014 ANSI C63.10-2013 Date of Test .............................: 2024-09-10 to 2024-09-11 Test Result...............................: PASS Tested By ................................: (Colin Chen) Reviewed By............................: (Lieber Ouyang) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. CCUT Testing & Certification Report No: SSP24090051-1E FCC Test Report Page 3 of 24 CONTENTS 1. General Information .................................................................................................................................................... 5 1.1 Product Information ............................................................................................................................................. 5 1.2 Test Setup Information .......................................................................................................................................... 6 1.3 Compliance Standards ........................................................................................................................................... 7 1.4 Test Facilities ........................................................................................................................................................ 7 1.5 List of Measurement Instruments .......................................................................................................................... 8 1.6 Measurement Uncertainty ..................................................................................................................................... 9 2. Summary of Test Results ........................................................................................................................................... 10 3. Antenna Requirement ............................................................................................................................................... 11 3.1 Standard and Limit.............................................................................................................................................. 11 3.2 Test Result .......................................................................................................................................................... 11 4. Conducted Emissions ................................................................................................................................................ 12 4.1 Standard and Limit.............................................................................................................................................. 12 4.2 Test Procedure.................................................................................................................................................... 12 4.3 Test Data and Results .......................................................................................................................................... 13 5. Radiated Emissions ................................................................................................................................................... 14 5.1 Standard and Limit.............................................................................................................................................. 14 5.2 Test Procedure.................................................................................................................................................... 14 5.3 Test Data and Results .......................................................................................................................................... 16 6. Band-edge Emissions ................................................................................................................................................ 21 6.1 Standard and Limit.............................................................................................................................................. 21 6.2 Test Procedure.................................................................................................................................................... 21 6.3 Test Data and Results .............................................…
