2AHN6-MSWS110Wireless Ergo Mouse-Black

Wireless Ergo Mouse-Black Any Changes or modifications not expressly approved by the party responsible for compliance could could void the user's authority to operate the equipment.

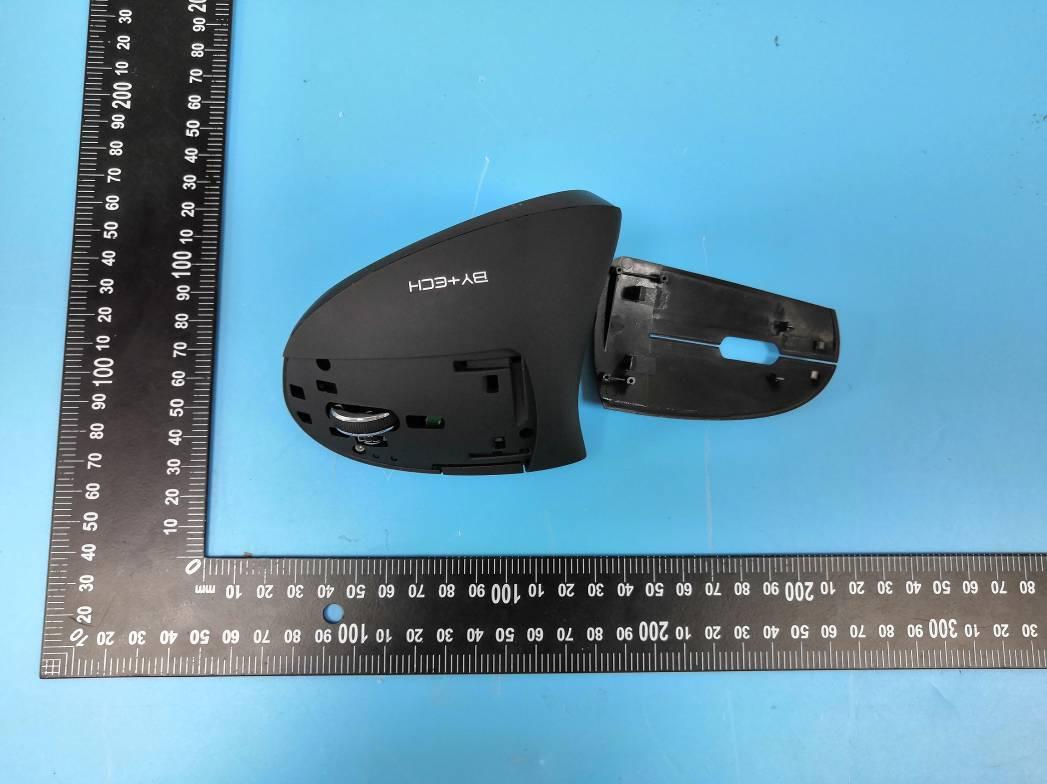

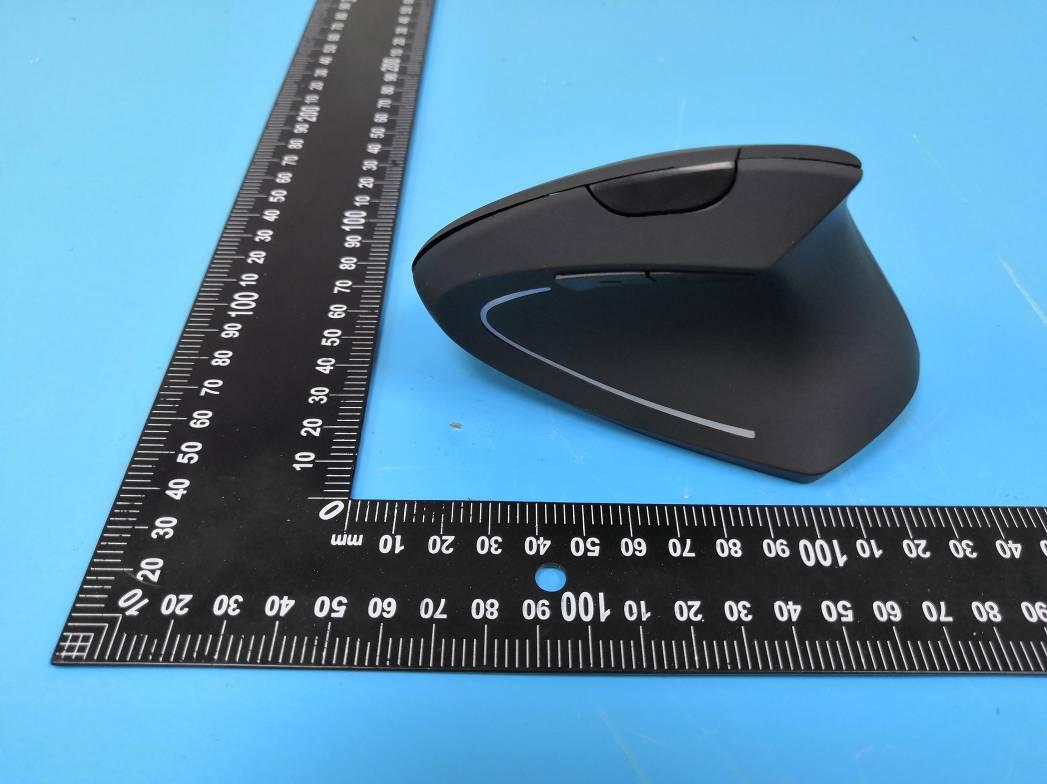

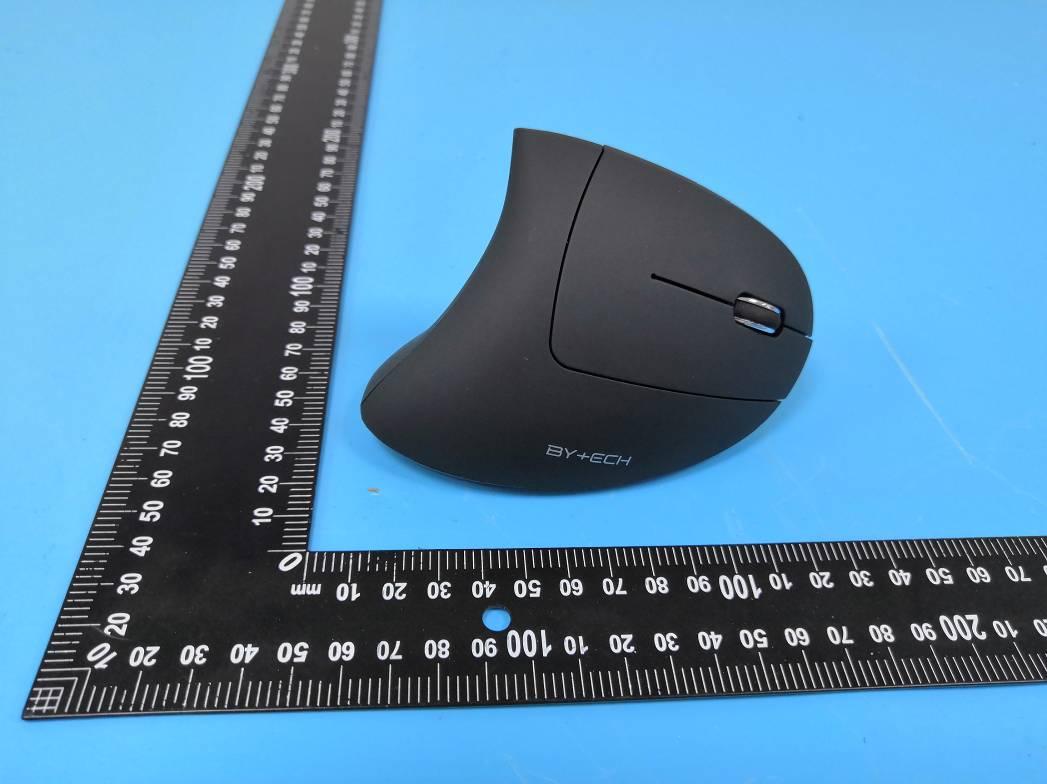

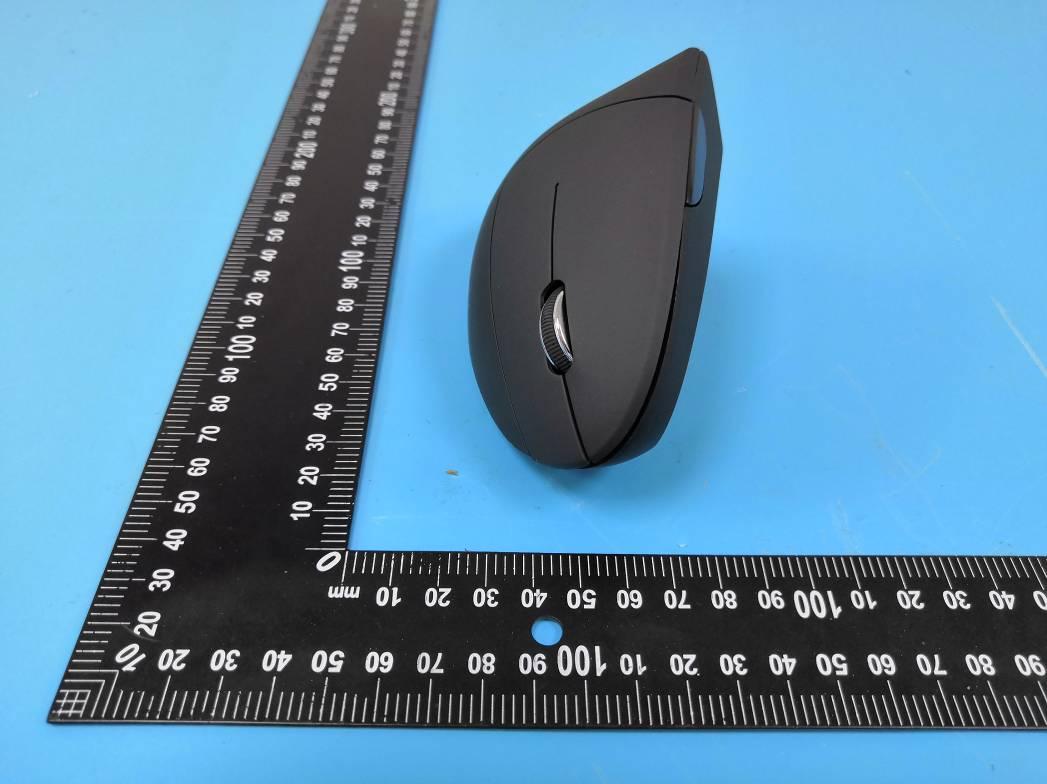

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Antenna

Operational Principle 1. The 6210 is a member of the low-cost, high-performance family of intelligent 2.4 GHz RF transceivers with embedded microcontrollers. 2. The 6210 is optimized to provide a single chip solution for Ultra Low Power (ULP) wireless applications. The combination of processing power, memory, low power oscillators, real-time counter and a range of power saving modes provides an ideal platform for implementation of RF protocols. 3. Benefits of using 6210 include tighter protocol timing, security, lower power consumption and improved co-existence performance. For the application layer the 6210 offers a rich set of peripherals including: SPI (master and slave), UART, PWM, and so on. ANTENNA, The antenna is typically fed from the end of the monopole section by a plated through-hole via which is in turn connected to the RF output on the 2.4GHz band. Frequency Range: 2402-2480MHz

1 2 3 4 ABCD 4 3 2 1 D CBA 06 C 3 B 2 A 1 ENC Encoder 1 2 3ENC 321 ForwardBackward ZWHA ZWHB R168R LED LED C1 0.1uF VCC OSCI 1 OSCO 2 SDIO 3 SCLK 4 LED 5 VSS 6 VDD 7 VREF 8 U2 * * SCLKSDIO ZWHB KM ZWHA KL 1234568 13141516171819 7 20 9 10 1112 U1 Module CLK P1.7 KR P1.7 KM KR KL SDIO VCC VCC DPI SW-PB NEXT SW-PB PREVSW-PB SWRSW-PBSWMSW-PBSWLSW-PB P1.7 KR KR KM KM KL KL V28 2*1.5V C2 47uF VCC SWB R282R D2 LED D3 LED R382R 1 2 3 4 5 6 7 8 CN1 * 1 2 3 4 CA1* KL KR KM ZWHA ZWHB P1.7 1 2 3 4 5 6 7 8 CN2 * KL KR KM ZWHA ZWHB P1.7 DPISW-PB KL P1.7 KL KR KM P1.7 1 2 3 4 CA2* KL KR KM P1.7 1 2 3 4 ABCD 4 3 2 1 D CBA 06 ZWHA ZWHB P0.4 1 P0.3 2 P0.2 3 P0.1 4 P0.0 5 P1.2 6 VPP 7 TEST 8 VDDIO 9 VDDPA 10 VDDVCO 11 VSSPLL 12 VSSVCO 13 AVSS 14 XTALP 15 XTALN 16 VSSRF 17 RFN 18 RFP 19 AVSS 20 VSSADC 22 ADCREF 21 CDVDD 23 P1.1 24 P1.0 25 P0.7 26 P0.6 27 VSSIO 28 P0.5 29 U1 6210 ANT12.4G 1 2 Y1 16MHz,12pF,20ppM VCC C4 1uF VCC C5 NC Option1 P1.7 SNSSDIO RBUTTON/K12 MBUTTON/K11 SNS CLK VCC LBUTTON/K10

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.249 TEST REPORT For Bytech NY Inc. 2585 West 13th Street,Brooklyn NY 11223 FCC ID:2AHN6-MSWS110 R e p o r t T y p e : O r i gi n a l R e p o r t P r o d u c t T y p e : W i r e l e s s E r go M o u s e-B l a c k Report Number: RSZ200306831-00 Report Date: 2020-04-17 Reviewed By: Jimmy Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200306831-00 FCC Part 15.249 Page 2 of 21 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 JUSTIFICATION ............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 SUPPORT CABLE DESCRIPTIONS ................................................................................................................................... 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 TEST EQUIPMENT LIST ........................................................................................................................................... 8 FCC§15.203 - ANTENNA REQUIREMENT.............................................................................................................. 9 APPLICABLE STANDARD .............................................................................................................................................. 9 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 9 FCC§15.205, §15.209 & §15.249(D) - RADIATED EMISSIONS ............................................................................ 10 APPLICABLE STANDARD ............................................................................................................................................ 10 TEST EQUIPMENT SETUP ............................................................................................................................................ 10 EUT SETUP ................................................................................................................................................................ 11 TEST PROCEDURE ...................................................................................................................................................... 12 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 12 TEST RESULTS SUMMARY .......................................................................................................................................... 12 TEST DATA ................................................................................................................................................................ 12 FCC§15.215(C) - 20DB EMISSION BANDWIDTH ..............................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
