2AHP7-BLET21BCN-P6700(nRF521810)

Page | 1 Revised: November 30, 2022 Bluetooth Low Energy BLE 4.2 Radio PCBA Model Number: RADMEDIA-BLE-T21, RADMEDIA-BLE-T22 User Manual Description Page | 2 Revised: November 30, 2022 RADMEDIA-BLE-T21 BLE PCBA utilizes the Nordic nRF52810-QCAA SoC with a PCB trace antenna. RADMEDIA-BLE-T22 BLE PCBA utilizes the Nordic nRF52811-QCAA SoC with a PCB trace antenna. The nRF52811 BLE SoC is simply a slightly newer version of the nRF52810 BLE SoC and provides the exact same radio functionality. RADMEDIA-BLE-T21/RADMEDIA-BLE-T22 operates as a ‘Connectable-Beacon’ and transmits its beacon information at a fixed interval that can be adjusted from 1 to 2.2seconds and at a Tx power of 0dBm. For the nRF52810-QCAA and nRF52811-QCAA SoC, refers to the nRF52810/nRF52811 Product Specification and the SDK is available from the Nordic Semiconductor website. Main Features - Complete Bluetooth® low energy SoC (4.2 specification) - 32-bit ARM Cortex-M4F processor @ 64MHz - Size : 32pin QFN 5x5x0.85mm - Operating Frequency : 2,402MHz ~ 2,480MHz - Up to 24kB SRAM and 192kB Flash - Certified for FCC and Bluetooth - Rx sensitivity : Typical -93dBm - Operational Temperature range : -20°C to 70°C - CR2477 primary coin cell - Red and Green visual indicators(LED’s) - Optional MEMs accelerometer Applications - Asset Tracking - Remote Monitoring Page | 3 Revised: November 30, 2022 The (Family model RADMEDIA-BLE-T21/RADMEDIA-BLE-T22) two models of Main Board share the same PCB layout. The only difference is the RADMEDIA-BLE-T22 uses a slightly newer BLE SoC in the nRF52811-QCAA. ⚫ RADMEDIA-BLE-T21 uses the nRF52810-QCAA BLE SoC ⚫ RADMEDIA-BLE-T22 uses the nRF52811-QCAA BLE SoC Model Item Description Placement Type/ Model Manufacturer Name Manufacturers. Part Number Remark RADMEDIA-BLE-T21 Bluetooth PCBA with PCB Trace Antenna U2 -T21 Nordic Semiconductor nRF52810-QCAA N/A RADMEDIA-BLE-T22 Bluetooth PCBA with PCB Trace Antenna U2 -T22 Nordic Semiconductor nRF52811-QCAA N/A Antenna Approved for use with RADMEDIA-BLE-T21 Part Number Max Gain (dBi) Supplier Notes PCB Trace 3.3 PCBA Trace Inverted F PCB Trace Antenna This unit is sold pre-programmed with its Radio Transmit interval, BLE UUID, and Transmit Power defined and is encompassed into a plastic enclosure so there is not a detailed user manual. RADMEDIA-BLE-T21, T22 Mechanical View NOTE: There are no accessible GPIO to a user/host outside of power and programming pins. Page | 4 Revised: November 30, 2022 RADMEDIA-BLE-T21 PCBA Photos RADMEDIA-BLE-T22 PCBA Photos Page | 5 Revised: November 30, 2022 PCB Trace Antenna 1. Dimensions Figure 1. IFA Dimensions Table 1. IFA Dimensions H1 5.70 mm W2 0.46 mm H2 0.74 mm L1 25.58 mm H3 1.29 mm L2 16.40 mm H4 2.21 mm L3 2.18 mm H5 0.66 mm L4 4.80 mm H6 1.21 mm L5 1.00 mm H7 0.80 mm L6 1.00 mm H8 1.80 mm L7 3.20 mm H9 0.61 mm L8 0.45 mm W1 1.21 mm 2. Radiation Pattern Figure 2 shows how to relate all of the radiation patterns to the orientation of the antenna. The radiation patterns were measured with the RADMEDIA-BLE-T21/RADMEDIA-BLE-T22 device programmed to 0-dBm output power. Figure 2. Relating Antenna to Radiation Patterns Page | 6 Revised: November 30, 2022 Figure 3. XY Plane – Vertical Polarization Page | 7 Revised: November 30, 2022 Figure 4. XY Plane Horizontal Polarization Page | 8 Revised: November 30, 2022 Figure 5. XZ Plane Vertical Polarization Page | 9 Revised: November 30, 2022 Figure 6. XZ Plane Horizontal Polarization Page | 10 Revised: November 30, 2022 Figure 7. YZ Plane Vertical Polarization Page | 11 Revised: November 30, 2022 Figure 8. YZ Plane Horizontal Polarization Page | 12 Revised: November 30, 2022 3. PCB Antenna Bandwidth One way of measuring the bandwidth after the antenna is implemented on a PCB and connected to a transmitter is to write test software that steps a carrier across the frequency band of interest. By using the maximum hold function on a spectrum analyzer, the variation in output power across frequency can easily be measured. Figure 9 shows how the output power varies on the IFA when the PCB is horizontally oriented and the receiving antenna has horizontal polarization. This measurement was not performed in an anechoic chamber, thus the graph shows only the relative variation for the given frequency band. Figure 9. Bandwidth of PCB Antenna 4. Conclusion PCB Trace Antenna Table 2 lists the most important properties for the IFA. Table 2. Summary of IFA Properties Gain in XY plane 1.1 dBi Gain in XZ plane 3.3 dBi Gain in YZ plane 1.6 dBi Reflection < –15 dB Antenna size 25.7 × 7.5 mm Page | 13 Revised: November 30, 2022 Federal Communication Commission Interference Statement This equipment was tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ⚫Reorient or relocate the receiving antenna. ⚫Increase the separation between the equipment and receiver. ⚫Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ⚫Consult the dealer or an experienced radio/TV technician for help. FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device ma…

Text truncated - open the document above for the full version.

Company: RADIANT RFID LLC Address: 1023 Springdale Road Bldg 4, Suite B Austin TX 78721 Product Name: BCN-P6700(nRF521810) Model Number(s): RADMEDIA-BLE-T21, RADMEDIA-BLE-T22 Product Description: BT Modular We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: November 25, 2022 Name: Stephan Schwarze Title: Chief Technology Officer Company: Radiant RFID LLC

Date: October 14, 2022 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request FCC ID: 2AHP7-BLET21 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Radiant RFID, LLC hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Signature Name of Contact: Stephan Schwarze Title of Contact: Chief Technology Officer

Date: October 14, 2022 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: FCC Modular Approval Letter for Limit Modular FCC ID: 2AHP7-BLET21 To Whom It May Concern: Modular Approval Requirement per 15.212 and KDB 996369 D01 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) 1) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; ☒No The modular does not have RF own shielding 2) The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; ☒Yes The modular transmitter have buffered modulation/data inputs 3) The module must contain power supply regulation on the module; ☒Yes PWM is used for modular power supply regulation. 4) The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); ☒Yes The modular has a PCB antenna 5) The module must demonstrate compliance in a stand-alone configuration; ☒Yes The module compliance in a stand- alone configuration. 6) The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748); ☒Yes The FCC identification number can put on the modular with either a permanently affixed label 7) The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee; ☒Yes The instructions will be provided and apply to a complete transmit 8) The module must comply with RF exposure requirements. ☒Yes The total power density of modular transmitter final configuration comply with FCC RF Exposure Signature Name of Contact: Stephan Schwarze Title of Contact: Chief Technology Officer

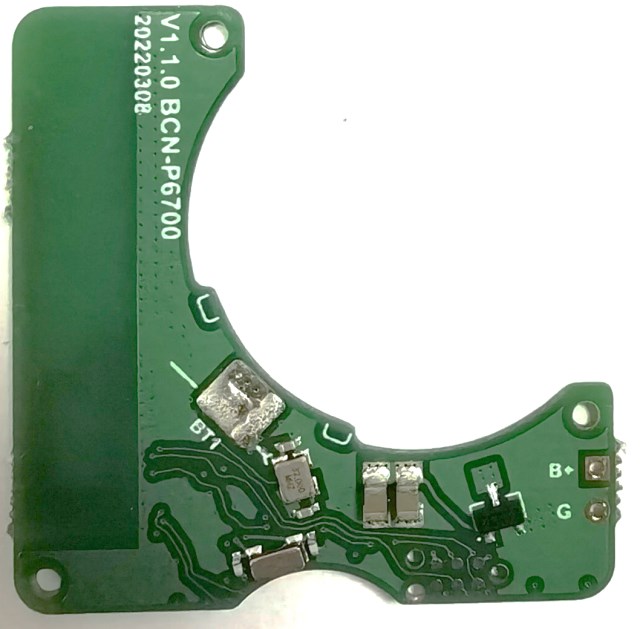

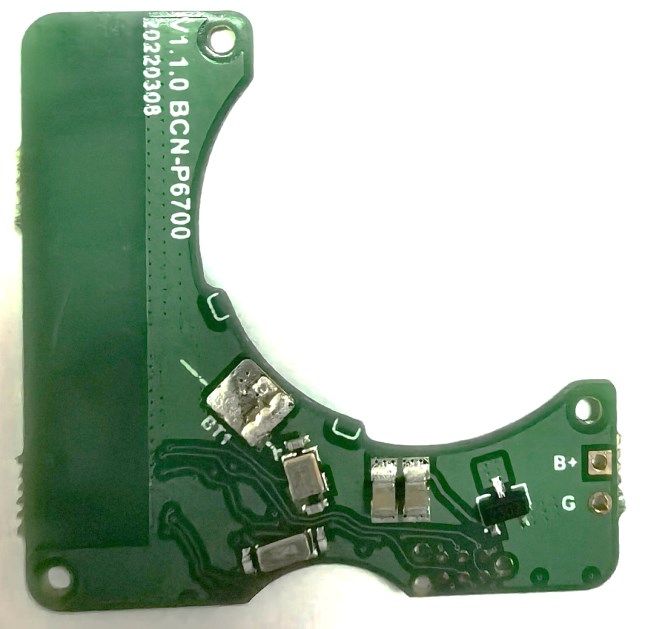

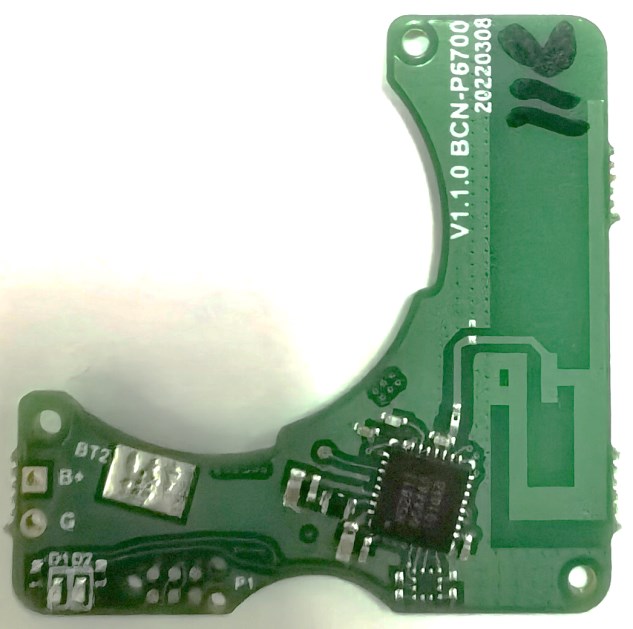

Global Market Access Service >> www.kmolab.com External Photos_2AHP7-BLET21 Page 1 of 2 EUT top side view_RADMEDIA-BLE-T21 EUT top side view_RADMEDIA-BLE-T22 Global Market Access Service >> www.kmolab.com External Photos_2AHP7-BLET21 Page 2 of 2 EUT bottom side view_RADMEDIA-BLE-T21 EUT bottom side view_RADMEDIA-BLE-T22

Global Market Access Service >> www.kmolab.com ID Label & Location Info_2AHP7-BLET21 Page 1 of 1 ID Label & Location Info The following note shall be conspicuously placed in the users manual: “Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.” The Label must not be a stick-on paper label. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT

Global Market Access Service >> www.kmolab.com Internal Photos_2AHP7-BLET21 Page 1 of 2 EUT top side view_RADMEDIA-BLE-T21 EUT top side view_RADMEDIA-BLE-T22 Global Market Access Service >> www.kmolab.com Internal Photos_2AHP7-BLET21 Page 2 of 2 EUT bottom side view_RADMEDIA-BLE-T21 EUT bottom side view_RADMEDIA-BLE-T22

www.kmolab.com The test report consists 7 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Ke Mei Ou Laboratory Corporation. The test result in the report only applied to the tested sample. RF Exposure Evaluation Report Under: 47 CFR Part 2.1091 KDB447498 D01 General RF Exposure Guidance v06 Operation within the band ☒2400-2483.5MHz ☒DTS - Digital Transmission System ☒Limited single-modular Prepared For : RADIANT RFID LLC 1023 Springdale Road Bldg 4, Suite B Austin TX 78721 FCC ID: 2AHP7-BLET21 EUT: BCN-P6700(nRF521810) Model: RADMEDIA-BLE-T21 November 10, 2022 Issue Date: Original Report Report Type: Test Engineer: Jacky Huang Review By: Apollo Liu / Manager ©2022 Ke Mei Ou Laboratory Co., Ltd. Global Market Access Service >> www.kmolab.com KMO FCC ID Test Report Page 2 of 7 Report #: KSZ2021060901J02 Table of Contents 1. General Information ................................................................................................................................................................ 4 1. 1 Notes ................................................................................................................................................................................... 4 1. 2 Testing Laboratory .............................................................................................................................................................. 4 1. 3 Details of Applicant............................................................................................................................................................. 4 1. 4 Application Details .............................................................................................................................................................. 4 1. 5 Details of Factory ................................................................................................................................................................ 4 1. 6 Test Item .............................................................................................................................................................................. 4 1. 7 Applicable Standards ........................................................................................................................................................... 5 2. Technical Test .......................................................................................................................................................................... 6 2. 1 Summary of Test Results ..................................................................................................................................................... 6 3. EUT Modifications ................................................................................................................................................................... 6 4. FCC Maximum Permissible Exposure (MPE) ....................................................................................................................... 7 4. 1 Limit of MPE ...................................................................................................................................................................... 7 4. 2 RF Exposure Requirements ................................................................................................................................................. 7 4. 3 Conclusion .......................................................................................................................................................................... 7 Global Market Access Service >> www.kmolab.com KMO FCC ID Test Report Page 3 of 7 Report #: KSZ2021060901J02 Report Revision History Report # Version Description Issued Date KSZ2021060901J02 Rev.01 Initial issue of report June 28, 2022 KSZ2021060901J02 Rev.02 Update cover page & section 1.3 of report November 10, 2022 Global Market Access Service >> www.kmolab.com KMO FCC ID Test Report Page 4 of 7 Report #: KSZ2021060901J02 1. General Information 1. 1 Notes The test results of this report relate exclusively to the test item specified in 1.6. The Ke Mei Ou Laboratory does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Ke Mei Ou Laboratory. 1. 2 Testing Laboratory Test Firm Name: Ke Mei Ou Lab Co., Ltd. Test Firm Address: 2013-2016, 20th Floor, Business Center, Jiahui Xin Cheng, No 3027, Shen Nan Road, Fu Tian, Shen Zhen, Guang Dong, P. R. China FCC Designation Number: CN1532 Test Firm Registration Number: 344480 Internet: www.kmolab.com Email: [email protected] ANSI-ASQ National Accreditation Board/ACLASS ISO/IEC 17025 Accredited Lab for telecommunication standards. The Registration Number is AT- 1532. The testing quality system meets with ISO/IEC-17025 requirements, This approval results is accepted by MRA of ILAC. 1. 3 Details of Applicant Name RADIANT RFID LLC Address 1023 Springdale Road Bldg 4, Suite B Austin TX 78721 1. 4 Application Details Date of Receipt of Application : June 9, 2021 Date of Receipt of Test Item : August 13, 2021 Date of Test : August 30, 2021 ~ June 28, 2022 1. 5 Details of Factory Name Hana Microelectronics Public Co., Ltd. Address Saha Group Industrial Park Lamphun 123 Moo 5, T.Pasak, A.Muang, Lamphun 51000, Thailand 1. 6 Test Item EUT Feature EUT Description: BCN-P6700(nRF521810) Brand Name: Radiant RFID Basic Mode: RADMEDIA-BLE-T21 Family Model: RADMEDIA-BLE-T22 EUT RF Technology: ☒Bluetooth v4.2 LE Equipment Class: ☒DTS - Digital Transmission System ☒Limited single-modular HW Version: v1.1.0 SW Ver…

Text truncated - open the document above for the full version.

1 SWRU120D–April2007–RevisedJanuary2019 SubmitDocumentationFeedback Copyright© 2007–2019,TexasInstrumentsIncorporated 2.4-GHzInvertedF Antenna ApplicationReport SWRU120D–April2007–RevisedJanuary2019 2.4-GHzInvertedF Antenna ABSTRACT Thisdocumentdescribesa printed-circuitboard(PCB)antennadesignthat can be usedwith all 2.4-GHz transceiversand transmittersfromTexasInstruments™. The maximumgainwhenusedon the reference boardis measuredto be +3.3dBi, and the overallsize requirementsfor this antennaare 25.7× 7.5 mm (not includinggroundplane). Contents 1Descriptionof the antennaDesign........................................................................................2 2MeasurementResults.......................................................................................................3 2.1RadiationPattern...................................................................................................3 2.2Reflection...........................................................................................................10 2.3Bandwidth..........................................................................................................11 3Conclusion..................................................................................................................11 4References..................................................................................................................11 Trademarks TexasInstrumentsis a trademarkof TexasInstruments. All othertrademarksare the propertyof theirrespectiveowners. Descriptionof the antennaDesignwww.ti.com 2 SWRU120D–April2007–RevisedJanuary2019 SubmitDocumentationFeedback Copyright© 2007–2019,TexasInstrumentsIncorporated 2.4-GHzInvertedF Antenna 1Descriptionof the antennaDesign It is importantto makean exactcopyof the antennadimensionsto obtainoptimumperformance.The easiestapproachto implementthe antennain a PCBCADtool is to importthe antennalayoutfroma gerberfile or a DXFfile. Suchfiles are includedin CC2430DBreferencedesign[1]. The gerberfile is calledInverted_F_Antenna.spland the DXFfile is calledInverted_F_Antenna.dxf.If the antennais implementedon a PCBthat is widerthanthe antenna,avoidplacingcomponentsor havinga ground planecloseto the end pointsof the antenna.If the CADtool beinguseddoesnot supportimportinggerber or DXFfiles,see Figure1 and Table1. The antennaimpedanceis tunedto 50 ohmon the referenceboard.The impedancewill howeverbe affectedby differentsize and shapeof the groundplane,objectsin the antennanearfieldsuchas mechanicalassemblies(housing,batteries,etc.),PCBthickness,PCBmaterialand so on. It is therefore recommendedto add a pi-networkcloseto the antennafeedpointfor impedancematching. The resultspresentedin this documentare basedon an antennaimplementedon a PCBwith a 1-mm thicknessusingstandardFR-4material. Figure1. IFA Dimensions Table1. IFA Dimensions H15.70mmW20.46mm H20.74mmL125.58mm H31.29mmL216.40mm H42.21mmL32.18mm H50.66mmL44.80mm H61.21mmL51.00mm H70.80mmL61.00mm H81.80mmL73.20mm H90.61mmL80.45mm W11.21mm www.ti.comMeasurementResults 3 SWRU120D–April2007–RevisedJanuary2019 SubmitDocumentationFeedback Copyright© 2007–2019,TexasInstrumentsIncorporated 2.4-GHzInvertedF Antenna 2MeasurementResults All of the resultspresentedin this sectionare basedon measurementsperformedwith the CC2430DB[1] evaluationboard. 2.1RadiationPattern Figure2 showshow to relateall of the radiationpatternsto the orientationof the antenna.The radiation patternsweremeasuredwith the CC2430deviceprogrammedto 0-dBmoutputpower. Figure2. RelatingAntennato RadiationPatterns MeasurementResultswww.ti.com 4 SWRU120D–April2007–RevisedJanuary2019 SubmitDocumentationFeedback Copyright© 2007–2019,TexasInstrumentsIncorporated 2.4-GHzInvertedF Antenna Figure3 showsthe XY planeverticalpolarization. Figure3. XY Plane–VerticalPolarization www.ti.comMeasurementResults 5 SWRU120D–April2007–RevisedJanuary2019 SubmitDocumentationFeedback Copyright© 2007–2019,TexasInstrumentsIncorporated 2.4-GHzInvertedF Antenna Figure4 showsthe XY planehorizontalpolarization. Figure4. XY Plane–HorizontalPolarization MeasurementResultswww.ti.com 6 SWRU120D–April2007–RevisedJanuary2019 SubmitDocumentationFeedback Copyright© 2007–2019,TexasInstrumentsIncorporated 2.4-GHzInvertedF Antenna Figure5 showsthe XZ planeverticalpolarization. Figure5. XZ Plane–VerticalPolarization www.ti.comMeasurementResults 7 SWRU120D–April2007–RevisedJanuary2019 SubmitDocumentationFeedback Copyright© 2007–2019,TexasInstrumentsIncorporated 2.4-GHzInvertedF Antenna Figure6 showsthe XZ planehorizontalpolarization. Figure6. XZ Plane–HorizontalPolarization MeasurementResultswww.ti.com 8 SWRU120D–April2007–RevisedJanuary2019 SubmitDocumentationFeedback Copyright© 2007–2019,TexasInstrumentsIncorporated 2.4-GHzInvertedF Antenna Figure7 showsthe YZ planeverticalpolarization. Figure7. YZ Plane–VerticalPolarization www.ti.comMeasurementResults 9 SWRU120D–April2007–RevisedJanuary2019 SubmitDocumentationFeedback Copyright© 2007–2019,TexasInstrumentsIncorporated 2.4-GHzInvertedF Antenna Figure8 showsthe YZ planehorizontalpolarization. Figure8. YZ Plane–HorizontalPolarization MeasurementResultswww.ti.com 10 SWRU120D–April2007–RevisedJanuary2019 SubmitDocumentationFeedback Copyright© 2007–2019,TexasInstrumentsIncorporated 2.4-GHzInvertedF Antenna 2.2Reflection Figure9 showsthat the IFA ensuresless than10%reflectionof the availablepowerfor a bandwidthof morethan300 MHz.A largebandwidthmakesthe antennaless sensitiveto detuningbecauseof plastic encapsulationor otherobjectsin the vicinityof the antenna. Figure9. MeasuredReflectionat FeedPointof Antenna www.ti.comMeasurementResults 11 SWRU120D–April2007–RevisedJanuary2019 SubmitDocumentationFeedback Copyright© 2007–2019,TexasInstrumentsIncorporated 2.4-GHzInvertedF Antenna 2.3Bandwidth Anotherway of measuringthe bandwidthafterthe antennais implementedon a PCBand connectedto a transmitteris to writetest softwarethat stepsa carrieracrossthe frequencybandof interest.By usingthe …

Text truncated - open the document above for the full version.

Global Market Access Service >> www.kmolab.com KSZ2021060901J01_Appendix_DTS_BLE_T22 Page 1 of 24 4. Conducted Power Line Test 4. 7 Conducted Power Line Test Result Global Market Access Service >> www.kmolab.com KSZ2021060901J01_Appendix_DTS_BLE_T22 Page 2 of 24 ☒Test Mode 1 FCC15 Power-line Conducted Emissions Frequency (MHz) Read Level (dBuV) Factor (dB) Emission (dBuV) Line/ Neutral Limit (dBuV) Margin(dBuV) QP AV QP AV QP AV QP AV 0.158 37.43 24.49 10.30 47.73 34.79 Line 65.57 55.57 -17.84 -20.78 11.266 32.46 16.20 10.80 43.26 27.00 Line 60.00 50.00 -16.74 -23.00 15.394 34.11 22.38 11.00 45.11 33.38 Line 60.00 50.00 -14.89 -16.62 15.462 32.42 17.72 10.90 43.32 28.62 Line 60.00 50.00 -16.68 -21.38 15.866 33.69 17.80 11.00 44.69 28.80 Line 60.00 50.00 -15.31 -21.20 15.986 33.89 18.71 10.90 44.79 29.61 Line 60.00 50.00 -15.21 -20.39 Note: 1.Uncertainty in conducted emission measured is <+/ -2dB. 2.The emission levels of other frequencies were very low against the limit. 3.All Reading Levels are Quasi-Peak and Average value. 4.Emission = Meter Reading + Factor; Factor = Insertion Loss + Cable Loss. 5.Margin Value= Emission Level - Limit Value. Global Market Access Service >> www.kmolab.com KSZ2021060901J01_Appendix_DTS_BLE_T22 Page 3 of 24 ☒Test Mode 1 FCC15 Power-line Conducted Emissions Frequency (MHz) Read Level (dBuV) Factor (dB) Emission (dBuV) Line/ Neutral Limit (dBuV) Margin(dBuV) QP AV QP AV QP AV QP AV 11.082 36.50 21.64 10.30 46.80 31.94 Neutral 60.00 50.00 -13.20 -18.06 15.278 35.77 26.77 10.80 46.57 37.57 Neutral 60.00 50.00 -13.43 -12.43 15.406 36.34 21.48 11.00 47.34 32.48 Neutral 60.00 50.00 -12.66 -17.52 15.814 36.44 20.12 10.90 47.34 31.02 Neutral 60.00 50.00 -12.66 -18.98 15.930 36.40 21.89 11.00 47.40 32.89 Neutral 60.00 50.00 -12.60 -17.11 16.054 36.74 23.12 10.90 47.64 34.02 Neutral 60.00 50.00 -12.36 -15.98 Note: 1.Uncertainty in conducted emission measured is <+/ -2dB. 2.The emission levels of other frequencies were very low against the limit. 3.All Reading Levels are Quasi-Peak and Average value. 4.Emission = Meter Reading + Factor; Factor = Insertion Loss + Cable Loss. 5.Margin Value= Emission Level - Limit Value. Global Market Access Service >> www.kmolab.com KSZ2021060901J01_Appendix_DTS_BLE_T22 Page 4 of 24 5. FCC Part 15.247 Requirements for DTS Systems 5. 7 Test Result Global Market Access Service >> www.kmolab.com KSZ2021060901J01_Appendix_DTS_BLE_T22 Page 5 of 24 Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.712 2401.636 2402.348 0.5 PASS 2440 0.736 2439.620 2440.356 0.5 PASS 2480 0.756 2479.608 2480.364 0.5 PASS Global Market Access Service >> www.kmolab.com KSZ2021060901J01_Appendix_DTS_BLE_T22 Page 6 of 24 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 A Offset 13.1 dB LVL Att 30 dB * Ref 20 dBm Center2.402 GHzSpan4 MHz400 kHz/ 3DB RBW 100 kHz SWT 5 ms * VBW 300 kHz * 1 PK VIEW -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 100 of 100 1 Marker 1 [T1 ] -4.93 dBm 2.401636000 GHz 2 Marker 2 [T1 ] 1.21 dBm 2.402252000 GHz 3 Delta 3 [T1 ] 0.11 dB 712.000000000 kHz D1 -4.792 dBm Date: 13.JUN.2022 11:11:27 A Offset 13 dB LVL Att 30 dB * Ref 20 dBm Center2.44 GHzSpan4 MHz400 kHz/ 3DB RBW 100 kHz SWT 5 ms * VBW 300 kHz * 1 PK VIEW -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 100 of 100 1 Marker 1 [T1 ] -5.69 dBm 2.439620000 GHz 2 Marker 2 [T1 ] 0.57 dBm 2.440248000 GHz 3 Delta 3 [T1 ] 0.18 dB 736.000000000 kHz D1 -5.434 dBm Date: 13.JUN.2022 11:20:18 A Offset 13.1 dB LVL Att 30 dB * Ref 20 dBm Center2.48 GHzSpan4 MHz400 kHz/ 3DB RBW 100 kHz SWT 5 ms * VBW 300 kHz * 1 PK VIEW -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 100 of 100 1 Marker 1 [T1 ] -9.18 dBm 2.479608000 GHz 2 Marker 2 [T1 ] -3.13 dBm 2.479732000 GHz 3 Delta 3 [T1 ] -0.11 dB 756.000000000 kHz D1 -9.133 dBm Date: 13.JUN.2022 11:26:14 Global Market Access Service >> www.kmolab.com KSZ2021060901J01_Appendix_DTS_BLE_T22 Page 7 of 24 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.064 2401.460 2402.524 --- PASS 2440 1.052 2439.460 2440.512 --- PASS 2480 1.076 2479.452 2480.528 --- PASS Global Market Access Service >> www.kmolab.com KSZ2021060901J01_Appendix_DTS_BLE_T22 Page 8 of 24 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 A Att 30 dB * Offset 13.1 dB LVL Ref 20 dBm Center2.402 GHzSpan4 MHz400 kHz/ 3DB RBW 30 kHz SWT 5 ms * VBW 300 kHz * *1 SA VIEW -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 100 of 100 1 Marker 1 [T1 ] -1.61 dBm 2.401996000 GHz OBW 1.064000000 MHz T1 Temp 1 [T1 OBW] -16.14 dBm 2.401460000 GHz T2 Temp 2 [T1 OBW] -16.38 dBm 2.402524000 GHz Date: 13.JUN.2022 11:11:47 A Att 30 dB * Offset 13 dB LVL Ref 20 dBm Center2.44 GHzSpan4 MHz400 kHz/ 3DB RBW 30 kHz SWT 5 ms * VBW 300 kHz * *1 SA VIEW -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 100 of 100 1 Marker 1 [T1 ] -2.22 dBm 2.439976000 GHz OBW 1.052000000 MHz T1 Temp 1 [T1 OBW] -17.90 dBm 2.439460000 GHz T2 Temp 2 [T1 OBW] -16.49 dBm 2.440512000 GHz Date: 13.JUN.2022 11:20:38 A Att 30 dB * Offset 13.1 dB LVL Ref 20 dBm Center2.48 GHzSpan4 MHz400 kHz/ 3DB RBW 30 kHz SWT 5 ms * VBW 300 kHz * *1 SA VIEW -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 100 of 100 1 Marker 1 [T1 ] -6.22 dBm 2.479952000 GHz OBW 1.076000000 MHz T1 Temp 1 [T1 OBW] -21.35 dBm 2.479452000 GHz T2 Temp 2 [T1 OBW] -20.05 dBm 2.480528000 GHz Date: 13.JUN.2022 11:26:34 Global Market Access Service >> www.kmolab.com KSZ2021060901J01_Appendix_DTS_BLE_T22 Page 9 of 24 Appendix C: Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 1.4 <=30 PASS 2440 1.07 <=30 PASS 2480 -1.04 <=30 PASS Global Market Access Service >> www.kmolab.com KSZ2021060901J01_Appendix_DTS_BLE_T22 Page 10 of 24 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 A Att 30 dB ** Offset 13.1 dB LVL Ref 20 dBm * * 3DB RBW 3 MHz VBW 3 MHz…

Text truncated - open the document above for the full version.

Global Market Access Service >> www.kmolab.com KSZ2021060901J01_Appendix_DTS_BLE_T21 Page 1 of 24 4. Conducted Power Line Test 4. 7 Conducted Power Line Test Result Global Market Access Service >> www.kmolab.com KSZ2021060901J01_Appendix_DTS_BLE_T21 Page 2 of 24 ☒Test Mode 1 FCC15 Power-line Conducted Emissions Frequency (MHz) Read Level (dBuV) Factor (dB) Emission (dBuV) Line/ Neutral Limit (dBuV) Margin(dBuV) QP AV QP AV QP AV QP AV 0.158 37.43 24.49 10.30 47.73 34.79 Line 65.57 55.57 -17.84 -20.78 11.266 32.46 16.20 10.80 43.26 27.00 Line 60.00 50.00 -16.74 -23.00 15.394 34.11 22.38 11.00 45.11 33.38 Line 60.00 50.00 -14.89 -16.62 15.462 32.42 17.72 10.90 43.32 28.62 Line 60.00 50.00 -16.68 -21.38 15.866 33.69 17.80 11.00 44.69 28.80 Line 60.00 50.00 -15.31 -21.20 15.986 33.89 18.71 10.90 44.79 29.61 Line 60.00 50.00 -15.21 -20.39 Note: 1.Uncertainty in conducted emission measured is <+/ …

Text truncated - open the document above for the full version.
