2AHPN-HSA-15UA-BROBD II Sensor

HARMAN Harman Connected Services, Inc. 636 Ellis Street, Mountain View California 94043 United States of America CONNECTED CAR | LIFESTYLE AUDIO | PROFESSIONAL SOLUTIONS | CONNECTED SERVICES +1 972-696-6917 +1 972-696-6999 Date: 26 th June 2020 Subject: Confidentiality Request for FCC ID: 2AHPN-HSA-15UA-BR Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Permanent User’s Manual Harman International Industries Incorporated has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: __________________________ Dhanaji Khade (Signature/Title) (Print name)

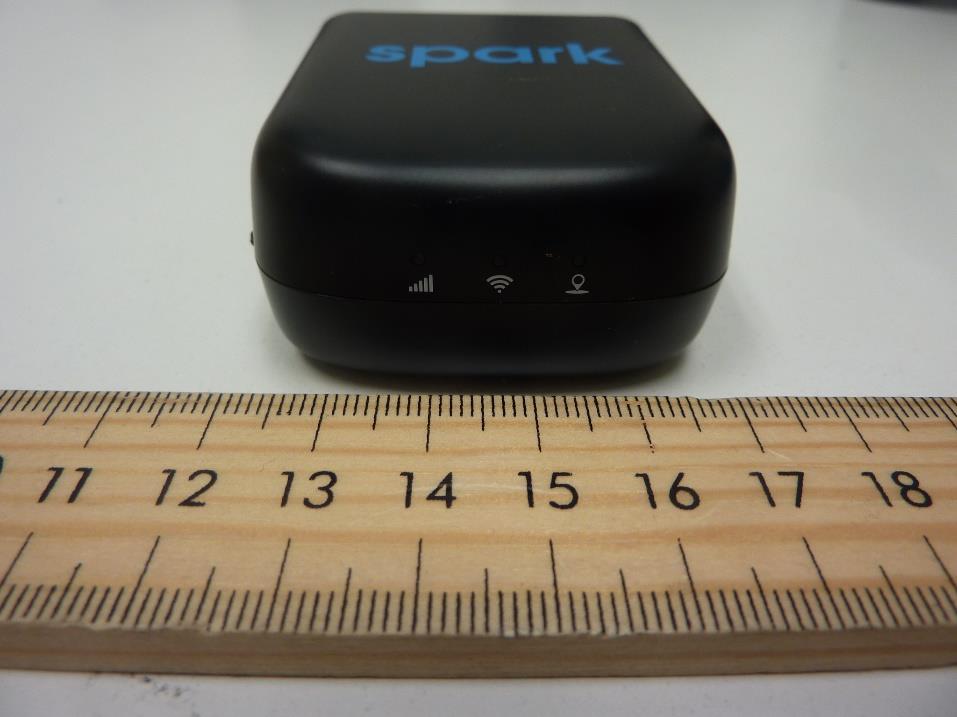

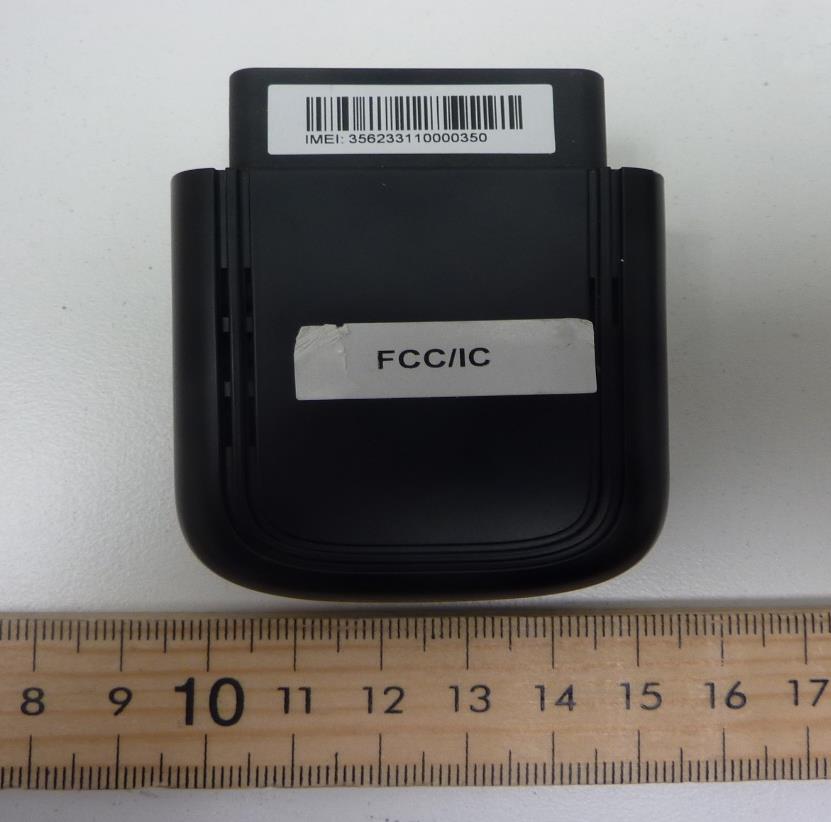

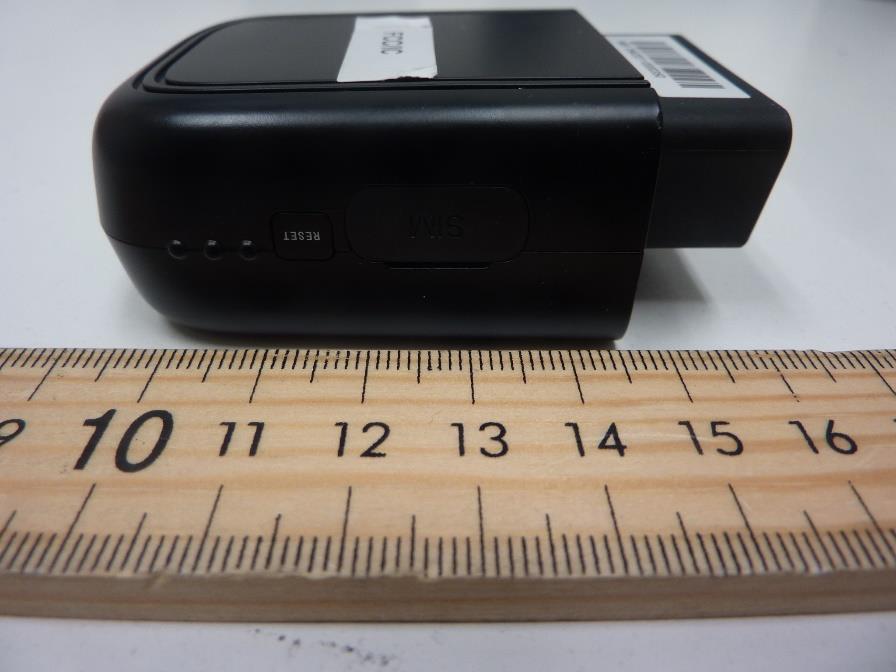

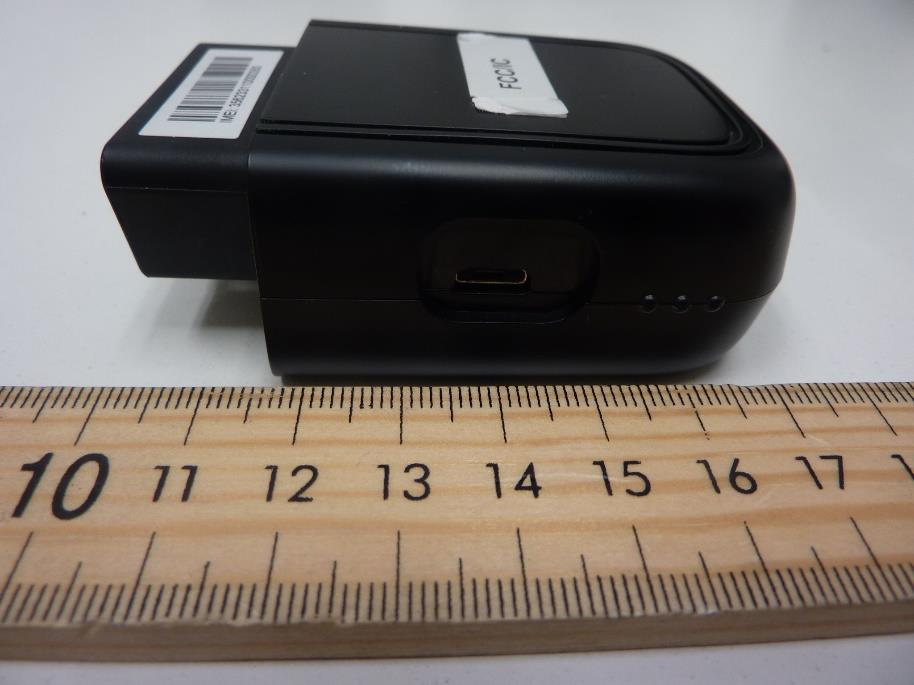

TUV Rheinland Product Under Test Photo 5015 Brandin Ct. Fremont, California, 94538 Tel: (925) 249-9123, Fax: (925) 249-9124 EUT: HARMAN Spark Page 1 of 3 Model: HSA-15UA-BR FCC ID: 2AHPN-HSA-15UA-BR 1.1 Product Under Test Photo Figure 1 - External Photo (Top) Figure 2- External Photo (Bottom) TUV Rheinland Product Under Test Photo 5015 Brandin Ct. Fremont, California, 94538 Tel: (925) 249-9123, Fax: (925) 249-9124 EUT: HARMAN Spark Page 2 of 3 Model: HSA-15UA-BR FCC ID: 2AHPN-HSA-15UA-BR Figure 3 - External Photo (Side 1) Figure 4- External Photo (Side 2) TUV Rheinland Product Under Test Photo 5015 Brandin Ct. Fremont, California, 94538 Tel: (925) 249-9123, Fax: (925) 249-9124 EUT: HARMAN Spark Page 3 of 3 Model: HSA-15UA-BR FCC ID: 2AHPN-HSA-15UA-BR Figure 5 - External Photo (Side 3) Figure 6- External Photo (Side 4)

Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 1 / 13 Appendix A: SAR System performance Check Plots Measurement Liquid Frequency Test Date System Check Body 750 2020-05-10 System Check Body 835 2020-05-11 System Check Body 1800 2020-05-13 System Check Body 1900 2020-05-14 System Check Body 2450 2020-05-16 System Check Body 750 2020-06-08 Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 2 / 13 System Performance Check (Body, 750MHz) Type: Phone measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 05/10/2020 Measurement duration: 22 minutes 07 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 750MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_41/18_EPG0330 Frequency (MHz) 750 Relative permittivity (real part) 55.53 Relative permittivity 22.80 Conductivity (S/m) 0.95 Power drift (%) -1.63 Ambient Temperature: 22.2°C Liquid Temperature: 22.6°C ConvF: 1.59 Crest factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=-8.00, Y=-11.00 SAR Peak: 0.12 W/kg SAR 10g (W/Kg) 0.060641 SAR 1g (W/Kg) 0.087912 Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 3 / 13 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.2119 0.0925 0.0551 0.0471 0.0290 3D screen shot Hot spot position Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 4 / 13 System Performance Check (Body, 835MHz) Type: Phone measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 05/11/2020 Measurement duration: 22 minutes 03 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 835MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_41/18_EPG0330 Frequency (MHz) 835 Relative permittivity (real part) 55.24 Relative permittivity 21.13 Conductivity (S/m) 0.98 Power drift (%) 0.04 Ambient Temperature: 22.2°C Liquid Temperature: 22.6°C ConvF: 1.64 Crest factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=-3.00, Y=-18.00 SAR Peak: 0.15 W/kg SAR 10g (W/Kg) 0.068343 SAR 1g (W/Kg) 0.103444 Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 5 / 13 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.1450 0.1065 0.0728 0.0512 0.0377 3D screen shot Hot spot position Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 6 / 13 System Performance Check (Body, 1800MHz) Type: Validation measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 05/13/2020 Measurement duration: 22 minutes 08 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 1800MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_41/18_EPG0330 Frequency (MHz) 1800 Relative permittivity (real part) 53.34 Relative permittivity 15.50 Conductivity (S/m) 1.55 Power Drift (%) -2.43 Ambient Temperature: 22.1°C Liquid Temperature: 22.6°C ConvF: 1.81 Duty factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=-10.00, Y=-12.00 SAR Peak: 0.64 W/kg SAR 10g (W/Kg) 0.225103 SAR 1g (W/Kg) 0.406665 Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 7 / 13 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.6366 0.4397 0.2701 0.1628 0.0966 3D screen shot Hot spot position Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 8 / 13 System Performance Check (Body, 1900MHz) Type: Validation measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 05/14/2020 Measurement duration: 22 minutes 01 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 1900MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_41/18_EPG0330 Frequency (MHz) 1900 Relative permittivity (real part) 53.29 Relative permittivity 14.49 Conductivity (S/m) 1.53 Power Drift (%) -0.78 Ambient Temperature: 22.1°C Liquid Temperature: 22.6°C ConvF: 2.08 Duty factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=-7.00, Y=-15.00 SAR Peak: 0.68 W/kg SAR 10g (W/Kg) 0.212895 SAR 1g (W/Kg) 0.405392 Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 9 / 13 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.6798 0.4398 0.2491 0.1417 0.0838 3D screen shot Hot spot position Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 10 / 13 System Performance Check (Body, 2450MHz) Type: Phone measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=5mm, dy=5mm, dz=4mm Date of measurement: 05/16/2020 Measurement duration: 22 minutes 04 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 7x7x8,dx=5mm dy=5mm dz=4mm Device Position Dipole Band 2450MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_41/18_EPG0330 Frequency (MHz) 2450 Relative permittivity (real part) 52.70 Relative permittivity 14.47 Conductivity (S/m) 1.97 Power Drift (%) -0.29 Ambient Temperature: 22.1°C Liquid Temperature: 22.6°C ConvF: 2.12 Duty factor: 1:1 SURFACE SAR VOLUME SAR Maximum location: X=-12.00, Y=5.00 SAR Peak: 1.01 W/kg SAR 10g (W/Kg) 0.251469 SAR 1g (W/Kg) 0.537445 Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 11 / 13 Z (mm) 0.00 4.00 8.00 12.00 16.00 SAR (W/Kg) 1.0095 0.5938 0.3379 0.1902 0.1082 3D screen shot Hot spot position Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 12 / 13 System Performance Check (Body, 750MHz) Type: Phone measurement Area scan resolution: dx=8mm,dy=8mm Zoom scan resolution: dx=8mm, dy=8mm, dz=5mm Date of measurement: 06/08/2020 Measurement duration: 22 minutes 10 seconds A. Experimental conditions. Phantom File dx=8mm dy=8mm Phantom 5x5x7,dx=8mm dy=8mm dz=5mm Device Position Dipole Band 750MHz Channels Signal CW B. SAR Measurement Results Band SAR E-Field Probe SATIMO SN_41/18_EPG0330 Frequency (MHz) 750 Relativ…

Text truncated - open the document above for the full version.

Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 1 / 17 Appendix B: SAR Measurement results Plots Plot Frequency/Mode Testing Position and Channel Test Date 1 WCDMA1900 Edge D, Middle ,10mm 2020/05/14 2 WCDMA850 Edge C, Middle ,10mm 2020/05/11 3 LTE Band2 Edge D, Middle ,10mm 2020/05/14 4 LTE Band4 Top Side, Middle ,10mm 2020/05/13 5 LTE Band5 Edge C, Middle ,10mm 2020/05/11 6 LTE Band12 Edge C, Middle ,10mm 2020/05/10 7 LTE Band14 Edge C, Middle ,10mm 2020/06/08 8 WIFI 2.4G 802.11b Top Side, Middle ,10mm 2020/05/16 Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 2 / 17 Plot 1: WCDMA1900, Edge D, Middle,10mm Type: Phone measurement Date of measurement: 05/14/2020 Measurement duration: 22 minutes 06 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Edge D Band Band2_WCDMA1900 Channels 9400 Signal WCDMA (Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_41/18_EPG0330 Frequency (MHz) 1880 Relative permittivity (real part) 53.30 Relative permittivity (imaginary part) 14.31 Conductivity (S/m) 1.51 Variation (%) 0.20 ConvF: 2.39 SURFACE SAR VOLUME SAR Maximum location: X=-1.00, Y=-22.00 SAR Peak: 1.87W/kg SAR 10g (W/Kg) 0.731363 SAR 1g (W/Kg) 1.260527 Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 3 / 17 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 1.8649 1.3610 0.9012 0.5875 0.3760 3D screen shot Hot spot position Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 4 / 17 Plot 2: WCDMA850, Edge C, Middle,10mm Type: Phone measurement Date of measurement: 05/11/2020 Measurement duration: 22 minutes 09 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Edge C Band Band5_WCDMA850 Channels 4183 Signal WCDMA (Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_41/18_EPG0330 Frequency (MHz) 836.6 Relative permittivity (real part) 55.24 Relative permittivity (imaginary part) 21.13 Conductivity (S/m) 0.98 Variation (%) -1.14 ConvF: 1.99 SURFACE SAR VOLUME SAR Maximum location: X=-18.00, Y=-15.00 SAR Peak: 0.97W/kg SAR 10g (W/Kg) 0.590295 SAR 1g (W/Kg) 0.800153 Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 5 / 17 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.9661 0.8162 0.6579 0.5280 0.4211 3D screen shot Hot spot position Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 6 / 17 Plot 3: LTE Band2, 20MHz, Edge D, Middle,10mm Type: Phone measurement Date of measurement: 05/14/2020 Measurement duration: 22 minutes 08 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Edge D Band LTE Band 2 Channels 18900 Signal LTE (Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_41/18_EPG0330 Frequency (MHz) 1880 Relative permittivity (real part) 53.30 Relative permittivity (imaginary part) 14.31 Conductivity (S/m) 1.51 Variation (%) 1.96 ConvF: 2.39 SURFACE SAR VOLUME SAR Maximum location: X=-2.00, Y=-30.00 SAR Peak: 1.98W/kg SAR 10g (W/Kg) 0.701025 SAR 1g (W/Kg) 1.253636 Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 7 / 17 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 1.9805 1.3512 0.8271 0.5119 0.3272 3D screen shot Hot spot position Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 8 / 17 Plot 4: LTE Band4, 20MHz, Top Side, Middle,10mm Type: Phone measurement Date of measurement: 05/13/2020 Measurement duration: 22 minutes 05 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Top Side Band LTE Band 4 Channels 20175 Signal LTE (Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_41/18_EPG0330 Frequency (MHz) 1732.5 Relative permittivity (real part) 53.33 Relative permittivity (imaginary part) 15.20 Conductivity (S/m) 1.52 Variation (%) -0.90 ConvF: 2.22 SURFACE SAR VOLUME SAR Maximum location: X=-2.00, Y=-15.00 SAR Peak: 2.50W/kg SAR 10g (W/Kg) 0.773751 SAR 1g (W/Kg) 1.420421 Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 9 / 17 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 2.4965 1.6124 0.9158 0.5289 0.3235 3D screen shot Hot spot position Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 10 / 17 Plot 5: LTE Band5, 10MHz, Edge C, Middle,10mm Type: Phone measurement Date of measurement: 05/11/2020 Measurement duration: 22 minutes 04 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Edge C Band LTE Band 5 Channels 20525 Signal LTE (Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_41/18_EPG0330 Frequency (MHz) 836.5 Relative permittivity (real part) 55.24 Relative permittivity (imaginary part) 21.13 Conductivity (S/m) 0.98 Variation (%) -1.19 ConvF: 1.99 SURFACE SAR VOLUME SAR Maximum location: X=-23.00, Y=-12.00 SAR Peak: 0.87W/kg SAR 10g (W/Kg) 0.521923 SAR 1g (W/Kg) 0.710545 Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 11 / 17 Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.8712 0.7284 0.5814 0.4648 0.3718 3D screen shot Hot spot position Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 12 / 17 Plot 6: LTE Band12, 10MHz, Edge C, Middle,10mm Type: Phone measurement Date of measurement: 05/10/2020 Measurement duration: 22 minutes 07 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Area Scan dx=8mm dy=8mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Edge C Band LTE Band 12 Channels 23095 Signal LTE (Duty cycle: 1:1) B. SAR Measurement Results E-Field Probe SATIMO SN_41/18_EPG0330 Frequency (MHz) 707.5 Relative permittivity (real part) 55.54 Relative permittivity (imaginary part) 23.04 Conductivity (S/m) 0.96 Variation (%) -0.48 ConvF: 1.93 SU…

Text truncated - open the document above for the full version.

Report No. SET2020-04221 ANNEX C: Calibration Reports EPGO 330 Probe Calibration Report EPGO 334 Probe Calibration Report SID750 Dipole Calibration Report SID835 Dipole Calibration Report SID1800 Dipole Calibration Report SID1900 Dipole Calibration Report SID2450 Dipole Calibration Report Report No. SET2020-04221 EPGO330 Probe Calibration Report Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 EPGO330 Probe Calibration Report Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 SID750Dipole Calibration Report Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 SID835 Dipole Calibration Report Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 SID1800 Dipole Calibration Report Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221 Report No. SET2020-04221

Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 1 / 2 Appendix D: SAR Test Setup Photo 1: Measurement System SATIMO Photo 2: Top upward 10mm Photo 3: Edge A 10mm Photo 4: Edge B 10mm Photo 5: Edge C 10mm Photo 6: Edge D 10mm Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) 2 / 2 Photo 7: Liquid deep(15cm) EUT Front View EUT Back View

Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) Page 1 of 47 SAR TEST REPORT Report No.： SET2020-04221 Product： HARMAN Spark Brand Name: Harman Model No.： HSA-15UA-BR FCC ID： 2AHPN-HSA-15UA-BR Applicant： Harman International Industries Incorporated Address： 636, Ellis St, Mountain View, CA 94043, USA Issued by： CCIC Southern Testing Co., Ltd. Lab Location： Electronic Testing Building, No. 43 Shahe Road, Xili Street, Nanshan District, Shenzhen, Guangdong, China. Tel： 86 755 26627338 Fax：86 755 26627238 Mail： [email protected] Website：http://www.ccic-set.com This test report consists of 47 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) Page 2 of 47 Test Report Product. ...................: HARMAN Spark Model No. .................: HSA-15UA-BR Brand Name..............: Harman FCC ID.......................: 2AHPN-HSA-15UA-BR Applicant....................: Harman International Industries Incorporated Applicant Address.......: 636, Ellis St, Mountain View, CA 94043, USA Manufacturer............: Harman International Industries Incorporated Manufacturer Address: 636, Ellis St, Mountain View, CA 94043, USA Test Standards..........: 47CFR §2.1093- Radiofrequency Radiation Exposure Evaluation: Portable Devices; ANSI C95.1–1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz – 300 GHz.( IEEE Std C95.1-1991) IEEE 1528–2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques Test Result...............: Pass Test Date..................: 2020.05.10-2020.05.16 Tested by ..............: 2020-06-09 Mei Chun, Test Engineer Reviewed by.............: 2020-06-09 Chris You, Senior Engineer Approved by...............: 2020-06-09 Shuangwen Zhang, Manager Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) Page 3 of 47 Contents Test Report ........................................................................................................................................... 2 1. Administrative Data ................................................................................................................... 4 2. Equipment Under Test (EUT) ................................................................................................... 5 3. SAR Summary ............................................................................................................................ 7 4. Specific Absorption Rate (SAR)................................................................................................ 8 5. Tissue check and recommend Dielectric Parameters ........................................................... 12 6. SAR measurement procedure ................................................................................................. 17 7. Conducted RF Output Power ................................................................................................. 18 8. Scaling Factor calculation ....................................................................................................... 33 9. Test Results ............................................................................................................................... 34 10. Simultaneous Transmissions Analysis .................................................................................... 41 11. Measurement Uncertainty ....................................................................................................... 42 12. Equipment List ......................................................................................................................... 46 ANNEX A: Appendix A: SAR System performance Check Plots..................................................... 47 ANNEX B: Appendix B: SAR Measurement results Plots................................................................ 47 ANNEX C: Appendix C: Calibration reports .................................................................................... 47 ANNEX D: Appendix D: SAR Test Setup ......................................................................................... 47 Report No. SET2020-04221 CCIC-SET/TRF:ISAR(2019-05-23) Page 4 of 47 1. Administrative Data 1.1 Testing Laboratory Test Site: CCIC Southern Testing Co., Ltd. Address: Electronic Testing Building, No. 43 Shahe Road, Xili Street, Nanshan District, Shenzhen, Guangdong, China CNAS Lab Code: CCIC-SET is a third party testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L1659. NVLAP Lab Code: CCIC-SET is a third party testing organization accredited by NVLAP according to ISO/IEC 17025. The accreditation certificate number is 201008-0. FCC Registration: CCIC Southern Electronic Product Testing (Shenzhen) Co., Ltd. EMC Laboratory has been registered and fully described in a report filed with the FCC (Federal Communications Commission). The acceptance letter from the FCC is maintained in our files. Designation Number: CN5031, valid time is until December 31, 2020. ISED Registration: CCIC Southern Electronic Product Testing (Shenzhen) Co., Ltd. EMC Laboratory has been registered by Certification and Engineering Bureau of Industry Canada for the performance of radiated measurements with Registration No. …

Text truncated - open the document above for the full version.

Report Number: 32061920.001 Page 1 EUT: HARMAN Spark Model: HSA-15UA-BR FCC ID: 2AHPN-HSA-15UA-BR Test Report EUT Name : HARMAN Spark Mode l Name: HSA-15UA-BR FCC CFR47 Part 2 (2017)/ FCC CFR47 Part 90R (2017) Prepared for: Harman International Industries Incorporated 636 Ellis St Mountain View CA 94043 U.S.A. Tel: +91-9873387741 Prepared by: TUV Rheinland of North America, Inc. 5015 Brandin Ct. Fremont, CA 94538, U.S.A. Tel: (925) 249-9123 Fax: (925) 249-9124 http://www.tuv.com/ Report/Issue Date: May 26, 2020 Report Number: 32061920.001 Project Number: 234154980 Revision Number: 1 Report Number: 32061920.001 Page 2 EUT: HARMAN Spark Model: HSA-15UA-BR FCC ID: 2AHPN-HSA-15UA-BR Revisions Re vision No. Date MM/DD/YYYY Re as on for Change Author 0 05/13/2020 Original Document RK 1 05/26/2020 Updated EUT Information RK Note: Latest revision report will replace all previous reports. Report Number: 32061920.001 Page 3 EUT: HARMAN Spark Model: HSA-15UA-BR FCC ID: 2AHPN-HSA-15UA-BR Statement of Compliance Manufacturer: Harman International Industries Incorporated 636 Ellis St Mountain View CA 94043, U.S.A. Name of Equipment: HARMAN Spark Model No. HSA-15UA-BR Type of Equipment: OBD II Telematics Device Test Dates: April 23, 2020 to May 8, 2020 Guidance Documents: FCC CFR 47 Part 2 FCC CFR 47 Part90 R (2017) Test Methods: FCC KDB 971168 D01 Power Meas License Digital Systems v03r01 ANSI/TIA/EIA-603-E 2016 ANSI C63.26-2015 The electromagnetic compatibility test and documented data described in this report has been performed and recorded by TUV Rheinland, in accordance with the standards and procedures listed herein. As the responsible authorized agent of the EMC laboratory, I hereby declare that the equipment described above has been shown to be compliant with the EMC requirements of the stated regulations and standards based on these results. If any special accessories and/or modifications were required for compliance, they are listed in the Executive Summary of this report. This report must not be used to claim product endorsement by A2LA or any agency of the U.S. Government. This report shall not be reproduced except in full, without the written authorization of TUV Rheinland of North America. Rachana Khanduri May 26, 2020 Osvaldo Casorla May 26, 2020 Test Engineer Date Laboratory Signatory Date Testing Cert #3331.02 US1131 2932D Table of Contents Report Number: 32061920.001 Page 4 EUT: HARMAN Spark Model: HSA-15UA-BR FCC ID: 2AHPN-HSA-15UA-BR 1 Executive Summary _______________________________________________________ 1 1.1 Scope________________________________________________________________ 1 1.2 Purpose ______________________________________________________________ 1 1.3 Summary of Test Results ________________________________________________ 2 1.4 Special Accessories _____________________________________________________ 2 1.5 Equipme nt Modifications ________________________________________________ 2 2 Laboratory Information ____________________________________________________ 3 2.1 Accre ditations & Endorseme nts ___________________________________________ 3 2.1.1 US Federal Co mmunications Co mmission ____________________________________________ 3 2.1.2 A2LA________________________________________________________________________ 3 2.1.3 Industry Canada ________________________________________________________________ 3 2.1.4 Japan – VCCI__________________________________________________________________ 3 2.1.5 Acceptance by Mutual Recognition Arrange ment _______________________________________ 4 2.2 Tes t Facilities _________________________________________________________ 4 2.2.1 Emission Test Facility ___________________________________________________________ 4 2.3 Meas ure ment Unce rtainty________________________________________________ 4 2.3.1 Sa mple Ca lculat ion – radiated & conducted emissions ___________________________________ 5 2.3.2 Measurement Uncertainty Emissions ________________________________________________ 5 2.3.3 Measurement Uncertainty Immunity_________________________________________________ 6 2.4 Calibration Trace ability _________________________________________________ 6 3 Product Information _______________________________________________________ 7 3.1 Introduction __________________________________________________________ 7 3.2 Cus tome r ____________________________________________________________ 7 3.3 Product Description ____________________________________________________ 7 3.4 Equipme nt Unde r Test (EUT) _____________________________________________ 8 3.5 Tes t Equipme nt Configuration ____________________________________________ 9 3.6 Ope rating Mode _______________________________________________________ 9 4 Test Data _______________________________________________________________ 10 4.1 Conducted RF Output Powe r/ERP/EIRP ___________________________________ 11 4.1.2 Test Setup ____________________________________________________________________12 4.1.3 Deviations ____________________________________________________________________12 4.1.4 Test Results ___________________________________________________________________13 4.1.5 Test Plots _____________________________________________________________________16 4.2 Occupie d Bandwidth___________________________________________________ 28 4.2.1 Test Methodology ______________________________________________________________28 4.2.2 Test Setup ____________________________________________________________________29 4.2.3 Deviations ____________________________________________________________________29 4.2.4 Test Results ___________________________________________________________________29 Table of Contents Report Number: 32061920.001 Page 5 EUT: HARMAN Spark Model: HSA-15UA-BR FCC ID: 2AHPN-HSA-15UA-BR 4.2.5 Test Plots _____________________________________________________________________30 4.3 Emiss ion Mask Me as ure me nt ____________________________________________ 38 4.3.1 Test Methodology _____________…

Text truncated - open the document above for the full version.

Project # 234154980 Report Date:05/26/2020 Report # 32061923.001 Rev 1 Page 1 of 39 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TÜV Rheinland test mark. The report must not be used by the client to claim product certification, approval, or endorsement FCC ID: 2AHPN-HSA-15UA-BR Electromagnetic Compatibility Test Report Prepared in accordance with FCC Part 15 Subpart B: 2020 On May 26 th , 2020 Prepared for: Harman International Industries Incorporated 636 Ellis St. Mountain View, CA 94043 U.S.A Prepared by: TUV Rheinland of North America, Inc. 5015 Brandin Ct. Fremont CA 94538 USA Project # 234154980 Report Date:05/26/2020 Report # 32061923.001 Rev 1 Page 2 of 39…

Text truncated - open the document above for the full version.
