CleanFLEX(CAM) User Manual English v1.0.2 January 31, 2021 Copyright © 2020 Ecube Labs Co., Ltd. All Rights Reserved - Proprietary and Confidential. CleanFLEX(CAM) User Manual - 2 - Legal Notices Trademarks Ecube Labs, CleanCUBE, CleanCAP, CleanFLEX and CleanCityNetworks are trademarks of Ecube Labs Co., Ltd. In this user manual, Ecube Labs®, CleanCUBE®, CleanCAP®, CleanFLEX® and CleanCityNetworks® are referred to as Ecube Labs, CleanCUBE, CleanCAP, CleanFLEX and CleanCityNetworks (CCN) respectively. Copyright Copyright ©2019 Ecube Labs Co., Ltd. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise, without the prior written permission of Ecube Labs Co., Ltd. Notice This user manual is provided for informational purposes only. All information included herein is subject to change without notice. Ecube Labs makes no warranty of any kind with regard to this user manual, either expressed or implied, except as provided herein, including without limitation, thereof, warranties as to marketability, merchantability, fitness for a particular purpose of use or against infringement of any patent. Ecube Labs shall not be responsible for any direct, incidental, or consequential damages of any nature, or losses or expenses resulting from the use of this user manual. CleanFLEX(CAM) User Manual - 3 - Table of Contents 1. Introduction to CleanFLEX ..........................................................................4 1.1 CleanFLEX contents .............................................................................................. 4 1.1.1 Included in CleanFLEX box ...................................................................... 4 1.1.2 Optional .......................................................................................................... 5 1.2 Features...................................................................................................................... 5 2. Installing CleanFLEX .......................................................................................6 2.1 Installation prerequisites .................................................................................... 6 2.2 Installing CleanFLEX ............................................................................................. 7 3. Activating CleanFLEX .....................................................................................9 3.1 Checking CleanFLEX ON or OFF status ..................................................... 9 3.2 Turning CleanFLEX ON ....................................................................................... 9 3.2.1 Prerequisites .................................................................................................. 9 3.3 Turning CleanFLEX OFF .................................................................................... 11 4. Bin profile ........................................................................................................ 12 4.1 Placing liner bag inside the waste bin .................................................... 13 5. Troubleshooting ............................................................................................. 14 5.1 Fill-level measurement issues ........................................................................ 14 5.2 Taking pictures issues ....................................................................................... 14 5.3 Telecommunication and Battery issues ..................................................... 14 6. Regulatory Notices ...................................................................................... 15 CleanFLEX(CAM) User Manual - 4 - 1. Introduction to CleanFLEX CleanFLEX(CAM) is a smart fill-level sensor that can be easily installed on any type of container. It uses robust ToF VCSEL (Time of Flight, Vertical Cavity Surface Emitting Laser) technology, allowing it to monitor any type of non-transparent solid substance. In addition, CleanFlex can take pictures of the inside of the trash bin using the built-in camera, and the photographed photos are transmitted to Clean City Networks wirelessly along with the collected bin fill-level and trash bin status information. CleanFLEX communicates with CCN through 3G. Obtaining real-time fill-level data of bins empowers the user to make data-driven decisions. 1.1 CleanFLEX contents When you receive CleanFLEX, ensure you have all items mentioned in this section. 1.1.1 Included in CleanFLEX box Each CleanFLEX box is shipped with the following: CleanFLEX(CAM) (1 EA) M6 x 12mm (2 EA), M6 x 8mm (2 EA) Magnet (1 EA) Torx driver (1 EA), Torx bit M3 (1 EA), Torx bit M6 (1 EA) CleanFLEX(CAM) User Manual - 5 - 1.1.2 Optional In certain cases, optional items (e.g. brackets) are required for installing CleanFLEX inside a waste container. These items are customized to fit your waste containers and must be ordered separately. Before ordering these items, you must provide information about height, width, volume, and material of your waste container. Based on the information provided, Ecube Labs will calculate the exact height for installing CleanFLEX and will provide the appropriate bracket and kit. 1.2 Features CleanFLEX provides the following features: ̇ Mountable to any type of bin or container. Three types of standard brackets can be provided. If necessary, contact the sales person. ̇ It is complementary to CleanCUBE and can be installed in areas not feasible for CleanCUBE installations. ̇ Data from CleanFLEX can be viewed on the same software platform that displays data from CleanCUBE. ̇ Provides accurate sensing with ToF technology. ̇ Taking pictures using the camera sensor ̇ Effectively monitors non-transparent solid materials. ̇ Allows you to configure sensors remotely. ̇ Provides wireless transmission …

Text truncated - open the document above for the full version.

Ecube Labs Co., Ltd #710, 288, Digital-ro, Guro-gu, Seoul, Republic of Korea (Postal: 08390) Date: April 27, 2021 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: 2AHTD-CFXCAM To whom it may concern: We, the undersigned, hereby authorize SGS Korea Co., Ltd to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. W e, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Ecube Labs Co., Ltd. T his authorization is valid until further written notice from the applicant. Name (Printed): Lee Seung Min Title: Researcher Signature: On behalf of Company: Ecube Labs Co., Ltd. Telephone: 82-10-6862-2506

Ecube Labs Co., Ltd #710, 288, Digital-ro, Guro-gu, Seoul, Republic of Korea (Postal: 08390) To: SGS North A merica Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Ecube Labs Co., Ltd. (08390) 710, Daeryungposttower, 288, Digital-ro, Guro-gu, Seoul, Republic of Korea Regarding: Confidentiality Request regarding application for FCC ID 2AHTD-CFXCAM LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions Tune-up Procedure The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. SHORT TERM CONFIDENTIALITY Additionally, the applicant requests the following documents be held confidential until the device is marketed or 180 days from the grant date, whichever is less. If the device is marketed within 180 days of the Grant Date, the applicant will notify the TCB per FCC KDB 726920 D01 Confidentiality Request Procedures. External Photos Internal Photos Test Setup Photos User manual(s) Sincerely, Lee Seung Min Researcher Ecube Labs Co., Ltd

Ecube Labs Co., Ltd #710, 288, Digital-ro, Guro-gu, Seoul, Republic of Korea (Postal: 08390) May 14, 2021 1.We(Ecube Labs) used Quectel's approved module UC20‐G(FCC ID: XMR201510UC20) for CleanFLEX(FCC ID: 2AHTD‐CFXCAM), followed the module manufacturer's guidelines for installation and operation of the product, and It can be seen that the characteristics are applied to the host equipment as it is. 2. Therefore, we submit the application for the 2AHTD‐CFXCAM by including the module report in exhibits, which includes the following test report. Module FCC ID: XMR201510UC20 Test Report No.: 15050045‐FCC‐R (Issued Date: November 05, 2015) ‐ RF Output Power ‐ Peak‐Average Ratio ‐ 99% & ‐26dB Occupied Bandwidth ‐ Field Strength of Spurious Radiation 3.For conformity assessment, we additionally tested the following items for module test and comparison, and the result of the comparison can be considered equivalent. Additional measurement of WCDNA B2 output power is slightly higher than modular test report. (0.51 dB) However, it still falls under maximum tolerance of modular test report (23.5 dBm) and we declare output power is equivalent. - RF Radiated Output Power - Spurious Radiated Emission - Conducted Output Power - Frequency stability VS. temperature - Frequency stability VS, voltage - Out of band emission, Band Edge - Spurious Emissions at Antenna Terminal - Limits for Maximum Permissible Exposure Maximum tune up tolerance on WCDMA2 / 5 4.Taken together, we apply under our FCC ID. (Sign) Name/Title : Lee Seung‐min / researcher Company Name : Ecube Labs Co., Ltd

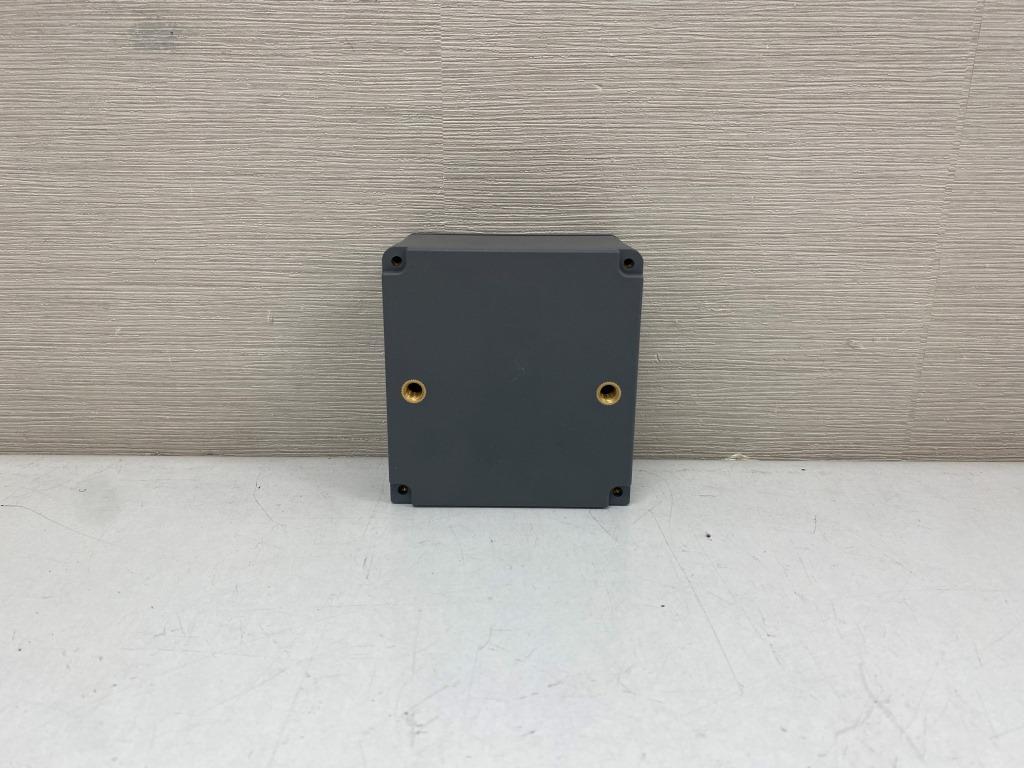

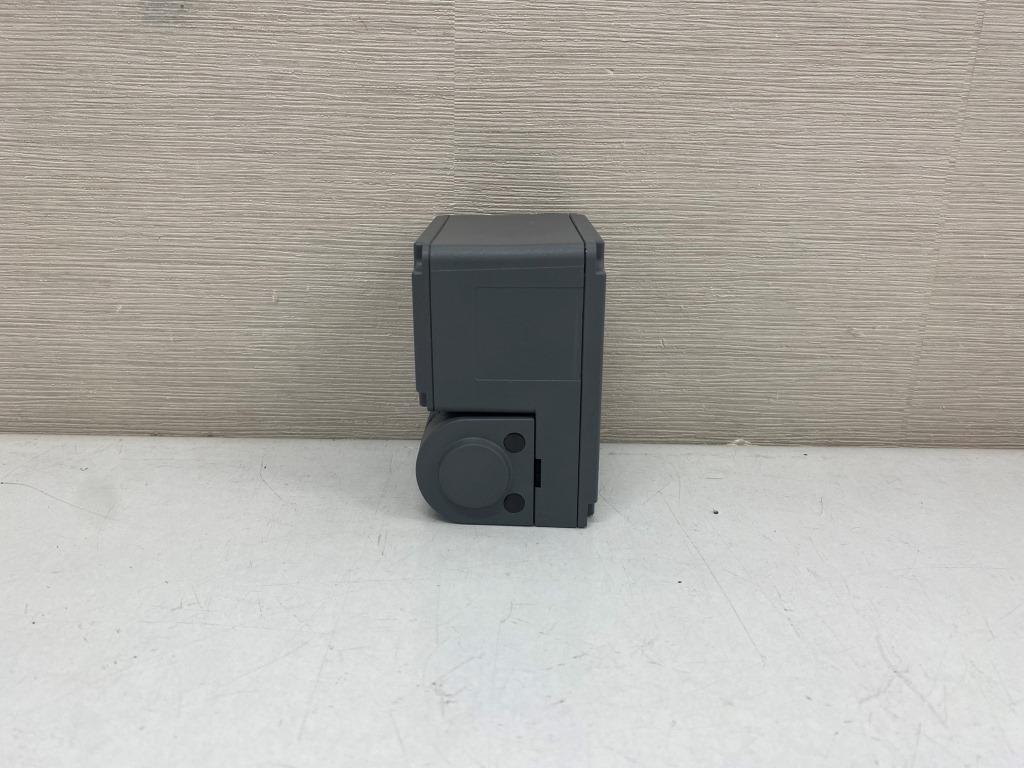

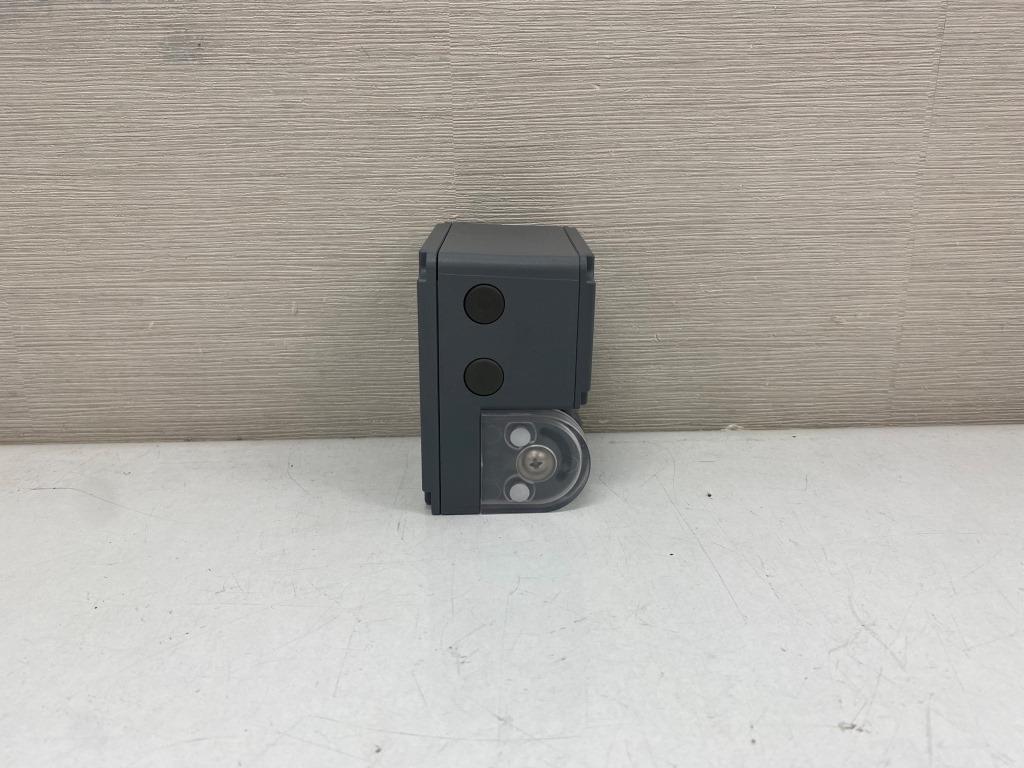

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

Label Size: 26*29.5mm Label Information 1.Side view of EUT 2.Label Detail

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB Top view of Sub PCB Bottom view of Sub PCB View of Module WCDMA Module View of Antenna WCDMA Antenna GPS Antenna

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002016-1 Page: 2 of 6 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of Contents Page 1. General Information -------------------------------------------------------------------------------- 3 2. RF Exposure Evaluation -------------------------------------------------------------------------- 5 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002016-1 Page: 3 of 6 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 688 0901 FAX : +82 31 688 0921 1.2. Details of Applicant Applicant : Ecube Labs Co., Ltd. Address : #710, Daeryungposttower, 288, Digital-ro, Guro-gu, Seoul, South Korea Contact Person : Park, Jin Phone No. : +82 2 2109 0294 1.3. Details of Manufacturer Comapny : Same as applicant Address : Same as applicant SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002016-1 Page: 4 of 6 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.4. Description of EUT Kind of Product CleanFLEX Model Name CFX-CAM Approved Module FCC ID: XMR201510UC20 Power Supply DC 3.6 V Rated Power W CDMA II: 22.5 ㏈m W CDMA IV: 23.0 ㏈m Frequency Range W CDMA II: 1 850 ㎒ ~ 1 910 ㎒ W CDMA V: 824 ㎒ ~ 849 ㎒ Modulation Technique QPSK, 16QAM Antenna Type PCB Pattern Antenna Antenna Gain 824 ㎒ ~ 849 ㎒: 4.0 ㏈i 1 850 ㎒ ~ 1 910 ㎒: -7.0 ㏈i H/W Version 1.0 S/W Version 1.0 1.5. Test Report Revision Revision Report Number Date of Issue Description 0 F690501-RF-RTL002016 2021.04.27 Initial 1 F690501-RF-RTL002016-1 2021.05.13 Revise antenna gain SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002016-1 Page: 5 of 6 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in ㎝ Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1 500 - - f/300 6 1 500-100 000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1 500 - - f/1500 30 1 500-100 000 - - 1.0 30 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002016-1 Page: 6 of 6 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2.1.2. Test Result of RF Exposure Evaluation Test Item ： RF Exposure Evaluation Data Test Mode ： Normal Operation 2.1.3. Output Power into Antenna & RF Exposure Evaluation Distance WCDM A II - Maximum tune up tolerance Frequency Range (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 1 850 ~ 1 910 23.5 -7.0 0.008 886 1 WCDM A V - Maximum tune up tolerance Frequency Range (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 824 ~ 849 24 4.0 0.125 525 0.549 333 Note; - The power density Pd (5th column) at a distance of 20 ㎝ calculated from the friis transmission formula is far below the limit of 1 ㎽/㎠. - This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. - This equipment should be installed and operated with minimum 20 ㎝ between the radiator and your body. - The antenna gain of this transmitter is less than 6㏈ i and must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC. - According to KDB 447498 D01 RF Exposure Guidance 4.1. - End of the Test Report -

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002015-2 Page: 2 of 26 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) INDEX Table of Contents Page 1. General Information ---------------------------------------------------------------------------------------- 3 2. RF Radiated Output Power & Spurious Radiated Emission ------------------------------------- 8 3. Conducted Output Power --------------------------------------------------------------------------------- 15 4. Spurious Emissions at Antenna Terminal ----------------------------------------------------------- 17 5. Band Edge ------------------------------------------------------------------------------------------------- 21 6. Frequency Stability --------------------------------------------------------------------------------------- 24 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002015-2 Page: 3 of 26 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant Applicant : Ecube Labs Co., Ltd. Address : #710, Daeryungposttower, 288, Digital-ro, Guro-gu, Seoul, South Korea, 08380 Contact Person : Park, Jin Phone No. : +82 2 2109 0294 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant 1.4. Description of EUT Kind of Product CleanFLEX Model Name CFX-CAM Approved Module FCC ID: XMR201510UC20 IC Certification: 10224-A201510UC20 Serial Number Conducted: 01 Radiated: 02 Power Supply DC 3.6 V Rated Power W CDMA II: 22.5 ㏈m W CDMA IV: 23.0 ㏈m Frequency Range WCDMA II: 1 850 ㎒ ~ 1 910 ㎒ WCDMA V: 824 ㎒ ~ 849 ㎒ Modulation Technique QPSK, 16QAM Emission Designator WCDMA II: 4M16F9W WCDMA V: 4M19F9W Antenna Type PCB Pattern Antenna Antenna Gain 824 ㎒ ~ 849 ㎒: 4.0 ㏈i 1 850 ㎒ ~ 1 910 ㎒: -7.0 ㏈i H/W Version 1.0 S/W Version 1.0 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002015-2 Page: 4 of 26 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Signal Generator R&S SMR40 100272 Ju n. 18, 2020 Annual Ju n. 18, 2021 Signal Generator R&S SMBV100A 255834 Ju n. 03, 2020 Annual Ju n. 03, 2021 Spectrum Analyzer R&S FSV30 103210 Dec. 07, 2020 Annual Dec. 07, 2021 Mobile Test Unit R&S CMW500 144034 Feb. 22, 2021 Annual Feb. 22, 2022 Power Meter Anritsu ML2495A 1223004 Jun. 01, 2020 Annual Jun. 01, 2021 Power Sensor Anritsu MA2411B 1207272 Jun. 01, 2020 Annual Jun. 01, 2021 High Pass Filter Wainwright Instrument GmbH WHKX10-900-1000-18000 -40SS 7 Mar. 08, 2021 Annual Mar. 08, 2022 High Pass Filter Wainwright Instrument GmbH WHK3.0/18G-10SS 344 May 18, 2020 Annual May 18, 2021 High Pass Filter Wainwright Instrument GmbH WHNX7.5/26.5G-6SS 15 Jun. 05, 2020 Annual Jun. 05, 2021 Directional Coupler KRYTAR 152613 122660 Jun. 11, 2020 Annual Jun. 11, 2021 DC Power Supply Agilent U8002A MY49030063 Feb. 02, 2021 Annual Feb. 02, 2022 Preamplifier H . P. 8447F 2944A03909 Aug. 06, 2020 Annual Aug. 06, 2021 Preamplifier R&S SCU 18 10117 Jun. 10, 2020 Annual Jun. 10, 2021 Preamplifier TESTEK TK-PA1840H 1546891 Jan. 07, 2021 Annual Jan. 07, 2022 Test Receiver R&S ESU26 100109 Feb. 19, 2021 Annual Feb. 19, 2022 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Aug. 22, 2019 Biennial Aug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB9163 01126 Dec. 22, 2020 Biennial Dec. 22, 2022 Horn Antenna R&S HF906 100326 Feb. 04, 2021 Annual Feb. 04, 2022 Horn Antenna Schwarzbeck Mess-Elektronik BBHA9170 BBHA9170223 Sep. 16, 2020 Annual Sep. 16, 2021 Antenna Master Innco systems GmbH MM4000 N/A N.C.R. N/A N.C.R. Turn Table Innco systems GmbH DS 1200S N/A N.C.R. N/A N.C.R. Controller Innco systems GmbH CONTROLLER CO3000-4P CO3000/963/3 8330516/L N.C.R. N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.4 m) N/A N.C.R. N/A N.C.R. Coaxial Cable RFONE MWX221-NMSNMS (4 m) J1023142 Dec. 01, 2020 Semi- annual Jun. 01, 2021 Coaxial Cable RFONE PL520-NMNM-10M (10 m) 20200324001 Dec. 01, 2020 Semi- annual Jun. 01, 2021 Coaxial Cable Rosenberger LA1-C006-1500 131014 01/20 Feb. 19, 2021 Semi- annual Aug. 19, 2021 Coaxial Cable Rosenberger LA1-C006-1500 131014 05/20 Feb. 19, 2021 Semi- annual Aug. 19, 2021 Coaxial Cable Rosenberger LA1-C006-1500 131014 10/20 Feb. 19, 2021 Semi- annual Aug. 19, 2021 ▶ Support Equipment Description Manufacturer Model Serial Number N/A - - - Note; - For equipment listed above that has a calibration date or calibration due date that falls within the test date range, care was taken to ensure that this equipment was used after the calibration date and before the calibration due date. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002015-2 Page: 5 of 26 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 2, 22 and 24 / IC part RSS-132 Issue 3, RSS-133 Issue 6 and RSS-Gen Issue 5 Section(s) in FCC Section(s) in IC Test Item(s) Result §2.1046 §22.913(a)(5) §24.232(c) RSS-132 Issue 3 5.4 RSS-133 Issue 6 6.4 RF Radiated Output Power Complie…

Text truncated - open the document above for the full version.

RF TEST REPORT Report No.: 15050045-FCC-R Applicant Quectel Wireless Solutions Co., Ltd. Product Name UMTS/HSPA+ Module Model No. UC20-G Serial No. UC20-G Mini PCIe Test Standard FCC Part 22(H), FCC Part 24(E)：2014,； ANSI/TIAC603 D: 2010 Test Date October 10 to November 05, 2015 Issue Date November 05, 2015 Test Result Pass Fail Equipment complied with the specification Equipment did not comply with the specification Winnie Zhang Test Engineer David Huang Checked By This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued by: SIEMIC (SHENZHEN-CHINA) LABORATORIES Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 Phone: +86 0755 2601 4629801 Email: [email protected] Test Report 15050045-FCC-R Page 2 of 40 Laboratories Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC, RF/Wireless, SAR, Telecom Canada EMC, RF/Wireless, SAR, Telecom Taiwan EMC, RF, Telecom, SAR, Safety Hong Kong RF/Wireless, SAR, Telecom Australia EMC, RF, Telecom, SAR, Safety Korea EMI, EMS, RF, SAR, Telecom, Safety Japan EMI, RF/Wireless, SAR, Telecom Singapore EMC, RF, SAR, Telecom Europe EMC, RF, SAR, Telecom, Safety Test Report 15050045-FCC-R Page 3 of 40 This page has been left blank intentionally. Test Report 15050045-FCC-R Page 4 of 40 CONTENTS 1. REPORT REVISION HISTORY ............................................................................................................................ 5 2. CUSTOMER INFORMATION ................................................................................................................................ 5 3. TEST SITE INFORMATION ................................................................................................................................... 5 4. EQUIPMENT UNDER TEST (EUT) INFORMATION ......................................................................................... 6 5. TEST SUMMARY .................................................................................................................................................... 7 6. MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ..................................................................... 8 6.1 RF EXPOSURE (MPE ) ............................................................................................................................................ 8 6.2 RF OUTPUT POWER ............................................................................................................................................... 9 6.3 PEAK-AVERAGE RATIO ........................................................................................................................................ 14 6.4 MODULATION CHARACTERISTIC ...................................................................................................................... 16 6.5 OCCUPIED BANDWIDTH ...................................................................................................................................... 17 6.6 SPURIOUS EMISSIONS AT ANTENNA TERMINALS ...................................................................................... 20 6.7 SPURIOUS RADIATED EMISSIONS ................................................................................................................... 23 6.8 BAND EDGE ............................................................................................................................................................. 26 6.9 FREQUENCY STABILITY ...................................................................................................................................... 29 ANNEX A. TEST INSTRUMENT ................................................................................................................................. 32 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 33 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 36 ANNEX C.II. EUT OPERATING CONKITIONS ........................................................................................................ 38 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PARTLIST .................................................. 39 ANNEX E. DECLARATION OF SIMILARITY ............................................................................................................ 40 Test Report 15050045-FCC-R Page 5 of 40 1. Report Revision History Report No. Report VersionDescription Issue Date 15050045-FCC-R NONE Original November 05, 2015 2. Customer information Applicant Name Quectel Wireless Solutions Co., Ltd. Applicant Add Room 501, Building 13, No.99 TianZhouRoad,Xuhui District, Shanghai Manufacturer Quectel Wireless Solutions Co., Ltd. Manufacturer Add Room 501, Building 13, No.99 TianZhouRoad,Xuhui District, Shanghai 3. Test site information Lab performing tests SIEMIC (Shenzhen-China) LABORATORIES Lab Address Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 FCC Test Site No. 718246 IC Test Site No. 4842E-1 Test Software Radiated Emission Program-To Shenzhen v2.0 Test Report 150…

Text truncated - open the document above for the full version.

Test setup photos of EUT 1. Orthogonal plane of EUT - The testing was set in the three orthogonal planes and measured for each position (X, Y, Z). X-axis 2. Photos of Radiated Spurious Emission Test (Below 1㎓) 3. Photo of Radiated Spurious Emission Test (Above 1㎓)
