2AHU2-JHDBTC1Head unit Bluetooth controller

NPP -3443 JHDBTC1 Ow ner’s Manual NPP-3443 JHDBTC1 Contents Introduction.................................................................................1 Features....................................................................................1 Box Content..............................................................................1 Compliance................................................................................. 1 Installation................................................................................. 2 Mouning the Radio........................................................................ 3 Auxiliary Input........................................................................... 3 Wiring Diagram..............................................................................4 Operation.................................................................................... 5 Basic Functions...........................................................................5 Audio Menu.............................................................................. 6 Brightness and contrast settings................................................... 6 Reset........................................................................... 6 Bluetooth Operation..................................................................... 7 Troubleshooting........................................................................... 8 Specification................................................................................. 8 NPP-3443 JHDBTC1 Features ·Waterprrof IPX6 ·Two Chanels of high and low audio output ·Bluetooth 5.0（support A2DP和AVRCP） ·Dot matrix LCD display ·Support ID3 content display（part） packing list ·JHDBTC1 Bluetooth controller x1 ·power cablex1 ·Decorative framex1 ·PA 4*25mm screwx2 Compliance Compliance with FCC Rules (U.S.A. Only) This device complies with Part 15 of the FCC rules. Operation is subjected to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received), including interference that may cause undesired operation. NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not used in accordance with the instructions, may cause harmful interference to radio communications FCC WARNING Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Proper connections must be used for connection to a host computer and/or peripherals in order to meet FCC emission limits. Safety information NPP-3443 JHDBTC1 ·To ensure the safe use of the product, please read the entire manual before installing and using. ·Keep instructions for future reference. ·Follow all operating instructions and all safety warnings and cautions to ensure safe use. ·Use only accessories / accessories specified by the manufacturer. ·Do not use harsh cleaners, only clean with a dry cloth. ·Do not install on any heat source accessories and keep a safe distance, such as radiators, heat regulators, stoves or other heating equipment (including amplifiers), etc. ·If you need maintenance, please consult the relevant qualified maintenance personnel. If the following situations occur, the equipment must be overhauled: cable damage, liquid infiltration, foreign matter falling in, rain and moisture, failure to operate normally or equipment falling. ·Do not change, modify or disassemble the equipment without the explicit approval of the party responsible for the equipment. Invalid permissions Waterproof Do not sink into the water as this may cause short circuit, fire or other damage. Use the right power source This product is designed for 12V DC negative grounded battery system. Warning: ·Don’t open, disassemble or modify the machine in any way, otherwise it may cause fire, electric shock or product damage. ·Don’t install in a location that may interfere with the operation of the vehicle. Doing so may interfere with sight or movement, resulting in serious accidents. ·When installing wires, do not crimp or squeeze with screws or sharp metal edges. Route the cables from moving parts or sharp edges. This will prevent crimping and damage to the wires. If the wire must pass through a metal hole, make sure to use a rubber ferrule to prevent the insulation of the wire from being cut off by the metal edge of the hole. It is also recommended to use sealant caulks at any openings that may allow water to enter. ·Before installation, carefully check the surface and rear area of the mounting device to ensure that it does not interfere with existing wires or other objects that may be damaged. NPP-3443 JHDBTC1 ·The installation must disconnect the negative terminal of the vehicle battery to prevent accidental short circuit. ·Don’t place open flames, such as lighted candles, cigarettes, etc. on top of the device. Installation 1. Choose a suitable installation location for the Bluetooth remote control. There should be enough space inside the installation location to connect the player cable to the power supply. Also consider how to use the AUX-OUT interface and route the appropriate extension cable to the accessible area. 2. Fix the Bluetooth remote control with 2 PA 4 * 25mm self-tapping screws from outside to inside. 3. Buckle decorative frame. Choose a suitable installation location so that there is room for connecting the player cable to the power supply later. Consider how to use the AUX-OUT interface and route appropriate extension cables to accessible areas. NPP-3443 JHDBTC1 important! Do not install this device where it can be submerged in water Note: Before the final installation, …

Text truncated - open the document above for the full version.

DATE : 2020-03-02 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AHU2-JHDBTC1 Product Name: Head unit Bluetooth controller Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature>: Name: Thomas Leung Title: Manager Applicant Company: ASA Electronics Shenzhen Limited

DATE: 2020-03-02 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint DONGGUAN SHUOXIN ELECTRONIC TECHNOLOGY CO., LTD. Zone A, 1F, No. 6, XinGang Road YuanGang Street, XinAn District, ChangAn Town, DongGuan City, GuangDong, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Dongguan ASA Electronics ShenZhen Limited, Room 503,5/F,Unit A Skyworth Building,Gaoxin Avenue.1.S.Nanshan District,ShenZhen,China 518057. (Applicant Name and address) <Signature>: <Signature>: Name: Thomas Leung Title: Manager Applicant Company: ASA Electronics Shenzhen Limited

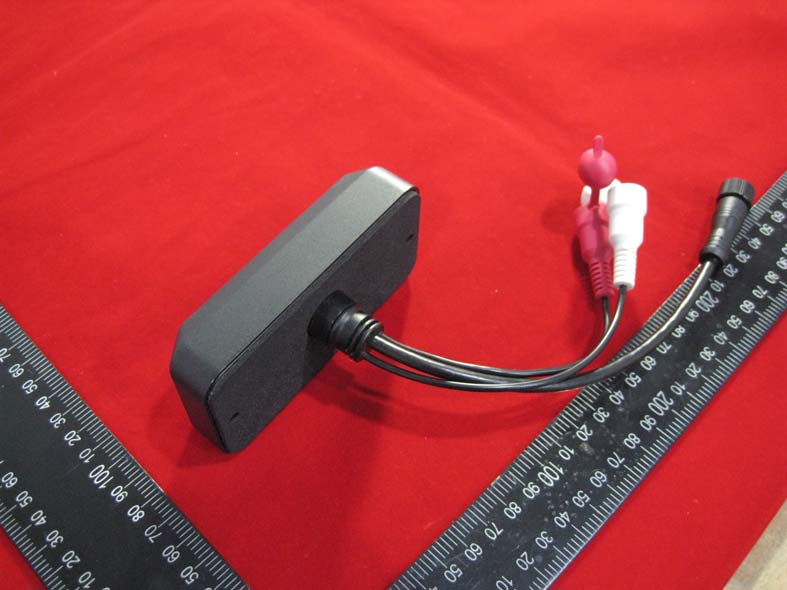

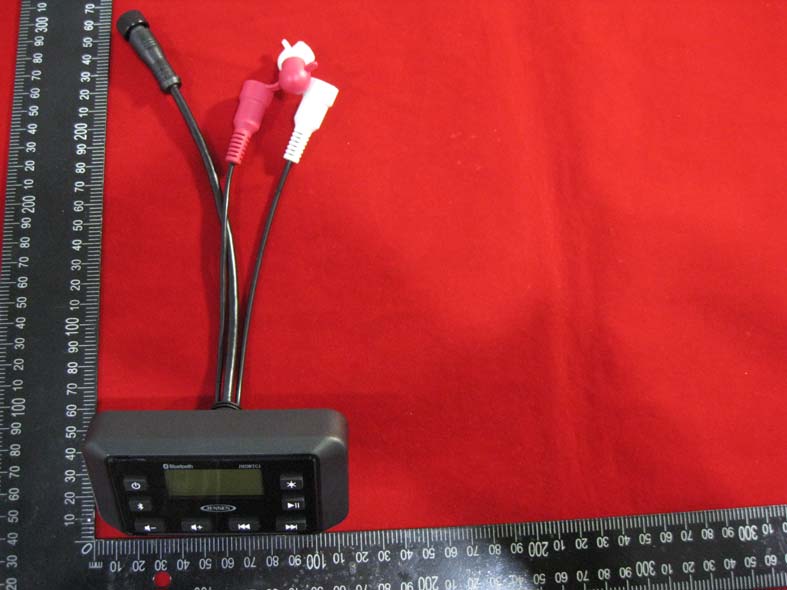

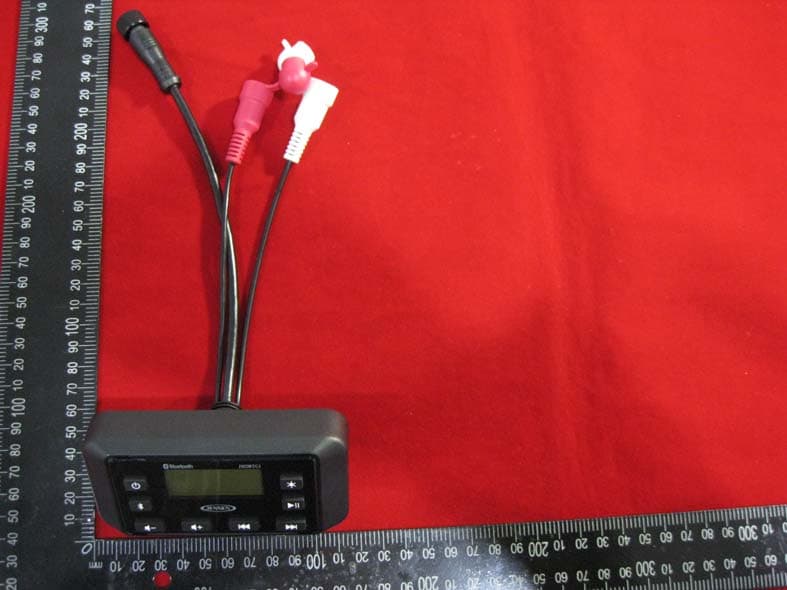

External photo

NOTE: Superglue on the back of the label, and the material of label is plastic, so the label can not be tear up by hand and the location of label is fixed and can not move .

Internal photo

FCC ID: 2AHU2-JHDBTC1 RF EXPOSURE EVALUATION METHOD FCC ID: 2AHU2-JHDBTC1 SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Maximum measured transmitter power. BT GFSK Test Channel Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) CH00 2402 4.518 2.830 CH39 2441 4.596 2.881 CH78 2480 4.447 2.784 π/4-DQPSK Test Channel Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) CH00 2402 5.230 3.334 CH39 2441 5.146 3.270 CH78 2480 5.016 3.174 8DPSK Test Channel Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) CH00 2402 5.288 3.379 CH39 2441 5.158 3.279 CH78 2480 5.018 3.175 Remark: The best case gain of the antenna is 0dBi. 0 dBi logarithmic terms convert to numeric result is nearly 1.00 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)] FCC ID: 2AHU2-JHDBTC1 BT Te s t Channel [(max. power of channel, mW) (min. test separation distance,mm)] [f(GHz)] Result Limit GFSK CH00 2.830 5 2.402 0.877 3 CH39 2.881 5 2.441 0.900 3 CH78 2.784 5 2.480 0.877 3 π/4-DQPSK CH00 3.334 5 2.402 1.034 3 CH39 3.270 5 2.441 1.022 3 CH78 3.174 5 2.480 1.000 3 8DPSK CH00 3.379 5 2.402 1.047 3 CH39 3.279 5 2.441 1.025 3 CH78 3.175 5 2.480 1.000 3 The test Result is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Conclusion: No SAR is required.

Report No.: 19EFAS12052 4701 Page 1 of 60 FCC Radio Test Report FCC ID:2AHU2-JHDBTC1 The report concerns: Original Grant Report Reference No. ................. : 19EFAS12052 4701 Date Sample(s) Received ........... : 2019-12-10 Date of Tested ............................. : 2019-12-18~2019-12-24 Date of issue ............................... : 2019-12-24 Testing Laboratory ...................... : DongGuan ShuoXin Electronic Technology Co., Ltd. Address ...................................... : Zone A, 1F, No. 6, XinGang Road YuanGang Street, XinAn District, ChangAn Town, DongGuan City, GuangDong, China Applicant’s name ........................ : ASA Electronics ShenZhen Limited Address ...................................... : Room 503,5/F,Unit A Skyworth Building,Gaoxin Avenue.1.S.Nanshan District,ShenZhen, China 518057 Manufacturer............................... : ASA Electronics ShenZhen Limited Equipment................................... : Head unit Bluetooth controller Trade Mark ................................. : N/A Model ........................................ : JHDBTC1 Ratings ....................................... : I/P: DC 12V Responsible Engineer : Smile Wang Authorized Signatory: King Wang Report No.: 19EFAS12052 4701 Page 2 of 60 Table of Contents Page 1 . TEST REPORT DECLARE 5 2 . SUMMARY OF TEST RESULTS 6 2.1 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 PARAMETERS OF TEST SOFTWARE 11 3.4 BLOCKDIAGRAMSHOWINGTHECONFIGURATIONOFSYSTEMTESTED 11 3.5 SUPPORT UNITS 11 3.6 TEST ENVIRONMENT CONDITIONS 12 4 .AC POWER LINE CONDUCTED EMISSIONS TEST 13 4.1 LIMIT 13 4.2 TEST PROCEDURE 13 4.3 MEASUREMENT INSTRUMENTS LIST 13 4.4 TESTSETUP 14 4.5 EUT OPERATING CONDITIONS 14 4.6 TEST RESULTS 15 5 . RADIATED EMISSION TEST 16 5.1 LIMIT 16 5.2 TEST PROCEDURE AND SETTING 17 5.3 MEASUREMENT INSTRUMENTS LIST 18 5.4 TESTSETUP 18 5.5 EUT OPERATING CONDITIONS 19 5.6 TEST RESULTS - 9 KHZ TO 30MHZ 20 5.7 TEST RESULTS- 30 MHZ TO 1000MHZ 21 5.8 TEST RESULTS - ABOVE 1000MHZ(BAND EDGE) 23 5.9 TEST RESULTS - ABOVE 1000MHZ(HARMONIC) 31 6 .NUMBER OF HOPPING FREQUENCY 43 6.1 LIMIT 43 6.2 TEST PROCEDURE AND SETTING 43 6.3 MEASUREMENT INSTRUMENTS LIST 43 6.4 TEST SETUP 43 Report No.: 19EFAS12052 4701 Page 3 of 60 Table of Contents Page 6.5 EUT OPERATION CONDITIONS 43 6.6 TEST RESULTS 44 7 .AVERAGE TIME OF OCCUPANCY 45 7.1 LIMIT 45 7.2 TEST PROCEDURE AND SETTING 45 7.3 MEASUREMENT INSTRUMENTS LIST 45 7.4 TEST SETUP 45 7.5 EUT OPERATION CONDITIONS 45 7.6 TEST RESULTS 46 8 .HOPPING CHANNEL SEPARATION MEASUREMENT 48 8.1 LIMIT 48 8.2 TEST PROCEDURE AND SETTING 48 8.3 MEASUREMENT INSTRUMENTS LIST 48 8.4 TEST SETUP 48 8.5 EUT OPERATION CONDITIONS 48 8.6 TEST RESULTS 49 9 .BANDWIDTH TEST 51 9.1 LIMIT 51 9.2 TEST PROCEDURE AND SETTING 51 9.3 MEASUREMENT INSTRUMENTS LIST 51 9.4 TEST SETUP 51 9.5 EUT OPERATION CONDITIONS 51 9.6 TEST RESULTS 52 10 .MAXIMUM OUTPUT POWER 54 10.1 LIMIT 54 10.2 TEST PROCEDURE AND SETTING 54 10.3 MEASUREMENT INSTRUMENTS LIST 54 10.4 TEST SETUP 54 10.5 EUT OPERATION CONDITIONS 54 10.6 TEST RESULTS 55 11 .CONDUCTED SPURIOUS EMISSION 58 11.1 LIMIT 58 11.2 TEST PROCEDURE AND SETTING 58 11.3 MEASUREMENT INSTRUMENTS LIST 58 Report No.: 19EFAS12052 4701 Page 4 of 60 Table of Contents Page 11.4 TEST SETUP 58 11.5 EUT OPERATION CONDITIONS 58 11.6 TEST RESULTS 59 Report No.: 19EFAS12052 4701 Page 5 of 60 1. TEST REPORT DECLARE Applicant ASA Electronics ShenZhen Limited Address Room 503,5/F,Unit A Skyworth Building,Gaoxin Avenue.1.S.Nanshan District,ShenZhen,China 518057 Manufacturer ASA Electronics ShenZhen Limited Address Room 503,5/F,Unit A Skyworth Building,Gaoxin Avenue.1.S.Nanshan District,ShenZhen,China 518057 Factory EVERVICTORY ELECTRONIC COMPANY LIMITED Address Chu Chi Management District, Hu Men Town, Dong-Guan City, Guang-Dong Province, P.R.China Equipment Name Head unit Bluetooth controller Model No. JHDBTC1 Trade Mark N/A Standard FCC Part15, Subpart C (15.247) ANSI C63.10-2013 We Declare: The equipment described above is tested by DongGuan ShuoXin Electronic Technology Co., Ltd. and in the configuration tested the equipment complied with the standards specified above. The test results are contained in this test report and DongGuan ShuoXin Electronic Technology Co., Ltd. is assumed of full responsibility for the accuracy and completeness of these tests. Report No.: 19EFAS12052 4701 Page 6 of 60 2. SUMMARY OF TEST RESULTS The EUT have been tested accordin g to the applicable standards as referenced below: Standard(s) Section Test Item Judgment Remark FCC ISED 15.207------ AC Power Li ne Conducted Emissions N/A ------ 15.247(d) 15.205(a) 15.209(a) ------Radiated Emission PASS ------ 15.247(a)(1)(iii) ------ Number of Hopping Frequency PASS ------ 15.247(a)(1)(iii) ------Average Time Of Occupancy PASS ------ 15.247(a)(1) ------ Hopping Channel Separation PASS ------ 15.247(a)(1)------BandwidthPASS ------ 15.247(a)(1)------Maximum Output Power PASS ------ 15.247(d) ------ Conducted Spurious Emission PASS ------ ------ Fr equency Stability N/A ------ 15.203 - Antenna Requirement PASS Note(2) Note: (1) “N/A” de notes test is not applicable in this test report (2) The device what use a permanently attached antenna were considered sufficient to comply with the provisions of 15.203 . Report No.: 19EFAS12052 4701 Page 7 of 60 2.1MEASUREMENT UNCERTAINTY Test Item Uncertainty Uncertainty for Conductionemission test (9kHz-150kHz) 3.7 dB Uncertainty for Conduction emission test (150kHz-30MHz) 3.3 dB Uncertainty for Radiation Emission test (30MHz-200MHz) 4.60 dB (Polarize: V) 4.60 dB (Polarize: H) Uncertainty for Radiation Emission test (200MHz-1GHz) 6.10 dB (Polarize: V) 5.08 dB (Polarize: H) Uncertainty for Radiation Emission test (1GHz-6GHz) 5.01 dB (Polarize: V) 5.01 dB (Polarize: H) Uncertainty for Radiation Emission test (6GHz-18GHz) 5.26 dB (Polarize: V) 5.26 dB (Polarize: H) Uncertainty for Radiation Emission test (18GHz…

Text truncated - open the document above for the full version.

Radiated Setup photo (Below 1G)
Radiated Setup photo (Above 1G)
