Compliance list INTEGRATION INSTRUCTIONS for 996369 D03 OEM the and 996369 D03 OEM by Sections 2.2 through 2.10. Requirement Yes N/A Comment 2.2 List of applicable FCC rules List the FCC rules that are applicable to the modular transmitter. These are the rules that specifically establish the bands of operation, the power, spurious emissions, and operating fundamental frequencies. DO NOT list compliance to unintentional-radiator rules (Part 15 Subpart B) since that is not a condition of a module grant that is extended to a host manufacturer. See also Section 2.10 below concerning the need to notify host manufacturers that further testing is required.3 YES Refer to instruction FCC standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249 2.3 Summarize the specific operational use conditions Describe use conditions that are applicable to the modular transmitter, including for example any limits on antennas, etc. For example, if point-to-point antennas are used that require reduction in power or compensation for cable loss, then this information must be in the instructions. If the use condition limitations extend to professional users, then instructions must state that this information also extends to the host manufacturer’s instruction manual. In addition, certain information may also be needed, such as peak gain per frequency band and minimum gain, specifically for master devices in 5 GHz DFS bands. YES Refer to instruction Antenna Type: External Antenna Antenna Gain: 3.5dBi 2.4 Limited module procedures If a modular transmitter is approved as a “limited module,” then the module manufacturer is responsible for approving the host environment that the limited module is used with. The manufacturer of a limited module must describe, both in the filing and in the installation instructions, the alternative means that the limited module manufacturer uses to verify that the host meets the necessary requirements to satisfy the module limiting conditions. A limited module manufacturer has the flexibility to define its alternative method to address the conditions that limit the initial approval, such as: shielding, minimum No signaling amplitude, buffered modulation/data inputs, or power supply regulation. The alternative method could include that the limited module manufacturer reviews detailed test data or host designs prior to giving the host manufacturer approval. This limited module procedure is also applicable for RF exposure evaluation when it is necessary to demonstrate compliance in a specific host. The module manufacturer must state how control of the product into which the modular transmitter will be installed will be maintained such that full compliance of the product is always ensured. For additional hosts other than the specific host originally granted with a limited module, a Class II permissive change is required on the module grant to register the additional host as a specific host also approved with the module. 2.5 Trace antenna designs For a modular transmitter with trace antenna designs, see the guidance in Question 11 of KDB Publication 996369 D02 FAQ – Modules for Micro-Strip Antennas and traces. The integration information shall include for the TCB review the integration instructions for the following aspects: layout of trace design, parts list (BOM), antenna, connectors, and isolation requirements.4 a) Information that includes permitted variances (e.g., trace boundary limits, thickness, length, width, shape(s), dielectric constant, and impedance as applicable for each type of antenna); b) Each design shall be considered a different type (e.g., antenna length in multiple(s) of frequency, the wavelength, and antenna shape (traces in phase) can affect antenna gain and must be considered); c) The parameters shall be provided in a manner permitting host manufacturers to design the printed circuit (PC) board layout; d) Appropriate parts by manufacturer and specifications; e) Test procedures for design verification; and No f) Production test procedures for ensuring compliance. The module grantee shall provide a notice that any deviation(s) from the defined parameters of the antenna trace, as described by the instructions, require that the host product manufacturer must notify the module grantee that they wish to change the antenna trace design. In this case, a Class II permissive change application is required to be filed by the grantee, or the host manufacturer can take responsibility through the change in FCC ID (new application) procedure followed by a Class II permissive change application. 2.6 RF exposure considerations It is essential for module grantees to clearly and explicitly state the RF exposure conditions that permit a host product manufacturer to use the module. Two types of instructions are required for RF exposure information: (1) to the host product manufacturer, to define the application conditions (mobile, portable – xx cm from a person’s body); and (2) additional text needed for the host product manufacturer to provide to end users in their end-product manuals. If RF exposure statements and use conditions are not provided, then the host product manufacturer is required to take responsibility of the module through a change in FCC ID (new application). YES Refer to instruction The modular can be installed or integrated in mobile or fix devices only. This modular cannot be installed in any portable device. This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located oroperating in conjunction with any other antenna or transmitter. This modular must be installed and operated with a minimum distance of 20 cm betweenthe radiator and user body. 2.7 Antennas A list of antennas included in the application for certification must be provided in the instructions. For modular transmitters approved as limited modules, all applicable professional installer instructions must be included as part …

Text truncated - open the document above for the full version.

ZigbeeRFModuleDescription ZBM Appearance Description The picture is shown below, L=32mm, W=15.30mm, H=3.6mm(With the antenna). It has 28 pins,5 on the leftand23ontheright.Footspacing1.27mm. And it comes with a standard U.FL antenna seat. This module can be used not only as patch element, but also as plug‐in. Pin distribution instructions Pin allocation is shown below. these pins are drawn from the peripheral pins of the CC2530 chip of the module. The AS1 and AS2 are idle, the GND and VCC‐3.3V are power supply pins. the voltage input range can support 2.5 V to 3.6 V. standard voltage input 3.3V. Product characteristics Wireless protocol Zigbee IEEE802.15.4 standard, RF range is 2405 MHZ‐2480MHZ The antenna interface is IPEX 1 generation and can be compatible with all kinds of 2.4 GHZ antennas such as PCB antenna, sucker antenna, columnar antenna and so on Support software and hardware write protection Storage temperature‐40 Ԩ to 125 Ԩ , operating temperature‐40 Ԩ to 85 Ԩ The output power of the built‐in PA, can be up to 20 dbm, receiving sensitivity‐95 dbm The built‐in Flash, storage is 1024 KB, supported OTA Built‐in 32.768 KHZ crystal and 32 MHZ crystal SPI,I2C communications can be configured FCC Statement FCC standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249 External antenna with gain 3.5dBi Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limitsare designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐Reorient or relocate the receiving antenna. ‐‐Increase the separation between the equipment and receiver. ‐‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Compliance: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body. Notice to OEM integrator If the FCC ID is not visible when the module is installed inside another device, then the outside ofthedeviceintowhichthemoduleisinstalled must also display a label referring to the enclosed module. The end product shall haves the words“Contains Transmitter Module FCC ID: 2AHUTZBM”. The device must be professionally installed. The intended use is generally not for the general public. It is generally for industry/commercial use. The connector is within the transmitter enclosure and can only be accessed by disassembly of the transmitter that is not normally required. The user has no access to the connector. Installation must be controlled. Installation requires special training. Any company of the host device which installs this modular with unlimited modular approval should perform the test of radiated &conducted emission and spurious emission, etc. according to FCC part 15C: 15.249 and15.209 & 15.207, 15B Class B requirement, only if the tests result comply with FCC part 15C: 15.249 and 15.209 & 15.207, 15B Class B requirement, then the host can be sole legally. When the module is installed inside another device, the user manual of the hose contain below 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation

LynxusTechnologyCorp Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-11-18 Subject; Request for Long Term Confidentiality FCC ID: 2AHUTZBM To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name:Jake Wang Title:Manager

Lynxus Technology Corp Agent Authorization Company: Lynxus Technology Corp Address: Nanshan District Tian Xia International Center A (Room510), Shenzhen, Guangdong, China Product Name: Zigbee RF Module Model Number(s): ZBM Product Description: Zigbee RF Module We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-11-18 Name:Jake Wang Title:Manager Company: Lynxus Technology Corp

Lynxus Technology Corp FCC Modular Approval Request Rev 3.0 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-11-18 Subject: Zigbee RF Module Company name: Lynxus Technology Corp FCC ID: 2AHUTZBM Dear Sir/Madam, This letter includes the FCC application requirements for Modular Transmitter Approval Request for;- FCC KDB 996369 D01 ‘Module Certification Guide v02; and FCC KDB 996369 D03 OEM Manual v01 In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Equip Auth Guide v02’. FCC ID: 2AHUTZBM has been examined against the following requirements. Requirement per 15.212 and KDB 996369 D01Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. The modular have RF own shielding The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. The modular transmitter have buffered modulation/data inputs The module must contain power supply regulation on the module. The modular transmitter have its own power supply regulation. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). The modular has a External Antenna, which has a unique antenna connector. The module must demonstrate compliance in a stand-alone configuration. The module compliance in a stand-alone configuration. The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748). The FCC identification number can put on the modular with either a permanently affixed label The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. The instructions will be provided and apply to a complete transmitter and comply with specific rule. The module must comply with RF exposure requirements The total power density of modular transmitter final configuration comply with FCC RF Exposure Lynxus Technology Corp FCC Modular Approval Request Rev 3.0 Name: Jake WangDate: 2020-11-18 Title: Manager Signature of applicant

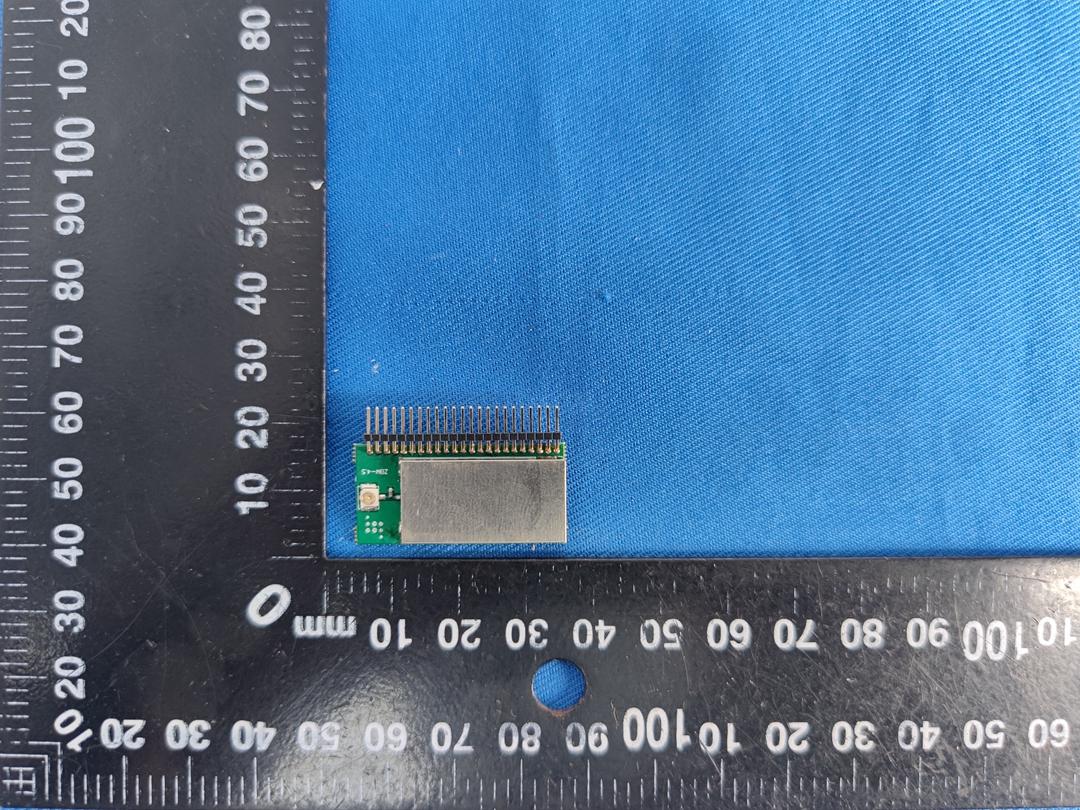

Page 1 of 2 Appendix B: Photographs of EUT Product: Zigbee RF Module Model: ZBM External Photos Page 2 of 2

Label Artwork and Location Model: ZBM Label: Size: *W=25*10mm Location

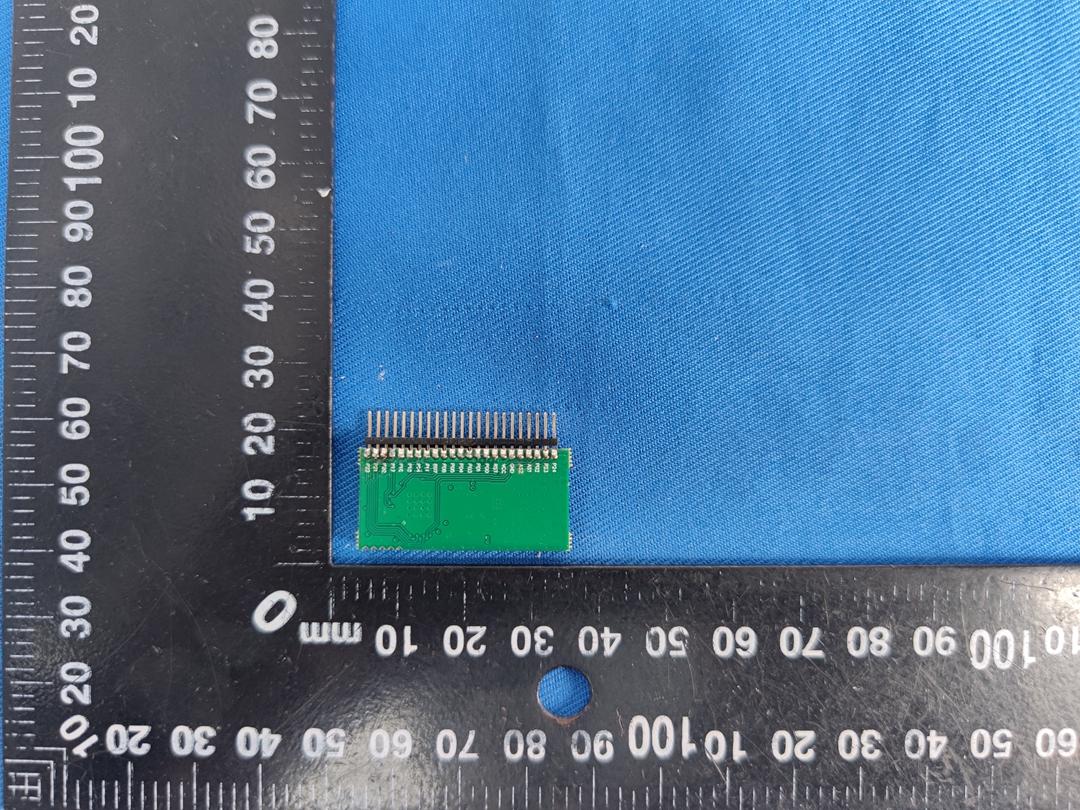

Page 1 of 2 Appendix B: Photographs of EUT Product: Zigbee RF Module Model: ZBM Internal Photos Page 2 of 2

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2AHUTZBM Product: Zigbee RF Module Model No.: ZBM Additional Model No.: N/A Trade Mark: Lynxus Report No.: TCT201103E008 Issued Date: Nov. 17, 2020 Issued for: Lynxus Technology Corp Nanshan District Tian Xia International Center A (Room510), Shenzhen, Guangdong, China Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT201103E008 Page 2 of 34 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ..................................................................................... 3 2. Test Result Summary .............................................................................. 4 3. EUT Description ....................................................................................... 5 4. General Information ................................................................................. 7 4.1. Test Environment and Mode ................................................................................. 7 4.2. Description of Support Units ................................................................................ 7 5. Facilities and Accreditations .................................................................. 8 5.1. Facilities ................................................................................................................. 8 5.2. Location ................................................................................................................. 8 5.3. Measurement Uncertainty ..................................................................................... 8 6. Test Results and Measurement Data ..................................................... 9 6.1. Antenna Requirement ........................................................................................... 9 6.2. Conducted Emission ........................................................................................... 10 6.3. Radiated Emission Measurement ...................................................................... 14 6.4. 20dB Occupied Bandwidth ................................................................................. 26 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT201103E008 Page 3 of 34 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Zigbee RF Module Model No.: ZBM Additional Model No.: N/A Trade Mark: Lynxus Applicant: Lynxus Technology Corp Address: Nanshan District Tian Xia International Center A (Room510), Shenzhen, Guangdong, China Manufacturer: Lynxus Technology Corp Address: Nanshan District Tian Xia International Center A (Room510), Shenzhen, Guangdong, China Date of Test: Nov. 04, 2020 – Nov. 16, 2020 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249 ANSI C63.10:2013 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: Nov. 16, 2020 Aaron Mo Reviewed By: Date: Nov. 17, 2020 Beryl Zhao Approved By: Date: Nov. 17, 2020 Tomsin Report No.: TCT201103E008 Page 4 of 34 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna Requirement §15.203 PASS AC Power Line Conducted Emission §15.207 PASS Field Strength of Fundamental §15.249 (a) PASS Spurious Emissions §15.249 (a) (d)/ §15.209 PASS Band Edge §15.249 (d)/ §15.205 PASS 20dB Occupied Bandwidth §15.215 (c) PASS Note: 1. Pass: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT201103E008 Page 5 of 34 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product: Zigbee RF Module Model No.: ZBM Additional Model No.: N/A Trade Mark: Lynxus Operation Frequency: 2405MHz - 2480MHz Number of Channel: 16 Modulation Technology: OQPSK Antenna Type: External Antenna Antenna Gain: 3.5dBi Power Supply: DC 3.3V Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. Report No.: TCT201103E008 Page 6 of 34 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Operation Frequency Each of Channel Channel Frequency Channel Frequency Channel Frequency Channel Frequency 0 2405MHz 4 2425MHz 8 2445MHz 12 2465MHz 1 2410MHz 5 2430MHz 9 2450MHz 13 2470MHz 2 2415MHz 6 2435MHz 10 2455MHz 14 2475MHz 3 2420MHz 7 2440MHz 11 2460MHz 15 2480MHz Note: In section 15.31(m), regards to the operating frequency range over 10 MHz, the Lowest frequency, the middle frequency, and the highest frequency of channel were selected to perform the test, and the selected channel see below: Channel Frequency The Lowest channel 2405MHz The Middle channel 2440MHz The Highest channel 2480MHz Report No.: TCT201103E008 Page 7 of 34 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 4. General …

Text truncated - open the document above for the full version.

Page 1 of 2 Appendix A: Photographs of Test Setup Product: Zigbee RF Module Model: ZBM Radiated Emission Page 2 of 2 CE
