User manual CUBOT Smartphone Model: NOTE 21 WELCOME Congratulationson the purchase of your NOTE 21 Mobile phone. Your phone provides many functions which are practical for daily use, such as a hands-free，loudspeaker, camera, MP3 player and ultra clear video You can read the manual to understand how to use your NOTE 21 mobile phone and experience the well-established functions and simple operation method. Please use the original accessories in order to achieve the best use of your device. NOTE 21 shall not be responsible for any damage in the machinery due to use of non-original accessories. User precautions Before using your NOTE 21 handset, it is important that you read the following recommendations: • Minimize exposing your phone to water and any other liquid. Keep your phone dry and avoid humid spaces. • Use only authorized accessories • Do not try to open your phone. • If the phone or any accessory is not working properly, take it to a qualified service center. • The use headphones or earphones for a prolonged time (at high volume) may cause serious damage to your hearing. • Do not use the phone while charging. • In extreme heat or cold: avoid temperatures below -10 ° C / 14 ° F or above 40 ° C / 104 ° F. TURNING THE PHONE ON & OFF Hold down the power button to turn the phone on. DIM, LOCK & WAKING THE PHONE When the power is on and you want to dim the screen, press the power button. When the screen is dimmed and you want to wake the phone, press the power button and slide your finger from middle to right. HOME SCREEN APPS Touch an app tolaunch it STATUS BAR The status bar shows your phone’s status and notifications. (Notifications are described on the next page.) Notification icons Status icons Status icons The following status icons may appear on your screen: Icon Statement Icon Statement SIM Network signal level Headset is inserted Indicates battery capacity Bluetooth is activated Unread messages Wi-Fi is connected Missed calls Airplane mode is activated NOTIFICATION PANEL The notification panel is your center for new events: like new e-mail, voicemail, updates, and more. Drag down to display notifications. Touch a notification to respond MAKE & ANSWER A CALL 1. From the Home screen, touch 2. Touch to show the dial pad 3. Dial a number, then touch to initiate the call. Answer a call Drag to the right Decline a call Drag to the left VOLUME CONTROL WHEN CALLING Volume key is at the left side of the phone. During a conversation, you can press the volume key to tune the sound volume. SEND A TEXT 1. From the Home screen, touch 2. Touch 3. Touch the “To” field, then enter a recipient. 4. Touch the Type message field, then enter a message 5. TouchSend the message ADDING EMAIL ACCOUNTS The first time you open Email, you will be prompted to set up an email account. After that, you can configure Email to send and receive email from additional accounts. To add an email account: 1) Tap the e-mail icon. In Your account interface, tap Next. In e-mail address option, enter your e-mail address. In password option, → enter your e-mail password. Tap Next. 2) Filling the email address and password, tap next to setup email 3) Tap next to enter your email. SETTINGS The settings for various features of the phone Get to know the settings on your phone so that you can personalize them to your own requirements. Go to Settings to configure how your phone looks, sounds, communication, privacy, and operations in a variety of ways: Wi-Fi You can use Wireless & Network settings to manage your SIM card, configure and manage connections to networks and devices by using Wi-Fi. You can set Bluetooth, data usage, airplane mode, VPN, tethering & portable hotspot and mobile networks in this interface. Bluetooth Press the switch to power on Bluetooth. Once on, the Bluetooth will automatically scan for any nearby open equipment. SIM cards Press the switch to power on SIM cards. When insert two cards, click to set cellular data、Calls、SMS messages. More  Airplane Mode  Tethering, Portable Hotspot VPN. Display You can set Wallpaper, Auto-rotate screen, Brightness, Daydream, wireless display, Sleep and Font size in this interface. Notification Control all apps notification messages. Sound This option sets the phone ring tone settings for receiving calls and notifications. Gesture Settings • Finger Gesture. • Gesture Motion • Smart Motion Apps You can use the Applications settings to view details about the applications installed on your phone, to manage their data and force them to stop, to view and control services that are currently running, and to view the storage used by applications, etc. Storage Use the Storage settings to monitor the used and available space on your phone and on your SD card and to manage your SD card. Battery You can view your battery status, battery level and battery use in this interface. Memory View average Memory usage. Users You can add and switch users DuraSpeed DuraSpeed helps boots the foreground APP by retricting background APPs Location You can turn on Wi-Fi & mobile network location, GPS satellites, etc through this function. Security You can set the parameters related to security through this function. Accounts You should add an account first before using this function. Google  Location information  Security  Advertising  Search and Instant Language & input Use the Language & Keyboard settings to select the language for the text on your phone and for configuring the input method. Backup & reset You can backup your data and reset your phone in this interface. Data & time You can use Date & Time settings to set your preferences for how dates are displayed. You can also use these settings to set your own time and time zone, rather than obtaining the current time from the network, etc. Accessibility Enable your installed accessibility applications and adjust related settings. Printing You may print files via Cloud Ready printers.(Please check Google Cloud Print website for printer co…

Text truncated - open the document above for the full version.

Shenzhen Huafurui Technology Co., Ltd 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – EquipmentType Company name:Shenzhen Huafurui Technology Co., Ltd Address:Unit 1401 14/F, Jin qi zhigu mansion Liu xian street, Xili, Nan shan district, Shenzhen, China Product Name:Smartphone FCCID: 2AHZ5N21 Model(s):NOTE 21 2.911(d)(5)(i) EquipmentType We, [Shenzhen Huafurui Technology Co., Ltd] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Paul Liu Date: 7/18/2023 Title and Company name: Manager / Shenzhen Huafurui Technology Co., Ltd NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Huafurui Technology Co., Ltd 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name:Shenzhen Huafurui Technology Co., Ltd Address:Unit 1401 14/F, Jin qi zhigu mansion Liu xian street, Xili, Nan shan district, Shenzhen, China Product Name:Smartphone FCC ID: 2AHZ5N21 Model(s):NOTE 21 2.911(d)(5)(ii) Applicant filing We, [Shenzhen Huafurui Technology Co., Ltd] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter,as an entity producing coveredcommunications equipment. Yours sincerely, Name:Paul Liu Date: 7/18/2023 Title and Company name: Manager / Shenzhen Huafurui Technology Co., Ltd NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

THREE STONES MEDIA LLC U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: 07-17-2023 Ref: Attestation Statement – Part2.911(d)(7) filing FCC ID: 2AHZ5N21 Shenzhen Huafurui Technology Co., Ltd(“the applicant”) certifies that, as of the date of the filing of the application, THREE STONES MEDIA LLC(“the agent”) is our designated U.S. agent for service of process for the abovereference FCC ID. The applicant accepts to maintain an agent for service of process in the United States forno less than one year after either the grantee has permanently terminated all marketing and importation of theapplicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicialproceeding involving the equipment, whichever is later. The applicant further acknowledges it is ourresponsibility to inform the FCC whenever the agent information changes. THREE STONES MEDIA LLC ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: THREE STONES MEDIA LLC FRN: 0033401761 GC: 2A99E Address: 1200 Broadway St. APT 329, Los Angeles, CA90015 Signature: Contact Person: Sijie Zhang Tel: +1 267 909 3692 Email: [email protected] Applicant Company Name:Shenzhen Huafurui Technology Co., Ltd Address: Unit 1401 14/F, Jin qi zhi gu mansion Liu xian street, Xili, Nan shan district, Shenzhen, China Signature: Contact Person: Paul Liu Tel: 0755-82750456 Email: [email protected]

FCC Software Configuration Control Declaration Shenzhen Huafurui Technology Co., Ltd FCC Software Configuration Control Declaration Date: July 18, 2023 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number:Smartphone /NOTE 21 FCC ID: 2AHZ5N21 Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name:Paul Liu Date: 2023/07/17 Title: Manager Signatureof applicant

Shenzhen Huafurui Technology Co., Ltd Agent Authorization Company:Shenzhen Huafurui Technology Co., Ltd Address:Unit 1401 14/F, Jin qi zhi gu mansion Liu xian street, Xili, Nan shan district, Shenzhen, China Product Name:Smartphone Model Number(s):NOTE 21 Product Description:Smartphone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2023.07.17 Name: Paul Liu Title: Manager Company: Shenzhen Huafurui Technology Co., Ltd

Shenzhen Huafurui Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 07/17/2023 Subject; Request for Confidentiality FCC ID:2AHZ5N21 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram BOM List Block Diagram Operational Description Tune-up procedure FCC Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 dayspursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name:Paul Liu Title:Manager

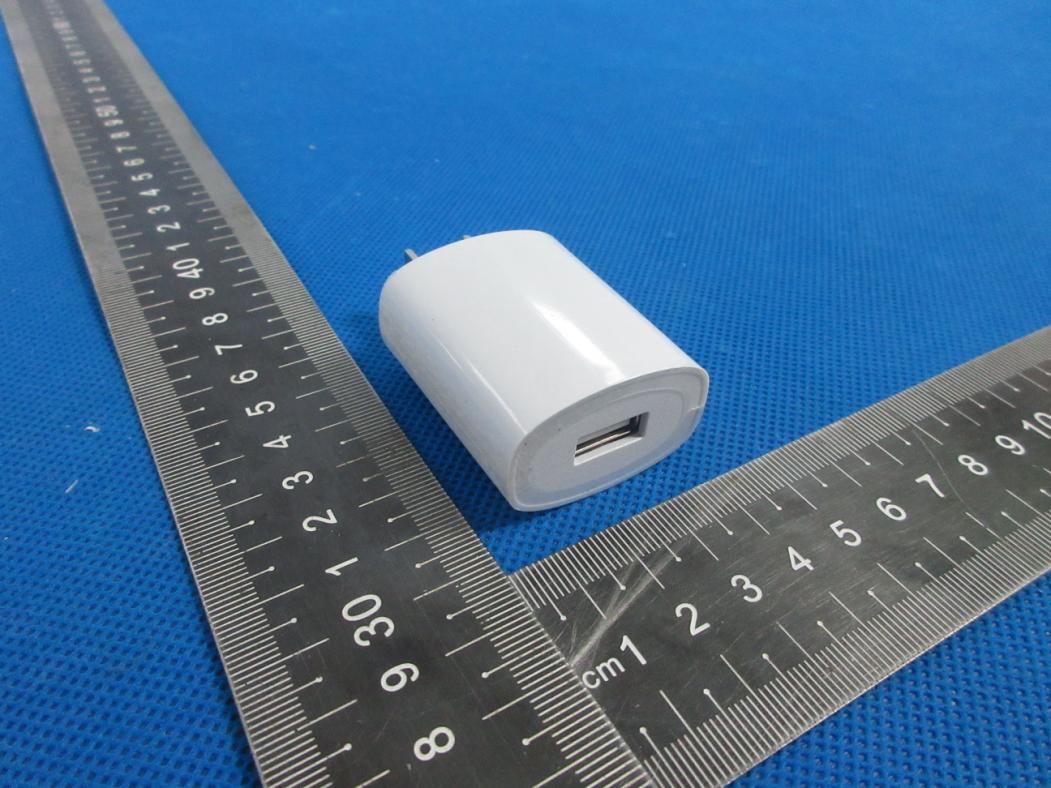

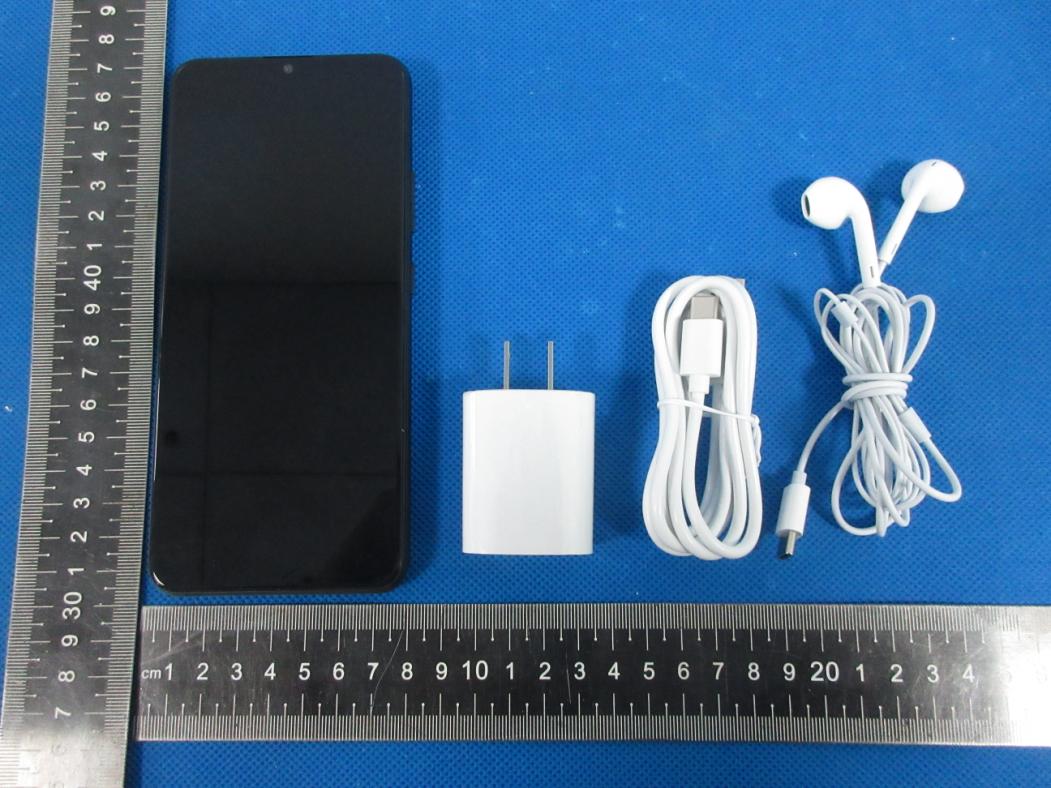

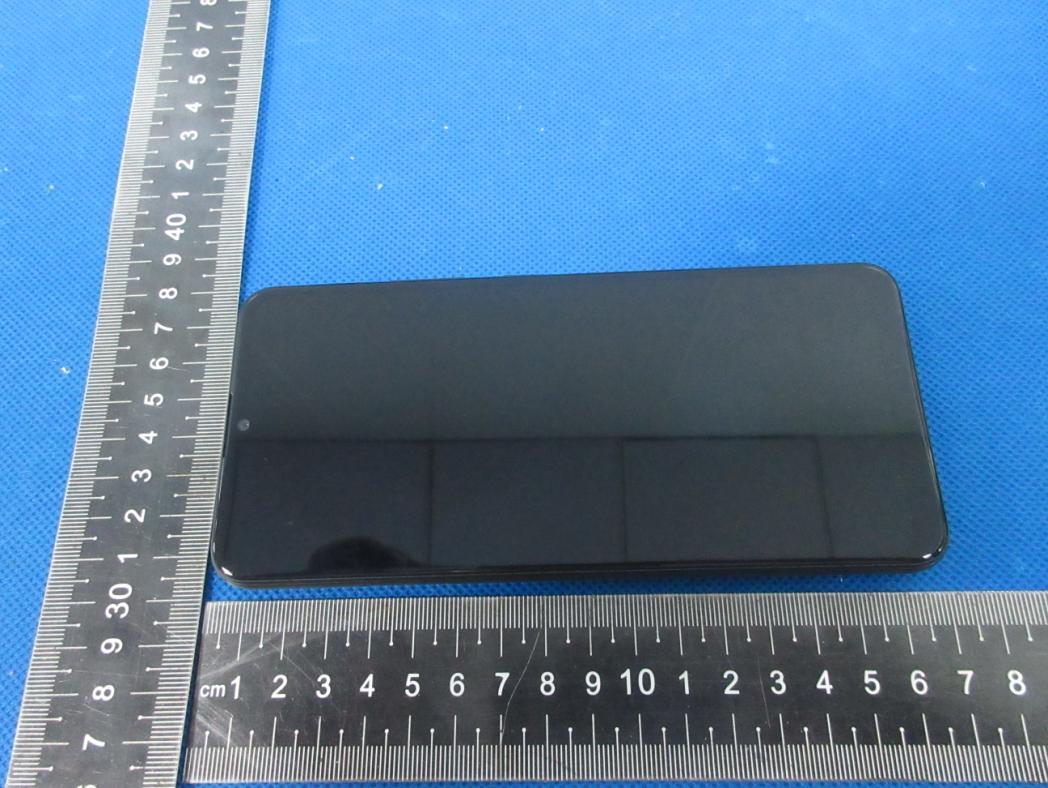

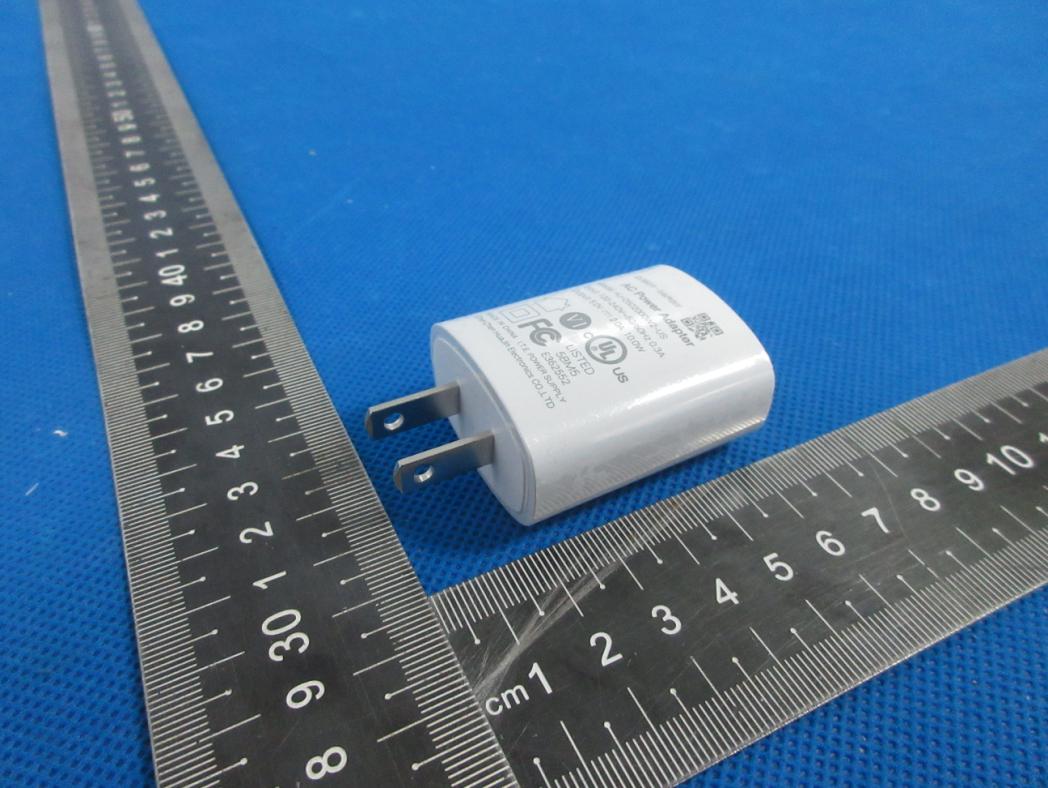

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

Smartphone Model：NOTE 21 FCC ID: 2AHZ5N21 Shenzhen Huafurui Technology Co., Ltd. Unit 1401 &1402, 14/F, JinqiZhigu Mansion (No. 4 Building of Chongwen Garden), Crossing of the Liuxian Street and Tangling Road, Taoyuan Street, Nanshan District, Shenzhen.PR,China Importer：X X X X X X CUBOT Address：X X X X X X Made In China

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 GSM/WCDMA/LTE Main ANT Photo 17 Photo 18 BT/WIFI/GPS ANT LTE AUX ANT

Page 1 of 242 Report No.: S23060903805001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： Smartphone Brand Name： CUBOT Model Name： NOTE 21 Family Model： N/A Report No.： S23060903805001 FCC ID： 2AHZ5N21 Prepared for Shenzhen Huafurui Technology Co., Ltd Unit 1401 14/F, Jin qi zhi gu mansion Liu xian street ,Xili, Nan shan district,Shenzhen, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 242 Report No.: S23060903805001 TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Huafurui Technology Co., Ltd Address .................................. : Unit 1401 14/F, Jin qi zhi gu mansion Liu xian street ,Xili, Nan shan district,Shenzhen, China Manufacturer's Name .......... : Shenzhen Huafurui Technology Co., Ltd Address .................................. : Unit 1401 14/F, Jin qi zhi gu mansion Liu xian street ,Xili, Nan shan district,Shenzhen, China Product description Product name ........................ : Smartphone Brand Name ......................... : CUBOT Model and/or type reference .............................. : NOTE 21 Family Model ......................... : N/A Standards ............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Test Sample Number ............................. S230609038005 Date of Test Date (s) of performance of tests .............. : Jun. 14, 2023 ~ Jun. 23, 2023 Date of Issue ........................................... : Jul. 15, 2023 Test Result ............................................... : Pass Prepared By (Test Engineer) : (Jack Li) Approved By (Lab Manager) : (Alex Li) Page 3 of 242 Report No.: S23060903805001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Jul. 15, 2023 Jack Li Page 4 of 242 Report No.: S23060903805001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 9 1.5. Ambient Condition ................................................................................... 9 2. SAR Measurement System ................................................................................. 10 2.1. SATIMO SAR Measurement Set-up Diagram .......................................... 10 2.2. Robot ..................................................................................................... 11 2.3. E-Field Probe .......................................................................................... 12 2.3.1. E-Field Probe Calibration ................................................................. 12 2.4. SAM phantoms ...................................................................................... 13 2.4.1. Technical Data .................................................................................. 14 2.5. Device Holder ........................................................................................ 15 2.6. Test Equipment List ................................................................................ 16 3. SAR Measurement Procedures .......................................................................... 19 3.1. Power Reference ................................................................................... 19 3.2. Area scan & Zoom scan .......................................................................... 19 3.3. Description of interpolation/extrapolation scheme .............................. 21 3.4. Volumetric Scan ..................................................................................... 21 3.5. Power Drift ............................................................................................ 21 4. System Verification Procedure .......................................................................... 22 4.1. Tissue Verification ................................................................................. 22 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 23 4.2. System Verification Procedure .............................................................. 24 4.2.1. System Verification Results .............................................................. 25 5. SAR Measurement variability and uncertainty .................................................. 26 5.1. SAR measurement variability ................................................................. 26 5.2. SAR measurement uncertainty ...................…

Text truncated - open the document above for the full version.

Page 166 of 242 Report No.: S23060903805001 Page 167 of 242 Report No.: S23060903805001 Page 168 of 242 Report No.: S23060903805001 Page 169 of 242 Report No.: S23060903805001 Page 170 of 242 Report No.: S23060903805001 Page 171 of 242 Report No.: S23060903805001 Page 172 of 242 Report No.: S23060903805001 Page 173 of 242 Report No.: S23060903805001 Page 174 of 242 Report No.: S23060903805001 Page 175 of 242 Report No.: S23060903805001 Page 176 of 242 Report No.: S23060903805001 Page 177 of 242 Report No.: S23060903805001 Page 178 of 242 Report No.: S23060903805001 Page 179 of 242 Report No.: S23060903805001 Page 180 of 242 Report No.: S23060903805001 Page 181 of 242 Report No.: S23060903805001 Page 182 of 242 Report No.: S23060903805001 Page 183 of 242 Report No.: S23060903805001 Page 184 of 242 Report No.: S23060903805001 Page 185 of 242 Report No.: S23060903805001 Page 186 of 242 Report No.: S23060903805001 Page 187 of 242 Report No.: S23060903805001 Page 188 of 242 Report No.: S23060903805001 Page 189 of 242 Report No.: S23060903805001 Page 190 of 242 Report No.: S23060903805001 Page 191 of 242 Report No.: S23060903805001 Page 192 of 242 Report No.: S23060903805001 Page 193 of 242 Report No.: S23060903805001 Page 194 of 242 Report No.: S23060903805001 Page 195 of 242 Report No.: S23060903805001 Page 196 of 242 Report No.: S23060903805001 Page 197 of 242 Report No.: S23060903805001 Page 198 of 242 Report No.: S23060903805001 Page 199 of 242 Report No.: S23060903805001 Page 200 of 242 Report No.: S23060903805001 Page 201 of 242 Report No.: S23060903805001 Page 202 of 242 Report No.: S23060903805001 Page 203 of 242 Report No.: S23060903805001 Page 204 of 242 Report No.: S23060903805001 Page 205 of 242 Report No.: S23060903805001 Page 206 of 242 Report No.: S23060903805001 Page 207 of 242 Report No.: S23060903805001 Page 208 of 242 Report No.: S23060903805001 Page 209 of 242 Report No.: S23060903805001 Page 210 of 242 Report No.: S23060903805001 Page 211 of 242 Report No.: S23060903805001 Page 212 of 242 Report No.: S23060903805001 Page 213 of 242 Report No.: S23060903805001 Page 214 of 242 Report No.: S23060903805001 Page 215 of 242 Report No.: S23060903805001

Page 216 of 242 Report No.: S23060903805001 Page 217 of 242 Report No.: S23060903805001 Page 218 of 242 Report No.: S23060903805001 Page 219 of 242 Report No.: S23060903805001 Page 220 of 242 Report No.: S23060903805001 Page 221 of 242 Report No.: S23060903805001 Page 222 of 242 Report No.: S23060903805001 Page 223 of 242 Report No.: S23060903805001 Page 224 of 242 Report No.: S23060903805001 Page 225 of 242 Report No.: S23060903805001 Page 226 of 242 Report No.: S23060903805001 Page 227 of 242 Report No.: S23060903805001 Page 228 of 242 Report No.: S23060903805001 Page 229 of 242 Report No.: S23060903805001 Page 230 of 242 Report No.: S23060903805001 Page 231 of 242 Report No.: S23060903805001 Page 232 of 242 Report No.: S23060903805001 Page 233 of 242 Report No.: S23060903805001 Page 234 of 242 Report No.: S23060903805001 Page 235 of 242 Report No.: S23060903805001 <Justification of the extended calibration> If dipoles are verified in return loss (<-20dB, within 20% of prior calibration for below 3GHz, and <-8dB, within 20% of prior calibration for 5GHz to 6GHz), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Head 750MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -23.80 - 56.4 - Mar. 01, 2021 -23.642 0.66 56.998 0.598 Feb. 28, 2022 -22.051 7.35 51.838 4.562 Feb. 18, 2023 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 236 of 242 Report No.: S23060903805001 <Head 835MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -25.44 - 54.40 - Mar. 01, 2021 -25.803 1.43 54.492 0.092 Feb. 28, 2022 -23.947 5.87 56.615 2.215 Feb. 18, 2023 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 237 of 242 Report No.: S23060903805001 <Head 1800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -28.85 - 47.90 - Mar. 01, 2021 -28.545 1.06 47.809 0.091 Feb. 28, 2022 -25.8 10.57 45.156 2.744 Feb. 18, 2023 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 238 of 242 Report No.: S23060903805001 <Head 1900MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -24.79 - 50.80 - Mar. 01, 2021 -24.518 1.10 50.516 0.284 Feb. 28, 2022 -23.144 6.64 53.604 2.804 Feb. 20, 2023 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 239 of 242 Report No.: S23060903805001 <Head 2450MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -23.18 - 56.30 - Mar. 01, 2021 -23.39 0.91 56.342 0.042 Feb. 28, 2022 -26.296 13.44 54.99 1.310 Feb. 20, 2023 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 240 of 242 Report No.: S23060903805001 <Head 2600MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -21.15 - 52.70 - Mar. 01, 2021 -21.248 0.46 53.053 0.353 Feb. 28, 2022 -21.627 2.25 54.412 1.712 Feb. 20, 2023 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 241 of 242 Report No.: S23060903805001 <Head 5200MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -9.15 - 21.17 - Mar. 01, 2021 -9.1819 0.35 21.191 0.021 Feb. 28, 2022 -8.317 9.10 25.673 4.503 Feb. 20, 2023 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 242 of 242 Report No.: S23060903805001 <Head 5800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -14.30 - 54.74 - Mar. 01, 2021 -14.349 0.34 55.115 0.375 Feb. 28, 2022 -12.808 10.43 55.289 0.549 Feb. 27, 2023 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data _______________________________________END _____________________________________

Report No.: S23060903806004 Page 1 of 102 5.2G: Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) NVNT a 5180 Ant1 90.3 0.44 NVNT a 5200 Ant1 90.85 0.42 NVNT a 5240 Ant1 90.77 0.42 NVNT ac20 5180 Ant1 88.65 0.52 NVNT ac20 5200 Ant1 89.5 0.48 NVNT ac20 5240 Ant1 89.27 0.49 NVNT ac40 5190 Ant1 80.97 0.92 NVNT ac40 5230 Ant1 80.96 0.92 NVNT ac80 5210 Ant1 68.25 1.66 NVNT n20 5180 Ant1 88.79 0.52 NVNT n20 5200 Ant1 89.36 0.49 NVNT n20 5240 Ant1 89.3 0.49 NVNT n40 5190 Ant1 80.67 0.93 NVNT n40 5230 Ant1 80.65 0.93 Duty Cycle NVNT a 5180MHz Ant1 Report No.: S23060903806004 Page 2 of 102 Duty Cycle NVNT a 5200MHz Ant1 Duty Cycle NVNT a 5240MHz Ant1 Duty Cycle NVNT ac20 5180MHz Ant1 Report No.: S23060903806004 Page 3 of 102 Duty Cycle NVNT ac20 5200MHz Ant1 Duty Cycle NVNT ac20 5240MHz Ant1 Report No.: S23060903806004 Page 4 of 102 Duty Cycle NVNT ac40 5190MHz Ant1 Duty Cycle NVNT ac40 5230MHz Ant1 Report No.: S23060903806004 Page 5 of 102 Duty Cycle NVNT ac80 5210MHz Ant1 Duty Cycle NVNT n20 5180MHz Ant1 Report No.: S23060903806004 Page 6 of 102 Duty Cycle NVNT n20 5200MHz Ant1 Duty Cycle NVNT n20 5240MHz Ant1 Report No.: S23060903806004 Page 7 of 102 Duty Cycle NVNT n40 5190MHz Ant1 Duty Cycle NVNT n40 5230MHz Ant1 Report No.: S23060903806004 Page 8 of 102 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT a 5180 Ant1 9.872 0.44 10.312 24 Pass NVNT a 5200 Ant1 9.644 0.42 10.064 24 Pass NVNT a 5240 Ant1 9.212 0.42 9.632 24 Pass NVNT ac20 5180 Ant1 9.791 0.52 10.311 24 Pass NVNT ac20 5200 Ant1 9.666 0.48 10.146 24 Pass NVNT ac20 5240 Ant1 9.133 0.49 9.623 24 Pass NVNT ac40 5190 Ant1 9.493 0.92 10.413 24 Pass NVNT ac40 5230 Ant1 8.806 0.92 9.726 24 Pass NVNT ac80 5210 Ant1 8.34 1.66 10 24 Pass NVNT n20 5180 Ant1 10.004 0.52 10.524 24 Pass NVNT n20 5200 Ant1 9.577 0.49 10.067 24 Pass NVNT n20 5240 Ant1 8.986 0.49 9.476 24 Pass NVNT n40 5190 Ant1 9.62 0.93 10.55 24 Pass NVNT n40 5230 Ant1 9.022 0.93 9.952 24 Pass Power NVNT a 5180MHz Ant1 Report No.: S23060903806004 Page 9 of 102 Power NVNT a 5200MHz Ant1 Power NVNT a 5240MHz Ant1 Report No.: S23060903806004 Page 10 of 102 Power NVNT ac20 5180MHz Ant1 Power NVNT ac20 5200MHz Ant1 Report No.: S23060903806004…
