WA7 Contents Product Introduction Accessories Installation Instructions Operation Instructions & Attentions Path Planning Instructions Meanings of LED Indicator Lamp & Voice Remote Control Instructions Basic Parameters Troubleshooting Safety Precautions Failure List 1 2 3 4 5 6 7 8 8 9 10 Lateral side Water plug Functions of the Key Short press it to Switch On/Off when the device is working, and recovery regular suction power when it is standby with small suction. When the device is working, long press the key to turn to standby mode with small suction power. When the device is standby, long press the key to operate the track so that users can clean it. Blue lamp: Normal Red lamp blinks: Abnormal if the device is working Red lamp: low power when device is standby. Status indicator Bottom Cable & Safety rope Vvoice guide Power Switch USB Port Drop sensor Status indicator Blue lamp: Normal Red lamp blinks: Abnormal if the device is working Red lamp: low power when device is standby. 2 Device with cable and safety rope 2. 1. Please ensure that safety rope has been firmly fastened on a strong object. Insert the frame extending line to the end of the adapter an tighten them. 3. Stick the white surface of the cloth to the bottom of the machine and keep it flat to avoid air leakage. 4. Open the bottom main switch and place the machine in the center of the window (avoid getting too close to the frame). Make sure the machine is attached to the glass and release the hand. Press the button to start the machine. When the machine finishes cleanin g the window and stops working, hold the safety rope in one hand and press the round button until the Suction de- creasesPut it on the glass again and the machine will automatically absorb it. Please turn off the main switch at the bottom of the machine and unplug the power after use. Be sure to use the original cloth,otherwise, the machine performance will be affected Put clean water into the water tank , and put back the silicon plug. 5-6 clean water on the mop. Please don’t make t Pay attention to the cloth should not be too wet, dirty cloth is recommended to clean and dry before use Please use original cloth, non-original cloth will affect the machine performance. he mop all wet, and do not spray on the track.In standby mode, press turn off the bottom power switch. In case of loss of remote control Turn on the bottom power switch When the machine finishes cleaning the window and stops working, hold the safety rope in one hand and press the round button until the suction decreases.Then take off the machine and hold the round key for the track to rotate automatically, and wipe the dirt on the track surface with a clean wet cloth. Clean Path One Time Please put the machine on central position of glass and launch it. After exploring downwards and towards to the left of glass boundary from current position, it will move to upper left corner and start to wipe from top-down N-shaped path. At each corner, please strictly follow the principle of “Firstly go forwards and then fallback” while applying both wiping-omission resistance and double-overlapping modes. Automatically return to starting position after cleaning. Clean Path Two Times Continue to secondly wipe the zigzag from left to right after completion of wiped path in previous time. And automatically return to starting position after cleaning. Status indicator Red Light Flashes or Light on + Dripping Cycle Not Plugged-in Power Source Air Leakage SlipperyMachine movement abnormality Check if power source has been well Check the power of built-in batteries plugged in. Check air leakage. Check if wiped surface has appeared excessive water spots or oil stains. Blue Light with Dripping Sound + Red Light Repeated Flashing Cycle LED Indicators and Definition LED Light & SoundDefinitionSolution 3 Dripping SoundsCleaning Completed Hardware Self-testing alarm Please Contact with Customer service Normal Audible Feedback Blue lamp: Normal Red lamp blinks: Abnormal if the device is working Red lamp: low power when device is standby. *To prevent misoperation , press pause key between instructions Sprayer On / Off Clean twice (in N shape and Z shape) Dry mopping Wet mopping Voice guide On / Off 228*228*80mm WA7 24V 90W 650mAh 20min 40*60cm Model Rated Voltage Rated Power Battery Capacity Size Power-off adsorption time Suitable for cleaning area Volume of water tank ml 1. When the status indicator flashes red with continuous short “dripping” sound, please check the following faults. Whether power cord plug appears loose or damaged, resulting in power failure or poor contact; Whether glass or rag is too moist, causing extreme small friction; Whether viscous object on glass has caused excessive friction of rag; Whether cleaning cloth has been installed in place without leakage appearance; Whether the machine has been put on uneven surface, causing leakage phenomenon; Whether the suction port has been blocked 2. When the status indicator flashes red and blue alternately with a warning sound, it will indicate that the machine stays abnormal. Please refer to “LED Indicators and Sound Definitions” for fur ther disposal. 3. If the machine does not smoothly move, please replace another clean rag. 4. If the machine completes entire window but fails to automa- tically stop moving, please press pause button to remove it. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or telev…

Text truncated - open the document above for the full version.

Shenzhe n Transtar Electr。nlcsCo., LTD DATE : 2020-05-27 Equipment Aut。『isationDivision Fede『alC 。mmunicationsc。mmission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2Al2SWA7 Product Name: window robot Reauest for Confldentialitv Pursuant to Secti。ns0.457 and 0.459。f the c。mmissi。nsrules, we hereby request that the following documents be held confidential: (List here the d。 cumentsfor which you are seeking confidentiality - for example ... ) •Schematics •Block diagram •Operation description These materials contain trade secrets and proprieta叩informati。nand are not customarily released to the public. The public disclosure。f this infor『nationmight be harmful to the company and provide unjustified benefits t。。urcompetit。「 s. Signature: f�fl认 Name: Th。masYang Title: GM Company: Shenzhen T『anstarElectronics Co., LTD 「

DATE : 2020-05-27 Federal Communications Commission Authorizati 。n & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority t。Act as Aaent On our behalf, I appoint Jason Wu of Global United Technology Services Co., Ltd.and No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China to act as our agent in the preparati。n of this application for equipment ce『tification. I ce付ifythat submitted documents p「 operly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, impo『ted or marketed, as defined in the Federal Communicati。ns c。mmission ’ s regulations will have affixed to it a label identical to that submitted for app 『oval with this application. F。r instances where ou『authorizedagent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and c。nditi。ns for certification, still resides with Shenzhen Transtar Electronics Co., LTD and Colinda Industrial Park, Opposite Side of No. 15, Furong Road,Songgang, Bao ’ an, Shenzhen, 川China Name: Thomas Yang 了γ e：γIvo r阶） Title: GM Company: Shenzhen T「anstar Electronics C队 ， LTD

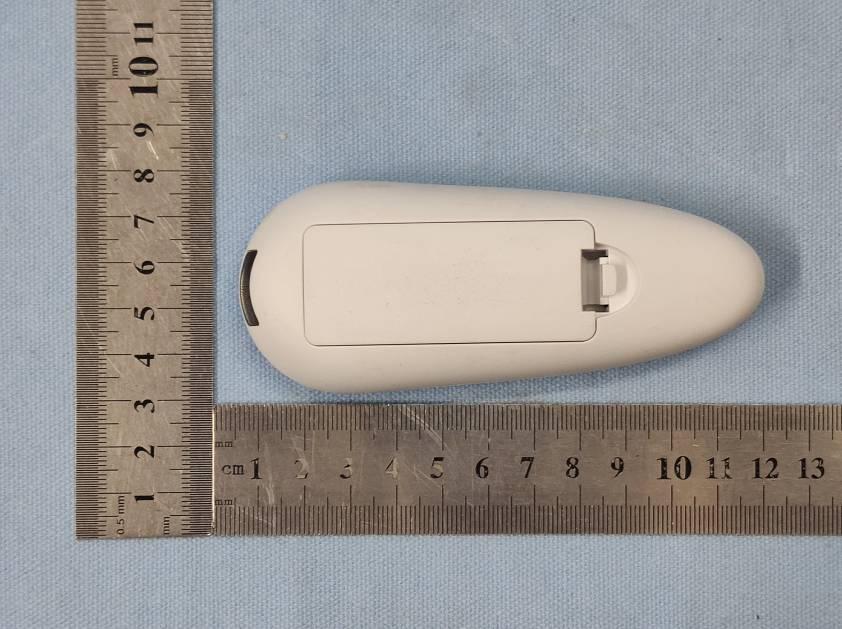

GTS202004000108 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 3 Product Name: window robot Test Model No.: WA7 EUT Constructional Details GTS202004000108 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 3 GTS202004000108 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 3

： 67.90 mm 2 9 . 9 0 m m 合成纸+亚膜，白底黑字 Window Cleaning Robot Made in China Input 100 - 240 V Output 24 V Rating Power 90W Manufacturer Shenzhen Transtar Electronics Co., Ltd Model WA7 ： ： ： ： FCC ID : 2AI2SWA7

Label location:

GTS202004000108 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 2 Product Name: window robot Test Model No.: WA7 EUT Constructional Details GTS202004000108 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 2

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10- g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m Sopt = (EXd) 2 /30 x gt Ant gain= 1.5 dBi ; so Ant numeric gain= 1.4 Field strength =88.70 dBμV/m @3m So Pt={ [10 (88.70 /20) /10 6 x3] 2 /30x1.4 }x1000 mW = 0.16 mW So (0.16 mW/5mm)x √2.450 GHz = 0.05 < 3 Then SAR evaluation is not required
