2AI3L-EC4Dash Cam

EC4 DASH CAM CAR DIGITAL VIDEO RECORDER User’s Manual 1. Operation Conditions • Read the terms of the warranty service. • Do not insert or remove a memory card while the DVR is turned on. It may cause damage to the device, memory card and recorded video files. • Use only high-quality microSD cards of at least class 10 providing for the UHS-I protocol to avoid recording failures and playback delays. • It is recommended to use 8 GB to 64 GB memory cards. • The device should only be used with the accessories supplied. Where third-party accessories are used, WDT bears no responsibility for any damage to the product. • Do not expose the product to fire, moisture or chemicals (gasoline, solvent, reagents, etc.). • Do not disassemble or modify the product. • WDT is not responsible for any data loss and/or direct or indirect damage caused to the user or a third party by misuse of the device or software, their incorrect installation, or the use of accessories not included in the package. • Attention! In some cars, the power is supplied to the 12/24V socket even when the ignition is off. It is recommended to disconnect the device from the vehicle network to avoid battery discharging. • Format the microSD card at least once every two months to avoid damage to its file system. • Follow the storage and operation temperature conditions (see technical specifi-cations). Do not expose the unit to sunlight for too long. • The device is designed to be used in cars with a transparent windshield or light-tone heat shield for glass. Where the windshield is tinted or covered with dark heat shield film, the video quality decreases. • Install the DVR in such a way as to get the maximum field of view. DO NOT place the DVR in a place where it can block the view and compromise your safe driving. WDT and its authorized partners ARE NOT responsible for any damage or data loss due to improper installation of the holder. • The built-in battery helps you finishing your recording correctly. Normal operation of the device requires an external power source. • Do not manipulate the device while driving to be sure you are driving safe. Please, observe the local law. • Set the correct date and time before using the device. • Heating of the case during operation is normal. • Handle the device with due care; avoid dropping/crushing the device. The manufacturer reserves the right to change the equipment list, hardware and software of the device without prior notice. It is assumed that you agree with the provisions above before you start using the system. 1. Specifications: • Video resolution: FHD 1440P • Without screen • Built-in battery • Video recording format: MP4 • Built-in microphone / speaker • G-sensor • Parking mode • Loop recording: 1/3/5 min • Continuous recording • Auto Power On • Date / time stamp • 8GB to 128GB MicroSD (Class 10) • Storage temperature: -20 ̊ to + 70 ̊ • Operating temperature: -10 ̊ to + 60 ̊ • Input voltage: 5VDC, 1.5A • Charging input voltage: 12-24VDC *Once there is no external power input, battery cannot support for a long time DVR working. Pls make sure external power input as long as recording! 2. Equipment: • Car digital video recorder (DVR) • Magnet holder • Car charger • User manual • Trim removal tool 3. Description of the device and its buttons Button description Button Description ON / OFF Press to turn the device on. Press and hold to turn the device off. 4. Installing the DVR Installation on the windshield - Choose the installation location in advance, as the adhesive tape on the mount is of single use. - Degrease the mounting location and warm it up to ensure strong adhesion. - Install the magnet holder into the device and turn the DVR on. When evaluating the display image, make sure that the horizontal is kept and the lens captures the image symmetrically both on the left and right. Then remove the protective film from the surface of the adhesive tape and lean and press the mount against the windshield. Power connection To power the device and charge the battery, use only the power adapter included. Connect the power cable to the mount or DVR, then plug the charger plug into the car’s cigarette lighter/socket. When the car engine starts, the device turns on automatically. 5. Device operation Device preparation A. Insert the microSD card into the memory card slot. Before installing a memory card, turn off the device; insert the memory card until it is locked. ATTENTION: Attempting to insert a memory card wrong may damage the device and/or the memory card itself. Make sure the memory card is in the correct position. Warning: Do not apply excessive force when inserting a memory card to avoid damage to the device. To insert a memory card, insert the microSD card into the slot until it locks (clicks); if necessary, use a needle to push the card further. To remove the memory card, push the card until it clicks and remove the card from the slot, if necessary, use a needle to push the card. Turning the device on/off. When the car engine starts, the device turns on automatically. To turn the device on manually, press the power button. To turn the device offand hold the power button. WiFi Function Pls download APP in your Phone (Connect with supplier which you buy the product). Turn on APP on Phone and follow instruction to connect WiFi Loop recording 1) Insert the microSD card into the memory card slot; the Loop Recording mode turns on automatically. 2) It is recommended to set a 3-minute cycle (Settings). 3) When there is no more space left on the memory card, the device will automatically replaces the oldest video file with the newest one; exception is the files protected from deletion. 4) Video recordings taken in Loop Recording mode are stored in the Video folder. G-Sensor G-Sensor is to protect the current video file from being overwritten and deleted. In order to protect the current video file. Parking mode If you use the original accessory to connect the DVR to the fuse box, turn on the…

Text truncated - open the document above for the full version.

Shenzhen Wonda Tech Co., LTD Add: 3/F Block C, 7# East Zone, Shangxue Industrial Park, Bantian, Longgang District, Shenzhen, China Date: February 28, 2020 Dear Sir/Madam, We, Shenzhen Wonda Tech Co., LTD Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Dash Cam Model No.: EC4, 34146, 37840, RVE40 Sincerely, Signature: Name: Emily Woo Title: General Manager

C5266091_X8_Ed.1 1/1 Letter of Authorization Shenzhen Wonda Tech Co., LTD Company: Shenzhen Wonda Tech Co., LTD Address: 3/F Block C, 7# East Zone, Shangxue Industrial Park, Bantian, Longgang District, Shenzhen, China Product Name: Dash Cam Model Number: EC4, 34146, 37840, RVE40 FCC Identifier: 2AI3L-EC4 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Date: February 28, 2020 Title: General Manager Signature of applicant: Emily Woo

C5266091_X10_Ed.1 1/1 Shenzhen Wonda Tech Co., LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: February 28, 2020 Subject: Request for Confidentiality FCC ID: 2AI3L-EC4 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Emily Woo Title: General Manager

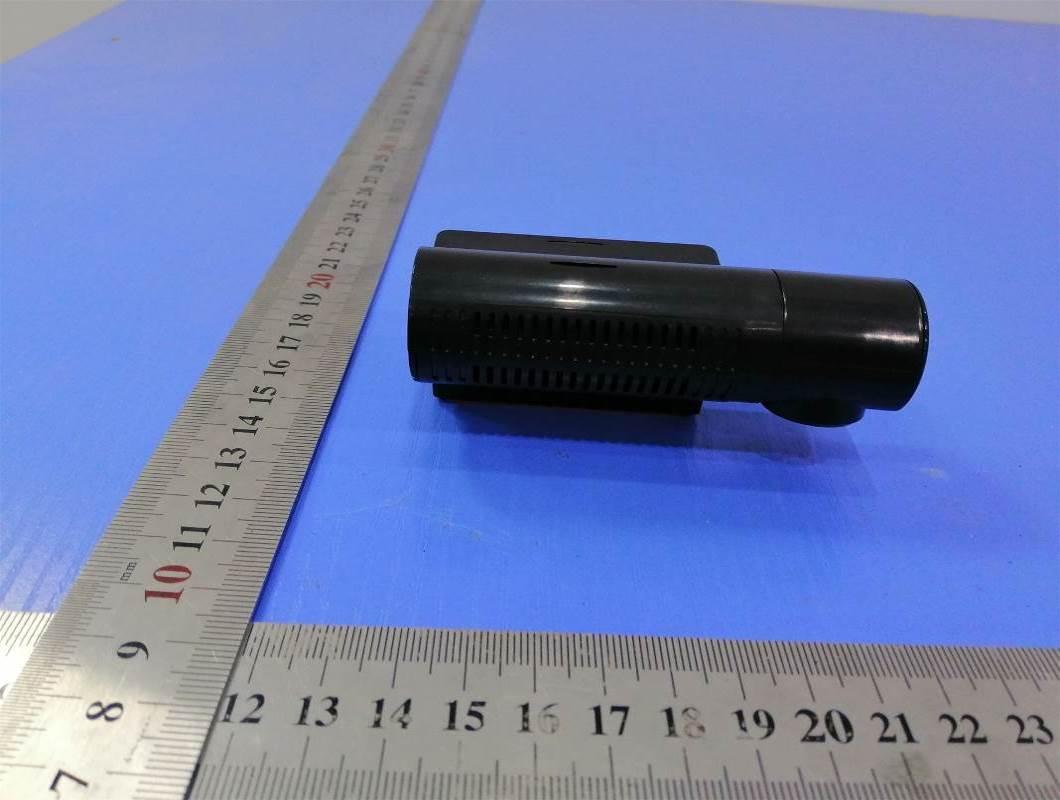

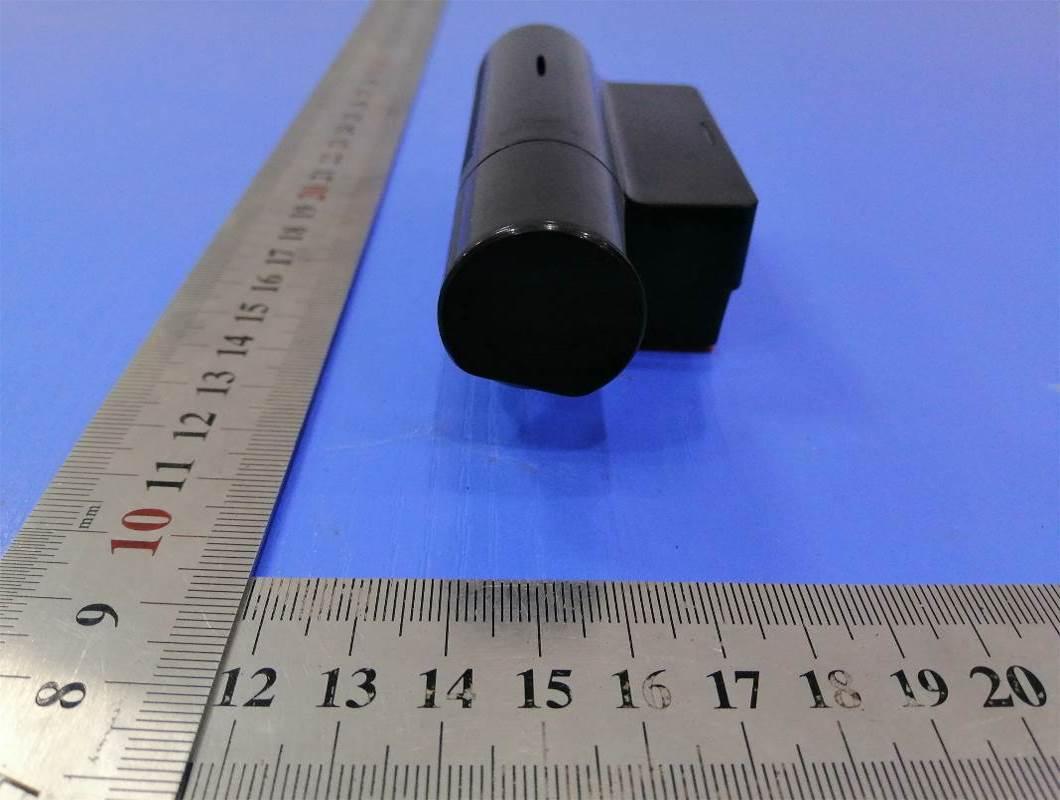

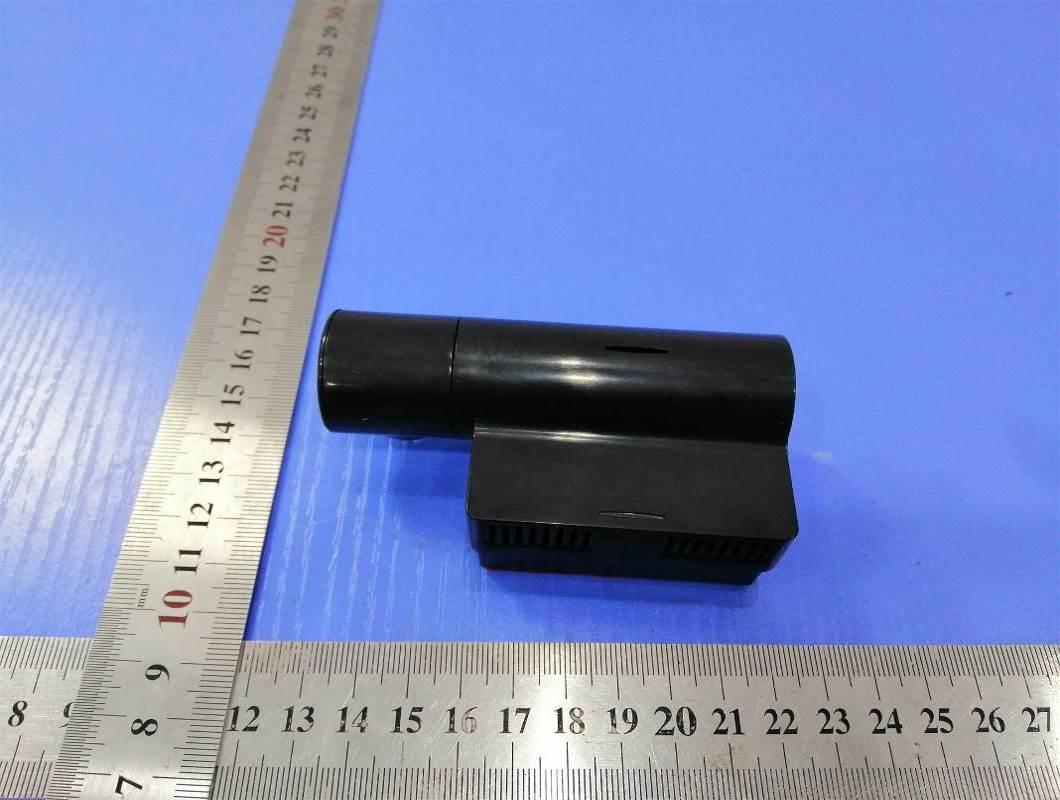

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Fig. 5 Fig. 6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L2.0cm*W1.0cm Label Location Dash Cam FCC ID: 2AI3L-EC4

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Fig. 11 Fig. 12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Fig. 13 Fig. 14

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 Maximum Permissible Exposure Report 1.Product Information FCC ID 2AI3L-EC4 Product name Dash Cam Test Model EC4 Additional Model No. 34146, 37840, RVE40 Model declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Power supply DC 3.7V by Li-ion battery(300mA) DC 5V by Car charger Modulation Type IEEE 802.11b: DSSS (CCK,DQPSK,DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM,QPSK,BPSK) Antenna Type Internal Antenna Antenna Gain 2dBi (Max.) Hardware version EC4_NT96670_MAIN_V1.1 Software version EC4V_20191231 WLAN FCC Operation Frequency IEEE 802.11b: 2412 – 2462 MHz IEEE 802.11g: 2412 – 2462 MHz IEEE 802.11n HT20: 2412 – 2462 MHz IEEE 802.11n HT40: 2422 – 2452 MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information EC4 can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Antenna Internal Antenna 2000 MHz – 2500 MHz 2.0dBi WLAN Antenna 6. Conducted Power [2.4GWLAN] Mode Channel Frequency(MHz) Peak Conducted Output Power (dBm) IEEE 802.11b 1 2412 10.53 6 2437 9.03 11 2462 9.17 IEEE 802.11g 1 2412 13.44 6 2437 10.8 11 2462 11.02 IEEE 802.11n HT20 1 2412 10.63 6 2437 10.82 11 2462 10.94 IEEE 802.11n HT40 3 2422 10.94 6 2437 11.03 9 2452 11.14 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 7. Manufacturing Tolerance [2.4GWLAN] IEEE 802.11b (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 10.00 9.00 9.00 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11g (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 13.00 10.00 11.00 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT20 (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 10.00 10.00 10.00 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT40 (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 10.00 11.00 11.00 Tolerance ±(dB) 1.0 1.0 1.0 8. Measurement Results 8.1 Standalone MPE As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons;…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 34 FCC TEST REPORT For Shenzhen Wonda Tech Co., LTD Dash Cam Test Model: EC4 Additional Model No.: 34146, 37840, RVE40 Prepared for : Shenzhen Wonda Tech Co., LTD Address : 3/F Block C, 7# East Zone, Shangxue Industrial Park, Bantian, Longgang District, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : December 17, 2019 Number of tested samples : 1 Serial number : Prototype Date of Test : December 17, 2019 ~ December 27, 2019 Date of Report : December 31, 2019 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 34 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS191210042AEA Date of Issue ................................... : December 31, 2019 Testing Laboratory Name ............. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Shenzhen Wonda Tech Co., LTD Address ........................................... : 3/F Block C, 7# East Zone, Shangxue Industrial Park, Bantian, Longgang District, Shenzhen, China Test Specification Standard .......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ............................. : Dash Cam Trade Mark ...................................... : N/A Model/ Type reference .................... : EC4 Ratings ............................................ : DC 3.7V by Li-ion battery(300mA) DC 5V by Car charger Result ............................................ : Positive Compiled by: Supervised by: Approved by: Linda He / File administrators Jin Wang / Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 34 FCC -- TEST REPORT EUT........................................ : Dash Cam Type / Model........................... : EC4 Applicant............................... : Shenzhen Wonda Tech Co., LTD Address.................................. : 3/F Block C, 7# East Zone, Shangxue Industrial Park, Bantian, Longgang District, Shenzhen, China Telephone.............................. : / Fax......................................... : / Manufacturer........................ : Shenzhen Wonda Tech Co., LTD Address................................... : 3/F Block C, 7# East Zone, Shangxue Industrial Park, Bantian, Longgang District, Shenzhen, China Telephone.............................. : / Fax......................................... : / Factory.................................. : / Address.................................. : / Telephone.............................. : / Fax......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS191210042AEA December 31, 2019 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 34 Revision History Revision Issue Date Revisions Revised By 000 December 31, 2019 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 34 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................... 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS ............................................................................................. 6 1.3. EXTERNAL I/O CABLE .......................................................................................................................................... 6 1.4. DESCRIPTION OF TEST FACILITY .............................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 1 of 46 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: Dash Cam Trade Mark: N/A Test Model: EC4 Environmental Conditions Temperature: 24.3  C Relative Humidity: 53.1% ATM Pressure: 100.0 kPa Test Engineer: Qu Xin Supervised by: Wang Chuang A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 100 PASS 11G 2437 Ant1 100 PASS 11N20SISO 2437 Ant1 100 PASS 11N40SISO 2437 Ant1 100 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 2 of 46 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 3 of 46 Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 4 of 46 A.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 10.53 30 PASS MCH 9.03 30 PASS HCH 9.17 30 PASS 11G LCH 13.44 30 PASS MCH 10.8 30 PASS HCH 11.02 30 PASS 11N20SISO LCH 10.63 30 PASS MCH 10.82 30 PASS HCH 10.94 30 PASS 11N40SISO LCH 10.94 30 PASS MCH 11.03 30 PASS HCH 11.14 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 5 of 46 A.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/30KHz] Limit [dBm/3KHz] Verdict 11B LCH -0.413 8 PASS MCH -1.876 8 PASS HCH -2.148 8 PASS 11G LCH -10.596 8 PASS MCH -13.552 8 PASS HCH -11.770 8 PASS 11N20SISO LCH -13.043 8 PASS MCH -12.896 8 PASS HCH -12.263 8 PASS 11N40SISO LCH -15.025 8 PASS MCH -15.674 8 PASS HCH -14.913 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 6 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 7 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 8 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 9 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 10 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 11 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 12 of 46 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 9.052 ≥0.5 PASS MCH 8.105 ≥0.5 PASS HCH 9.044 ≥0.5 PASS 11G LCH 15.46 ≥0.5 PASS MCH 15.51 ≥0.5 PASS HCH 15.74 ≥0.5 PASS 11N20SISO LCH 16.31 ≥0.5 PASS MCH 15.98 ≥0.5 PASS HCH 15.98 ≥0.5 PASS 11N40SISO LCH 35.71 ≥0.5 PASS MCH 35.17 ≥0.5 PASS HCH 35.16 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 13 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 14 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 15 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 16 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 17 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 18 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 19 of 46 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdic t 11B LCH -0.438 -37.234 -20.438 PASS MCH -1.629 -37.449 -21.629 PASS HCH -2.11 -37.079 -22.110 PASS 11G LCH -5.432 -37.844 -25.432 PASS MCH -7.41 -35.836 -27.410 PASS HCH -6.838 -37.589 -26.838 PASS 11N20 SISO LCH -8.242 -36.831 -28.242 PASS MCH -7.647 -37.586 -27.647 PASS HCH -7.588 -38.088 -27.588 PASS 11N40 SISO LCH -10.185 -37.526 -30.185 PASS MCH -10.237 -38.061 -30.237 PASS HCH -10.179 -37.422 -30.179 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 20 of 46 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 21 of 46 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 22 of 46 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 23 of 46 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 24 of 46 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 25 of 46 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 26 of 46 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 27 of 46 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 28 of 46 11N20SISO_HCH_Graphs Pref/11N20 SISO/HCH Puw/11N20 SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA Page 29 of 46 11N40SISO_LCH_Graphs Pref/11N40 SISO/LCH Puw/11N40 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATO…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AI3L-EC4 Report No.: LCS191210042AEA _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2
