2AI3UTECHO3Transmitter

ECHO-70 MANUAL www.undergroundmagnetics.com CONTENTS 01 Transmitter 5.1 Introduction 5.2 Specifications 5.3 Digital Information 5.4 Transmitter Maintenance 02 Warranty 网址：www.undergroundmagnetics.com Page/29 5 Transmitter 5.1 Introduction The transmitter provides drill head temperature, clock position, pitch, battery status and locating signal. The transmitter transmits signals at 19 kHz-31 kHz. The transmitter will enter a “sleep” mode after 15 minutes without rotation. It takes about 10 seconds to “wake up” when the transmitter is rotated. 5.2 Specifications Echo-70： Frequency: 19 kHz-31 kHz Depth Range : 60 m/190 ft@regular power 70 m/230 ft@high power Power: 3 18650 rechargeable lithium batteries 18650(3.7v)*3 battery life: 60h@regular power 15h@high power Dimensions：φ3.6*39.3(cm)/φ1.4*15.5(in) Temperature：Under 85°C(185°F) Water proof：IP67 V.BAT: 8.4v~12.6v Page/31 5.3 Digital Information Pitch: From -106% to +106% with 0.1% resolution Roll: 1-12 clock position with half hour resolution Battery: Battery full, 2/3 full, 1/3 full and flash warning Temperature: When the transmitter is overheating, temperature indication in the receivers display flashes. If temperature reaches over 85°C, transmitter may be permanently damaged. If this happens,the dot temperature indicator on the front of transmitter will turn black，ECHO70, ECHO90 and ECHO110 without the dot temperature indicator. 5.4 Transmitter Maintenance Do not place the transmitter near excessive temperature (over 85°C/185°F). Do not apply excessive pressure, shock or vibration on the transmitter. Take the battery out of the transmitter after use. Clean the spring and cap on the battery compartment when necessary. Regularly check the sealing ring on the battery cover. Replace it when necessary. Page/33 6 Battery and Charger Mag locators use rechargeable lithium batteries. This rechargeable lithium battery comes with a special charger. Any use of other lithium rechargeable battery or charger for the receiver may cause fire, explosion, leaking or other damages. Keep the battery at the normal tempera- ture of 15-25 degrees Celsius (59-77°F). Extreme high or low temperatures will short the battery life. Do not soak the battery in water or any other liquids. Do not throw the battery into fire. Do not disassemble the battery. Avoid any kind of damage to the battery. Do not discard the battery as normal trash. Please dispose of it properly. When charging the battery, red light of the charger is on. When charging is complete, a green light will be on. Please place the battery properly as shown in the diagram. 7 Warranty Underground Magnetics offers standard warranty on parts and labor of the Mag series locating system under normal usage. The warranty period is one year for the receiver and display and six months for the transmitter. Warranty time is from the date of transaction. Page/34 IC Warning This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement The device is compliance with RF exposure guidelines, users can obtain Canadian information on RF exposure and compliance. Après examen de ce matériel aux conformité ou aux limites d’intensité de champ RF, les utilisateurs peuvent sur l’exposition aux radiofréquences et la conformité and compliance d’acquérir les informations correspondantes. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. www.undergroundmagnetics.com

Company name： Huangshan Goldenland Electronics Inc. Add: North In dustrial Park，HuiZhou District, Huangshan, Anhui Province P.R. China . Tel: 86-57455876278 E- mail: [email protected] DECLAR ATION OF SIMILARITY Date: 2019/12 /30 Dear Sir/Madam: We, Huangshan Goldenland Electronics Inc. hereby declare that we have a product named as Transmitter (model: Echo-70, FCC ID: 2AI3UTECHO3) was tested by BACL, Meanwhile, for our marketing purpose, we would like to list a series models (Echo-90，Echo-110) on reports and certificate, all the models are electrically identical, the dif ference among them is just model name. No other changes are made on them. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincere ly Yours Sincerely , Signature: Title: Engineer

Huan gshan Goldenland Electronics Inc. ADD : North Industrial Park，HuiZhou District, Huangshan, Anhui Province P.R. China Te l: 86-57455876278 E- mail: [email protected] FCC Aut horization 2019-12-30 FE DERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Huan gshan Goldenland Electronics Inc. the undersigned, hereby authorize Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Print Name: Jimmy Jin Title: Engineer QA-FR -170-B

QA-FR -171-A Huan gshan Goldenland Electronics Inc. ADD: North Industrial Park，HuiZhou District, Huangshan, Anhui Province P.R. China Tel: (86) 57455876278 E-mail: [email protected] FCC Con fidential Authorization 2020-1-22 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AI 3UTECHO3 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Hu angshan Goldenland Electronics Inc. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Print Name: Jimmy Jin Title: Engineer

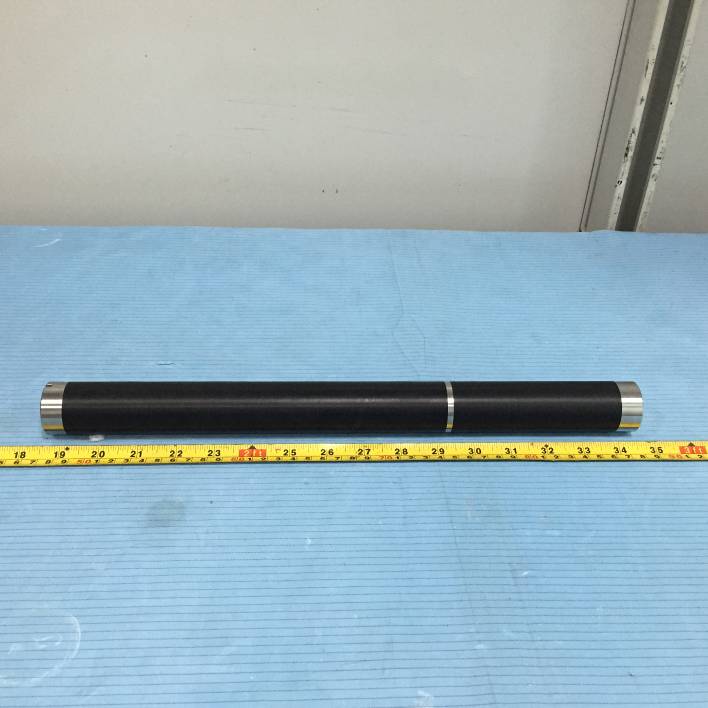

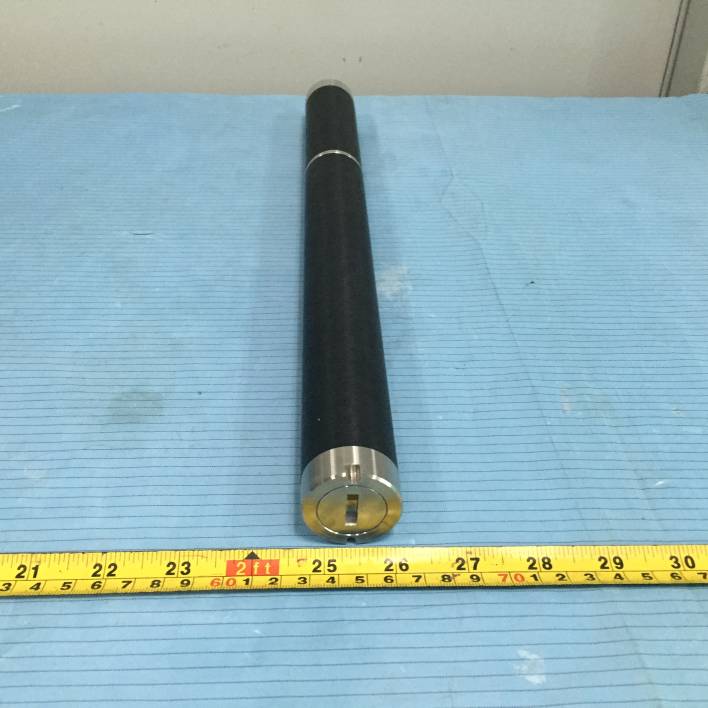

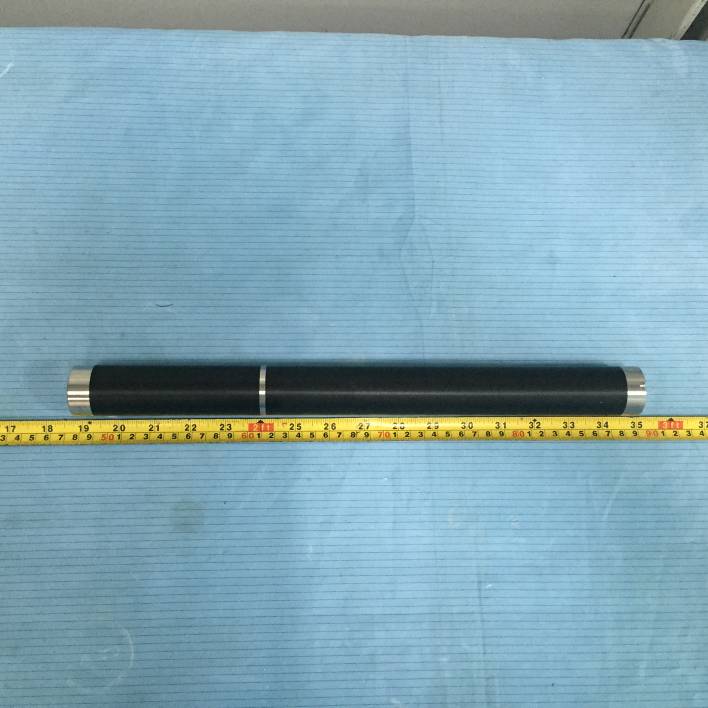

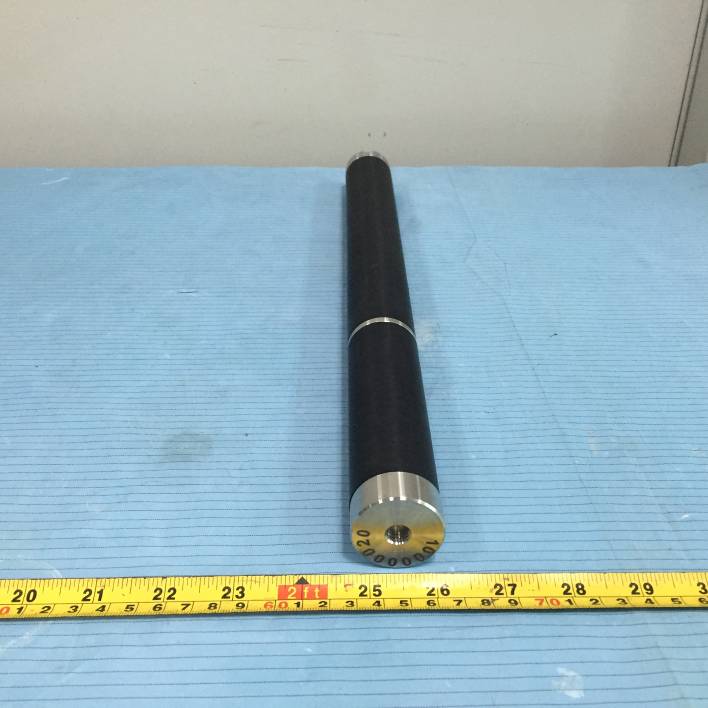

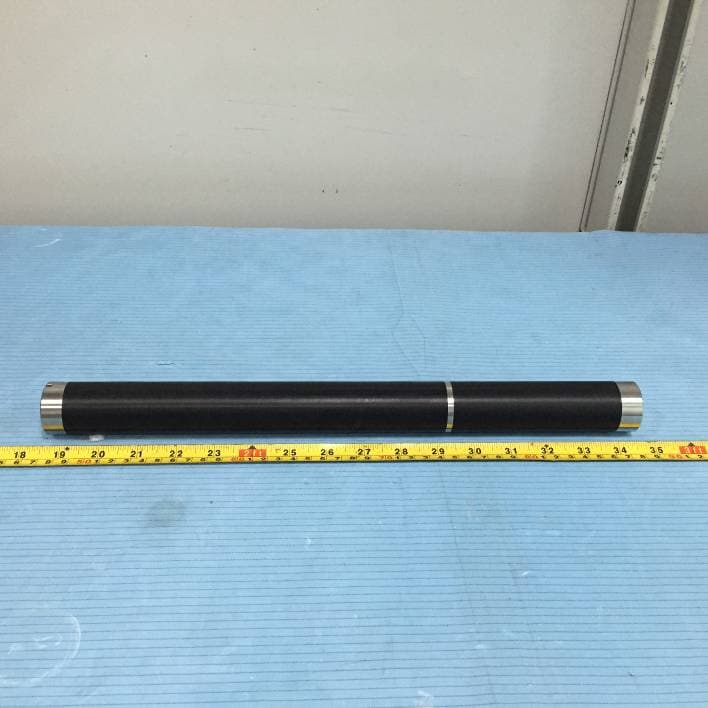

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left View EUT – Right View

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View 1 EUT – Cover off View 2 EUT – Main Board Top View EUT – Main Board Bottom View EUT – IC Chip View Bluetooth Modular Label (FCC ID: T7VPAN10) EUT – Battery View Antenna

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15C TEST REPORT For Huangshan Goldenland Electronics Inc. North Industrial Park, HuiZhou District, Huangshan, Anhui Province P.R. China FCC ID: 2AI3UTECHO3 Report Type: Original Report Product Type: Transmitter Report Number: RSZ190402813-00 Report Date: 2019-06-05 Reviewed By: Simon Wang RF En gineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ190402813-00 FCC Part 15C Page 2 of 16 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 JUSTIFICATION ............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 EXTERNAL I/O CABLE .................................................................................................................................................. 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 5 SUMMARY OF TEST RESULTS ............................................................................................................................... 6 TEST EQUIPMENT LIST ........................................................................................................................................... 7 FCC§15.203 – ANTENNA REQUIREMENT ............................................................................................................. 8 APPLICABLE STANDARD .............................................................................................................................................. 8 ANTENNA CONNECTED CONSTRUCTION ...................................................................................................................... 8 FCC §15.205 & §15.209 - RADIATED EMISSIONS TEST ...................................................................................... 9 APPLICABLE STANDARD .............................................................................................................................................. 9 EUT SETUP .................................................................................................................................................................. 9 EMI TEST RECEIVER SETUP ....................................................................................................................................... 10 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 10 TEST RESULTS SUMMARY .......................................................................................................................................... 10 TEST DATA ................................................................................................................................................................ 10 FOR LOW CHANNEL ................................................................................................................................................... 11 FOR HIGH CHANNEL .................................................................................................................................................. 14 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ190402813-00 FCC Part 15C Page 3 of 16 GENERAL INFORMATION Product Description for Equipment Under Test (EUT) Product Transmitter Tested Model Echo-70 Multiple Model # Echo-90, Echo-110 Frequency R…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions View (9 kHz ~ 30 MHz)
