2AI5J-CONNECT2Portable transciever

EY VAATIMUSTENMUKAISUUSVAKUUTUS (ATEX) Abloy Oy (Wahlforssinkatu 20, 80101 Joensuu, FINLAND) vakuuttaa, että tämä ABLOY ® CLIQ-teknologian tuote täyttää direktiivin (2014/34/EU) vaatimukset seuraavasti: I M2 Ex ib I Mb, II 2 G Ex ib IIC T4 Gb, II 2 D Ex ib IIIC T135°C Db Seuraavia yhdenmukaistettuja standardeja on sovellettu: EN 60079-0 ja EN 60079-11 Laitteelle on myönnetty EY-tyyppihyväksyntä nrolla EESF 20 ATEX 001X Tyyppihyväksyjä: Eurofins Expert Services Oy, Kivimiehentie 4 FI-02150 Espoo FINLAND Joensuu 16.3.2020 Jari Kervinen, Tuotekehitysyksikön johtaja, Abloy Oy EY VAATIMUSTENMUKAISUUSVAKUUTUS (CLIQ CONNECT) Abloy Oy (Wahlforssinkatu 20, 80101 Joensuu, FINLAND) vakuuttaa, että tämä ABLOY ® CLIQ CONNECT tuote täyttää direktiivin (RE 2014/53/EU) vaatimukset seuraavasti: Standardit: EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 EN 301 489-1 V1.9.2(2011-09), EN 301 489-17 V2.2.1 (2012-09) EN 300 328 V2.1.1 (2016-11) Joensuu 1.5.2018 Jari Kervinen, Tuotekehitysyksikön johtaja, Abloy Oy Varmistaaksesi avaimesi moitteettoman toiminnan, ole hyvä ja noudata seuraavia ohjeita: Parittaaksesi avaimen puhelimeen, poista avaimen paristo muutamaksi sekunniksi ja laita se takaisin. Tämän jälkeen avain on löydettävissä applikaatiossa kahden minuutin ajan. HUOM, avain voi olla paritettuna vain yhteen älypuhelimeen kerrallaan. Älä poista paristoa ATEX-tilassa. Avaimen ja puhelimen välinen pariliitos voidaan purkaa suoraan applikaatiosta. Avaimen tulee olla yhdistettynä puhelimeen samalla kun se poistetaan applikaation puolelta. Huom, jos avain ei ole yhteydessä applikaatioon on sen paristo poistettava vähintään yhden minuutin ajaksi. Tämä poistaa pariliitoksen avaimesta. Lataa CLIQ CONNECT sovellus joko Applen AppStore kaupasta tai Google Play kaupasta. Vaatimukset: - Android OS 5 tai uudempi - Apple iPhone tai Apple iPad, iOS 9 tai uudempi Online avaus toimii ainoastaan jos älypuhelimellasi on internetyhteys ja CLIQ CONNECT sovellus on käynnissä. Tämä tuote käyttää avointa lähdekoodia. Tarkemmat tiedot ASSA ABLOY:n avoimen lähdekoodin lisenssi sivulla. www.assaabloy.com/com/global/opensourcelicense Suomi 1 äänimerkki ja vihreä valo Hyväksytty avain, lukko voidaan avata äänimerkin jälkeen. 3 lyhyttä äänimerkkiä ja punaista valoa Avaimella ei ole avausoikeutta tai avaimen aikarajoitus ei salli avaamista. 3 pitkää äänimerkkiä ja vihreää valoa Avaimen pariston jännite on alhainen tai avain on kylmä. Ei äänimerkkiä / valoa Jos avaimessa ei ole ääntä, yritä uudelleen. Paristo voi olla tyhjä, lukkoa ei voi avata. Paristonvaihto Vaihda paristo tarvittaessa irroittamalla paristokansi ja laittamalla uusi paristo (Renata CR2450N) paikalleen. Älä poista paristoa ATEX-tilassa. 1 lyhyt oranssi valo (Sequence lukko) Avain on käynnistänyt Sequence avauksen ja lukko odottaa nyt 2 minuuttia seuraavaa avainta auetakseen. Hiljalleen vilkkuva vihreä valo (CLIQ CONNECT ONLINE) Avain on käynnistänyt Online avauksen ja odottaa avausoikeustietoa älypuhelimelta. Älä käännä avainta ennen avausindikaatiota. 1 2 HUOM, ATEX-tilassa saa käyttää vain ATEX-hyväksyttyä puhelinta. ABLOY ® CLIQ KEY ABLOY ® CONNECT KEY ATEX Complies with IMDA Standards N1640-19 EESF 20 ATEX 001X IECEx EESF 20.0001X 0537 Para garantizar el correcto funcionamiento de su llave, tenga en cuenta las siguientes precauciones: Para emparejar la llave a tu teléfono inteligente, remueva la batería de la llave y vuélvala a insertar. Después de esto, la llave será visible en la aplicación para emparejamiento por 2 minutos. NOTA: la llave solo puede emparejarse a 1 telefono inteligente a la vez. No remueva la batería en áreas ATEX. Para desenlazar, simplemente remueva la llave de la aplicación, la llave debe estar conectada al teléfono inteligente. Si no, se debe remover la batería de la llave por un mínimo de 1 minuto. Esto borrará la información de emparejamiento en la llave. Descarga la aplicación CLIQ CONNECT desde la AppStore o Google Play. Requerimientos: - Android OS 5 o superior - Apple iPhone o Apple iPad, iOS 9 o superior Las aperturas en línea funcionan únicamente si tu teléfono inteligente tiene conexión a internet y la aplicación CLIQ CONNECT está ejecutándose. Este producto usa software de código abierto. Por favor diríjase al siguiente enlace para más detalles sobre la licencia de software de código abierto de ASSA ABLOY (en inglés): www.assaabloy.com/com/global/opensourcelicense Español 1 pitido corto y LED en verde Llave aceptada, la cerradura puede abrirse luego del pitido. 3 pitidos cortos y LED en rojo La llave es rechazada. No está autorizada ya sea por configuración de permisos u horarios. 3 pitidos largos y LED en verde Indica batería baja o muy fría (intenta calentar la llave con las manos). Sin pitido o indicación de LED Si no hay un pitido, inténtelo otra vez. La batería puede estar descargada y necesita ser remplazada. En este caso, la cerradura no se puede abrir. Por favor contacte al administrador del sistema. Remplazando la batería Remueva la cobertura de la batería e inserte una nueva (Renata CR2450N) a la llave. No remueva la batería en ambientes explosivos (ATEX) 1 indicador de LED corto naranja (Apertura secuencial) La llave ha iniciado una apertura secuencial y la cerradura ahora esperará por un máximo de 2 minutos a una segunda llave para generar la apertura. Parpadeo lento de LED en verde (CLIQ CONNECT ONLINE) La llave ha iniciado la apertura en línea y está esperando información desde tu teléfono inteligente para obtener acceso. No gire la llave antes de la indicación de apertura. 1 2 NOTA: El teléfono inteligente debe estar aprobado para áreas ATEX La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada. An ASSA ABLOY Group brand 9311272 Rev.9 1.12.2020 FCC ID: 2AI5J-CONNECT2 FCC part 15C IC: 21724-C…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 7/4/2025 U.S. Agent Designation Abloy Oy acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2AI5J-CONNECT2): Name and company of U.S. agent: Jerry Burhans, ALCEA ASSA ABLOY Physical U.S. address of agent: 2925 East Plano Parkway, Plano, TX 75074 FRN of U.S. agent: 0033780347 Email address of U.S. agent: [email protected] ALCEA ASSA ABLOY acknowledges their obligation to accept service of process on behalf of Abloy Oy. Abloy Oy with the FRN 0025730003 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Mikko Noropirtti Project Manager Abloy Oy Signature Jerry Burhans Managing Director ALCEA ASSA ABLOY 48_[mo del] US_Agent_2.911(d)(7) - U, V05

Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU +358 40 631 1311 Annex 1: EUT and test setup photographs Photographs – Equipment External Picture 1, EUT Top view Test report number: EUFI29-24002446-O4_Annex1 Page 2 (13) 19-Dec-24 Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU +358 40 631 1311 Picture 2, EUT Bottom view Picture 3, Conducted RF EUT with auxiliary equipment Test report number: EUFI29-24002446-O4_Annex1 Page 3 (13) 19-Dec-24 Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU +358 40 631 1311 Picture 4, EUT with auxiliary equipment Test report number: EUFI29-24002446-O4_Annex1 Page 4 (13) 19-Dec-24 Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU +358 40 631 1311 Photographs – Equipment Internal Picture 5, EUT A cover inside Test report number: EUFI29-24002446-O4_Annex1 Page 5 (13) 19-Dec-24 Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU +358 40 631 1311 Photographs – Test Setups Picture 6, Radiated Spurious Emissions, common setup, TX 30 - 1000 MHz and RX 30 - 1000 MHz Test report number: EUFI29-24002446-O4_Annex1 Page 6 (13) 19-Dec-24 Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU +358 40 631 1311 Picture 7, Radiated Spurious Emissions, EUT setup front, TX 30 - 1000 MHz and RX 30 – 1000 MHz Test report number: EUFI29-24002446-O4_Annex1 Page 7 (13) 19-Dec-24 Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU +358 40 631 1311 Picture 8, Radiated Spurious Emissions, EUT setup back, TX 30 – 1000 MHz and RX 30 – 1000 MHz Test report number: EUFI29-24002446-O4_Annex1 Page 8 (13) 19-Dec-24 Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU +358 40 631 1311 Picture 9, Radiated Spurious Emissions, common setup, TX 1 – 18 GHz and RX 1 – 12,75 GHz Test report number: EUFI29-24002446-O4_Annex1 Page 9 (13) 19-Dec-24 Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU +358 40 631 1311 Picture 10, Radiated Spurious Emissions, EUT setup front, TX 1 – 18 GHz and RX 1 – 12,75 GHz Test report number: EUFI29-24002446-O4_Annex1 Page 10 (13) 19-Dec-24 Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU +358 40 631 1311 Picture 11, Radiated Spurious Emissions, EUT setup back, TX 1 – 18 GHz and RX 1 – 12,75 GHz Test report number: EUFI29-24002446-O4_Annex1 Page 11 (13) 19-Dec-24 Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU +358 40 631 1311 Picture 12, Radiated Spurious Emissions, common setup, TX 18 – 26 GHz Test report number: EUFI29-24002446-O4_Annex1 Page 12 (13) 19-Dec-24 Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU +358 40 631 1311 Picture 13, Radiated Spurious Emissions, EUT setup front, TX 18 – 26 GHz Test report number: EUFI29-24002446-O4_Annex1 Page 13 (13) 19-Dec-24 Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU +358 40 631 1311 Picture 14, Radiated Spurious Emissions, EUT setup back, TX 18 – 26 GHz

Test Report No.: G0M-2406-2597-TFC093LP01-V03 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 18 RF-EXPOSURE REPORT FCC 47 CFR Part 2.1093 ISED RSS-102 RF-Exposure evaluation of portable equipment Report Reference No G0M-2406-2597-TFC093LP01-V03 Testing Laboratory Eurofins Product Service GmbH Address Storkower Str. 38c 15526 Reichenwalde Germany Accreditation A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Test Firm Designation Number: DE0008 ISED Testing Laboratory site: 3470A Applicant Abloy Oy Address Wahlforssinkatu 20 80100 Joensuu Finland Test Specification According to FCC/ISED rules Standard FCC 47 CFR 2.1093 ISED RSS-102 Issue 6 Non-Standard Test Method None Equipment under Test (EUT): Product Description CLIQ CONNECT KEY Model(s) TQB406 Brand Name(s) ABLOY CLIQ CONNECT KEY Hardware Version(s) 922688 Revision 3 Software Version(s) ASIC FW v. 16.3.8 / BLE FW v. 2.5.1 FCC ID 2AI5J-CONNECT2 IC 21724-CONNECT2 Test Result PASSED Test Report No.: G0M-2406-2597-TFC093LP01-V03 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 2 of 18 Possible test case verdicts: required by standard but not tested N/T not required by standard N/R test object does meet the requirement P(PASS) test object does not meet the requirement F(FAIL) Testing: Test Lab Temperature 20 °C - 30 °C Test Lab Humidity 25 % - 55 % Date of performance 2025-06-30 Date of receipt of test item See test sample identification table on page 9 Report: Compiled by Ehsan Sohrabi Tested by (+ signature) (Responsible for Test) Ehsan Sohrabi ....................................................... Approved by (+ signature) (Senior Radio Expert) Radwan Jaafar ....................................................... Date of Issue 2025-06-30 Total number of pages 18 General Remarks: The test results presented in this report relate only to the object tested. The results contained in this report reflect the results for this particular model and serial number. It is the responsibility of the manufacturer to ensure that all production models meet the intent of the requirements detailed within this report. This report shall not be reproduced, except in full, without the written approval of the Issuing testing laboratory. The above equipment has been tested by Eurofins Product Service GmbH, and found compliance with the requirements of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s RF characteristics under the conditions specified in this report. Compliance of electromagnetic emission from electronic and electrical equipment with the basic restrictions usually is determined by measurements and, in some cases, calculation of the exposure level. If the electrical power used by or radiated by the equipment is sufficiently low, the electromagnetic fields emitted will be incapable of producing exposures that exceed the basic restrictions. Any relevant compliance assessment procedure which is consistent with the state of the art, reproducible and gives valid results can be used. Test Report No.: G0M-2406-2597-TFC093LP01-V03 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 18 For transmitters intended for use with more than one antenna configuration option, the combination of transmitter and antenna(s) which generates the highest available antenna power and/or average total radiated power shall be assessed. Additional Comments: RF-Exposure calculation is based on measurement results from reference documents. Test Report No.: G0M-2406-2597-TFC093LP01-V03 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 18 ADDITIONAL VARIANTS Additional Variants (not tested and not evaluated variants) Not-tested Variant Description 1 Product Type Description CLIQ CONNECT KEY Model name TQB403(EX) Brand name ABLOY CLIQ CONNECT KEY Hardware Version 922688 Revision 3 Software Version ASIC FW v. 16.3.8 / BLE FW v. 2.5.1 2 Product Type Description CLIQ CONNECT KEY Model name T(Q)GB403(EX) Brand name ABLOY CLIQ CONNECT KEY Hardware Version 922688 Revision 3 Software Version ASIC FW v. 16.3.8 / BLE FW v. 2.5.1 3 Product Type Description CLIQ CONNECT KEY Model name TQC406(EX) Brand name ABLOY CLIQ CONNECT KEY Hardware Version 922688 Revision 3 Software Version ASIC FW v. 16.3.8 / BLE FW v. 2.5.1 4 Product Type Description CLIQ CONNECT KEY Model name T(Q)GB406(EX) Brand name ABLOY CLIQ CONNECT KEY Hardware Version 922688 Revision 3 Software Version ASIC FW v. 16.3.8 / BLE FW v. 2.5.1 5 Product Type Description CLIQ CONNECT KEY Model name T(Q)GC406(EX) Brand name ABLOY CLIQ CONNECT KEY Hardware Version 922688 Revision 3 Software Version ASIC FW v. 16.3.8 / BLE FW v. 2.5.1 6 Product Type Description CLIQ CONNECT KEY Model name TQB407(EX) Brand name ABLOY CLIQ CONNECT KEY Hardware Version 922688 Revision 3 Software Version ASIC FW v. 16.3.8 / BLE FW v. 2.5.1 7 Product Type Description CLIQ CONNECT KEY Model name TQC407(EX) Brand name ABLOY CLIQ CONNECT KEY Hardware Version 922688 Revision 3 Software Version ASIC FW v. 16.3.8 / BLE FW v. 2.5.1 8 Product Type Description CLIQ CONNECT KEY Model name T(Q)GB407(EX) Brand name ABLOY CLIQ CONNECT KEY Hardware Version 922688 Revision 3 Software Version ASIC FW v. 16.3.8 / BLE FW v. 2.5.1 9 Product Type Description CLIQ CONNECT KEY Model name T(Q)GC407EX Brand name ABLOY CLIQ CONNECT KEY Hardware Version 922688 Revision 3 Software Version ASIC FW v. 16.3.8 / BLE FW v. 2.5.1 Test Report No.: G0M-2406-2597-TFC093LP01-V03 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 18 10 Product Type Description CLIQ CONNECT KEY Model name TQB406EX Brand name ABLOY CLIQ CONNECT KEY Hardware Version 922688 Revision 3 Software Version ASIC FW v. 16.3.8 / BLE FW v. 2.5.1 Comment: Those named additional variant…

Text truncated - open the document above for the full version.

Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU +358 40 631 1311 EMC Test Report According to Title 47 CFR Part 15 Subpart B ISED ICES-Gen Issue 1; Amendment 1 (February 2021) ISED ICES-003 Issue 7 ANSI C63.4:2014+A1:2017 DUT Name: ABLOY CLIQ CONNECT KEY Model No. : TQB406 Customer: ABLOY OY Address: Walhforssinkatu 20, 80100 Joensuu, FINLAND Summary IN COMPLIANCE Date of Reception: 28.11.2024 Date(s) of Test(s): 10.12.2024 – 13.12.2024 Tested by (Test Engineer) Approved by (Technical Manager) The test report shall not be reproduced except in full, without the written approval of the laboratory. This report is only for the equipment which is described in page 4. Test report number: EUFI29-24002446-O3-A1 Page 2 (15) 28-May-25 Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU +358 40 631 1311 Contents 1. General Information ................................................................................................................................................. 3 2. Test Samples ............................................................................................................................................................. 4 3. Configuration and Operation Modes ........................................................................................................................ 4 4. Test sample description ............................................................................................................................................ 5 5. Test description ......................................................................................................................................................... 7 5.1. FCC subpart 15B and ICES-003, radiated emission test procedure .................................................................. 7 5.2. FCC subpart 15B and ICES-003, conducted emission test procedure ............................................................. 10 6. Uncertainties ........................................................................................................................................................... 10 6.1. Emission measurement uncertainties ............................................................................................................ 10 7. Summary ................................................................................................................................................................. 11 8. Radiated Emissions ................................................................................................................................................. 12 9. Test Equipment List ................................................................................................................................................. 15 Document Version History Date of issue Comments Approved by v0.1 20.12.2024 Initial version v1.0 24.1.2025 Approved version with signatures Jukka Rauma v2.0 28.5.2025 Added additional models and changed brand name/trade mark to ABLOY CLIQ CONNECT KEY Jukka Rauma Test report number: EUFI29-24002446-O3-A1 Page 3 (15) 28-May-25 Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU +358 40 631 1311 1. General Information Test Engineer(s): Pekka Pulkkinen Location: Test Firm Name Eurofins Electric & Electronics Finland Oy (EEEF) Test Site Yrttipellontie, Peltola Address of Test Site Yrttipellonte 6, 90230 Oulu, Finland FCC Designation number FI0008 FCC site registration number 771880 ISED number 29576 CAB Identifier T290 Customer: ABLOY OY Walhforssinkatu 20, 80100 Joensuu, Finland Mikko Noropirtti tel: +358 50 465 6813 e-mail: [email protected] Climate Conditions: Temperature: 15 - 35 °C Air pressure: 860 - 1060 hPa Humidity: 30-60 rH% These limits were not exceeded during testing. Test report number: EUFI29-24002446-O3-A1 Page 4 (15) 28-May-25 Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU +358 40 631 1311 2. Test Samples General description: Double-secured locking and access control. PROTEC² CLIQ dynamic key CONNECT is intended for cases when access rights often change as it is easy to program changed access rights directly to user keys. Authorised cylinder and/or cylinder groups needs to be programmed to dynamic keys via customer software (locally or remotely). CLIQ Connect keys can be updated through Bluetooth with a smartphone application. Patented PROTEC² (T) key system. Test samples: Sample number Serial number Manufacturer DUT Type Model HW version SW version Comments 2400244606 - ABLOY OY Key TQB406 922688 Revision 3 ASIC FW 16.3.8, BLE FW 2.5.1 “LOOP” Accessories / Monitoring devices: Sample number Serial number Manufacturer DUT Type Model HW version SW version Comments 2400244608 - ABLOY OY Mechatronic locking cylinder CYL 321T 3. Configuration and Operation Modes Operation Mode Description OM1 Key is providing continuously opening pulse to a locking cylinder. Test report number: EUFI29-24002446-O3-A1 Page 5 (15) 28-May-25 Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU +358 40 631 1311 4. Test sample description Model TQB406 Additional model(s) TQB403, TQB403EX, TQGB403, TGB403EX, TQB406EX, TQC406, TQC406EX, TQGB406, TGB406EX, TQGC406, TGC406EX, TQB407, TQB407EX, TQC407, TQC407EX, TQGB407, TGB407EX, TQGC407, TGC407EX Brand name ABLOY CLIQ CONNECT KEY FCC ID 2AI5J-CONNECT2 IC 21724-CONNECT2 Class Class B Radio module Type Bluetooth LE radio Model CC2640 Manufacturer Texas Instruments FCC-ID 2AI5J-CONNECT2 IC 21724-CONNECT2 Antenna Type Chip Antenna, 2450AT07A0100 Manufacturer Johanson Technology Inc Ports Port Cable Name and description Shielded Specified max length [m] Attached during test Supplementary information to the ports Rated power supply Voltage and Frequency Reference poles L1 N PE AC 230 V 50 Hz 60 Hz AC 240 V 50 Hz 60 Hz AC 110 V 50 Hz 60 Hz AC 100 V 50 Hz 60 Hz Other: DC: 3V Li-Ion battery Rated Powe…

Text truncated - open the document above for the full version.

Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU Tel. +358 40 631 1311 Radio Test Report According to FCC part 15C, RSS-247, RSS-Gen DUT Name: ABLOY CLIQ CONNECT KEY Model No.: TQB406 Customer: ABLOY OY Address: Walhforssinkatu 20, 80100 Joensuu, FINLAND Summary IN COMPLIANCE Date of Reception: 28.11.2024 Date(s) of Test(s): 05.12.2024 – 13.12.2024 Tested by Test Engineer Approved by Technical Manager The test report shall not be reproduced except in full, without the written approval of the laboratory. This report is only for the equipment which is described in page 4. Test report number: EUFI29-24002446-O4-A1 Page 2 (47) Date of issue: 28-May-25 Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU Tel. +358 40 631 1311 CONTENTS 1. General Information .............................................................................................................................................................. 3 2. Test Samples .......................................................................................................................................................................... 4 3. Configuration and Operation Modes .................................................................................................................................... 6 4. Test equipment...................................................................................................................................................................... 6 5. Uncertainties ......................................................................................................................................................................... 7 6. Sample emission level calculation ......................................................................................................................................... 8 7. Test conditions ...................................................................................................................................................................... 9 8. Summary .............................................................................................................................................................................. 12 9. Occupied bandwidth ........................................................................................................................................................... 13 10. 6 dB bandwidth ................................................................................................................................................................. 15 11. Peak conducted output power .......................................................................................................................................... 17 12. Peak Power Spectral Density ............................................................................................................................................. 20 13. Band edge emissions compliance (transmitter) ................................................................................................................ 22 14. Tx spurious emissions, conducted ..................................................................................................................................... 25 15. Emissions in restricted frequency bands ........................................................................................................................... 28 16. Tx spurious emissions, radiated ........................................................................................................................................ 32 17. Receiver spurious emissions, radiated .............................................................................................................................. 45 Document Version History Date of issue Comments Approved by v0.1 19.12.2024 Initial draft v1.0 24.1.2025 Appoved version with signatures Jukka Rauma v2.0 28.5.2025 Added additional models and changed brand name/trade mark to ABLOY CLIQ CONNECT KEY. Amendment1 = A1. Jukka Rauma Test report number: EUFI29-24002446-O4-A1 Page 3 (47) Date of issue: 28-May-25 Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU Tel. +358 40 631 1311 1. General Information Test Engineers: Arto Kuosmanen, Pekka Pulkkinen Location: Test Firm Name Eurofins Electric & Electronics Finland Oy (EEEF) Test Site Yrttipellontie, Peltola Address of Test Site Yrttipellontie 6, 90230 Oulu, Finland FCC Designation number FI0008 FCC site registration number 771880 ISED number 29576 CAB Identifier T290 Customer: ABLOY OY Walhforssinkatu 20, 80100 Joensuu, FINLAND Mikko Noropirtti tel: +358 50 465 6813 e-mail: [email protected] Climate Conditions: Temperature: 15 - 35 °C Air pressure: 860 - 1060 hPa Humidity: 30-60 rH% These limits were not exceeded during testing. Test report number: EUFI29-24002446-O4-A1 Page 4 (47) Date of issue: 28-May-25 Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU Tel. +358 40 631 1311 2. Test Samples General description: Double-secured locking and access control. PROTEC² CLIQ dynamic key CONNECT is intended for cases when access rights often change as it is easy to program changed access rights directly to user keys. Authorised cylinder and/or cylinder groups needs to be programmed to dynamic keys via customer software (locally or remotely). CLIQ Connect keys can be updated through Bluetooth with a smartphone application. Patented PROTEC² (T) key system. Test sample (Conducted): Sample number Serial number Manufacturer DUT Type Model HW version SW version 2400244601 - ABLOY OY Electromechanical key. BLE 1M TQB406 922688 Revision 3 ASIC FW 16.3.8, BLE FW 2.5.1 2400244605 - ABLOY OY Key 2400244607 ABLOY OY Electromechanical key TQB406 922688 Revision 3 ASIC FW 16.3.8, BLE FW 2.5.1 Test sample (Radiated): Sample number Serial number Manufacturer DUT Type Model HW version SW version…

Text truncated - open the document above for the full version.

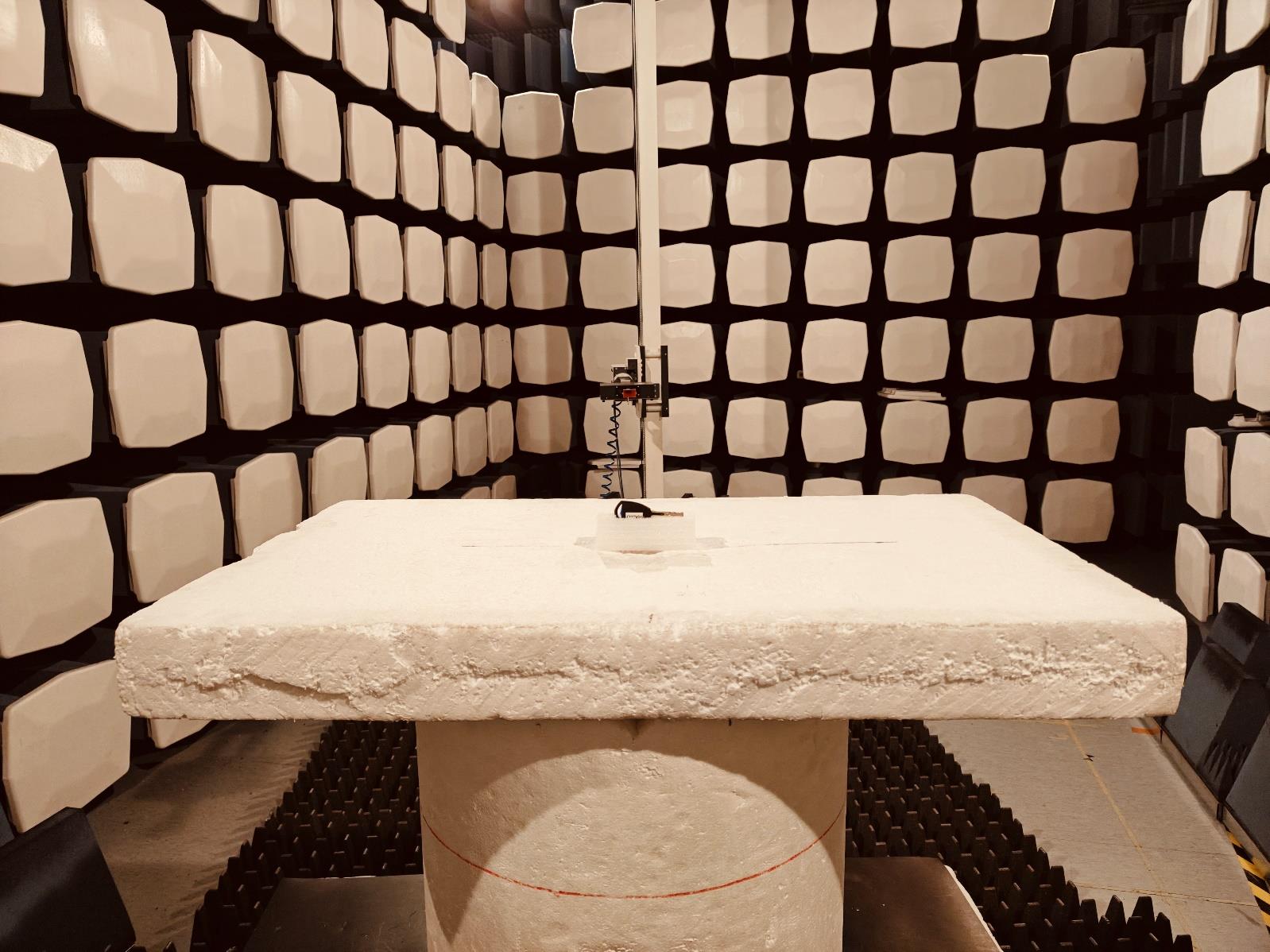

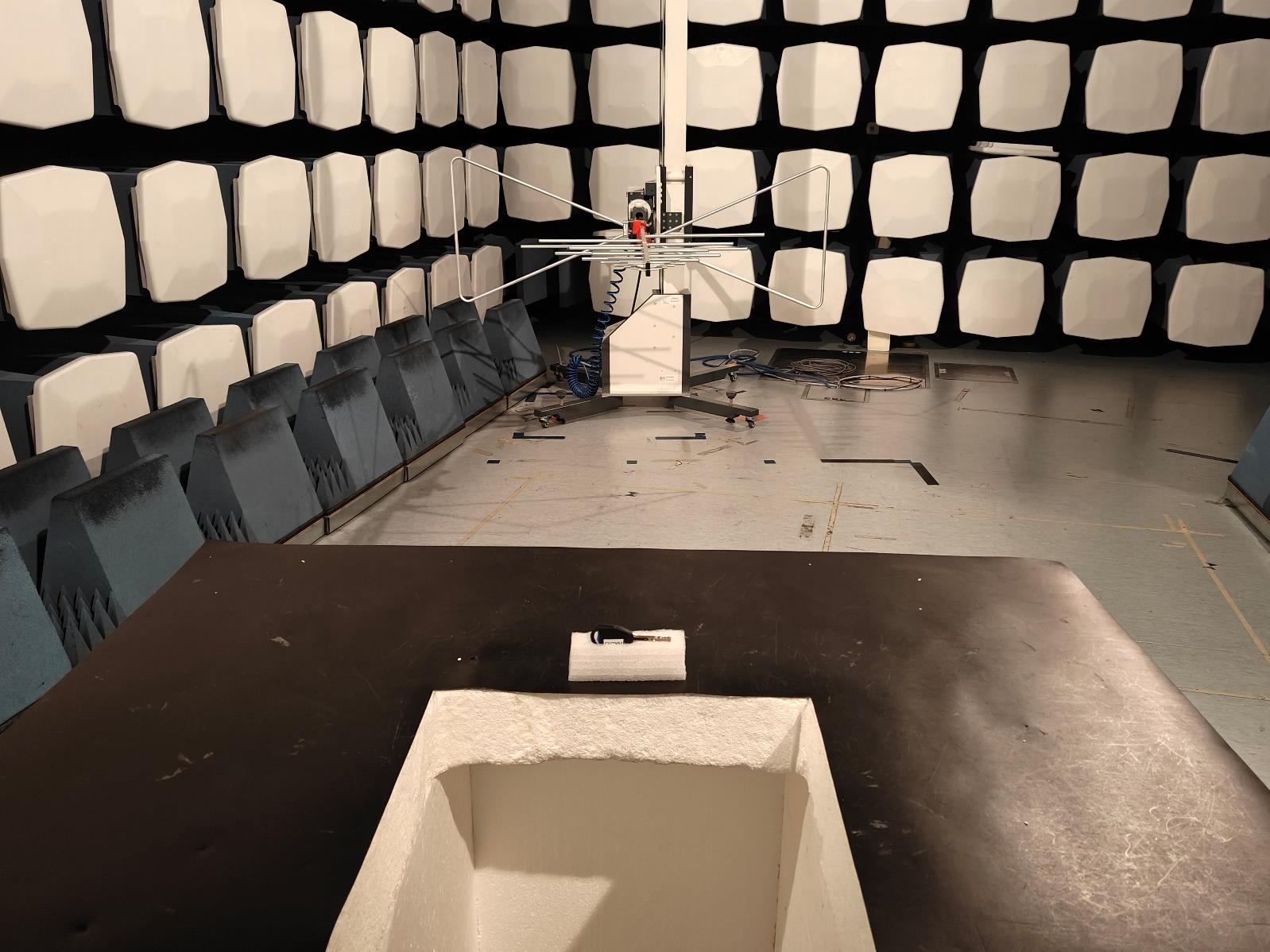

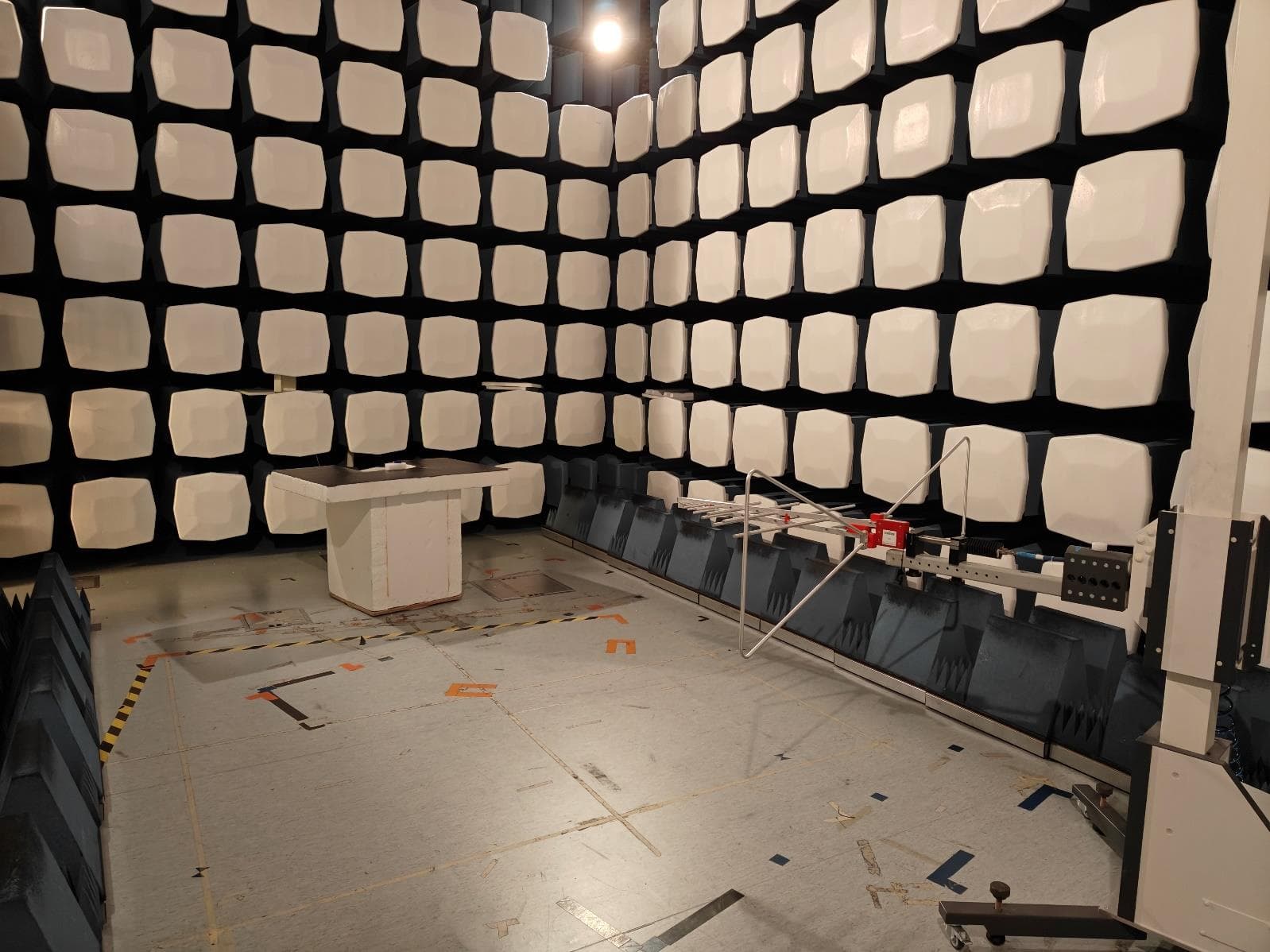

Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU +358 40 631 1311 Annex 1: EUT photographs Picture 1 External pictures Test report number: EUFI29-24002446-O3_Annex1 Page 2 (7) 20-Dec-24 Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU +358 40 631 1311 Picture 2 Internal pictures Test report number: EUFI29-24002446-O3_Annex1 Page 3 (7) 20-Dec-24 Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU +358 40 631 1311 Test Setup Photographs Picture 3 Radiated emission pictures, test setup below 1GHz Test report number: EUFI29-24002446-O3_Annex1 Page 4 (7) 20-Dec-24 Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU +358 40 631 1311 Picture 4 Radiated emission pictures, test setup above 1GHz Test report number: EUFI29-24002446-O3_Annex1 Page 5 (7) 20-Dec-24 Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU +358 40 631 1311 Picture 5 Radiated emission pictures, front view above and below 1GHz Test report number: EUFI29-24002446-O3_Annex1 Page 6 (7) 20-Dec-24 Eurofins Electric & Electronics Finland Oy, Yrttipellontie 6, FI-90230 OULU +358 40 631 1311 Picture 6 Radi…
