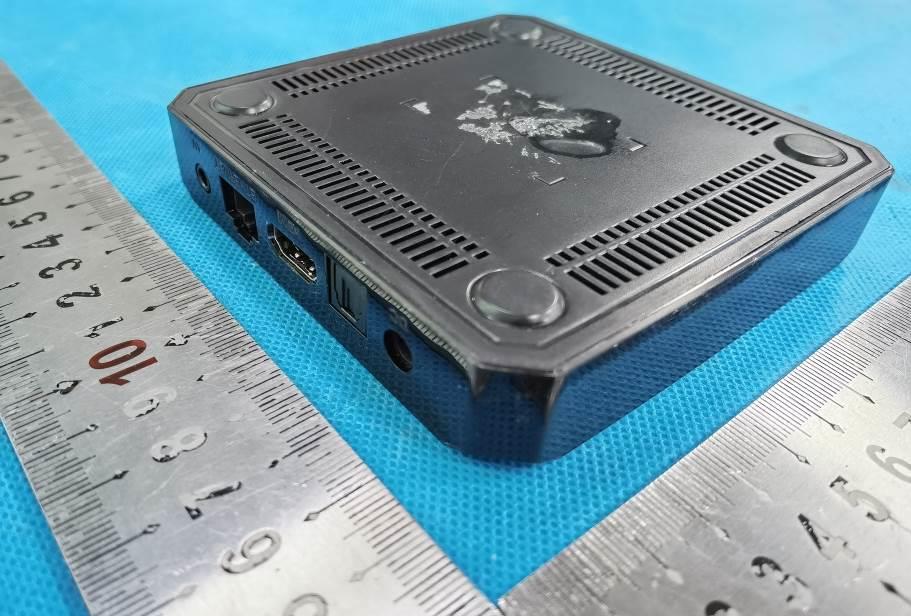

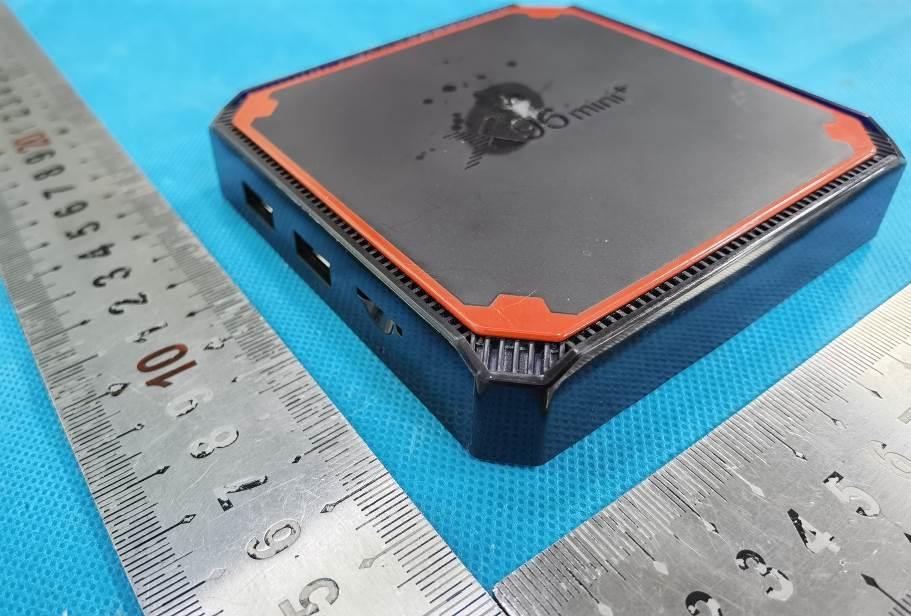

2AI6D-X96MINISet Top Box

CARD CARD AVETHERNETHDMIOPTICALDC AVETHERNETHDMI OPTICAL DC AVETHERNETHDMI OPTICAL OPTICAL Fiber Optic Cable DC HDMI HDMI Connect the TV Box with the power supply. Connect the TV Box to your TV with an HDMI cable or AV cable. For a wired connection, plug in Ethernet cable from the TV Box to your modem or router.For wireless, choose your Wi-Fi network and input your Wi-Fi password. Amlogic S905W4 Quad Core ARM Cortex-A53 CPU@ up to 1.2GHz with Penta Core Mali-450 GPU. 4k video decoding H.265 HEVC [email protected] up to 4Kx2K@30fps , H.264 AVC [email protected] up to 4Kx2K@30fps. 10/100M Ethernet, WiFi 2.4G&5G.802.11a/b/g/n/ac. Android 9.0 OS ,OTA upgrade support. Introduction: The TV Box lets you play photos, music, and videos from your smart phone or tablet computer on your TV. Preparation: Make sure your device(s) and TV Box are connected to the same network. How to use: After your device(s) and TV Box are connected to the same network, the logo will show up in the related applications of your device(s). Click tue and share the photos, music and videos on TV. 4 Warning 1: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Warning 2: When using an external display, please keep a sufficient distance to avoid eye fatigue and discomfort. It is recommended to keep at least 40cm. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Statement:: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. RF exposure compliance statement: This device has been evaluated to meet the general RF exposure requirement

Date: 04/17/2018 VCB_F-01: Operating Procedures Form – FCC Authorization v02 Page 1 of 1 SHENZHEN AMEDIATECH TECHNOLOGY CO., LTD Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2021/1/26 SUBJECT: FCC Application for (FCC ID: 2AI6D-X96MINI) To Whom It May Concern: We, the undersigned, hereby authorize Alisa Feng in Shenzhen Huaxia Testing Technology Co., Ltd at 1F., Block A of Tongsheng Technology Building, Huahui Road, Dalang Street, Longhua District, Shenzhen, China on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen Huaxia Testing Technology Co., Ltd on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, (Must be signed by the person that is listed on the FCC Website) Signature: Contact name: Michael Yang Company name: SHENZHEN AMEDIATECH TECHNOLOGY CO., LTD Address: No. 01, 2/F, A Plant, Block B, Minsheng Industrial Park, Longmei Road, Gaofeng Community, Dalang Office, Longhua District, Shenzhen

Date: 04/17/2018 VCB_F-01: Operating Procedures Form – FCC Confidentiality v02 Page 1 of 1 SHENZHEN AMEDIATECH TECHNOLOGY CO., LTD Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AI6D-X96MINI Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name 1. Block Diagram, 2. Schematics, 3. Operational Description 1. 2AI6D-X96MINI -Block diagram 2. 2AI6D-X96MINI -SCH 3. 2AI6D-X96MINI -Operational description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below for an initial period of xxxx (ie- “45”, “90” or “180”) days: Exhibit Type File Name N/A N/A Signature: Contact name: Michael Yang Company name: SHENZHEN AMEDIATECH TECHNOLOGY CO., LTD Address: No. 01, 2/F, A Plant, Block B, Minsheng Industrial Park, Longmei Road, Gaofeng Community, Dalang Office, Longhua District, Shenzhen

FCC ID: 2AI6D-X96MINI FCC ID: 2AI6D-X96MINI FCC ID: 2AI6D-X96MINI

SIZE: 25*40mm Set Top Box MODEL: X96 mini+ FCC ID: 2AI6D-X96MINI This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2AI6D-X96MINI FCC ID: 2AI6D-X96MINI FCC ID: 2AI6D-X96MINI Wifi Antenna

Shenzhen Huaxia Testing Technology Co., Ltd 1F., Block A of Tongsheng Technology Building, Huahui Road, Dalang Street, Longhua District, Shenzhen, China Telephone: +86-755-26648640 Fax: +86-755-26648637 Website: www.cqa-cert.com Report Template Version: V04 Report Template Revision Date: 2018-07-06 RF Exposure Evaluation Report The test report is effective only with both signature and specialized stamp, The result(s) shown in this report refer only to the sample(s) tested. Without written approval of CQA, this report can’t be reproduced except in full. Report No. : CQASZ20210100002EX-03 Applicant: SHENZHEN AMEDIATECH TECHNOLOGY CO.,LTD Address of Applicant: No.01, 2/F, A Plant, Block B, Minsheng Industrial Park, Longmei Road, Gaofeng community, Dalang office, Longhua District, Shenzhen, China Equipment Under Test (EUT): Product: Set Top Box Model No.: X96 mini+ Brand Name: N/A FCC ID: 2AI6D-X96MINI Standards: 47 CFR Part 1.1307 47 CFR Part 1.1310 KDB447498D01 General RF Exposure Guidance v06 Date of Receipt: Jan. 04, 2021 Date of Test: Jan. 04, 2021 – Jan. 31, 2021 Date of Issue: Jan. 31, 2021 Test Result : PASS* *In the configuration tested, the EUT complied with the standards specified above Tested By： (Jun Li) Reviewed By: (Ares Liu ) Approved By: ( Sheek Luo) Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20210100002EX-03 Page:2 of 10 1 Version Revision History Of Report Report No. Version Description Issue Date CQASZ20210100002EX-03 Rev.01 Initial report Jan. 31, 2021 Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20210100002EX-03 Page:3 of 10 2 Contents Page 1 VERSION .....................................................................................................................................................................2 2 CONTENTS .................................................................................................................................................................3 3 GENERAL INFORMATION ......................................................................................................................................4 3.1 CLIENT INFORMATION ...............................................................................................................................................4 3.2 GENERAL DESCRIPTION OF EUT ...............................................................................................................................4 3.3 GENERAL DESCRIPTION OF 2.4G WIFI ......................................................................................................................4 3.4 GENERAL DESCRIPTION OF 5G WIFI .........................................................................................................................4 4 RF EXPOSURE EVALUATION ................................................................................................................................5 4.1 RF EXPOSURE COMPLIANCE REQUIREMENT ..............................................................................................................5 4.1.1 Limits ..............................................................................................................................................................5 4.1.2 Test Procedure ..............................................................................................................................................5 4.1.3 EUT RF Exposure Evaluation standalone operations .............................................................................6 4.1.4 EUT RF Exposure Evaluation simultaneous transmission operations ............................................... 10 Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20210100002EX-03 Page:4 of 10 3 General Information 3.1 Client Information Applicant: SHENZHEN AMEDIATECH TECHNOLOGY CO.,LTD Address of Applicant: No.01, 2/F, A Plant, Block B, Minsheng Industrial Park, Longmei Road, Gaofeng community, Dalang office, Longhua District, Shenzhen, China Manufacturer: SHENZHEN AMEDIATECH TECHNOLOGY CO.,LTD Address of Manufacturer: No.01, 2/F, A Plant, Block B, Minsheng Industrial Park, Longmei Road, Gaofeng community, Dalang office, Longhua District, Shenzhen, China 3.2 General Description of EUT Product Name: Set Top Box Model No.: X96 mini+ Trade Mark: N/A Hardware Version: V1.0 Software Version: V1.0 Sample Type: Mobile Portable Fix Location Power Supply: 100-240V 50/60Hz 3.3 General Description of 2.4G WIFI Operation Frequency: IEEE 802.11b/g/n(HT20): 2412MHz to 2462MHz IEEE 802.11n(H40): 2422MHz~2452MHz Channel Numbers: IEEE 802.11b/g, IEEE 802.11n HT20: 11 Channels IEEE 802.11n HT40: 7 Channel Separation: 5MHz Type of Modulation: IEEE for 802.11b: DSSS(CCK,DQPSK,DBPSK) IEEE for 802.11g : OFDM IEEE for 802.11n(HT20): OFDM IEEE for 802.11n(HT40): OFDM Antenna Type: IPEX Antenna Antenna Gain: 0dBi 3.4 General Description of 5G WIFI Operation Frequency: 5180 ~ 5240 MHz, 5745 ~ 5825 MHz Channel Numbers: 5180 ~ 5240 MHz:4 for 802.11n, 802.11ac, 2 for 802.11n40 , 802.11ac 40 5745 ~ 5825 MHz:5 for, 802.11n , 802.11ac, 2 for 802.11n40, 802.11ac40 Type of Modulation: IEEE 802.11n/IEEE 802.11ac: OFDM Antenna Type: IPEX Antenna Antenna Gain: 0dBi Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20210100002EX-03 Page:5 of 10 4 RF Exposure Evaluation 4.1 RF Exposure Compliance Requirement 4.1.1 Limits According to FCC Part1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in part1.1307(b) F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2 ) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, …

Text truncated - open the document above for the full version.

Shenzhen Huaxia Testing Technology Co., Ltd 1F., Block A of Tongsheng Technology Building, Huahui Road, Dalang Street, Longhua District, Shenzhen, China Telephone: +86-755-26648640 Fax: +86-755-26648637 Website: www.cqa-cert.com Report Template Version: V03 Report Template Revision Date: Mar.1st, 2017 Test Report * In the configuration tested, the EUT complied with the standards specified above. The test report is effective only with both signature and specialized stamp, The result(s) shown in this report refer only to the sample(s) tested. Without written approval of CQA, this report can’t be reproduced except in full. Report No. : CQASZ20210100002EX-01 Applicant: SHENZHEN AMEDIATECH TECHNOLOGY CO.,LTD Address of Applicant: No.01, 2/F, A Plant, Block B, Minsheng Industrial Park, Longmei Road, Gaofeng community, Dalang office, Longhua District, Shenzhen, China Manufacturer: SHENZHEN AMEDIATECH TECHNOLOGY CO.,LTD Address of Manufacturer: No.01, 2/F, A Plant, Block B, Minsheng Industrial Park, Longmei Road, Gaofeng community, Dalang office, Longhua District, Shenzhen, China Equipment Under Test (EUT): Product: Set Top Box All Model No.: X96 mini+ Test Model No.: X96 mini+ Brand Name: N/A FCC ID: 2AI6D-X96MINI Standards: 47 CFR FCC Part 15 Subpart C 15.247 Date of Test: Jan. 04, 2021 – Jan. 31, 2021 Date of Issue: Jan. 31, 2021 Test Result : PASS Tested By: ( Jun Li ) Reviewed By: ( Ares Liu ) Approved By: ( Sheek Luo ) Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20210100002EX-01 Page:2 of 67 1 .Version Revision History Of Report Report No. Version Description Issue Date CQASZ20210100002EX-01 Rev.01 Initial report Jan. 31, 2021 Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20210100002EX-01 Page:3 of 67 2 Test Summary Test Item Test Requirement Test method Result Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203/15.247 (c) ANSI C63.10 2013 PASS AC Power Line Conducted Emission 47 CFR Part 15, Subpart C Section 15.207 ANSI C63.10 2013 PASS Conducted Peak & Average Output Power 47 CFR Part 15, Subpart C Section 15.247 (b)(3) ANSI C63.10 2013 PASS 6dB Occupied Bandwidth 47 CFR Part 15, Subpart C Section 15.247 (a)(2) ANSI C63.10 2013 PASS Power Spectral Density 47 CFR Part 15, Subpart C Section 15.247 (e) ANSI C63.10 2013 PASS Band-edge for RF Conducted Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 2013 PASS RF Conducted Spurious Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 2013 PASS Radiated Spurious Emissions 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 2013 PASS Restricted bands around fundamental frequency (Radiated Emission) 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 2013 PASS Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20210100002EX-01 Page:4 of 67 3 Contents Page 1 .VERSION ............................................................................................................................................................. 2 2 TEST SUMMARY ................................................................................................................................................ 3 3 CONTENTS .......................................................................................................................................................... 4 4 GENERAL INFORMATION ............................................................................................................................... 5 4.1 CLIENT INFORMATION ................................................................................................................................... 5 4.2 GENERAL DESCRIPTION OF EUT ................................................................................................................. 5 4.3 TEST ENVIRONMENT ..................................................................................................................................... 6 4.4 DESCRIPTION OF SUPPORT UNITS ............................................................................................................... 7 4.5 TEST LOCATION ............................................................................................................................................ 7 4.6 TEST FACILITY ............................................................................................................................................... 7 4.7 STATEMENT OF THE MEASUREMENT UNCERTAINTY ..................................................................................... 8 4.8 DEVIATION FROM STANDARDS ...................................................................................................................... 8 4.9 ABNORMALITIES FROM STANDARD CONDITIONS .......................................................................................... 8 4.10 OTHER INFORMATION REQUESTED BY THE CUSTOMER .............................................................................. 8 4.11 EQUIPMENT LIST ........................................................................................................................................... 9 5 TEST RESULTS AND MEASUREMENT DATA .......................................................................................... 10 5.1 ANTENNA REQUIREMENT ............................................................................................................................ 10 5.2 CONDUCTED EMISSIONS ............................................................................................................................. 11 5.3 CONDUCTED PEAK & AVERAGE OUTPUT POWER...................................................................................... 14 5.4 6DB OCCUPY BANDWIDTH .......................................................................................................................... 15 5.5 POWER SPECTRAL DENSITY ..................................................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20210100002EX-01 Page:49 of 67 5.8.2 Transmitter emission above 1GHz Test mode: 802.11b(1Mbps) Test channel: Lowest Frequency Meter Reading Factor Emission Level Limits Over Detector Type Ant. Pol. (MHz) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) H/V 4824.000 60.09 -4.26 55.83 74 -18.17 PK H 4824.000 41.88 -4.26 37.62 54 -16.38 AV H 7236.000 62.64 1.18 63.82 74 -10.18 PK H 7236.000 38.22 1.18 39.40 54 -14.60 AV H 4824.000 61.41 -4.26 57.15 74 -16.85 PK V 4824.000 40.81 -4.26 36.55 54 -17.45 AV V 7236.000 60.75 1.18 61.93 74 -12.07 PK V 7236.000 40.47 1.18 41.65 54 -12.35 AV V Test mode: 802.11b(1Mbps) Test channel: Middle Frequency Meter Reading Factor Emission Level Limits Over Detector Type Ant. Pol. (MHz) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) H/V 4874.000 59.99 -4.12 55.87 74 -18.13 PK H 4874.000 40.57 -4.12 36.45 54 -17.55 AV H 7311.000 61.27 1.46 62.73 74 -11.27 PK H 7311.000 38.23 1.46 39.69 54 -14.31 AV H 4874.000 59.11 -4.12 54.99 74 -19.01 PK V 4874.000 41.97 -4.12 37.85 54 -16.15 AV V 7311.000 60.30 1.46 61.76 74 -12.24 PK V 7311.000 39.93 1.46 41.39 54 -12.61 AV V Test mode: 802.11b(1Mbps) Test channel: Highest Frequency Meter Reading Factor Emission Level Limits Over Detector Type Ant. Pol. (MHz) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) H/V 4924.000 58.79 -4.03 54.76 74 -19.24 PK H 4924.000 42.11 -4.03 38.08 54 -15.92 AV H 7386.000 60.12 1.66 61.78 74 -12.22 PK H 7386.000 38.83 1.66 40.49 54 -13.51 AV H 4924.000 61.34 -4.03 57.31 74 -16.69 PK V 4924.000 41.92 -4.03 37.89 54 -16.11 AV V 7386.000 62.64 1.66 64.30 74 -9.70 PK V 7386.000 39.43 1.66 41.09 54 -12.91 AV V Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20210100002EX-01 Page:50 of 67 Test mode: 802.11g(6Mbps) Test channel: Lowest Frequency Meter Reading Factor Emission Level Limits Over Detector Type Ant. Pol. (MHz) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) H/V 4824.000 58.93 -4.26 54.67 74 -19.33 PK H 4824.000 41.48 -4.26 37.22 54 -16.78 AV H 7236.000 60.83 1.18 62.01 74 -11.99 PK H 7236.000 39.80 1.18 40.98 54 -13.02 AV H 4824.000 60.63 -4.26 56.37 74 -17.63 PK V 4824.000 40.27 -4.26 36.01 54 -17.99 AV V 7236.000 60.65 1.18 61.83 74 -12.17 PK V 7236.000 40.73 1.18 41.91 54 -12.09 AV V Test mode: 802.11g(6Mbps) Test channel: Middle Frequency Meter Reading Factor Emission Level Limits Over Detector Type Ant. Pol. (MHz) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) H/V 4874.000 60.42 -4.12 56.30 74 -17.70 PK H 4874.000 41.92 -4.12 37.80 54 -16.20 AV H 7311.000 59.92 1.46 61.38 74 -12.62 PK H 7311.000 39.60 1.46 41.06 54 -12.94 AV H 4874.000 60.45 -4.12 56.33 74 -17.67 PK V 4874.000 40.24 -4.12 36.12 54 -17.88 AV V 7311.000 62.49 1.46 63.95 74 -10.05 PK V 7311.000 40.93 1.46 42.39 54 -11.61 AV V Test mode: 802.11g(6Mbps) Test channel: Highest Frequency Meter Reading Factor Emission Level Limits Over Detector Type Ant. Pol. (MHz) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) H/V 4924.000 60.05 -4.03 56.02 74 -17.98 PK H 4924.000 40.61 -4.03 36.58 54 -17.42 AV H 7386.000 60.41 1.66 62.07 74 -11.93 PK H 7386.000 39.56 1.66 41.22 54 -12.78 AV H 4924.000 59.08 -4.03 55.05 74 -18.95 PK V 4924.000 42.15 -4.03 38.12 54 -15.88 AV V 7386.000 60.25 1.66 61.91 74 -12.09 PK V 7386.000 38.87 1.66 40.53 54 -13.47 AV V Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20210100002EX-01 Page:51 of 67 Test mode: 802.11n(6.5Mbps) Test channel: Lowest Frequency Meter Reading Factor Emission Level Limits Over Detector Type Ant. Pol. (MHz) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) H/V 4824.000 60.60 -4.26 56.34 74 -17.66 PK H 4824.000 40.29 -4.26 36.03 54 -17.97 AV H 7236.000 60.64 1.18 61.82 74 -12.18 PK H 7236.000 40.44 1.18 41.62 54 -12.38 AV H 4824.000 60.67 -4.26 56.41 74 -17.59 PK V 4824.000 42.58 -4.26 38.32 54 -15.68 AV V 7236.000 62.67 1.18 63.85 74 -10.15 PK V 7236.000 40.30 1.18 41.48 54 -12.52 AV V Test mode: 802.11n(6.5Mbps) Test channel: Middle Frequency Meter Reading Factor Emission Level Limits Over Detector Type Ant. Pol. (MHz) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) H/V 4874.000 61.50 -4.12 57.38 74 -16.62 PK H 4874.000 40.21 -4.12 36.09 54 -17.91 AV H 7311.000 60.61 1.46 62.07 74 -11.93 PK H 7311.000 38.61 1.46 40.07 54 -13.93 AV H 4874.000 58.97 -4.12 54.85 74 -19.15 PK V 4874.000 40.17 -4.12 36.05 54 -17.95 AV V 7311.000 62.43 1.46 63.89 74 -10.11 PK V 7311.000 39.94 1.46 41.40 54 -12.60 AV V Test mode: 802.11n(6.5Mbps) Test channel: Highest Frequency Meter Reading Factor Emission Level Limits Over Detector Type Ant. Pol. (MHz) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) H/V 4924.000 58.73 -4.03 54.70 74 -19.30 PK H 4924.000 41.70 -4.03 37.67 54 -16.33 AV H 7386.000 61.93 1.66 63.59 74 -10.41 PK H 7386.000 39.93 1.66 41.59 54 -12.41 AV H 4924.000 60.67 -4.03 56.64 74 -17.36 PK V 4924.000 42.20 -4.03 38.17 54 -15.83 AV V 7386.000 61.28 1.66 62.94 74 -11.06 PK V 7386.000 39.14 1.66 40.80 54 -13.20 AV V Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20210100002EX-01 Page:52 of 67 Test mode: 802.11n40(13.5Mbps) Test channel: Lowest Frequency Meter Reading Factor Emission Level Limits Over Detector Type Ant. Pol. (MHz) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) H/V 4844.000 59.42 -4.2 55.22 74 -18.78 PK H 4844.000 41.42 -4.2 37.22 54 -16.78 AV H 7266.000 60.20 1.18 61.38 74 -12.62 PK H 7266.000 39.11 1.18 40.29 54 -13.71 AV H 4844.000 58.87 -4.2 54.67 74 -19.33 PK V 4844.000 40.76 -4.2 36.56 54 -17.44 AV V 7266.000 61.80 1.18 62.98 74 -11.02 PK V 7266.000 40.85 1.18 42.03 54 -11.97 AV V Test mode: 802.11n40(13.5Mbps) Test channel: Middle Frequency Meter Reading Factor Emission Level Limits Over Detector Type Ant. Pol. (MHz) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) H/V 4874.000 58.88 -4.12 54.76 74 -19.24 PK H 4874.000 40.09 -4.12 35.97 54 -18.03 AV H 7311.000 60.09 1.46 61.55 74 -12.45 PK H 7311.000 40.04 1.46 41.50 54 -12.50 AV H 4874.000 60.70 -4.12 56.58 74 -17.42 PK V 4874.000 42.33 -4.12 38.21 54 -15.79 AV V 7311.000 61.15 1.46 62.61 74 -11.39 PK V 7311.000 40.63 1.46 42.09 54 -11.91 AV V Test mode: 802…

Text truncated - open the document above for the full version.

FCC ID: 2AI6D-X96MINI 1 Photographs - EUT Test Setup Please refer to test setup file 30MHz~1GHz Above 1GHz FCC ID: 2AI6D-X96MINI Below 30MHz Conducted emission Test Setup
