2AI6I-MODERNBUDSTRUE WIRELESS STEREO EARBUDS

08 Music playing 1. Play/Pause: Double tap the left or right MFB. 2. Previous song:Long press the left MFB for 1s. 3. Next song:Long press the right MFB for 1s *NoteIf only one earbud works, long press left or right MFB for 1s to switch to next song. 09 Charging Case Charge the case using the Type-C cable connected to a computer or wall charger.When the case is charging, the indicator light flashes in orange, and it turns off when the charging case is fully charged or when the power is cut off. Earbuds The earbuds make a warning tone to warn low power. Please put the earbuds to the case to charge. 10 Mono mode (take out any earbuds as a unilateral Bluetooth earbud) (note: single channel mode only needs to remove one of earbuds from the charging Basic function 01 Power on,bluetooth connection ---Follow the stepsPlease confirm that your phone is built-in Bluetooth function Power on 1. Open the charging case the earbuds will turn on automatically.The Earbuds enter the pairing mode automatically while the charging case indicator light will alternately flash until pairing is completed. 2. Turn on Bluetooth on your device and select “HAVIT Modern Buds” referring to your phone instructions. The indicator of charging case turns off if the earbuds successfully paired.Pairing mode can just last 180 seconds. if you miss the pairing time, you need to restart the device and operate follow the procedural steps mentioned above. *Note: a). HAVIT Modern Buds remembers previously connected devices. When turned on, earbuds attempts to reconnect to previously connected devices. b). HAVIT Modern Buds will disconnect when deviate the working range of Bluetooth. The earbuds will reconnect automatically if you come back to the range in 3 minutes. 02 Power off Put the earbuds into the charging case and close the case, they will automatically shut off. 03 Answering incoming calls Double tap the left or right MFB to answer incoming calls. 04 End the call Double tap the left or right MFB to end the current call. 05 Decline incoming call Long press left or right MFB for 1s to reject a call. 06 One key for voice assistant Both earbuds work:Triple tap the left MFB to activate voice assistant. Single earbud work:Triple tap the MFB of working earbud. 07 Switch on/Switch off Game mode Triple tap the right MFB to switch on/switch off game mode. phone and connect again. Specification Bluetooth Version: V5.3 Wireless Working Range: 10M (without obstacles) Earbuds Battery: 27mAh Charging Case Battery: 400mAh Play Time: ≈ 4.5H(50% Vol. Talk time: ≈3.5H(50% Vol.) Case Charging Time: 1.5H Speaker size: Φ10mm*2 Speaker Frequency: 20Hz~20KHz Input Voltage / Current: DC 5V/0.3A USB Port: Type-C Warnings 1. Please follow the instruction to operate. 2. Please charge the earbuds with input power below 5V/1A, in order to protect the battery. 3. Please store or use the earbuds in a normal temperature environment. 4. Please do not use this product near the water. Do not immerse this product in any liquid or splash any liquid on this product. 5. Please keep the earbuds from heat source, such as radiators, hot air regulators, stoves, or other heat generating box; If two earbuds are removed before connection, the earbud will be used in TWS mode by default, and the TWS connection will be automatically realized.) 1. Take out one earbud from charge case,the earbuds automatically turn on and reconnect to previous connected devices. 2. Switch from one earbud to the other earbud when playing music, taking out the other earbud from the charging case and these two earbuds will connected automatically. Both earbuds will play music automatically and then put the earbud which do not need anymore into the charging case and the switching process completes. (note:Call mode is applicable) 3. Please refer to the TWS mode for more functions. 11 Restore factory settings If the earbuds can’t pair frequently, please restore the factory settings. Put both of the earbuds into charging case and close the cover.Open the case again,within 3 minutes, press the reset button for 5 seconds,the charging case indicator light will flash alternately ,the earbuds will enter the pairing mode again , search the “HAVIT Modern Buds” bluetooth pairing name with the mobile Gently insert the earbuds into the ear then adjust the appropriate comfort. 1234 65 7 8 8 1.MFB button Touch panel 2.Microphone Charging case *1 Type-C Charging cable *1 1 2 3 4 5 Wearing method Product and accessoriesDescription of product structure User manual *1 Earbuds *2 USER'S MANUAL Certificate of quality *1 please keep this document for reference ProductWarranty 3.Power LED indicator 4.Charging port 5.Reset button instruments. As it is not anti high temperature. 6. Don't jam the ports of the earbuds, such as charger port, LED port and microphone etc.. 7. In order to protect your hearing and extend the speaker service life, it is not recommended to adjust the volume to the maximum level for a long time. 8. Whatever reasons damage the earbuds, please feel free to contact our after-sales staff in time rather than repair by yourself. Otherwise, you will accept without after-sales service. FCC ID2AI6I-MODERNBUDS FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and(2)this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found USER'S MANUAL to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accor…

Text truncated - open the document above for the full version.

CFR 47 §2.911(d)(5)(i)(ii) Attestation Letter Guangzhou Havit Technology Co.,LTD Add:ROOM 1307, 13F, PHASE 2 B, C BUILDING OF POLY WORLD TRADE CENTER, NO .1000, XINGANG EAST ROAD, HAIZHU, GUANGDONG, 510000, China Tel: +86-20-66820279 Fax: +86-20-66856369 Email: [email protected] Attestation Letter Date: 2023-09-22 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i)(ii) Filing FCC ID:2AI6I-MODERNBUDS Guangzhou Havit Technology Co.,LTD (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Guangzhou Havit Technology Co.,LTD (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: Contact Person: Wei Yang Title: Manager

U.S. AGENT LETTER OF ATTESTATION D ate: 2023-09-22 FEDE RAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 R ef: Attestation Statements Part 2.911(d)(7) Filing FCC ID:2AI6I-MODERNBUDS G uangzhou Havit Technology Co.,LTD certifies that, as of the date of the filing of the application, USA MEIHUA TRADING INC is our designated U.S. agent for service of process for the above referenced FCC ID. Guangzhou Havit Technology Co.,LTD accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. US A MEIHUA TRADING INC accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: USA MEIHUA TRADING INC Address: 5379 Pine Valley Ct Boulder CO 80301 Un ited State FRN: 0033406166 Tel.: 312-363-9424 Email: meihua-trading-in [email protected] Signed by (printed name): Har ley Quinn Signature: A pplicant: Guangzhou Havit Technology Co.,LTD Address: ROOM 1307, 13F, PHASE 2 B, C BUILDING OF POLY WORLD TRADE CENTER, NO.1000, XINGANG EAST ROAD, HAIZHU, GUANGDONG, 510000, China FRN: 0025744657 Tel: +86-20-66820279 Email: [email protected] S igned by (printed name): Wei Yang Signature:

Guangzhou Havit Technology Co.,LTD Add:ROOM 1307, 13F, PHASE 2 B, C BUILDING OF P O LY WORLD TRADE CENTER, NO.100 0, XINGANG EAST ROAD, HAIZHU, GUANGDONG, 510000, China Tel:+86-20-66820279 Fax: +86-20-66856369 Email: [email protected] Attestation Letter Date: 2023-09-22 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: Our product TRUE WIRELESS STEREO EARBUDS, model: Modern Buds,TW903,E529BT, TW981,TW979,TW965, FCC ID:2AI6I-MODERNBUDS, for marketing purpose, this product only supports BT(GFSK, π/4-DQPSK), BLE 1M&2M.The other functions, bands and modes was disabled to use by manufacturer in the software, the end user has no capability to activate it. Sincerely, Signature: Pr inted name : Wei Yang Title: Manager

Guangzhou Havit Technology Co.,LTD Add:ROOM 1307, 13F, PHASE 2 B, C BUILDING OF P O LY WORLD TRADE CENTER, NO.100 0, XINGANG EAST ROAD, HAIZHU, GUANGDONG, 510000, China Tel:+86-20-66820279 Fax: +86-20-66856369 Email: [email protected] DECLARATION OF SIMILARITY Date: 2023-09-22 To whom it may concern Dear Sir or Madam: We, Guangzhou Havit Technology Co.,LTD, hereby declare that the product: TRUE WIRELESS STEREO EARBUDS, FCC ID:2AI6I-MODERNBUDS, model: TW903,E529BT,TW981,TW979,TW965 are electrically identical with the model: Modern Buds which was tested by China Certification ICT Co., Ltd (Dongguan) with the same electromagnetic emissions and electromagnetic compatibility characteristics. A description of the differences between six models and that are declared similar are as follows: They are the same product, and just the different model name, the rest are the same. The detail information, please check the reports. Please contact me should there be need for any additional clarification or information. Best Regards, Signature: Printed Name: Wei Yang Title: Manager

QA-FR-170-B Guangzhou Havit Technology Co.,LTD Add:ROOM 1307, 13F, PHASE 2 B, C BUILDING OF POLY WORLD TRADE CENTER, NO.1000, XINGANG EAST ROAD, HAIZHU, GUANGDONG, 510000, China Tel:+86-20-66820279 Fax: +86-20-66856369 Email: [email protected] FCC Authorization Date: 2023-09-22 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Guangzhou Havit Technology Co.,LTD, Hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature: Printed Name: Wei Yang Title: Manager

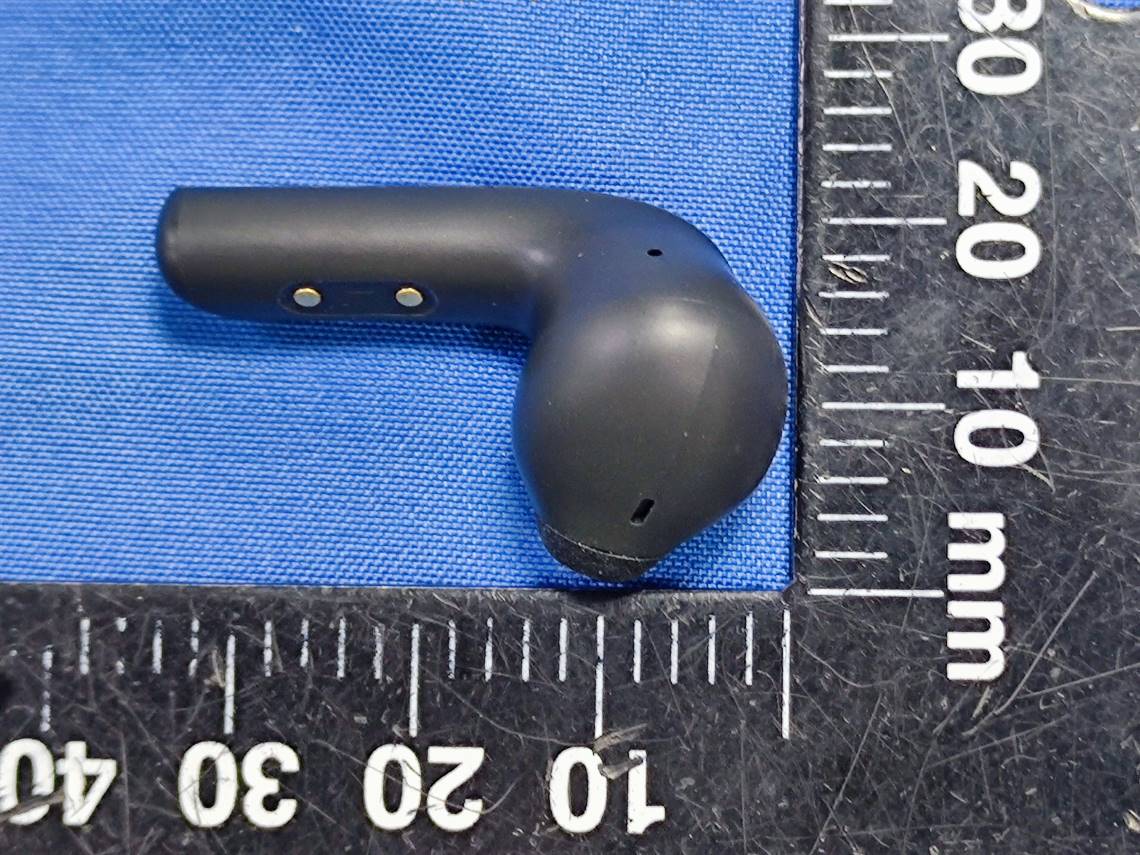

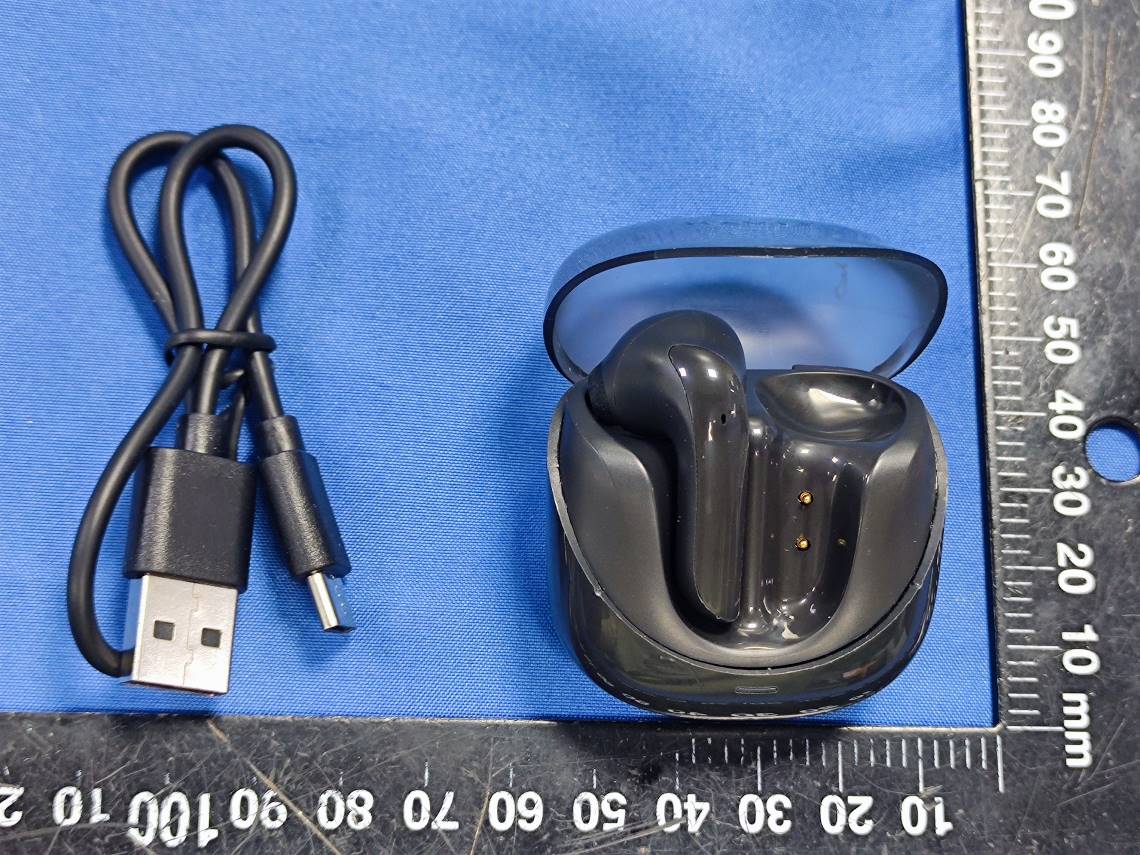

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230953816-EXP Page 1 of 4 EUT EXTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) Report No.: CR230953816-EXP Page 2 of 4 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230953816-EXP Page 3 of 4 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230953816-EXP Page 4 of 4

QA-FR-169-B Guangzhou Havit Technology Co.,LTD Add:ROOM 1307, 13F, PHASE 2 B, C BUILDING OF POLY WORLD TRADE CENTER, NO.1000, XINGA NG EAST ROAD, HAIZHU, GUANGDONG, 510000, China Tel:+86-20-66820279 Fax: +86-20-66856369 Email: [email protected] To FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia,MD 21046 Dear Sir/Madam, We, Guangzhou Havit Technology Co.,LTD, Product: TRUE WIRELESS STEREO EARBUDS, Model: Modern Buds,TW903,E529BT,TW981,TW979,TW965, FCC ID:2AI6I-MODERNBUDS, hereby submits justification for placing the FCC ID label to the charging box. According to the FCC Regulation and Guidence (KDB Publication 784748 D01 v09R01) allows for the FCC to be removed to charging box if the device is unquestionably too small for the FCC ID label to be printed. The measurement of headset: Length 36.2(mm)*Width 8.2(mm), label: Length 32.8(mm)*Width 18.2(mm), charging box:46.8(mm)*42.3(mm). Refer to the above quote, as the headset are too small for the FCC ID label to be printed, so the FCC ID label will be moved to the charging box. For details, please see below photos: Sincerely, Signature: Printed Name: Wei Yang Title: Manager

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230953816-INP Page 1 of 4 EUT INTERNAL PHOTOGRAPHS Antenna China Certification ICT Co., Ltd (Dongguan) Report No.: CR230953816-INP Page 2 of 4 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230953816-INP Page 3 of 4 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230953816-INP Page 4 of 4

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230953816-00A Page 47 of 49 5. RF EXPOSURE EVALUATION 5.1 Applicable Standard According to§15.247(i) and §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB447498 D01 General RF Exposure Guidance v06: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ꞏ [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 5.2 Measurement Result The max conducted power including tune-up tolerance is 3.5dBm (2.24mW). [(max. power of channel, mW)/(min. test separation distance, mm)][√f(GHz)] =2.24/5*(√2.480) = 0.7< 3.0 Result: Compliant. The stand-alone SAR evaluation is not necessary.

 5HY_ $17(11$5(3257 ^ŚĞŶnjŚĞŶƐŚŝ D/^,/&h dĞĐŚŶŽůŽŐLJŽ͕͘>ƚĚ 217 Huichao Building, A3 (A4) Yintian Industrial Zone, Yantian Community, Xixiang Street, Bao'an District, Shenzhen 5HY_ RADIATION PATTERNS 2.4GHz WLAN BAND ˖ ġ 3D Gain Pattern (24 0 0 MHz) 2.18 1.34 0.5 -0.34-1.18-2.02-2.86 -3.7 -4.54-5.38-6.22-7.07-7.91-8.75-9.59-10.4-11.3-12.1 ˖ ġ 3D Gain Pattern (2440 MHz) 2.6 1.69 0.78 -0.13-1.05-1.96-2.87-3.78-4.69-5.61-6.52-7.43-8.34-9.26-10.2-11.1 -12 -12.9 ˖ ġ 3D Gain Pattern (2480 MHz) 1.811.09 0.36 -0.37-1.09-1.82-2.54-3.27 -4 -4.72-5.45-6.18 -6.9 -7.63-8.35-9.08-9.81-10.5 5HY_ APPLICATIONS ・ Bluetooth ・ IEEE802.11g/b ・ Zigbee systems,etc...        G% L        :  +R KIZ XO IGR) N G X GIZK XO YZ O I YV K XROT K  :' #   Ȼ  ,X K W [K T I _( G T J 6 U R G XO` G Z O U T Line  6 KGQ-G OT + LLO I O K T I _  /S V K T JG T IK 0+] ; TO Z Y a 9 V KI OLO IG Z O U T 6 G X G S K Z K X

TEST REPORT Applicant: Guangzhou Havit Technology Co.,LTD Address: ROOM 1307, 13F, PHASE 2 B, C BUILDING OF POLY WORLD TRADE CENTER, NO.1000, XINGANG EAST ROAD, HAIZHU, GUANGDONG, 510000, China FCC ID: 2AI6I-MODERNBUDS Product Name: TRUE WIRELESS STEREO EARBUDS Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230953816-00A Date Of Issue: 2023/9/27 Reviewed By: Julie Tan Title: RF Engineer Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230953816-00A Page 2 of 49 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230953816-00A Page 3 of 49 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 8 1.2.1 EUT Operation Condition: ............................................................................................................................. 8 1.2.2 Support Equipment List and Details .............................................................................................................. 8 1.2.3 Support Cable List and Details ...................................................................................................................... 8 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 8 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 9 2. SUMMARY OF TEST RESULTS .......................................................................................... 10 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 11 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 11 3.1.1 Applicable Standard ..................................................................................................................................... 11 3.1.2 EUT Setup.................................................................................................................................................... 12 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 12 3.1.4 Test Procedure ............................................................................................................................................. 13 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 13 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 14 3.2.1 Applicable Standard ..................................................................................................................................... 14 3.2.2 EUT Setup.................................................................................................................................................... 14 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 15 3.2.4 Test Procedure ............................................................................................................................................. 15 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 15 3.3 MINIMUM 6 DB BANDWIDTH ........…

Text truncated - open the document above for the full version.

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230953816-00A-TSP TEST SETUP PHOTOGRAPHS Radiated Emission Below 1GHz View Radiated Emission Below 1GHz View China Certification ICT Co., Ltd (Dongguan) Report No.: CR230953816-00A-TSP Radiated Emission Above 1GHz View Radiated Emission Above 1GHz View
