2AI6I-TW983RADAPTIVE HYBRID NOISE CANCELLING TWS EARBUDS

L: Model:SPACE T1,TW983L FCC ID: 2AI6I-TW983L R: Model: SPACE T1,TW983R FCC ID: 2AI6I-TW983R

* the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. SC6043890 U.S. Agent Designation for Service of Process - Certification Attestation Letter 4/9/2026 TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTN.: Reviewing Engineer FCC ID: 2AI6I-TW983R FRN of applicant: 0025744657 Per section 2.911(d)(7) of the FCC rules, Guangzhou Havit Technology Co.,LTD FRN:0025744657(“the applicant”) certifies that the equipment for which authorization is sought is designated to thefollowing U.S. agent* for service of process: Company Name: Global Product Services and Consultation LLC FCC Registration Number (FRN): 0033406703 Physical U.S. Company Address: 328 W Palm Ave. Monrovia, CA91016 Contact Person: Michael Chan Tel: +1 626 366 4358 Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed:Agent Signed (if different from Applicant): Signed: Printed name: Yang Wei Title: Manager Company Name: Guangzhou Havit Technology Co.,LTD Date: 4/9/2026 Signed: Printed name: Michael Chan Title: Technical Director Company Name: Global Product Services and Consultation LLC Date: 4/9/2026

GuangzhouHavitTechnologyCo.,LTD 2026-04-09 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(i)requestfor(FCCID: 2AI6I-TW983R ) [GuangzhouHavitTechnologyCo.,LTD](“theapplicant”)certifiesthattheequipmentfor whichauthorizationissoughtisnot“covered”equipmentprohibitedfromreceivingan equipmentauthorizationpursuanttosection2.903oftheFCCrules. Wealsocertifythat,asofthedateofthefilingoftheapplication,theequipmentdoes notutilizecyber-securityoranti-virussoftwarefromKasperskyLab,Inc,oranyofits successorsandassignees,whichisalsoonthe“coveredlist”. Sincerely, YangWei Manager GuangzhouHavitTechnologyCo.,LTD ROOM1307,13F,PHASE2B,CBUILDINGOFPOLYWORLDTRADE CENTER,NO.1000,XINGANGEASTROAD,HAIZHUGUANGDONG,510000,China GuangzhouHavitTechnologyCo.,LTD 2026-04-09 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(ii)requestfor(FCCID: 2AI6I-TW983R ) [GuangzhouHavitTechnologyCo.,LTD](“theapplicant”)certifiesthat,asofthedateof thefilingoftheapplication,theapplicantisnotidentifiedontheCoveredListasan entityproducing“covered”equipment. Sincerely, YangWei Manager GuangzhouHavitTechnologyCo.,LTD ROOM1307,13F,PHASE2B,CBUILDINGOFPOLYWORLDTRADE CENTER,NO.1000,XINGANGEASTROAD,HAIZHUGUANGDONG,510000,China

Declaration on model difference We the undersigned hereby confirm that these models are identical, and all models have the same RF module and antenna, PCB layout, schematics and component. Only the models name are different. Product name FCC ID Model no. ADAPTIVE HYBRID NOISE CANCELLING TWS EARBUDS 2AI6I-TW983R SPACE T1, TW983R Sincerely, Yang Wei Manager Guangzhou Havit Technology Co.,LTD ROOM 1307,13F,PHASE 2 B,C BUILDING OF POLY WORLD TRADE CENTER,NO.1000,XINGANG EAST ROAD,HAIZHU GUANGDONG, 510000, China

Guangzhou Havit Technology Co.,LTD 2026-04-09 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (EUT Name: ADAPTIVE HYBRID NOISE CANCELLING TWS EARBUDS /Model: SPACE T1, TW983R /FCC ID: 2AI6I- TW983R) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Block Diagram, Operational Description, Schematics) required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Yang Wei Manager Guangzhou Havit Technology Co.,LTD ROOM 1307,13F,PHASE 2 B,C BUILDING OF POLY WORLD TRADE CENTER,NO.1000,XINGANG EAST ROAD,HAIZHU GUANGDONG, 510000, China

GuangzhouHavitTechnologyCo.,LTD 2026-04-09 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorizeGuangdongGlobalTestingTechnologyCo.,Ltd.toact onourbehalfinallmattersrelatingtoapplicationforequipmentauthorization,includingthe signingofalldocumentsrelatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseAct of1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely, YangWei Manager GuangzhouHavitTechnologyCo.,LTD ROOM1307,13F,PHASE2B,CBUILDINGOFPOLYWORLDTRADE CENTER,NO.1000,XINGANGEASTROAD,HAIZHUGUANGDONG,510000, China

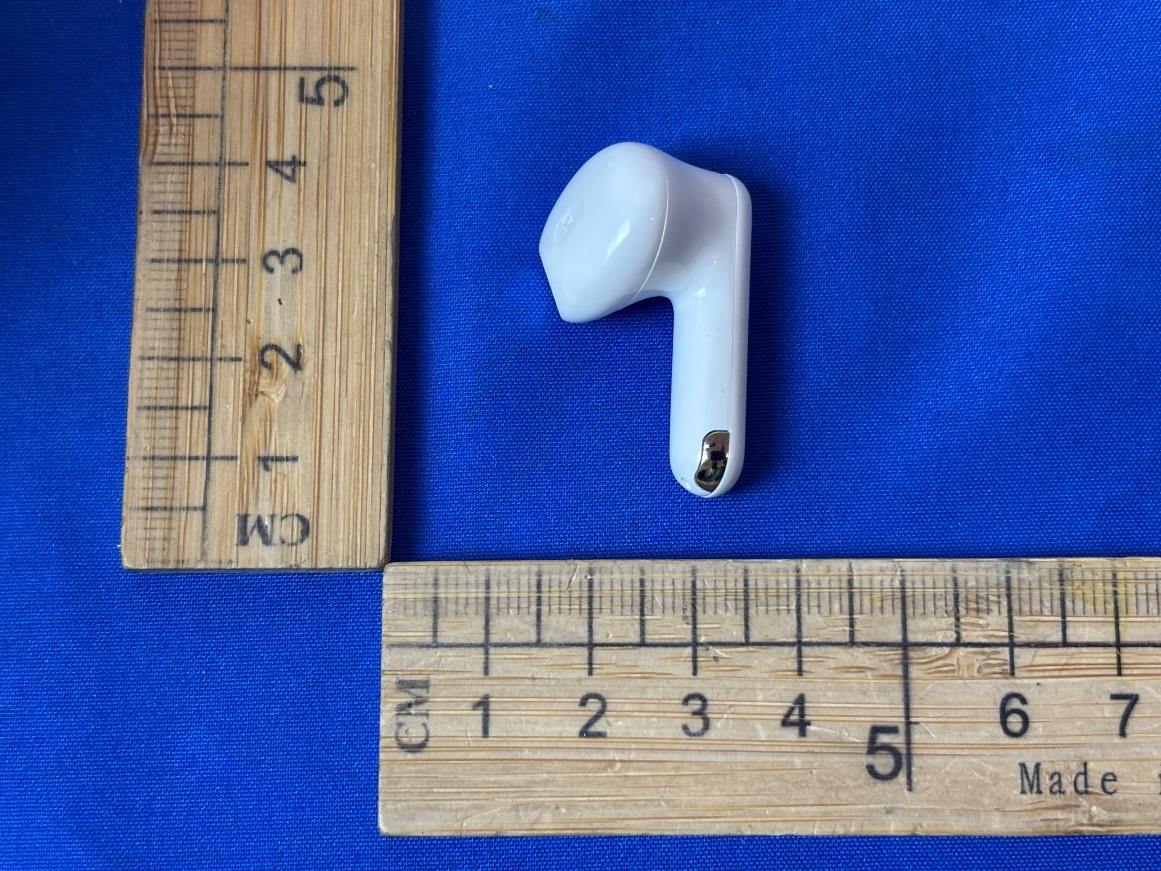

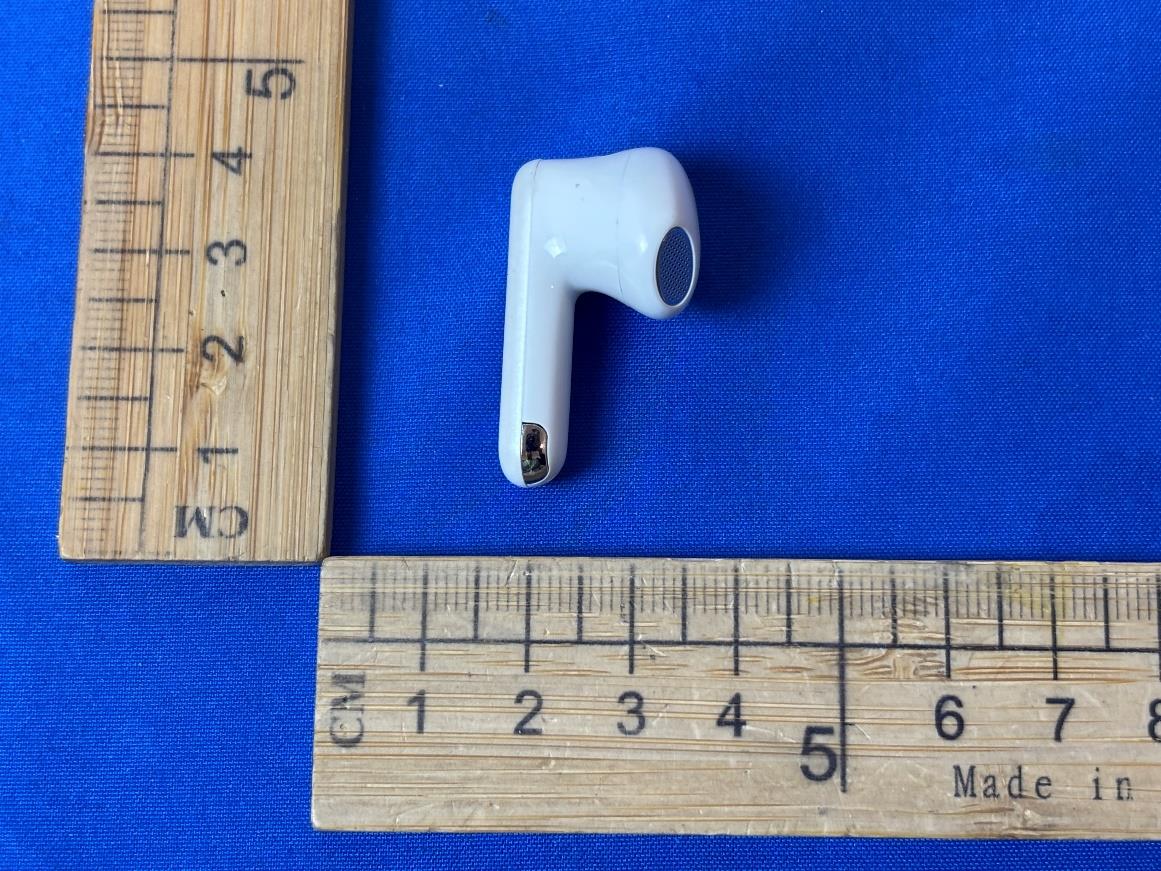

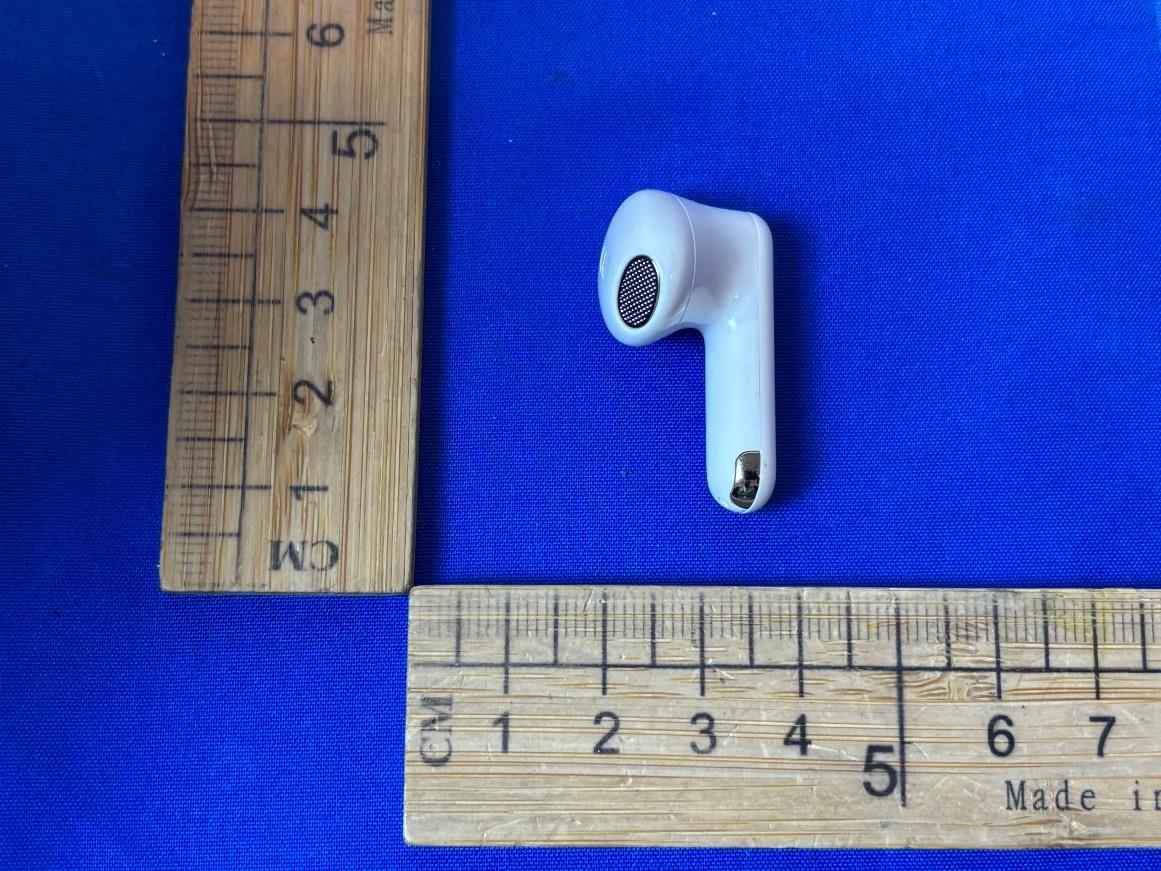

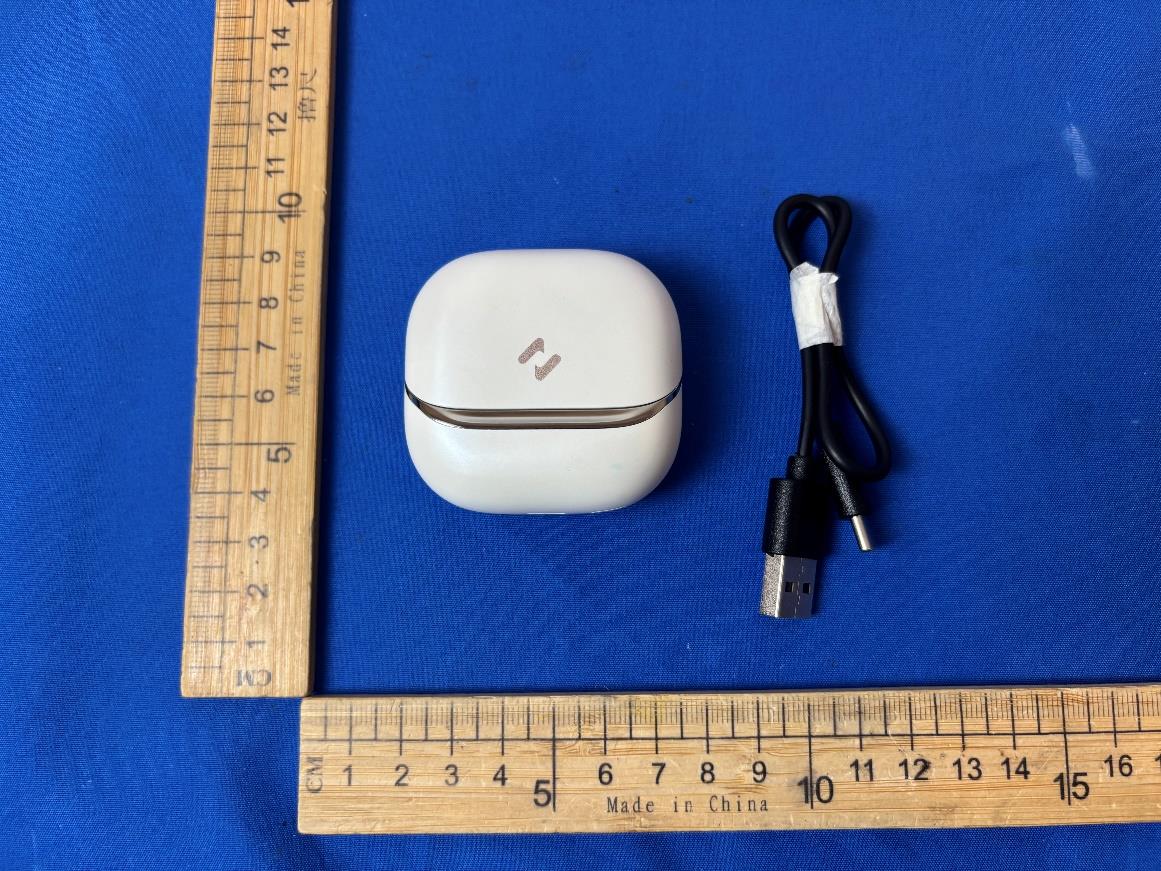

External Photographs View of EUT-1 View of EUT-2 Page 2 of 12 View of EUT-3 View of EUT-4 Page 3 of 12 View of EUT-5 View of EUT-6 Page 4 of 12 View of EUT-7 View of EUT-8 Page 5 of 12 View of EUT-9 View of EUT-10 Page 6 of 12 View of EUT-11 Page 7 of 12 R: View of EUT-12 View of EUT-13 Page 8 of 12 View of EUT-14 View of EUT-15 Page 9 of 12 View of EUT-16 View of EUT-17 Page 10 of 12 L: View of EUT-18 View of EUT-19 Page 11 of 12 View of EUT-20 View of EUT-21 Page 12 of 12 View of EUT-22 View of EUT-23

FCC ID FCC ID FCC ID FCC ID

Internal Photographs Internal View of EUT-1 Internal View of EUT-2 Page 2 of 11 Internal View of EUT-3 Internal View of EUT-4 Page 3 of 11 Internal View of EUT-5 Page 4 of 11 R: Internal View of EUT-6 Internal View of EUT-7 Page 5 of 11 Internal View of EUT-8 Internal View of EUT-9 Antenna Page 6 of 11 Internal View of EUT-10 Internal View of EUT-11 Page 7 of 11 Internal View of EUT-12 Internal View of EUT-13 Page 8 of 11 L: Internal View of EUT-14 Internal View of EUT-15 Page 9 of 11 Internal View of EUT-16 Internal View of EUT-17 Antenna Page 10 of 11 Internal View of EUT-18 Internal View of EUT-19 Page 11 of 11 Internal View of EUT-20 Internal View of EUT-21

RF EXPOSURE EVALUATION EUT Specification EUT ADAPTIVE HYBRID NOISE CANCELLING TWS EARBUDS Model Number TW983L, SPACE T1 FCC ID 2AI6I-TW983R Antenna gain (Max) 0.58dBi Operation Frequency 2402-2480MHz Power Supply DC 5V / Battery 3.7V Classification Per Stipulated Test Standard §15.247(i), §2.1093 Modulation GFSK, π/4-DQPSK, 8DPSK Max. output power 6.41 dBm (0.00438W) Test Requirement: According to ß15.247(i) and ß1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Routine SAR evaluation refers to that specifically required by ß2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to quality for TCB approval. One antenna is available for the EUT. The minimum separation distance is 5mm. Page 2 of 2 Measurement Result BT: Transmit Frequency (MHz) Mode Measured Power (dBm) Tune up Power (dBm) Max tune up power (dBm) Calculation Result 1-g SAR 2441 3-DH5 6.41 6±1 7 1.566 3 According to KDB 447498, no stand-alone required for BT antenna, and no simultaneous SAR measurement is required. Signature: Shawn Wen Date: 2026-1-13

Customer 美师傅 Project TW983 Antenna Revision A0 Prepared by 18814303605 Checked by Date : 2025.07.31 Antenna Test Report Sequence Number Test Item equipment S parameter VSWR Agilent 5071C & Agilent 5071B OTA Test TRP&TIS Agilent 8960 & CMW500 STIMO Gain & Efficiency Gain & Efficiency SATIMO Agilent 5071C 2.TestSystem Purpose This report is to measure the performance of antenna for TW983 The antenna operating frequency at 2400MHz0-2500MHz 。 All test data are showed as below. Content 1. Product Overview & Dimension 2. Test system 3. Test Result 3.1 S11 Parameter 3.2 Gain & Efficiency 3.3 2D Pattern 4. OTA 4.1Test Result 4.2 2D Pattern 0Ω 0.75p 1.8p A08 匹配图 Frequency (MHz) 2400245024802500 VSWR 2.051.31 1.24 1.39 3. 1Test Result 1 .S11 Parameter-VSWR R Frequency (MHz) 2400245024802500 Log Mag -9.23 -17.22 -19.39-15.72 3. 1Test Result 2. S11 Parameter-Log Mag Frequency (MHz) 2400245024802500 Smi th(Ω ) 70.6446.2040.3738.60 3. 1Test Result 3 .S11 Parameter-Smi th Frequency (MHz) Efficiency (%) Peak GAIN (dBi) 2400 33.86% 0.49 2410 33.86% 0.55 2420 33.72%0.57 2430 33.88%0.58 2440 33.78% 0.49 2450 33.64%0.42 2460 33.58%0.28 2470 33.64% 0.28 2480 33.69% 0.48 3. 2 Test Result 1 Gain & Efficiency——ANT R 3 .3 Test Result 1 2D Pattern——BTANT R 3 .3 Test Result 2 2D Pattern——BTANT 3 .3 Test Result 3 2D Pattern——BTANT Test Equipment： R&S CMW500 Test Condition： 2 D chamber BandChannel TRP(dBm)TIS(dBm) BT-R 0 4.95-92.09 39 5.95-93.03 78 2.62 -93.42 4. 1 OTA Data 4.2 Test Result 1 2 D Pattern BTANT TRP 4.2 Test Result 2 2 D Pattern BTANT TIS

TRF No.: 04-E001-0B TRF Originator: GTG TRF Date: 2023-12-13 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C TEST REPORT For ADAPTIVE HYBRID NOISE CANCELLING TWS EARBUDS MODEL NUMBER: TW983R, SPACE T1 REPORT NUMBER: E04A25100976F00901 ISSUE DATE: January 12, 2026 FCC ID:2AI6I-TW983R Prepared for Guangzhou Havit Technology Co.,LTD ROOM 1307,13F,PHASE 2 B,C BUILDING OF POLY WORLD TRADE CENTER,NO.1000,XINGANG EAST ROAD,HAIZHU GUANGDONG, 510000, China Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report is based on a single evaluation of the submitted sample(s) of the above mentioned product, it does not imply an assessment of the production of the products. This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A25100976F00901 Page 2 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 January 12, 2026 Initial Issue REPORT NO.: E04A25100976F00901 Page 3 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) Pass AC Power Line Conducted Emission ANSI C63.10-2020 Clause 6.2 FCC Part 15.207 Pass Conducted Output Power ANSI C63.10-2020 Clause 7.8.5 FCC Part 15.247 (b)(1) Pass 20 dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2020 Clause 6.9.2 FCC Part 15.247 (a)(1) Pass Carrier Hopping Channel Separation ANSI C63.10-2020 Clause 7.8.2 FCC Part 15.247 (a)(1) Pass Number of Hopping Frequency ANSI C63.10-2020 Clause 7.8.3 FCC Part 15.247 (b)(1) Pass Time of Occupancy (Dwell Time) ANSI C63.10-2020 Clause 7.8.4 FCC Part 15.247 (a)(1) Pass Conducted Bandedge and Spurious Emission ANSI C63.10-2020 Clause 6.10.4 & Clause 7.8.8 FCC Part 15.247(d) Pass Radiated Band edge and Spurious Emission ANSI C63.10-2020 Clause 6.3 & 6.5 & 6.6 FCC Part 15.205/15.209 Pass Duty Cycle ANSI C63.10-2020, Clause 11.6 None; for reporting purposes only. Pass *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C> when <Accuracy Method> decision rule is applied. REPORT NO.: E04A25100976F00901 Page 4 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 5 2. TEST METHODOLOGY ......................................................................................................... 6 3. FACILITIES AND ACCREDITATION ..................................................................................... 6 4. CALIBRATION AND UNCERTAINTY ................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 7 5. EQUIPMENT UNDER TEST .................................................................................................. 8 5.1. DESCRIPTION OF EUT ........................................................................................... 8 5.2. CHANNEL LIST ........................................................................................................ 8 5.3. Maximum Peak Output Power ................................................................................... 9 5.4. TEST CHANNEL CONFIGURATION ........................................................................ 9 5.5. THE WORSE CASE POWER SETTING PARAMETER .......................................... 10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ......................................................... 10 5.7. EUT ACCESSORY ................................................................................................. 11 5.8. SUPPORT UNITS FOR SYSTEM TEST ................................................................. 11 5.9. SETUP DIAGRAM .................................................................................................. 11 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 12 7. ANTENNA PORT TEST RESULTS ..................................................................................... 14 7.1. Conducted Output Power ........................................................................................ 14 7.2. 20 dB Bandwidth ..................................................................................................... 15 7.3. Carrier Hopping Channel Separation ...................................................................... 16 7.4. Number of Hopping Frequency ............................................................................... 18 7.5. Time of Occupancy (Dwell Time) ............................................................................ 19 7.6. Conducted Bandedge and Spurious Emission ........................................................ 21 7.7. Duty Cycle .............................................................................................................. 23 8. RADIATED TEST RESULTS ............................................................................................... 24 8.1. Radiated Band edge and Spurious Emission .......................................................... 30 9. ANTENNA REQUIREMENT ................................................................................................ 42 10. AC POWER LINE CONDUCTED EMISSION ......................................................... 43 11. TEST DATA - Appendix A ....................................................…

Text truncated - open the document above for the full version.

REPORT NO.: E04A25100976F00901 Page 71 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Test Graphs Hopping No. NVNT 1-DH5 2402MHz Ant1 Hopping No. NVNT 2-DH5 2402MHz Ant1 REPORT NO.: E04A25100976F00901 Page 72 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Hopping No. NVNT 3-DH5 2402MHz Ant1 REPORT NO.: E04A25100976F00901 Page 73 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Dwell Time Condition Mode Frequency (MHz) Antenna Pulse Time (ms) Total Dwell Time (ms) Burst Count Period Time (ms) Limit (ms) Verdict NVNT 1-DH5 2402 Ant1 2.888 288.8 100 31600 400 Pass NVNT 1-DH5 2441 Ant1 2.889 329.346 114 31600 400 Pass NVNT 1-DH5 2480 Ant1 2.888 300.352 104 31600 400 Pass NVNT 2-DH5 2402 Ant1 2.888 363.888 126 31600 400 Pass NVNT 2-DH5 2441 Ant1 2.888 297.464 103 31600 400 Pass NVNT 2-DH5 2480 Ant1 2.894 321.234 111 31600 400 Pass NVNT 3-DH5 2402 Ant1 2.896 304.08 105 31600 400 Pass NVNT 3-DH5 2441 Ant1 2.896 263.536 91 31600 400 Pass NVNT 3-DH5 2480 Ant1 2.896 321.456 111 31600 400 Pass REPORT NO.: E04A25100976F00901 Page 74 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Test Graphs Dwell NVNT 1-DH5 2402MHz Ant1 One Burst Dwell NVNT 1-DH5 2402MHz Ant1 Accumulated REPORT NO.: E04A25100976F00901 Page 75 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Dwell NVNT 1-DH5 2441MHz Ant1 One Burst Dwell NVNT 1-DH5 2441MHz Ant1 Accumulated REPORT NO.: E04A25100976F00901 Page 76 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Dwell NVNT 1-DH5 2480MHz Ant1 One Burst Dwell NVNT 1-DH5 2480MHz Ant1 Accumulated REPORT NO.: E04A25100976F00901 Page 77 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Dwell NVNT 2-DH5 2402MHz Ant1 One Burst Dwell NVNT 2-DH5 2402MHz Ant1 Accumulated REPORT NO.: E04A25100976F00901 Page 78 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Dwell NVNT 2-DH5 2441MHz Ant1 One Burst Dwell NVNT 2-DH5 2441MHz Ant1 Accumulated REPORT NO.: E04A25100976F00901 Page 79 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Dwell NVNT 2-DH5 2480MHz Ant1 One Burst Dwell NVNT 2-DH5 2480MHz Ant1 Accumulated REPORT NO.: E04A25100976F00901 Page 80 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Dwell NVNT 3-DH5 2402MHz Ant1 One Burst Dwell NVNT 3-DH5 2402MHz Ant1 Accumulated REPORT NO.: E04A25100976F00901 Page 81 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Dwell NVNT 3-DH5 2441MHz Ant1 One Burst Dwell NVNT 3-DH5 2441MHz Ant1 Accumulated REPORT NO.: E04A25100976F00901 Page 82 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Dwell NVNT 3-DH5 2480MHz Ant1 One Burst Dwell NVNT 3-DH5 2480MHz Ant1 Accumulated REPORT NO.: E04A25100976F00901 Page 83 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 No-Hopping -51.21 -20 Pass NVNT 1-DH5 2480 Ant1 No-Hopping -60.07 -20 Pass NVNT 2-DH5 2402 Ant1 No-Hopping -53.1 -20 Pass NVNT 2-DH5 2480 Ant1 No-Hopping -60.98 -20 Pass NVNT 3-DH5 2402 Ant1 No-Hopping -51.05 -20 Pass NVNT 3-DH5 2480 Ant1 No-Hopping -60.47 -20 Pass REPORT NO.: E04A25100976F00901 Page 84 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Test Graphs Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Emission REPORT NO.: E04A25100976F00901 Page 85 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Emission REPORT NO.: E04A25100976F00901 Page 86 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge NVNT 2-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH5 2402MHz Ant1 No-Hopping Emission REPORT NO.: E04A25100976F00901 Page 87 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Emission REPORT NO.: E04A25100976F00901 Page 88 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Emission REPORT NO.: E04A25100976F00901 Page 89 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Emission REPORT NO.: E04A25100976F00901 Page 90 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge(Hopping) Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 Hopping -52.65 -20 Pass NVNT 1-DH5 2480 Ant1 Hopping -61.22 -20 Pass NVNT 2-DH5 2402 Ant1 Hopping -52.47 -20 Pass NVNT 2-DH5 2480 Ant1 Hopping -60.9 -20 Pass NVNT 3-DH5 2402 Ant1 Hopping -53.45 -20 Pass NVNT 3-DH5 2480 Ant1 Hopping -61.43 -20 Pass REPORT NO.: E04A25100976F00901 Page 91 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Test Graphs Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Emission REPORT NO.: E04A25100976F00901 Page 92 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Emission REPORT NO.: E04A25100976F00901 Page 93 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Emission REPORT NO.: E04A25100976F00901 Page 94 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Emission REPORT NO.: E04A25100976F00901 Page 95 of 106 TRF No.: 04-E001-0B Global Testing , Great Quality. Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Emission REPORT NO.: E04A25100976F00901 Page 96 of 106 TRF No.: 04-E001-0B Global Testing , G…

Text truncated - open the document above for the full version.

Setup Photographs AC Power Line Conducted Emission Page 2 of 5 Radiated Band edge and Spurious Emission L: Page 3 of 5 Page 4 of 5 R: Page 5 of 5
