Page 1/23 2022/11/10 USER MANUAL 802.11 b/g/n, 1T1R 2.4GHz Wi-Fi + BLE 5.0 BT Module Model: NIU6 NXP 88MW322 + NXP QN9030HN Version 1.1 Electrolux ANC: A24559604A * This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC Page 2/10 PRODUCT FEATURES ◼ Compact Form Factor: 30x44x1mm (PCB) ±0.1mm ◼ HF/RoHS compliance WIFI ◼ IEEE 802.11b/g/n, 1×1 SISO 2.4 GHz ◼ Integrated CPU, memory, MAC, DSSS/OFDM baseband, direct conversion RF radio, encryption ◼ CMOS and low-swing sine wave input clock ◼ Low-power with deep sleep and standby modes ◼ Integrated T/R switch, PA, and LNA BT ◼ Bluetooth Low Energy 5.0 compliant ◼ Bluetooth Low Energy 5.0 2Mbps high data rate ◼ Improved co-existence with WiFi ◼ 1.9 V to 3.6 V supply voltage ◼ 32 MHz XTAL cell with internal capacitors, able with suitable external XTAL to meet the required accuracy for radio operation over the operating conditions integrated RF balun ◼ Integrated ultra Low-power sleep oscillator ◼ Deep Power-down current 350 nA (with wake-up on IO) ◼ 128-bit, 192-bit or 256-bit AES security processor Page 3/10 PRODUCT SPECIFICATIONS MAIN CHIPSET NXP 88MW322-A0-NXUE/AZ NXP QN9030HN FUNCTIONAL SPECIFICATIONS BT Function Standard Bluetooth V5.0 with BLE (BT low energy) Bus Interface UART Data Rate 1 Mbps, 2Mbps Modulation Scheme GFSK Frequency Range 2.402~2.480 GHz Transmit Output Power 3dBm ≤ Output Power ≤ 7dBm Receiver Sensitivity LE : 1M at -90dBm , 2M at -87dBm WiFi Function Standard IEEE802.11b; IEEE 802.11g; IEEE 802.11n Bus Interface UART Data Rate 802.11b: 11, 5.5, 2, 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: MCS 0 to 7 Media Access Control CSMA/CA with ACK Modulation Techniques 802.11b: CCK, DQPSK, DBPSK 802.11g: 64QAM, 16QAM, QPSK, BPSK 802.11n: BPSK, QPSK, 16QAM, 64QAM Network Architecture Ad-hoc mode (Peer-to-Peer) Infrastructure mode Operation Channel 2.4GHz 11: (Ch. 1-11) – United States 13: (Ch. 1-13) – Europe 14: (Ch. 1-14) – Japan Frequency Range 802.11bg 2.412 ~ 2.462 GHz Page 4/10 Transmit Output Power – 1x1 (Tolerance: +-1.5dBm) 802.11b: 1M~11M :16dBm 802.11g: 6M~18M :16dBm 24~54M: 15dBm 802.11n: MCS0~MCS7 :13dBm Receive Sensitivity 802.11b: (IEEE Standard < -76dBm) typical: -87.5dBM(11M) 802.11g: (IEEE Standard < -65dBm) Typical: -73dBm(54M) 802.11n: 20MHz (IEEE Standard < -64dBm) Typical: -71dBm(MCS7) Security WPA, WPA2, WPS, WEP 64/128, IEEE 802.11x, IEEE 802.11i Operating Voltage 5V ± 5% supply voltage Power Consumption Antenna Type Printed Antenna Page 5/10 PIN DEFINITION N.O PIN NAME N.O PIN NAME N.O PIN NAME 1 BOOT_BLE 16 BLE_SWD_DIO 31 GND 2 SPI2_SS 17 PDM_CLK 32 GND 3 SPI2_MOSI 18 PDM_DATA 33 GND 4 SPI2_CLK 19 SPI1_MISO 34 SPI1_MOSI 5 SPI2_MISO 20 SPI1_CLK 35 UART1_RX 6 BOOT/USB_PWR_EN 21 SPI1_SS 36 UART2_TX 7 USB_DM 22 UART0_RX 37 SWD_DIO 8 USB_DP 23 I2C1_SCL/USB_VBUS 38 UART2_RX 9 BOOT 24 I2C1_SDA/USB_ID 39 SWD_CLK 10 WIFI_RST 25 RST_BLE 40 GPIO23 11 AUDIO_CLK 26 UART1_CTS 41 GND 12 3V3 27 UART1_RTS 42 GND 13 3V3 28 UART1_TX 43 GND 14 3V3 29 UART0_TX 44 GND 15 3V3 30 BLE_SWD_CLK 45 GND Page 6/10 MECHANICAL for 5V Unit : mm ; Tolerance : +/- 0.1mm RECOMMEND FOOTPRINT Page 7/10 MECHANICAL for 3.3V Unit : mm ; Tolerance : +/- 0.1mm RECOMMEND FOOTPRINT Page 8/10 ENVIRONMENTAL Operating Operating Temperature: 0 to 70 C Relevant Humidity: 5-90% (non-condensing) Storage Temperature: -40 to 85 C Relevant Humidity: 5-95% (non-condensing) Page 9/10 WARNINGS FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. ISED Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1.This device may not cause interference. 2.This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent ap…

Text truncated - open the document above for the full version.

Modular Approval Request Letter Date: December 15, 2022 Subject: Modular Approval Attestation FCC ID: 2AIBX-NIU6L Dear Reviewer, We, Sporton International Inc., are authorized by ELECTROLUX ITALIA S.p.A., to have their NIU6 approved under single module approval authorization. The requirements regulated in 47 CFR 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip IS66WVS4M8BLL-104NLI, MX25L3233FM2I-08G. 3. The requirement of power supply regulation: The part number of the power regulator is FP6378AS5CTR. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE and SAR RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Signature : _________________________________ Name and Job Title. : Leo Huang, Director E-mail : [email protected]

Letter of Authorization Date: December 13, 2022 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: 2AIBX-NIU6L Product Name: NIU6 To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization to the FCC Rules and Regulations. Sporton International Inc. Address : No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Name : Leo Huang Job Title : Director e-mail : [email protected] We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : ELECTROLUX ITALIA S.p.A. Address : Corso Lino Zanussi 24, Porcia 33080, Italy Signature : _________________________________ Name and Job Title. : Massimiliano Ranieri, COO BA Europe • Operations BA Europe E-mail : [email protected] Te l . : +39-0434-3961 : __________________ :MassimilianoR Firmato digitalmente da: Massimiliano Ranieri Firmato il 2022/12/13 16:55 Seriale Certificato: 403257084207442773 Valido dal 15/02/2022 al 15/02/2027 ArubaPEC EU Qualified Certificates CA G1

Date: December 13, 2022 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Professional Installation Attestation FCC ID: 2AIBX-NIU6L Product Name: NIU6 To whom it may concern: We, the undersigned, hereby declares that the device will be distributed through a controlled distribution channels. This device is not intended for sale to the general public. Professional training and support is provided as part of the Authorized Partner programs. Applicant : ELECTROLUX ITALIA S.p.A. Address : Corso Lino Zanussi 24, Porcia 33080, Italy Signature : _________________________________ Name and Job Title. : Massimiliano Ranieri, COO BA Europe • Operations BA Europe E-mail : [email protected] Tel. : +39-0434-3961 : _________________________________________ :::::::MMMMMaMaMssssimimililiaiano Ra Firmato digitalmente da: Massimiliano Ranieri Firmato il 2022/12/13 16:57 Seriale Certificato: 403257084207442773 Valido dal 15/02/2022 al 15/02/2027 ArubaPEC EU Qualified Certificates CA G1

Date: December 13, 2022 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: declaration of composite/rated equipment for FCC ID: 2AIBX-NIU6L To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as Other Class B digital devices & peripherals has been authorized under the Supplier's Declaration of Conformity (SDoC) procedures. Sincerely, Applicant : ELECTROLUX ITALIA S.p.A. Address : Corso Lino Zanussi 24, Porcia 33080, Italy Signature : _________________________________ Name and Job Title. : Massimiliano Ranieri, COO BA Europe • Operations BA Europe E-mail : [email protected] Tel. : +39-0434-3961 : __________________________________________________________________ :::::::::::::::::::::::::MMMMMMMMMMMaMMMMMMMMMMMMssimiliano R Firmato digitalmente da: Massimiliano Ranieri Firmato il 2022/12/13 16:56 Seriale Certificato: 403257084207442773 Valido dal 15/02/2022 al 15/02/2027 ArubaPEC EU Qualified Certificates CA G1

Confidentiality Request Letter Date: December 13, 2022 Federal Communications Commission Authorization and Evaluation Division Subject: Request for confidentiality FCC ID: 2AIBX-NIU6L To whom it may concern: Short-term Confidentiality pursuant to Public Notice DA 04-1705, and in order to comply with the marketing regulations in 47 C.F.R. §2.803 and the importation rules in 47 C.F.R. §2.1204 while ensuring that business-sensitive information remains confidential until the actual marketing of newly authorized devices, we are request the Commission grant temporary confidential treatment and not release the following attachments for routine public disclosure until 180 days after the grant date. 1. Internal Photographs 2. External Photographs 3. User’s manual 4. Test Set up photos Permanent Confidentiality Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. 1. Block Diagram 2. Schematics 3. Operational Description It is our understanding that test measurement reports and correspondence during the certification review process cannot be granted confidential treatment, and such information will be available for public review once the grant of equipment authorization is issued. Sincerely, Applicant : ELECTROLUX ITALIA S.p.A. Address : Corso Lino Zanussi 24, Porcia 33080, Italy Signature : _________________________________ Name and Job Title. : Massimiliano Ranieri, COO BA Europe • Operations BA Europe E-mail : [email protected] Te l . : +39-0434-3961 : Corso LinonononoooooZZZZZZZZZZZZZZZZZZZZaaaa : ________________________ :: MaMassssimimililiiano R Firmato digitalmente da: Massimiliano Ranieri Firmato il 2022/12/13 16:56 Seriale Certificato: 403257084207442773 Valido dal 15/02/2022 al 15/02/2027 ArubaPEC EU Qualified Certificates CA G1

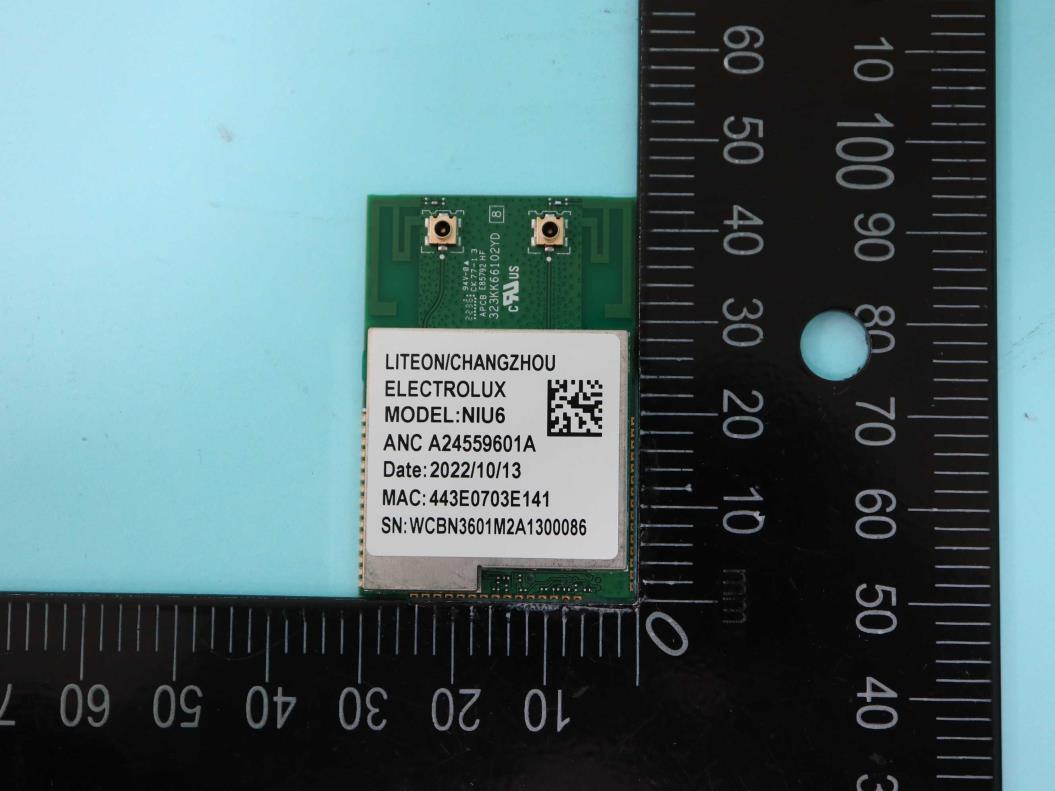

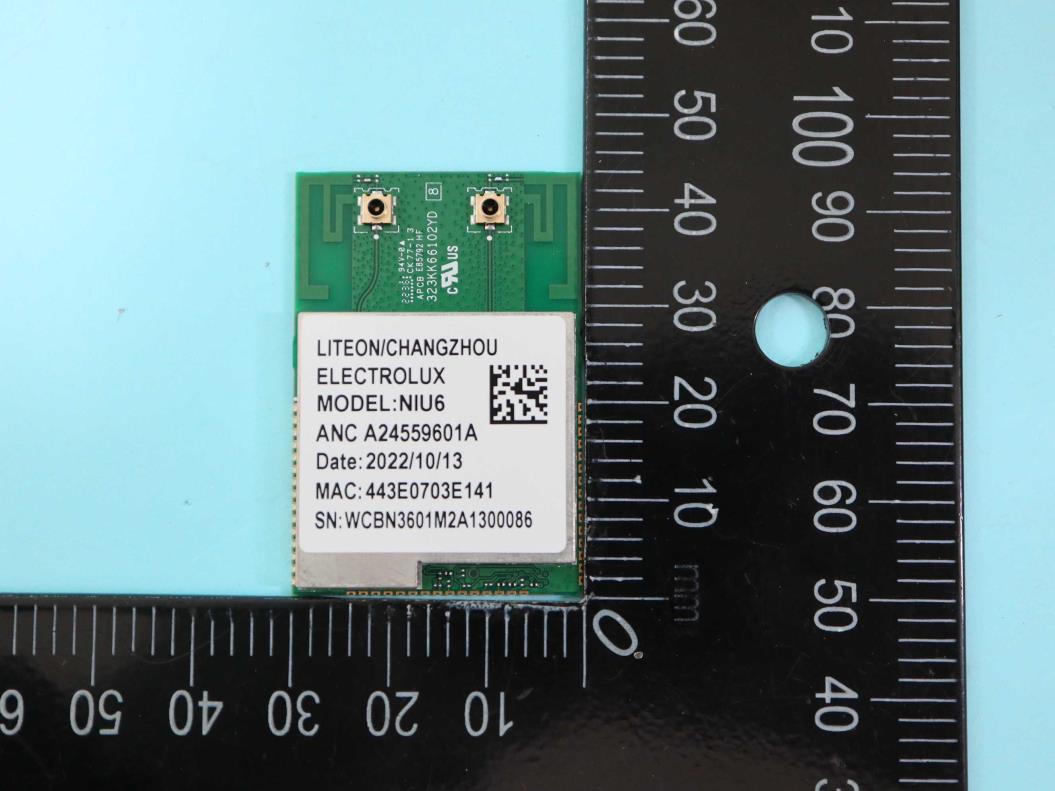

PHOTOGRAPHS OF EUT EP2N0908 Sporton International Inc. Page No. : 1 of 17 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 29, 2022 Report Version : 1 EUT 1: DC 3.3V PHOTOGRAPHS OF EUT EP2N0908 Sporton International Inc. Page No. : 2 of 17 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 29, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP2N0908 Sporton International Inc. Page No. : 3 of 17 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 29, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP2N0908 Sporton International Inc. Page No. : 4 of 17 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 29, 2022 Report Version : 1

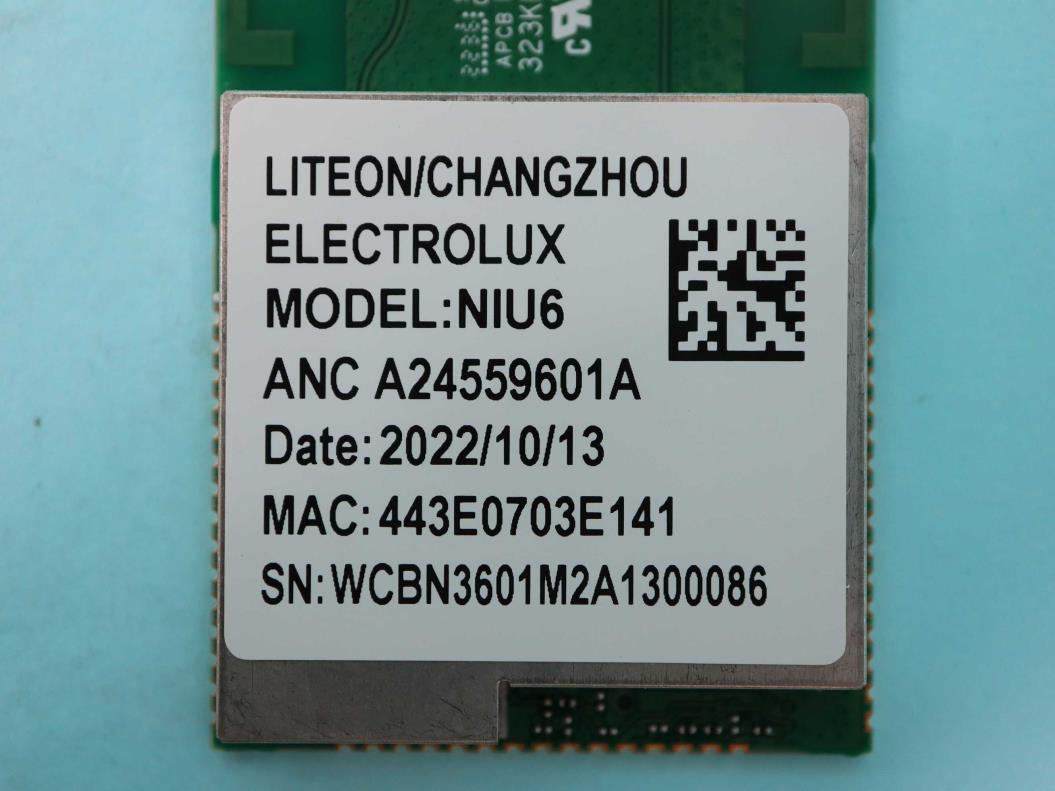

Label Location Information 3.3V Label 5V Label EUT ( Affix to shielding case) Label Location Shielding case

PHOTOGRAPHS OF EUT EP2N0908 Sporton International Inc. Page No. : 5 of 17 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 29, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP2N0908 Sporton International Inc. Page No. : 6 of 17 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 29, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP2N0908 Sporton International Inc. Page No. : 7 of 17 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 29, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP2N0908 Sporton International Inc. Page No. : 8 of 17 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 29, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP2N0908 Sporton International Inc. Page No. : 9 of 17 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 29, 2022 Report Version : 1 EUT 2: DC 5V PHOTOGRAPHS OF EUT EP2N0908 Sporton International Inc. Page No. : 10 of 17 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 29, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP2N0908 Sporton International Inc. Page No. : 11 of 17 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 29, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP2N0908 Sporton International Inc. Page No. : 12 of 17 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 29, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP2N0908 Sporton International Inc. Page No. : 13 of 17 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 29, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP2N0908 Sporton International Inc. Page No. : 14 of 17 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 29, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP2N0908 Sporton International Inc. Page No. : 15 of 17 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 29, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP2N0908 Sporton International Inc. Page No. : 16 of 17 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 29, 2022 Report Version : 1 PHOTOGRAPHS OF EUT EP2N0908 Sporton International Inc. Page No. : 17 of 17 Report Template No.: SE Ver 1.0_EP Issued Date : Dec. 29, 2022 Report Version : 1 ______________THE END______________

Radio Exposure Evaluation Report Report No. : FA2N0908 TEL : 886-3-327-3456 Page Number : 1 of 11 FAX : 886-3-327-0973 Issued Date : Dec. 29, 2022 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 FCC ID: 2AIBX-NIU6L Radio Exposure Evaluation Report FCC ID : 2AIBX-NIU6L Equipment : NIU6 Brand Name : Electrolux Model Name : NIU6 Applicant : Electrolux Italia S.p.A. Corso Lino Zanussi 24 / 33080 Porcia (PN), Italy Manufacturer : Electrolux Italia S.p.A. Corso Lino Zanussi 24 / 33080 Porcia (PN), Italy Standard : 47 CFR FCC Part 2 Subpart J, section 2.1091 The product was received on Nov. 15, 2022, and testing was started from Nov. 22, 2022 and completed on Dec. 05, 2022. We, SPORTON INTERNATIONAL INC. Hsinhua Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in 47 CFR FCC Part 2 Subpart J, section 2.1091 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Hsinhua Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Jackson Tsai __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. Hsinhua Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) Radio Exposure Evaluation Report Report No. : FA2N0908 TEL : 886-3-327-3456 Page Number : 2 of 11 FAX : 886-3-327-0973 Issued Date : Dec. 29, 2022 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 FCC ID: 2AIBX-NIU6L Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Applicable Standards ............................................................................................................................. 6 1.3 Testing Location ..................................................................................................................................... 6 2 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................................... 7 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 7 2.2 RF Exposure Exempt Measurement ...................................................................................................... 8 2.3 Multiple RF Sources Exposure ............................................................................................................... 9 2.4 MPE Calculation Method ...................................................................................................................... 10 2.5 Calculated Result and Limit .................................................................................................................. 11 Photographs of EUT V01 Radio Exposure Evaluation Report Report No. : FA2N0908 TEL : 886-3-327-3456 Page Number : 3 of 11 FAX : 886-3-327-0973 Issued Date : Dec. 29, 2022 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 FCC ID: 2AIBX-NIU6L History of this test report Report No. Version Description Issued Date FA2N0908 01 Initial issue of report Dec. 29, 2022 Radio Exposure Evaluation Report Report No. : FA2N0908 TEL : 886-3-327-3456 Page Number : 4 of 11 FAX : 886-3-327-0973 Issued Date : Dec. 29, 2022 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 FCC ID: 2AIBX-NIU6L Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: None Reviewed by: Ryan Hsiao Report Producer: Michelle Tsai Radio Exposure Evaluation Report Report No. : FA2N0908 TEL : 886-3-327-3456 Page Number : 5 of 11 FAX : 886-3-327-0973 Issued Date : Dec. 29, 2022 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 FCC ID: 2AIBX-NIU6L 1 General Description 1.1 Information 1.1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) Bluetooth 2400-2483.5 2402-2480 LE: DSSS (GFSK) 1.1.2 Table for Multiple Listing The EUT in the following table are all refer to the identical product. EUT No. Model Voltage 1 NIU6 3.3V 2 NIU6 5V Note.1: The test voltage 3.3V and 5V configuration was pretested and 3.3V was found to be the worst case for conducted test.( 2.4GHz WLAN) Note.2: The test voltage 3.3V and 5V configuration was pretested and 5V was found to be the worst case for conducted test.( Bluetooth) 1.1.3 Antenna Information Ant. Brand Model Name Antenna Type Connector 1 LITEON WCBN3601M Printed Murata 2 LITEON WCBN3601M Printed Murata Ant. Port Gain (dBi) 2.4G BT 1 1 2.3 - 2 2 - 1.6 Note 1: The EUT has two antennas. For 2.4GHz function: For IEEE 802.11 b/g/n mode (1TX/1RX) Ant. 1 (port 1) could transmit/receive. For BT function: For IEEE 802.15.1 Bluetooth mode (1TX/1RX) Ant. 2 (port 2) could transmit/receive. Radio Exposure Evaluation Report Report No. : FA2N0908 TEL : 886-3-327-3456 Page Number : 6 of 11 FAX : 886-3-327-0973 Issued Date : Dec. 29, 2022 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 FCC ID: 2AIBX-NIU6L 1.2 Applicable Standards According to the specifications of the manufacturer, the EUT must comply with the requirements of the following standards…

Text truncated - open the document above for the full version.

© LITE-ON Technology Corporation. All Rights Reserved. NIU6AntennaReport LITEON SAS SBU George 2 0 2 3 / 0 1 / 0 4 2 Antenna information Antenna brand : LITEON Type : Printed antenna Model name : WCBN3601M Manufacture : LITEON Technology Corporation Address : 4F, 392, RueyKuangRoad, Neihu, Taipei 114504, Taiwan (R.O.C.) Pattern design: 3 Radiation ANT2 ANT1 2.45GHz XY Plane2.45GHz YZ Plane2.45GHz XZ Plane 2.45GHz XY Plane2.45GHz YZ Plane2.45GHz XZ Plane 2.45GHz XY Plane 2.45GHz XY Plane 4 Efficiency Table Efficiency Table Frequency ANT-1(WIFI)ANT-2 (BT) Efficiency(%) Peak Gain (dBi) Efficiency(%) Peak Gain (dBi) 2.40 GHz 52%1.4dBi51%1.2dBi 2.45 GHz 59%2.3dBi59%1.6dBi 2.50 GHz 57%1.9dBi58%1.2dBi Ant1Ant2

FCC Radio Test Report Report No. :FR2N0908AC TEL : 886-3-3273456 Page Number : 1 of 21 FAX : 886-3-3270973 Issued Date : Dec. 29, 2022 Report Template No.: HE1-C8 Ver4.4 Report Version : 01 FCC ID: 2AIBX-NIU6L FCC Radio Test Report FCC ID : 2AIBX-NIU6L Equipment : NIU6 Brand Name : Electrolux Model Name : NIU6 Applicant : Electrolux Italia S.p.A. Corso Lino Zanussi 24 / 33080 Porcia (PN), Italy Manufacturer : Electrolux Italia S.p.A. Corso Lino Zanussi 24 / 33080 Porcia (PN), Italy Standard : 47 CFR FCC Part 15.247 The product was received on Nov. 15, 2022, and testing was started from Nov. 22, 2022 and completed on Dec. 05, 2022. We, SPORTON INTERNATIONAL INC. Hsinhua Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Hsinhua Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Jackson Tsai SPORTON INTERNATIONAL INC. Hsinhua Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) FCC Radio Test Report Report No. :FR2N0908AC TEL : 886-3-3273456 Page Number : 2 of 21 FAX : 886-3-3270973 Issued Date : Dec. 29, 2022 Report Template No.: HE1-C8 Ver4.4 Report Version : 01 FCC ID: 2AIBX-NIU6L Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Testing Applied Standards ..................................................................................................................... 7 1.3 Testing Location Information .................................................................................................................. 7 1.4 Measurement Uncertainty ...................................................................................................................... 7 2 TEST CONFIGURATION OF EUT......................................................................................................... 8 2.1 Test Channel Mode ................................................................................................................................ 8 2.2 The Worst Case Measurement Configuration ........................................................................................ 9 2.3 Support Equipment ............................................................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 12 3.1 DTS Bandwidth..................................................................................................................................... 12 3.2 Maximum Conducted Output Power .................................................................................................... 13 3.3 Power Spectral Density ........................................................................................................................ 15 3.4 Emissions in Non-restricted Frequency Bands .................................................................................... 16 3.5 Emissions in Restricted Frequency Bands ........................................................................................... 17 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 21 APPENDIX A. TEST RESULTS OF DTS BANDWIDTH APPENDIX B. TEST RESULTS OF MAXIMUM CONDUCTED OUTPUT POWER APPENDIX C. TEST RESULTS OF POWER SPECTRAL DENSITY APPENDIX D. TEST RESULTS OF EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS APPENDIX E. TEST RESULTS OF EMISSIONS IN RESTRICTED FREQUENCY BANDS APPENDIX F. TEST PHOTOS PHOTOGRAPHS OF EUT V01 FCC Radio Test Report Report No. :FR2N0908AC TEL : 886-3-3273456 Page Number : 3 of 21 FAX : 886-3-3270973 Issued Date : Dec. 29, 2022 Report Template No.: HE1-C8 Ver4.4 Report Version : 01 FCC ID: 2AIBX-NIU6L History of this test report Report No. Version Description Issued Date FR2N0908AC 01 Initial issue of report Dec. 29, 2022 FCC Radio Test Report Report No. :FR2N0908AC TEL : 886-3-3273456 Page Number : 4 of 21 FAX : 886-3-3270973 Issued Date : Dec. 29, 2022 Report Template No.: HE1-C8 Ver4.4 Report Version : 01 FCC ID: 2AIBX-NIU6L Summary of Test Result Report Clause Ref. Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PASS - 3.1 15.207 AC Power-line Conducted Emissions Not Required Only employ DC Power 3.1 15.247(a) DTS Bandwidth PASS - 3.2 15.247(b) Maximum Conducted Output Power PASS - 3.3 15.247(e) Power Spectral Density PASS - 3.4 15.247(d) Emissions in Non-restricted Frequency Bands PASS - 3.5 15.247(d) Emissions in Restricted Frequency Bands PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and explanations: None Reviewed by: Ryan Hsiao Report Producer: Michelle Tsai FCC Radio Test Report Report No. :FR2N0908AC TEL : 886-3-3273456 Page Number : 5 of 21 FAX : 886-3-3270973 Issued Date : Dec. …

Text truncated - open the document above for the full version.

FCC Radio Test Report Report No. : FR2N0908AL TEL : 886-3-3273456 Page Number : 1 of 21 FAX : 886-3-3270973 Issued Date : Dec. 29, 2022 Report Template No.: HE1-C10 Ver4.3 Report Version : 01 FCC ID: 2AIBX-NIU6L FCC Radio Test Report FCC ID : 2AIBX-NIU6L Equipment : NIU6 Brand Name : Electrolux Model Name : NIU6 Applicant : Electrolux Italia S.p.A. Corso Lino Zanussi 24 / 33080 Porcia (PN), Italy Manufacturer : Electrolux Italia S.p.A. Corso Lino Zanussi 24 / 33080 Porcia (PN), Italy Standard : 47 CFR FCC Part 15.247 The product was received on Nov. 15, 2022, and testing was started from Nov. 21, 2022 and completed on Nov. 22, 2022. We, SPORTON INTERNATIONAL INC. Hsinhua Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. H…

Text truncated - open the document above for the full version.
