90mm 165mm Mini Plug QUICK START GUIDE MODEL NO: PLSM001 Package Contents 1x Smart Mini plug 1x Warranty Card 1x Quick Start Guide Troubleshooting Q: I am having trouble getting my smart phone to connect to my mini plug A: Try the following steps: FCC ID: 2AIR-PLSM001 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Installation 1 Download the free Clicsmart App from the Google Play or Apple App store onto your phone APP Download 2 3 4 5 Enter your Wi-Fi Password to your home network to connect Mini plug to your smart phone, then enjoy remote access 6 00 0 C ~ + 35 C / 10%~90% Disconnection means: Type 1B Pollution degree: 2 Rated impulse voltage: 1500V Automatic action: 10,000cycles Thank you for purchasing Clicsmart Mini Plug. We are excited in being a part of making your life easier, safer and bringing peace of mind into your homes. Features Remote Access Control, schedule and monitor your favorite home devices anywhere, anytime through your smartphone, tablet or PC Must have internet connection on both home and phone. Multiple Timers Take full control by setting multiple time to automatically turn ON/OFF your devices, a feature that can be done remotely Voice Control Pair it with Alexa or Google Assistant and control your home devices with your voice Set Scenes Control your connected appliances and system by scenes you set Multiple scenes setting includes Back Home, Leave Home, Sunrise, Good night Device Control Sharing Support multiple users to collectively control the same device Manual Control Manually turn device on/off by pressing the button on the top Plug Mini plug into a power outlet that you want to control Launch the App and follow the instructions Click and select the device type to pair to your smartphone Power on the ClicSmart mini plug and set that red indicator light to flash according to the setting steps in app. Indicator Light: Red light on: Input of Smart power outlet on Red light flashing: Waiting for the configuration Blue light on: Smart power outlet on Blue light off: Smart power outlet off Specification Input: 120V~AC 60Hz 10A Output: 120V~AC 10A Max Output power: 1200W max Wi-Fi: 2.4G Working temperature& humidity: 1. Confirm that the Red Indicator Light is rapidly flashing. If not, set the Red Light to flash following the instructions on the Clicsmart App. 2. Try to connect again. FCC statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Radiation Exposure Statement This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device must operate with a minimum distance of 20 cm between the radiator and user body.

C5266091_X8_Ed.1 1/1 Letter of Authorization < Switchmate Home, LLC > Company: Switchmate Home, LLC Address: 6601 Owens Drive, Suite 250 Pleasanton, CA 94588 1- 925-425-9583 Product Name: MINI PLUG Model Number: PLSM001 FCC Identifier: 2AICR-PLSM001 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: James Lin Date: 2021-04-27 Title: VP Signature of applicant:

C5266091_X10_Ed.1 1/1 < Switchmate Home, LLC Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021-04-27 Subject: Request for Confidentiality FCC ID: 2AICR-PLSM001 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential C5266091_X10_Ed.1 1/1 documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: James Lin Title: VP

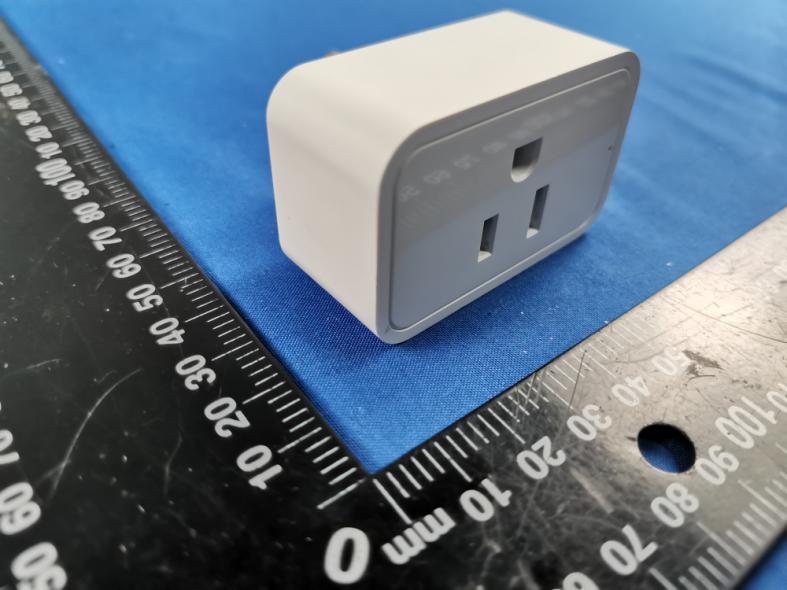

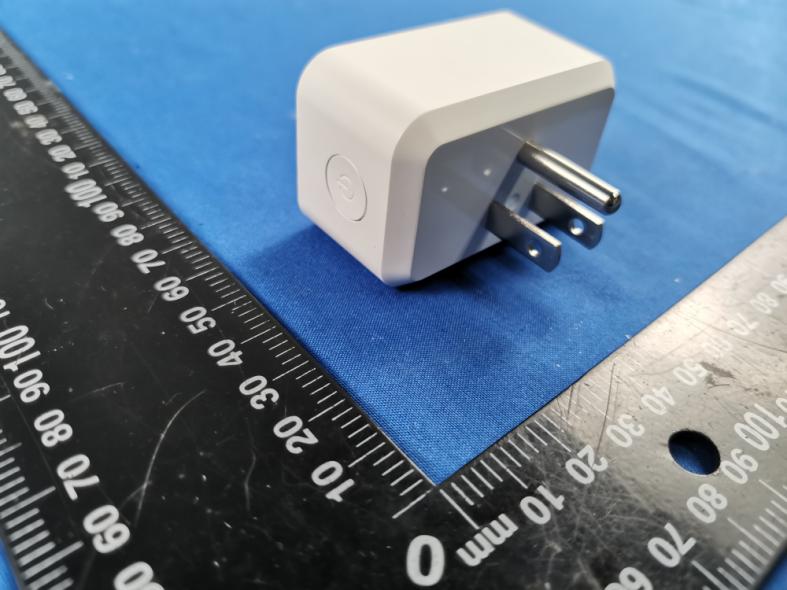

FCC-ID: 2AICR-PLSM001 Page 1 of 2 Report No.: CTL2101282011-WF01 External Photos of EUT FCC-ID: 2AICR-PLSM001 Page 2 of 2 Report No.: CTL2101282011-WF01

FCC-ID: 2AICR-PLSM001 Page 1 of 1 Report No.: CTL2101282011-WF01 FCC-ID Label Information 1. Label location: 2. FCC ID Label: 2AICR-PLSM001 MINI PLUG Model: PLSM001 FCC: 2AICR-PLSM001 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC-ID: 2AICR-PLSM001 Page 1 of 3 Report No.: CTL2101282011-WF01 Internal Photos of EUT FCC-ID: 2AICR-PLSM001 Page 2 of 3 Report No.: CTL2101282011-WF01 Antenna FCC-ID: 2AICR-PLSM001 Page 3 of 3 Report No.: CTL2101282011-WF01

FCC-ID: 2AICR-PLSM001 Page 1 of 2 Report No.: CTL2101282011-WF RF Exposure evaluation FCC ID: 2AICR-PLSM001 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density FCC-ID: 2AICR-PLSM001 Page 2 of 2 Report No.: CTL2101282011-WF 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 0dBi for 2.4GHz and BLE, the RF power density can be obtained. For 2.4GHz wifi and BLE Mode Max. Output Power (dBm) Max. Output Power (mW) Antenna Gain (Numeric) Power Density At 20 cm (mW/cm 2 ) Power Density Limit FCC (mW/cm 2 ) Test Results 802.11b 23.42 219.7860 1.00 0.0437 1.0000 PASS 802.11g 20.24 105.6818 1.00 0.0210 1.0000 PASS 802.11n20 18.34 68.2339 1.00 0.0136 1.0000 PASS BLE 5.69 3.7068 1.00 0.0007 1.0000 PASS 5. Conclusion Compliance with RF Exposure requirement.

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No. ................ : CTL2101282011-WF01 Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Gary Gao (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : MINI PLUG Model/Type reference ................ : PLSM001 List Model(s) ............................... : N/A Trade Mark .................................. : N/A FCC ID ......................................... : 2AICR-PLSM001 Applicant’s name ....................... : Switchmate Home, LLC Address of applicant ................. : 6601 Owens Drive, Suite 250 Pleasanton, CA 94588 1-925-425-9583 Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Mar. 09, 2021 Date of sampling ........................ : Mar. 09, 2021 Date of Test Date ........................ : Mar. 09, 2021-Apr. 19, 2021 Date of Issue .............................. : Apr. 20, 2021 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 31 Report No.: CTL2101282011-WF01 TEST REPORT Test Report No. : CTL2101282011-WF01 Apr. 20, 2021 Date of issue Equipment under Test : MINI PLUG Sample No : CTL210128201-1-S001 Model /Type : PLSM001 Listed Models : N/A Applicant : Switchmate Home, LLC Address : 6601 Owens Drive, Suite 250 Pleasanton, CA 94588 1-925-425-9583 Manufacturer : Switchmate Home, LLC Address : 6601 Owens Drive, Suite 250 Pleasanton, CA 94588 1-925-425-9583 Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 31 Report No.: CTL2101282011-WF01 ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2021-04-20 CTL2101282011-WF01 Tracy Qi V1.0 Page 4 of 31 Report No.: CTL2101282011-WF01 Table of Contents Page 1. SUMMARY .................................................................................................................................................................... 5 1.1. TEST STANDARDS ........................................................................................................................................................... 5 1.2. TEST DESCRIPTION .............................................................................................................................................................. 5 1.3. TEST FACILITY ..................................................................................................................................................................... 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ..................................................................................................................... 6 2. GENERAL INFORMATION ............................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS .............................................................................................................................................. 8 2.2. GENERAL DESCRIPTION OF EUT ............................................................................................................................................ 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY ................................................................................................................ 9 2.4. EQUIPMENTS USED DURING THE TEST ................................................................................................................................... 11 2.5. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................................................... 11 2.6. MODIFICATIONS ............................................................................................................................................................... 11 3. TEST CONDITIONS AND RESULTS ................................................................................................................................. 12 3.1. CONDUCTED EMISSIONS TEST ............................................................................................................................................. 12 3.2. RADIATED EMISSIONS AND BAND EDGE ................................................................................................................................. 15 3.3. MAXIMUM CONDUCTED OUTPUT POWER ............................................................................................................................. 21 3.4. POWER …

Text truncated - open the document above for the full version.

V1.0 Page 1 of 13 Report No.: CTL2101282011-WF01 Appendix for 15.247 1. Bandwidth 1.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Verdict Test Result (MHz) 1M 2402 SISO 1 0.712 PASS 2440 SISO 1 0.707 PASS 2480 SISO 1 0.702 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 1M 2402 SISO 1 1.038 Only for Report Use 2440 SISO 1 1.038 Only for Report Use 2480 SISO 1 1.036 Only for Report Use 1.2 Test Graph - 6dB Bandwidth V1.0 Page 2 of 13 Report No.: CTL2101282011-WF01 V1.0 Page 3 of 13 Report No.: CTL2101282011-WF01 1.3 Test Graph - 99% Occupied Bandwidth V1.0 Page 4 of 13 Report No.: CTL2101282011-WF01 2. Maximum Conducted Output Power 2.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 1M 2402 SISO 5.65 30 PASS 2440 SISO 5.69 30 PASS 2480 SISO 5.33 30 PASS 2.2 Test Graph V1.0 Page 5 of 13 Report No.: CTL2101282011-WF01 V1.0 Page 6 of 13 Report No.: CTL2101282011-WF01 3. Maximum Power Spectral Density (PSD) 3.1 Test Result Test Mode Frequency (MHz) Tx Type Maximum Power Spectral Density (dBm/3KHz) Limits (dBm/3kHz) Verdict Ant 1 1M 2402 SISO -9.44 ≤8 PASS 2440 SISO -9.34 ≤8 PASS 2480 SISO -9.67 ≤8 PASS 3.2 Test Graph V1.0 Page 7 of 13 Report No.: CTL2101282011-WF01 V1.0 Page 8 of 13 Report No.: CTL2101282011-WF01 4. Unwanted Emissions in Non-restricted Frequency Bands 4.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Spurious Conducted Emission (dBm) Limits (dBm) Verdict 1M 2402 SISO 1 Refer to test graph -15.16 PASS 2440 SISO 1 Refer to test graph -15.16 PASS 2480 SISO 1 Refer to test graph -15.16 PASS 4.2 Test Graph V1.0 Page 9 of 13 Report No.: CTL2101282011-WF01 V1.0 Page 10 of 13 Report No.: CTL2101282011-WF01 V1.0 Page 11 of 13 Report No.: CTL2101282011-WF01 V1.0 Page 12 of 13 Report No.: CTL2101282011-WF01 5. Frequency Error 5.1 Test Result Test Mode Frequency (MHz) TX Type ANT Measured Frequency (MHz) Verdict Test Result Limit 1M 2402 SISO 1 2401.98 2400-2483.5 PASS 2440 SISO 1 2439.98 2400-2483.5 PASS 2480 SISO 1 2479.98 2400-2483.5 PASS 5.2 Test Graph V1.0 Page 13 of 13 Report No.: CTL2101282011-WF01

V1.0 Page 1 of 30 Report No.: CTL2101282011-WF02 Appendix for 15.247 1. Bandwidth 1.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Verdict Test Result (MHz) Limits (MHz) 802.11b 2412 SISO 1 8.053 ≥0.5 PASS 2437 SISO 1 8.147 ≥0.5 PASS 2462 SISO 1 7.583 ≥0.5 PASS 802.11g 2412 SISO 1 15.107 ≥0.5 PASS 2437 SISO 1 16.165 ≥0.5 PASS 2462 SISO 1 15.692 ≥0.5 PASS 802.11n(HT20) 2412 SISO 1 15.112 ≥0.5 PASS 2437 SISO 1 16.374 ≥0.5 PASS 2462 SISO 1 15.749 ≥0.5 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 802.11b 2412 SISO 1 12.177 Only for Report Use 2437 SISO 1 13.123 Only for Report Use 2462 SISO 1 12.646 Only for Report Use 802.11g 2412 SISO 1 16.376 Only for Report Use 2437 SISO 1 16.609 Only for Report Use 2462 SISO 1 16.446 Only for Report Use 802.11n(HT20) 2412 SISO 1 17.452 Only for Report Use 2437 SISO 1 17.747 Only for Report Use 2462 SISO 1 17.545 Only for Report Use 1.2 Test Graph - 6dB Bandwidth V1.0 Page 2 of 30 Report No.: CTL2101282011-WF02 V1.0 Page 3 of 30 Report No.: CTL2101282011-WF02 V1.0 Page 4 of 30 Report No.: CTL2101282011-WF02 V1.0 Page 5 of 30 Report No.: CTL2101282011-WF02 V1.0 Page 6 of 30 Report No.: CTL2101282011-WF02 1.3 Test Graph - 99% Occupied Bandwidth V1.0 Page 7 of 30 Report No.: CTL2101282011-WF02 V1.0 Page 8 of 30 Report No.: CTL2101282011-WF02 V1.0 Page 9 of 30 Report No.: CTL2101282011-WF02 V1.0 Page 10 of 30 Report No.: CTL2101282011-WF02 V1.0 Page 11 of 30 Report No.: CTL2101282011-WF02 2. Maximum Conducted Output Power 2.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 802.11b 2412 SISO 20.15 30 PASS 2437 SISO 23.42 30 PASS 2462 SISO 22.23 30 PASS 802.11g 2412 SISO 19.76 30 PASS 2437 SISO 20.24 30 PASS 2462 SISO 20.02 30 PASS 802.11n(HT20) 2412 SISO 17.73 30 PASS 2437 SISO 18.08 30 PASS 2462 SISO 18.34 30 PASS 2.2 Test Graph V1.0 Page 12 of 30 Report No.: CTL2101282011-WF02 V1.0 Page 13 of 30 Report No.: CTL2101282011-WF02 V1.0 Page 14 of 30 Report No.: CTL2101282011-WF02 V1.0 Page 15 of 30 Report No.: CTL2101282011-WF02 V1.0 Page 16 of 30 Report No.: CTL2101282011-WF02 3. Maximum Power Spectral Density (PSD) 3.1 Test Result Test Mode Frequency (MHz) Tx Type Maximum Power Spectral Density (dBm/3KHz) Limits (dBm/3kHz) Verdict Ant 1 802.11b 2412 SISO -8.44 ≤8 PASS 2437 SISO -5.12 ≤8 PASS 2462 SISO -5.72 ≤8 PASS 802.11g 2412 SISO -13.19 ≤8 PASS 2437 SISO -12.79 ≤8 PASS 2462 SISO -13.34 ≤8 PASS 802.11n(HT20) 2412 SISO -12.94 ≤8 PASS 2437 SISO -14.52 ≤8 PASS 2462 SISO -12.82 ≤8 PASS 3.2 Test Graph V1.0 Page 17 of 30 Report No.: CTL2101282011-WF02 V1.0 Page 18 of 30 Report No.: CTL2101282011-WF02 V1.0 Page 19 of 30 Report No.: CTL2101282011-WF02 V1.0 Page 20 of 30 Report No.: CTL2101282011-WF02 V1.0 Page 21 of 30 Report No.: CTL2101282011-WF02 4. Unwanted Emissions in Non-restricted Frequency Bands 4.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Spurious Conducted Emission (dBm) Limits (dBm) Verdict 802.11b 2412 SISO 1 Refer to test graph -11.15 PASS 2437 SISO 1 Refer to test graph -11.15 PASS 2462 SISO 1 Refer to test graph -11.15 PASS 802.11g 2412 SISO 1 Refer to test graph -17.72 PASS 2437 SISO 1 Refer to test graph -17.72 PASS 2462 SISO 1 Refer to test graph -17.72 PASS 802.11n(HT20) 2412 SISO 1 Refer to test graph -19.20 PASS 2437 SISO 1 Refer to test graph -19.20 PASS 2462 SISO 1 Refer to test graph -19.20 PASS 4.2 Test Graph V1.0 Page 22 of 30 Report No.: CTL2101282011-WF02 V1.0 Page 23 of 30 Report No.: CTL2101282011-WF02 V1.0 Page 24 of 30 Report No.: CTL2101282011-WF02 V1.0 Page 25 of 30 Report No.: CTL2101282011-WF02 V1.0 Page 26 of 30 Report No.: CTL2101282011-WF02 V1.0 Page 27 of 30 Report No.: CTL2101282011-WF02 V1.0 Page 28 of 30 Report No.: CTL2101282011-WF02 V1.0 Page 29 of 30 Report No.: CTL2101282011-WF02 V1.0 Page 30 of 30 Report No.: CTL2101282011-WF02

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No. ................ : CTL2101282011-WF02 Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Gray Gao (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : MINI PLUG Model/Type reference ................ : PLSM001 List Model(s) ............................... : N/A Trade Mark .................................. : N/A FCC ID ......................................... : 2AICR-PLSM001 Applicant’s name ....................... : Switchmate Home, LLC Address of applicant ................. : 6601 Owens Drive, Suite 250 Pleasanton, CA 94588 1-925-425-9583 Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Mar. 09, 2021 Date of sampling ........................ : Mar. 09, 2021 Date of Test Date ........................ : Mar. 09, 2021-Apr. 19, 2021 Date of Issue .............................. : Apr. 20, 2021 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 28 Report No.: CTL2101282011-WF02 TEST REPORT Test Report No. : CTL2101282011-WF02 Apr. 20, 2021 Date of issue Equipment under Test : MINI PLUG Sample No : CTL210128201-1-S001 Model /Type : PLSM001 Listed Models : N/A Applicant : Switchmate Home, LLC Address : 6601 Owens Drive, Suite 250 Pleasanton, CA 94588 1-925-425-9583 Manufacturer : Switchmate Home, LLC Address : 6601 Owens Drive, Suite 250 Pleasanton, CA 94588 1-925-425-9583 Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 28 Report No.: CTL2101282011-WF02 ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2021-04-20 CTL2101282011-WF02 Tracy Qi V1.0 Page 4 of 28 Report No.: CTL2101282011-WF02 Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION .......................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 8 2.4. EQUIPMENTS USED DURING THE TEST ............................................................................................................................ 11 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 11 2.6. MODIFICATIONS ......................................................................................................................................................... 11 3. TEST CONDITIONS AND RESULTS ............................................................................................................................ 12 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 12 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 15 3.3. MAXIMUM CONDUCTED OUTPUT POWER....................................................................................................................... 22 3.4. POWER SPECTRAL DENSITY ................................................................................…
