2AIDL-BT268Bluetooth Speaker

www.2boomusa.com TM Bluetooth Speaker Model: B T268 User Manual Power:  Please charge your Bluetooth speaker fully before its first use. To charge the battery: Using a Micro USB Charging Cable (included), insert the USB power cable into the micro USB port located on the back of the speaker. Connect the other end of the USB cord into a powered USB source such as a computer, laptop or USBAC adapter. When your Bluetooth speaker is charging, the indicator light will turn red.  Once your Bluetooth speaker is fully charged, the red light will turn off. Playing Music via Bluetooth  Turn your Bluetooth speaker on by sliding the power switch located on the back of the speaker to ‘ON’position. The light will be on at the same time  Make sure the Bluetooth function on your device is turned on. Search the speaker named,”2BOOM-BT268”. Once you have selected the pair name, your device will pair with the device.  Once your speaker is paired, a tone will be heard. Start playing music on your device. Make sure that you keep your device within a 33 feet range of your Bluetooth speaker. Adjust the volume of your device to a comfortable level. Turn off the unit when not in use. Specification: Speaker output: 3W*1  Drive unit: 52mm  Battery Capacity: 350mAh Frequency Response:160Hz-18KHz Caution:  This is not a toy. Please keep away from children. Please keep away from water / heat. Low power may cause poor connection even no working of Bluetooth. Do not overcharge the battery. Battery pack shall not be exposed to excessive heat such as sunshine, fire or the like. www.2boomusa.com FCCStatement 1. This device complieswith Part 15 of the FCC Rules. Operationis subjectto the followingtwo conditions: (1) This device may not cause harmfulinterference,and (2) This device must accept any interferen ce received,includinginterferencethat may cause undesiredoperation. 2. Changesor modificationsnot expresslyapprovedby the party responsiblefor compliancecould void the user ’s authorityto operatethe equipment. This equipmenthas been tested and found to complywith the limits for a Class B digital device, pursuantto part 15 of the FCC Rules. These limits are designedto providereasonableprotection againstharmfulinterferencein a residentialinstallation.This equipmentgenerates,uses and can radiateradio frequencyenergyand, if not installedand used in accordancewith the instructions, may cause harmfulinterferenceto radio communications.However,there is no guaranteethat inte rferencewill not occur in a particularinstallation.If this equipmentdoes cause harmfulinterferen ce to radio or televisionreception,which can be determinedby turningthe equipmentoff and on, the user is encouragedto try to correctthe interferenceby one or more of the followingmeasures: —Reorientor relocatethe receivingantenna. —Increasethe separationbetweenthe equipmentand receiver. —Connectthe equipmentinto an outlet on a circuitdifferentfrom that to which the receiveris connected. —Consultthe dealer or an experiencedradio/ TV technicianfor help. FCC RadiationExposureStatement: This equipmentcomplieswith FCC radiationexposurerequirement. The device can be used in portableexposureconditionwithoutRF striction.

Migear International Group LLC Address: 34 West 33rd Street Suite 1007 New York, NY 10001 Tel：646-680-6786 Fax: 646-756-4218 E-mail: [email protected] Date: 2021-04-16 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, Migear International Group LLC hereby authorize Shenzhen Accurate Technology Co., Ltd. to act as a laboratory for testing and test report generation for the following project(s): (Product description: Bluetooth Speaker, FCC ID: 2AIDL-BT268, Model: BT268) The chipset JL AC20BP07816-69D4 supports Bluetooth BDR(GFSK), EDR(π/4-DQPSK, 8DPSK) and BLE Mode, but for this device, BLE mode was disable by software. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely, Signature: Name: David Betesh Title: President

Migear International Group LLC Address: 34 West 33rd Street Suite 1007 New York, NY 10001 Tel：646-680-6786 Fax: 646-756-4218 E-mail: [email protected] FCC Confidential Authorization Date: 2021-04-16 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AIDL-BT268 In accordance with Sections 0.457 and 0.459 of the Commission’s Migear International Group LLC hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature Name: David Betesh Title: President

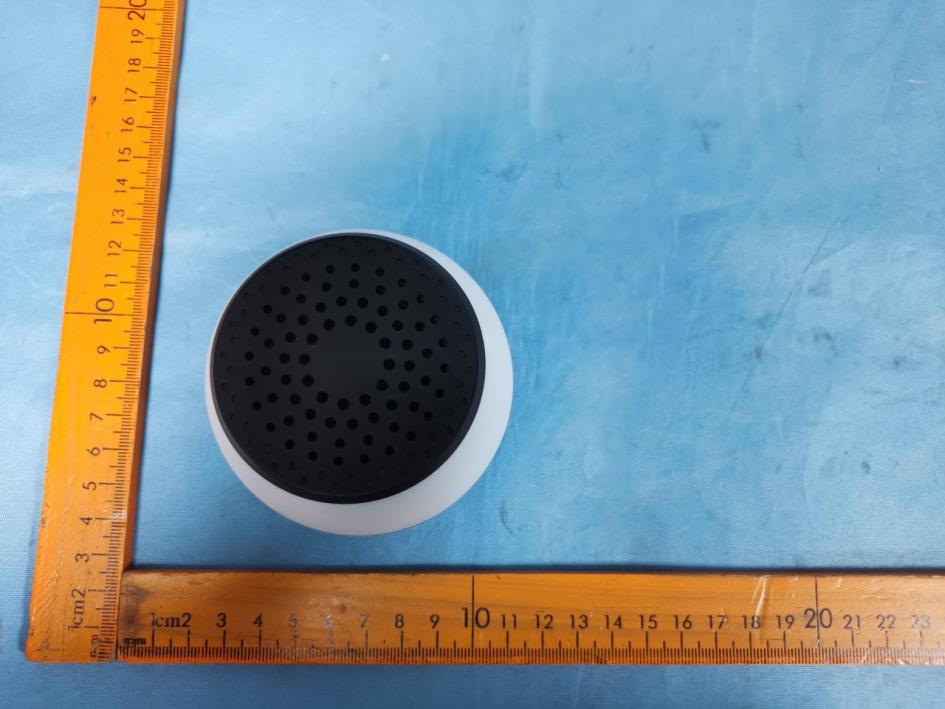

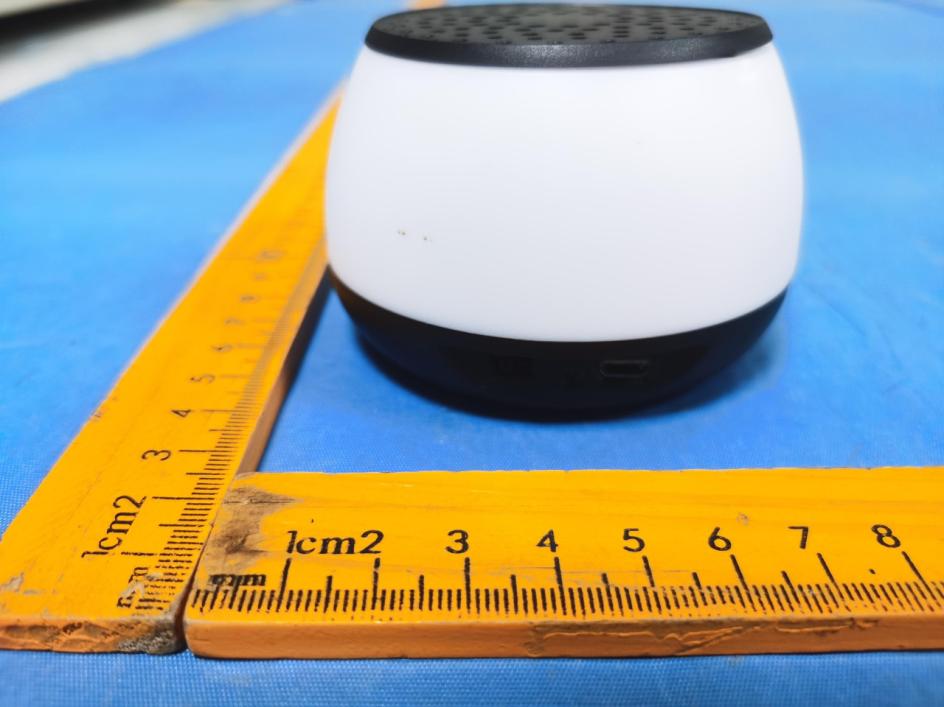

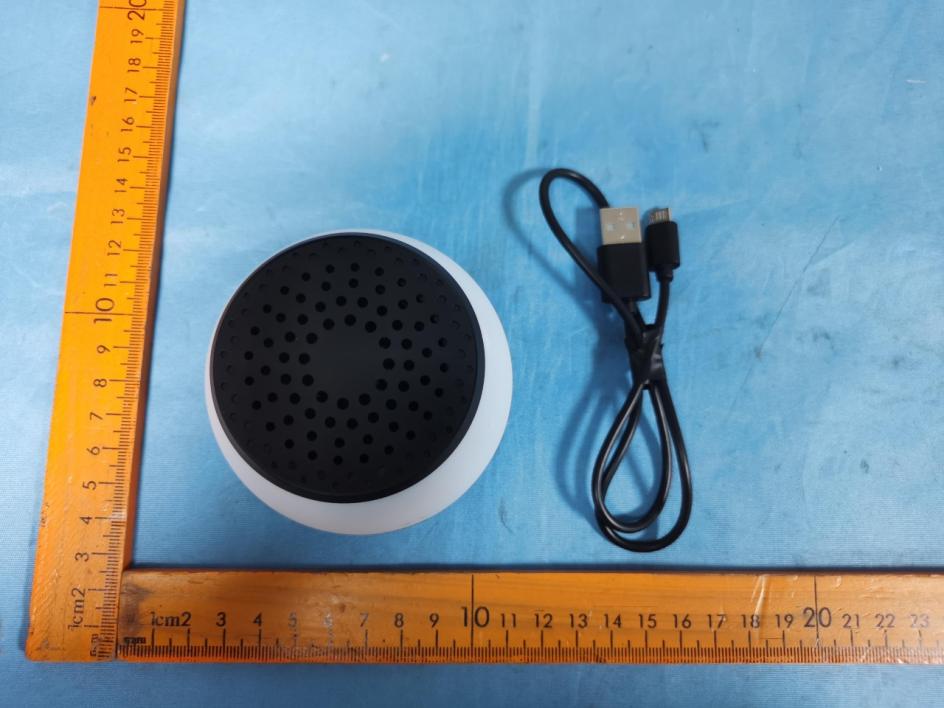

Shenzhen Accurate Technology Co., Ltd. Report No.: ATC210412-10968E-RF Page 1 of 3 External Photos Shenzhen Accurate Technology Co., Ltd. Report No.: ATC210412-10968E-RF Page 2 of 3 Shenzhen Accurate Technology Co., Ltd. Report No.: ATC210412-10968E-RF Page 3 of 3

Shenzhen Accurate Technology Co., Ltd. Report No.: ATC210412-10968E-RF Page 1 of 3 Internal photos Antenna Shenzhen Accurate Technology Co., Ltd. Report No.: ATC210412-10968E-RF Page 2 of 3 Shenzhen Accurate Technology Co., Ltd. Report No.: ATC210412-10968E-RF Page 3 of 3

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For Migear International Group LLC 34 West 33rd Street Suite 1007 New York, NY 10001 FCC ID: 2AIDL-BT268 R e p o r t T y p e : O r i gi n a l R e p o r t P r o d u c t T y p e : B l u e t o o t h S p e a k e r Report Number: ATC210412-10968E-00A Report Date: 2021-04-20 Reviewed By: Candy Li RF Engineer Prepared By: Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Http://www.atc-lab.com Shenzhen Accurate Technology Co., Ltd. Report No.: ATC210412-10968E-00A FCC Part 15.247 Page 2 of 62 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE.................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 TRANSD FACTOR & MARGIN CALCULATION ............................................................................................................. 13 TEST DATA ................................................................................................................................................................ 13 FCC §15.205, §15.209 & §15.247(d) – RADIATED EMISSIONS ........................................................................... 16 APPLICABLE STANDARD ............................................................................................................................................ 16 EUT SETUP ............................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Report No.: ATC210412-10968E-RF Photo of Power Line Conducted Emission Measurement Photo of Radiated Emission Measurement (Below 1G) Shenzhen Accurate Technology Co., Ltd. Report No.: ATC210412-10968E-RF Photo of Radiated Emission Measurement (Above 1G)
