2AIDL-FWI206Wireless Charger

www.2boomusa.com WirelessCharger Model:FWI206 UserManual ChargingInstruction:  ConnecttheUSBcable(included)toapoweroutletratedDC5V2A,andtheMicroUSB plugtotheMicroUSBinputoftheWirelessChargingPad.BlueLEDindicatorturnson.  PlaceyourWirelesschargingcompatibledeviceonthenon-slippad,andwirelesschargingof thedevice. Specification:  Input:DC5V/2A  Output:DC5V/1A Caution:  Thisisnotatoy.Pleasekeepawayfromchildren.  Pleasekeepawayfromwater/heat. FCCID:2AIDL-FWI206 FCCStatement 1.ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoc onditions: (1)Thisdevicemaynotcauseharmfulinterference,and(2)Thisdevicemustacceptanyinterferen cereceived,includinginterferencethatmaycauseundesiredoperation. 2.Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould voidtheuser’sauthoritytooperatetheequipment. ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,p ursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionag ainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradi ateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,mayc auseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferen cewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetor adioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuse risencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures: —Reorientorrelocatethereceivingantenna. —Increasetheseparationbetweentheequipmentandreceiver. —Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveriscon nected. —Consultthedealeroranexperiencedradio/TVtechnicianforhelp. www.2boomusa.com FCCRadiationExposureStatement: ThisequipmentcomplieswithFCCradiationexposurerequirement. ThedevicecanbeusedinportableexposureconditionwithoutRFstriction. MigearInternationalGroupLLC 34West33rdStreet Suite1007 NewYork,NY10001 646-680-6786

Migear International Group LLC Address: 34 West 33rd Street Suite 1007 New York, NY 10001 Tel：646-680-6786 Fax: 646-756-4218 E-mail: [email protected] FCC Confidential Authorization Date: 2021-04-16 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AIDL-FWI206 In accordance with Sections 0.457 and 0.459 of the Commission’s Migear International Group LLC hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature Name: David Betesh Title: President

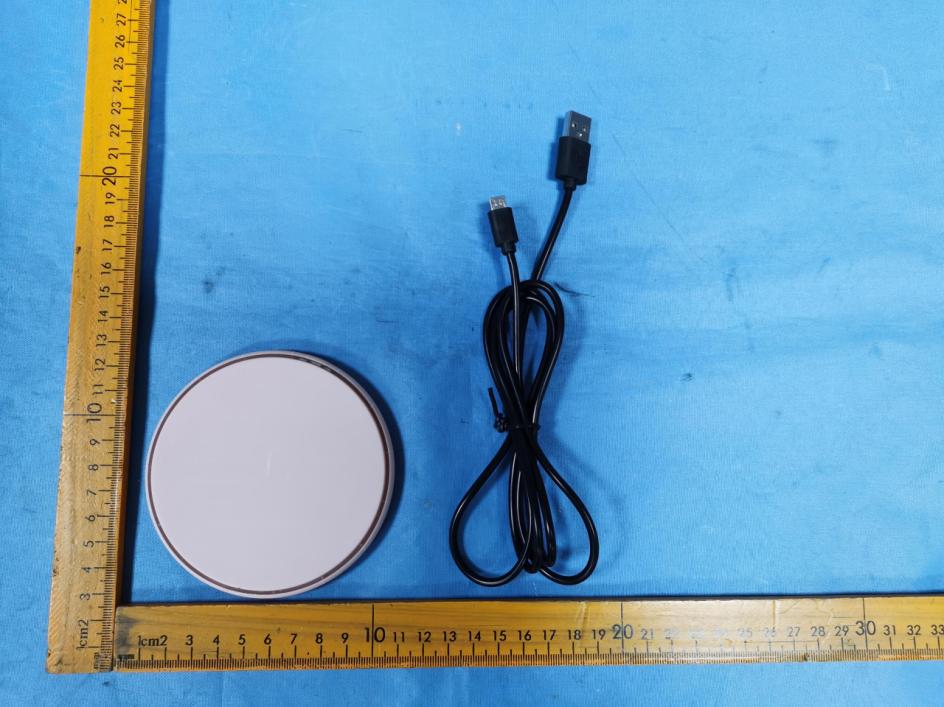

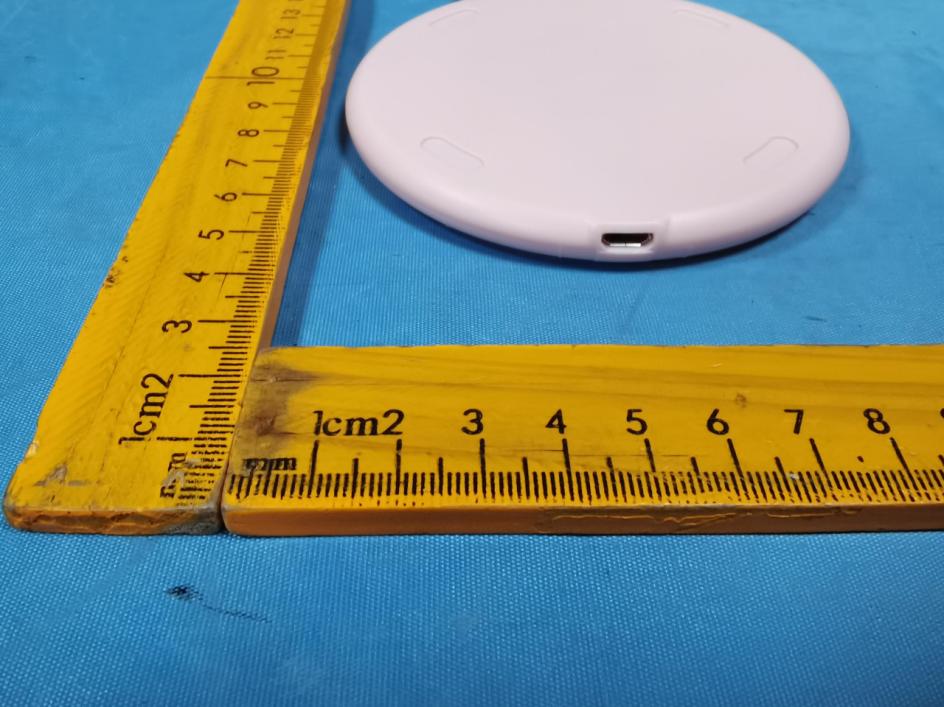

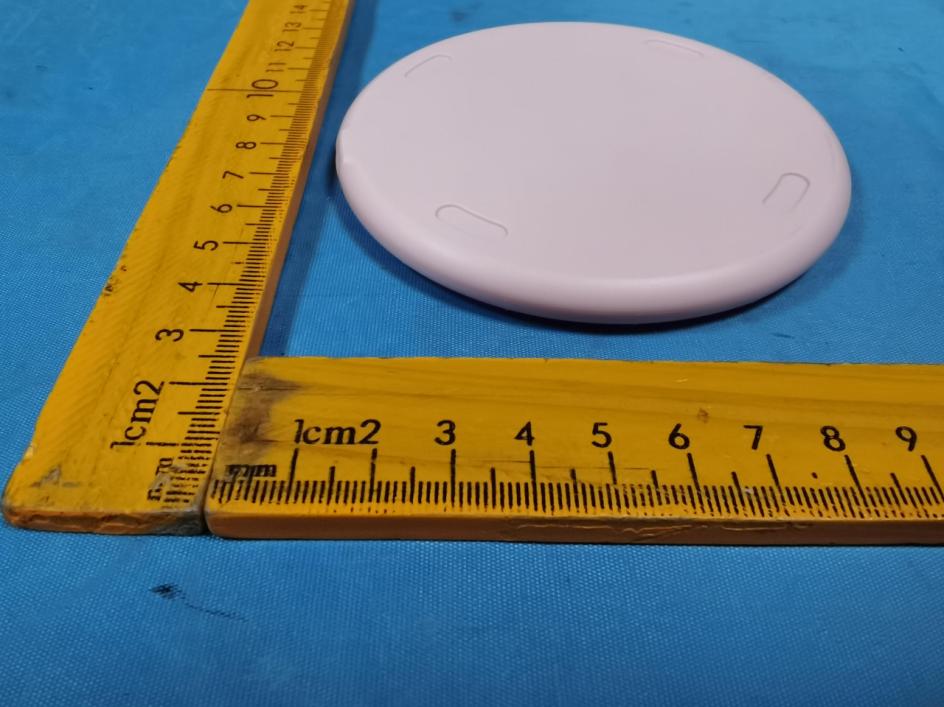

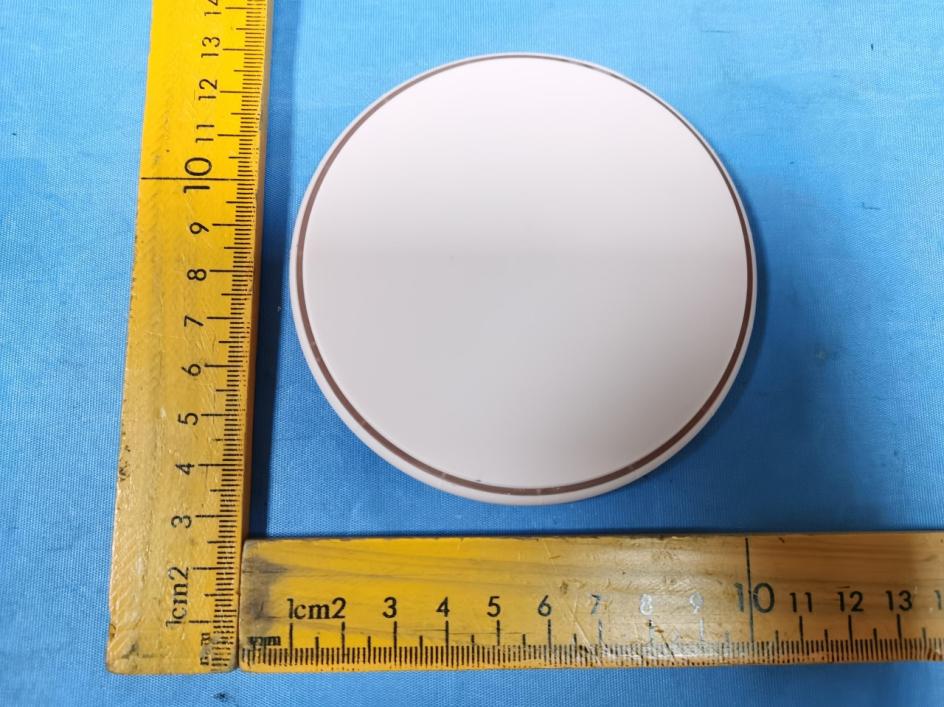

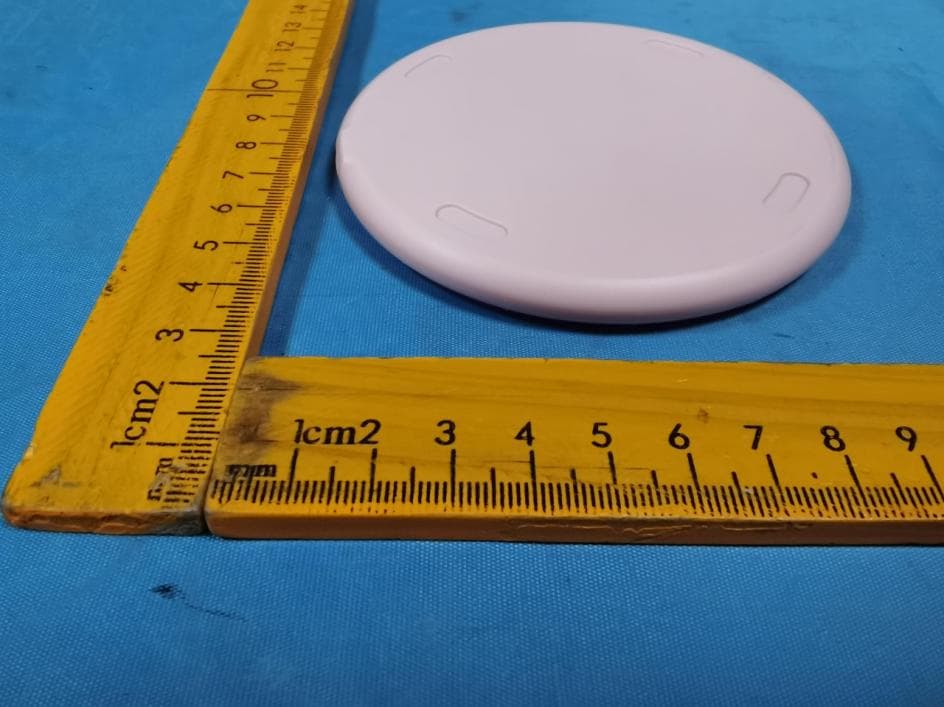

Shenzhen Accurate Technology Co., Ltd. Project No.: ATC210413-11267E-RF External Photos Page 1 of 4 External photos Shenzhen Accurate Technology Co., Ltd. Project No.: ATC210413-11267E-RF External Photos Page 2 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: ATC210413-11267E-RF External Photos Page 3 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: ATC210413-11267E-RF External Photos Page 4 of 4

Shenzhen Accurate Technology Co., Ltd. Project No.: ATC210413-11267E-RF Internal Photos Page 1 of 3 Internal photos Shenzhen Accurate Technology Co., Ltd. Project No.: ATC210413-11267E-RF Internal Photos Page 2 of 3 Coil 1 Shenzhen Accurate Technology Co., Ltd. Project No.: ATC210413-11267E-RF Internal Photos Page 3 of 3

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. MAXIUM PERMISSIBLE EXPOSURE TEST REPORT For Migear International Group LLC 34 West 33rd Street Suite 1007 New York, NY 10001 Report Type: Original Report Product Type: Wireless charger Report Number: ATC210413-11267E Report Date: 2021-04-19 Reviewed By: Jacob Kong RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) ,6F,7F,the 3rd Phase of Wan Li Industrial Building D,Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn FCC ID : 2AIDL-FWI206 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: ATC210413-11267E Page 2 of 13 TABLE OF CONTENTS 1.1. GENERAL INFORMATION .........................................................................................................................3 1.2. TEST FACILITY .................................................................................................................................................3 1.3. MEASURING STANDARD ..................................................................................................................................3 1.4. REQUIREMENTS ...............................................................................................................................................4 1.5. TEST CONFIGURATION .....................................................................................................................................4 1.6. TEST PROCEDURE ............................................................................................................................................5 1.7. TEST SETUP .....................................................................................................................................................5 1.8. LIMITS .............................................................................................................................................................6 1.9. MEASURING DEVICE AND TEST EQUIPMENT ....................................................................................................6 1.10. MEASURING RESULTS ......................................................................................................................................7 1.11. PHOTOGRAPHS OF TEST SETUP ........................................................................................................................9 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: ATC210413-11267E Page 3 of 13 1.1. GENERAL INFORMATION Product Wireless charger Tested Model FWI206 Type of Antenna Coil Rating In put: DC 5V, 2A Output: DC 5V, 1A Date of Test 2021-04-16 Sample number ATC210413-11267E-RF-S_2EK Received date 2021-04-13 Sample/EUT Status Good condition 1.2. Test Facility The Test site used by Bay Area Compliance Laboratories Corp. (Shenzhen) to collect test data is located on the 5F(B-West) ,6F,7F,the 3rd Phase of Wan Li Industrial Building D,Shihua Rd, FuTian Free Trade Zone, Shenzhen, China. The test site has been approved by the FCC under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No.: 342867, the FCC Designation No.: CN1221. The test site has been registered with ISED Canada under ISED Canada Registration Number 3062B. 1.3. Measuring Standard FCC CFR 47 Part 1(1.1310) KDB 680106 D01 v03r01 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: ATC210413-11267E Page 4 of 13 1.4. Requirements The EUT does comply with item 5(b) of KDB 680106 D01 v03r01 1) Power transfer frequency is less than 1 MHz 2) Output power from each primary coil is less than or equal to 15 watts. 3) The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. 4) Client device is placed directly in contact with the transmitter. 5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). 6) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the surface from all coils that by design can simultaneously transmit, and while those coils are simultaneously energized, are demonstrated to be less than 50% of the applicable MPE limit. 1.5. Test Configuration 7) The field strength of both E-field and H-field was measured at 15cm using the equipment list above for determining compliance with the MPE requirements of FCC Part 1.1310. 8) The RF power density was measured at Under maximum load test 9) Maximum E-field and H-field measurements were made 15cm from each side of the EUT. Along the side of the EUT and still 15cm away from the edge of the EUT, the field probes were positioned at the location where there is maximum field strength. The maximum E-field and H-field is reported below. 10) This device uses a wireless charging circuit for power transfer operating at the frequency of 110-205kHz. Thus, the 300kHz limits were used: E-field Limit = 614 (V/m); H-field limit = 1.63 (A/m). Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: ATC210413-11267E Page 5 of 13 1.6. Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The aggregate H-field strengths at 15 cm surr…

Text truncated - open the document above for the full version.

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15C TEST REPORT For Migear International Group LLC 34 West 33rd Street Suite 1007 New York, NY 10001 FCC ID: 2AIDL-FWI206 R e p o r t T y p e : O r i gi n a l R e p o r t P r o d u c t T y p e : W i r e l e s s c h a r ge r Report Number: ATC210413-11267E-RF Report Date: 2021-04-19 Reviewed By: Candy Li RF Engineer Prepared By: Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Http://www.atc-lab.com Shenzhen Accurate Technology Co., Ltd. Report No.: ATC210413-11267E-RF FCC Part 15C Page 2 of 17 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 3 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 JUSTIFICATION ............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 EXTERNAL I/O CABLE.................................................................................................................................................. 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 TEST EQUIPMENT LIST ........................................................................................................................................... 8 FCC§15.203 – ANTENNA REQUIREMENT ............................................................................................................. 9 APPLICABLE STANDARD .............................................................................................................................................. 9 ANTENNA CONNECTED CONSTRUCTION ...................................................................................................................... 9 FCC §15.207 – AC LINE CONDUCTED EMISSION ............................................................................................. 10 APPLICABLE STANDARD ............................................................................................................................................ 10 EUT SETUP ................................................................................................................................................................ 10 EMI TEST RECEIVER SETUP ....................................................................................................................................... 10 TEST PROCEDURE ...................................................................................................................................................... 11 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 11 TEST RESULTS SUMMARY .......................................................................................................................................... 11 TEST DATA ................................................................................................................................................................ 11 FCC §15.205 & §15.209 - RADIATED EMISSIONS TEST .................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 EUT SETUP ........................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Report No.: ATC210413-11267E-RF Test Photographs Page 1 of 2 1. Photo of Power Line Conducted Emission Measurement 2. Photo of Radiated Emission Measurement Below 30MHz Shenzhen Accurate Technology Co., Ltd. Report No.: ATC210413-11267E-RF Test Photographs Page 2 of 2 3. Photo of Radiated Emission Measurement 30MHz - 1GHz
