2AIEP-OC2AOwlet Cam V2

1 Owlet Cam 2 Installation Guide 2 Let’s Get Started Download the Owlet App. Plug in and follow app instructions to pair the Cam 2 with your Owlet Account. If you’ve already downloaded the Owlet App, click the Account tab to add a new device. EN Guide to Owlet Cam 2 Status Lights (blinking red/blue) Cam 2 is ready to pair with App (red) User is actively streaming via App, using background audio, or the Cam is rebooting. (blinking blue) Cam 2 is trying to connect to Wi-Fi (blue) Cam 2 is connected to internet. App is not streaming Remember: the Cam 2 allows for video and audio via secure, encrypted Wi-Fi. Only connect the Cam 2 to a private network that requires a secure password. 3 Choose Your View Place the Cam 2 and all cables 36 inches (92 cm) away from the edge of the crib. Cables within 36 inches (92 cm) of the edge of the crib should be covered. You can set up the Cam 2 in two ways: 1 Place it on a flat surface using the magnetic base and adjust for desired tilt angle. 2 Mount it on a wall above the crib using the base as a wall mount for a bird’s-eye view of the crib or for an expanded view of your nursery. The next steps will guide you through mounting the Cam 2 on the wall (above the crib). You can also view our Installation Video at support.owletcare.com 4 What’s in the Box Owlet Cam 2 Mounting plate Magnetic base Measuring tape (not included) Cables with Owlet wraps * and room temperature and humidity sensor 21x cable guards 18x long guards 1x end piece 2x L-brackets Power adapter Small Phillips screwdriver (not included) 1x screw Wall Mounting Kit Tools Needed to Mount the Cam 2 5 1. Measure and mark Consider which outlet to use. The outlet should be at least 36 inches (92 cm) away from the crib to ensure no exposed cables will be within baby’s reach. The next steps will instruct you on how to cover all cables. Measure 36 inches (92 cm) (92 cm) from the top of your baby’s mattress and make a mark on the wall — this is where the Cam 2 will be mounted. Center this mark above baby’s crib for the optimal viewing angle. 36 inches (92 cm) 36 inches (92 cm) (six cable guards) It’s also important to consider the location of the temperature and humidity sensor. The temperature sensor can be found near the end of the smart cable on the side that connects to the power adapter. 6 3. Unwind the cable4. Thread the cable Remove the cable wraps and unwind the cable. Thread the cable down the channel of the mounting plate, aligning the orange sticker on the cable to the top of the mounting plate. 2. Align and fasten Align the center hole of the mounting plate with the mark you’ve made on the wall. Using the provided screw, fasten the mounting plate to the wall with the arrows pointing upward. sticker 7 5. Mount the base Position the large holes of the magnetic base over the protruding tabs on the mounting plate, then slide downward until it clicks. sticker Attach the Cam 2 to the magnetic base. Plug the cable into the Cam 2. 6. Attach the Cam 2 The orange sticker should be placed just above the mounting plate so that you have enough cable slack to position the Cam 2 to your desired angle. 8 The cable guards use high-strength adhesive. Take your time during installation to ensure proper placement. 1 Peel off adhesive cover from the back of a long guard 2 Thread cable down the center of a long guard 3 Snap long guard onto the bottom of the mounting plate 4 Press firmly onto wall 5 Repeat steps 1–4 with remaining long guards until you reach the height of the wall outlet 7. Mount cable guards long guard 9 Use the right or left L-bracket to guide the cable in the direction of the wall outlet. Install long guards until any cable within 36 inches (92 cm) of the edge of the crib is covered. Continue adding long guards as needed to reach the outlet. Finally, install the end piece when you are within 6-10 inches of the outlet (this allows enough room to wrap excess cable with velcro). 8. Mount L-bracket L-brackets end piece 10 For contact information specific to your region, please visit https://support.owletcare.com Need Help? Gather the excess cable into a loop. Secure the top section of the loop by feeding the cable wrap through the first hole. The Owlet logo faces outward. Secure the bottom section of the loop to the top section by feeding the cable wrap through the second hole (The loop should now look like a bow). Secure remaining cable wrap. Once the excess cable has been wrapped securely, connect the power cable to the power adapter and plug it in. You’re all set! You can now use the App to reference how to adjust the Cam 2 angle until you achieve the desired view. 9. Wrap excess cable with velcro 11 designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the manufac- turer’s instructions, may cause interference harmful to radio communications. WEE COMPLIANCE STATEMENT Owlet is committed to meeting the requirements of directive 2012/19/EU on waste electrical and electronic equipment (WEEE). Please visit our website at owletcare.com to find out more about the proper disposal of Owlet products in the EU and UK. DECLARATION OF CONFORMITY STATEMENT Hereby, Owlet Baby Care declares that the Owlet Cam 2 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://owletbabycare.co.uk/pages/ce-compliance FREQUENCY RANGE AND MAXIMUM OUTPUT 2412-2472MHz (0.0249 output Watts) U.S. Pat. Nos. D864147 and D864148. Other patents pending IC : 21386-OC2A This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interferences, and (2) this device must accept any interferences, including interferences that may cause undesired operation of the device. Children have …

Text truncated - open the document above for the full version.

Owlet Baby Care Inc. Agent Authorization Company: Owlet Baby Care Inc. Address: 3300 Ashton Blvd, Lehi, Utah, 84043, USA Product Name: Owlet Cam V2 Model Number(s): OC2A Product Description: Owlet Cam V2 with 2.4G WIFI We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022.03.25 Name: JIANKUAI LI Title: PM Company: Shenzhen STS Test Services Co., Ltd.

2022.03.24 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize SHENZHEN STS TEST SERVICES CO.,LTD./ A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District,Bao’an District, Shenzhen, Guang Dong, China/Jiankuai Li(Name of Agent company name and address, Name of Agent) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. Name: Jiankuai Li Title: PM E-mail:[email protected] This appointment is valid until further until December 31, 2023 Sincerely, Name: Kristin Young Title: Quality Systems and Compliance Manager E-mail: [email protected] Company: Owlet Baby Care Inc. Signature: DocuSign Envelope ID: F83F9C0C-5E85-44B0-B1EC-F1B31E435808

Owlet Baby Care Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject; Request for Confidentiality FCC ID: 2AIEP-OC2A To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Signature: Date: 2022.03.25 Name: Jiankuai Li Title: PM Company: SHENZHEN STS TEST SERVICES CO.,LTD.

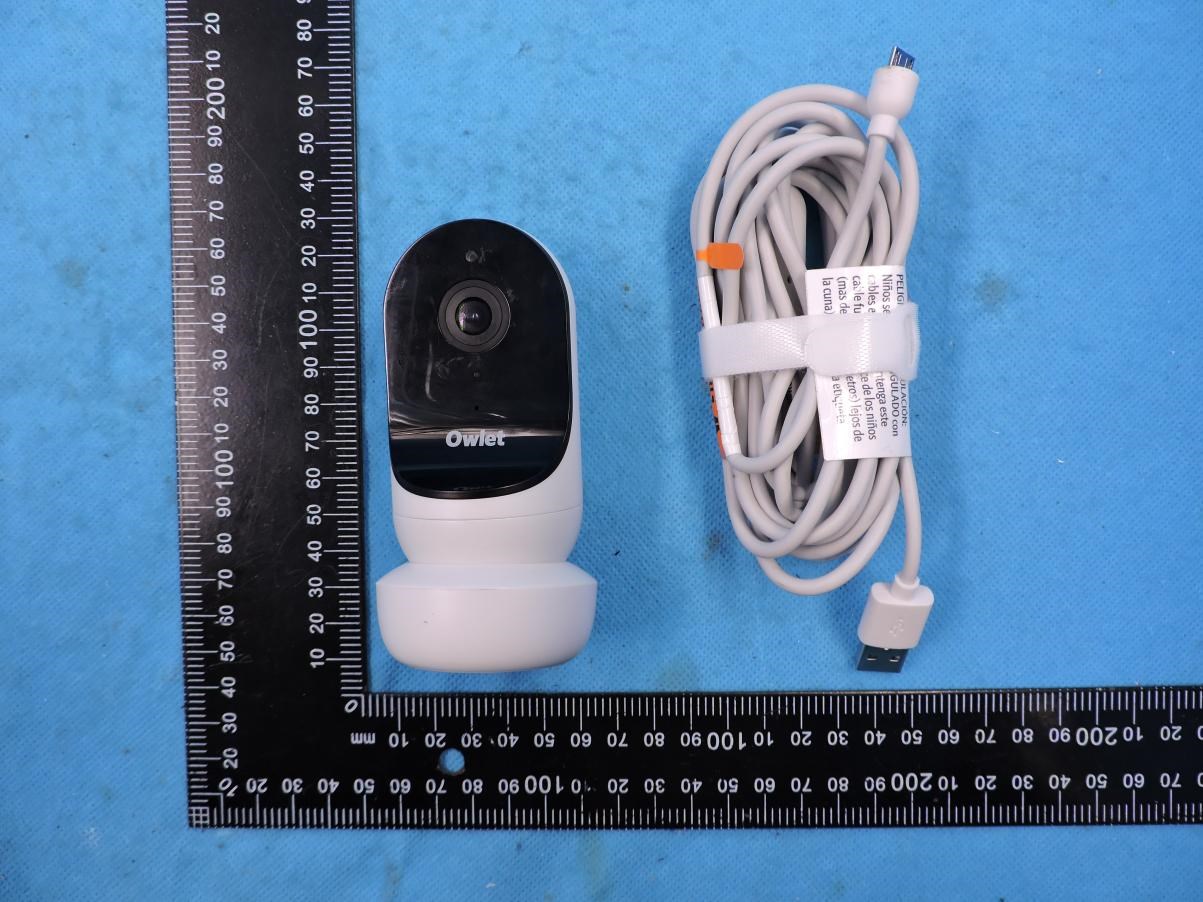

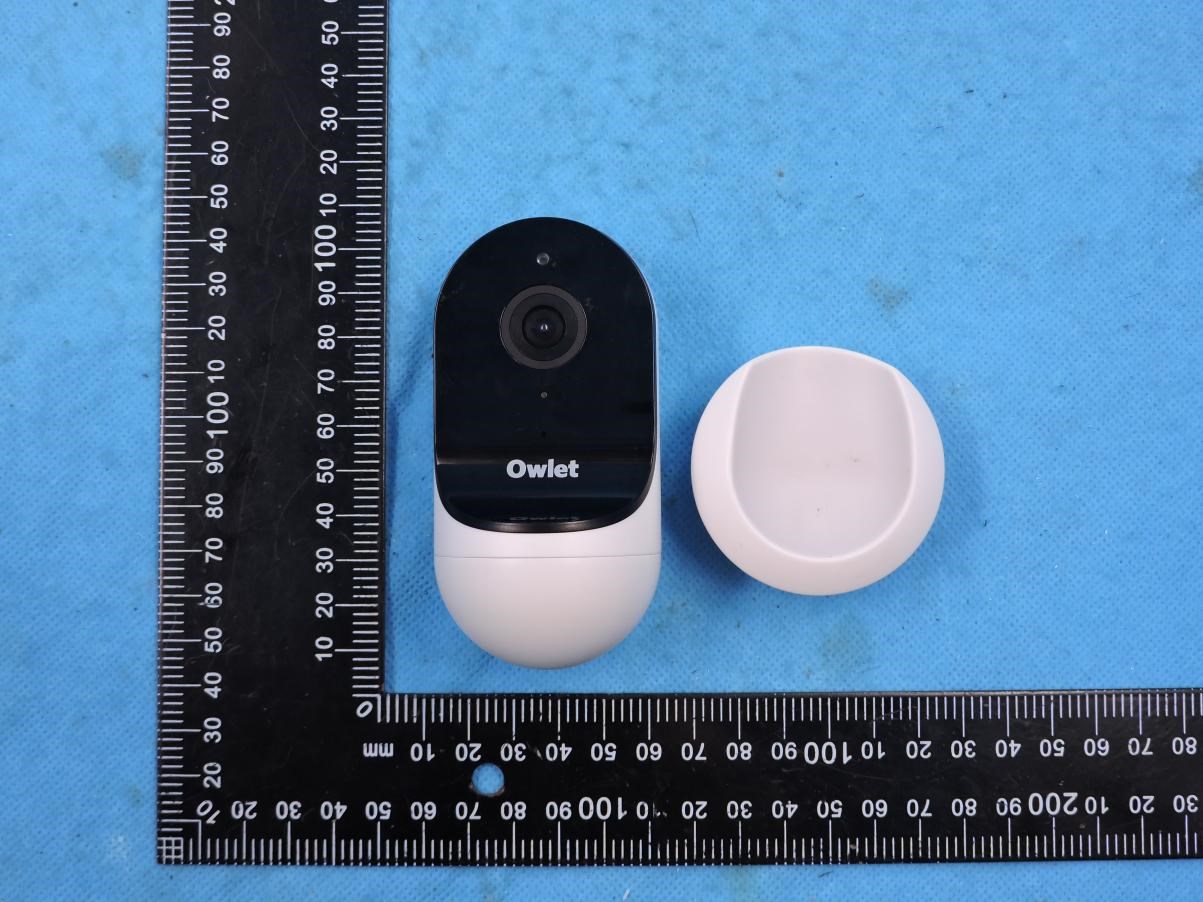

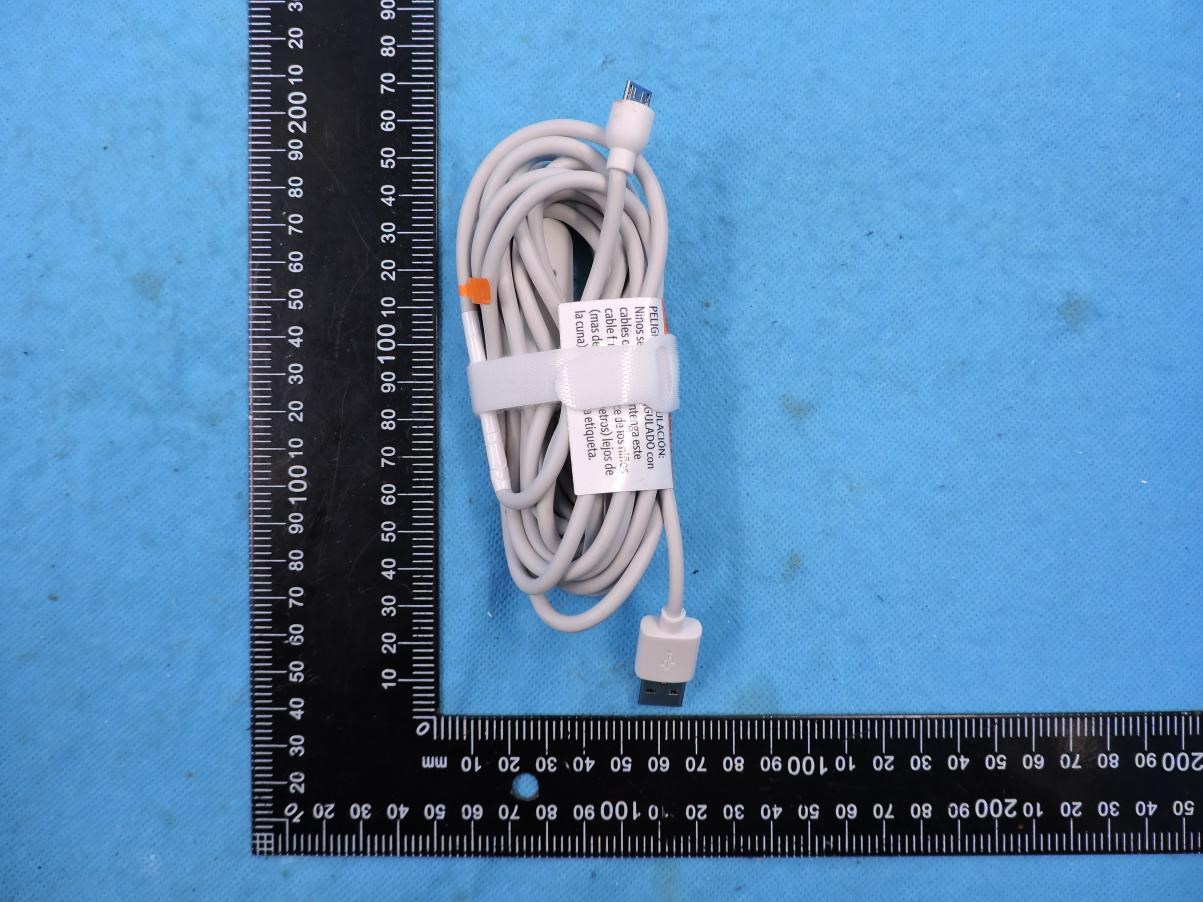

Page 1 of 6 Report No.: STS2203051 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: OC2A Photo 1 Photo 2 Page 2 of 6 Report No.: STS2203051 Photo 3 Photo 4 Page 3 of 6 Report No.: STS2203051 Photo 5 Photo 6 Page 4 of 6 Report No.: STS2203051 Photo 7 Photo 8 Page 5 of 6 Report No.: STS2203051 Photo 9 Photo 10 Page 6 of 6 Report No.: STS2203051 Photo 11 Photo 12

Label

Page 1 of 4 Report No.: STS2203051 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: OC2A Photo 1 Photo 2 2.4GWIFI Antenna Page 2 of 4 Report No.: STS2203051 Photo 3 Photo 4 Page 3 of 4 Report No.: STS2203051 Photo 5 Photo 6 Page 4 of 4 Report No.: STS2203051 Photo 7 Photo 8

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No: STS2203051H02 Issued for Owlet Baby Care Inc. 3300 Ashton Blvd, Lehi, Utah, 84043, USA Product Name: Owlet Cam V2 Brand Name: Owlet Model Name: OC2A Series Model: N/A FCC ID: 2AIEP-OC2A Test Standard: FCC 47CFR §2.1091 S T L A B S Page 2 of 9 Report No.: STS2203051H02 Test Report Certification Applicant’s Name ................. : Owlet Baby Care Inc. Address ................................. : 3300 Ashton Blvd, Lehi, Utah, 84043, USA Manufacturer's Name .......... : Owlet Baby Care Inc. Address ................................. : 3300 Ashton Blvd, Lehi, Utah, 84043, USA Product Description Product Name ........................ : Owlet Cam V2 Brand Name ......................... : Owlet Model Name .......................... : ... : OC2A Series Model .......................... : N/A Standards ............................. : FCC 47CFR §2.1091 447498 D04 Interim General RF Exposure Guidance v01 This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date of receipt of test item ..................... : 08 Mar. 2022 Date (s) of performance of tests ............. : 08 Mar. 2022 ~ 23 Mar. 2022 Date of Issue .......................................... : 23 Mar. 2022 Test Result.............................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Bovey Yang) Page 3 of 9 Report No.: STS2203051H02 TABLE OF CONTENTS 1. GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST FACTORY 5 2. FCC 47CFR §2.1091 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 TEST RESULT 9 Page 4 of 9 Report No.: STS2203051H02 Revision History Rev. Issue Date Report No. Effect Page Contents 00 23 Mar. 2022 STS2203051H02 ALL Initial Issue Page 5 of 9 Report No.: STS2203051H02 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name Owlet Cam V2 Brand Name Owlet Model Name OC2A Series Model N/A Model Difference N/A Product Description The EUT is Owlet Cam V2 Operation Frequency: 802.11b/g/n 20: 2412~2462 MHz 802.11n(40MHz):2422~2452MHz Modulation Type: 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM): BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM): BPSK,QPSK,16-QAM,64-QAM Antenna gain: 3dBi Antenna Designation: PIFA Antenna Power Rating Input: 100~240V 50/60Hz 0.25A Max Output: 5V1000mA Hardware Version V1.4 Software Version V2.1.3 1.2 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 Page 6 of 9 Report No.: STS2203051H02 2. FCC 47CFR §2.1091 REQUIREMENT 2.1 TEST STANDARDS Follow the maximum permissible exposure (MPE) limits specified in 447498 D04 Interim General Radio Frequency Exposure Guidelines v01. The gain of the antenna used in the product was extracted from the supplied antenna data sheet and the maximum total power input to the antenna was also measured. Calculate the distance from the product to the MPE limit by the formula. 2.2 LIMIT For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of Part 1.1307. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); (B) Or the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold Pth (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by: Page 7 of 9 Report No.: STS2203051H02 (C) Or using below table and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). RF Source frequency (MHz) Threshold ERP(watts) 0.3-1.34 1,920 R 2 . 1.34-30 3,450 R 2 /f 2 . 30-300 3.83 R 2 . 300-1,500 0.0128 R 2 f. 1,500-100,000 19.2R 2 . Page 8 of 9 Report No.: STS2203051H02 For multiple RF sources: Multiple RF sources are exempt if: (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging …

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.:STS2203051W02 Issued for Owlet Baby Care Inc. 3300 Ashton Blvd, Lehi, Utah, 84043, USA Product Name: Owlet Cam V2 Brand Name: Owlet Model Name: OC2A Series Model: N/A FCC ID: 2AIEP-OC2A IC: 21386-OC2A Test Standard: FCC Part 15.247 RSS-247 Issue 2, February 2017 RSS-Gen Issue 5, Amendment 2, February 2021 S T L A B S S T L A B S Page 2 of 82 Report No.:STS2203051W02 TEST RESULT CERTIFICATION Applicant’s Name ................. : Owlet Baby Care Inc. Address ................................. : 3300 Ashton Blvd, Lehi, Utah, 84043, USA Manufacturer's Name ........... : Owlet Baby Care Inc. Address ................................. : 3300 Ashton Blvd, Lehi, Utah, 84043, USA Product Description Product Name ........................ : Owlet Cam V2 Brand Name ........................... : Owlet Model Name .......................... : OC2A Series Model .......................... : N/A Test Standards ..................... : FCC Part 15.247 RSS-247 Issue 2, February 2017 RSS-Gen Issue 5, Amendment 2, February 2021 Test Procedure........................: ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC/IC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date of receipt of test item ...................... : 08 Mar. 2022 Date (s) of performance of tests ............. : 08 Mar. 2022 ~ 23 Mar. 2022 Date of Issue .......................................... : 23 Mar. 2022 Test Result .............................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Bovey Yang) Page 3 of 82 Report No.:STS2203051W02 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 10 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 13 3. EMC EMISSION TEST 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 RADIATED EMISSION MEASUREMENT 19 4.CONDUCTED SPURIOUS & BAND EDGE EMISSION 32 4.1 LIMIT 32 4.2 TEST PROCEDURE 32 4.3DEVIATION FROM STANDARD 32 4.4 TEST SETUP 32 4.5 EUT OPERATION CONDITIONS 32 4.6 TEST RESULTS 33 5. POWER SPECTRAL DENSITY TEST 49 5.1 LIMIT 49 5.2 TEST PROCEDURE 49 5.3 DEVIATION FROM STANDARD 49 5.4 TEST SETUP 49 5.5 EUT OPERATION CONDITIONS 49 5.6 TEST RESULTS 50 6. BANDWIDTH TEST 57 6.1 LIMIT 57 6.2 TEST PROCEDURE 57 6.3 DEVIATION FROM STANDARD 57 6.4 TEST SETUP 57 6.5 EUT OPERATION CONDITIONS 57 Page 4 of 82 Report No.:STS2203051W02 Table of Contents Page 6.6 TEST RESULTS 58 7. PEAK OUTPUT POWER TEST 74 7.1 LIMIT 74 7.2 TEST PROCEDURE 74 7.3 DEVIATION FROM STANDARD 74 7.4 TEST SETUP 74 7.5 EUT OPERATION CONDITIONS 74 7.6 TEST RESULTS 75 8. ANTENNA REQUIREMENT 80 8.1 STANDARD REQUIREMENT 80 8.2 EUT ANTENNA 80 9. FREQUENCY STABILITY 81 9.1 LIMITS OF FREQUENCY STABILITY MEASUREMENT 81 9.2 TEST PROCEDURE 81 9.3 TEST RESULT 81 APPENDIX-PHOTOS OF TEST SETUP 82 Page 5 of 82 Report No.:STS2203051W02 Revision History Rev. Issue Date Report No. Effect Page Contents 00 23 Mar. 2022 STS2203051W02 ALL Initial Issue Page 6 of 82 Report No.:STS2203051W02 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C RSS-247 Issue 2 Standard Section Test Item Judgment Remark 15.207 RSS-Gen 8.8 Conducted Emission PASS -- 15.247 (a)(2) RSS-Gen 6.7 RSS-247 5.2 a) 6dB&99% Bandwidth PASS -- 15.247 (b)(3) RSS-247 5.4 d) Output Power PASS -- 15.209 RSS-Gen 8.9/8.10 Radiated Spurious Emission PASS -- 15.247 (d) RSS-247 5.5 RSS-Gen 8.9/8.10 Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) RSS-247 5.2 b) Power Spectral Density PASS -- 15.205 RSS-Gen 8.9/8.10 Restricted Band Edge Emission PASS -- 15.203 RSS-Gen 6.8 Antenna Requirement PASS -- RSS-Gen 6.11/8.11 Frequency Stability PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 82 Report No.:STS2203051W02 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.87dB 2 Unwanted Emissions, conducted ±2.895dB 3 All emissions, radiated 9K-30MHz ±3.80dB 4 All emissions, radiated 30M-1GHz ±4.09dB 5 All emissions, radiated 1G-6GHz ±4.92dB 6 All emissions, radiated>6G ±5.49dB 7 Conducted Emission (9KHz-30MHz) ±2.73dB Page 8 of 82 Report No.:STS2203051W02 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name/PMN Owlet Cam V2 T…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2AIEP-OC2A IC: 21386-OC2A DTS Setup photo Model name: OC2A DTS conduction DTS radiation L Page 2 of 2 FCC ID: 2AIEP-OC2A IC: 21386-OC2A DTS radiation H
