2AIGW-KR-06WHEEL REMOTE CONTROL

70MM 滚轮抖音遥控器 90mm KR-06 产品简介 视频／阅读遥控器支持短视频（抖 音、快手、微视等）及个别手机 阅读APP的翻页功能，支待调节 手机音曼加减，真正释放双手l 还是 一 个自拍遥控器，在观石短 视频时，拍个美美的自拍照l 按键功能说明 规格参数 适用系统：视频／阅读／自拍遥控器 支持心S14.8/Android 8.0以上 产品型号： KR-06 充电电压： SV1A 电池容云： 300mA 连接距离： 10m 重旮 48 克 尺 寸： 70*19*100m m 单击左滑动 长按缩小焦距 上下滑动翻页 单击确认键 双击点赞 长按开关连赞 同时长按3秒缓慢模式 （白灯长亮） 单击右滑动 长按扩大焦距 单击音量加 长按下 一 曲 长按开关机 单击音量减 长按上 一 曲 关千苹果手机 使用苹果手机／平板时，请注意 一 下几点 1. 确保手机OS软件为14.8以上 2苹果手机/iii打开手机 ” 设置 ” “辅助功能 ”“ 缩放 ” “打开缩放 ” ，开启缩放功能 后屏马将会变大，三指轻点两下，屏马恢霓正常显示状态，即可使用 3以上2项如果确认OK,还是不能正常使用谓把手机关机再开机 一 次 。 电 池 CD 辅助功能llJ 通甘视力腔体活动能力店力苍青扣认知 的辐助功炬，个性化if'tlonc仅真更贴合怀的需求． 回通 用 进 一 步了黏 ．． I @ 诵助 功能 点击打开寸 ｀操作按钮 > 仕霓 。待机显示 > 回 穷 白 关闭 a控制中心 ＞ 1 圈 畛 点 击 打 开 了开 21,54 “ ＇ 令· • ＠ 、 ） 缩放 ＜ 镶助功低 缅放 ＠ I 缉 放 点击打开 记 ii CJ . . ． 勹 . 抄 戊 • • 廿 廿 二 可 戴 . 点 擒 高 . ' 人 下.蟹 ,. 以.个 . 伶 舅 上 •• 桴 篇 , U 更 改 . . 指轻点两下 幕恢复正常 踉陋黛点移动 重3 I 重 合格证 型号： 检验员· ｀ ） 出厂日期 Wheel TikTok Remote Control KR-06 Product lntroduc廿on The video/reading remote control supports page-turning functions for short videos (TikTok, Kwai, Weishi, etc) and select mobile reading apps, as well as volume adjustment for mobile devices, truly freeing your hands! It also serves as a selfie remote, allowing you to capture beautiful selfies while watching short videos! Key Function Description Specifications Compatible Systems: Video/ Reading/Selfie Remote Control Supports iOS 14 8/Android 8 0 and Above Product Model·KR--06 Charging Voltage: 5V1A Battery Capacity. 300mA Connection Range: 10m Weight: 48g Dimensions: 10•1g•1oomm ''"'"''""'p饱邸,od 比"伈,,』七�,也"'喝,mod, c''""'"'沁•• (Toowh, 妇, , ghcs田究 Coogp咱''""''�伈也""''" oof�a,oogU=) CII吹：R•hlaw,po 匕.,,~,巳中aad 妇,.,,廿l Clok, 田omeUp Loo,; 订'""'"'灶s叩 应gp=,pc叩""'而 CIiek, Volo me D它V伈心心 比agp呻：Pre,looos邓 About Apple phones When using an iPhone/tablet, please pay attention to the following points 1. Ensure that the iOS software on the phone is 14.8 or above 2. Apple phone/You need to open the phone's "Settings", "Accessibility", "Zoom", "Turn on Zoom". After turning on the zoom function, the screen will become larger Tap it twice with three fingers to restore the normal display state, and you can use仆 3.11 the above two items are confirmed to be OK but still cannot be used normally, please turn off the phone and turn it back on again Cl Ba tte,y 回 Geoeral © II回AccesslbmtyCIiek to open I 囡AcUoaB,ttoa 己Camara 臼CoatrolCeatec ., 令 ． ． 、 < Access心myzoom @ I zoom Click to open I �•m•uo一..C,�••M"•• 劝'" ＄ 芯Z 丈立 ＇ 亡 立 ．它 :!:'"' 吐 加叫m•'"价心儿，�--'""�•-•一.....叩 2t54 匣"""�'"'"' 重3 Accessibility ne卯 s@ Personal泗yoor iPhone lo better叩etyo u 『 价 心 "" ' 仙 , " .七 咖 邹 " ' ,, ' 啦 · '叩 000 , � 缸 ,, u 呻 啦 咄 ． '· " ' ''" '· '''幼， ' "' Further understanding "�" ． " 回 N,哼boo Cl啦 I 圈 如 m Click to open o p e n I RI Dis lav and Text Size zoom ＠ � <) Lightly tap with threefi ngers twiceScreen returns to norma. 重 FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. *RF warning for Portable device: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Local Representative Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(7), of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2AIGW-KR-06 KR-06, KR-07,KR-08,KR-09,KR-12 We hereby acknowledge as follows: i. both signees confirm that the point of contact accepts responsibility to act as a US- American Representative on behalf of the applicant ii. the point of contact provides the physical U.S. address and email as listed below iii. both parties maintain the requirements of this agreement for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. iv. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. US-American Point of Contact Applicant/Approval Holder Signature Date: 2025-11-21 Signature Date: 2025-11-21 Company Name: GLOCERTS TECHNOLOGY INC Shenzhen Kairuixiang Electronics Co.,Ltd. FRN: 0036339737 0025594847 Contact Name: Huiying Fan XiaoLan Yuan Address: 19784 SUNKISSED RIDGE DR, RIVERSIDE, CA 92507 301, 3rd Floor, No.5 Furong Road, Gushu, Baoan District, Shenzhen, China Phone: (626) 588-8039 13528495891 Email: [email protected] [email protected]

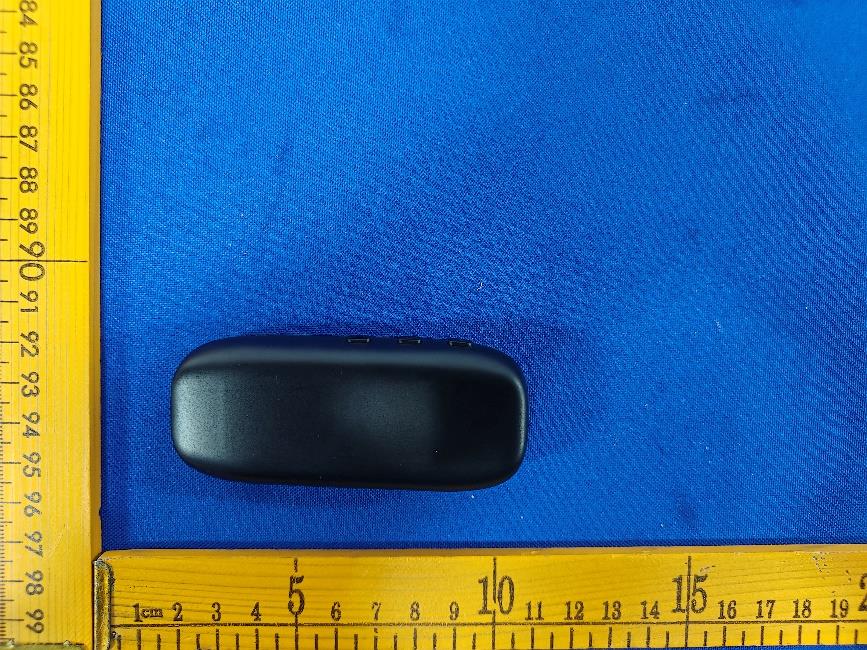

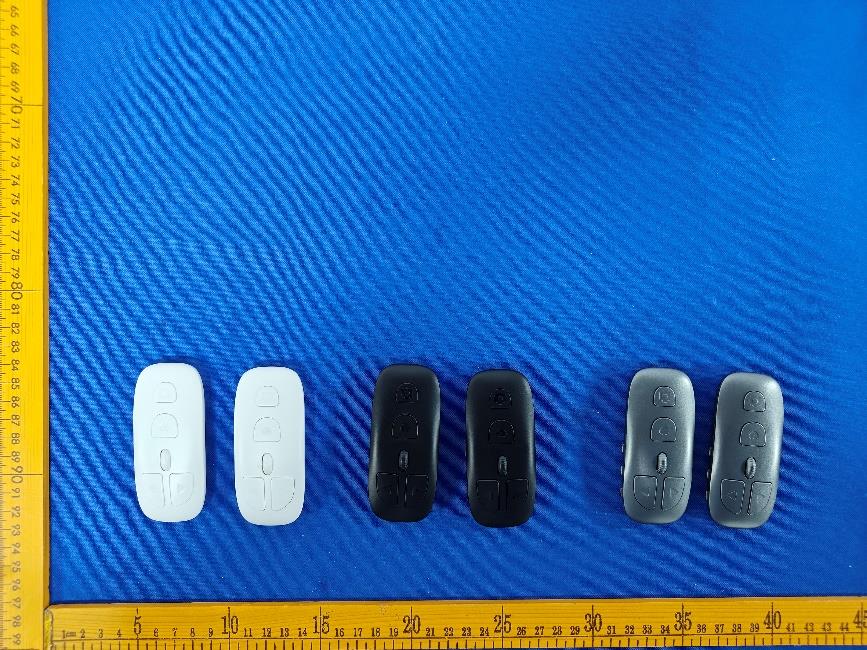

Page 1 of 2 FCC ID: 2AIGW-KR-06 External Photos Page 2 of 2 FCC ID: 2AIGW-KR-06

Label 1. The label is silk-screen on the sample FCC ID: 2AIGW-KR-06

Page 1 of 2 FCC ID: 2AIGW-KR-06 Internal photos PCB Antenna Page 2 of 2 FCC ID: 2AIGW-KR-06

Page 1 of 7 Report No.: AiTSZ-251031043FW2 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. RF Exposure evaluation Product Name : WHEEL REMOTE CONTROL Brand Name : N/A Model : KR-06 Series Model : KR-07,KR-08,KR-09,KR-12 FCC ID : 2AIGW-KR-06 Applicant : Shenzhen Kairuixiang Electronics Co., Ltd. Address : 301, 3rd Floor, No.5 Furong Road, Gushu, Baoan District, Shenzhen, China Manufacturer : Shenzhen Kairuixiang Electronics Co., Ltd. Address : 301, 3rd Floor, No.5 Furong Road, Gushu, Baoan District, Shenzhen, China Standard(s) : 47CFR §1.1310, 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt : Oct. 31, 2025 Date of Test : Oct. 31, 2025~ Nov. 11, 2025 Issued Date : Nov. 11, 2025 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 7 Report No.: AiTSZ-251031043FW2 Report Revise Record Report Version Issued Date Notes M0 Nov. 11, 2025 Initial Release Page 3 of 7 Report No.: AiTSZ-251031043FW2 Contents 1 GENERAL INFORMATION ....................................................................................................................................... 4 1.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 4 1.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 METHOD OF MEASUREMENT ................................................................................................................................ 6 2.1 APPLICABLE STANDARD .................................................................................................................................................. 6 2.2 EVALUATION METHOD AND LIMIT .................................................................................................................................... 6 2.3 MANUFACTURING TOLERANCE ........................................................................................................................................ 7 2.4 EVALUATION RESULT ..................................................................................................................................................... 7 2.5 CONCLUSION ............................................................................................................................................................... 7 Page 4 of 7 Report No.: AiTSZ-251031043FW2 1 GENERAL INFORMATION 1.1 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: 25°C Relative Humidity: 55 % Air Pressure: 101 kPa 1.2 General Description of EUT Product Name: WHEEL REMOTE CONTROL Model/Type reference: KR-06 Serial Model: KR-07,KR-08,KR-09,KR-12 Model difference: All models are same as the samples except model name and appearance color, they have the same structure and circuit. Power Supply: DC 5V 1A DC 3.7V 300mAh 1.11Wh Hardware Version: N/A Software Version: N/A Sample(s) Status: AiTSZ-251031043-1(Normal sample) AiTSZ-251031043-2(Engineer sample) Bluetooth LE: Supported type: Bluetooth LE 1M/2M Modulation: GFSK Operation frequency: 2402MHz~2480MHz Channel number: 40 Channel separation: 2MHz Antenna type: PCB antenna Antenna gain: 1.9dBi Remark: The above DUT's information was declared by manufacturer. For more detailed features description, please refer to the manufacturer’s specifications or the User's Manual.. Page 5 of 7 Report No.: AiTSZ-251031043FW2 1.3 Test Facility Test Laboratory: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC —Registration No.: 31737 CAB identifier: CN0165 The 3m Semi-anechoic chamber of Guangdong Asia Hongke Test Technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 31737 A2LA-Lab Cert. No.: 7133.01 Guangdong Asia Hongke Test Technology Limited has been accredited by A2LA for technical competence in the field of electrical testing, and proved to be in compliance with ISO/IEC 17025: 2017 Genera…

Text truncated - open the document above for the full version.

Page 1 of 30 Report No.: AiTSZ-251031043FW1 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : WHEEL REMOTE CONTROL Brand Name : N/A Model : KR-06 Series Model : KR-07,KR-08,KR-09,KR-12 FCC ID : 2AIGW-KR-06 Applicant : Shenzhen Kairuixiang Electronics Co., Ltd. Address : 301, 3rd Floor, No.5 Furong Road, Gushu, Baoan District, Shenzhen, China Manufacturer : Shenzhen Kairuixiang Electronics Co., Ltd. Address : 301, 3rd Floor, No.5 Furong Road, Gushu, Baoan District, Shenzhen, China Standard(s) : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of Receipt : Oct. 31, 2025 Date of Test : Oct. 31, 2025~ Nov. 11, 2025 Issued Date : Nov. 11, 2025 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 30 Report No.: AiTSZ-251031043FW1 Report Revise Record Report Version Issued Date Notes M0 Nov. 11, 2025 Initial Release Page 3 of 30 Report No.: AiTSZ-251031043FW1 Contents 1 TEST SUMMARY .................................................................................................................................................... 4 1.1 TEST STANDARDS ......................................................................................................................................................... 4 1.2 TEST SUMMARY ........................................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 GENERAL INFORMATION ....................................................................................................................................... 6 2.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3 DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 7 2.4 SPECIAL ACCESSORIES ................................................................................................................................................... 8 2.5 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 8 3 TEST CONDITIONS AND RESULTS ......................................................................................................................... 10 3.1 CONDUCTED EMISSIONS TEST ....................................................................................................................................... 10 3.2 RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 13 3.3 MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................................................... 20 3.4 POWER SPECTRAL DENSITY .......................................................................................................................................... 21 3.5 6DB BANDWIDTH ....................................................................................................................................................... 22 3.6 OUT-OF-BAND EMISSIONS ........................................................................................................................................... 23 3.7 ANTENNA REQUIREMENT ............................................................................................................................................. 25 4 TEST SETUP PHOTOGRAPHS OF EUT .................................................................................................................... 26 5 PHOTOS OF EUT .................................................................................................................................................. 27 Page 4 of 30 Report No.: AiTSZ-251031043FW1 1 TEST SUMMARY 1.1 Test Standards The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ANSI C63.10: 2020: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spreda Spectrum System, and Hybrid Sys…

Text truncated - open the document above for the full version.

Product specification Quick Reference Date Antenna module on the system board Frequenc Range 2400 ~ 2500MHz Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -1.2 (Input pwr – loss pwr) Peak EIRP(dBm) 1.2 Directivity (dBi) 1 (all direction antenna) Efficiency (dB) 6 0.2 % Gain (dBi) 1.9 (Peak Gain XY-plane) Maximum Power (dBm) 1.7 (XY-plane) Minimum Power (dBm) -4(XY-plane) Avg. Power (dBm) -0.5(XY-plane) Input Impendence(ohm) 50 Polarization Type V ertical & Horizontal V . S .W . R < 1.4 All the technical data and information contained herein are subject to ch ange without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table Unit in dBi @2.44GHz XY-plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 1.2 -0.51.9 -3.61.1 -3.06 0.2 % Shenzhen Kairui Xiang Electronics Co., Ltd. 301, 3rd Floor, No.5 Furong Road, Gushu, Baoan District, Shenzhen, China Retum Loss The Environment of Antenna Radiation Pattem 3D radiation pattern diagram XY-plane XZ-plane YZ-plane

Page 1 of 29 Report No.: AiTSZ-251031043FW1 Appendix RF test data for BLE Page 2 of 29 Report No.: AiTSZ-251031043FW1 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 1M SISO 2402 0.094 0.625 15.04 8.23 0.03 2440 0.094 0.625 15.04 8.23 0.00 2480 0.094 0.625 15.04 8.23 0.00 2M SISO 2402 0.062 0.625 9.92 10.03 0.00 2440 0.062 0.625 9.92 10.03 0.03 2480 0.063 0.625 10.08 9.97 0.03 Page 3 of 29 Report No.: AiTSZ-251031043FW1 1.2 Test Graph 1.2.1 Ant1 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 4 of 29 Report No.: AiTSZ-251031043FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 5 of 29 Report No.: AiTSZ-251031043FW1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 6 of 29 Report No.: AiTSZ-251031043FW1 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 1.020 / Pass 2440 1 1.019 / Pass 2480 1 1.019 / Pass 2M SISO 2402 1 2.053 / Pass 2440 1 2.054 / Pass 2480 1 2.055 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.505 >=0.5 Pass 2440 1 0.503 >=0.5 Pass 2480 1 0.508 >=0.5 Pass 2M SISO 2402 1 0.859 >=0.5 Pass 2440 1 0.854 >=0.5 Pass 2480 1 0.860 >=0.5 Pass Page 7 of 29 Report No.: AiTSZ-251031043FW1 2.2 Test Graph 2.2.1 OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 8 of 29 Report No.: AiTSZ-251031043FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 9 of 29 Report No.: AiTSZ-251031043FW1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 10 of 29 Report No.: AiTSZ-251031043FW1 2.2.2 6dB BW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 11 of 29 Report No.: AiTSZ-251031043FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 12 of 29 Report No.: AiTSZ-251031043FW1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 13 of 29 Report No.: AiTSZ-251031043FW1 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 -0.89 <=30 Pass 2440 -0.41 <=30 Pass 2480 0.49 <=30 Pass 2M SISO 2402 -0.77 <=30 Pass 2440 -0.27 <=30 Pass 2480 0.62 <=30 Pass Note1: Antenna Gain: Ant1: 1.90dBi; Page 14 of 29 Report No.: AiTSZ-251031043FW1 3.2 Test Graph 3.2.1 Power 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 15 of 29 Report No.: AiTSZ-251031043FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 16 of 29 Report No.: AiTSZ-251031043FW1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 17 of 29 Report No.: AiTSZ-251031043FW1 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm) Verdict ANT1 Limit 1M SISO 2402 -0.86 <=8 Pass 2440 -0.39 <=8 Pass 2480 0.53 <=8 Pass 2M SISO 2402 -1.32 <=8 Pass 2440 -0.76 <=8 Pass 2480 0.12 <=8 Pass Note1: Antenna Gain: Ant1: 1.90dBi; Page 18 of 29 Report No.: AiTSZ-251031043FW1 4.2 Test Graph 4.2.1 PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 19 of 29 Report No.: AiTSZ-251031043FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 20 of 29 Report No.: AiTSZ-251031043FW1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 21 of 29 Report No.: AiTSZ-251031043FW1 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 -0.86 2440 1 -0.37 2480 1 0.53 2M SISO 2402 1 -1.30 2440 1 -0.77 2480 1 0.09 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 0.53 -19.47 Pass 2440 1 0.53 -19.47 Pass 2480 1 0.53 -19.47 Pass 2M SISO 2402 1 0.09 -19.91 Pass 2440 1 0.09 -19.91 Pass 2480 1 0.09 -19.91 Pass Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. Page 22 of 29 Report No.: AiTSZ-251031043FW1 5.2 Test Graph 5.2.1 Ref 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 23 of 29 Report No.: AiTSZ-251031043FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 24 of 29 Report No.: AiTSZ-251031043FW1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 25 of 29 Report No.: AiTSZ-251031043FW1 5.2.2 CSE 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV Page 26 of 29 Report No.: AiTSZ-251031043FW1 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV Page 27 of 29 Report No.: AiTSZ-251031043FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 28 of 29 Report No.: AiTSZ-251031043FW1 2M_LCH_2402MHz_Ant1_NTNV 2M_MCH_2440MHz_Ant1_NTNV Page 29 of 29 Report No.: AiTSZ-251031043FW1 2M_HCH_2480MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV ********************** End of Report **********************
