2AIHFZYCOV-04ZHIYUN MasterEye Visual Controller VC100 (5GHz WIFI )

The following features are available in this PDF document. Quick Keyword Search Enter the keyword in the search box and hit the search button Quick Jump between Chapters Click the title of a specific chapter on the Contents to jump to it *Reading software such as Adobe Reader is needed to support the functions above. ZHIYUN-EN-v1.00 Zhiyun MasterEye Visual Controller User Guide Contents ■ Product List Product List ····················································································1 ■ Get to Know Zhiyun MasterEye Visual Controller Get to Know Zhiyun MasterEye Visual Controller ······························2 ■ Charging and Battery Charging and Battery ······································································5 ■ Wi-Fi Pairing ■ Monitor Interface ■ How to Install and Use Installing and Detaching External Battery ··········································9 Screen Brightness / Audio Volume Adjustment ································10 Real-time Audio Monitoring ·····························································10 Motion Sensor Control ····································································11 ■ Firmware Upgrade ■ Product Specifications ■ Disclaimer and Warning Reading Tips ··················································································14 Warnings························································································14 ■ Disclaimer and Warning Safe Operation Guidelines ······························································15 ■ Warranty Card Warranty Period ··············································································16 Warranty Exclusions ········································································16 Warranty Claim Procedure ·······························································16 ■ Contact Card 1 Product List Product List Before using this product, please check carefully that all the following items are included in the product package. In case that any item is found missing, please contact ZHIYUN or your local selling agent. USB Type-C cable × 1User Manual × 1 Zhiyun MasterEye Visual Controller × 1 2 Get to Know Zhiyun MasterEye Visual Controller Get to Know Zhiyun MasterEye Visual Controller 1. Antenna Transmit wireless signals 2. Photodetector Adjust screen lightness automatically depending on the current environment when the Visual Controller is powered on. 3. Focus Control Wheel Control electronic focus of some cameras or TransMount Servo Zoom/ Focus Controller. 4. Micro SD Card Slot (Supporting 128GB at most) • For storing screen record videos • For firmware upgrade 5. 3.5mm Earphones Port For audio monitoring. 6. Type-C Charging Port For charging the internal battery. 7. TV Button* Single press to enter shutter parameter settings, then rotate the quick adjustment wheel to adjust shutter parameters. 8. AV Button* Single press to enter aperture parameter settings, then rotate the quick adjustment wheel to adjust aperture parameters. 9. 9.EV Button* Single press to enter exposure compensation parameter settings, then rotate the quick adjustment wheel to adjust exposure compensation parameters. 10. ISO Button* Single press to enter sensitivity parameter settings, then rotate the quick adjustment wheel to adjust sensitivity parameters. 3 11. WB Button* Single press to enter white balance settings, then rotate the quick adjustment wheel to adjust white balance parameters 12. 1/4 Screw Hole For 1/4 screws. 13. Joystick Rotate the joystick in four directions to control the stabilizer. (Not available in Go mode and POV mode) 14. Video Button • Single press to start or stop the camera filming. • In Screen Record Album, single press to play or pause the video. 15. Photo Taking Button • Half-press to activate autofocus (applied to some of the cameras) • Full-press to take photos 16. Quick Control Dial • Rotate the dial in Screen Record Alb um to select video file • Rotate the dial to adjust parameters i n Settings Menu 17. F1 Motion Sensor Button Single press to turn on or turn off motion sensor. 18. No definition yet 19. External Battery Slot** Install NP-F external battery. 20. Unlock Button Press to take out the rear cover of the external battery slot or the external battery. 21. Quick Adjustment Wheel Rotate the quick adjustment wheel to adjust the current parameter of the camera. 22. Zoom Rocker Control electronic zoom of some cameras or TransMount Zoom/Focus Control Motor. 23. Power Button • Press and hold for 3 seconds to power on or turn off • When it’s turned off, press and hold for 7 seconds to upgrade • When it’s powered on, single press to lock all buttons and the screen, press again to unlock 24. Battery Indicator Light Show the current battery level of the Visual Controller. Get to Know Zhiyun MasterEye Visual Controller * The parameter cannot be adjusted when the camera is in certain modes. Please refer to the current exposure mode of the camera. **Install NP-F batteries (not provided) to the external battery slot to extend runtime. 4 ① The antenna in Visual Controller is omnidirectional. Its maximum rotation angle is 90 degrees. ② For a better image transmission, please rotate the antenna of the Visual Controller and the transmitter (TransMount Image Transmission Transmitter or TransMount Image Transmission Transmitter 2.0) when in long-distance. Put the transmitter in a higher place (It is recommended to be higher than 1.5m) and pay attention to the surroundings to make sure there are no blockages between two devices. Fold the antenna when you don’t need to use it. Get to Know Zhiyun MasterEye Visual Controller 5 Charging and Battery The Visual Controller adopts internal built-in battery. When using the Visual Controller for the first time, please fully charge it to activate the battery. Charging and Battery AC power （100-240V） USB chargerUSB-C cableZhiyun MasterEye Visual Controller ① When using the Visual Controller and the battery leve…

Text truncated - open the document above for the full version.

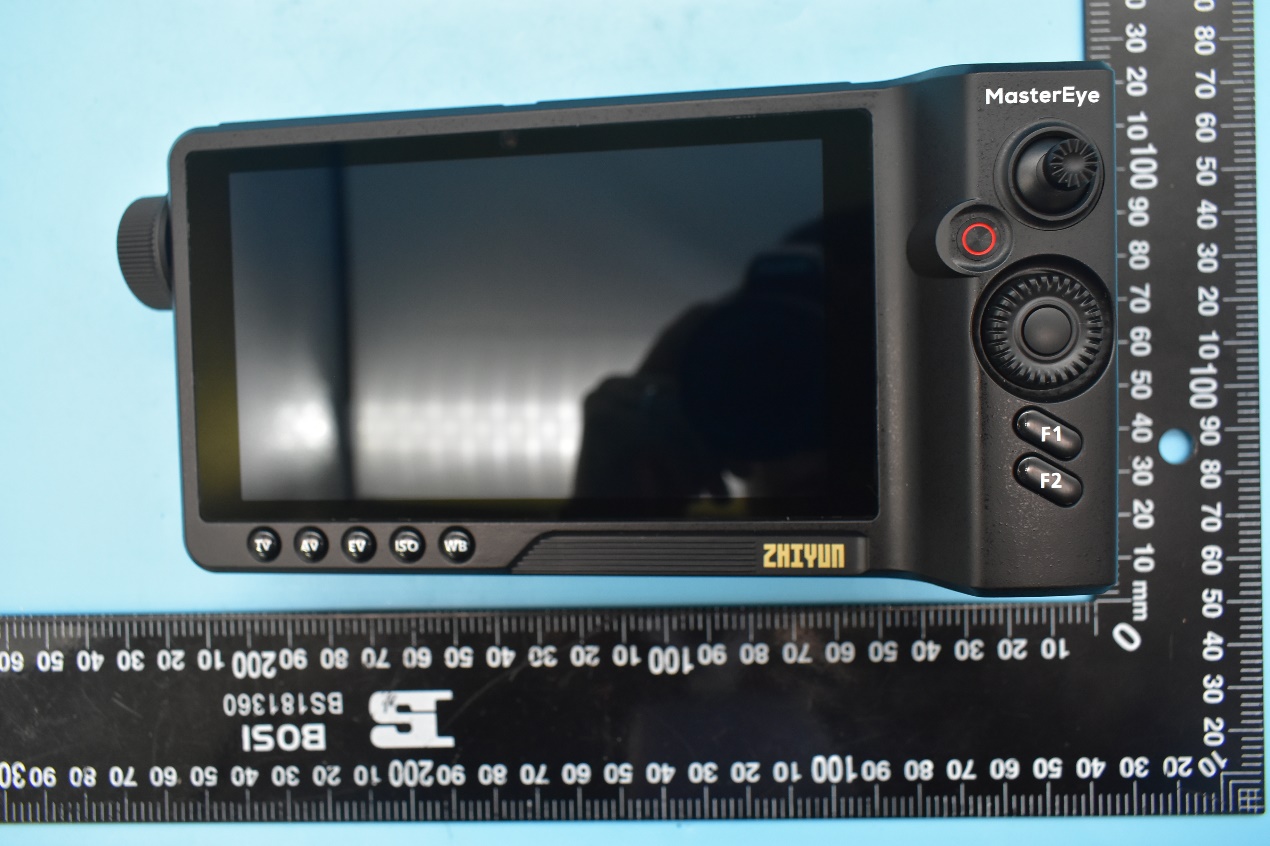

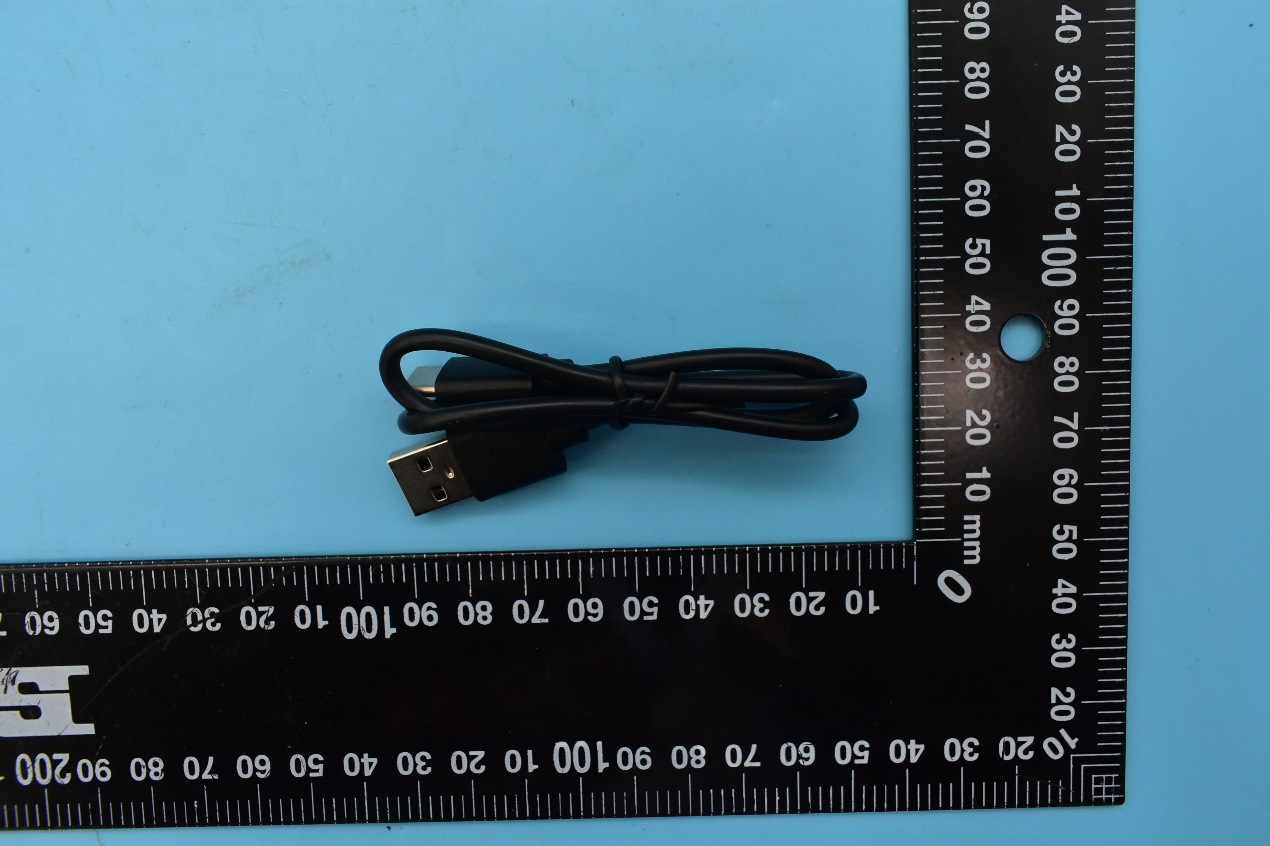

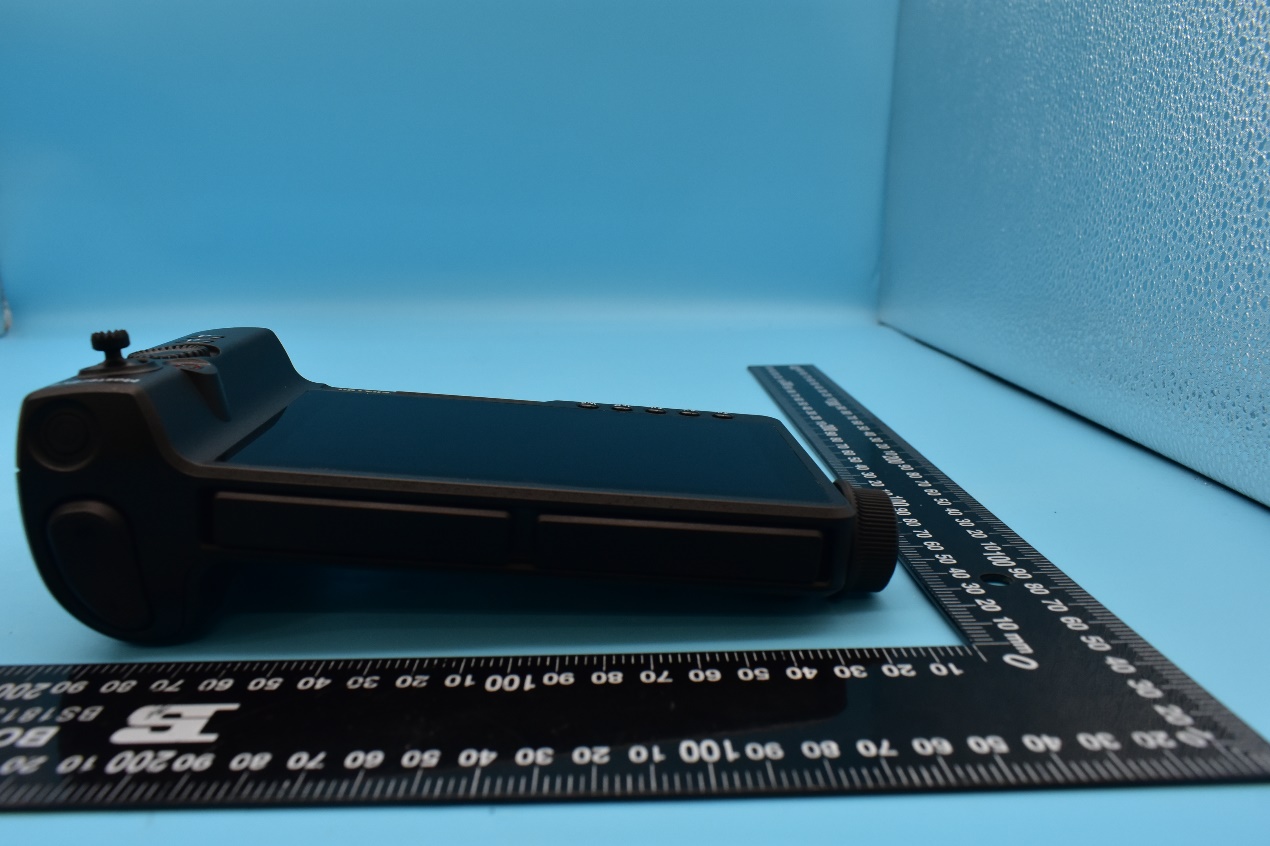

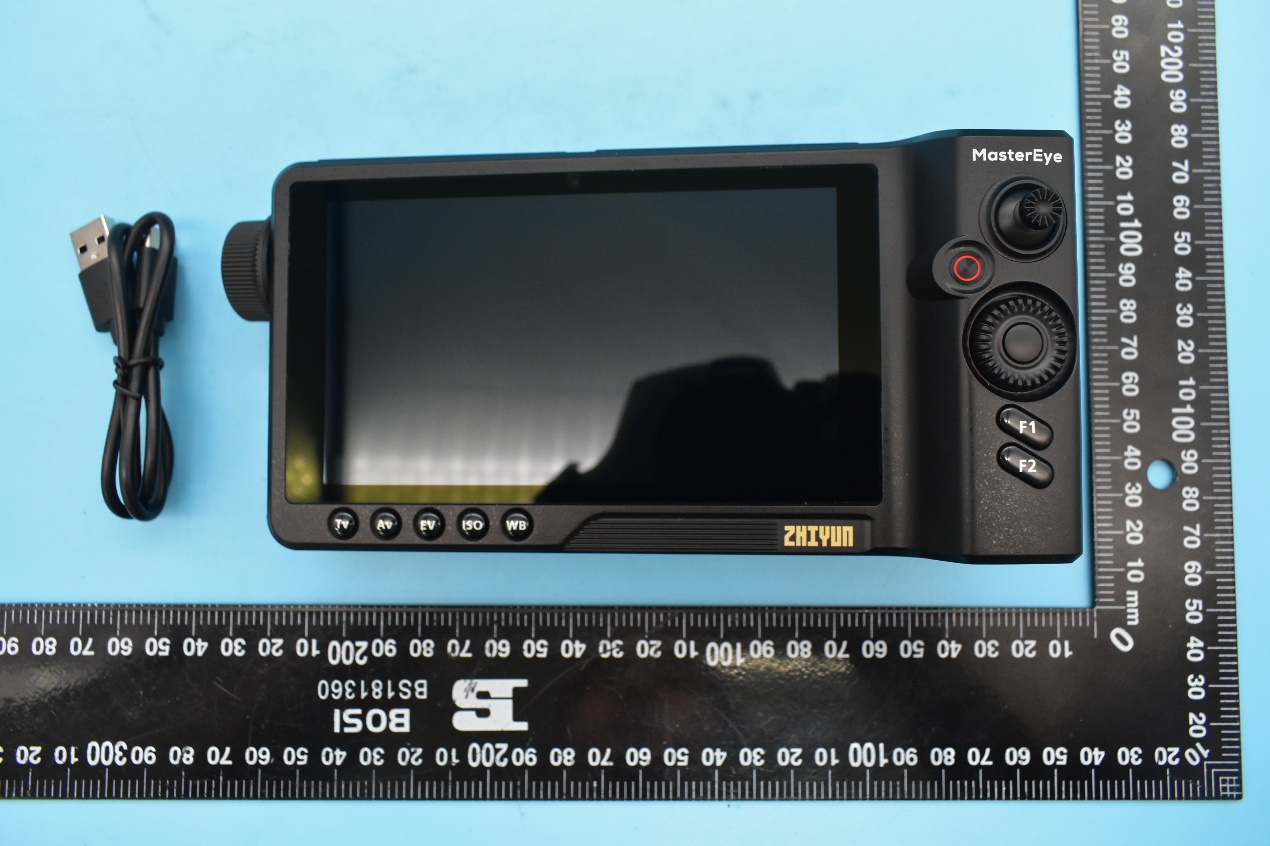

FCC ID:2AIHFZYCOV-04, MODEL NAME:COV-04 External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessories

Label Label location Lable Material:Pi material Label size:34.8*20.8mm Siz of MIC logo: 3.0*3.0mm Color:gray text on a Black background Product label:Sticker

FCC ID:2AIHFZYCOV-04, MODEL NAME:COV-04 Internal Photos 1. EUT uncover view 2. Antenna view WIFI Antenna

MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20120032S01 Annex C Plots of System Performance Check Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.03.01 System Check_5250MHz_Head Communication System: UID 0, CW (0); Frequency: 5250 MHz;Duty Cycle: 1:1 Medium: HSL_5250 Medium parameters used: f = 5250 MHz; σ = 4.752 S/m; ε r = 34.968; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(5.54, 5.54, 5.54); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW5250/Area Scan (101x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 23.7 W/kg CW5250/Zoom Scan (7x7x13)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 54.10 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 44.0 W/kg SAR(1 g) = 7.91 W/kg; SAR(10 g) = 2.29 W/kg Maximum value of SAR (measured) = 22.9 W/kg 0 dB = 23.7 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.03.02 System Check_5750MHz_Head Communication System: UID 0, CW (0); Frequency: 5750 MHz;Duty Cycle: 1:1 Medium: HSL_5750 Medium parameters used: f = 5750 MHz; σ = 5.13 S/m; ε r = 34.388; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(4.86, 4.86, 4.86); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW5750/Area Scan (101x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 15.1 W/kg CW5750/Zoom Scan (7x7x13)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 34.83 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 38.9 W/kg SAR(1 g) = 7.86 W/kg; SAR(10 g) = 2.22 W/kg Maximum value of SAR (measured) = 15.8 W/kg 0 dB = 15.1 W/kg

MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20120032S01 Annex D Plots of Maximum SAR Test Results Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.03.01 WLAN 5.2GHz_802.11a 6Mbps_Back Side_0mm_Open 90degrees_Ch48_Ant 0 Communication System: UID 0, WLAN 5GHz (0); Frequency: 5240 MHz;Duty Cycle: 1:1 Medium: HSL_5250 Medium parameters used: f = 5240 MHz; σ = 4.685 S/m; ε r = 36.07; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(5.54, 5.54, 5.54); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch48/Area Scan (121x161x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 3.22 W/kg Ch48/Zoom Scan (7x7x16)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 3.196 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 5.44 W/kg SAR(1 g) = 1.77 W/kg; SAR(10 g) = 0.695 W/kg Maximum value of SAR (measured) = 3.11 W/kg 0 dB = 3.11 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.03.01 WLAN 5.2GHz_802.11n-HT40 MCS0_Front Side_0mm_Open 90degrees_Ch38_Ant 1 Communication System: UID 0, WLAN 5GHz (0); Frequency: 5190 MHz;Duty Cycle: 1:1.034 Medium: HSL_5250 Medium parameters used: f = 5190 MHz; σ = 4.63 S/m; ε r = 36.154; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(5.54, 5.54, 5.54); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch38/Area Scan (121x161x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.579 W/kg Ch38/Zoom Scan (7x7x16)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 0 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 1.21 W/kg SAR(1 g) = 0.310 W/kg; SAR(10 g) = 0.093 W/kg Maximum value of SAR (measured) = 0.623 W/kg 0 dB = 0.623 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.03.02 WLAN 5.8GHz_802.11a 6Mbps_Front Side_0mm_Open 90degrees_Ch157_Ant 0 Communication System: UID 0, WLAN 5GHz (0); Frequency: 5785 MHz;Duty Cycle: 1:1 Medium: HSL_5750 Medium parameters used: f = 5785 MHz; σ = 5.333 S/m; ε r = 35.097; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(4.86, 4.86, 4.86); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch157/Area Scan (121x161x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.41 W/kg Ch157/Zoom Scan (7x7x16)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 0.4490 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 2.28 W/kg SAR(1 g) = 0.645 W/kg; SAR(10 g) = 0.216 W/kg Maximum value of SAR (measured) = 1.26 W/kg 0 dB = 1.26 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.03.02 WLAN 5.8GHz_802.11n-HT20 MCS0_Front Side_0mm_Open 90degrees_Ch149_Ant 1 Communication System: UID 0, WLAN 5GHz (0); Frequency: 5745 MHz;Duty Cycle: 1:1.017 Medium: HSL_5750 Medium parameters used: f = 5745 MHz; σ = 5.291 S/m; ε r = 35.168; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(4.86, 4.86, 4.86); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch149/Area Scan (121x161x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.806 W/kg Ch149/Zoom Scan (7x7x16)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 0 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 1.85 W/kg SAR(1 g) = 0.455 W/kg; SAR(10 g) = 0.148 W/kg Maximum value of SAR (measured) = 0.860 W/kg 0 dB = 0.860 W/kg

MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20120032S01 Annex E DASY Calibration Certificate

Annual validation for test lab. Appendix Annual validation for Test Lab. General calibration information Date 2020.10.25 Test Laboratory ShenZhen Morlab Communications Technology Co., Ltd. Antenna serial No. D5GHzV2-SN:1176 A ntenna Parameters with Head TSL at 5250 MHz Impedance, transformed to feed point 51.35Ω+3.85jΩ Return Loss -27.9dB Antenna Parameters Head TSL at 5600 MHz Impedance, transformed to feed point 44.7Ω+2.96jΩ Return Loss -23.87dB Antenna Parameters Head TSL at 5750 MHz Impedance, transformed to feed point 46.84Ω+0.95jΩ Return Loss -29.36dB General Antenna Parameters and Design Electrical Delay (one direction) 1.276 ns A fter long term use with 100W radiated power，only a slight warming of the dipole near the feed point can be measured The dipole is made of standard semirigid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC-signals. On some of the dipoles, small end caps are added to the dipole arms in order to improve matching when loaded according to the position as explained in the "Measurement Conditions" paragraph. The SAR data are not affected by this change. The overall dipole length is still according to the Standard No excessive force must be applied to the dipole arm， because they might bend or the soldered connections near the feed point may be damaged . Annual validation for test lab. Test Labor atory: Shenzhe n Morlab Communications Technology C o., Ltd. Date: 2020.10.25 System Check_5250MHz_Head Communication System: UID 0, CW (0); Frequency: 5250 MHz;Duty Cycle: 1:1 Medium: HSL_5250 Medium parameters used: f = 5250 MHz; σ = 4.532 S/m; ε r = 34.968; ρ = 1000 kg/m 3 Ambient Temperature：23.1 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(5.29, 5.29, 5.29); Calibrated: 2020.01.03; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW5250/Area Scan (101x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 6.92 W/kg CW5250/Zoom Scan (7x7x13)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Va l u e = 37.81 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 27.5 W/kg SAR(1 g) = 7.93 W/kg; SAR(10 g) = 2.26 W/kg Maximum value of SAR (measured) = 7.02 W/kg 0 dB = 7.02 W/kg Annual validation for test lab. Test Labor atory: Shenzhe n Morlab Communications Technology C o., Ltd. Date: 2020.10.25 System Check_5600MHz_Head Communication System: UID 0, CW (0); Frequency: 5600 MHz;Duty Cycle: 1:1 Medium: HSL_5600 Medium parameters used: f = 5600 MHz; σ = 5.209 S/m; ε r = 36.098; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(4.53, 4.53, 4.53); Calibrated: 2020.01.03; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW5600/Area Scan (101x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 25.9 W/kg CW5600/Zoom Scan (7x7x13)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Va l ue = 48.86 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 47.4 W/kg SAR(1 g) = 8.19 W/kg; SAR(10 g) = 2.39 W/kg Maximum value of SAR (measured) = 25.9 W/kg 0dB=25.9 W/kg Annual validation for test lab. Test Labor atory: Shenzhe n Morlab Communications Technology C o., Ltd. Date: 2020.10.25 System Check_5750MHz_Head Communication System: UID 0, CW (0); Frequency: 5750 MHz;Duty Cycle: 1:1 Medium: HSL_5750 Medium parameters used: f = 5750 MHz; σ = 5.374 S/m; ε r = 35.896; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(4.59, 4.59, 4.59); Calibrated: 2020.01.03; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW5750/Area Scan (101x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 24.6 W/kg CW5750/Zoom Scan (7x7x13)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 49.59 V/m; Power Drift = - 0.11 dB Peak SAR (extrapolated) = 51.0 W/kg SAR(1 g) = 8.06 W/kg; SAR(10 g) = 2.28 W/kg Maximum value of SAR (measured) = 24.9 W/kg 0dB=24.6 W/kg Annual validation for test lab. Appendix Impedance Measurement Plot for Head TSL

NOTE: This document is issued by MORLAB, the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 45 REPORT No.：SZ20120032S01 TEST REPORT APPLICANT : Guilin Zhishen Information Technology Co.,Ltd. PRODUCT NAME : ZHIYUN MasterEye Visual Controller VC100 MODEL NAME : COV-04 BRAND NAME : ZHIYUN FCC ID : 2AIHFZYCOV-04 STANDARD(S) : FCC 47CFR Part 2(2.1093) RECEIPT DATE : 2020-12-26 TEST DATE : 2021-03-01 to 2021-03-02 ISSUE DATE : 2021-03-02 Edited by : Liang Yumei (Rapporteur) Approved by: Peng Huarui (Supervisor) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 45 REPORT No.：SZ20120032S01 DIRECTORY 1. SAR Results Summary ········································································································ 4 2. Technical Information ········································································································· 5 2.1. Applicant and Manufacturer Information ······································································ 5 2.2. Equipment under Test (EUT) Description ····································································· 5 2.3. Environment of Test Site/Conditions ············································································· 6 3. Specific Absorption Rate (SAR) ························································································ 7 3.1. Introduction ······················································································································· 7 3.2. SAR Definition ··················································································································· 7 4. RF Exposure Limits ············································································································· 8 5. Applied Reference Documents ·························································································· 9 6. SAR Measurement System ······························································································· 10 6.1. E-Field Probe ··················································································································· 11 6.2. Data Acquisition Electronics (DAE) ············································································· 12 6.3. Robot ································································································································ 12 6.4. Measurement Server ······································································································ 12 6.5. Light Beam Unit ·············································································································· 13 6.6. Phantom ··························································································································· 13 6.7. Device Holder ·················································································································· 14 6.8. Data Storage and Evaluation ························································································ 15 6.9. Test Equipment List ······································································································· 17 7. Tissue Simulating Liquids ································································································ 18 8. SAR System Verification ··································································································· 20 9. EUT Testing Position ········································································································· 23 9.1. Hotspot Mode Exposure Position Conditions ···························································· 23 10. Measurement Procedures ······························································································ 24 10.1. Spatial Peak SAR Evaluation ······················································································ 24 MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 45 REPORT No.：SZ20120032S01 10.2. Power Reference Measurement ·················································································· 25 10.3. Area Scan Procedures ································································································· 25 10.4. Zoom Scan Procedures ······························································································· 26 10.5. SAR Averaged Methods ······························································································· 26 10.6. Power Drift Monitoring ································································································· 26 11. SAR Test Procedure ········································································································ 27 11.1. General scan Requirements ························································································ 27 11.2. Test procedure ························································…

Text truncated - open the document above for the full version.

REPORT No.：SZ20120032W01 TEST REPORT APPLICANT : Guilin Zhishen Information Technology Co.,Ltd. PRODUCT NAME : ZHIYUN MasterEye Visual Controller VC100 MODEL NAME : COV-04 BRAND NAME : ZHIYUN FCC ID : 2AIHFZYCOV-04 STANDARD(S) : 47 CFR Part 15 Subpart E RECEIPT DATE : 2020-09-10 TEST DATE : 2020-09-15 to 2020-12-24 ISSUE DATE : 2021-02-03 Edited by: Peng Mi (Rapporteur) Approved by: Peng Huarui (Supervisor) NOTE: This document is issued by MORLAB, the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 74 REPORT No.：SZ20120032W01 DIRECTORY 1. Technical Information ··················································································· 3 1.1. Applicant and Manufacturer Information ······················································· 3 1.2. Equipment Under Test (EUT) Description ······················································ 3 1.3. Modulation Type and Data Rate of EUT ························································· 5 1.4. The Channel Number and Frequency ··························································· 5 1.5. Test Standards and Results ········································································ 6 1.6. Environmental Conditions ·········································································· 7 2. 47 CFR Part 15E Requirements ······································································ 8 2.1. Antenna Requirement ················································································ 8 2.2. Duty Cycle of the Test Signal ······································································· 9 2.3. Maximum Conducted Output Power ···························································· 12 2.4. Emission Bandwidth ················································································· 16 2.5. Peak Power Spectral Density ····································································· 28 2.6. Frequency Stability ··················································································· 40 2.7. Conducted Emission ················································································· 42 2.8. Restricted Frequency Bands ······································································ 46 2.9. Radiated Emission ···················································································· 56 Annex A Test Uncertainty ················································································ 70 Annex B Testing Laboratory Information ··························································· 71 Change History Version Date Reason for change 1.0 2021-02-03 First edition MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 74 REPORT No.：SZ20120032W01 1. Technical Information Note: Provide by applicant. 1.1. Applicant and Manufacturer Information Applicant: Guilin Zhishen Information Technology Co.,Ltd. Applicant Address: 09 Huangtong Road, Tieshan Industrial Zone, Qixing District, Guilin, Guangxi, China Manufacturer: Guilin Zhishen Information Technology Co.,Ltd. Manufacturer Address: 09 Huangtong Road, Tieshan Industrial Zone, Qixing District, Guilin, Guangxi, China 1.2. Equipment Under Test (EUT) Description Product Name: ZHIYUN MasterEye Visual Controller VC100 Serial No.: (N/A, marked #1 by test site) Hardware Version: V1.0 Software Version: V1.0.0 Modulation Type: OFDM Modulation Mode: 802.11a, 802.11n (HT20), 802.11n (HT40) Operating Frequency Range: 5180MHz–5240MHz; 5745MHz-5825MHz Channel Number: Refer to 1.3 Antenna Type: External Antenna Antenna Gain: ANT A: 3.44dBi; ANT B: 3.44dBi Directional Gain: 6.45dBi Note 3 Accessory Information: Battery Brand Name: N/A Model No.: 3X18650-2200mAh Serial No.: (N/A, marked #1 by test site) Capacity: 2200mAh Rated Voltage: 11.1V Charge Limit: 12.6V Manufacturer: DongGuan Howell Engergy Co., Ltd MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen ,GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 74 REPORT No.：SZ20120032W01 Note 1: This test report is variant from the original report (Report No.: SZ20090099W01), based on the similarity between before, changed the product name, software version, model name and FCC ID, two models only the WiFi module and the power supply mode of the WiFi module is the same. All others are dif…
