2AIHFZYCR128WEEBILL 3S Camera Stabilizer

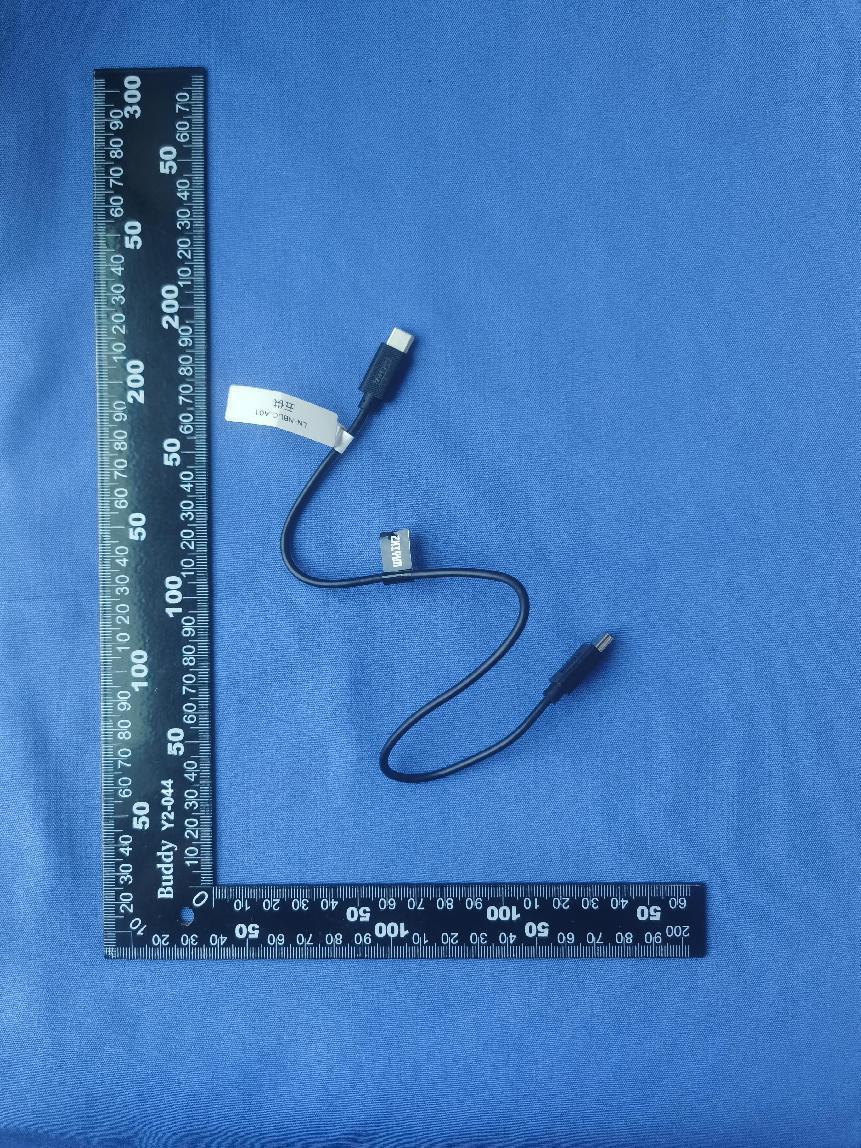

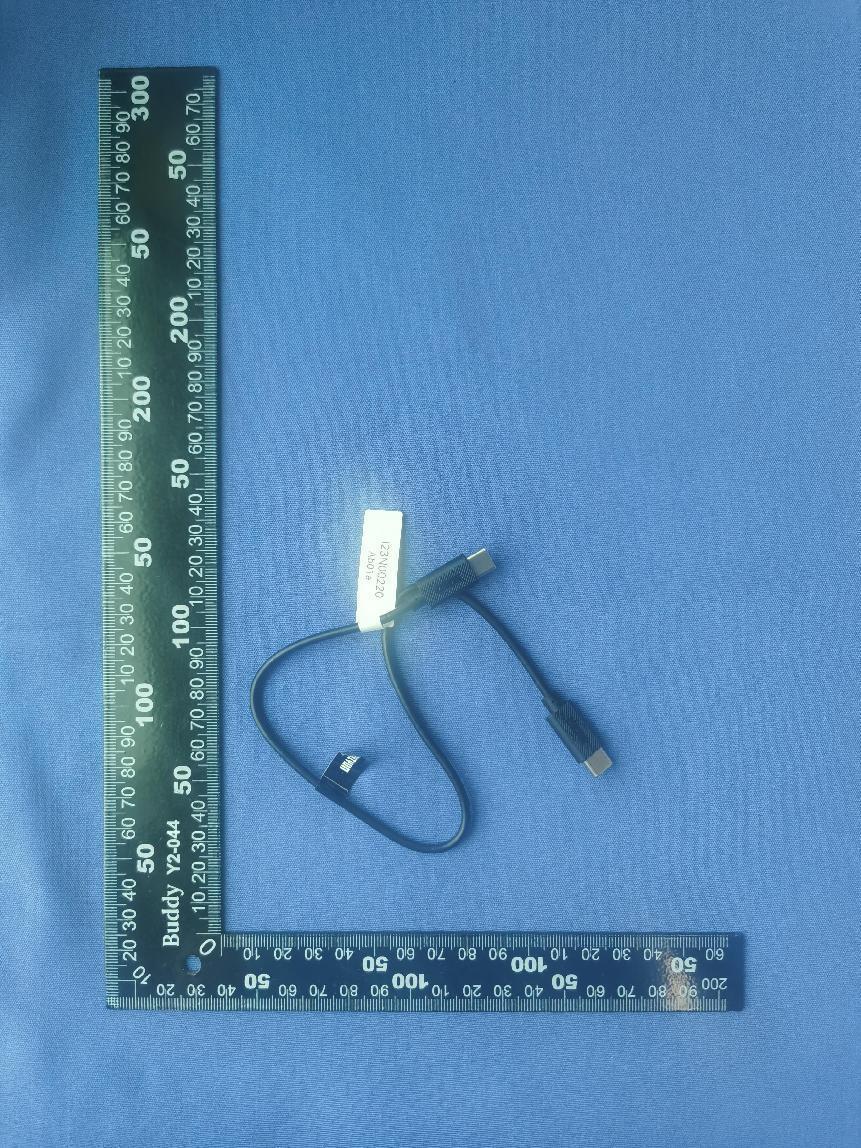

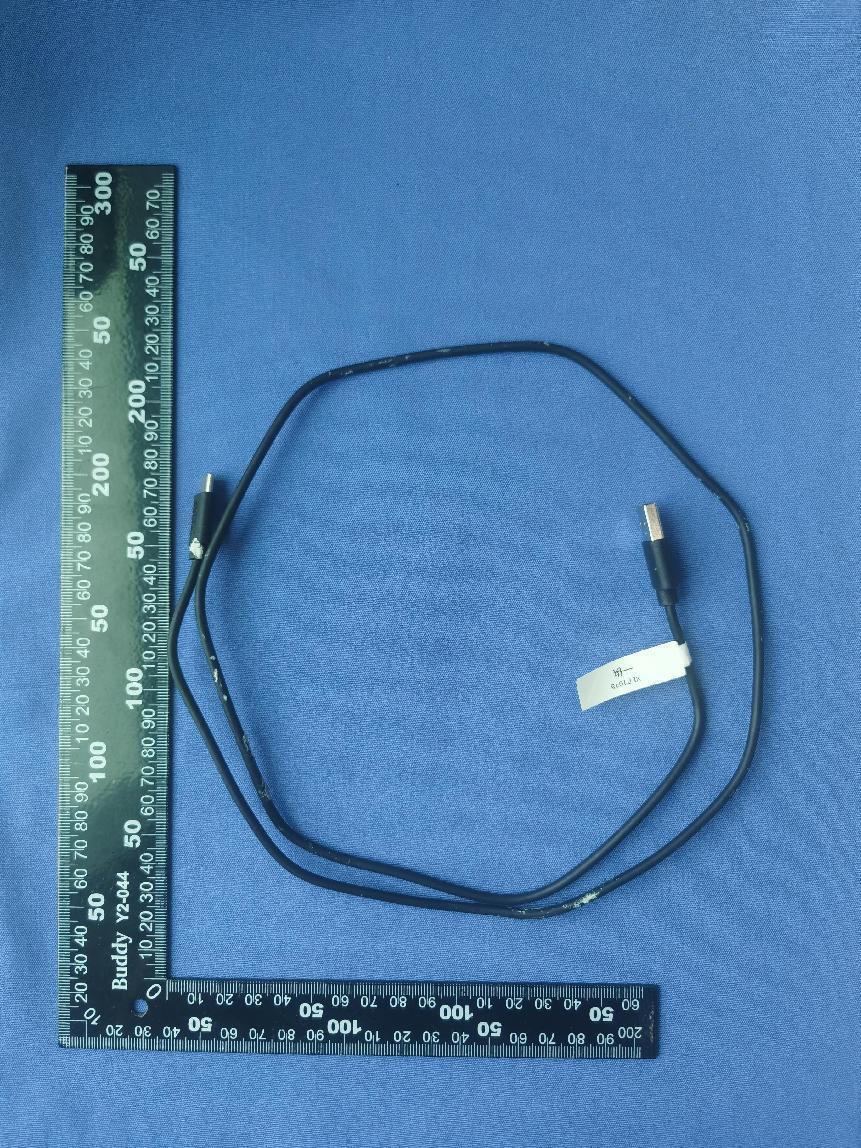

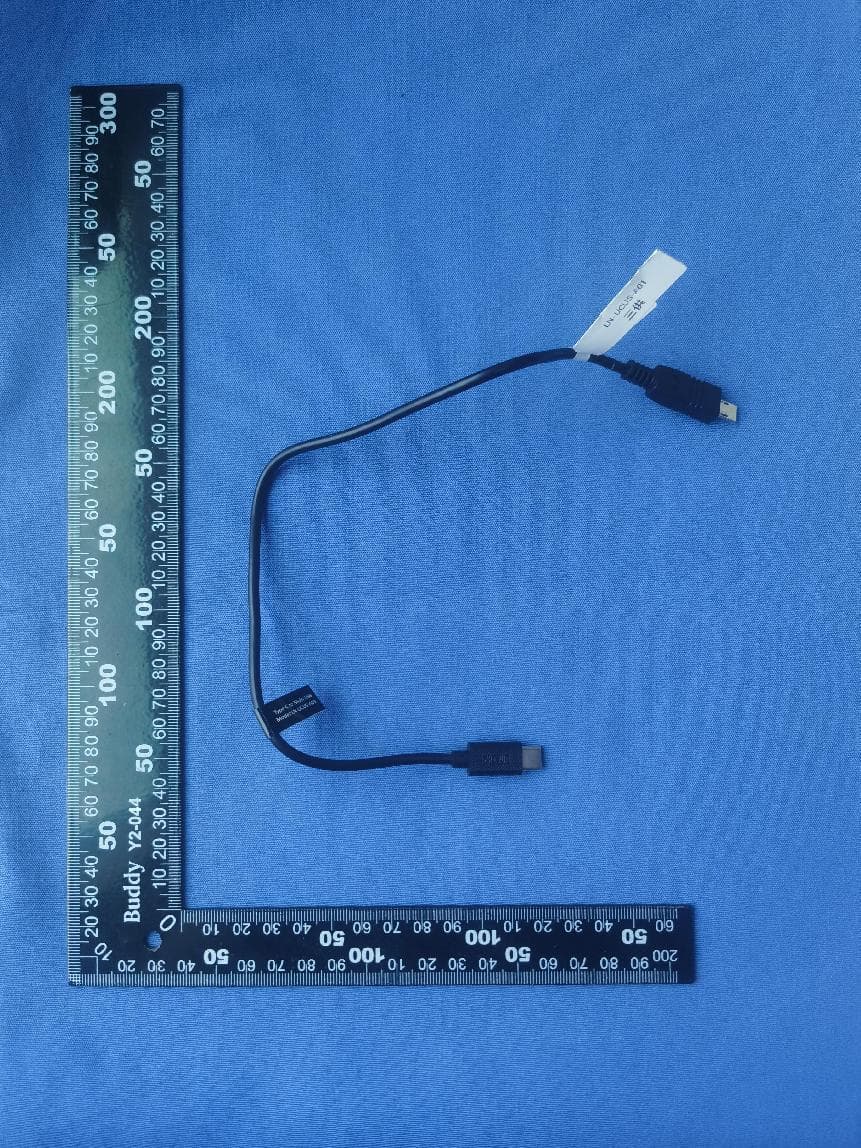

Model：CR128 Product List Before using this product, please check carefully that all the following items are included in the product package. In case that any item is found missing, please contactZHIYUNoryourlocalsellingagent. Gimbalx1(图 1)Quick Release Plate x1(图 2) Tripod x1(图 3)Camera Backing Base x1(图 4) Lens Support x1(图 5)Quick Start Guide x1(图 6) Lens Support Lock Screw x1 USB Type-C Cable x1(图 7)Type-C to Mini USB LN-NBUC-A01 Camera Control Cable x1(图 8) Type-C to Micro USB LN-MBUC-A02Type-C to Type-C USB LN-UCUC-A02 Camera Control Cable x1(图 9)Camera Control Cable x1(图 10) Type-C to Multi USB LN-UCUS-A03Sling Grip x1 *(图 12) Camera Control Cable x1(图 11) Wrist Restx1*(图 13)Sling Grip/Wrist Rest Basex1*(图 14) Backpack x1*(图 15) Items marked“*”are included in WEEBILL 3S COMBO. Get to Know WEEBILL 3S (图 16)(图 17) 1. Camera Backing Base 2. Lens Support 3. Lens Support Lock Screw 4. Level Mount Lock Screw 5. Level Mount 6. Quick Release Plate Latch 7. Quick Release Plate Leveling Base Latch 8. Pan Axis Lock Switch 9. Pan Axis Motor 10. Joystick 11. Photo/Video Button 12. Firmware Upgrade/Charging Port 13. 1/4" Threaded Hole 14. Tilt Axis Motor 15. Camera/Image Transmission Control Port 16. Roll Axis Motor 17. Roll Axis Lock Switch 18. Display Screen 19. Mode Switch 20. Gimbal Handle 21. Tripod 22. Tilt Axis Lock Switch 23. Focus Motor Control Port 24. Pan Axis Latch 25. Power Button 26. Menu/Return Button 27. Fill Light Control Wheel 28. Fill Light 29. Leveling Base Lock Screw 30. Quick Release Plate Safety Lock 31. Quick Release Plate 32. Level Mount Lock Screw 33. Trigger Button 34. Control Wheel Battery and Charging WEEBILL 3S adopts built-in battery. When using WEEBILL 3S for the first time, please activate the gimbal by fully charging the battery to ensure the proper function of the gimbal. Charging method: Use provided USB Type-C cable to connect the USB charger (not included in the package) to charge WEEBILL 3S. It is recommended to use USB chargers that meet the PD protocol. (supports 14W PD charging at most). AC Power USB Charger USB Type-C Cable (图 18) ①USB charger is not provided. ②Please power off WEEBILL 3S to charge. Mounting and Balancing Mounting the Tripod Mount the tripod to the bottom of the WEEBILL 3S handle, then unfold the tripod and place the WEEBILL 3S on a flat surface. (图 19)(图 20) Mounting the Camera Each axis of the gimbal is equipped with a lock switch. You can use these lock switches to lock the axes for convenient installation and storage. The storage state is the default state. Please toggle the lock switch to unlock the three axes,expand the gimbal as shown in the image, and lock the axes again for convenient camera installation. Locked state for storage(图 21)Locked state for installation(图 22) ① Please mount the camera before powering on WEEBILL 3S and balance the gimbal. Do not power on WEEBILL 3S when there’s no camera mounted on it. ② Before mounting the camera, make sure it is prepared ahead of time. Remove the lens cap and make sure the camera’s battery and memory card are already in place. Mount the camera on the camera backing base and tighten screw ①. Install the camera backing base and camera on the quick release plate ② and tighten the screw ③. Install the lens support to the quick release plate, adjust the lens support on the quick release plate to support the lens and ensure it is stable ④. Tighten thescrew⑤. (图 23)(图 24) ① Generally, it is only necessary to install a camera backing base when the size and weight of the lens are larger than that of the camera itself. You can determine whether to install a camera backing base according to actual usage. ② When the camera lens is long and heavy, it is necessary to install a camera lens support to ensure stable installation of the lens. You can decide whether to install a camera lens support according to your actual needs. （2）Installation for Landscape Orientation Unlock the quick release plate latch ①, install the quick release plate andcamera onto the quick release plate leveling base② and then tighten the latch ③. (图 25)(图 26) （3） Installation for Portrait Orientation Unlock the quick release plate leveling base latch ①. Press and hold the leveling base safety lock ② and push the leveling base to the left until the it is removed from the level mount ③. Install the camera and quick release plate as a whole onto the leveling base ④ and tighten the latch ⑤. Install the camera, quick release plate, and leveling base as a whole onto the level mount ⑥. Tighten the leveling base lock screw ⑦. (图 27)(图 28) (图 29)(图 30) When disassembling at horizontal orientation, please unlock the quick release platelatch①andholddownthesafetylockofthequickreleaseplate②to remove the camera and quick release plate as a whole ③. (图 31) When disassembling at portrait orientation, please loosen the screw thatlocks the leveling base ①, and hold down the safety lock of the leveling base ② to remove the camera, quick release plate and leveling base as a whole from level mount③. (图 32) Connect the camera control cable to the camera control port and the camera/image transmission control port of the gimbal. (图 33) There are four camera control cables: Type-C to Multi USB/Type-C to Type-CUSB / Type-C to Micro USB / Type-C to Mini USB. Choose the correct cable corresponding to the USB port type of the camera. For compatibility details, please visit the official website of ZHIYUN (www.zhiyun-tech.com) and check the WEEBILL 3S Camera Compatibility List. Installing TransMount Wrist Rest2S and TransMount Extendable Sling Grip 2S (hereinafter referred to as “Sling Grip” and “Wrist Rest” ) Installing Sling Grip/Wrist Rest Base Align the installation screws of the sling grip/wrist rest base with the 1/4" screw hole on the bottom of the WEEBILL 3S handle ① and tighten the two screws ②. Hold down the safety lock of the sling grip/wrist rest base③, align the guiderails of the base with the base connector in the direction shown in the fig…
